Model Electrolux 417.99165100 Laundry Center (Kenmore 41799165100) – Common Parts & Diagrams

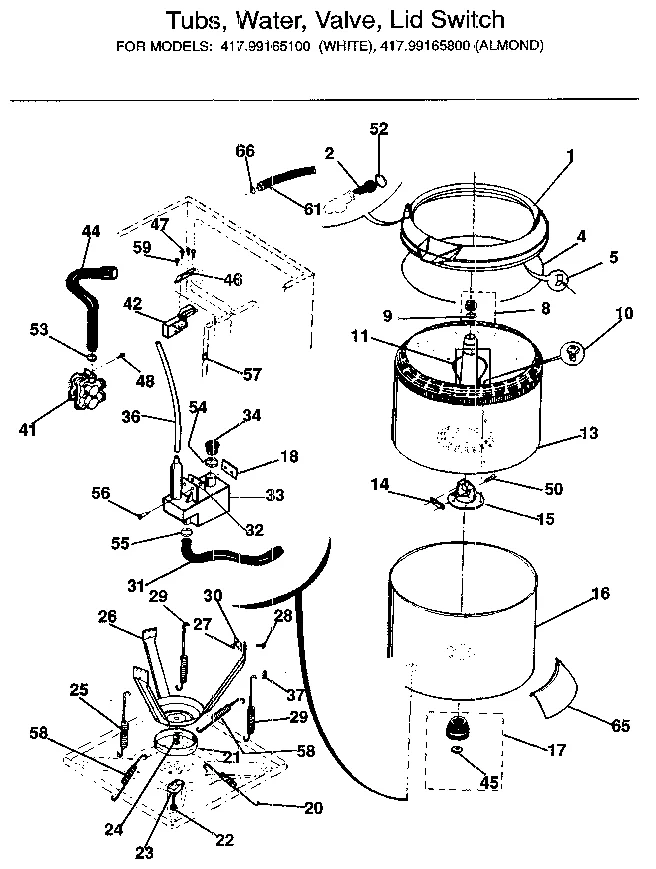

TUBS, WATER, VALVE, LID SWITCH

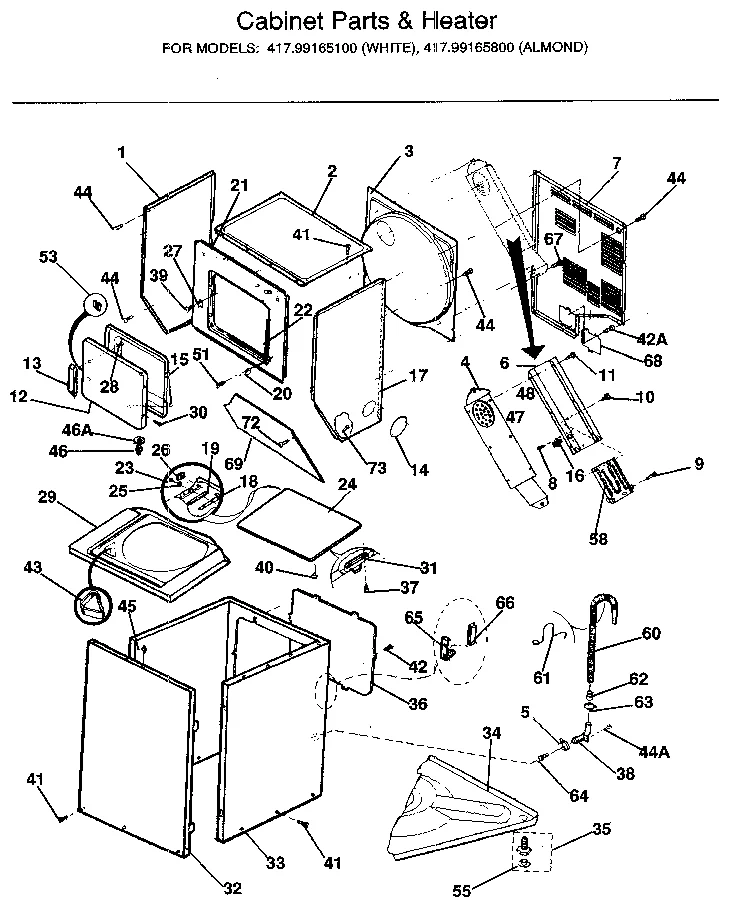

CABINET PARTS & HEATER

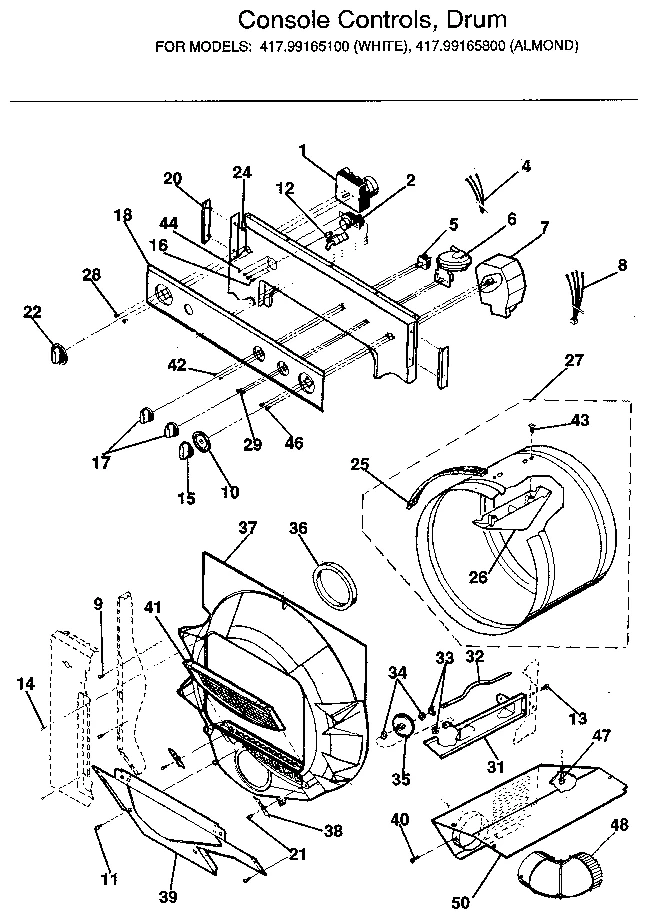

CONSOLE CONTROLS, DRUM

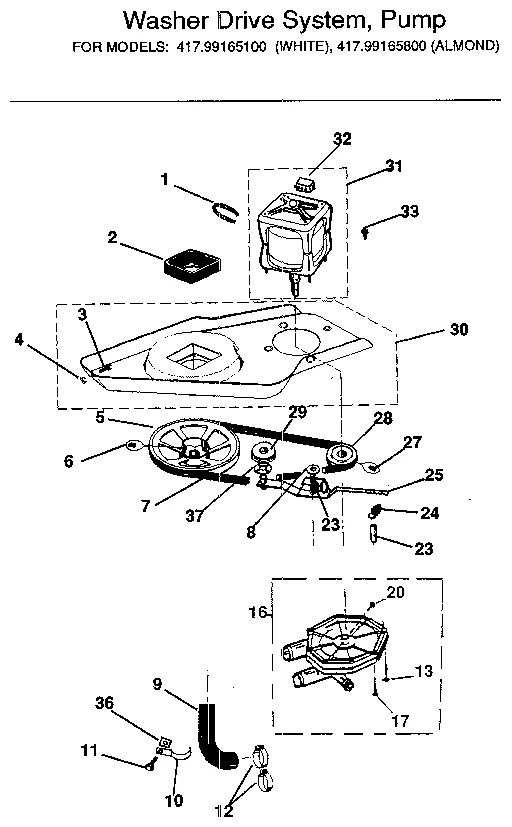

WASHER DRIVE SYSTEM, PUMP
All Parts

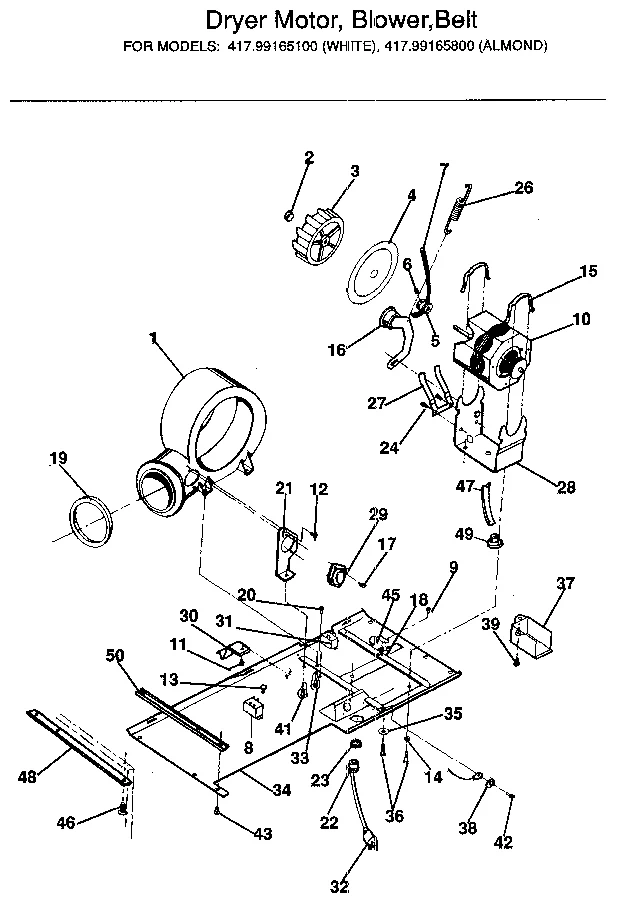

DRYER MOTOR, BLOWER, BELT

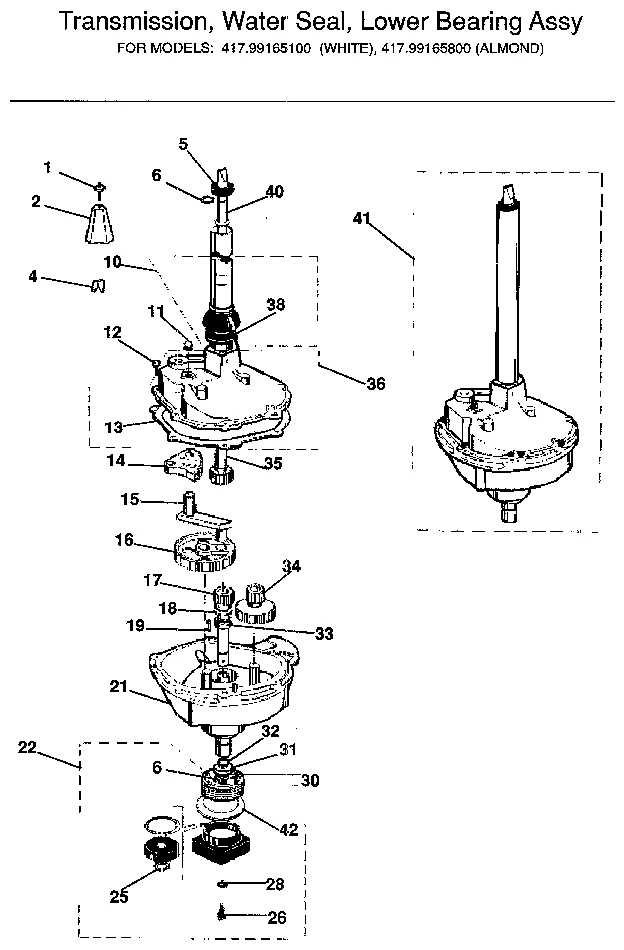

TRANSMISSION, WATER SEAL, LOWER BEARING ASSY
Common parts from model Electrolux 417.99165100 Laundry Center (Kenmore 41799165100)
1
Laundry Center Timer WCI 5303207217 Contact Us For Availability
1
Housing WCI 5303209767 Contact Us For Availability
1
Screw WCI 3161221 Contact Us For Availability
1A
Panel (White) WCI 5303209761 Contact Us For Availability
1B
Panel (Almond) WCI 5303209762 Contact Us For Availability
2
Switch WCI 5303209765 Contact Us For Availability
2
Cushion WCI 5377009100 Contact Us For Availability
2
Hub WCI 5303280324 Contact Us For Availability
2A
Panel (White) WCI 3204948 Contact Us For Availability
2B
Panel (Almond) WCI 3204949 Contact Us For Availability
3
Laundry Center Dryer Blower Wheel WCI 5303209769 Contact Us For Availability
3
Panel WCI 3017111 Contact Us For Availability
3
Screw WCI 3161211 Contact Us For Availability
4
Front Duct WCI 08015820 Contact Us For Availability
4
Harness WCI 5303210202 Contact Us For Availability
4
Nut WCI 3161212 Contact Us For Availability
4
Laundry Center Blower Plate WCI 5303209970 Contact Us For Availability
4
Shim WCI 5303280325 Contact Us For Availability
5
Laundry Center Washer Water Temperature Switc WCI 5303017895 Contact Us For Availability
5
Clamp WCI 5364154013 Contact Us For Availability
5
Pulley WCI 5303205951 Contact Us For Availability
5
Pulley WCI 08015796 Contact Us For Availability
6
Washer Screw WCI 5303270023 Contact Us For Availability
6
Duct WCI 3205055 Contact Us For Availability
6
Switch WCI 5303208634 Contact Us For Availability
6
Screw WCI 08027520 Contact Us For Availability
6
Ring WCI 3161223 Contact Us For Availability
7
Timer WCI 5303017897 Contact Us For Availability
7
Panel WCI 3016426 Contact Us For Availability
7
Belt WCI 3161099 Contact Us For Availability
8
Harness WCI 3204998 Contact Us For Availability
8
Bushing WCI 08027535 Contact Us For Availability
8
Relay WCI 3205062 Contact Us For Availability
9
Screw WCI 3161234 Contact Us For Availability
9
Screw WCI 3161240 Contact Us For Availability
9
Hose WCI 5303209450 Contact Us For Availability
10
Dial WCI 3204999 Contact Us For Availability
10
Clamp WCI 3161301 Contact Us For Availability
10
Motor WCI 5303209771 Contact Us For Availability
10
Seal Kit WCI 08950197 Contact Us For Availability
11
Screw WCI 3017890 Contact Us For Availability
11
Screw WCI 3205020 Contact Us For Availability
11
Plug WCI 3161224 Contact Us For Availability
12
Switch WCI 3205000 Contact Us For Availability
12
Clamp WCI 3004826 Contact Us For Availability
12
Screw WCI 08002804 Contact Us For Availability
12A
Outer Door (White) WCI 3016427 Contact Us For Availability
12B
Outer Door (Almond) WCI 3016429 Contact Us For Availability
13
Screw WCI 08002390 Contact Us For Availability
13
Screw, 2-pack WCI 136317000 Contact Us For Availability
13
Gasket WCI 08015778 Contact Us For Availability
13A
Door Handle (White) WCI 3016430 Contact Us For Availability
13B
Door Handle (Almond) WCI 3016432 Contact Us For Availability
14
Screw WCI 3161243 Contact Us For Availability
14
Washer WCI 5363602000 Contact Us For Availability
14
Gear WCI 08011268 Contact Us For Availability
14A
Cover (White) WCI 3204952 Contact Us For Availability
14B
Cover (Almond) WCI 3204953 Contact Us For Availability
15
Knob WCI 3205001 Contact Us For Availability
15
Motor Clip WCI 08002293 Contact Us For Availability
15
Rod WCI 3161169 Contact Us For Availability
15A
Door (White) WCI 3016433 Contact Us For Availability
15B
Door (Almond) WCI 3016435 Contact Us For Availability
16
Thermostat WCI 08015853 Contact Us For Availability
16
Screw WCI 08001544 Contact Us For Availability
16
Pump WCI 08015864 Contact Us For Availability
16
Wheel WCI 5303161103 Contact Us For Availability
16
Gear WCI 08015496 Contact Us For Availability
17
Laundry Center Control Knob WCI 3205004 Contact Us For Availability
17
Shaft WCI 08014905 Contact Us For Availability
17A
Panel (White) WCI 5303209763 Contact Us For Availability
17B
Panel (Almond) WCI 5303209764 Contact Us For Availability
18
Panel WCI 5303280357 Contact Us For Availability
18
Terminal WCI 5379171000 Contact Us For Availability
18
Spacer WCI 3161226 Contact Us For Availability
18A
Bar WCI 3204956 Contact Us For Availability
19
Gasket-hinge WCI 3204957 Contact Us For Availability
19
Gasket WCI 3205021 Contact Us For Availability
19
Pin WCI 3161227 Contact Us For Availability
20
Screw WCI 08011280 Contact Us For Availability
20
Hinge WCI 3204959 Contact Us For Availability
20
Trim WCI 3205006 Contact Us For Availability
20
Screw WCI 3161217 Contact Us For Availability
21
Snubber WCI 08002385 Contact Us For Availability
21
Bracket WCI 3016464 Contact Us For Availability
21
Housing WCI 5303912535 Contact Us For Availability
21A
Panel (White) WCI 3204961 Contact Us For Availability
21B
Panel (Almond) WCI 3204963 Contact Us For Availability
22
Screw WCI 3161284 Contact Us For Availability
22
Seal WCI 3204964 Contact Us For Availability
22
Knob WCI 3205007 Contact Us For Availability
22
Housing WCI 08950058 Contact Us For Availability
23
Block WCI 3161202 Contact Us For Availability
23
Screw WCI 5303211089 Contact Us For Availability
23
Spacer WCI 3161303 Contact Us For Availability
23
Plug WCI 3205063 Contact Us For Availability
24
Nut WCI 3161203 Contact Us For Availability
24
Nut WCI 3205008 Contact Us For Availability
24
Spring WCI 08002456 Contact Us For Availability
24
Screw WCI 3161268 Contact Us For Availability
24A
Lid (White) WCI 3204965 Contact Us For Availability
24B
Lid (Almond) WCI 3204966 Contact Us For Availability
25
Spring WCI 3161131 Contact Us For Availability
25
Washer WCI 5308002408 Contact Us For Availability
25
Seal WCI 3205009 Contact Us For Availability
25
Arm WCI 5303937001 Contact Us For Availability
25
Ring WCI 08015536 Contact Us For Availability
26
Support WCI 3161132 Contact Us For Availability
26
Grommet Hinge WCI 3204362 Contact Us For Availability
26
Baffle WCI 3161076 Contact Us For Availability
26
Spring WCI 08015828 Contact Us For Availability
26
Washer WCI 08027582 Contact Us For Availability
27
Nut WCI 3161204 Contact Us For Availability
27
Latch Spring WCI 3016439 Contact Us For Availability
27
Drum WCI 3205010 Contact Us For Availability
27
Screw WCI 5303206869 Contact Us For Availability
27
Retainer WCI 08015824 Contact Us For Availability
28
Screw WCI 3161205 Contact Us For Availability
28
Screw WCI 135022000 Contact Us For Availability
28
Pulley WCI 5308006686 Contact Us For Availability
28
Cradle WCI 3016466 Contact Us For Availability
28
Spacer WCI 5303207426 Contact Us For Availability
29
Spring WCI 3161133 Contact Us For Availability
29
Thermostat WCI 5308004644 Contact Us For Availability
29A
Panel (White) WCI 5303207099 Contact Us For Availability
29B
Panel (Almond) WCI 5303207100 Contact Us For Availability
30
Plate WCI 5303269887 Contact Us For Availability
30
Screw WCI 3161187 Contact Us For Availability
30
Support WCI 5379494300 Contact Us For Availability
30
Clip WCI 3205023 Contact Us For Availability
30
Spacer Washer WCI 3351064 Contact Us For Availability
31
Hose WCI 08008997 Contact Us For Availability
31
Bracket WCI 3161080 Contact Us For Availability
31
Motor WCI 5308015502 Contact Us For Availability
31
Buzzer WCI 5308004087 Contact Us For Availability
31A
Bracket WCI 3161081 Contact Us For Availability
32
Shim WCI 3161285 Contact Us For Availability
32
Drum Roller Shaft WCI 5308004076 Contact Us For Availability
32
Switch WCI 08014888 Contact Us For Availability
32
Cord WCI 08004650 Contact Us For Availability
32A
Panel (White) WCI 3204973 Contact Us For Availability
32B
Panel (Almond) WCI 3204975 Contact Us For Availability
33
Trap WCI 5303206795 Contact Us For Availability
33
Retaining Ring WCI 3161255 Contact Us For Availability
33
Screw WCI 5303206864 Contact Us For Availability
33
Spring WCI 3161174 Contact Us For Availability
33A
Body (White) WCI 3204978 Contact Us For Availability
33B
Body (Almond) WCI 3204979 Contact Us For Availability
34
Grommet WCI 3161286 Contact Us For Availability
34
Base WCI 3161044 Contact Us For Availability
34
Roller Shaft Washer WCI 08012152 Contact Us For Availability
34
Base WCI 3205024 Contact Us For Availability
34
Gear WCI 3161175 Contact Us For Availability
35
Foot WCI 3937004 Contact Us For Availability
35
Roller WCI 08004077 Contact Us For Availability
36
Panel WCI 3204980 Contact Us For Availability
36
Gasket WCI 5303209445 Contact Us For Availability
36
Speed Nut WCI 08004096 Contact Us For Availability
36
Housing WCI 5303937039 Contact Us For Availability
37
Housing WCI 3205012 Contact Us For Availability
37
Shield WCI 3205025 Contact Us For Availability
38
Coupling WCI 3161452 Contact Us For Availability
38
Guide WCI 3205013 Contact Us For Availability
38
Washer WCI 3161194 Contact Us For Availability
38
Laundry Center Washer Gear Case Water Slinger WCI 5303272073 Contact Us For Availability
39
Rivet WCI 3161237 Contact Us For Availability
39
Cover WCI 3205014 Contact Us For Availability
40
Bumper WCI 3204981 Contact Us For Availability
40
Washer WCI 3161232 Contact Us For Availability
41
Laundry Center Dryer Lint Screen WCI 3205015 Contact Us For Availability
41
Mechanism WCI 5308057579 Contact Us For Availability
41A
Screw WCI 08001578 Contact Us For Availability
42
Switch WCI 3205033 Contact Us For Availability
42
Screw WCI 5303208454 Contact Us For Availability
42
Washer WCI 08057430 Contact Us For Availability
43
Dispenser WCI 3204983 Contact Us For Availability
44
Hose WCI 3205034 Contact Us For Availability
44
Screw WCI 08010804 Contact Us For Availability
44C
Screw WCI 5303209461 Contact Us For Availability
45
Locating Pin WCI 3204373 Contact Us For Availability
45
Retainer Ring WCI 08006557 Contact Us For Availability
46
Bracket WCI 3205035 Contact Us For Availability
46
Hinge Pin WCI 3016440 Contact Us For Availability
46A
Washer WCI 5303208633 Contact Us For Availability
47
Screw WCI 3204269 Contact Us For Availability
47
Screw WCI 3205016 Contact Us For Availability
48
Screw WCI 3010202 Contact Us For Availability
48
Fustat WCI 5303208647 Contact Us For Availability
48
Elbow WCI 3205017 Contact Us For Availability
48
Lower Brace WCI 3016468 Contact Us For Availability
49
Connector WCI 08006559 Contact Us For Availability
50
Shield WCI 3205018 Contact Us For Availability
50
Plate WCI 3016469 Contact Us For Availability
53
Clamp WCI 3161207 Contact Us For Availability
53
Strike Plate WCI 3016442 Contact Us For Availability
54
Clamp WCI 5308002367 Contact Us For Availability
55
Clamp WCI 08014913 Contact Us For Availability
55
Cushion WCI 3004083 Contact Us For Availability
56
Screw WCI 3161274 Contact Us For Availability
57
Clip WCI 3161287 Contact Us For Availability
57
Screw WCI 3161185 Contact Us For Availability
58
Spring WCI 5308006573 Contact Us For Availability
58
Heater WCI 08015795 Contact Us For Availability
60
Hose WCI 3205414 Contact Us For Availability
61
Retainer WCI 3204987 Contact Us For Availability
62
Valve WCI 5303208451 Contact Us For Availability
63
Clamp WCI 5364154015 Contact Us For Availability
64
Check Valve WCI 3204375 Contact Us For Availability
65
Shield WCI 5303280323 Contact Us For Availability
65
Bracket WCI 3161252 Contact Us For Availability
66
Capacitor WCI 08014903 Contact Us For Availability
68
Cover WCI 5303212087 Contact Us For Availability
69A
Panel (White) WCI 3204991 Contact Us For Availability
69B
Panel (Almond) WCI 3204992 Contact Us For Availability
72
Screw WCI 08011318 Contact Us For Availability
NI
Washer Timer Shaft Spacer WCI 5308015493 Contact Us For Availability
NI
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
NI
Siphon Assembly WCI 076660-000 Contact Us For Availability
NI
Compound WCI 08006576 Contact Us For Availability
NI
Clip WCI 08008454 Contact Us For Availability
NI
Clip WCI 08014892 Contact Us For Availability
NI
Bearing WCI 08950214 Contact Us For Availability
NI
Adhesive WCI 133016-000 Contact Us For Availability
NI
Hose WCI 142337-000 Contact Us For Availability
NI
Label WCI 3017116 Contact Us For Availability
NI
Label WCI 3017117 Contact Us For Availability
NI
Label WCI 3017124 Contact Us For Availability
NI
Lubricant WCI 3161117 Contact Us For Availability
NI
Sleeve WCI 3161182 Contact Us For Availability
NI
Spray Paint (Almond) WCI 3204476 Contact Us For Availability
NI
Spring WCI 3205251 Contact Us For Availability
NI
Dispenser WCI 5303207085 Contact Us For Availability
NI
Channel WCI 5303208455 Contact Us For Availability
NI
Oil WCI 5303208460 Contact Us For Availability
NI
Label WCI 5303209401 Contact Us For Availability
NI
Clip WCI 5303209420 Contact Us For Availability
NI
Label WCI 5303209436 Contact Us For Availability
NI
Label WCI 5303209437 Contact Us For Availability
NI
Label WCI 5303209454 Contact Us For Availability
NI
Label WCI 5303280355 Contact Us For Availability
NI
Installation Instructions WCI 5303280359 Contact Us For Availability
NI
Operating Instructions WCI 5303280360 Contact Us For Availability
NI
Use and Care Guide WCI 5303280361 Contact Us For Availability
NI
Technical Sheet WCI 5303280363 Contact Us For Availability
NI
Insulation WCI 5303937030 Contact Us For Availability
NI
Cantilever Parts WCI 5995211173 Contact Us For Availability
× ![]()
Login and Registration Form
