Model Electrolux 417.98989140 Gas Dryer (Kenmore 41798989140) – Common Parts & Diagrams
GAS VALVE, BURNER ASSY, SENSOR
GAS VALVE, BURNER ASSY, SENSOR

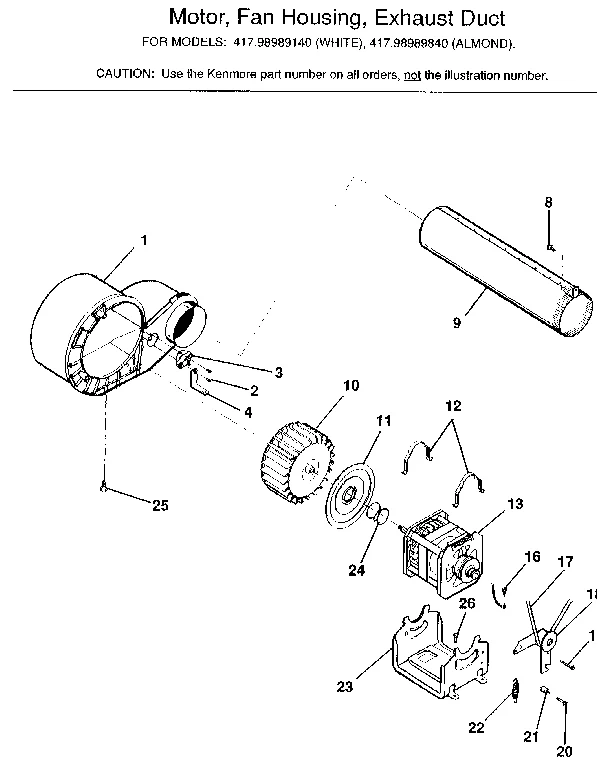

MOTOR, FAN HOUSING, EXHAUST DUCT
MOTOR, FAN HOUSING, EXHAUST DUCT

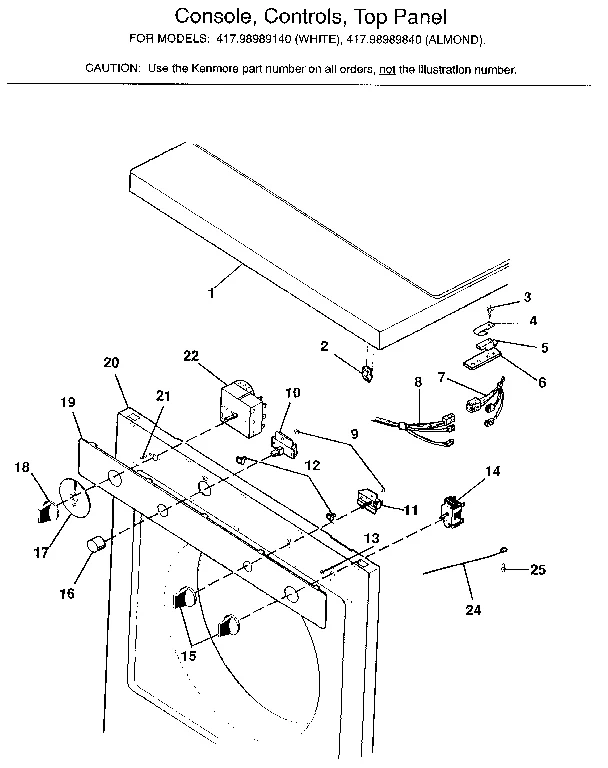

CONSOLE, CONTROLS, TOP PANEL
CONSOLE, CONTROLS, TOP PANEL
All Parts
All Parts

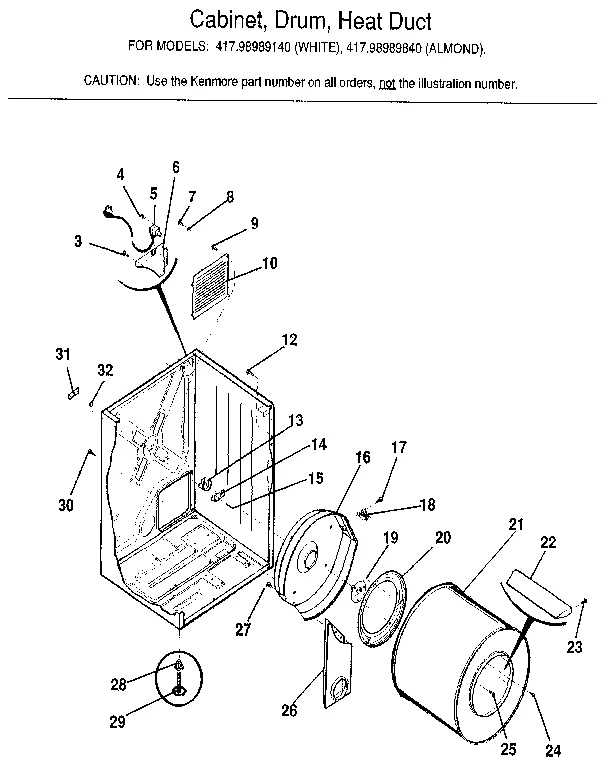

CABINET, DRUM, HEAT DUCT

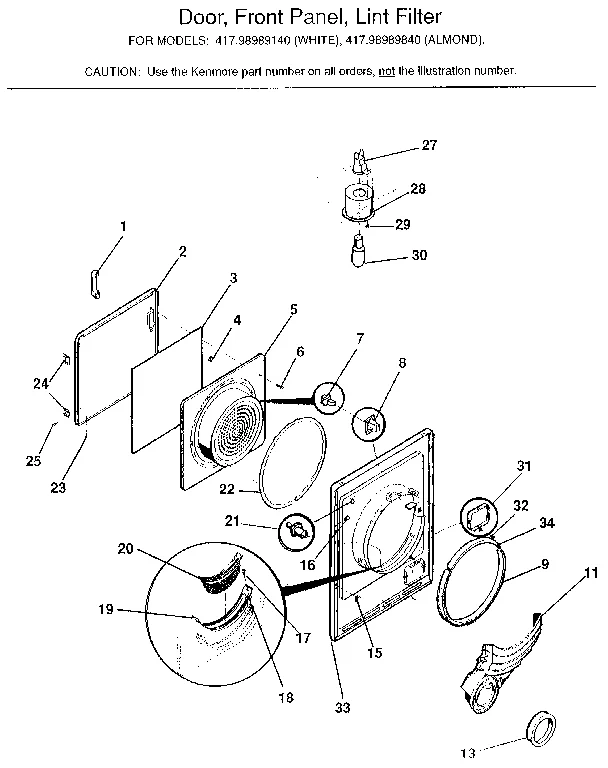

DOOR, FRONT PANEL, LINT FILTER
Common parts from model Electrolux 417.98989140 Gas Dryer (Kenmore 41798989140)
1
Housing WCI 5303270858 Contact Us For Availability
1
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
1A
Panel (White) WCI 5303275565 Contact Us For Availability
1A
Handle (White) WCI 5303286643 Contact Us For Availability
1B
Handle (Almond) WCI 3205660 Contact Us For Availability
1B
Panel (Almond) WCI 5303275567 Contact Us For Availability
2
Screw WCI 3261048 Contact Us For Availability
2
Spring Catch WCI 5303281170 Contact Us For Availability
2A
Outer Door (White) WCI 3201203 Contact Us For Availability
2B
Outer Door (Almond) WCI 3201204 Contact Us For Availability
3
Thermostat Cavity WCI 131140200 Contact Us For Availability
3
Screw WCI 3261175 Contact Us For Availability
3
Shield WCI 5303281067 Contact Us For Availability
4
Bracket WCI 5303269972 Contact Us For Availability
4
Clip WCI 5303281163 Contact Us For Availability
4
Screw WCI 5308015309 Contact Us For Availability
4
Spacer Washer WCI 3201205 Contact Us For Availability
5
Retainer WCI 5303281164 Contact Us For Availability
5
Cord WCI 5303281129 Contact Us For Availability
5A
Door (White) WCI 3201206 Contact Us For Availability
5B
Door (Almond) WCI 3201207 Contact Us For Availability
6
Screw WCI 5303281051 Contact Us For Availability
6
Spacer WCI 5303281165 Contact Us For Availability
6
Cover WCI 3281130 Contact Us For Availability
7
Electronic Harness WCI 131160000 Contact Us For Availability
8
Harness WCI 131012300 Contact Us For Availability
8
Washer WCI 3281107 Contact Us For Availability
9
Washer Seal WCI 5303281049 Contact Us For Availability
9
Duct WCI 5303269973 Contact Us For Availability
9
Nut WCI 3281089 Contact Us For Availability
10
Dryer Blower Wheel WCI 5303281079 Contact Us For Availability
10
Harness WCI 5303281137 Contact Us For Availability
10
Cover WCI 5303281018 Contact Us For Availability
10A
Start Switch (White) WCI 3203445 Contact Us For Availability
10B
Start Switch (Almond) WCI 3205664 Contact Us For Availability
11
Union WCI 5303212837 Contact Us For Availability
11
Cover WCI 5303281080 Contact Us For Availability
11
Buzzer WCI 5300632404 Contact Us For Availability
11
Duct-air Kit WCI 131193100 Contact Us For Availability
12
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
12
Valve WCI 5303281146 Contact Us For Availability
12
Screw WCI 3281092 Contact Us For Availability
12
Screw WCI 5303010202 Contact Us For Availability
13
Dryer Motor WCI 5303283470 Contact Us For Availability
13
Screw WCI 3281101 Contact Us For Availability
14
Bracket WCI 5303281145 Contact Us For Availability
14
Switch WCI 5303281100 Contact Us For Availability
15
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
15
Clip WCI 3281126 Contact Us For Availability
15A
Knob (White) WCI 3204897 Contact Us For Availability
15B
Knob (Almond) WCI 3204898 Contact Us For Availability
16
Dryer Wire Retainer Clip WCI 131063700 Contact Us For Availability
16
Housing WCI 5303281119 Contact Us For Availability
16A
Button (White) WCI 3201220 Contact Us For Availability
16B
Button (Almond) WCI 3205665 Contact Us For Availability
17
Screw WCI 3281134 Contact Us For Availability
17
Screw WCI 3281120 Contact Us For Availability
17
Dial WCI 3205666 Contact Us For Availability
18
Dryer Safety Thermostat WCI 5308015399 No Longer Available
18
Dryer Idler Assembly WCI 5303212849 Contact Us For Availability
18
Pipe WCI 08015271 Contact Us For Availability
18
Dryer Clip WCI 3281061 Contact Us For Availability
18A
Knob (White) WCI 3205667 Contact Us For Availability
18B
Knob (Almond) WCI 3205668 Contact Us For Availability
19
Screw WCI 3261230 Contact Us For Availability
19
Screen WCI 5303270382 Contact Us For Availability
19A
Trim Plate (White) WCI 3205669 Contact Us For Availability
19B
Trim Plate (Almond) WCI 3205670 Contact Us For Availability
20
Dryer Bolt, 0.25-20 x 1.25-in WCI 131017900 Contact Us For Availability
20
Screw WCI 5303281150 Contact Us For Availability
21
Spacer Washer WCI 5303281076 Contact Us For Availability
21
Screw WCI 5303281096 Contact Us For Availability
21
Dryer Drum WCI 3201199 Contact Us For Availability
21
Switch WCI 08006623 Contact Us For Availability
22
Laundry Center Dryer Timer WCI 5308027438 Contact Us For Availability
22
Dryer Door Seal WCI 5303201210 Contact Us For Availability
23
Bracket WCI 5303281149 Contact Us For Availability
23
Screw WCI 5303161187 Contact Us For Availability
24
Spring WCI 5303281083 Contact Us For Availability
24
Ground Wire WCI 08015277 Contact Us For Availability
24
Door Hinge WCI 5303281050 Contact Us For Availability
25
Screw WCI 3281036 Contact Us For Availability
25
Screw WCI 5303205255 Contact Us For Availability
26
Orifice WCI 08015677 Contact Us For Availability
26
Screw WCI 3281077 Contact Us For Availability
26
Duct Assembly WCI 3281123 Contact Us For Availability
27
Hex Nut WCI 08015194 Contact Us For Availability
27
Receptacle WCI 5308015210 Contact Us For Availability
28
Grommet WCI 3201202 Contact Us For Availability
28
Holder WCI 5308015259 Contact Us For Availability
29
Screw WCI 5303281035 Contact Us For Availability
29
Foot WCI 5303281032 Contact Us For Availability
30
Laundry Appliance Light Bulb WCI 5308027430 Contact Us For Availability
31A
Access Door (White) WCI 3201212 Contact Us For Availability
31B
Access Door (Almond) WCI 3201213 Contact Us For Availability
33A
Panel (White) WCI 131003409 Contact Us For Availability
33B
Panel (Almond) WCI 5303937113 Contact Us For Availability
NI
LP Gas Conversion Kit WCI 5300171852 Contact Us For Availability
NI
Installation Instructions WCI 131031700 Contact Us For Availability
NI
Use and Care Guide WCI 131056600 Contact Us For Availability
NI
Instructions WCI 3203253 Contact Us For Availability
NI
Operating Instructions WCI 3205674 Contact Us For Availability
NI
Label WCI 3205679 Contact Us For Availability
NI
Label WCI 3205680 Contact Us For Availability
NI
Instructions WCI 3205681 Contact Us For Availability
NI
Label WCI 3205682 Contact Us For Availability
NI
Label WCI 3205706 Contact Us For Availability
NI
Label WCI 3205707 Contact Us For Availability
NI
Timer Shield WCI 3281021 Contact Us For Availability
NI
Fastener WCI 3281022 Contact Us For Availability
NI
Dryer Clip WCI 3281102 Contact Us For Availability
NI
Screw WCI 5300435085 Contact Us For Availability
NI
Almond WCI 5303017866 Contact Us For Availability
NI
Label WCI 5303209454 Contact Us For Availability
NI
Technical Sheet WCI 5303269983 Contact Us For Availability
NI
Dryer Clip WCI 5303281039 Contact Us For Availability
NI
Bracket WCI 5303281173 Contact Us For Availability
NI
Parts Catalog WCI 5995236246 Contact Us For Availability
× ![]()
