Model Electrolux 417.98989110 Gas Dryer (Kenmore 41798989110) – Common Parts & Diagrams
All Parts
MOTOR, FAN HOUSING, EXHAUST DUCT

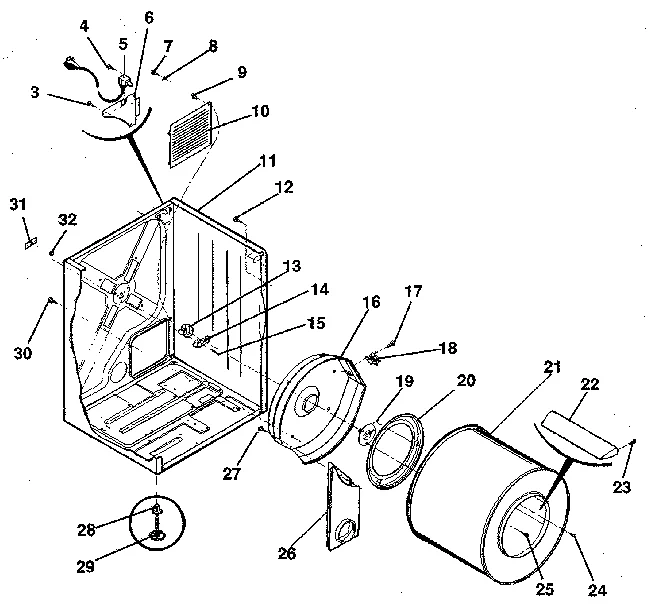

CABINET, DRUM, HEAT DUCT

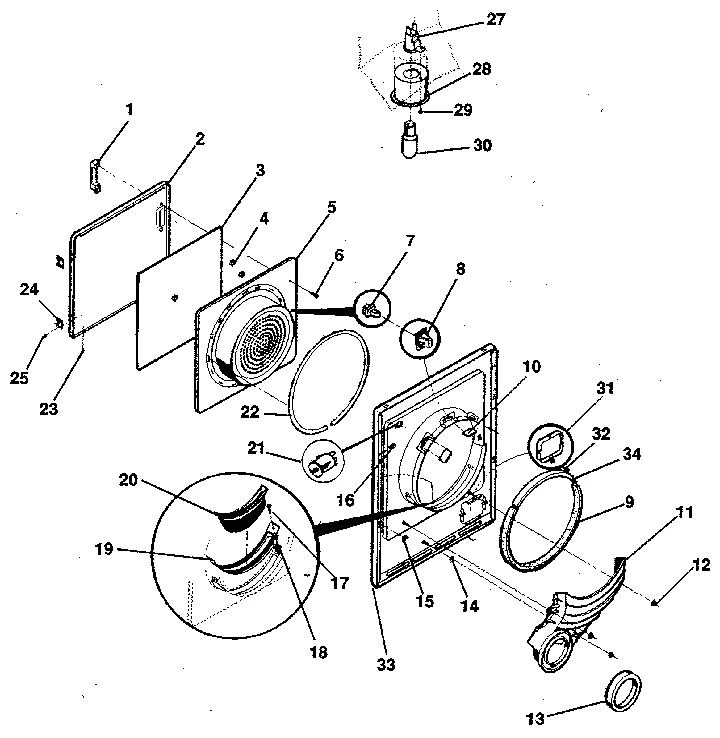

DOOR, FRONT PANEL, LINT FILTER

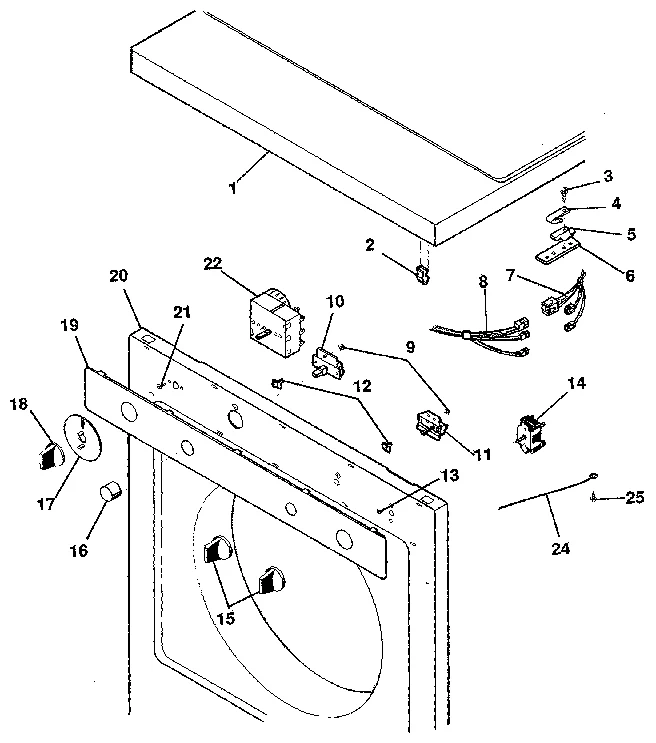

CONSOLE, CONTROLS, TOP PANEL

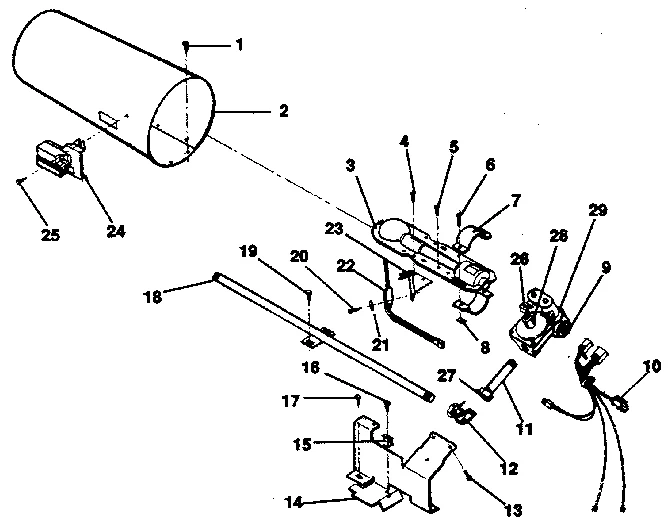

GAS VALVE, BURNER ASSY, SENSOR
Common parts from model Electrolux 417.98989110 Gas Dryer (Kenmore 41798989110)
1
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
1
Housing WCI 5303269969 Contact Us For Availability
1
Screw WCI 3010202 Contact Us For Availability
1A
Handle (White) WCI 5300622792 Contact Us For Availability
1A
Panel (White) WCI 3203243 Contact Us For Availability
1B
Handle (Almond) WCI 3205660 Contact Us For Availability
1B
Panel (Almond) WCI 3203244 Contact Us For Availability
2
Screw WCI 3261048 Contact Us For Availability
2
Spring Catch WCI 3281170 Contact Us For Availability
2
Burner Tube Assembly WCI 3201240 Contact Us For Availability
2A
Outer Door (White) WCI 3201203 Contact Us For Availability
2B
Outer Door (Almond) WCI 3201204 Contact Us For Availability
3
Thermostat WCI 5303269982 Contact Us For Availability
3
Heat Shield WCI 3281067 Contact Us For Availability
3
Screw WCI 08015345 Contact Us For Availability
4
Bracket WCI 5303269972 Contact Us For Availability
4
Screw WCI 3281024 Contact Us For Availability
4
Spacer WCI 3281058 Contact Us For Availability
4
Clip WCI 3281163 Contact Us For Availability
4A
Spacer Washer WCI 3201205 Contact Us For Availability
5
Service Cord WCI 3281129 Contact Us For Availability
5
Fastener WCI 3281164 Contact Us For Availability
5A
Door (White) WCI 3201206 Contact Us For Availability
5B
Door (Almond) WCI 3201207 Contact Us For Availability
6
Cover WCI 3281130 Contact Us For Availability
6
Screw WCI 3281051 Contact Us For Availability
6
Spacer WCI 3281165 Contact Us For Availability
6
Screw WCI 3205701 Contact Us For Availability
7
Harness WCI 5303269980 Contact Us For Availability
7
Air Shutter WCI 3281138 Contact Us For Availability
8
Washer WCI 3281107 Contact Us For Availability
8
Harness WCI 5303269981 Contact Us For Availability
8
Nut WCI 3281148 Contact Us For Availability
9
Duct WCI 5303269973 Contact Us For Availability
9
Seal WCI 3281049 Contact Us For Availability
9
Nut WCI 3281089 Contact Us For Availability
9
Valve WCI 3281147 Contact Us For Availability
10
Dryer Blower Wheel WCI 5303281079 Contact Us For Availability
10
Cover Plate WCI 3281018 Contact Us For Availability
10
Harness WCI 3281137 Contact Us For Availability
10A
Start Switch (White) WCI 3203445 Contact Us For Availability
10B
Start Switch (Almond) WCI 3205664 Contact Us For Availability
11
Cover WCI 5303281080 Contact Us For Availability
11
Air Duct WCI 08015173 Contact Us For Availability
11
Buzzer WCI 000632404 Contact Us For Availability
11
Union WCI 08015421 Contact Us For Availability
11A
Body (White) WCI 5303269963 Contact Us For Availability
11B
Body (Almond) WCI 5303269964 Contact Us For Availability
12
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
12
Screw WCI 3281092 Contact Us For Availability
12
Angle Valve WCI 3281146 Contact Us For Availability
13
Dryer Drive Motor and Pulley WCI 5303201237 Contact Us For Availability
13
Screw WCI 3281101 Contact Us For Availability
14
Switch WCI 5303281100 Contact Us For Availability
14
Bracket WCI 3281145 Contact Us For Availability
15
Clip WCI 3281074 Contact Us For Availability
15
Clip WCI 3281126 Contact Us For Availability
15A
Knob (White) WCI 3204897 Contact Us For Availability
15B
Knob (Almond) WCI 3204898 Contact Us For Availability
16
Screw WCI 3281120 Contact Us For Availability
16
Heater Housing WCI 3205699 Contact Us For Availability
16
Clip WCI 3281045 Contact Us For Availability
16A
Push Button (White) WCI 3201222 Contact Us For Availability
16B
Button (Almond) WCI 3205665 Contact Us For Availability
17
Dial WCI 3205666 Contact Us For Availability
17
Screw WCI 3281134 Contact Us For Availability
18
Thermostat WCI 5308015399 No Longer Available
18
Pulley WCI 5300128473 Contact Us For Availability
18
Dryer Clip WCI 3281061 Contact Us For Availability
18
Pipe WCI 08015271 Contact Us For Availability
18A
Knob (White) WCI 3205667 Contact Us For Availability
18B
Knob (Almond) WCI 3205668 Contact Us For Availability
19
Screw WCI 3261230 Contact Us For Availability
19
Screen WCI 5303937059 Contact Us For Availability
19A
Trim Plate (White) WCI 3205669 Contact Us For Availability
19B
Trim Plate (Almond) WCI 3205670 Contact Us For Availability
20
Screw WCI 3281073 Contact Us For Availability
20
Screw WCI 3281150 Contact Us For Availability
20A
Panel (White) WCI 5303269965 Contact Us For Availability
20B
Panel (Almond) WCI 5303269966 Contact Us For Availability
21
Spacer Washer WCI 5303281076 Contact Us For Availability
21
Drum WCI 3202753 Contact Us For Availability
21
Switch WCI 08006623 Contact Us For Availability
21
Screw WCI 3281096 Contact Us For Availability
22
Door Gasket WCI 3201210 Contact Us For Availability
22
Laundry Center Dryer Timer WCI 5308027438 Contact Us For Availability
23
Screw WCI 3281176 Contact Us For Availability
23
Bracket WCI 3281149 Contact Us For Availability
24
Spring WCI 5303281083 Contact Us For Availability
24
Screw WCI 5303207393 Contact Us For Availability
24
Door Hinge WCI 3281050 Contact Us For Availability
24
Ground Wire WCI 08015277 Contact Us For Availability
25
Screw WCI 3281035 Contact Us For Availability
25
Screw WCI 3281036 Contact Us For Availability
25
Screw WCI 3205255 Contact Us For Availability
26
Screw WCI 3281077 Contact Us For Availability
26
Duct Assembly WCI 3281123 Contact Us For Availability
26
Orifice WCI 08015677 Contact Us For Availability
26A
Orifice WCI 5303281140 Contact Us For Availability
26B
LP Gas Conversion Kit WCI 5300171852 Contact Us For Availability
27
Receptacle WCI 08015210 Contact Us For Availability
27
Hex Nut WCI 08015194 Contact Us For Availability
28
Grommet WCI 3201202 Contact Us For Availability
28
Light Holder WCI 08015259 Contact Us For Availability
29
Foot Bolt WCI 3281032 Contact Us For Availability
30
Lamp WCI 08027430 Contact Us For Availability
31A
Access Door (White) WCI 3201212 Contact Us For Availability
31B
Access Door (Almond) WCI 3201213 Contact Us For Availability
34
Spacer WCI 3201264 Contact Us For Availability
NI
Instructions WCI 3205681 Contact Us For Availability
NI
Label WCI 3205682 Contact Us For Availability
NI
Label WCI 3205706 Contact Us For Availability
NI
Label WCI 3205707 Contact Us For Availability
NI
Timer Shield WCI 3281021 Contact Us For Availability
NI
Fastener WCI 3281022 Contact Us For Availability
NI
Dryer Clip WCI 3281102 Contact Us For Availability
NI
Bracket WCI 3281173 Contact Us For Availability
NI
Screw WCI 5300435085 Contact Us For Availability
NI
Label WCI 5303209454 Contact Us For Availability
NI
Technical Sheet WCI 5303269983 Contact Us For Availability
NI
Installation Instructions WCI 5303269984 Contact Us For Availability
NI
Parts List WCI 5303269985 Contact Us For Availability
× ![]()
