Model Electrolux 417.98988820 Electric Dryer (Kenmore 41798988820) – Common Parts & Diagrams
All Parts

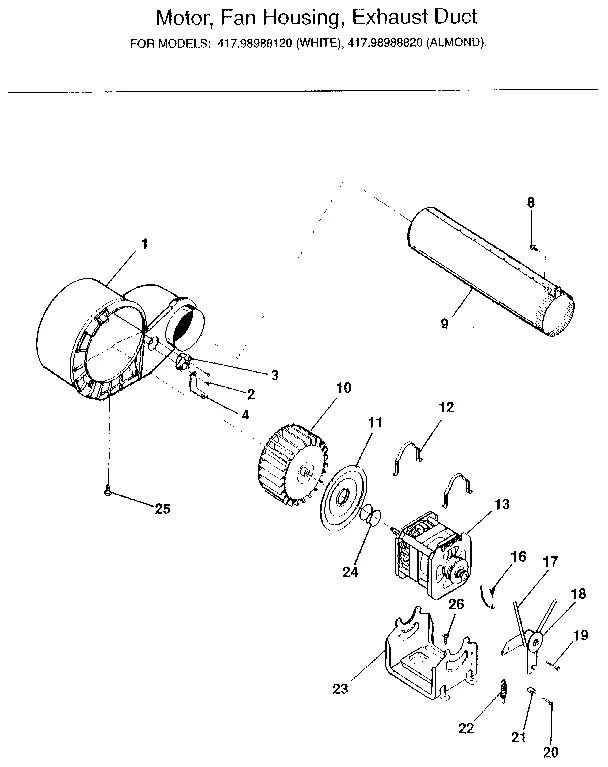

MOTOR, FAN HOUSING, EXHAUST DUCT
DOOR
CONTROL PANEL
DRUM AND HEATER ASEM
Common parts from model Electrolux 417.98988820 Electric Dryer (Kenmore 41798988820)
1
Housing WCI 5303270858 Contact Us For Availability
1A
Handle (White) WCI 5300622792 Contact Us For Availability
1A
Panel (White) WCI 5303275565 Contact Us For Availability
1B
Handle (Almond) WCI 3205660 Contact Us For Availability
1B
Panel (Almond) WCI 5303275567 Contact Us For Availability
2
Screw WCI 3261048 Contact Us For Availability
2
Spring Catch WCI 5303281170 Contact Us For Availability
2A
Outer Door (White) WCI 3201203 Contact Us For Availability
2B
Outer Door (Almond) WCI 3201204 Contact Us For Availability
3
Shield WCI 5303281067 Contact Us For Availability
3
Screw WCI 3261175 Contact Us For Availability
4
Bracket WCI 5303269972 Contact Us For Availability
4
Spacer WCI 3281058 Contact Us For Availability
4
Clip WCI 5303281163 Contact Us For Availability
4A
Spacer Washer WCI 3201205 Contact Us For Availability
5
Dryer Terminal Block Cover WCI 5303211428 Contact Us For Availability
5
Retainer WCI 5303281164 Contact Us For Availability
5A
Door (White) WCI 3201206 Contact Us For Availability
5B
Door (Almond) WCI 3201207 Contact Us For Availability
6
Screw WCI 5303281051 Contact Us For Availability
6
Spacer WCI 5303281165 Contact Us For Availability
6
Bracket WCI 3281040 Contact Us For Availability
7
Harness WCI 5303269967 Contact Us For Availability
7
Screw WCI 5308015309 Contact Us For Availability
8
Harness WCI 5303269968 Contact Us For Availability
9
Washer Seal WCI 5303281049 Contact Us For Availability
9
Screw WCI 5303281035 Contact Us For Availability
9
Duct WCI 5303269973 Contact Us For Availability
9
Nut WCI 3281089 Contact Us For Availability
10
Dryer Blower Wheel WCI 5303281079 Contact Us For Availability
10
Cover WCI 5303281018 Contact Us For Availability
10A
Start Switch (White) WCI 3203445 Contact Us For Availability
10B
Start Switch (Almond) WCI 3205664 Contact Us For Availability
11
Cover WCI 5303281080 Contact Us For Availability
11
Duct WCI 5308015173 Contact Us For Availability
11
Buzzer WCI 5303207848 Contact Us For Availability
11
Screw WCI 5303010202 Contact Us For Availability
12
Dryer Motor Clamp WCI 5303212834 Contact Us For Availability
12
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
12
Screw WCI 3281092 Contact Us For Availability
12A
Body (White) WCI 5303269963 Contact Us For Availability
12B
Body (Almond) WCI 5303269964 Contact Us For Availability
13
Dryer Motor WCI 5303283470 Contact Us For Availability
13
Screw WCI 3281101 Contact Us For Availability
14
Switch WCI 5303281100 Contact Us For Availability
15
Dryer Cabinet Clip WCI 5303281074 Contact Us For Availability
15A
Knob (White) WCI 3204897 Contact Us For Availability
15B
Knob (Almond) WCI 3204898 Contact Us For Availability
16
Dryer Safety Thermostat WCI 5303281113 Contact Us For Availability
16
Screw WCI 3281120 Contact Us For Availability
16
Clip WCI 3281045 Contact Us For Availability
16A
Button (White) WCI 3201220 Contact Us For Availability
16B
Button (Almond) WCI 3205665 Contact Us For Availability
17
Dial WCI 3205666 Contact Us For Availability
18
Dryer Idler Assembly WCI 5303212849 Contact Us For Availability
18
Dryer Clip WCI 3281061 Contact Us For Availability
18
Drum WCI 3202753 Contact Us For Availability
18A
Knob (White) WCI 3205667 Contact Us For Availability
18B
Knob (Almond) WCI 3205668 Contact Us For Availability
19
Screw WCI 3261230 Contact Us For Availability
19
Screen WCI 5303270382 Contact Us For Availability
19A
Trim Plate (White) WCI 3205669 Contact Us For Availability
19B
Trim Plate (Almond) WCI 3205670 Contact Us For Availability
20
Screw WCI 3281073 Contact Us For Availability
20A
Panel (White) WCI 5303283468 Contact Us For Availability
20B
Panel (Almond) WCI 5303283469 Contact Us For Availability
21
Spacer Washer WCI 5303281076 Contact Us For Availability
21
Switch WCI 08006623 Contact Us For Availability
21
Screw WCI 5303281096 Contact Us For Availability
21
Screw WCI 5303207393 Contact Us For Availability
22
Dryer Door Seal WCI 5303201210 Contact Us For Availability
22
Laundry Center Control Timer WCI 5303010440 Contact Us For Availability
22
Screw WCI 5303205255 Contact Us For Availability
23
Screw WCI 3281176 Contact Us For Availability
23
Resistor WCI 5303281110 Contact Us For Availability
24
Spring WCI 5303281083 Contact Us For Availability
24
Door Hinge WCI 5303281050 Contact Us For Availability
24
Ground Wire WCI 08015277 Contact Us For Availability
25
Screw WCI 3281036 Contact Us For Availability
26
Screw WCI 3281077 Contact Us For Availability
26
Foot WCI 5303281032 Contact Us For Availability
27
Receptacle WCI 5308015210 Contact Us For Availability
27
Grommet WCI 3201202 Contact Us For Availability
28
Holder WCI 5308015259 Contact Us For Availability
30
Laundry Appliance Light Bulb WCI 5308027430 Contact Us For Availability
31A
Access Door (White) WCI 3201212 Contact Us For Availability
31B
Access Door (Almond) WCI 3201213 Contact Us For Availability
32
Washer WCI 3281107 Contact Us For Availability
34
Screw WCI 08010804 Contact Us For Availability
NI
Technical Sheet WCI 5303269977 Contact Us For Availability
NI
Installation Instructions WCI 5303269978 Contact Us For Availability
NI
Bracket WCI 5303281173 Contact Us For Availability
NI
Parts List WCI 5995215380 Contact Us For Availability
× ![]()
