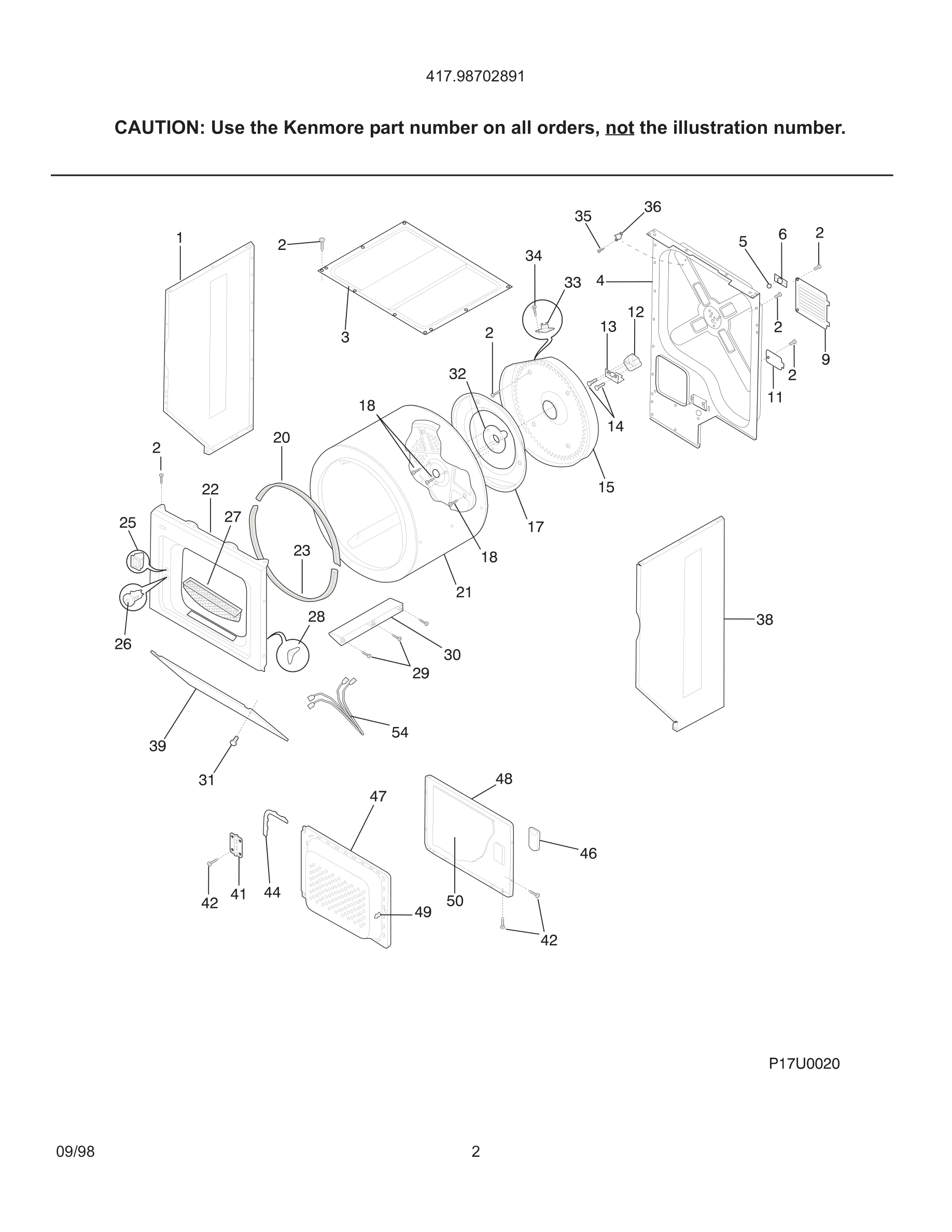

Model Kenmore 417.98702891 DRYER – Common Parts &amp; Diagrams

*

5303309503 Frigidaire Clip Assembly Backorder WCI 5303309503 $4.53

*

Insert-spring adj WCI 5303212877 Contact Us For Availability

*

Label-caution WCI 131381400 Contact Us For Availability

*

Label-washer,instructions WCI 131634600 Contact Us For Availability

*

Parts list SRL8MJNS-C1 WCI 131788400 Contact Us For Availability

1

131295200 Frigidaire Seal In Stock WCI 131295200 $10.41

1

Cap-agitator WCI 3204395 No Longer Available

1

Stud-agitator cap WCI 131206800 Contact Us For Availability

1#

131062300 Frigidaire Timer Backorder WCI 131062300 $172.58

2

Seal-cap WCI 3204396 Contact Us For Availability

3

Harness-dryer,control WCI 131484100 Contact Us For Availability

3

Transmission WCI 5304402090 Contact Us For Availability

4

131212301 Frigidaire Washer Capacitor Motor In Stock WCI 131212301 $6.79

4

131362400 Frigidaire Fastener In Stock WCI 131362400 $5.88

4

5303161307 Frigidaire Dryer Seal Assembly In Stock WCI 5303161307 $11.02

5

5303281019 Frigidaire Ball Assembly Backorder WCI 5303281019 $10.39

5

Ring-retaining WCI 5303161223 Contact Us For Availability

6

5303212872 Frigidaire Lid Assembly Backorder WCI 5303212872 $200.44

6

5303281020 Frigidaire Ball Clip In Stock WCI 5303281020 $10.85

6

Screw WCI 131346600 Contact Us For Availability

7

5303161296 Frigidaire Washer Inlet Hose (1 Pi Backorder WCI 5303161296 $1,678.32

7

Plug-pipe WCI 5303161224 Contact Us For Availability

8

Screw-blower hsg,pph ab st/z/ch , WCI 3205245 Contact Us For Availability

8

Screw-transm. WCI 5308002804 Contact Us For Availability

8#

131437500 Frigidaire Washer Timer In Stock WCI 131437500 $285.90

9

131390000 Frigidaire Door Catch-Strike In Stock WCI 131390000 $34.58

9

Gasket WCI 5308015778 Contact Us For Availability

10

Gear-sector WCI 5308011268 Contact Us For Availability

11

3204368 Frigidaire Strike Screw Backorder WCI 3204368 $8.14

11

Rod-connecting WCI 131632701 Contact Us For Availability

12#

131476300 Frigidaire Dryer Blower Wheel In Stock WCI 131476300 $29.45

12#

Gear-crank WCI 5308015496 Contact Us For Availability

13

131724301 Frigidaire Dryer Drum Bearing Brack In Stock WCI 131724301 $8.14

13

137546400 Frigidaire Screw 5/16-18 x 0.625 In Stock WCI 137546400 $18.10

13

Resistor,3.0k WCI 3205877 Contact Us For Availability

13#

Shaft-lower WCI 5308014905 Contact Us For Availability

14

131205400 Frigidaire Screw Backorder WCI 131205400 $8.15

14

Thermostat-heater WCI 131658100 Contact Us For Availability

14

Washer-thrust WCI 5303161226 Contact Us For Availability

15

Washer WCI 5303161232 Contact Us For Availability

15#

3204307 Frigidaire Dryer Thermostat Control, Backorder WCI 3204307 $84.16

16

Trunnion WCI 131545101 Contact Us For Availability

16

Housing-lower WCI 131557800 Contact Us For Availability

17

3204254 Frigidaire Baffle Assembly Backorder WCI 3204254 $81.58

17

Filter-lint WCI 131076600 Contact Us For Availability

18

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $9.04

18

$Tub-splash,w\air dome,brng$

Tub-splash,w\air dome,brng WCI 131557201 Contact Us For Availability

18

Washer-spacer WCI 5308002475 Contact Us For Availability

3204374 Frigidaire Pin In Stock WCI 3204374 $49.74

3205150 Frigidaire Tub Bearing Screw Backorder WCI 3205150 $2.26

Glide-drum WCI 5303937139 Contact Us For Availability

End Cap,white ,LH WCI 131288101 Contact Us For Availability

21

131873304 Frigidaire Dryer Timer Knob White In Stock WCI 131873304 $37.65

21

5308002401 Frigidaire Washer Primary In Stock WCI 5308002401 $10.02

21

Oil-transmission,1QT WCI 3005242 Contact Us For Availability

21A

Knob-timer,white WCI 131652501 Contact Us For Availability

3205241 Frigidaire Idler Spring Backorder WCI 3205241 $47.97

Leg & Dome Assy WCI 131373610 Contact Us For Availability

Screw-switch,6-32 x .19-2A ,(2) WCI 3161259 Contact Us For Availability

Spring-small LGS WCI 131417600 Contact Us For Availability

23

Seal-basket lower WCI 5303283286 No Longer Available

23#

Gear-idler WCI 5303161175 Contact Us For Availability

24

Spring-horizontal WCI 131373900 Contact Us For Availability

25

131658800 Frigidaire Dryer Door Catch Repair In Stock WCI 131658800 $39.43

25

Dial-timer,white WCI 131652601 Contact Us For Availability

25

Housing-upper WCI 131586700 Contact Us For Availability

26

3204405 Frigidaire Outer Tub Spin Bearing Backorder WCI 3204405 $61.84

26

Spacer-timer shaft WCI 3205248 Contact Us For Availability

26

Seal-tub WCI 131586710 Contact Us For Availability

27

5304516871 Frigidaire Replacement Filters Lin In Stock WCI 5304516871 $16.78

27

Clamp-motor WCI 131419800 Contact Us For Availability

28

Clip-guide,(3) WCI 5303281074 Contact Us For Availability

29

131382300 Frigidaire Vane Screw Backorder WCI 131382300 $8.58

31

131202300 Frigidaire Screw Backorder WCI 131202300 $8.60

31

End Cap,white ,RH WCI 131288211 Contact Us For Availability

31#

Pulley-motor WCI 3204423 Contact Us For Availability

32

Pin-roll WCI 3204424 Contact Us For Availability

33

Spring-torsion WCI 3204425 Contact Us For Availability

33#

3204267 Frigidaire Dryer Safety Thermostat In Stock WCI 3204267 $34.85

34

131205500 Frigidaire Screw Backorder WCI 131205500 $8.60

35

3161433 Frigidaire Retainer Backorder WCI 3161433 $11.76

35

Ring-snubber WCI 5308002385 Contact Us For Availability

36

Washer-pivot shaft WCI 5303261031 Contact Us For Availability

37

Washer-spring WCI 5303161306 Contact Us For Availability

38

Nut-motor WCI 5303318708 Contact Us For Availability

38

Buzzer WCI 5303286537 Contact Us For Availability

38

Base Assembly WCI 5303311213 Contact Us For Availability

39

131205100 Frigidaire Screw In Stock WCI 131205100 $9.06

42

Panel-front,white WCI 131104303 Contact Us For Availability

43

Pad-leveling leg WCI 131422100 Contact Us For Availability

43A

131422200 Frigidaire P-1 Self Level Leg Pad In Stock WCI 131422200 $36.24

44

134548800 Frigidaire Washer Leg Levelling In Stock WCI 134548800 $9.04

44

137551901 Frigidaire Gasket Backorder WCI 137551901 $24.94

45

Pin-locating WCI 131346400 Contact Us For Availability

45#

Hose-drain,90 inch WCI 131461200 No Longer Available

45A

131346401 Frigidaire Pin Backorder WCI 131346401 $10.41

46

131789400 Frigidaire Handle In Stock WCI 131789400 $40.34

48

5304536802 Frigidaire Hose Clamp Backorder WCI 5304536802 $2.42

48

Door-outer,white WCI 131789303 Contact Us For Availability

49#

131494800 Frigidaire Hose-Pump P1 to Tub In Stock WCI 131494800 $45.70

52

Washer-leg,idx.040 ,1.25 odx.335 WCI 131315800 Contact Us For Availability

53

5304401845 Frigidaire Pressure Tube Backorder WCI 5304401845 $36.74

54

Dispenser-bleach WCI 3204394 Contact Us For Availability

54

Harness-door switch WCI 131498900 Contact Us For Availability

56

131243800 Frigidaire Screw Backorder WCI 131243800 $6.53

58

Screw-pump-to bracket WCI 131464900 Contact Us For Availability

59

Clip-shield WCI 5303283052 Contact Us For Availability

62

131302800 Frigidaire Drum Vane Screw In Stock WCI 131302800 $8.65

68

131707800 Frigidaire Drain Hose Ring Backorder WCI 131707800 $28.33

69

131731500 Frigidaire Fastener Backorder WCI 131731500 $10.85
