Model Electrolux 417.94988101 Washer (Kenmore 41794988101) – Common Parts & Diagrams
FRONT PANEL AND CONTROLS
CABINET, PUMP,SPEED CONTROL

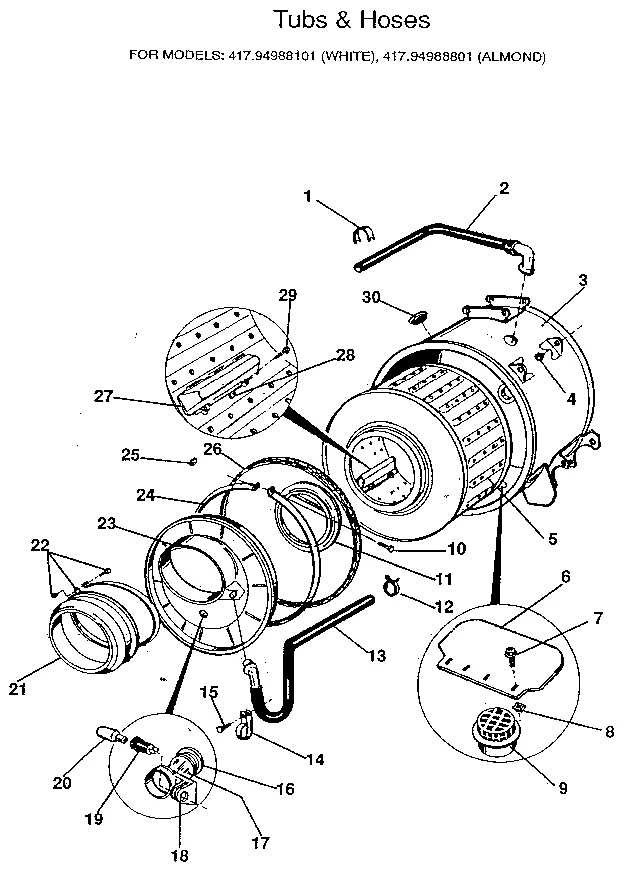

TUB AND HOSES
All Parts

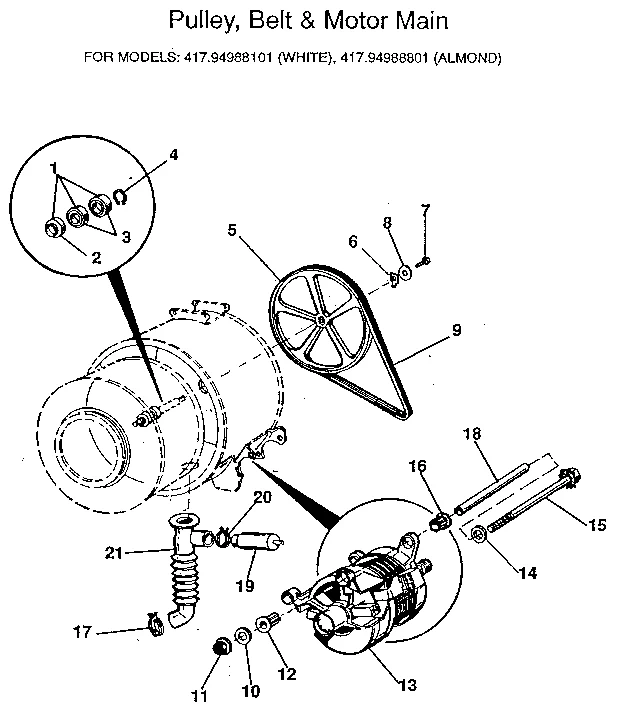

PULLEY AND MOTOR

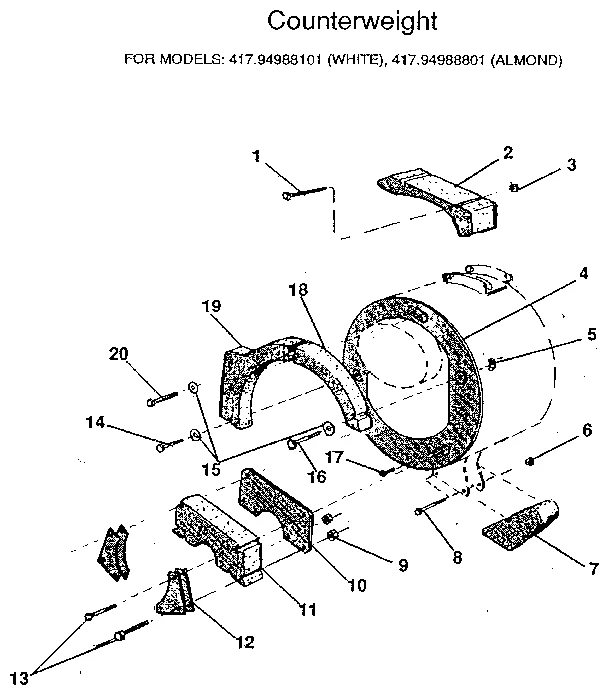

COUNTERWEIGHT SYSTEM
Common parts from model Electrolux 417.94988101 Washer (Kenmore 41794988101)
1
Screw WCI 000435179 Contact Us For Availability
1
Clamp WCI 000605241 Contact Us For Availability
1
Seal Kit WCI 000137158 Contact Us For Availability
1
Bolt WCI 3203038 Contact Us For Availability
1A
Knob (White) WCI 3204897 Contact Us For Availability
2
Plate WCI 3281169 Contact Us For Availability
2
Hose WCI 3203056 Contact Us For Availability
2
Seal WCI 000009303 Contact Us For Availability
2
Weight WCI 3203039 Contact Us For Availability
2B
Knob (Almond) WCI 3204900 Contact Us For Availability
3
Spring WCI 3202946 Contact Us For Availability
3
Drain Hose WCI 3202952 Contact Us For Availability
3
Outer Tub WCI 3203005 Contact Us For Availability
3
Bearing WCI 000500961 Contact Us For Availability
3
Nut WCI 000500831 Contact Us For Availability
4
Timer Dial WCI 3204901 Contact Us For Availability
4
Clamp WCI 3202981 Contact Us For Availability
4
Grommet WCI 000125501 Contact Us For Availability
4
Snap Ring WCI 000501341 Contact Us For Availability
4
Ring WCI 000172101 Contact Us For Availability
5
Tub Spinner WCI 3203006 Contact Us For Availability
5
Pulley WCI 3203014 Contact Us For Availability
5
Nut WCI 000500553 Contact Us For Availability
5A
Control Panel (White) WCI 3204902 Contact Us For Availability
5B
Control Panel (Almond) WCI 3204903 Contact Us For Availability
6
Rod W/clamp WCI 3202968 Contact Us For Availability
6
Cover WCI 3202982 Contact Us For Availability
6
Cover WCI 3203007 Contact Us For Availability
6
Washer WCI 3203015 Contact Us For Availability
7
Bracket WCI 3202969 Contact Us For Availability
7
Cover WCI 000621542 Contact Us For Availability
7
Screw WCI 000502484 Contact Us For Availability
7
Door WCI 3202016 Contact Us For Availability
7
Weight WCI 000172115 Contact Us For Availability
8
Cover WCI 3202971 Contact Us For Availability
8
Washer WCI 3203017 Contact Us For Availability
8
Bolt WCI 08015333 Contact Us For Availability
9
Laundry Center Timer WCI 5303208738 Contact Us For Availability
9
Bracket WCI 000621932 Contact Us For Availability
9
Strainer WCI 3203008 Contact Us For Availability
9
Drive Belt WCI 3203018 Contact Us For Availability
9
Nut WCI 000402602 Contact Us For Availability
10
Bolt WCI 000500804 Contact Us For Availability
10
Bracket WCI 000172102 Contact Us For Availability
11
Switch WCI 3202977 Contact Us For Availability
11
Washer WCI 000412501 Contact Us For Availability
11
Ring WCI 3261136 Contact Us For Availability
11
Nut WCI 000501083 Contact Us For Availability
11
Weight WCI 08015254 Contact Us For Availability
11A
Screw WCI 000435056 Contact Us For Availability
12
Screw WCI 000505061 Contact Us For Availability
12
Panel WCI 3202983 Contact Us For Availability
12
Clamp WCI 000504894 Contact Us For Availability
12
Bushing WCI 3203019 Contact Us For Availability
12
Bracket WCI 000172104 Contact Us For Availability
13
Switch WCI 3202976 Contact Us For Availability
13
Fill Hose WCI 08015184 Contact Us For Availability
13
Motor WCI 3203037 Contact Us For Availability
13
Bolt WCI 3261248 Contact Us For Availability
14
Washer WCI 000019801 Contact Us For Availability
14
Clamp WCI 000504501 Contact Us For Availability
14
Bolt WCI 000435138 Contact Us For Availability
15
Screw WCI 000435103 Contact Us For Availability
15
Switch WCI 3202978 Contact Us For Availability
15
Inlet Hose WCI 140162-000 Contact Us For Availability
15
Bolt WCI 3203036 Contact Us For Availability
15
Washer WCI 000440045 Contact Us For Availability
16
Screw WCI 000007617 Contact Us For Availability
16
Service Cord WCI 3202995 Contact Us For Availability
16
Shield WCI 000501201 Contact Us For Availability
16
Bolt WCI 000435145 Contact Us For Availability
17
Nut WCI 000443003 Contact Us For Availability
17
Screw WCI 000505564 Contact Us For Availability
17
Strain Relef WCI 000063137 Contact Us For Availability
17
Clamp WCI 000504893 Contact Us For Availability
17
Lens WCI 000000495 Contact Us For Availability
18
Washer WCI 000402801 Contact Us For Availability
18
Hose WCI 000156174 Contact Us For Availability
18
Grommet WCI 000028710 Contact Us For Availability
18
Spacer WCI 3203034 Contact Us For Availability
18
Weight WCI 000172112 Contact Us For Availability
19
Stud WCI 000600102 Contact Us For Availability
19
Clamp WCI 000503356 Contact Us For Availability
19
Socket WCI 08015211 Contact Us For Availability
19
Air Bell WCI 3203033 Contact Us For Availability
19
Weight WCI 000172113 Contact Us For Availability
20
Air Gap WCI 000154361 Contact Us For Availability
20
Bulb WCI 3203012 Contact Us For Availability
21
Boot WCI 000133321 Contact Us For Availability
21
Sump Hose WCI 3203035 Contact Us For Availability
22
Door Catch WCI 000091191 Contact Us For Availability
22
Bracket WCI 000148837 Contact Us For Availability
22
Clamp WCI 000152961 Contact Us For Availability
23
Nut WCI 000500531 Contact Us For Availability
23
Tub WCI 3203004 Contact Us For Availability
24
Screw WCI 000406801 Contact Us For Availability
24
Clamp WCI 000502207 Contact Us For Availability
24
Clamp Ring WCI 000116505 Contact Us For Availability
25
Solenoid WCI 000129823 Contact Us For Availability
25
Screw WCI 3203003 Contact Us For Availability
25
Nut WCI 000408201 Contact Us For Availability
25A
Screw WCI 0001825642 Contact Us For Availability
26
Rail WCI 3202997 Contact Us For Availability
26
Gasket WCI 000127581 Contact Us For Availability
27
Nut WCI 000501084 Contact Us For Availability
27
Vane WCI 000169412 Contact Us For Availability
27A
Panel (White) WCI 000621720 Contact Us For Availability
27B
Panel (Almond) WCI 000621716 Contact Us For Availability
28
Screw WCI 08015286 Contact Us For Availability
28
Spring WCI 3202996 Contact Us For Availability
28
Speed Nut WCI 3261100 Contact Us For Availability
29
Grommet WCI 3202998 Contact Us For Availability
30
Lock Nut WCI 000501450 Contact Us For Availability
30
Nut WCI 3203000 Contact Us For Availability
30
Plug WCI 000084503 Contact Us For Availability
31
Door Switch WCI 000184701 Contact Us For Availability
31
Nut WCI 3203002 Contact Us For Availability
32
Arm WCI 000273137 Contact Us For Availability
32
Pan WCI 3203001 Contact Us For Availability
33
Screw WCI 000503596 Contact Us For Availability
34
Bracket WCI 3261082 Contact Us For Availability
35
Nut WCI 000402601 Contact Us For Availability
35
Cup WCI 000016971 Contact Us For Availability
36
Screw WCI 000500718 Contact Us For Availability
36
Bolt WCI 5303208737 Contact Us For Availability
37
Spring WCI 3202993 Contact Us For Availability
37A
Panel (White) WCI 000600564 Contact Us For Availability
37B
Panel (Almond) WCI 000602004 Contact Us For Availability
38
Screw WCI 3202989 Contact Us For Availability
39
Spring WCI 000011943 Contact Us For Availability
39
Pump WCI 3202988 Contact Us For Availability
40
Screw WCI 3281150 Contact Us For Availability
40A
Panel (White) WCI 08015269 Contact Us For Availability
40B
Panel (Almond) WCI 000184777 Contact Us For Availability
41
Screw WCI 000505617 Contact Us For Availability
41
Spacer WCI 3261088 Contact Us For Availability
42
Door Gasket WCI 000147492 Contact Us For Availability
42A
Body (White) WCI 3203046 Contact Us For Availability
42B
Body (Almond) WCI 3203049 Contact Us For Availability
43
Glass WCI 000017901 Contact Us For Availability
43
Bracket WCI 000600043 Contact Us For Availability
44
Gasket WCI 000183302 Contact Us For Availability
44
Suppressor WCI 3202990 Contact Us For Availability
45
Speed Control WCI 3202986 Contact Us For Availability
45A
Panel (White) WCI 000088956 Contact Us For Availability
45B
Panel (Almond) WCI 000603331 Contact Us For Availability
46
Spacer WCI 000040120 Contact Us For Availability
46
Washer WCI 3202987 Contact Us For Availability
47
Clip WCI 000501661 Contact Us For Availability
47
Nut WCI 3202985 Contact Us For Availability
48
Nut WCI 3202991 Contact Us For Availability
48
Spacer WCI 000040118 Contact Us For Availability
49
Guide WCI 000600037 Contact Us For Availability
50
Bar WCI 000062204 Contact Us For Availability
51
Latch Bar WCI 000151771 Contact Us For Availability
51
Spacer WCI 5303208852 Contact Us For Availability
52
Screw WCI 000403103 Contact Us For Availability
52
Screw WCI 5303208872 Contact Us For Availability
53
Bumper WCI 000013435 Contact Us For Availability
NI
ACCES PANEL, DRYER WCI N/P Contact Us For Availability
NI
Harness WCI 3202980 Contact Us For Availability
NI
Top Kit WCI 48881 Contact Us For Availability
NI
Top Kit WCI 48888 Contact Us For Availability
NI
Harness WCI 5303208736 Contact Us For Availability
NI
Technical Sheet WCI 5303208847 Contact Us For Availability
NI
Installation Instructions WCI 5303208848 Contact Us For Availability
NI
Energy Guide WCI 5303208849 Contact Us For Availability
NI
Clamp WCI 5303208850 Contact Us For Availability
NI
CLAMP, HARNESS PUMP WCI 5303208851 Contact Us For Availability
× ![]()
