Kenmore 417.94092500 DRYER

*

134467300 Frigidaire Washer/Dryer Stacking Ki Backorder WCI 134467300 $32.75

View on Model

*

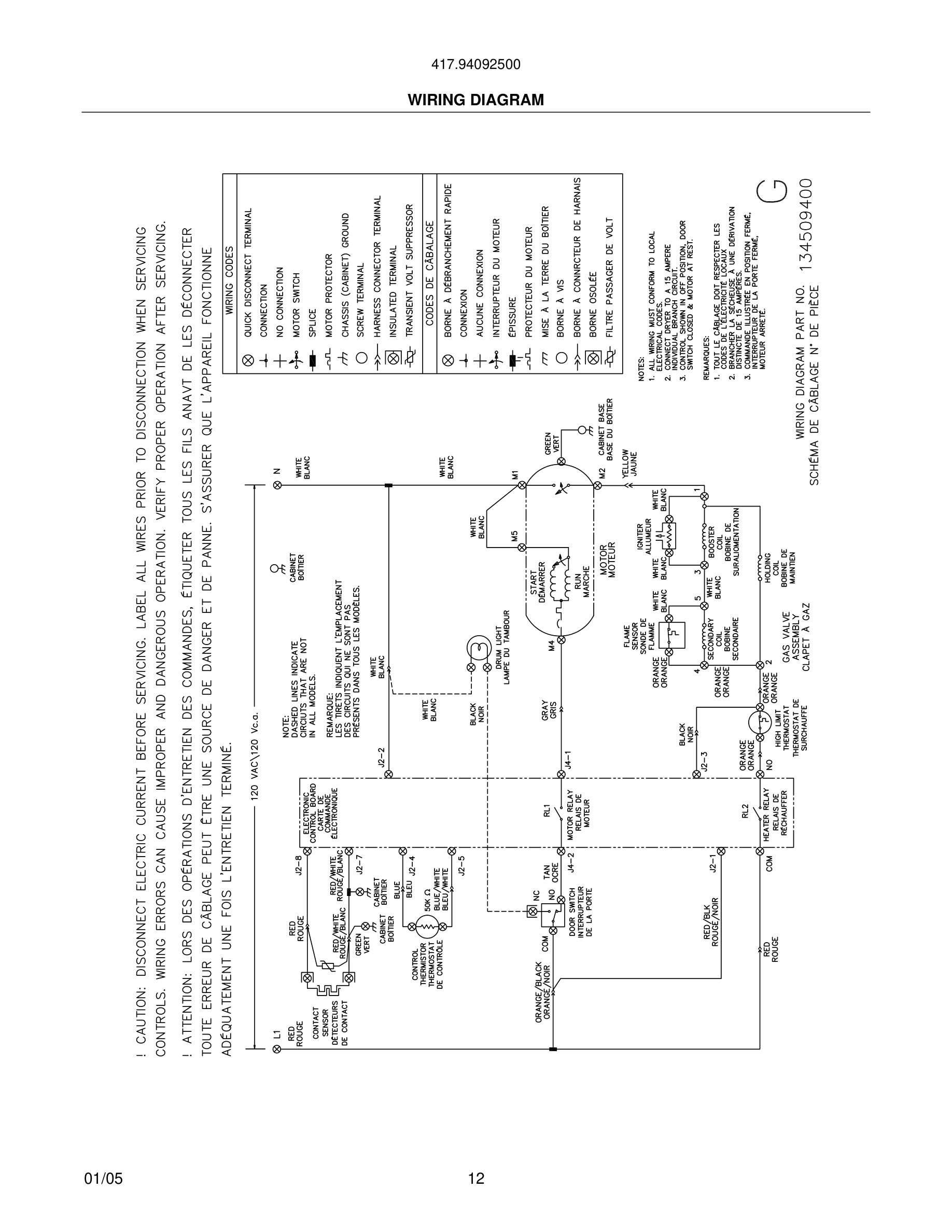

Technical Data Sheet, wiring diagram WCI 134509400 Contact Us For Availability

View on Model

*#

5303281153 Frigidaire Dryer Rear Drum Bearing In Stock WCI 5303281153 $9.49

View on Model

1

134417000 Frigidaire Seal Backorder WCI 134417000 $5.88

View on Model

1#

Control Board, printed circuit, with housing WCI 134523202 Contact Us For Availability

View on Model

3

Knob, program WCI 134471500 Contact Us For Availability

View on Model

4

131435200 Frigidaire Fan Housing Lock Backorder WCI 131435200 $45.28

View on Model

4

Pin, program knob WCI 134347700 Contact Us For Availability

View on Model

5

5303281019 Frigidaire Ball Assembly Backorder WCI 5303281019 $10.39

View on Model

6

5303281020 Frigidaire Ball Clip In Stock WCI 5303281020 $10.85

View on Model

6

Duct, air WCI 134382900 Contact Us For Availability

View on Model

7

Tube, exhaust, rear, w/mtg bracket WCI 131451600 Contact Us For Availability

View on Model

7*

Tube, exhaust, side/bottom, Optional Kit WCI 131456800 Contact Us For Availability

View on Model

8#

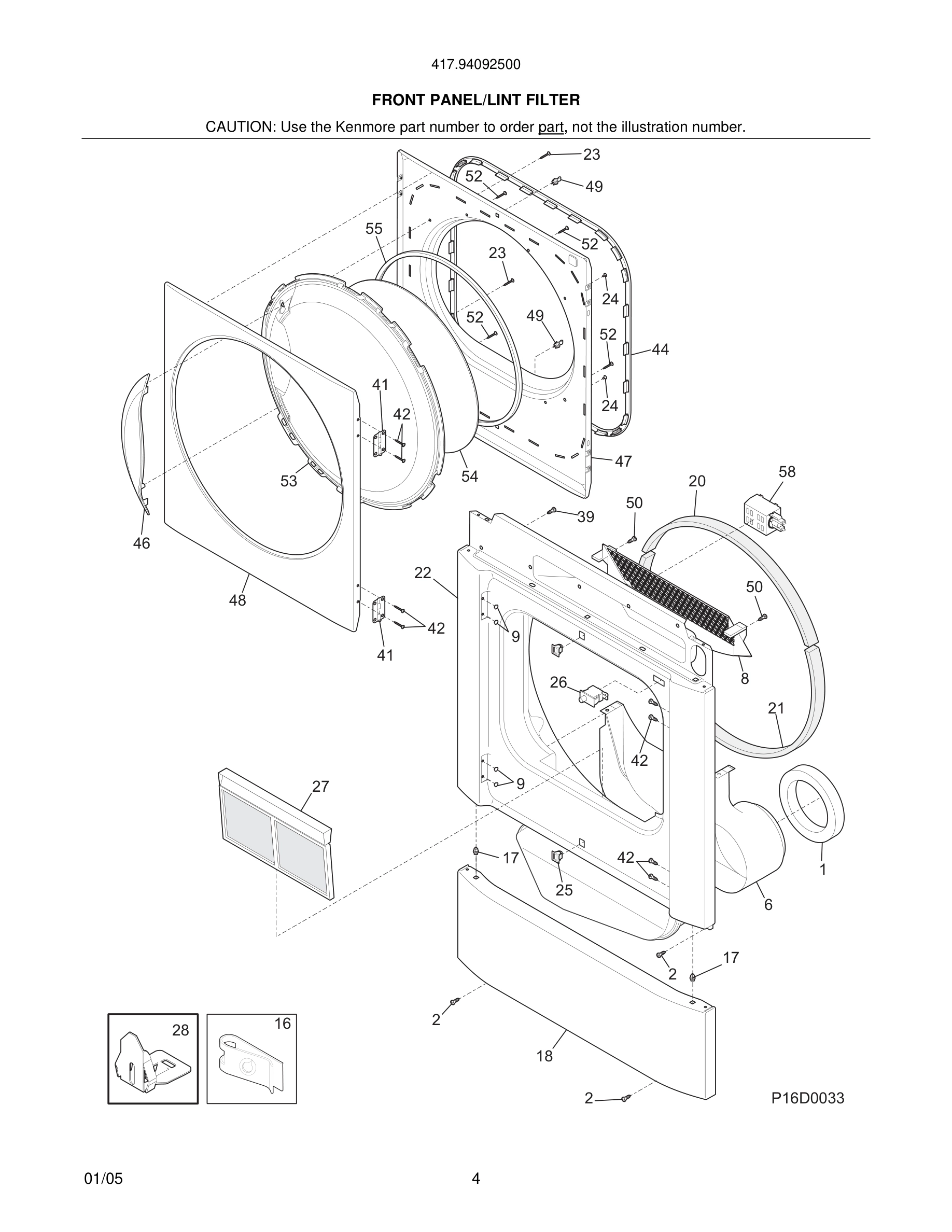

Cover, lint housing, w/moist sensor WCI 131845802 Contact Us For Availability

View on Model

9

131633200 Frigidaire Plug Assembly Backorder WCI 131633200 $9.95

View on Model

9

Light Pipe, array, 4 start group WCI 134429400 Contact Us For Availability

View on Model

10

Push Button, #1 WCI 134447100 Contact Us For Availability

View on Model

10#

131775600 Frigidaire Dryer Blower Wheel and H In Stock WCI 131775600 $101.89

View on Model

11

131749800 Frigidaire Spacer Backorder WCI 131749800 $28.07

View on Model

12

131825900 Frigidaire Dryer Rear Drum Bearing In Stock WCI 131825900 $2.81

View on Model

13

131724301 Frigidaire Dryer Drum Bearing Brack In Stock WCI 131724301 $8.14

View on Model

13

Spring, push button WCI 134349400 No Longer Available

View on Model

14

131205400 Frigidaire Screw Backorder WCI 131205400 $8.15

View on Model

16

Clip, wiring WCI 131063700 Contact Us For Availability

View on Model

17

Clip, assembly WCI 134408700 Contact Us For Availability

View on Model

18

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $9.04

View on Model

18

134321702 Frigidaire Toe Panel Backorder WCI 134321702 $84.07

View on Model

19

134402900 Frigidaire Screw Backorder WCI 134402900 $19.01

View on Model

20

131017900 Frigidaire Screw Backorder WCI 131017900 $9.06

View on Model

20

134440200 Frigidaire Seal Felt Drum In Stock WCI 134440200 $21.78

View on Model

20

Bracket, top panel mtg., rear WCI 134166500 Contact Us For Availability

View on Model

20*

5308027429 Frigidaire Dryer High Temperature In Stock WCI 5308027429 $38.09

View on Model

21

Drum, dryer, stainless steel, service kit WCI 134122552 Contact Us For Availability

View on Model

22

131601000 Frigidaire Idler Spring Assembly In Stock WCI 131601000 $33.06

View on Model

23

134430300 Frigidaire Screw Backorder WCI 134430300 $9.50

View on Model

23#

Wiring Harness, controls WCI 134394400 Contact Us For Availability

View on Model

25

131658800 Frigidaire Dryer Door Catch Repair In Stock WCI 131658800 $39.43

View on Model

27

131450300 Frigidaire Dryer Lint Screen Filter In Stock WCI 131450300 $13.48

View on Model

27

134242400 Frigidaire Washer Clamp Assembly In Stock WCI 134242400 $11.76

View on Model

28#

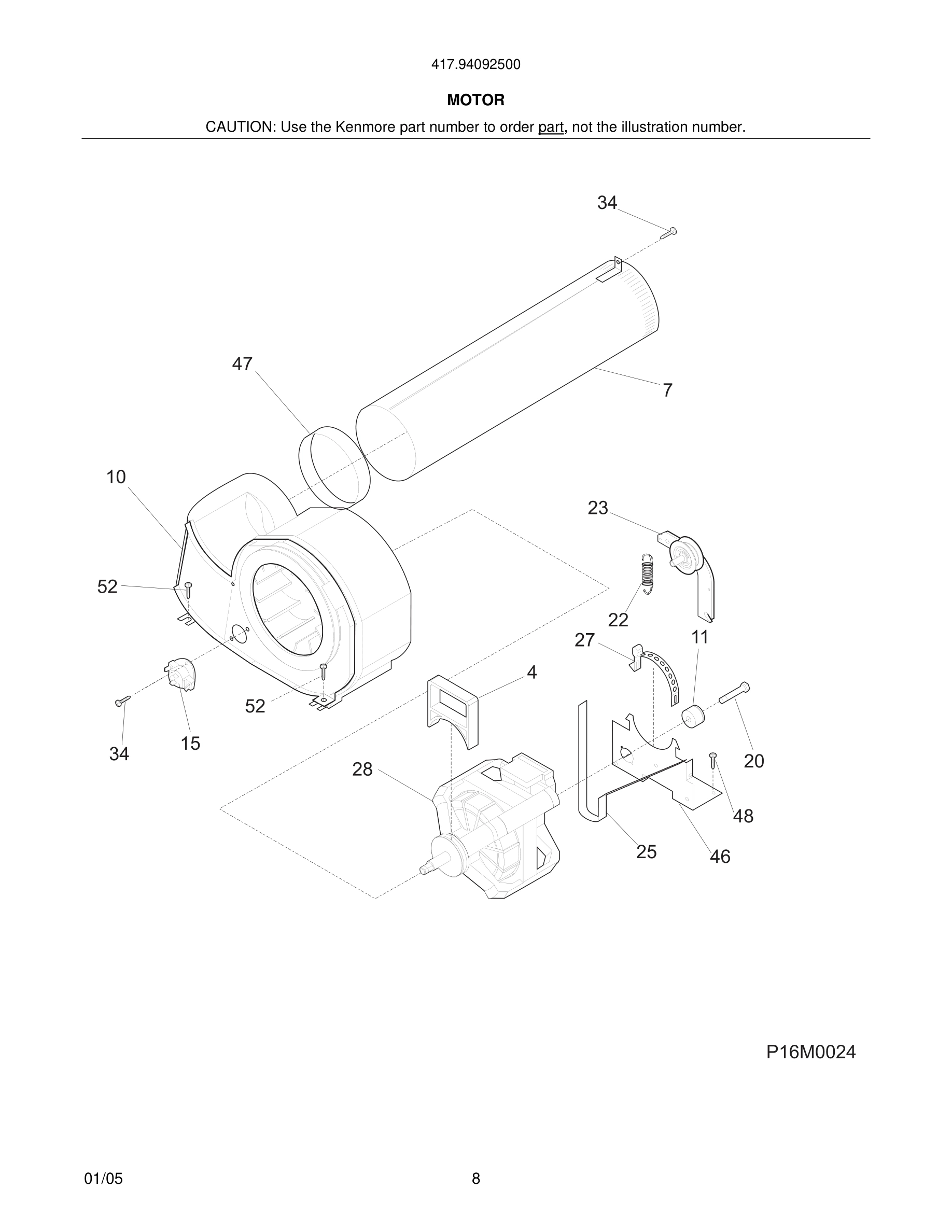

Motor & Pulley Assy WCI 131560100 No Longer Available

View on Model

29

131382300 Frigidaire Vane Screw Backorder WCI 131382300 $8.58

View on Model

29

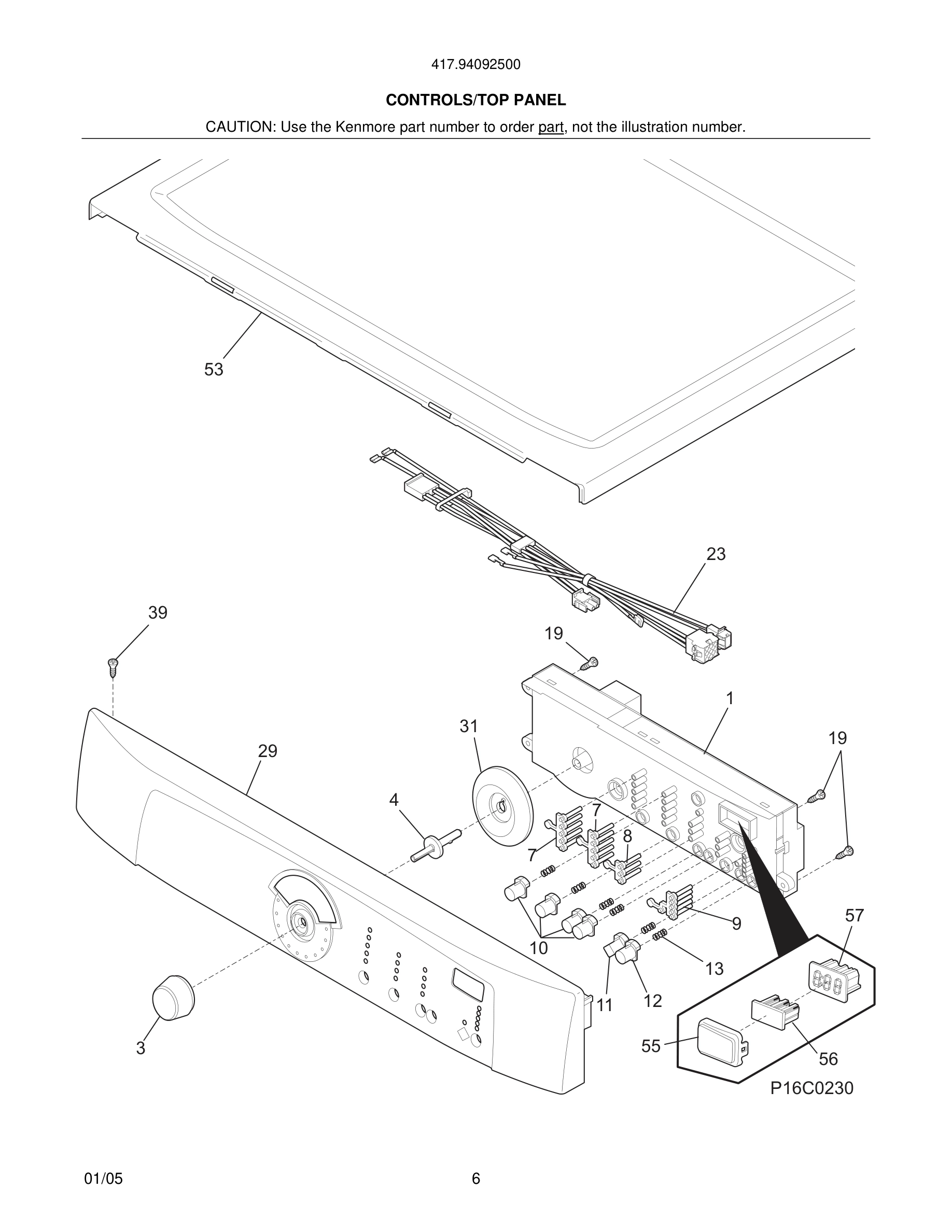

Panel, control console WCI 134442900 Contact Us For Availability

View on Model

30

Vane, straight, gray WCI 5304405283 Contact Us For Availability

View on Model

32

131777700 Frigidaire Dryer Bearing Drum In Stock WCI 131777700 $58.71

View on Model

32*

5303307893 Frigidaire HI TEMP Rear Bearing Lu In Stock WCI 5303307893 $21.73

View on Model

33#

5308015399 Frigidaire Safety Thermostat P-1 In Stock WCI 5308015399 $119.76

View on Model

39

131205100 Frigidaire Screw In Stock WCI 131205100 $9.06

View on Model

41

Hinge, door WCI 134412400 No Longer Available

View on Model

42

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

View on Model

42

134156200 Frigidaire Screw Assembly In Stock WCI 134156200 $9.50

View on Model

44

Leveling Leg, screw WCI 134344900 No Longer Available

View on Model

44

Gasket, door seal WCI 134413300 Contact Us For Availability

View on Model

46

Handle, door WCI 134472201 No Longer Available

View on Model

46

Bracket, motor mtg WCI 134203400 Contact Us For Availability

View on Model

47

Seal, exhaust tube WCI 131633300 Contact Us For Availability

View on Model

52

131202300 Frigidaire Screw Backorder WCI 131202300 $8.60

View on Model

53

Adapter, door glass ring WCI 134443201 Contact Us For Availability

View on Model

55

Lens, digital display WCI 134429000 Contact Us For Availability

View on Model

55#

Wiring Harness, gas valve WCI 134389600 Contact Us For Availability

View on Model

57#

Display, digital WCI 134503300 Contact Us For Availability

View on Model

61

134122000 Frigidaire Bracket Backorder WCI 134122000 $36.81

View on Model

70#

5303207409 Frigidaire Dryer Gas Primary Valve In Stock WCI 5303207409 $182.47

View on Model

71#

5303931775 Frigidaire Dryer Coil Kit In Stock WCI 5303931775 $7.80

View on Model

73#

5303207410 Frigidaire Orifice Backorder WCI 5303207410 $50.62

View on Model

77#

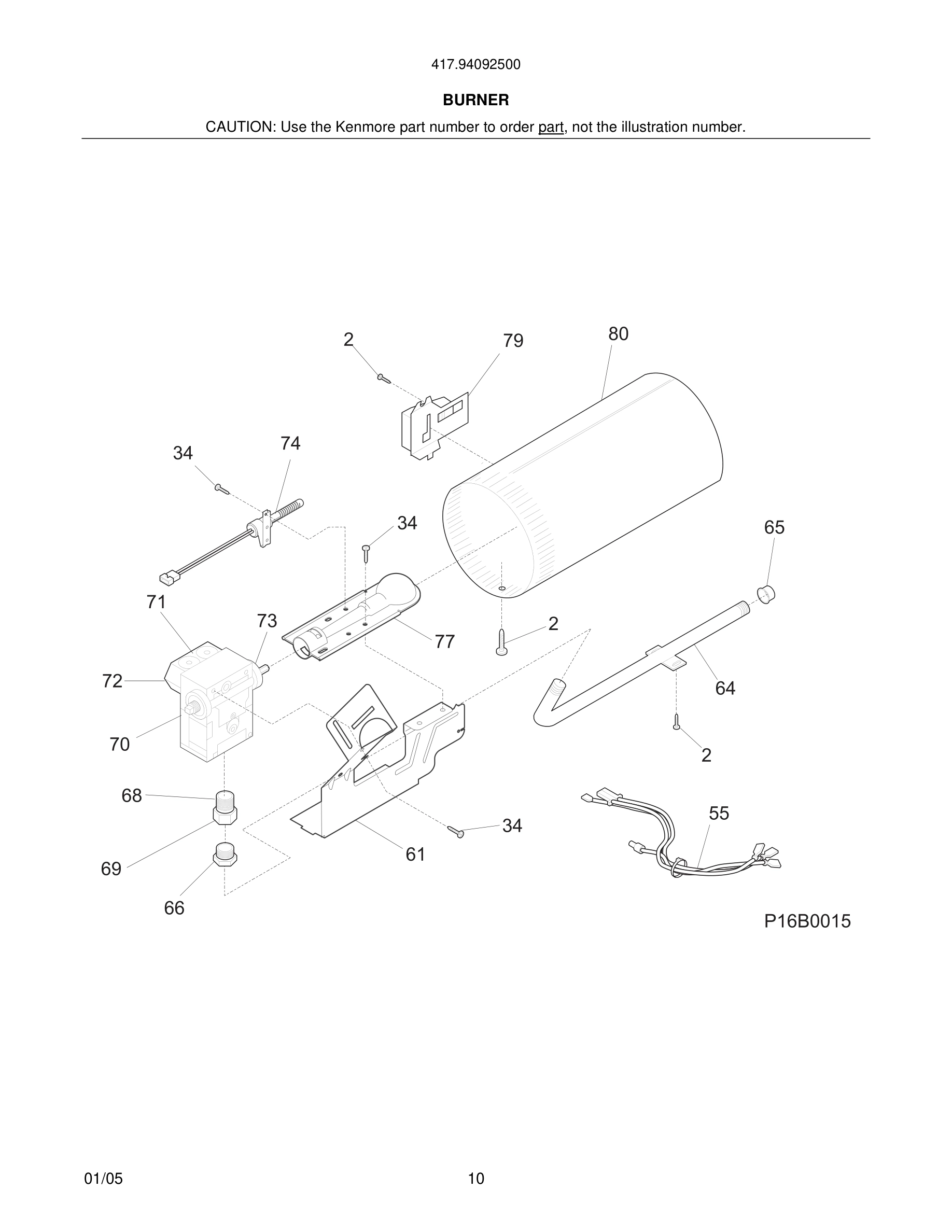

134197700 Frigidaire Burner Backorder WCI 134197700 $40.78

View on Model

79#

5303281135 Frigidaire Gas Dryer Flame Sensor In Stock WCI 5303281135 $22.30

View on Model
