Model Kenmore 417.93142203 DRYER – Common Parts & Diagrams
01 - COVER
03 - CABINET/DRUM

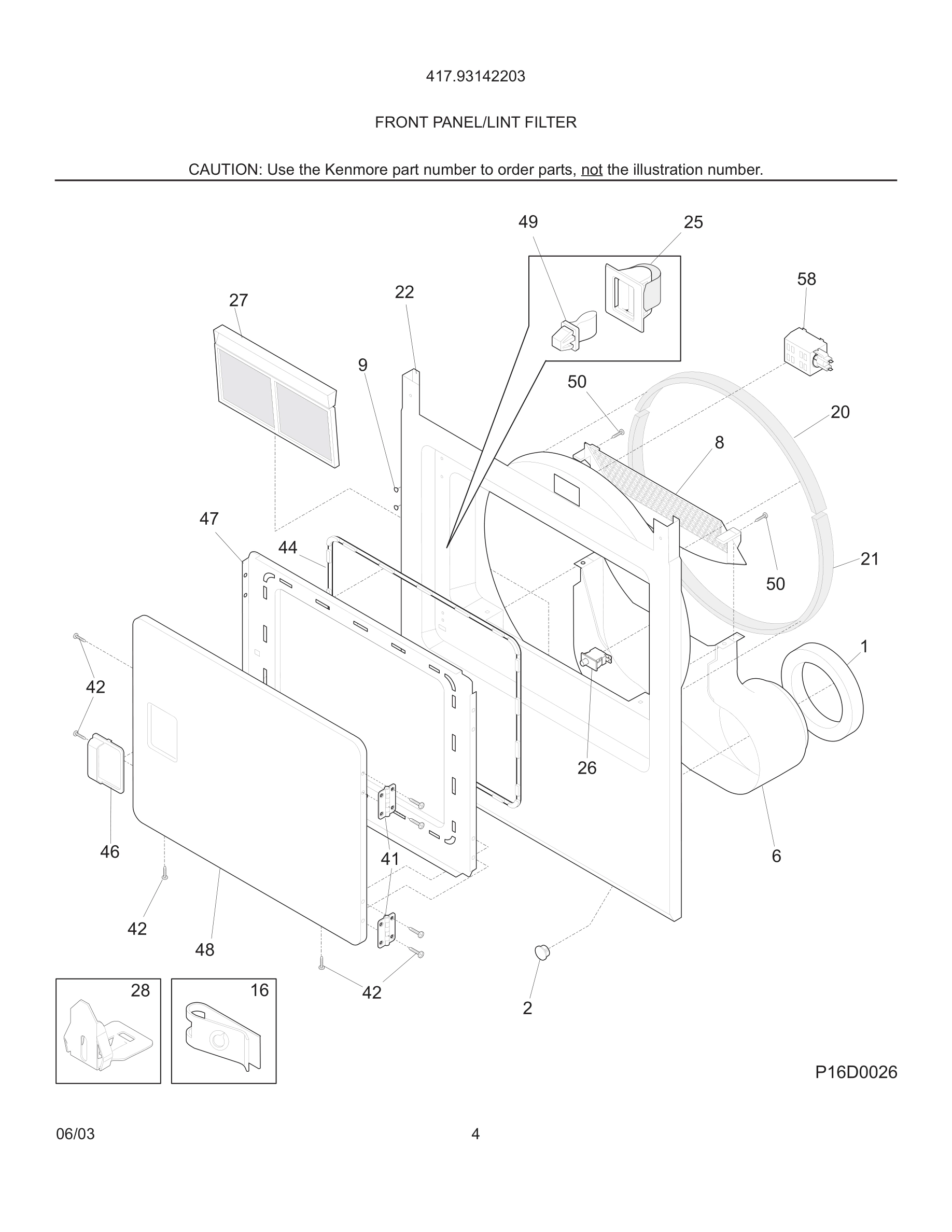

05 - FRONT PANEL/LINT FILTER

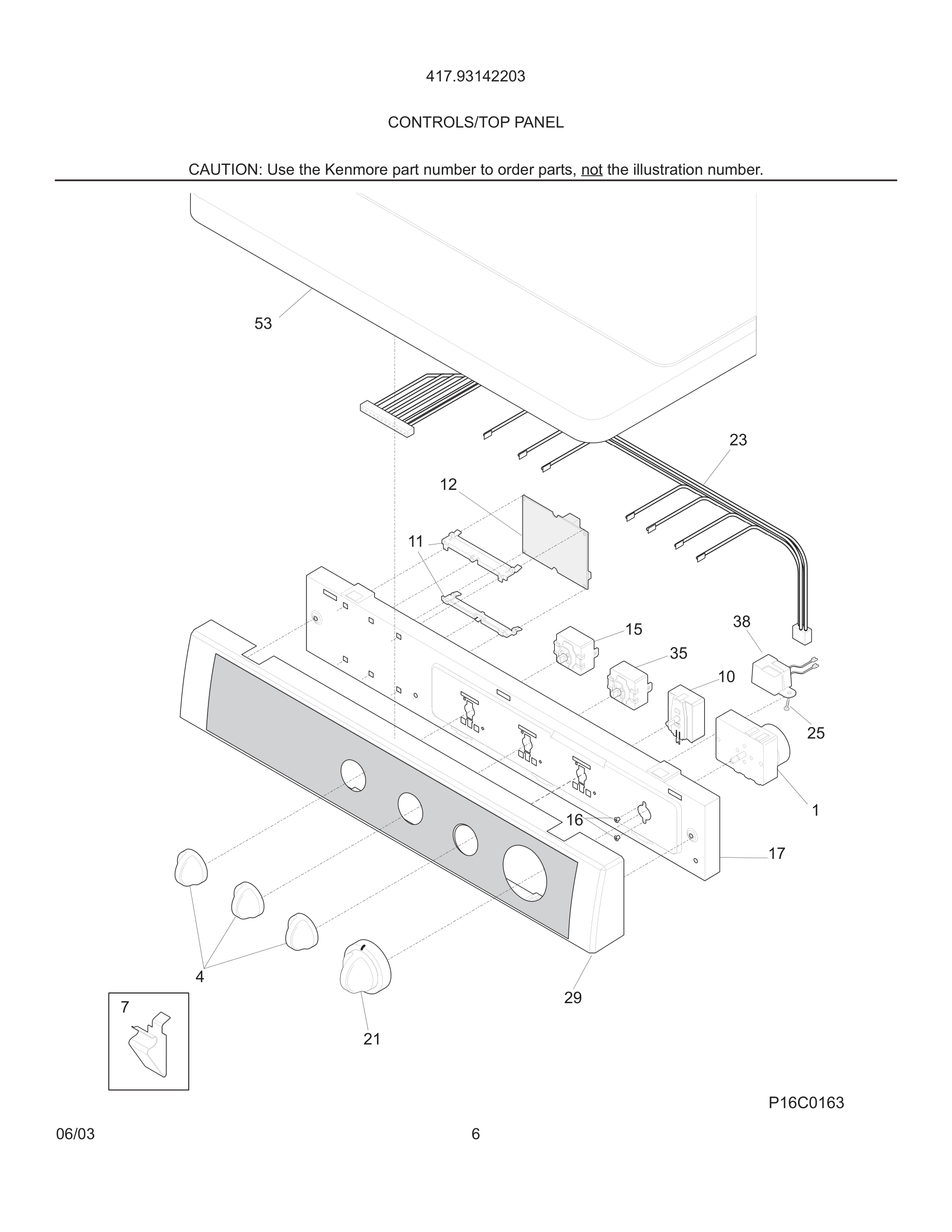

07 - CONTROLS/TOP PANEL

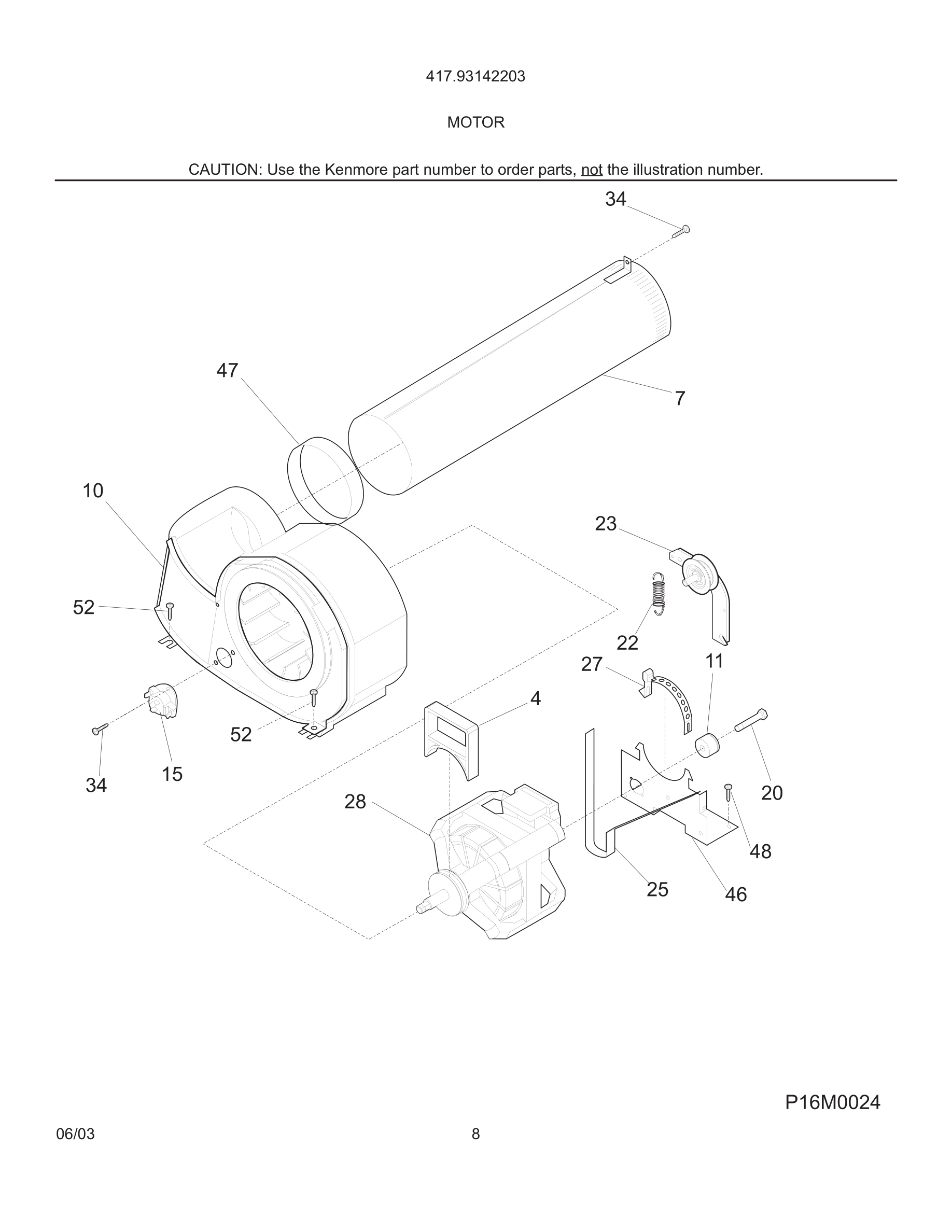

09 - MOTOR

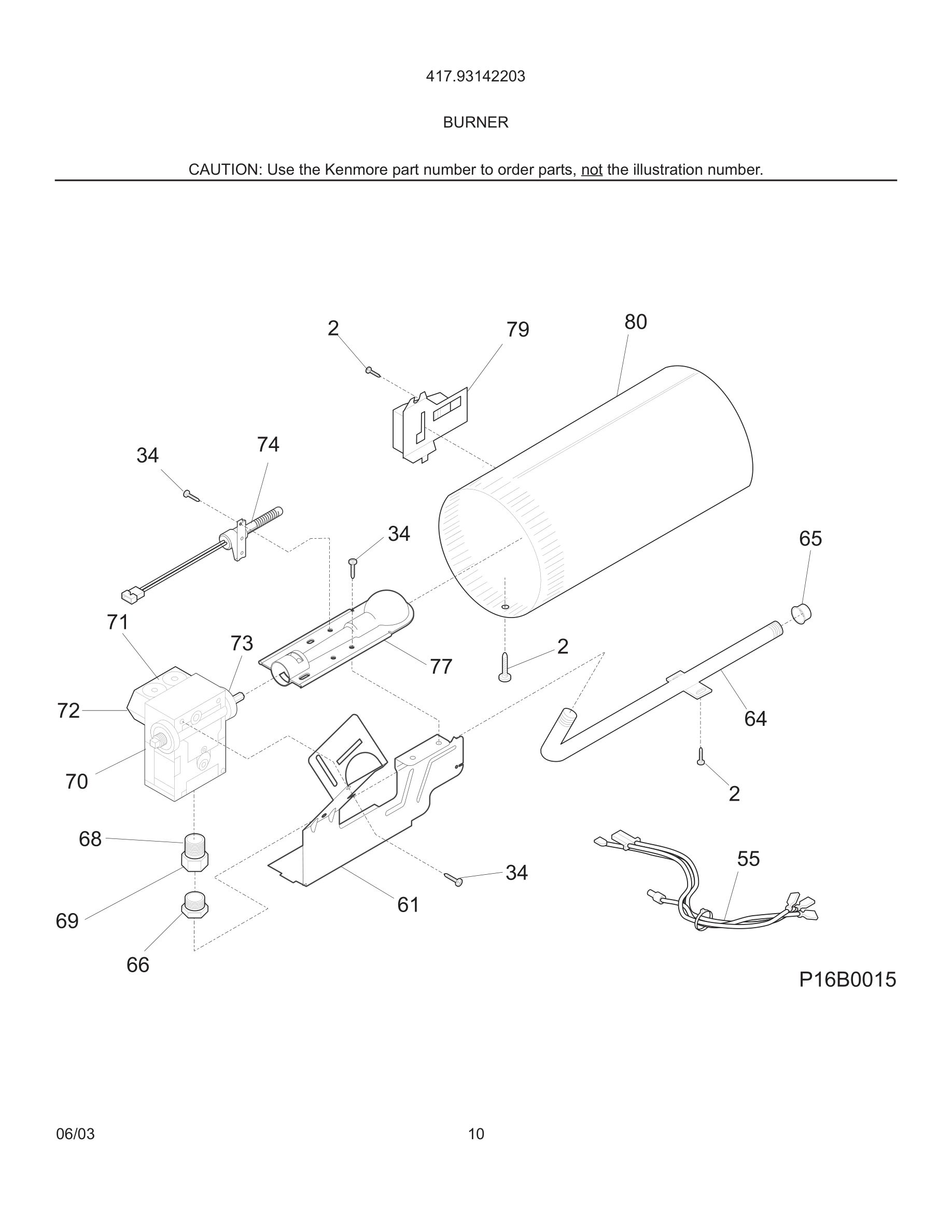

11 - BURNER

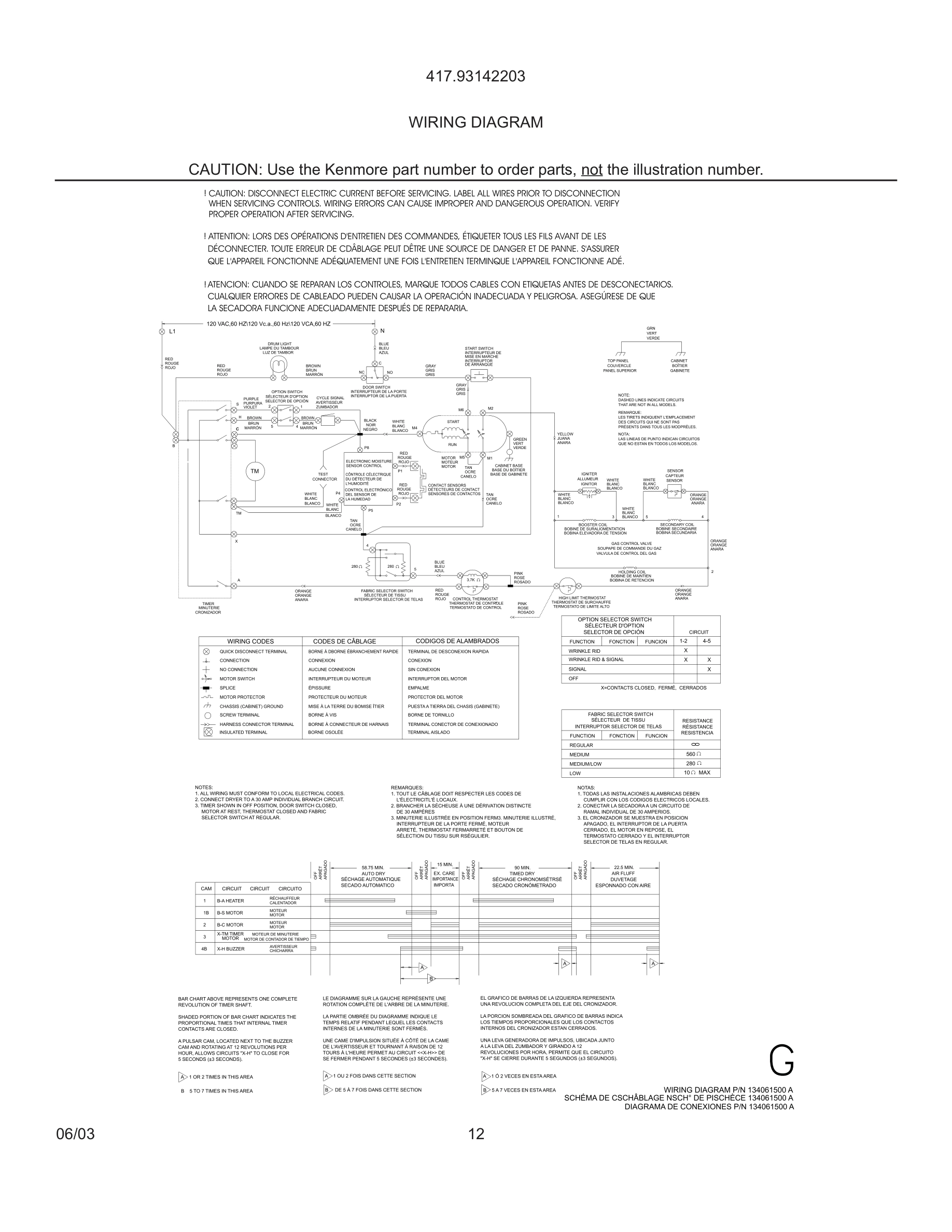

12 - WIRING DIAGRAM
Common parts from model Kenmore 417.93142203 DRYER
*
Stacking Kit,washer/dryer WCI 5303937141 Contact Us For Availability
*#
Wiring Harness, main WCI 134006600 Contact Us For Availability
7
Tube,exhaust ,rear ,w/mtg bracket WCI 131451600 Contact Us For Availability
7*
Tube,exhaust ,side/bottom ,Optional Kit WCI 131456800 Contact Us For Availability
8#
Cover,lint housing ,w/moist sensor WCI 131845801 Contact Us For Availability
8*#
Wiring Harness,moisture sensor WCI 131657500 Contact Us For Availability
12
Control Board,moisture sensor WCI 134216300 Contact Us For Availability
16
Clip,wiring WCI 131063700 Contact Us For Availability
17
Bracket,control mtg. WCI 134064501 Contact Us For Availability
20
Bracket, hinge, rear, top panel mtg. WCI 131469100 Contact Us For Availability
21
Knob, timer, white/gray WCI 131694600 Contact Us For Availability
22*
Insulation WCI 131474700 Contact Us For Availability
27
Clamp,motor mtg. WCI 131419800 Contact Us For Availability
28
Clip,guide ,(3) WCI 5303281074 No Longer Available
28#
Motor,main drive ,w/pulley WCI 131560100 No Longer Available
30
Vane,straight ,gray WCI 5304405283 Contact Us For Availability
35#
Switch,option select ,4 posn rotary WCI 134053600 Contact Us For Availability
38#
Buzzer WCI 5303210285 Contact Us For Availability
46
Bracket, motor mtg WCI 134203400 Contact Us For Availability
47
Seal, exhaust tube WCI 131633300 Contact Us For Availability
47
Panel,inner door ,white WCI 131844104 Contact Us For Availability
48
Panel,outer door ,white WCI 131789303 Contact Us For Availability
53
Panel,dryer top ,white, stackable WCI 134086812 Contact Us For Availability
55#
Wiring Harness, gas valve WCI 134155800 Contact Us For Availability
64
Clip WCI 131704600 Contact Us For Availability
× ![]()
