  • Kenmore 417.93052202

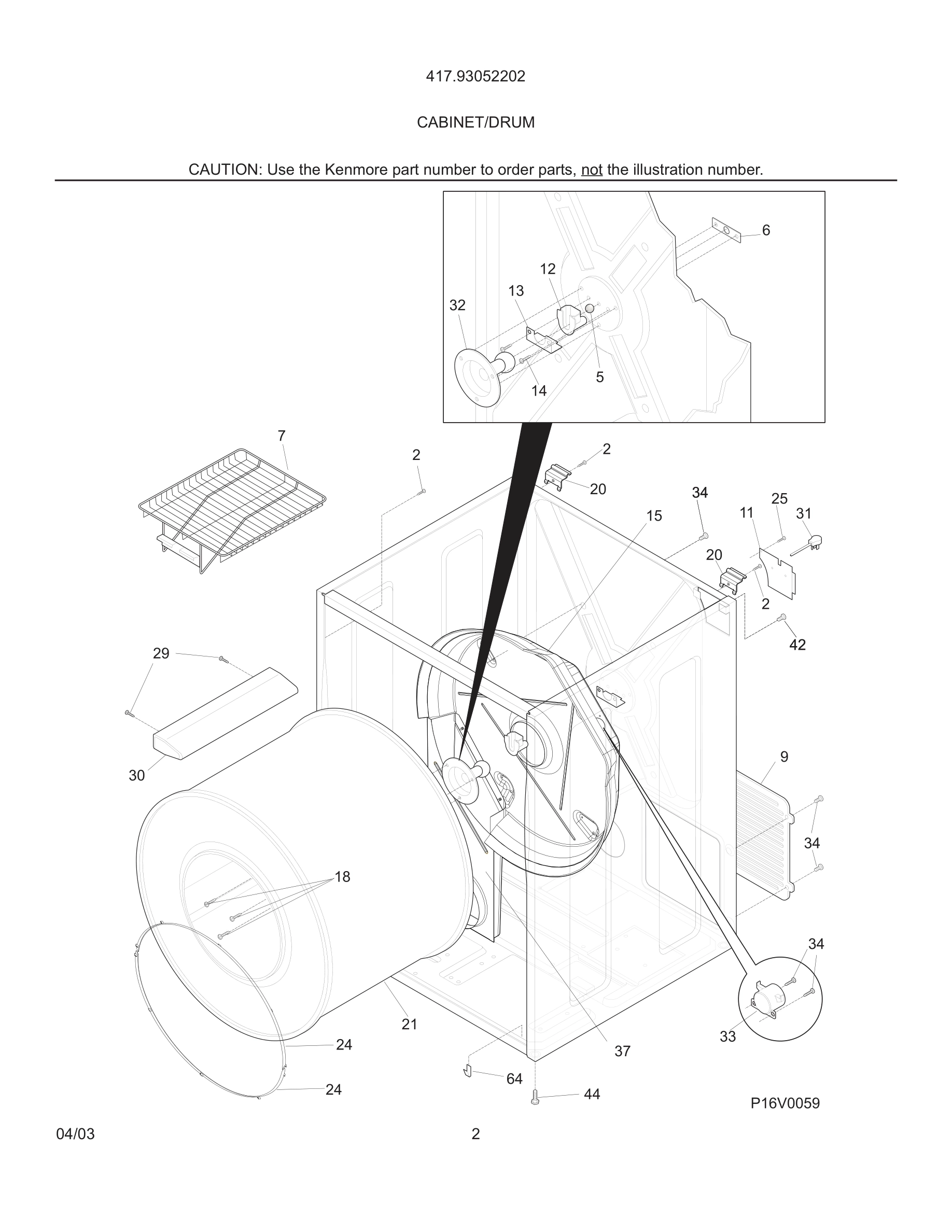

Model Kenmore 417.93052202 DRYER – Common Parts & Diagrams

*
Insulation
Insulation WCI 131474700 Contact Us For Availability
View on Model
5
Closure,console trim ,white ,front
Closure,console trim ,white ,front WCI 134019900 Contact Us For Availability
View on Model
7
Tube,exhaust ,rear ,w/mtg bracket
Tube,exhaust ,rear ,w/mtg bracket WCI 131451600 Contact Us For Availability
View on Model
7*
Tube,exhaust ,side/bottom ,Optional Kit
Tube,exhaust ,side/bottom ,Optional Kit WCI 131456800 Contact Us For Availability
View on Model
8#
Cover,lint housing ,w/moist sensor
Cover,lint housing ,w/moist sensor WCI 131845800 Contact Us For Availability
View on Model
16
Clip,wiring
Clip,wiring WCI 131063700 Contact Us For Availability
View on Model
20
Bracket,hinge ,rear ,top panel mtg.
Bracket,hinge ,rear ,top panel mtg. WCI 131469100 Contact Us For Availability
View on Model
21
Knob,timer ,white/gray
Knob,timer ,white/gray WCI 131788700 Contact Us For Availability
View on Model
22
Screw,8-18 x 1.250
Screw,8-18 x 1.250 WCI 131266330 Contact Us For Availability
View on Model
27
Clip,console mtg
Clip,console mtg WCI 131197000 Contact Us For Availability
View on Model
27
Clamp,motor mtg.
Clamp,motor mtg. WCI 131419800 Contact Us For Availability
View on Model
28
Clip,guide ,(3)
Clip,guide ,(3) WCI 5303281074 Contact Us For Availability
View on Model
28#
Motor,main drive ,w/pulley
Motor,main drive ,w/pulley WCI 131560100 No Longer Available
View on Model
30
Vane,straight ,gray
Vane,straight ,gray WCI 5304405283 Contact Us For Availability
View on Model
35#
Switch,option select ,4 posn rotary
Switch,option select ,4 posn rotary WCI 134053600 Contact Us For Availability
View on Model
46
Bracket,motor mtg
Bracket,motor mtg WCI 134203400 Contact Us For Availability
View on Model
47
Seal,exhaust tube
Seal,exhaust tube WCI 131633300 Contact Us For Availability
View on Model
47
Panel,inner door ,white
Panel,inner door ,white WCI 131844104 Contact Us For Availability
View on Model
48
Panel,outer door ,white
Panel,outer door ,white WCI 131789303 Contact Us For Availability
View on Model
55#
Wiring Harness,gas valve
Wiring Harness,gas valve WCI 134155800 Contact Us For Availability
View on Model
64
Clip
Clip WCI 131704600 Contact Us For Availability
View on Model
77#
Burner Assy,non-adjustable ,w/mtg bracket
Burner Assy,non-adjustable ,w/mtg bracket WCI 131762900 Contact Us For Availability
View on Model
77*
(cid:127) Clip,ignitor support
(cid:127) Clip,ignitor support WCI 134214200 Contact Us For Availability
View on Model
80#
Tube,burner ,riveted
Tube,burner ,riveted WCI 134156101 Contact Us For Availability
