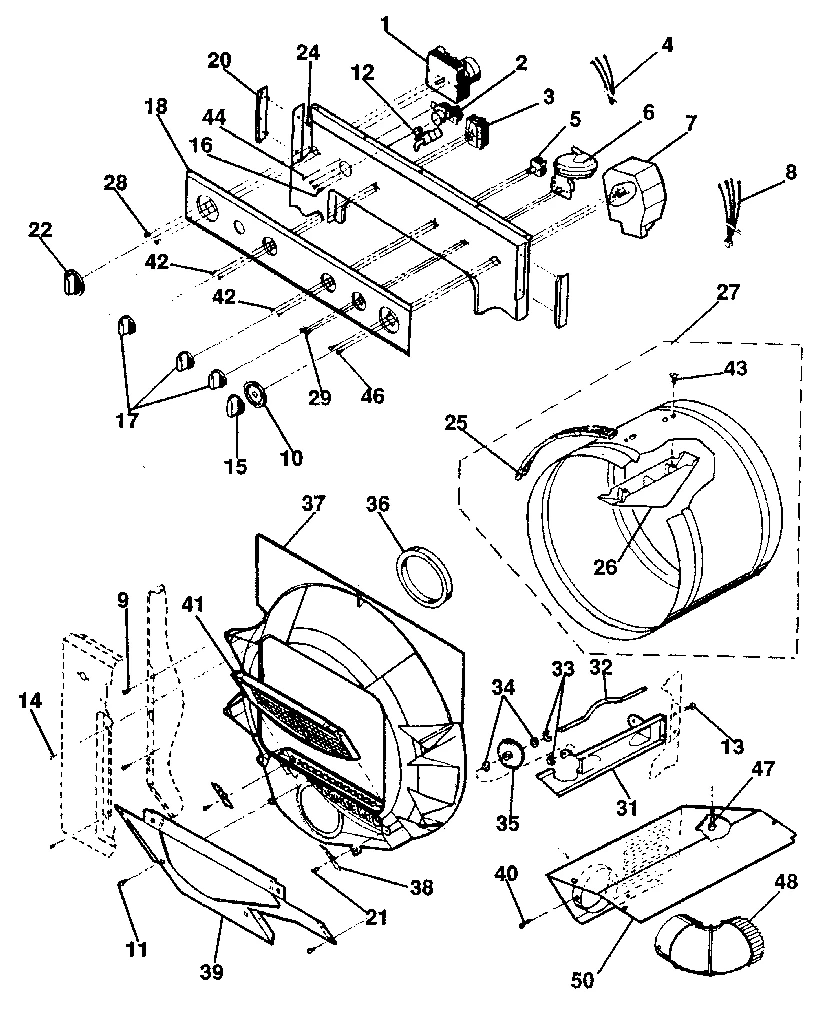

Model Electrolux 417.89975800 Laundry Center (Kenmore 41789975800) – Common Parts &amp; Diagrams

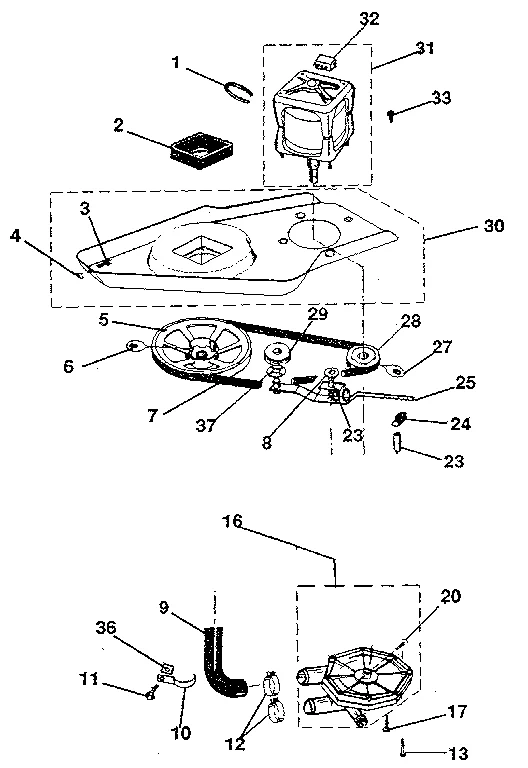

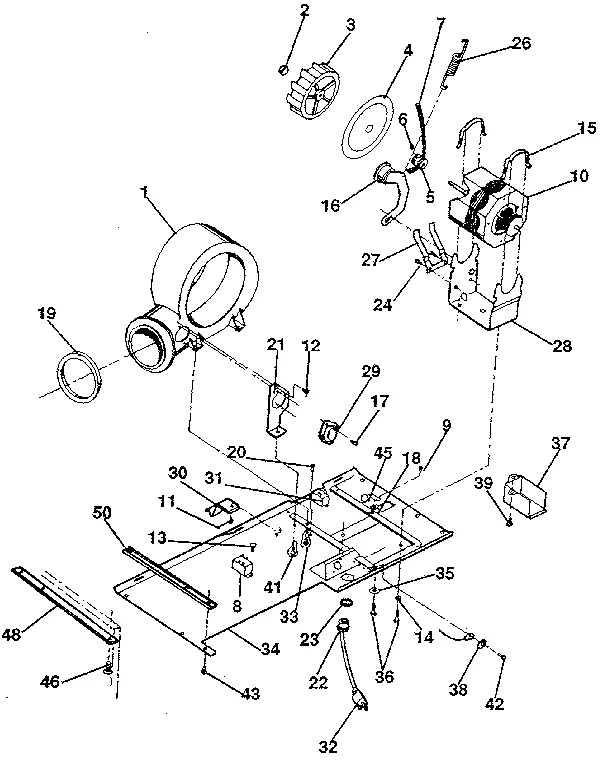

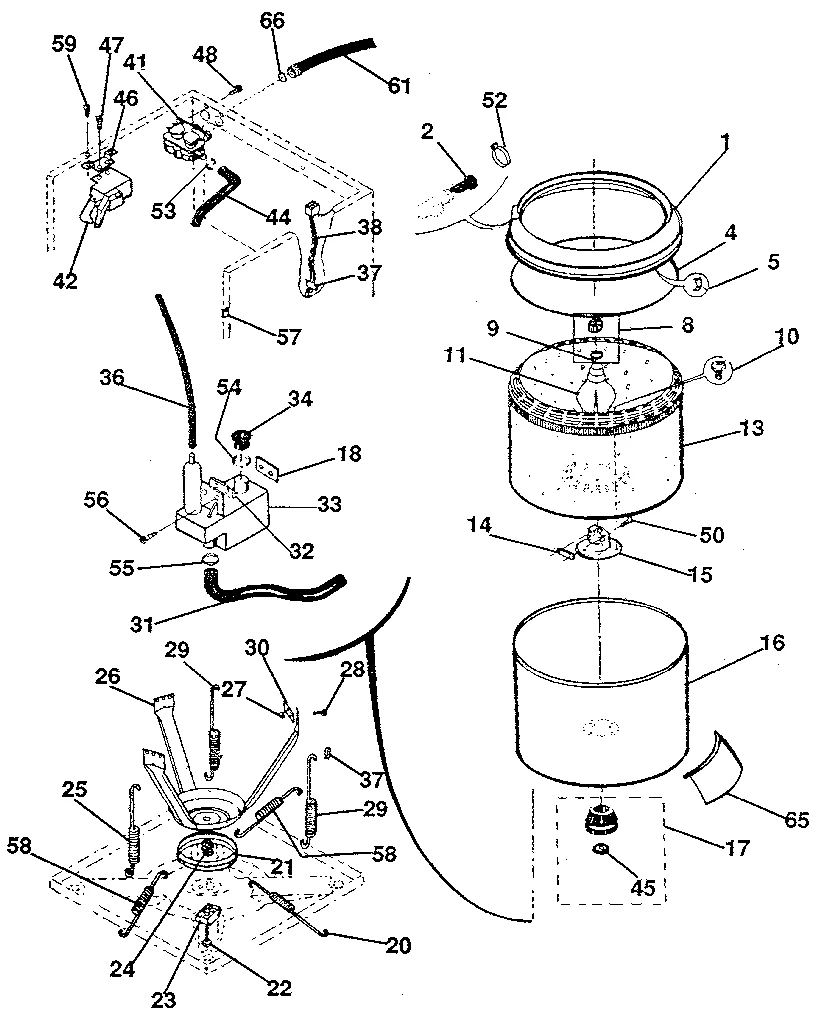

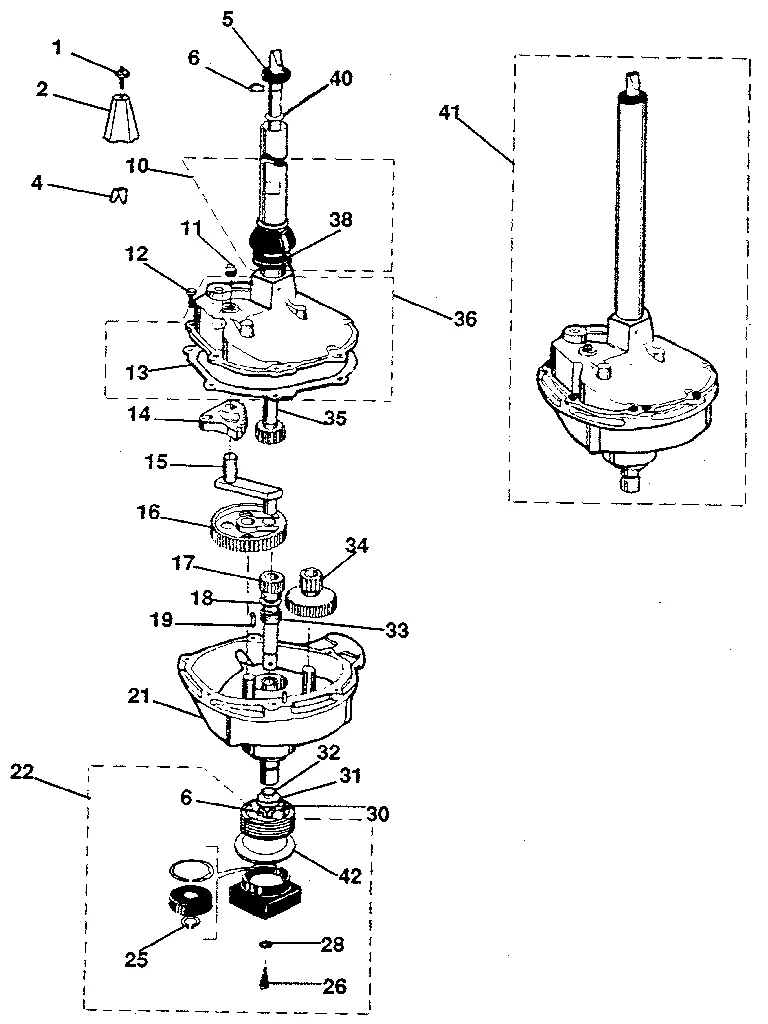

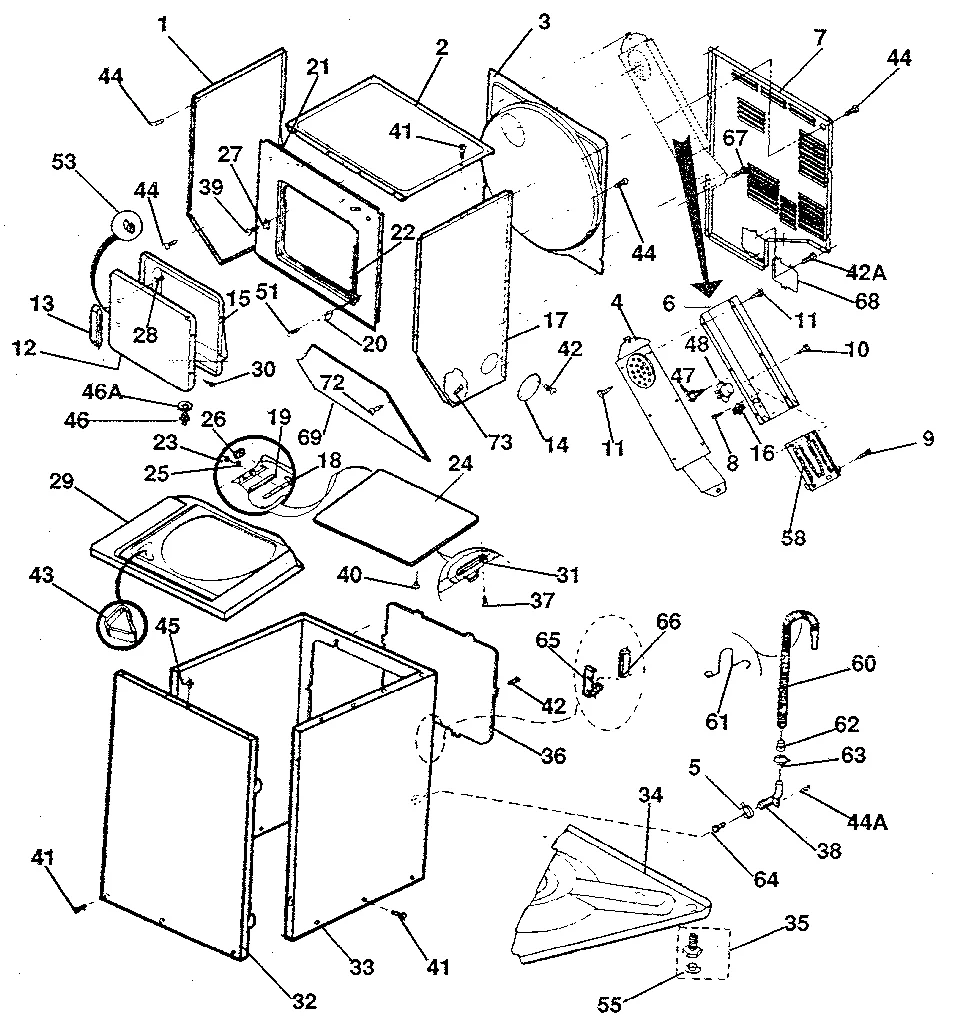

1

Screw WCI 3161221 Contact Us For Availability

1

ACCES PANEL, DRYER WCI N/P Contact Us For Availability

1

Housing WCI 3016461 Contact Us For Availability

1

Timer WCI 3205057 Contact Us For Availability

1A

Panel (White) WCI 3204946 Contact Us For Availability

1B

Panel (Almond) WCI 3204947 Contact Us For Availability

2

Block WCI 08014904 Contact Us For Availability

2

Cushion WCI F077009-100 Contact Us For Availability

2

Clip WCI 3161263 Contact Us For Availability

2

Switch WCI F135006-000 Contact Us For Availability

2A

Panel (White) WCI 3204948 Contact Us For Availability

2B

Panel (Almond) WCI 3204949 Contact Us For Availability

3

Screw WCI 3161211 Contact Us For Availability

3

Wheel WCI 08015787 Contact Us For Availability

3

Panel WCI 3204950 Contact Us For Availability

3

Switch WCI 3205058 Contact Us For Availability

4

Shim WCI 3161222 Contact Us For Availability

4

Nut WCI 3161212 Contact Us For Availability

4

Plate WCI 00639342 Contact Us For Availability

4

Front Duct WCI 08015820 Contact Us For Availability

4

Harness WCI 3205059 Contact Us For Availability

5

Washer Water-Level Pressure Switch WCI 3204996 Contact Us For Availability

5

Clamp WCI F064154-013 Contact Us For Availability

5

Shaft WCI 08011273 Contact Us For Availability

5

Pulley WCI 3937008 Contact Us For Availability

5

Pulley WCI 08015796 Contact Us For Availability

6

Ring WCI 3161223 Contact Us For Availability

6

Screw WCI 08027520 Contact Us For Availability

6

Duct WCI 3205055 Contact Us For Availability

6

Switch WCI 3204997 Contact Us For Availability

7

5303280326 Frigidaire Drive Belt Assembly In Stock WCI 5303280326 $26.41

7

Laundry Center Washer Timer WCI 3016451 Contact Us For Availability

7

Belt WCI 3161099 Contact Us For Availability

7

Panel WCI 3016426 Contact Us For Availability

8

131168200 Frigidaire Dryer Screw In Stock WCI 131168200 $9.10

8

Bushing WCI 08027535 Contact Us For Availability

8

Relay WCI 3205062 Contact Us For Availability

8

Harness WCI 3205060 Contact Us For Availability

9

Hose WCI F141127-000 Contact Us For Availability

9

Screw WCI 3161234 Contact Us For Availability

Seal Kit WCI 08950197 Contact Us For Availability

Clamp WCI 3161301 Contact Us For Availability

Motor WCI 3203091 Contact Us For Availability

Dial WCI 3204999 Contact Us For Availability

11

Plug WCI 3161224 Contact Us For Availability

11

Screw WCI 3205020 Contact Us For Availability

11

Screw WCI 3017890 Contact Us For Availability

12

Screw WCI 08002804 Contact Us For Availability

12

Clamp WCI 08014914 Contact Us For Availability

12

Switch WCI 3205000 Contact Us For Availability

12A

Outer Door (White) WCI 3016427 Contact Us For Availability

12B

Outer Door (Almond) WCI 3016429 Contact Us For Availability

Tub WCI 3161486 Contact Us For Availability

Screw WCI F136029-000 Contact Us For Availability

Gasket WCI 08015778 Contact Us For Availability

Screw WCI 08002390 Contact Us For Availability

Screw WCI F136317000 Contact Us For Availability

13A

Door Handle (White) WCI 3016430 Contact Us For Availability

13B

Door Handle (Almond) WCI 3016432 Contact Us For Availability

137107000 Frigidaire Plate In Stock WCI 137107000 $17.30

Gear WCI 08011268 Contact Us For Availability

Lock Washer WCI F063602-000 Contact Us For Availability

Screw WCI 3161243 Contact Us For Availability

14A

Cover (White) WCI 3204952 Contact Us For Availability

14B

Cover (Almond) WCI 3204953 Contact Us For Availability

Support WCI 08014908 Contact Us For Availability

Rod WCI 3161169 Contact Us For Availability

Motor Clip WCI 08002293 Contact Us For Availability

Knob WCI 3205001 Contact Us For Availability

15A

Door (White) WCI 3016433 Contact Us For Availability

15B

Door (Almond) WCI 3016435 Contact Us For Availability

Tub WCI 3161127 Contact Us For Availability

Gear WCI 08015496 Contact Us For Availability

Pump WCI 08015864 Contact Us For Availability

Wheel Arm WCI F140582-000 Contact Us For Availability

Thermostat WCI 08015853 Contact Us For Availability

Screw WCI F135022-000 Contact Us For Availability

5304401796 Frigidaire Screws Backorder WCI 5304401796 $2.36

Laundry Center Control Knob WCI 3205004 Contact Us For Availability

Bearing WCI 08027536 Contact Us For Availability

Shaft WCI 08014905 Contact Us For Availability

17A

Panel (White) WCI 3204954 Contact Us For Availability

17B

Panel (Almond) WCI 3204955 Contact Us For Availability

5304489657 Frigidaire Bar Hinge Kit Backorder WCI 5304489657 $53.33

Nut WCI 3161283 Contact Us For Availability

Spacer WCI 3161226 Contact Us For Availability

Terminal WCI F079171-000 Contact Us For Availability

Panel WCI 3205061 Contact Us For Availability

18A

Bar WCI 3204956 Contact Us For Availability

19

Pin WCI 3161227 Contact Us For Availability

19

Gasket WCI 3205021 Contact Us For Availability

19

Gasket-hinge WCI 3204957 Contact Us For Availability

Spring WCI 08006564 Contact Us For Availability

Screw WCI 3161217 Contact Us For Availability

Hinge WCI 3204959 Contact Us For Availability

Trim WCI 3205006 Contact Us For Availability

216858001 Frigidaire Refrigerator Screw Backorder WCI 216858001 $6.84

Snubber WCI 08002385 Contact Us For Availability

Gear Case WCI F140586-000 Contact Us For Availability

Bracket WCI 3016464 Contact Us For Availability

21A

Panel (White) WCI 3204961 Contact Us For Availability

21B

Panel (Almond) WCI 3204963 Contact Us For Availability

5303209428 Frigidaire Serv.Cord Bushing Backorder WCI 5303209428 $10.94

Screw WCI 3161284 Contact Us For Availability

Housing WCI 08950058 Contact Us For Availability

Seal WCI 3204964 Contact Us For Availability

Knob WCI 3205007 Contact Us For Availability

Block WCI 3161202 Contact Us For Availability

Spacer WCI 3161303 Contact Us For Availability

Plug WCI 3205063 Contact Us For Availability

Screw WCI 3204359 Contact Us For Availability

Nut WCI 3161203 Contact Us For Availability

Spring WCI 08002456 Contact Us For Availability

Screw WCI 3161268 Contact Us For Availability

Nut WCI 3205008 Contact Us For Availability

24A

Lid (White) WCI 3204965 Contact Us For Availability

24B

Lid (Almond) WCI 3204966 Contact Us For Availability

Spring WCI 3161131 Contact Us For Availability

Ring WCI 08015536 Contact Us For Availability

Arm WCI 3937001 Contact Us For Availability

Washer WCI F078259-000 Contact Us For Availability

Seal WCI 3205009 Contact Us For Availability

Support WCI 3161132 Contact Us For Availability

Spring WCI 08015828 Contact Us For Availability

Grommet Hinge WCI 3204362 Contact Us For Availability

Baffle WCI 3161076 Contact Us For Availability

Nut WCI 3161204 Contact Us For Availability

Screw WCI F132861-000 Contact Us For Availability

Retainer WCI F136941-000 Contact Us For Availability

Latch Spring WCI 3016439 Contact Us For Availability

Drum WCI 3205010 Contact Us For Availability

Screw WCI 3161205 Contact Us For Availability

Spacer WCI 08002467 Contact Us For Availability

Pulley WCI 08006686 Contact Us For Availability

Cradle WCI 3016466 Contact Us For Availability

Screw WCI F135022000 Contact Us For Availability

29

5304527822 Frigidaire Pulley Backorder WCI 5304527822 $14.58

29

Spring WCI 3161133 Contact Us For Availability

29

Thermostat WCI 08004644 Contact Us For Availability

29A

Panel (White) WCI 3204967 Contact Us For Availability

29B

Panel (Almond) WCI 3204969 Contact Us For Availability

Plate WCI 3161134 Contact Us For Availability

Spacer Washer WCI 3351064 Contact Us For Availability

Support Plate WCI F079494-300 Contact Us For Availability

Clip WCI 3205023 Contact Us For Availability

Screw WCI 3161187 Contact Us For Availability

131390000 Frigidaire Door Catch-Strike Backorder WCI 131390000 $34.78

Hose WCI 08008997 Contact Us For Availability

Motor WCI 08014901 Contact Us For Availability

Buzzer WCI F133242-000 Contact Us For Availability

Bracket WCI 3161080 Contact Us For Availability

31A

Bracket WCI 3161081 Contact Us For Availability

5303161173 Frigidaire Seal Assembly Backorder WCI 5303161173 $5.99

Shim WCI 3161285 Contact Us For Availability

Switch WCI 08014888 Contact Us For Availability

Cord WCI 08004650 Contact Us For Availability

Shaft Drum WCI F136073-000 Contact Us For Availability

32A

Panel (White) WCI 3204973 Contact Us For Availability

32B

Panel (Almond) WCI 3204975 Contact Us For Availability

Trap WCI F077276-000 Contact Us For Availability

Spring WCI 3161174 Contact Us For Availability

Screw WCI F132144-000 Contact Us For Availability

Retaining Ring WCI 3161255 Contact Us For Availability

33A

Body (White) WCI 3204978 Contact Us For Availability

33B

Body (Almond) WCI 3204979 Contact Us For Availability

Grommet WCI 3161286 Contact Us For Availability

Gear WCI 3161175 Contact Us For Availability

Base WCI 3205024 Contact Us For Availability

Base WCI F136137-026 Contact Us For Availability

Washer WCI F136074-000 Contact Us For Availability

35

Washer WCI 08027582 Contact Us For Availability

35

Foot WCI 3937004 Contact Us For Availability

35

Roller WCI 08004077 Contact Us For Availability

Tube WCI 3205031 Contact Us For Availability

Housing WCI F140588-000 Contact Us For Availability

Speed Nut WCI 08004096 Contact Us For Availability

Panel WCI 3204980 Contact Us For Availability

Seal WCI 3205011 Contact Us For Availability

3204368 Frigidaire Strike Screw Backorder WCI 3204368 $8.18

Clip WCI 3161288 Contact Us For Availability

Shield WCI 3205025 Contact Us For Availability

Housing WCI 3205012 Contact Us For Availability

Coupling WCI 3161452 Contact Us For Availability

Harness WCI 3204998 Contact Us For Availability

Slinger WCI 3161231 Contact Us For Availability

Washer WCI 3161194 Contact Us For Availability

Guide WCI 3205013 Contact Us For Availability

39

Rivet WCI 3161237 Contact Us For Availability

39

Cover WCI 3205014 Contact Us For Availability

40

Washer WCI 3161232 Contact Us For Availability

40

Screw WCI 3161240 Contact Us For Availability

40

Bumper WCI 3204981 Contact Us For Availability

41

134190200 Frigidaire Washer Water Valve In Stock WCI 134190200 $92.79

41

Laundry Center Dryer Lint Screen WCI 3205015 Contact Us For Availability

41

Mechanism WCI 08057579 Contact Us For Availability

41A

Screw WCI 08001578 Contact Us For Availability

134154100 Frigidaire Screw 10-32 x 0.375 Co Backorder WCI 134154100 $8.67

Switch WCI 3205033 Contact Us For Availability

Screw WCI 3161259 Contact Us For Availability

Washer WCI 08057430 Contact Us For Availability

42A

131302800 Frigidaire Drum Vane Screw In Stock WCI 131302800 $8.70

43

131205100 Frigidaire Screw In Stock WCI 131205100 $9.11

43

Dispenser WCI 3204983 Contact Us For Availability

44

Hose WCI 3205034 Contact Us For Availability

44

Screw WCI 08010804 Contact Us For Availability

44AA

Screw WCI F144005-000 Contact Us For Availability

45

5308002401 Frigidaire Washer Primary Backorder WCI 5308002401 $10.08

45

Wire Ring WCI F136345-000 Contact Us For Availability

45

Locating Pin WCI 3204373 Contact Us For Availability

45A

Screw WCI 3204984 Contact Us For Availability

46

Bracket WCI 3205035 Contact Us For Availability

46

Hinge Pin WCI 3016440 Contact Us For Availability

46A

Hinge Pin WCI 3016441 Contact Us For Availability

47

Screw WCI 3204269 Contact Us For Availability

47

Screw WCI 3205016 Contact Us For Availability

Screw WCI 3010202 Contact Us For Availability

Lower Brace WCI 3016468 Contact Us For Availability

Fustat WCI 3205056 Contact Us For Availability

Elbow WCI 3205017 Contact Us For Availability

50

137539500 Frigidaire Washer Lock Plate Trunni In Stock WCI 137539500 $12.76

50

Plate WCI 3016469 Contact Us For Availability

50

Shield WCI 3205018 Contact Us For Availability

53

Clamp WCI 3161207 Contact Us For Availability

53

Strike Plate WCI 3016442 Contact Us For Availability

54

Clamp WCI F064154-020 Contact Us For Availability

55

Clamp WCI F140887-027 Contact Us For Availability

55

Cushion WCI 3004083 Contact Us For Availability

56

Screw WCI 3161274 Contact Us For Availability

57

Clip WCI 3161287 Contact Us For Availability

57

Screw WCI 3161185 Contact Us For Availability

58

Spring WCI 08006573 Contact Us For Availability

58

Heater WCI 08015795 Contact Us For Availability

60

Hose WCI 3161454 Contact Us For Availability

61

5303912532 Frigidaire Inlet Hose 60" Backorder WCI 5303912532 $55.56

61

Retainer WCI 3204987 Contact Us For Availability

62

Bushing WCI F132251-000 Contact Us For Availability

63

Hose Clamp WCI F064154-015 Contact Us For Availability

63A

Strap WCI 3161250 Contact Us For Availability

64

Valve WCI 08014555 Contact Us For Availability

65

Shield WCI 3161295 Contact Us For Availability

65

Bracket WCI 3161252 Contact Us For Availability

66

5303161296 Frigidaire Washer Inlet Hose (1 Pi Backorder WCI 5303161296 $1,678.32

66

Capacitor WCI 08014903 Contact Us For Availability

68

Terminal Cover WCI F136939-126 Contact Us For Availability

69A

Panel (White) WCI 3204991 Contact Us For Availability

69B

Panel (Almond) WCI 3204992 Contact Us For Availability

72

Screw WCI 08011318 Contact Us For Availability

73A

Insulation WCI F078207-300 Contact Us For Availability

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.28

5308027429 Frigidaire Dryer High Temperature In Stock WCI 5308027429 $38.73

Compound WCI 08006576 Contact Us For Availability

Bearing WCI 08950214 Contact Us For Availability

Oil WCI 3005242 Contact Us For Availability

Label WCI 3017116 Contact Us For Availability

Label WCI 3017117 Contact Us For Availability

Label WCI 3017124 Contact Us For Availability

Lubricant WCI 3161117 Contact Us For Availability

Sleeve WCI 3161182 Contact Us For Availability

Spray Paint (Almond) WCI 3204476 Contact Us For Availability

Label WCI 3205042 Contact Us For Availability

Installation Instructions WCI 3205064 Contact Us For Availability

Owner's Manual WCI 3205065 Contact Us For Availability

Owner's Manual WCI 3205066 Contact Us For Availability

Parts List WCI 3205067 Contact Us For Availability

Technical Sheet WCI 5303210946 Contact Us For Availability

Siphon Break WCI F076660-000 Contact Us For Availability

Label WCI F078028-000 Contact Us For Availability

Clip WCI F136886-000 Contact Us For Availability

Clip WCI F136886-001 Contact Us For Availability

Label WCI F139789-000 Contact Us For Availability

Label WCI F140093-000 Contact Us For Availability

Dispenser WCI F141410-000 Contact Us For Availability

LABEL-APPLIANCE CORD WCI F144580-000 Contact Us For Availability
