  • Kenmore 417.84072300 Parts List

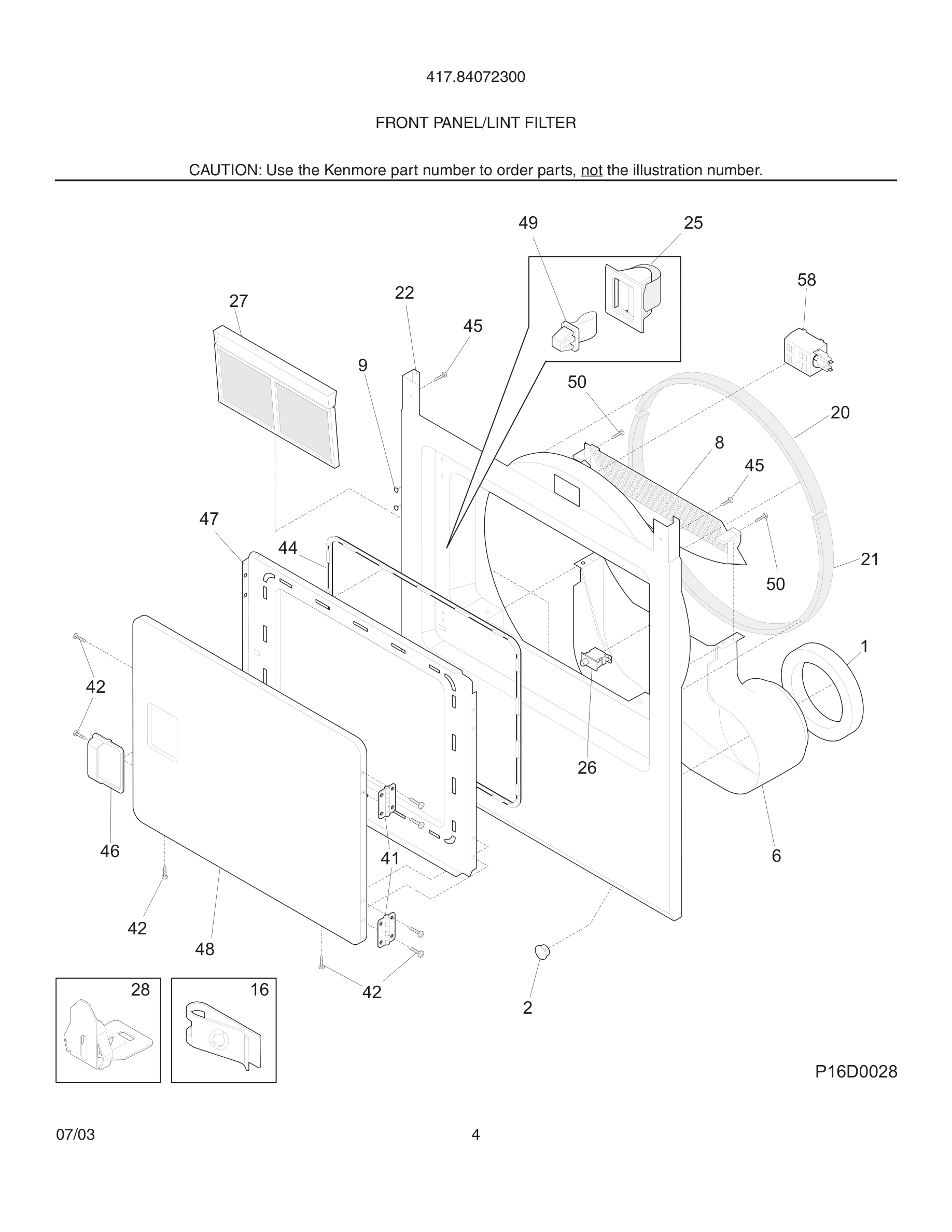

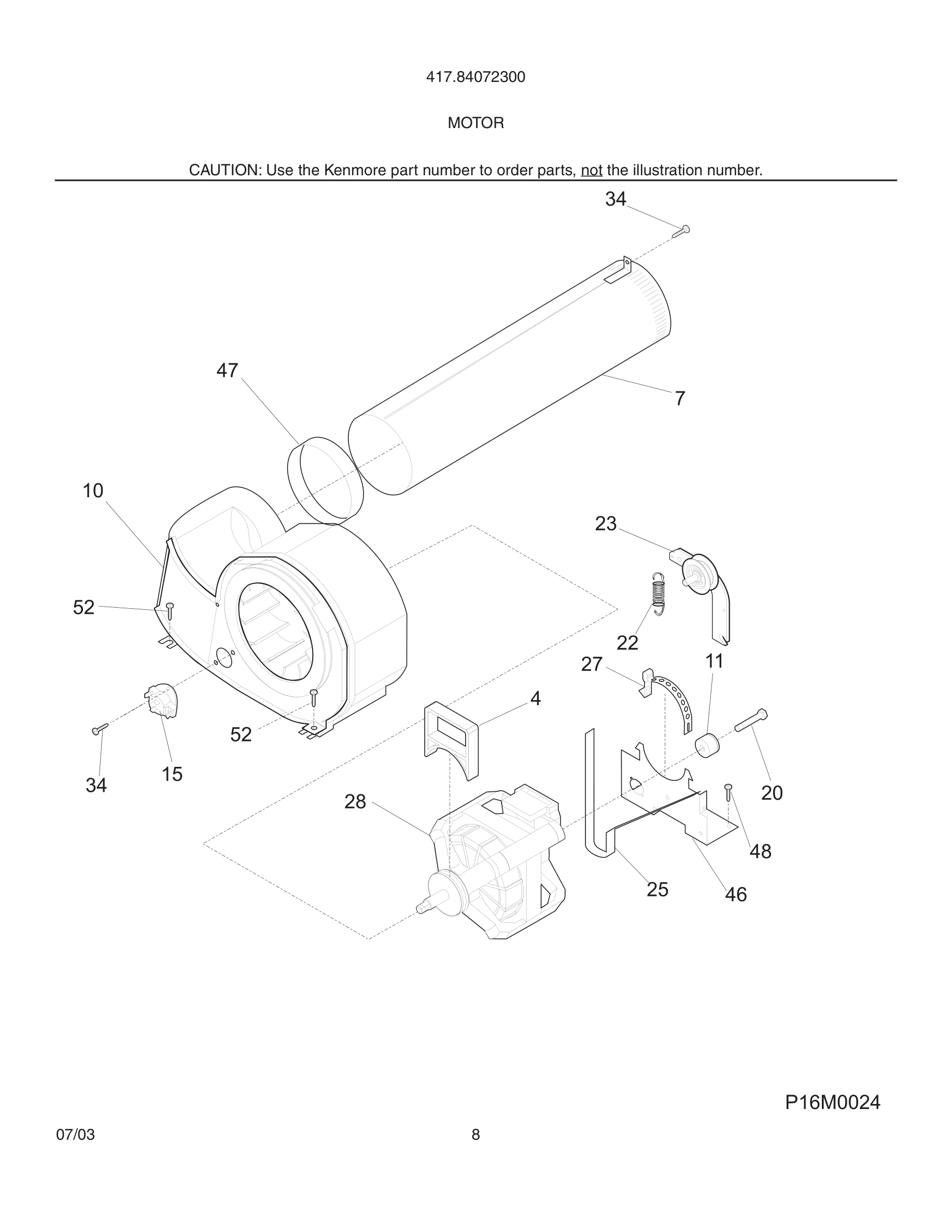

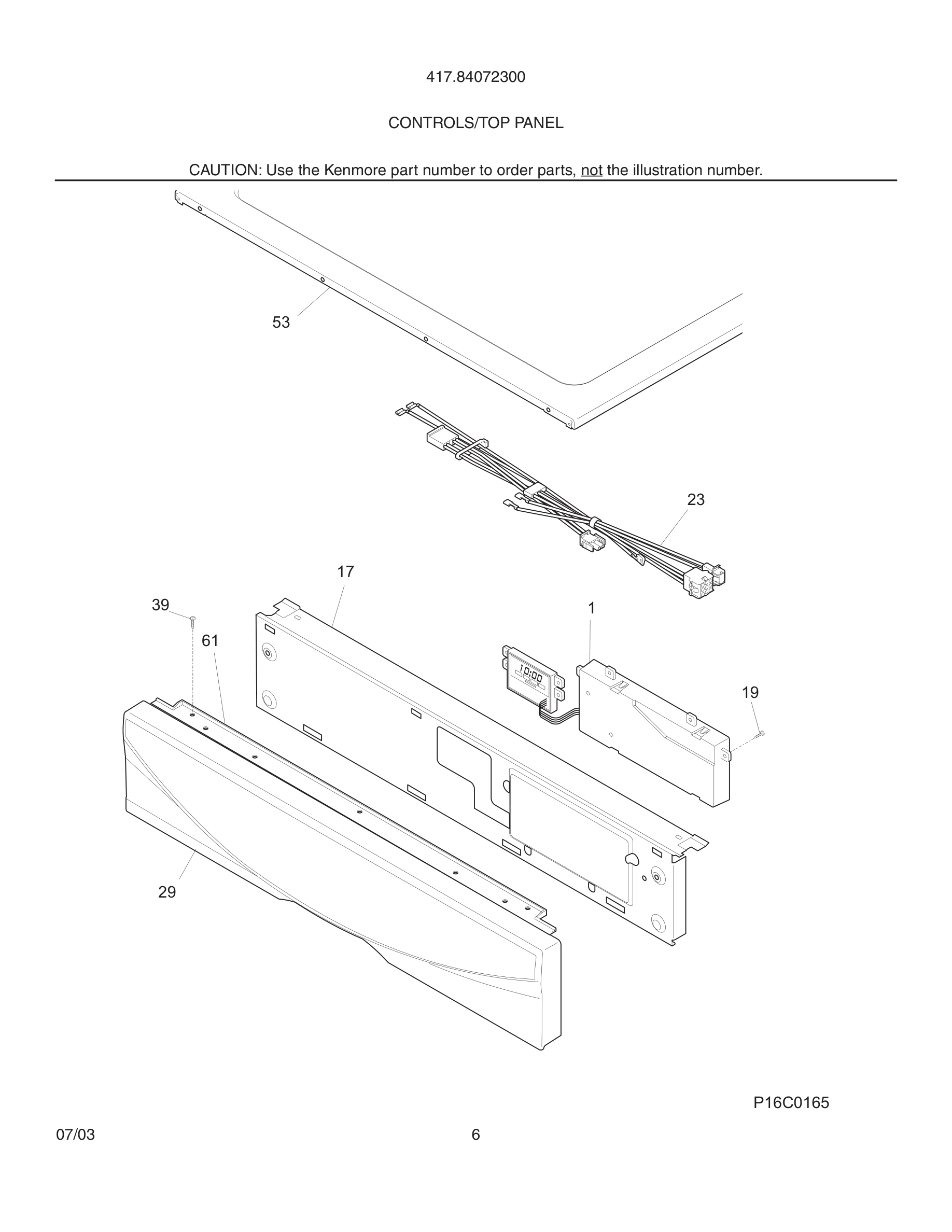

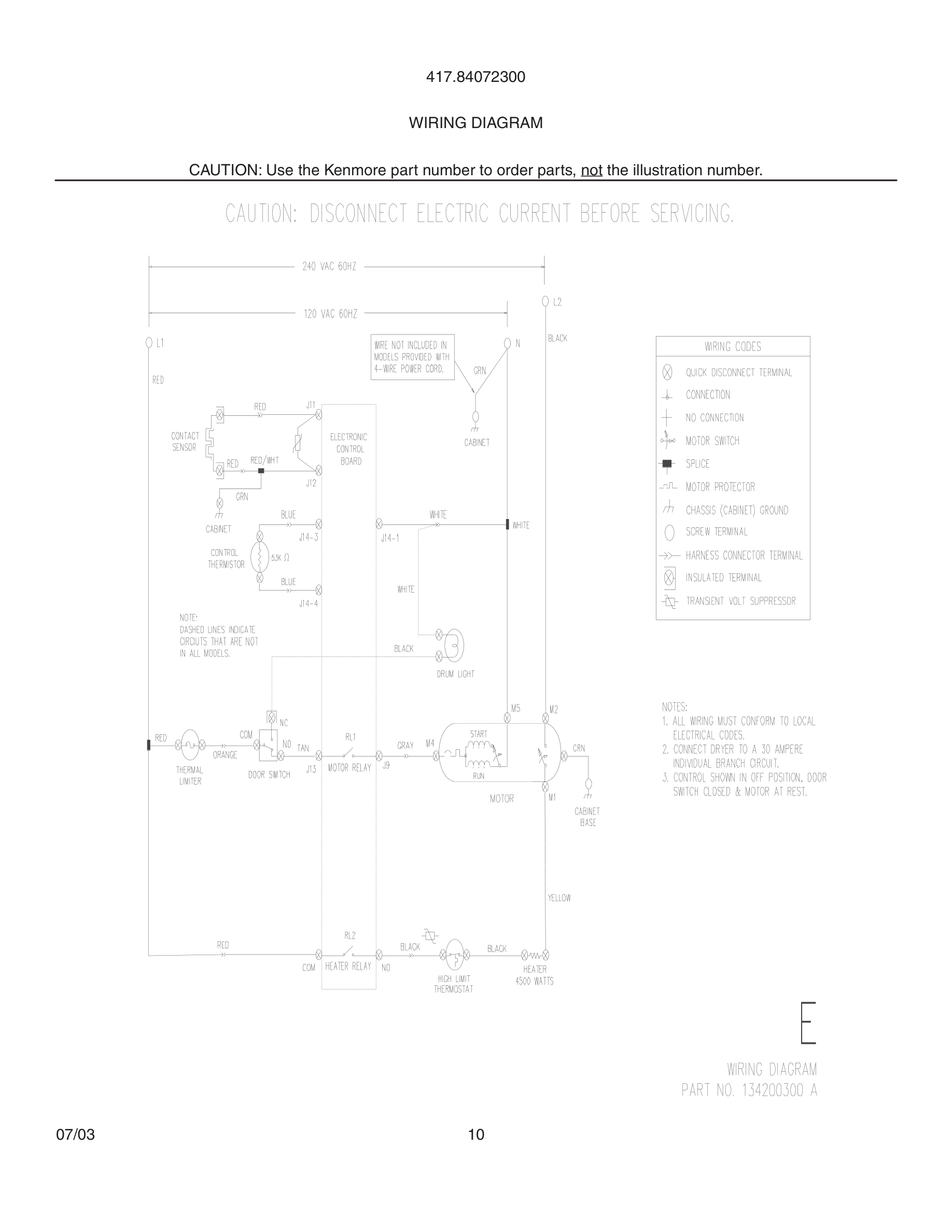

Model Kenmore 417.84072300 DRYER – Common Parts & Diagrams

*
Insulation
Insulation WCI 131474700 Contact Us For Availability
View on Model
4
Bracket,elec power cord ,knock out
Bracket,elec power cord ,knock out WCI 131785200 Contact Us For Availability
View on Model
7
Tube,exhaust ,rear ,w/mtg bracket
Tube,exhaust ,rear ,w/mtg bracket WCI 131451600 Contact Us For Availability
View on Model
7*
Tube,exhaust ,side/bottom ,Optional Kit
Tube,exhaust ,side/bottom ,Optional Kit WCI 131456800 Contact Us For Availability
View on Model
8#
Cover,lint housing ,w/moist sensor
Cover,lint housing ,w/moist sensor WCI 131845801 Contact Us For Availability
View on Model
8*#
• Wiring Harness,moisture sensor
• Wiring Harness,moisture sensor WCI 131657500 Contact Us For Availability
View on Model
11
Cover,terminal block
Cover,terminal block WCI 5303211428 No Longer Available
View on Model
16
Clip,wiring
Clip,wiring WCI 131063700 Contact Us For Availability
View on Model
20
Bracket,top panel mtg. ,rear
Bracket,top panel mtg. ,rear WCI 134166500 Contact Us For Availability
View on Model
28
Clip,guide ,(3)
Clip,guide ,(3) WCI 5303281074 Contact Us For Availability
View on Model
28#
Motor,main drive ,w/pulley
Motor,main drive ,w/pulley WCI 131560100 No Longer Available
View on Model
30
Vane,straight ,gray
Vane,straight ,gray WCI 5304405283 Contact Us For Availability
View on Model
46
Bracket,motor mtg
Bracket,motor mtg WCI 134203400 Contact Us For Availability
View on Model
46
Handle,door ,white
Handle,door ,white WCI 134213800 Contact Us For Availability
View on Model
47
Seal,exhaust tube
Seal,exhaust tube WCI 131633300 Contact Us For Availability
View on Model
47
Panel,inner door ,white
Panel,inner door ,white WCI 131844104 Contact Us For Availability
View on Model
48
Panel,outer door ,white
Panel,outer door ,white WCI 131789303 Contact Us For Availability
View on Model
64
Clip
Clip WCI 131704600 Contact Us For Availability
View on Model
