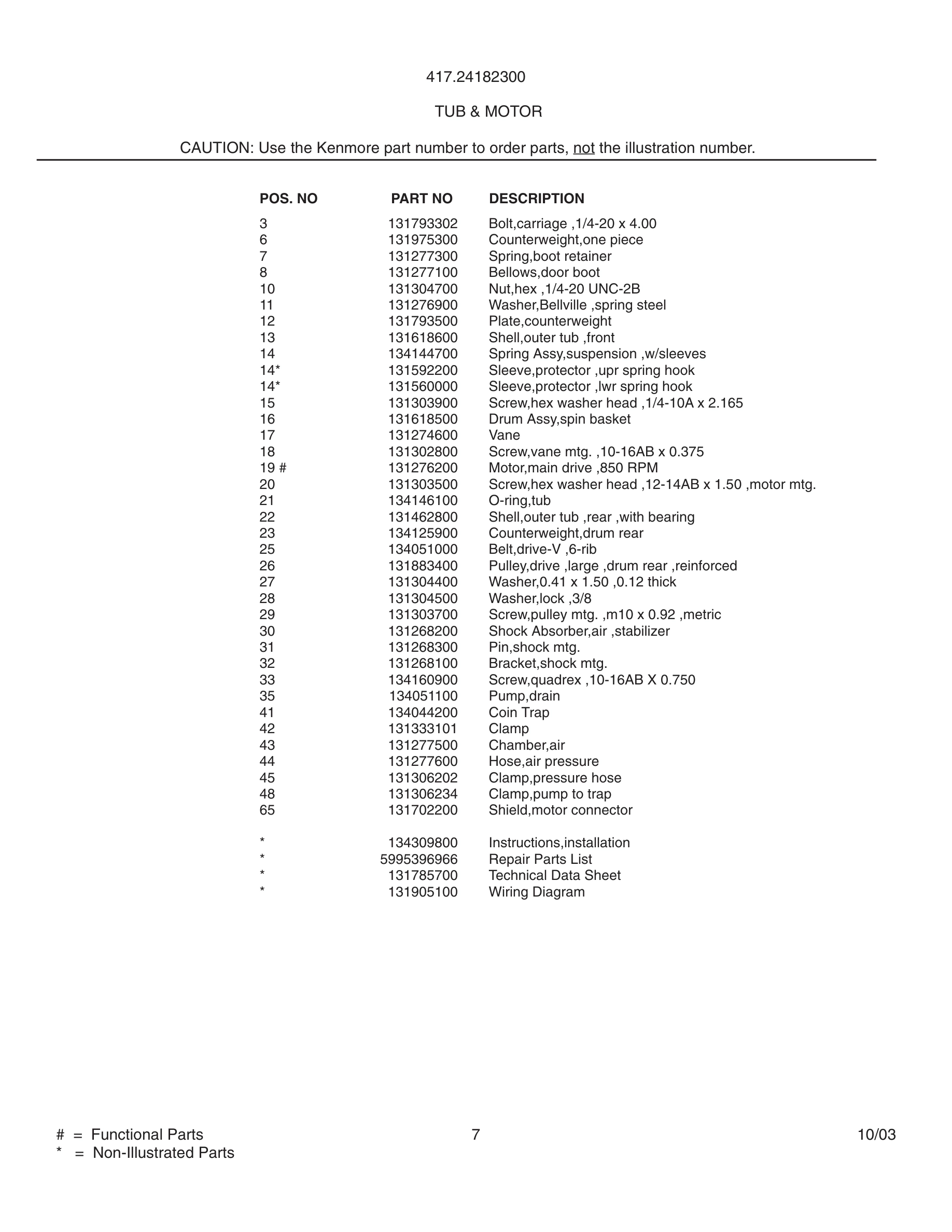

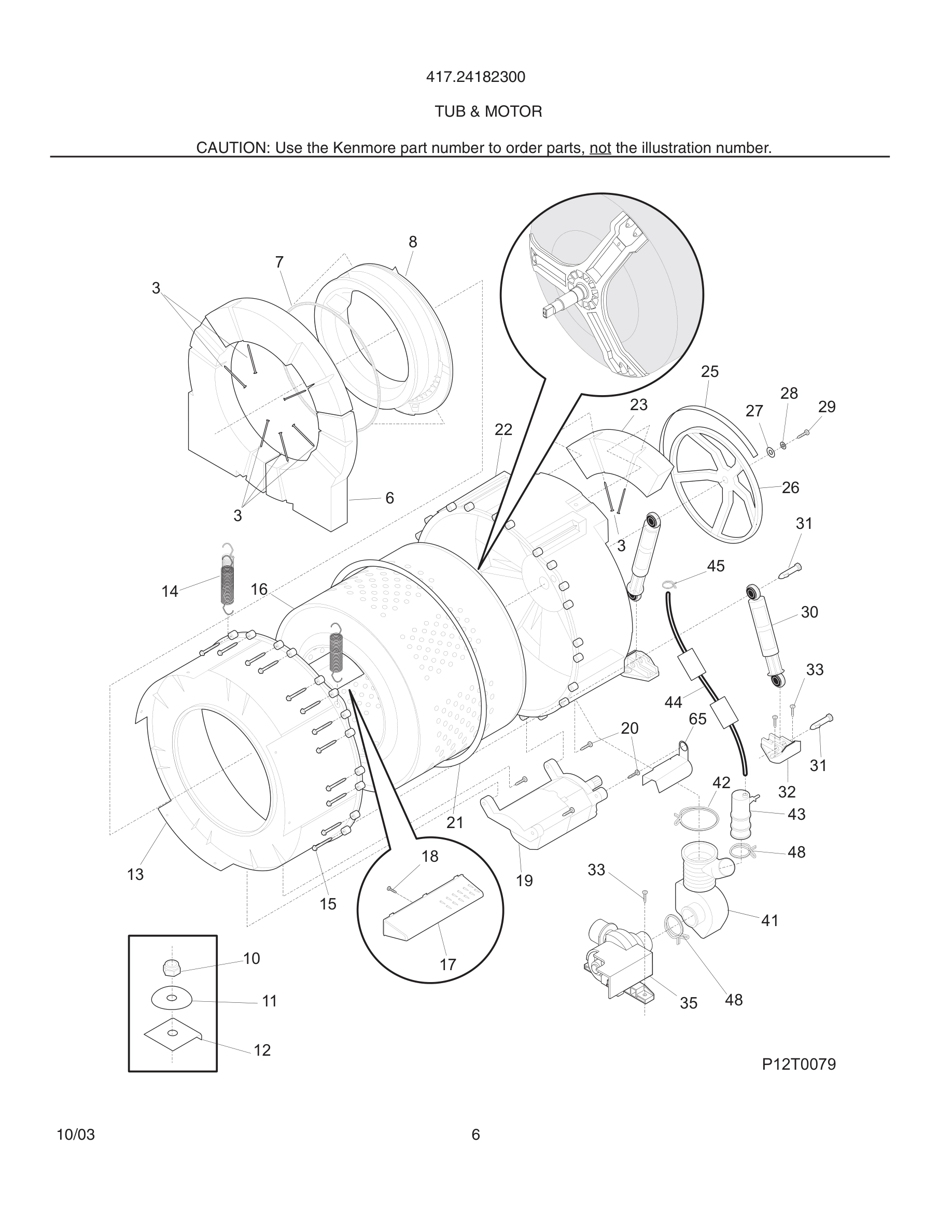

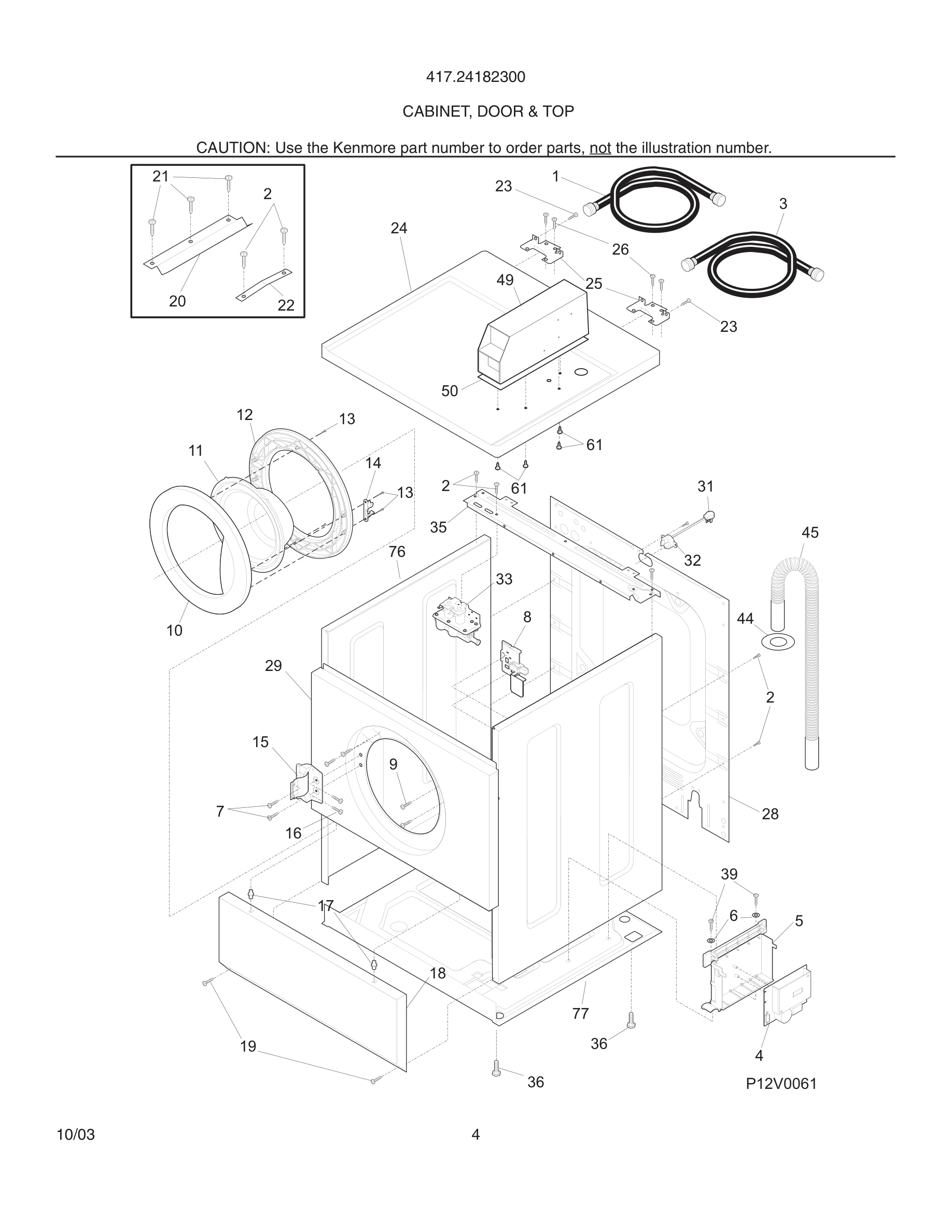

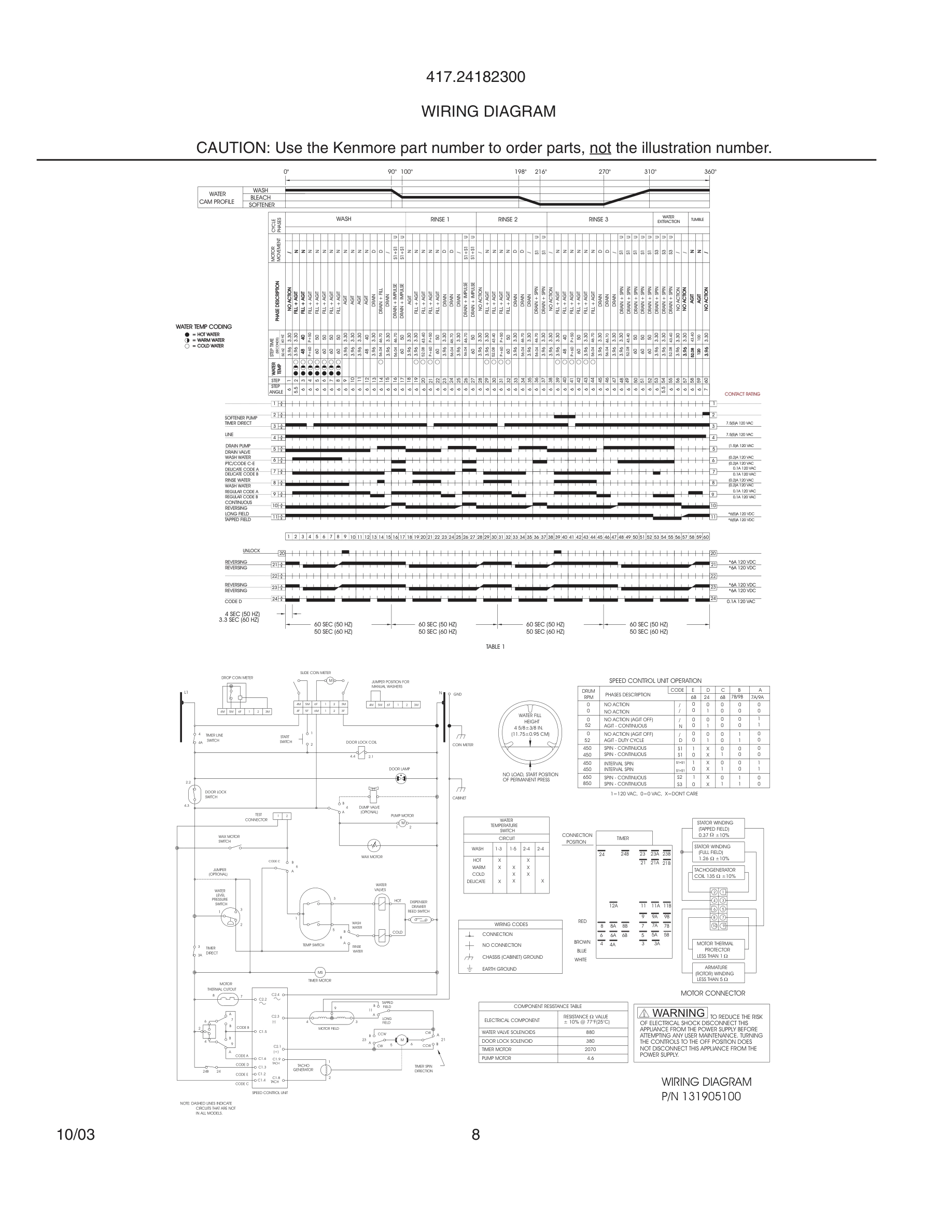

Model Kenmore 417.24182300 WASHER – Common Parts & Diagrams

*
Shipping Brace Kit
Shipping Brace Kit WCI 5303937142 No Longer Available
View on Model
1
Cover,bleach
Cover,bleach WCI 131272100 Contact Us For Availability
View on Model
2
Cover,softener
Cover,softener WCI 131272000 Contact Us For Availability
View on Model
3
Bolt,carriage ,1/4-20 x 4.00
Bolt,carriage ,1/4-20 x 4.00 WCI 131793302 Contact Us For Availability
View on Model
4#
Control,speed ,digital
Control,speed ,digital WCI 131725300 Contact Us For Availability
View on Model
6
Latch,disp drawer hdl
Latch,disp drawer hdl WCI 131374500 Contact Us For Availability
View on Model
6
Counterweight,one piece
Counterweight,one piece WCI 131975300 Contact Us For Availability
View on Model
7
Spring,boot retainer
Spring,boot retainer WCI 131277300 Contact Us For Availability
View on Model
7
Spring
Spring WCI 131427500 Contact Us For Availability
View on Model
8
Magnet
Magnet WCI 131373800 Contact Us For Availability
View on Model
9
Handle,disp drawer ,w/insert & tape
Handle,disp drawer ,w/insert & tape WCI 131691261 Contact Us For Availability
View on Model
10
Frame,outer door ,white
Frame,outer door ,white WCI 131278700 Contact Us For Availability
View on Model
11
Panel,door glass
Panel,door glass WCI 131278800 Contact Us For Availability
View on Model
17
Pin,panel locator ,side
Pin,panel locator ,side WCI 131346400 Contact Us For Availability
View on Model
18
Panel,Service ,white ,kick plate
Panel,Service ,white ,kick plate WCI 131279300 Contact Us For Availability
View on Model
18
Timer
Timer WCI 131805300 Contact Us For Availability
View on Model
20
Bracket,top panel mtg. ,front
Bracket,top panel mtg. ,front WCI 131460900 Contact Us For Availability
View on Model
21
O-ring,tub
O-ring,tub WCI 134146100 No Longer Available
View on Model
22
Retainer,spring steel
Retainer,spring steel WCI 131279500 No Longer Available
View on Model
23
Lever,cam
Lever,cam WCI 131270200 Contact Us For Availability
View on Model
23
Counterweight,drum rear
Counterweight,drum rear WCI 134125900 Contact Us For Availability
View on Model
24
Panel,top
Panel,top WCI 134086852 Contact Us For Availability
View on Model
25
Bracket,top panel mtg.
Bracket,top panel mtg. WCI 131668200 Contact Us For Availability
View on Model
26
Pulley,drive ,large ,drum rear ,reinforced
Pulley,drive ,large ,drum rear ,reinforced WCI 131883400 Contact Us For Availability
View on Model
27
Washer,0.41 x 1.50 ,0.12 thick
Washer,0.41 x 1.50 ,0.12 thick WCI 131304400 Contact Us For Availability
View on Model
27
Console,frame/trim assy
Console,frame/trim assy WCI 131691028 Contact Us For Availability
View on Model
28
Washer,lock ,3/8
Washer,lock ,3/8 WCI 131304500 Contact Us For Availability
View on Model
29
Knob,rotary ,white
Knob,rotary ,white WCI 131264500 Contact Us For Availability
View on Model
29
Screw,pulley mtg. ,m10 x 0.92 ,metric
Screw,pulley mtg. ,m10 x 0.92 ,metric WCI 131303700 Contact Us For Availability
View on Model
32
Bracket,shock mtg.
Bracket,shock mtg. WCI 131268100 Contact Us For Availability
View on Model
39
Siphon
Siphon WCI 131863300 Contact Us For Availability
View on Model
43
Gasket,seal
Gasket,seal WCI 131749200 Contact Us For Availability
View on Model
43
Chamber,air
Chamber,air WCI 131277500 Contact Us For Availability
View on Model
48
Extension,switch shaft ,push-to-start
Extension,switch shaft ,push-to-start WCI 131686000 Contact Us For Availability
View on Model
50
Gasket,meter housing
Gasket,meter housing WCI 134028000 Contact Us For Availability
View on Model
51
Button,push/start ,white
Button,push/start ,white WCI 131970200 Contact Us For Availability
View on Model
