Model Whirlpool 4141WTA GAS RANGE – Common Parts & Diagrams

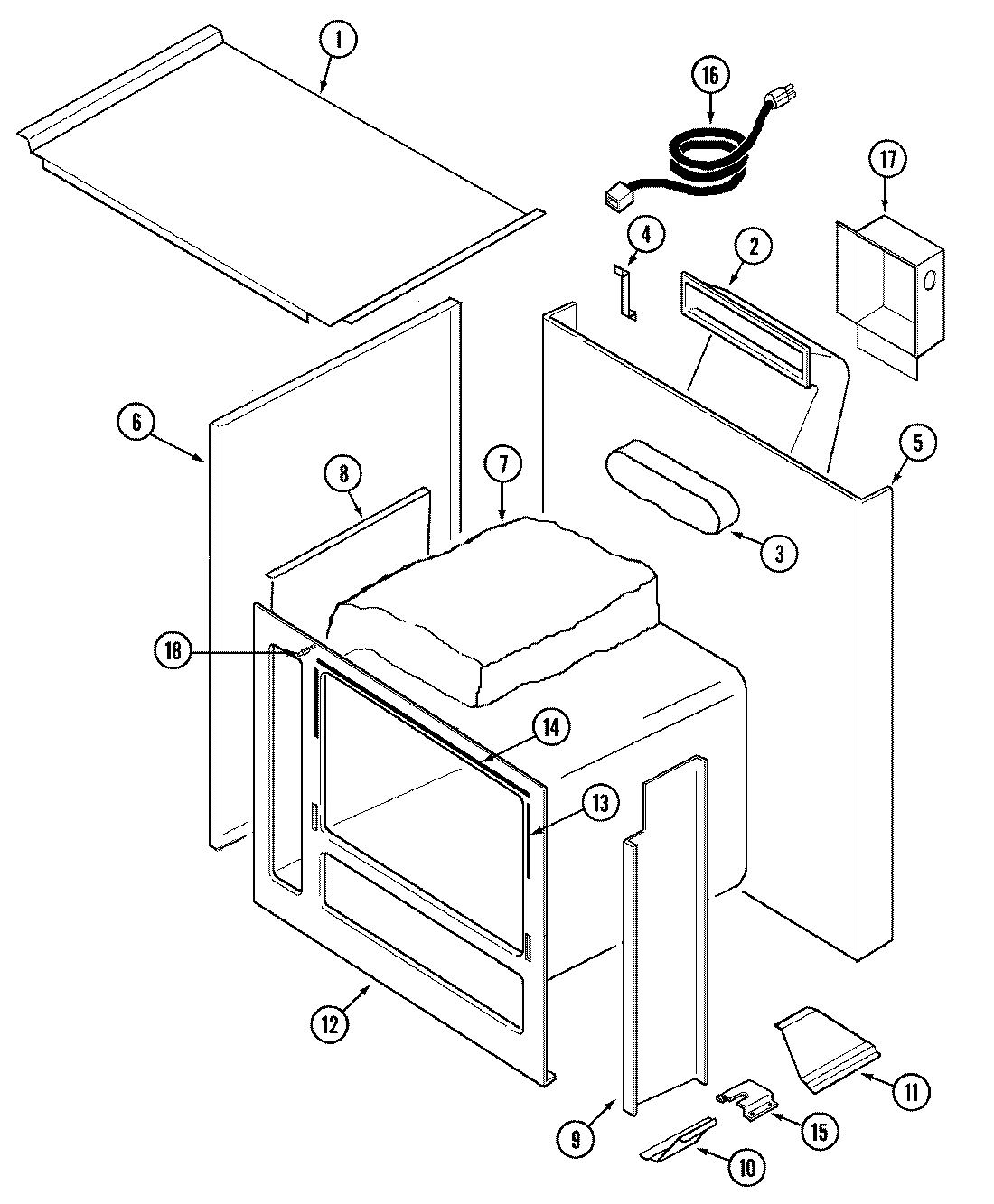

01 - BODY

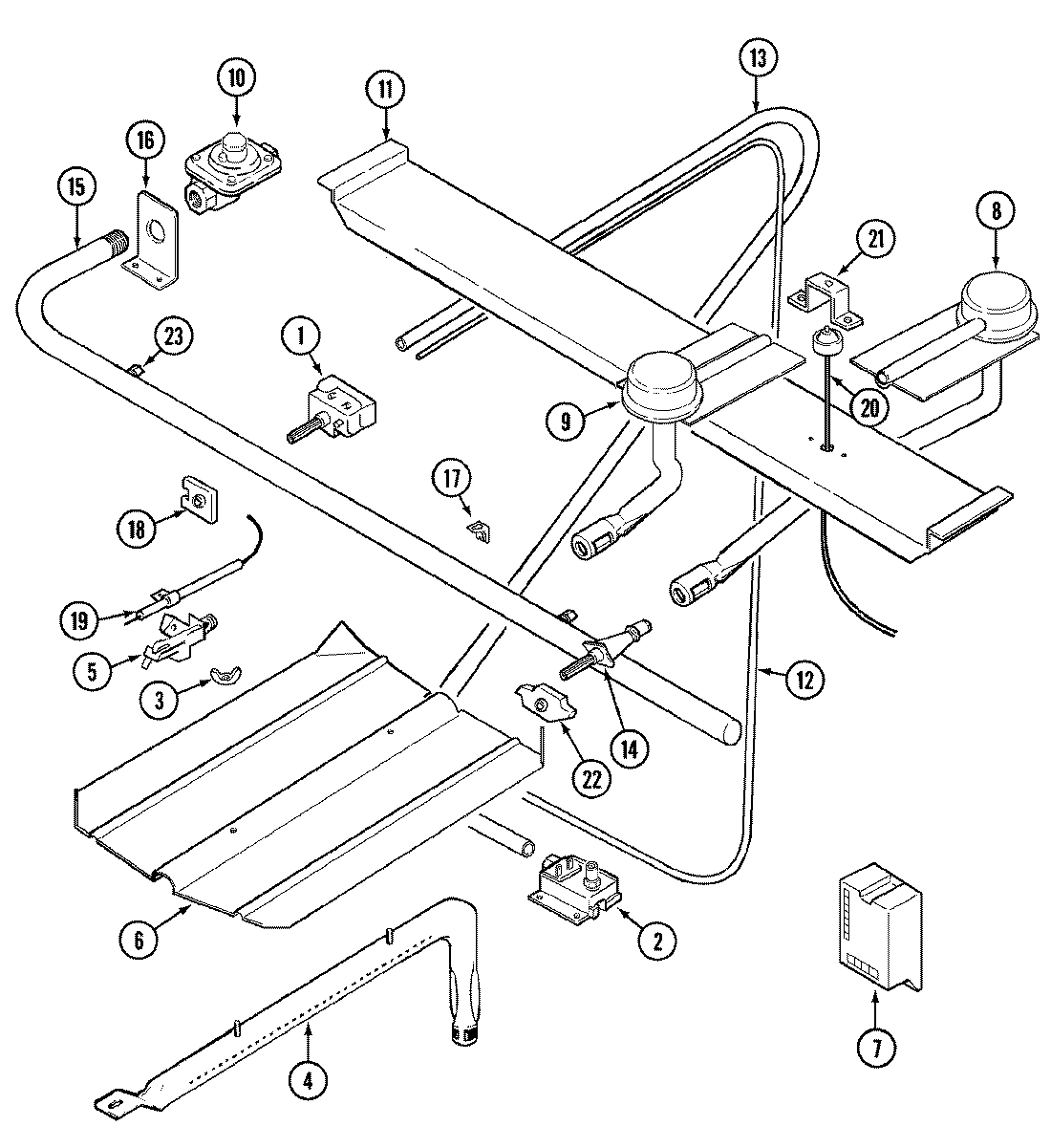

03 - GAS CONTROLS

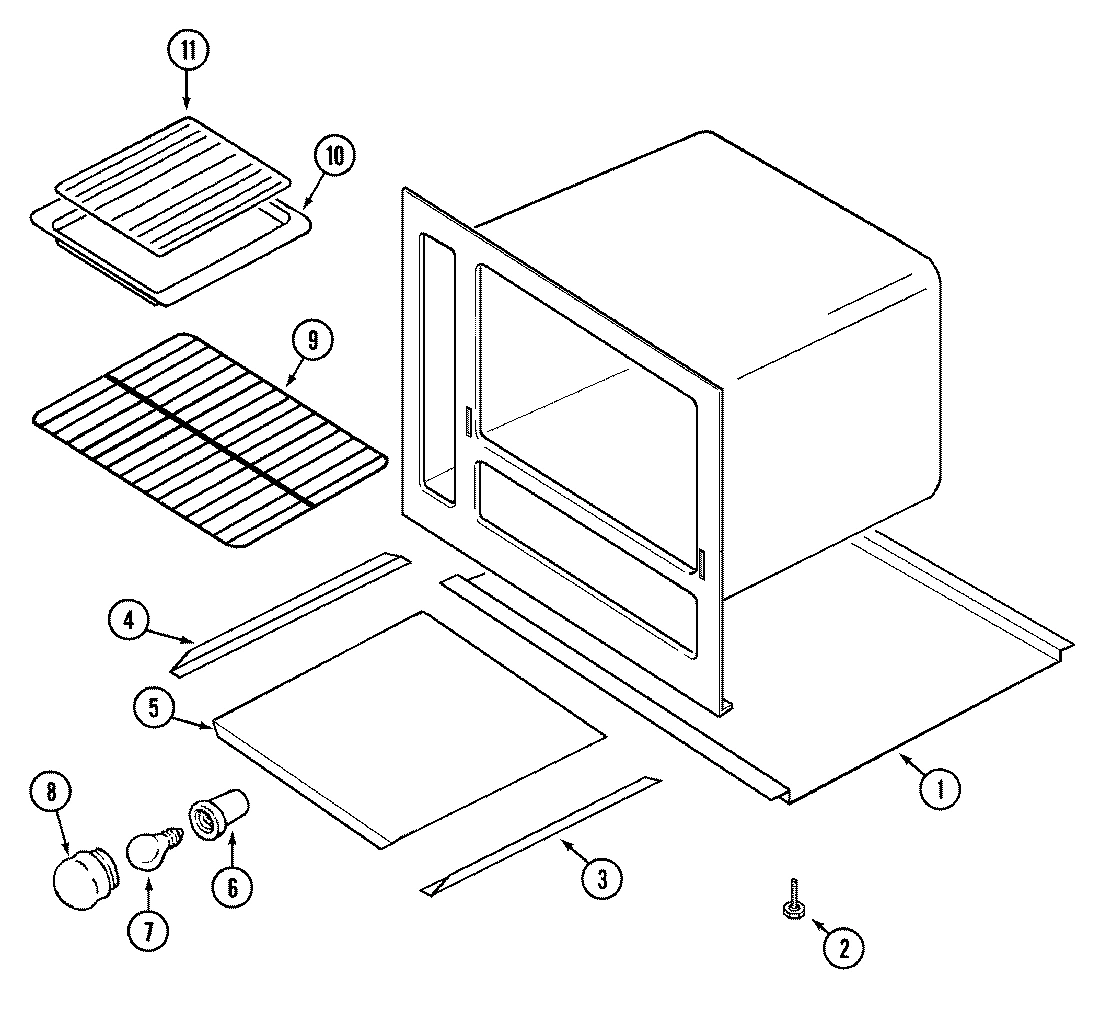

04 - OVEN

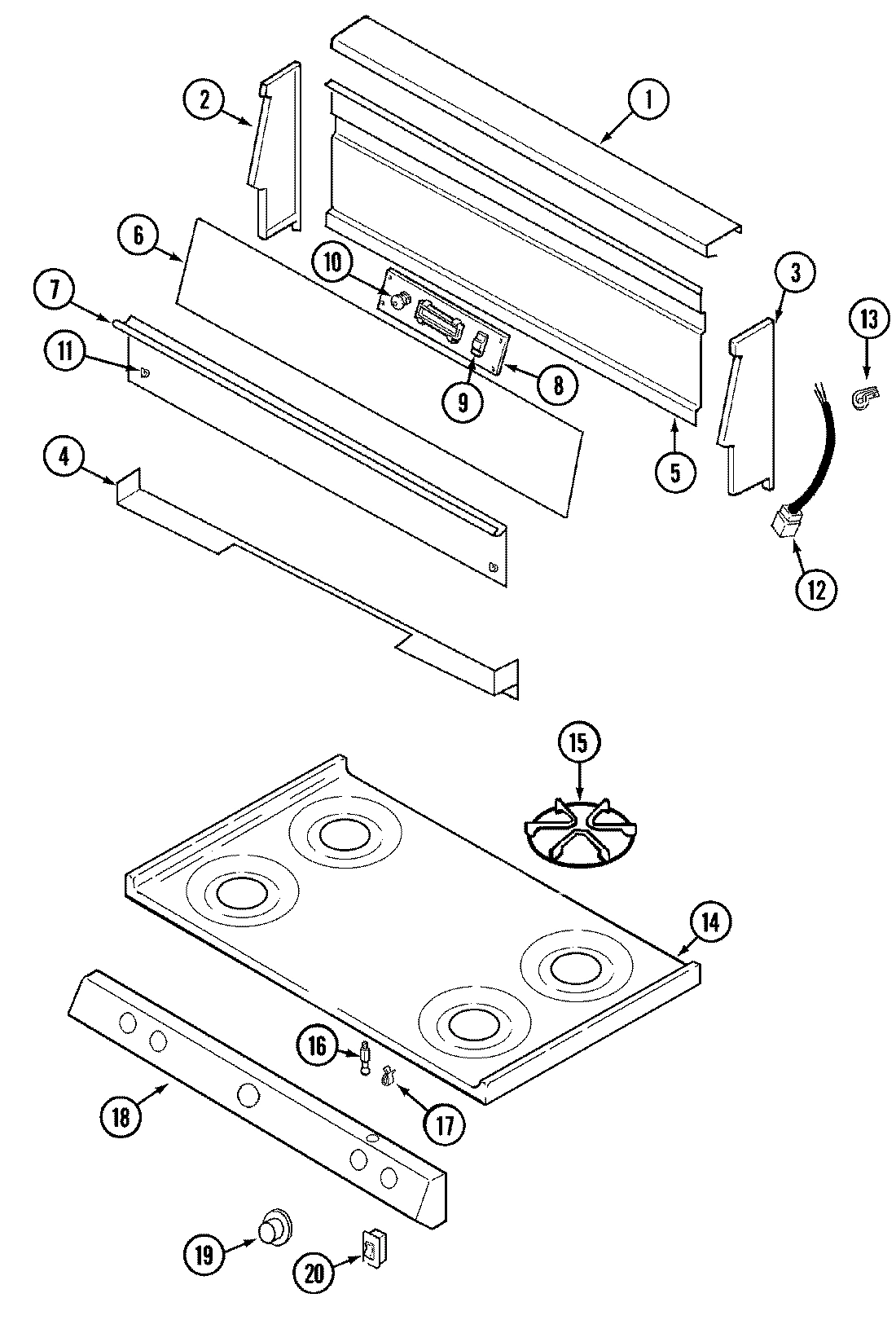

05 - TOP

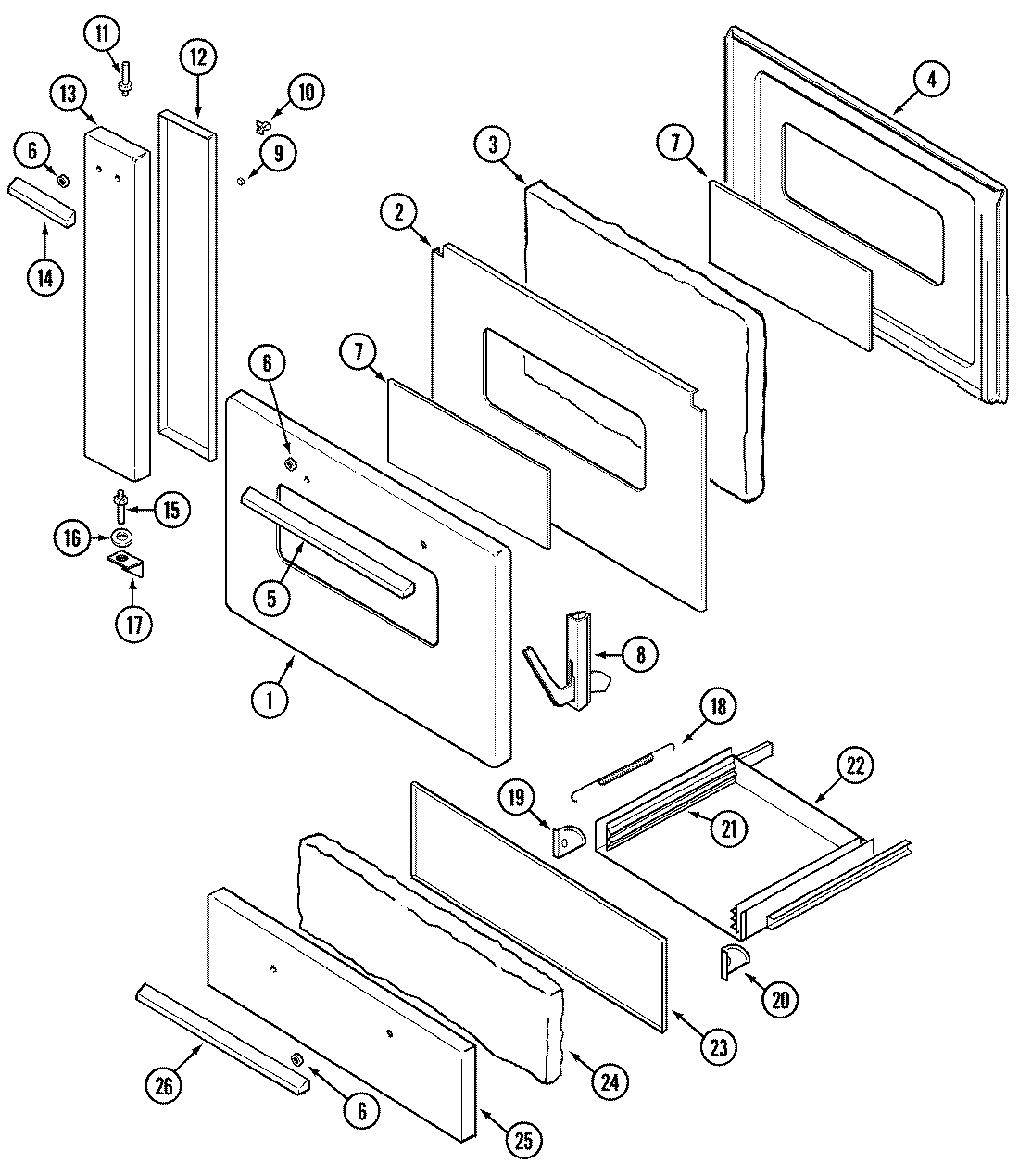

02 - DOOR/DRAWER
Common parts from model Whirlpool 4141WTA GAS RANGE
1
BOX, BURNER WPL 72001003 Contact Us For Availability
1
NUT, LOXIT (3/16``) WPL 1555222 Contact Us For Availability
1
SCREW WPL 7101P24160 Contact Us For Availability
1
THERMOSTAT, OVEN WPL 72001102 Contact Us For Availability
1
FLANGE WPL 7507P04860 Contact Us For Availability
1
BOTTOM, MAIN WPL 72001007 Contact Us For Availability
1
COVER, CONTROL PANEL (STNLS) WPL 72001074 Contact Us For Availability
1
PANEL, DOOR (ALM) WPL 72001084 Contact Us For Availability
2
BOX, VENT WPL 72001004 Contact Us For Availability
2
NUT, LOXIT (3/8``) WPL 1555251 Contact Us For Availability
2
VALVE, OVEN WPL 72001104 Contact Us For Availability
2
LEG, LEVELING WPL 74001311 Contact Us For Availability
2
END CAP, CONTROL PANEL (LT) WPL 72001075 Contact Us For Availability
2
BAFFLE, DOOR WPL 72001086 Contact Us For Availability
3
RING, VENT BOX WPL 72001005 Contact Us For Availability
3
NUT, WING WPL 7103P03060 Contact Us For Availability
3
RUNNER, DRAWER (RT) WPL 72001044 Contact Us For Availability
3
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
3
SCREW WPL 7101P32160 Contact Us For Availability
3
END CAP, CONTROL PANEL (RT) WPL 72001076 Contact Us For Availability
3
INSULATION, DOOR WPL 72001087 Contact Us For Availability
4
BRACE, MAIN BACK WPL 72001006 Contact Us For Availability
4
BURNER, OVEN WPL 72001105 Contact Us For Availability
4
RUNNER, DRAWER (LT) WPL 72001043 Contact Us For Availability
4
SUPPORT, CONTROL PANEL WPL 72001124 Contact Us For Availability
4
LINING, DOOR WPL 72001088 Contact Us For Availability
5
BACK, MAIN WPL 72001098 Contact Us For Availability
5
PILOT, OVEN BURNER WPL 72001106 Contact Us For Availability
5
BOTTOM, OVEN WPL 72001045 Contact Us For Availability
5
BACK, CONTROL PANEL WPL 72001077 Contact Us For Availability
5
HANDLE, DOOR WPL 72001089 Contact Us For Availability
6
PANEL, SIDE (ALM) WPL 72001008 Contact Us For Availability
6
BAFFLE, OVEN BURNER WPL 72001022 Contact Us For Availability
6
RECEPTACLE, OVEN BULB WPL 7408P03560 Contact Us For Availability
6
PANEL, CONTROL (GLASS) WPL 72001078 Contact Us For Availability
6
SPACER, DOOR HANDLE WPL 8010P02060 Contact Us For Availability
7
INSULATION, OVEN BACK WPL 72001010 Contact Us For Availability
7
INSULATION, OVEN WRAP WPL 72001011 Contact Us For Availability
7
MODULE, SPARK WPL 72001154 Contact Us For Availability
7
PANEL, LOWER FRONT (STNLS) WPL 72001079 Contact Us For Availability
7
GLASS, INNER/OUTER WPL 72001090 Contact Us For Availability
8
SCREW WPL 7101P20960 Contact Us For Availability
8
LINING, COMPARTMENT WPL 72001101 Contact Us For Availability
8
BURNER, TOP (REAR) WPL 72001108 Contact Us For Availability
8
COVER, OVEN BULB WPL 72001068 Contact Us For Availability
8
CLOCK WPL 72001125 Contact Us For Availability
8
HINGE, DOOR WPL 72001091 Contact Us For Availability
9
BAFFLE, INNER SIDE WPL 72001100 Contact Us For Availability
9
BURNER, TOP (FRONT) WPL 72001109 Contact Us For Availability
9
RACK, OVEN WPL 72001046 Contact Us For Availability
9
BUTTON, SLIDE WPL 72001126 Contact Us For Availability
9
BUMPER, RUBBER WPL 8003P00460 Contact Us For Availability
10
SUPPORT, SIDE (L.R.) WPL 72001040 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 72001110 Contact Us For Availability
10
INSERT, BROILER PAN WPL 72001020 Contact Us For Availability
10
BUTTON, PUSH WPL 72001080 Contact Us For Availability
10
CATCH, COMPARTMENT DOOR WPL 72001028 Contact Us For Availability
11
SCREW (BLK) WPL 7101P27660 Contact Us For Availability
11
SUPPORT, SIDE (R.R.) WPL 72001041 Contact Us For Availability
11
BRACKET, TOP BURNER WPL 72001111 Contact Us For Availability
11
PAN, BROILER WPL 72001019 Contact Us For Availability
11
PIN, TOP HINGE WPL 72001081 Contact Us For Availability
11
PIN, UPPER COMP. DOOR HINGE WPL 72001030 Contact Us For Availability
12
FRONT, OVEN WPL 72001047 Contact Us For Availability
12
3/16 X 80 TUBING WPL 0931201 Contact Us For Availability
12
HARNESS, CONTROL PANEL WPL 72001083 Contact Us For Availability
12
LINING, COMPARTMENT DOOR WPL 72001029 Contact Us For Availability
13
GASKET, DOOR (VERTICAL) WPL 72001050 Contact Us For Availability
13
CLAMP, WIRE WPL 7111P00760 Contact Us For Availability
13
KIT, TUBING W/LOXIT (3/8``) WPL 12001100 Contact Us For Availability
13
1/4`` WIRE NUT WPL 1555240 Contact Us For Availability
13
PANEL, COMPARTMENT DOOR (ALM) WPL 72001015 Contact Us For Availability
14
GASKET, DOOR (HORIZONTAL) WPL 72001051 Contact Us For Availability
14
VALVE, TOP BURNER WPL 72001112 Contact Us For Availability
14
TOP, MAIN (ALM) WPL 72001024 Contact Us For Availability
14
HANDLE, COMPARTMENT DOOR WPL 72001012 Contact Us For Availability
15
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
15
BRACKET, ANTI-TIP WPL 72001121 Contact Us For Availability
15
PIPE, MANIFOLD WPL 72001113 Contact Us For Availability
15
GRATE WPL 72001002 Contact Us For Availability
15
BOWL, DRIP WPL 72001151 Contact Us For Availability
15
LOCKWASHER 1/4`` WPL 7109P03360 Contact Us For Availability
15
PIN, LOWER COMP. DOOR HINGE WPL 72001018 Contact Us For Availability
16
CORD, POWER WPL 72001064 Contact Us For Availability
16
BUSHING, WIRE WPL 72001069 Contact Us For Availability
16
STRIKE WPL 72001026 Contact Us For Availability
16
BRACKET, MANIFOLD PIPE WPL 72001096 Contact Us For Availability
16
NUT WPL 7103P08260 Contact Us For Availability
16
SPACER, COMP. DOOR HINGE WPL 72001099 Contact Us For Availability
17
COVER, ACCESS WPL 72001066 Contact Us For Availability
17
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
17
SPRING, CATCH - FEMALE WPL 8002P02260 Contact Us For Availability
17
BRACKET, COMP. DOOR HINGE WPL 72001017 Contact Us For Availability
18
SWITCH, OVEN IGNITER WPL Y0S03005499 Contact Us For Availability
18
PANEL, MANIFOLD (BLK) WPL 72001013 Contact Us For Availability
18
INSERT, MANIFOLD PANEL WPL 72001014 Contact Us For Availability
18
SPRING, BROILER DRAWER WPL 72001021 Contact Us For Availability
19
IGNITER KIT WPL 1430310 Contact Us For Availability
19
KNOB, THERMOSTAT WPL 72001103 Contact Us For Availability
19
KNOB, VALVE WPL 72001120 Contact Us For Availability
19
HINGE, BROILER DRAWER (LT) WPL 72001031 Contact Us For Availability
20
SCREW, STAINLESS WPL 7101P03760 Contact Us For Availability
20
IGNITER, TOP (LT) WPL 72001115 Contact Us For Availability
20
IGNITER, TOP (RT) WPL 72001116 Contact Us For Availability
20
SWITCH, OVEN LIGHT WPL 72001070 Contact Us For Availability
20
HINGE, BROILER DRAWER (RT) WPL 72001032 Contact Us For Availability
21
GROUND STRAP, IGNITER WPL 72001063 Contact Us For Availability
21
GLIDE, BROILER DRAWER WPL 72001036 Contact Us For Availability
22
SWITCH, IGNITER WPL 72001118 Contact Us For Availability
22
DRAWER, BROILER WPL 72001037 Contact Us For Availability
23
PLUG, PIPE WPL 7507P04760 Contact Us For Availability
23
LINING, BROILER DRAWER WPL 72001035 Contact Us For Availability
24
WIRE, BLACK WPL 72001071 Contact Us For Availability
24
WIRE, RED WPL 72001072 Contact Us For Availability
24
WIRE, BROWN WPL 72001073 Contact Us For Availability
24
INSULATION, BROILER DRAWER WPL 72001042 Contact Us For Availability
25
PANEL, BROILER DRAWER (ALM) WPL 72001033 Contact Us For Availability
26
SCREW WPL 7101P06860 Contact Us For Availability
26
HANDLE, BROILER DRAWER WPL 72001038 Contact Us For Availability
× ![]()
