Model LG 40UB8000 – Common Parts & Diagrams

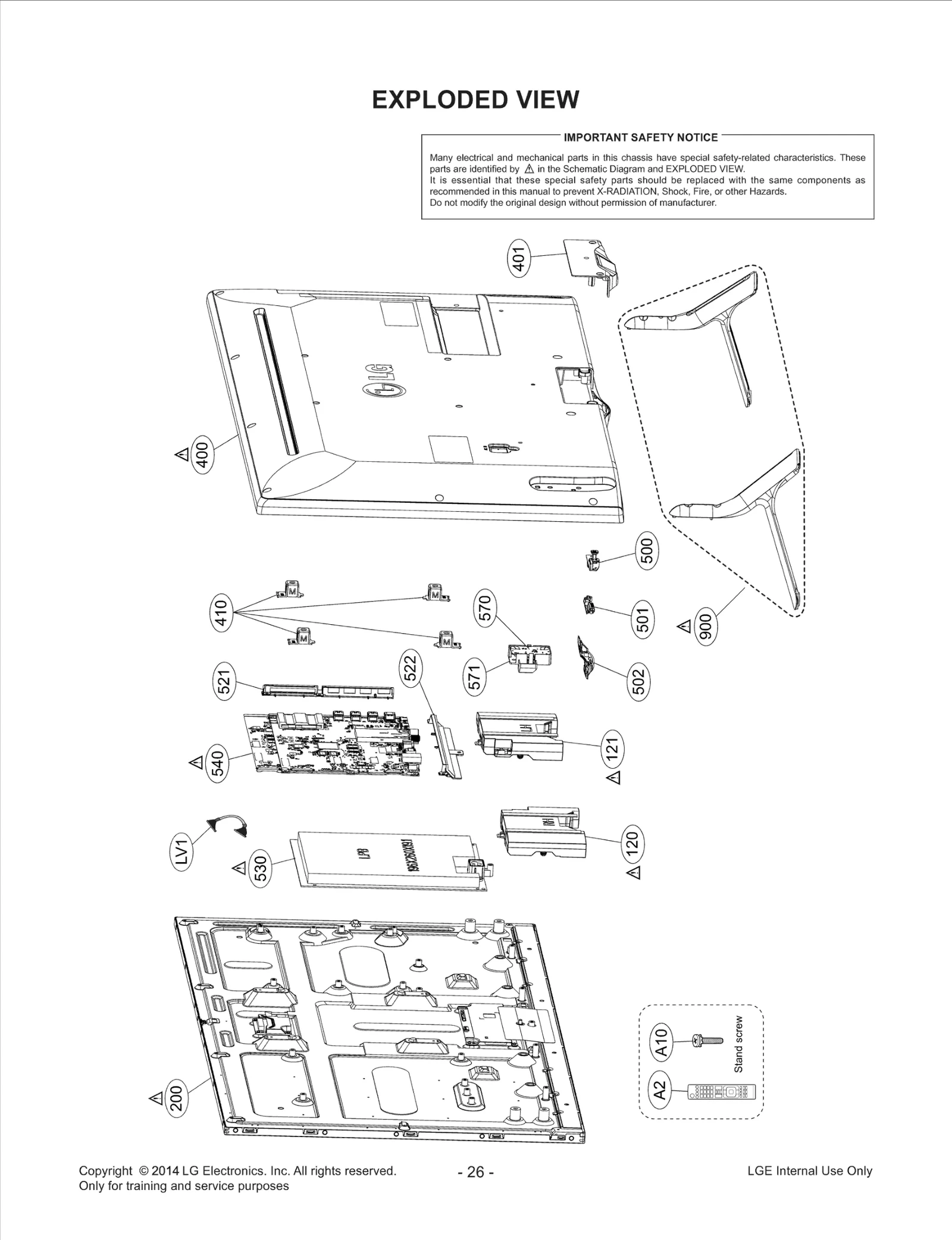

Diagram 0
Diagram 1
Common parts from model LG 40UB8000
1
Screw,Machine LGE FAB30078812 Contact Us For Availability
2
Screw,Machine LGE FAB31843211 Contact Us For Availability
2
Screw,Taptite LGE FAB31639801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ63008801 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87684204 Contact Us For Availability
401
Cover LGE MCK68367704 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR78101302 Contact Us For Availability
501
Indicator LGE MES63358304 Contact Us For Availability
521
Bracket LGE MAZ64071303 Contact Us For Availability
530
Power Supply Assembly LGE EAY63488601 Contact Us For Availability
540
Chassis Assembly LGE EBT63418701 Contact Us For Availability
571
Bracket LGE MAZ64464702 Contact Us For Availability
AM
Manual Assembly LGE AFN76115397 Contact Us For Availability
AM1
Manual,Owners LGE MFL67987292 Contact Us For Availability
AR411
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR1902
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR1903
Resistor,Array LGE EBC32260401 Contact Us For Availability
AR3207
Resistor,Array LGE EBC62582701 Contact Us For Availability
B1
Box LGE MAY66797801 Contact Us For Availability
C216
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C236
Capacitor,Ceramic,Chip LGE 0CK105CFG6A Contact Us For Availability
C303
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C319
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C331
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C443
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C483
Capacitor,Ceramic,Chip LGE EAE58112401 Contact Us For Availability
C501
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C512
Capacitor,TA,Polymer LGE EAE62987401 Contact Us For Availability
C513
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C534
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C551
Capacitor,Ceramic,Chip LGE 0CC820BKFAA Contact Us For Availability
C563
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C601
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C603
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C800
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C1100
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1201
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1214
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1217
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C1221
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C1225
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1407
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C1520
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C1601
Capacitor,Ceramic,Chip LGE 0CK102EY48A Contact Us For Availability
C1700
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1903
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C3267
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3278
Capacitor,Ceramic,Ch LGE 0CK225DD56A Contact Us For Availability
C13111
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C13212
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C13313
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C13404
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C13406
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
CA1
Harness,Single LGE EAD62595303 Contact Us For Availability
CA2
Harness,Multi LGE EAD62847609 Contact Us For Availability
CA3
Harness,Multi LGE EAD62806809 Contact Us For Availability
CA4
Harness,Single LGE EAD62122704 Contact Us For Availability
CAB1
Cable,Assembly LGE EAD61077708 Contact Us For Availability
CAB2
Cable,Assembly LGE EAD61273123 Contact Us For Availability
D600
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D1004
Diode,TVS LGE EAH61515101 Contact Us For Availability
D1900
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D3218
Diode,Switching LGE EAH61714301 Contact Us For Availability
IC401
IC,DDR3 SDRAM LGE EAN63053201 Contact Us For Availability
IC402
IC,Voltage Regulator LGE EAN61868101 Contact Us For Availability
IC501
IC,LDO Voltage Regulator LGE EAN62868801 Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN62653301 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN62911501 Contact Us For Availability
IC505
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC507
IC,DC,DC Converter LGE EAN61832901 Contact Us For Availability
IC1000
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC1200
IC,Audio Amplifier LGE EAN62886101 Contact Us For Availability
IC1900
IC,MCP,eMMC LGE EAN62886901 Contact Us For Availability
IC1901
IC,Serial Flash Memory LGE EAN39050404 Contact Us For Availability
IC2500
Display SOC,Digital TV LGE EAN63010001 Contact Us For Availability
IC2900
IC,DDR3 SDRAM LGE EAN62954801 Contact Us For Availability
IC3203
IC,Serial Flash Memory LGE EAN62460901 Contact Us For Availability
IC3204
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC3206
IC,Tx/Rx LGE EAN63050901 Contact Us For Availability
IC3302
IC,Analog Switch LGE EAN62892201 Contact Us For Availability
IC13402
IC,DC,DC Converter LGE EAN62870301 Contact Us For Availability
IC13403
IC,DC,DC Converter LGE EAN62870701 Contact Us For Availability
JK800
Jack,Phone LGE EAG61030017 Contact Us For Availability
JK801
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK802
Jack,Phone LGE EAG61030016 Contact Us For Availability
JK1000
Connector,USB LGE EAG62571102 Contact Us For Availability
JK1100
Jack,Modular LGE EAG62012404 Contact Us For Availability
JK1700
Jack,Phone LGE EAG61030015 Contact Us For Availability
JK3202
Connector,HDMI LGE EAG63530102 Contact Us For Availability
L508
Filter,Bead LGE EAM38769505 Contact Us For Availability
L515
Inductor,Wire Wound,Chip LGE EAP62506410 Contact Us For Availability
L516
Inductor,Wire Wound,Chip LGE EAP61967101 Contact Us For Availability
L1203
Inductor,Wire Wound,Chip LGE EAP38274505 Contact Us For Availability
L13000
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L13403
Inductor,Wire Wound,Chip LGE EAP61746701 Contact Us For Availability
L13412
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
M903
Gasket LGE MDS62110225 Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T12004C Contact Us For Availability
P900
Connector,Wafer LGE EAG63590901 Contact Us For Availability
P13000
Connector,Wafer LGE 6630V93270J Contact Us For Availability
Q502
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q503
FET LGE EBK61313101 Contact Us For Availability
Q505
FET LGE EBK36722001 Contact Us For Availability
Q3203
FET LGE EBK61731301 Contact Us For Availability
Q3204
FET LGE EBK60752601 Contact Us For Availability
Q3205
TR,Bipolar LGE EBK61012701 Contact Us For Availability
R141
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R162
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R173
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R307
Resistor,Chip LGE EBC35273701 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R332
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R403
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R416
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R502
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R511
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ3601C478 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R540
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R544
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R553
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R559
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R563
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R567
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R574
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R814
Resistor,Chip LGE EBC01890805 Contact Us For Availability
R906
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R907
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1002
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R1208
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R1509
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R1514
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1517
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R1943
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R1958
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R3222
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R3233
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3239
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R3276
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R3292
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R3318
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R3321
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R3914
Filter,Bead LGE EAM42557601 Contact Us For Availability
R13063
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R13101
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R13125
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R13206
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R13400
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R13402
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R13403
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R13405
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R13406
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R13407
Resistor,Chip LGE 0RH3902B622 Contact Us For Availability
R13408
Resistor,Chip LGE ERHY0017701 Contact Us For Availability
R13409
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
S3202
Solder Soldering LGE RAC33437501 Contact Us For Availability
SW600
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
TU1604
Tuner,Analog/Digital LGE EBL61380102 Contact Us For Availability
VA803
Varistor LGE EAF61530101 Contact Us For Availability
VA1103
Varistor LGE EAF61530201 Contact Us For Availability
VA3209
Varistor LGE EAF61530301 Contact Us For Availability
X600
Crystal LGE EAW58239602 Contact Us For Availability
X1900
Crystal LGE EAW61645502 Contact Us For Availability
X3201
Crystal LGE EAW58812603 Contact Us For Availability
× ![]()
Login and Registration Form
