Model LG 4064154 – Common Parts & Diagrams

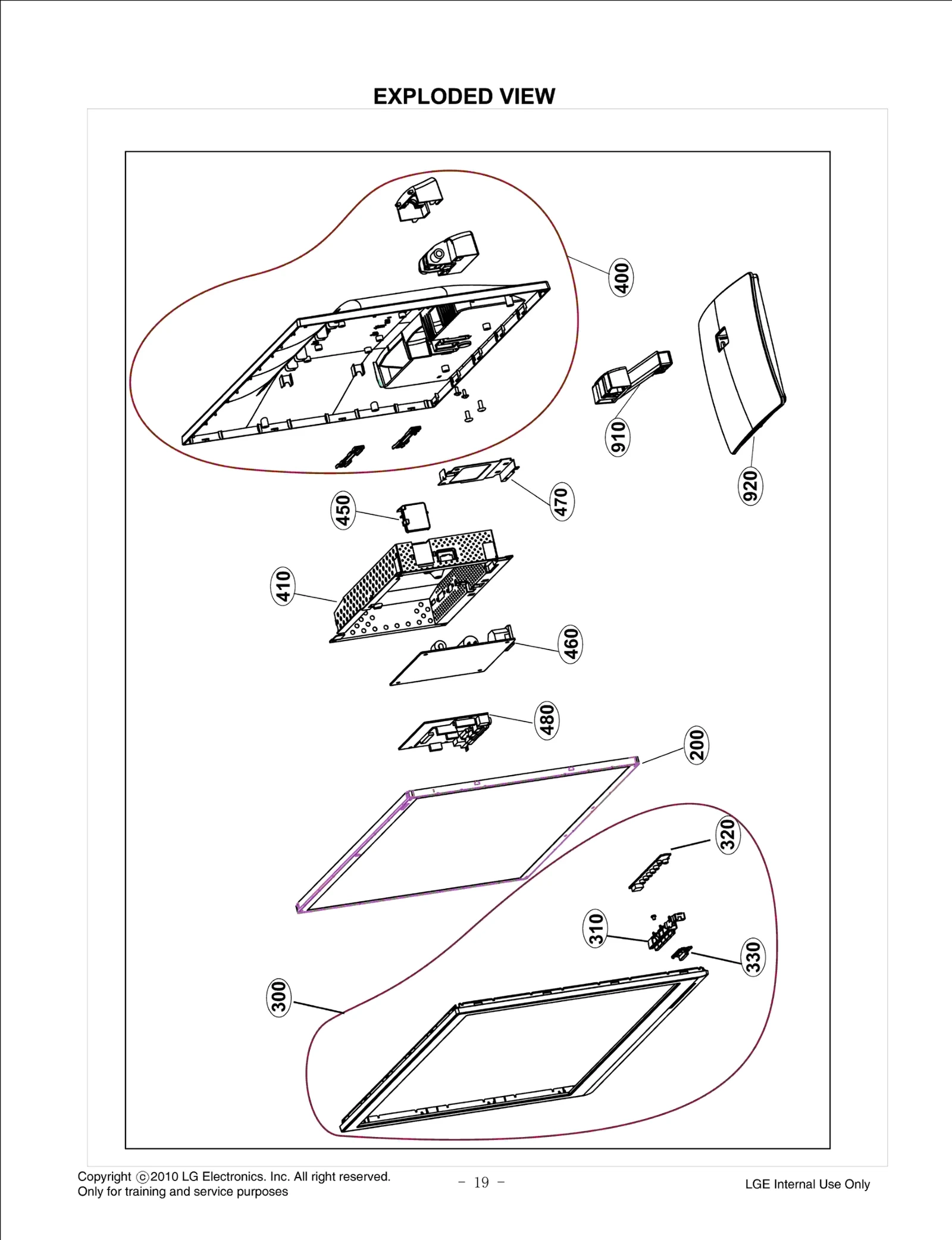

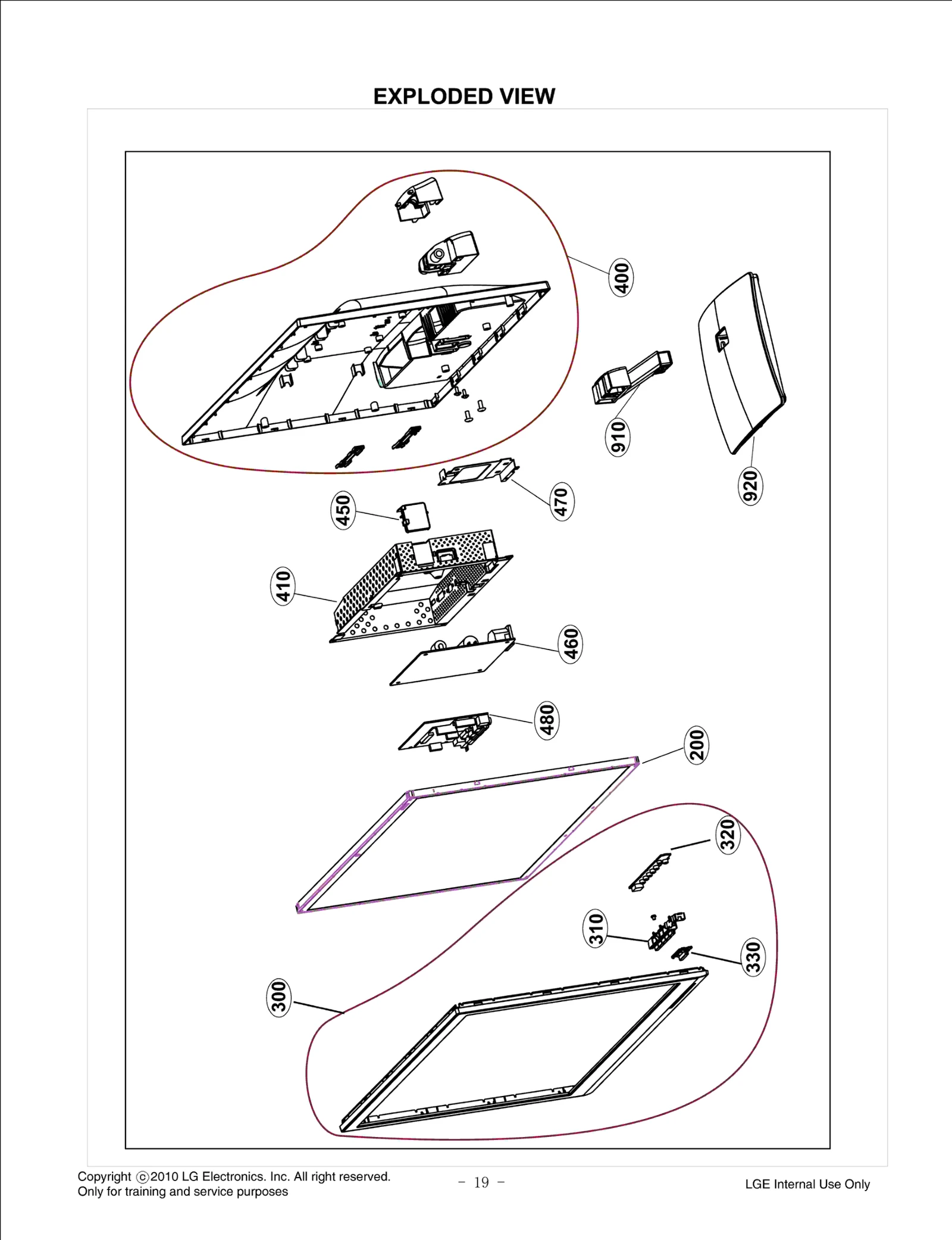

Diagram 0
Diagram 1
Common parts from model LG 4064154
200
LCD,Module-TFT LGE EAJ61747701 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73387206 Contact Us For Availability
310
Button,Control LGE MBG63983801 Contact Us For Availability
320
PCB Assembly LGE EBR72726304 Contact Us For Availability
330
Button,Power LGE MBG63984101 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ85289111 Contact Us For Availability
460
Power Supply Assembly LGE EAY62168702 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269427 Contact Us For Availability
470
Supporter LGE MJH62295001 Contact Us For Availability
480
PCB Assembly,Main LGE EBR72618507 Contact Us For Availability
910
Base Assembly LGE AAN73628805 Contact Us For Availability
920
Base Assembly LGE AAN73628701 Contact Us For Availability
A1
Title LGE SAC35015802 Contact Us For Availability
C500
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C513
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C521
Capacitor,Ceramic,Chip LGE 0CC300BKF1A Contact Us For Availability
C525
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C532
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
D604
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC500
Display SOC,Monitor LGE EAN61327401 Contact Us For Availability
IC501
IC,Serial Flash Memory LGE EAN61669401 Contact Us For Availability
IC501
IC,Serial Flash Memory LGE EAN50547501 Contact Us For Availability
IC501
IC,Serial Flash Memory LGE EAN60915401 Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC504
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC601
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
JK500
Jack,Phone LGE 6612F00001B Contact Us For Availability
JK600
Jack,DIN LGE EAG60959501 Contact Us For Availability
L501
Filter,Bead LGE EAM38769502 Contact Us For Availability
LD1
LED,DIP LGE EAV56856701 Contact Us For Availability
LV1
Cable,FFC LGE EAD57188316 Contact Us For Availability
LV2
Cable,FFC LGE EAD61466510 Contact Us For Availability
P1
WAFER LGE 6602T20009E Contact Us For Availability
P1
Connector,Wafer LGE EAG31366106 Contact Us For Availability
P500
Connector,Wafer LGE 6630V90220L Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q503
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q503
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q504
FET LGE EBK38029201 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R8
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R524
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
S1
Harness,Single LGE EAD61548501 Contact Us For Availability
S2
Harness,Single LGE 6631900011M Contact Us For Availability
S3
Cable,Assembly LGE EAD57734001 Contact Us For Availability
S4
Cable,Assembly LGE EAD57760001 Contact Us For Availability
X500
Crystal LGE 6212AA2001H Contact Us For Availability
X500
Crystal LGE EAW60658001 Contact Us For Availability
× ![]()
