Model Whirlpool 3XKVN515001 REFRIGERATOR – Common Parts & Diagrams

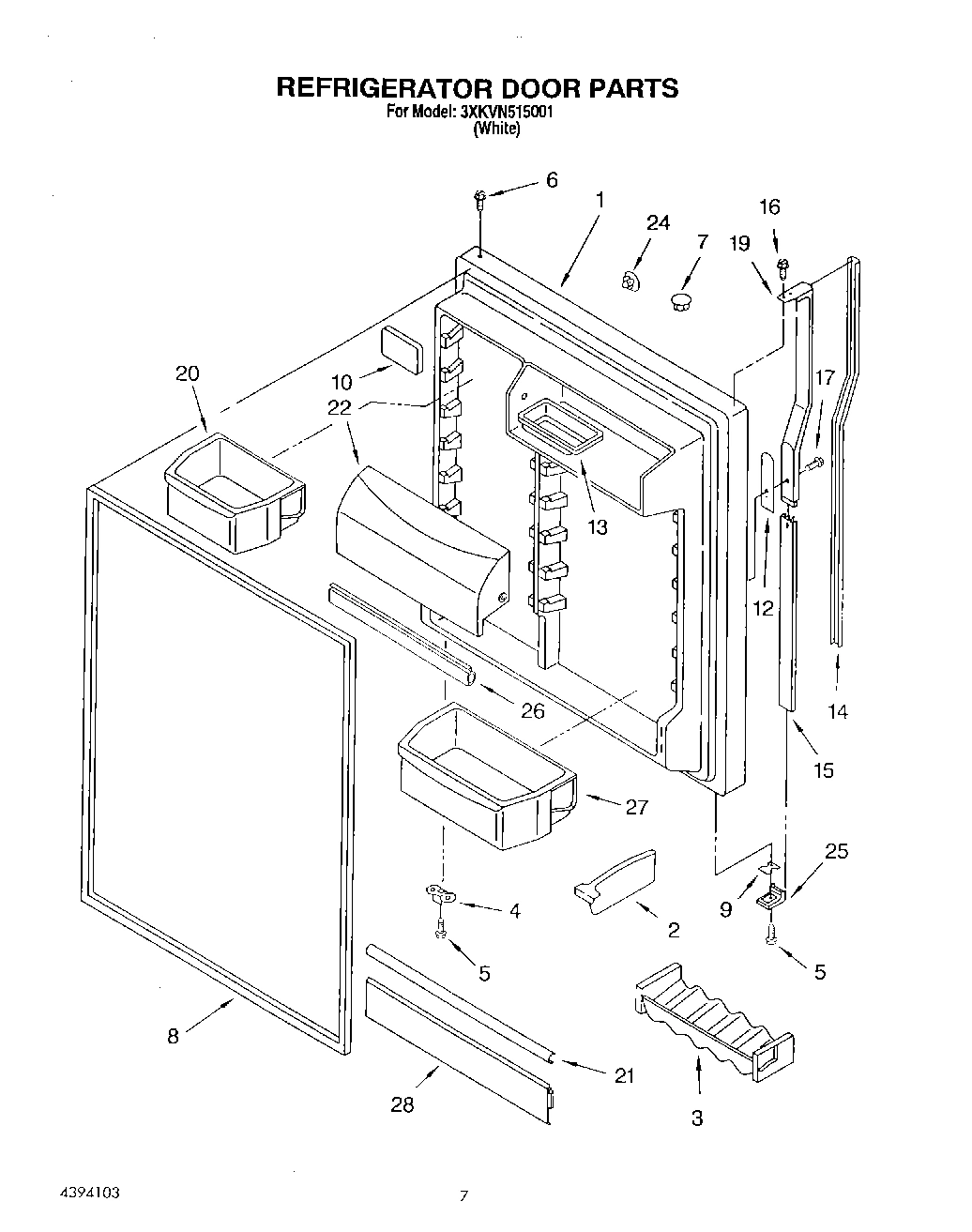

04 - REFRIGERATOR DOOR

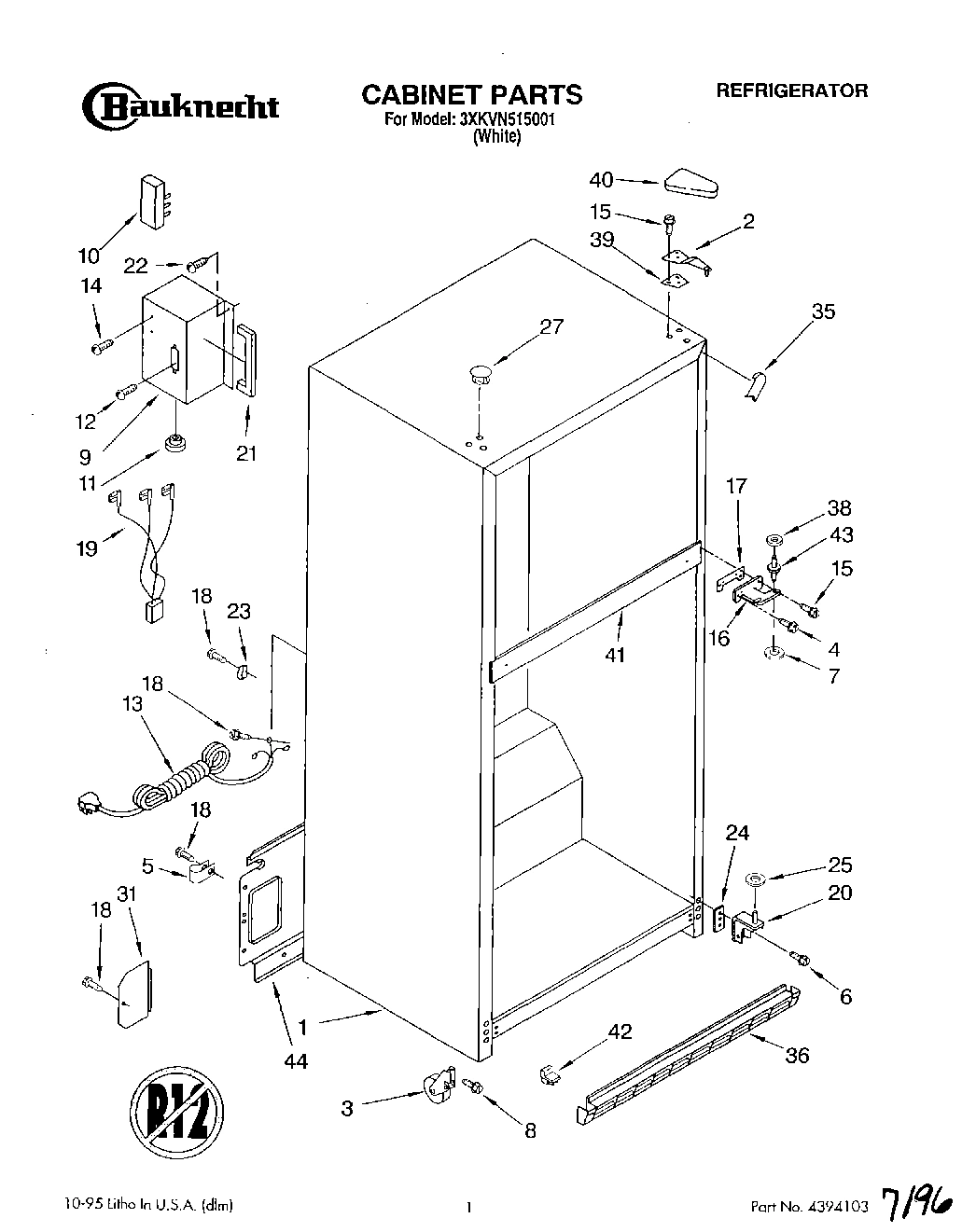

01 - CABINET

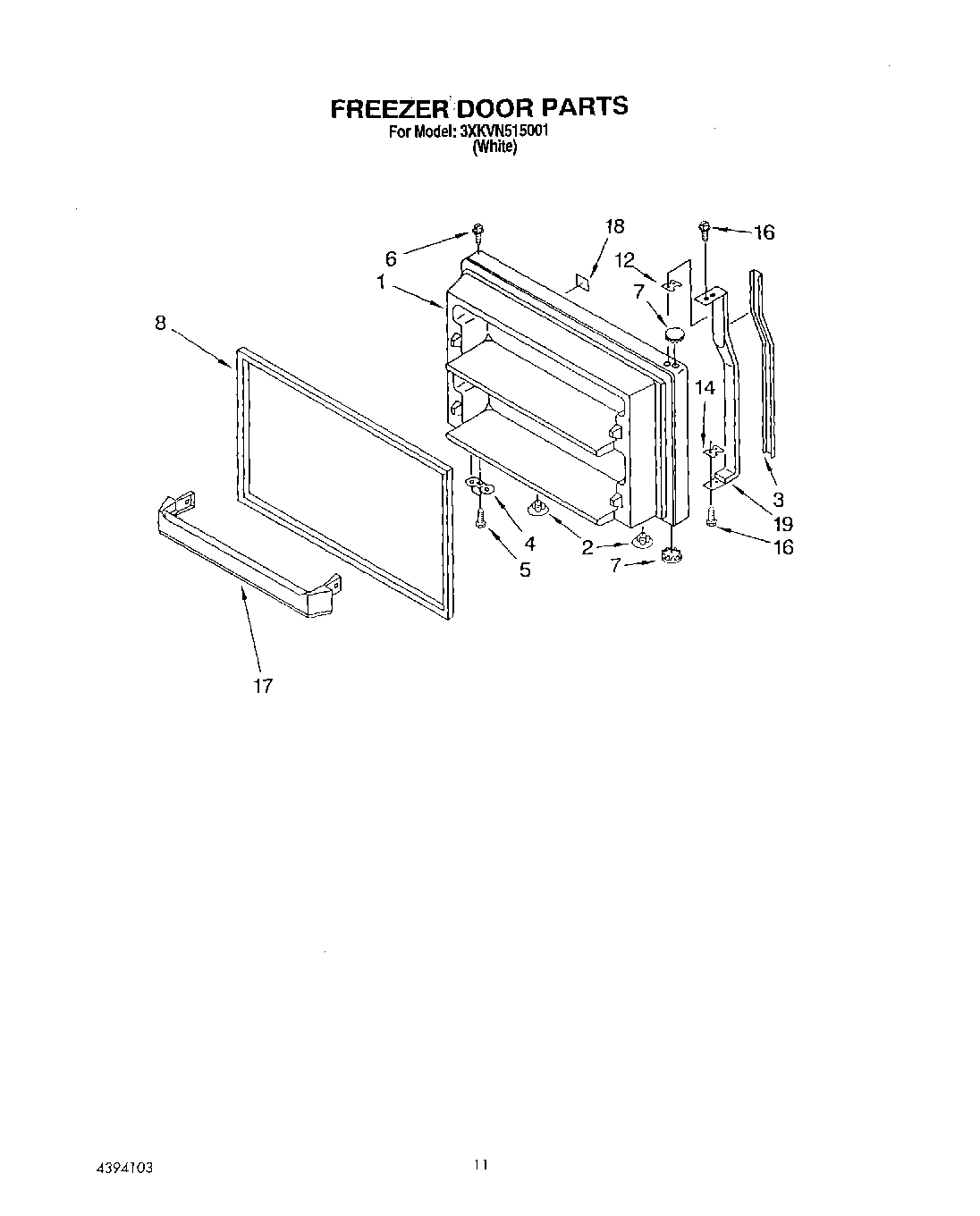

06 - FREEZER DOOR, LIT/OPTIONAL

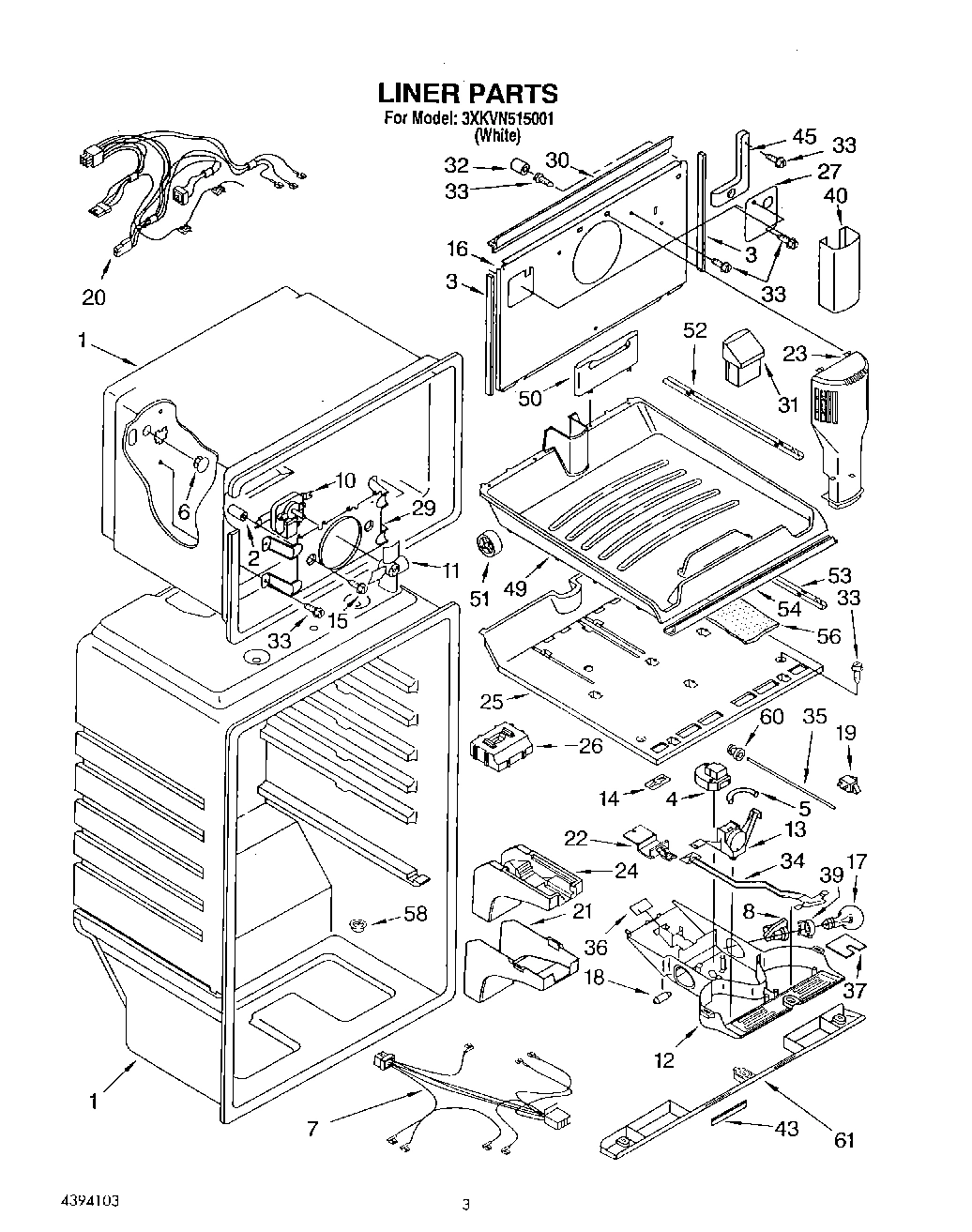

02 - LINER

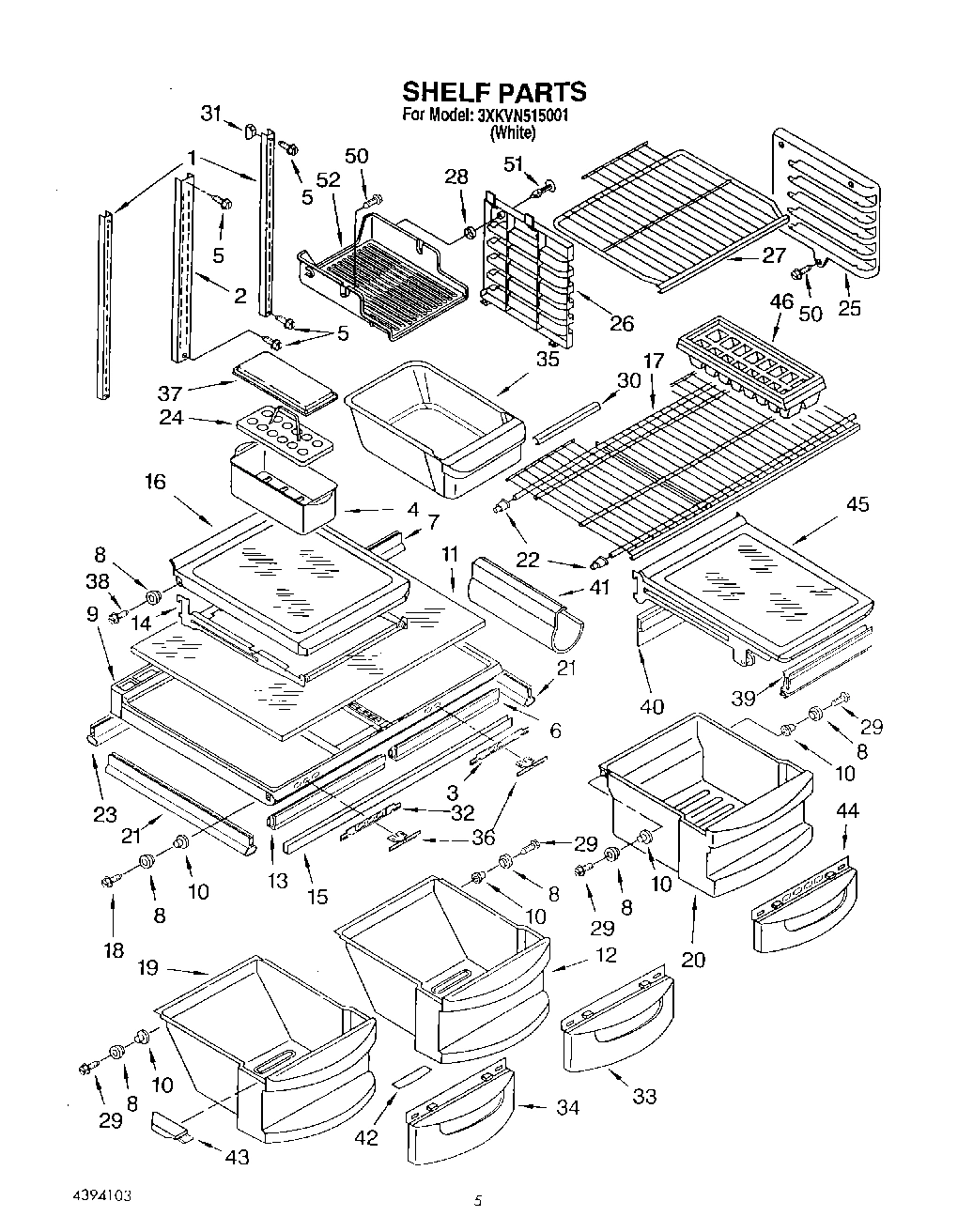

03 - SHELF

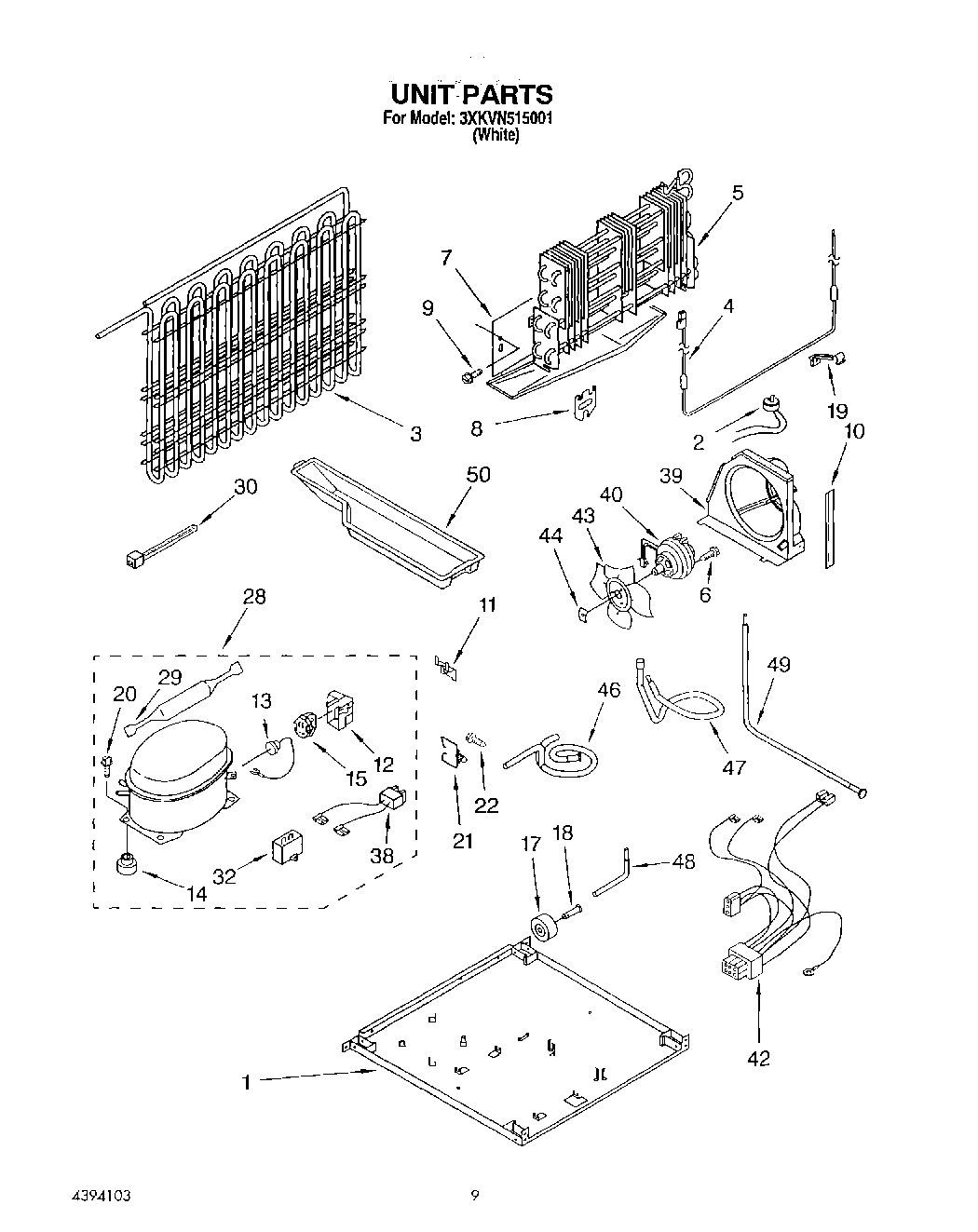

05 - UNIT
Common parts from model Whirlpool 3XKVN515001 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2166779 WPL LIT2166779 Contact Us For Availability
WPL LIT2166903 WPL LIT2166903 Contact Us For Availability
WPL LIT2166904 WPL LIT2166904 Contact Us For Availability
1
Freezer Door (Includes No.8) WPL 2171338 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13277A6 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Insert, Handle WPL 2168898 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Door Gasket, Magnetic (Service) WPL 2177306 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174126 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
11
Clip, Capacitor WPL 2166683 Contact Us For Availability
12
Spacer, Handle WPL 1107628 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2166896 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2182438 Contact Us For Availability
13
Overload WPL 2169411 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
17
Trivet, Door WPL 2166965 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Nameplate WPL 2166629 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Door Reversal Instructions WPL 2180007 Contact Us For Availability
19
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
19
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
19
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
19
Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2166898 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2179824 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2174077 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Wire Clip WPL 489435 Contact Us For Availability
22
Slide, Knob WPL 2174633 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
25
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2184459 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Shelf, Freezer (Top) WPL 2166111 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
30
Trim, Ice Pan WPL 2176360 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
33
Window WPL 2174061 Contact Us For Availability
34
Air Damper (Slide) WPL 2179855 Contact Us For Availability
34
Window WPL 2174064 Contact Us For Availability
35
Light Fiber (2) WPL 2179921 Contact Us For Availability
35
Ice Cube Pan WPL 2168967 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
Foil, Control Box WPL 2179735 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
40
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
40
Gasket, Rear WPL 2174395 Contact Us For Availability
42
Nameplate WPL 2166897 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
43
Window WPL 2176274 Contact Us For Availability
43
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
43
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
44
Window, Meat Pan WPL 2174079 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190503 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2179803 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
50
Evaporator Tray WPL 2163795 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
60
Grommet, Light Fiber WPL 2172906 Contact Us For Availability
61
Cover, Control Box Front WPL 2166895 Contact Us For Availability
× ![]()
