Model Whirlpool 3XKVN510001 REFRIGERATOR – Common Parts & Diagrams
05 - UNIT
07 - FREEZER DOOR

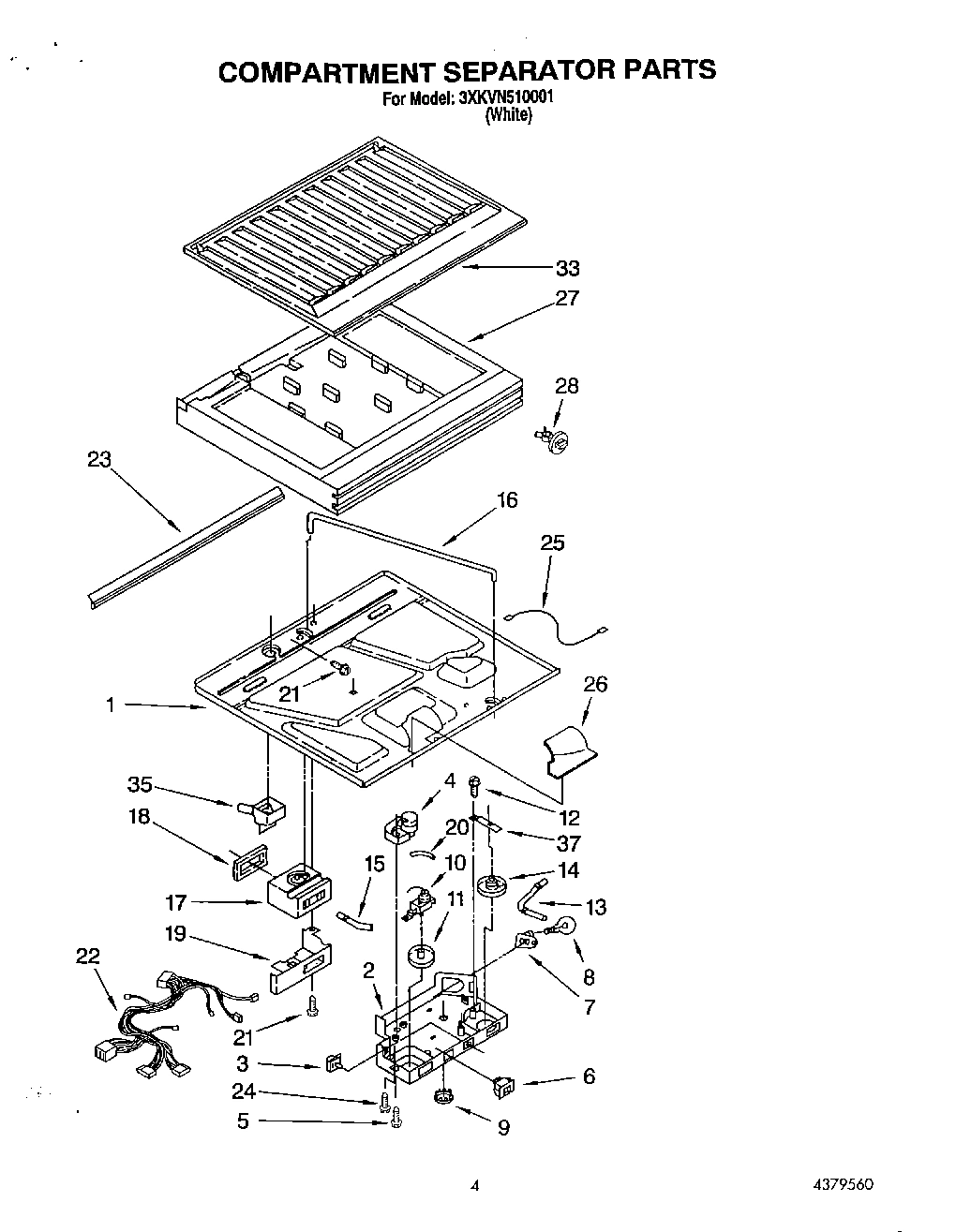

03 - COMPARTMENT SEPARATOR

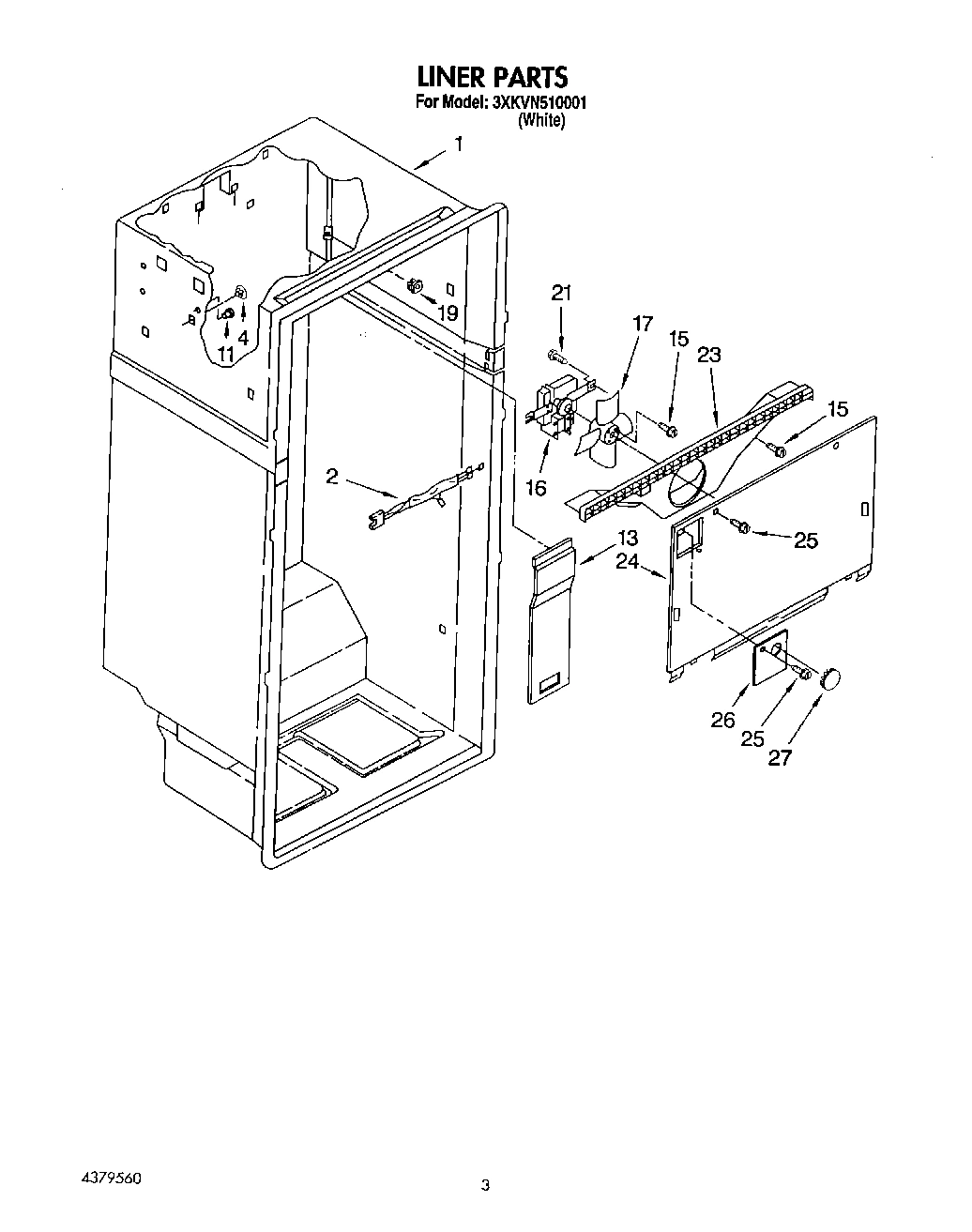

02 - LINER

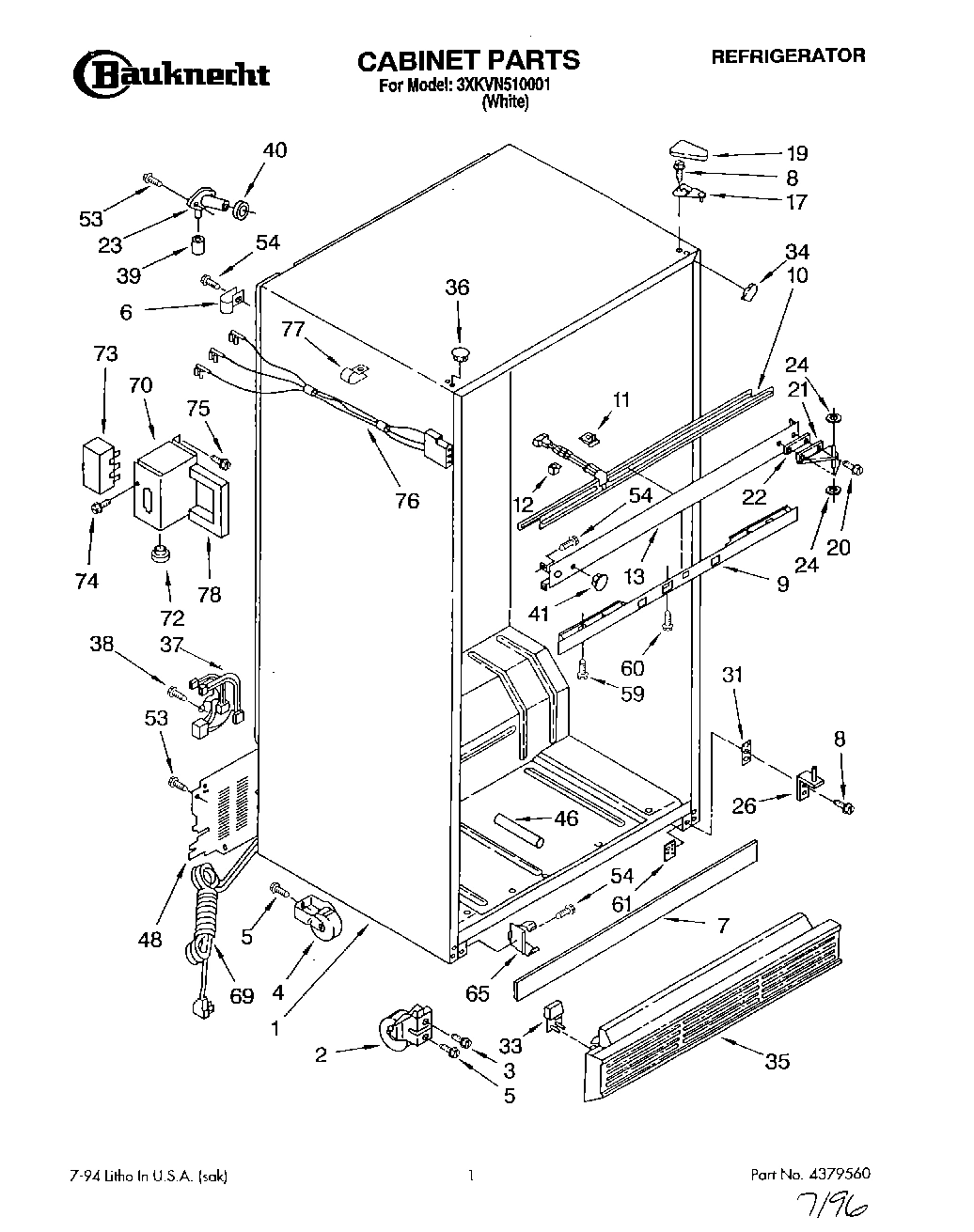

01 - CABINET

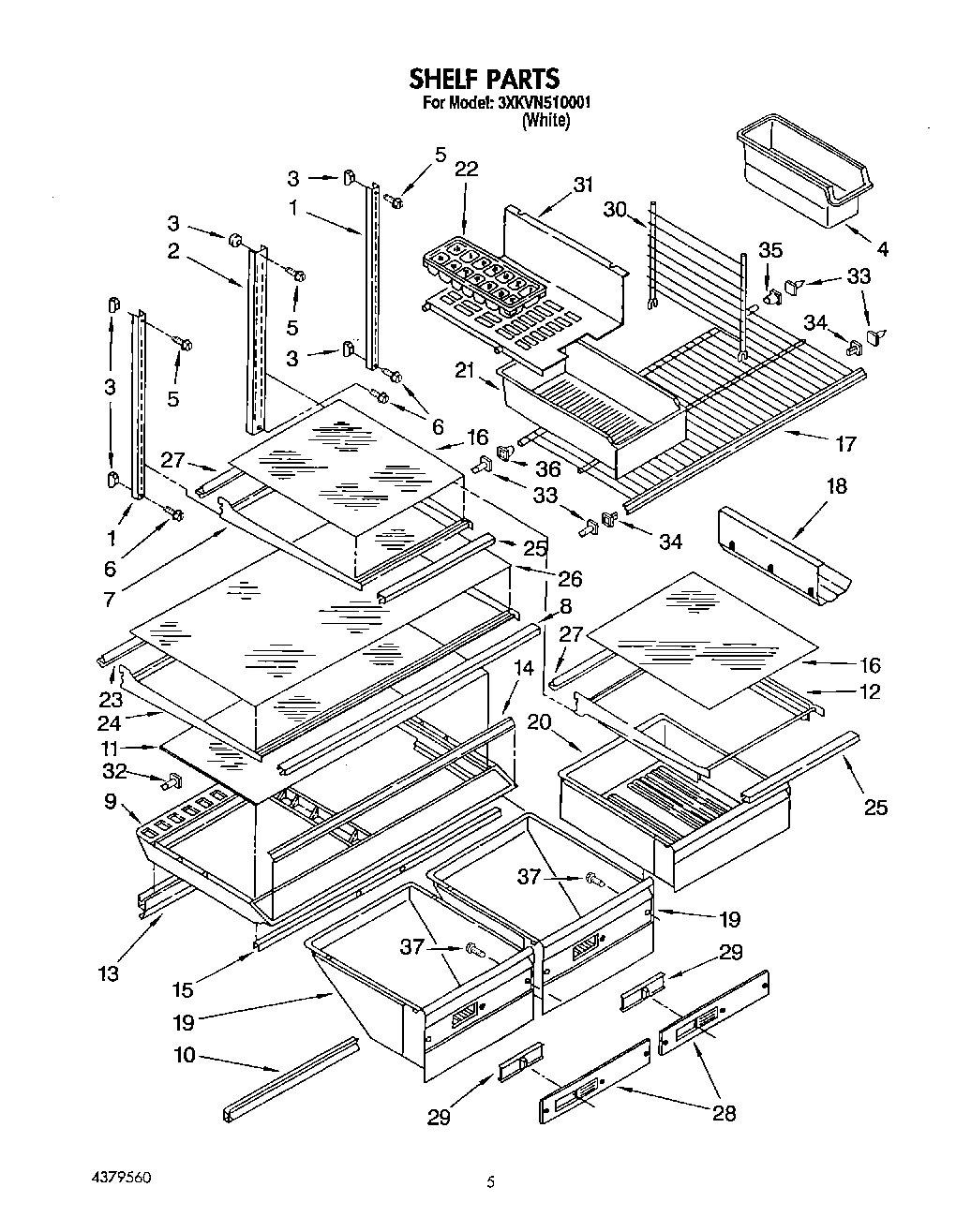

04 - SHELF, LIT/OPTIONAL

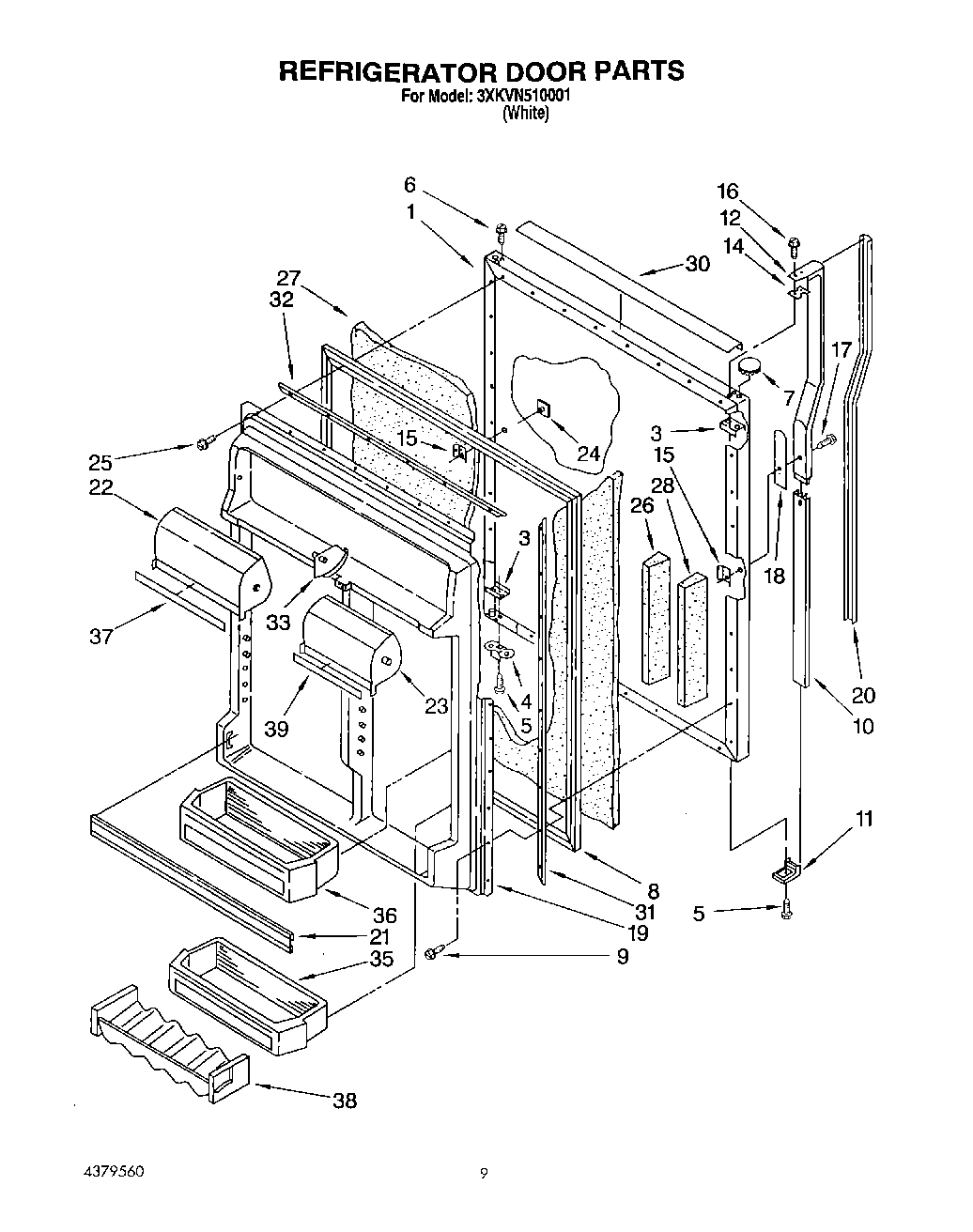

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool 3XKVN510001 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2165201 WPL LIT2165201 Contact Us For Availability
WPL LIT2165202 WPL LIT2165202 Contact Us For Availability
WPL LIT2166613 WPL LIT2166613 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) WPL 2157708 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172814 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI13271A5 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13270A1 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
6
Switch, Toggel WPL 938213 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Shelf, Cantilever WPL 1126187 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
8
Gasket, Shelf WPL 1126191 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
9
Control, Front Cover WPL 2165027 Contact Us For Availability
9
Crisper Cover WPL 2165382 Contact Us For Availability
10
Insert, Handle WPL 2161540 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
10
Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability
10
Retainer, Insert WPL 1125879 Contact Us For Availability
11
Knob, Thermostat WPL 2168905 Contact Us For Availability
11
Grommet (4) WPL 1110779 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Glass, Cover WPL 1125844 Contact Us For Availability
11
Handle End Cap WPL 1107236 Contact Us For Availability
12
Handle Assembly WPL 2161517 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability
12
Handle Assembly WPL 2161508 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability
14
Shim WPL 2151813 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Knob, Air Control WPL 2168904 Contact Us For Availability
14
Trim, Cover WPL 2172715 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
16
Glass, Shelf WPL 1126194 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2166741 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Shelf, Freezer WPL 1125849 Contact Us For Availability
18
Nameplate WPL 2166629 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Tape Strip WPL 991259 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 1125851 Contact Us For Availability
19
Interior Door Panel WPL 2157384 Contact Us For Availability
20
Pan, Meat WPL 1125854 Contact Us For Availability
20
Insert, Handle WPL 2161511 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Trim, Door Shelf WPL 1125857 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door, Utility WPL 1126234 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Retainer, Shelf WPL 1126241 Contact Us For Availability
23
Compartment Door, Butter WPL 1126233 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1126186 Contact Us For Availability
25
Wire Assembly WPL 2154921 Contact Us For Availability
25
Gasket, Shelf WPL 1126192 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Glass, Full Shelf WPL 1126193 Contact Us For Availability
26
Door Dike, Center WPL 2157385 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Retainer, Shelf WPL 1118119 Contact Us For Availability
28
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
28
Front, Pan WPL 1125852 Contact Us For Availability
28
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
29
Slide, Front WPL 1125853 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Trim, Door WPL 1126013 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
32
Shelf Stud (2) WPL 1106612 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
33
Support Stud (4) WPL 946355 Contact Us For Availability
34
Filler, Wrapper Corner (2) WPL 1118058 Contact Us For Availability
34
Shelf Stud (2) WPL 946356 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1125664 Contact Us For Availability
35
Shelf Bin (2) WPL 1125862 Contact Us For Availability
36
Shelf Bin (2) WPL 1125863 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
37
Screw WPL 489162 Contact Us For Availability
37
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Trim, Compartment WPL 1121186 Contact Us For Availability
38
Wine & Egg Rack WPL 1125913 Contact Us For Availability
39
Trim, Comp. Door Door WPL 2148588 Contact Us For Availability
41
Hole Plug (White) WPL 1129062 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
53
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
75
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
78
Gasket WPL 2167227 Contact Us For Availability
× ![]()
