Model Whirlpool 3XKVN510000 REFRIGERATOR – Common Parts & Diagrams
02 - LINER
07 - FREEZER DOOR

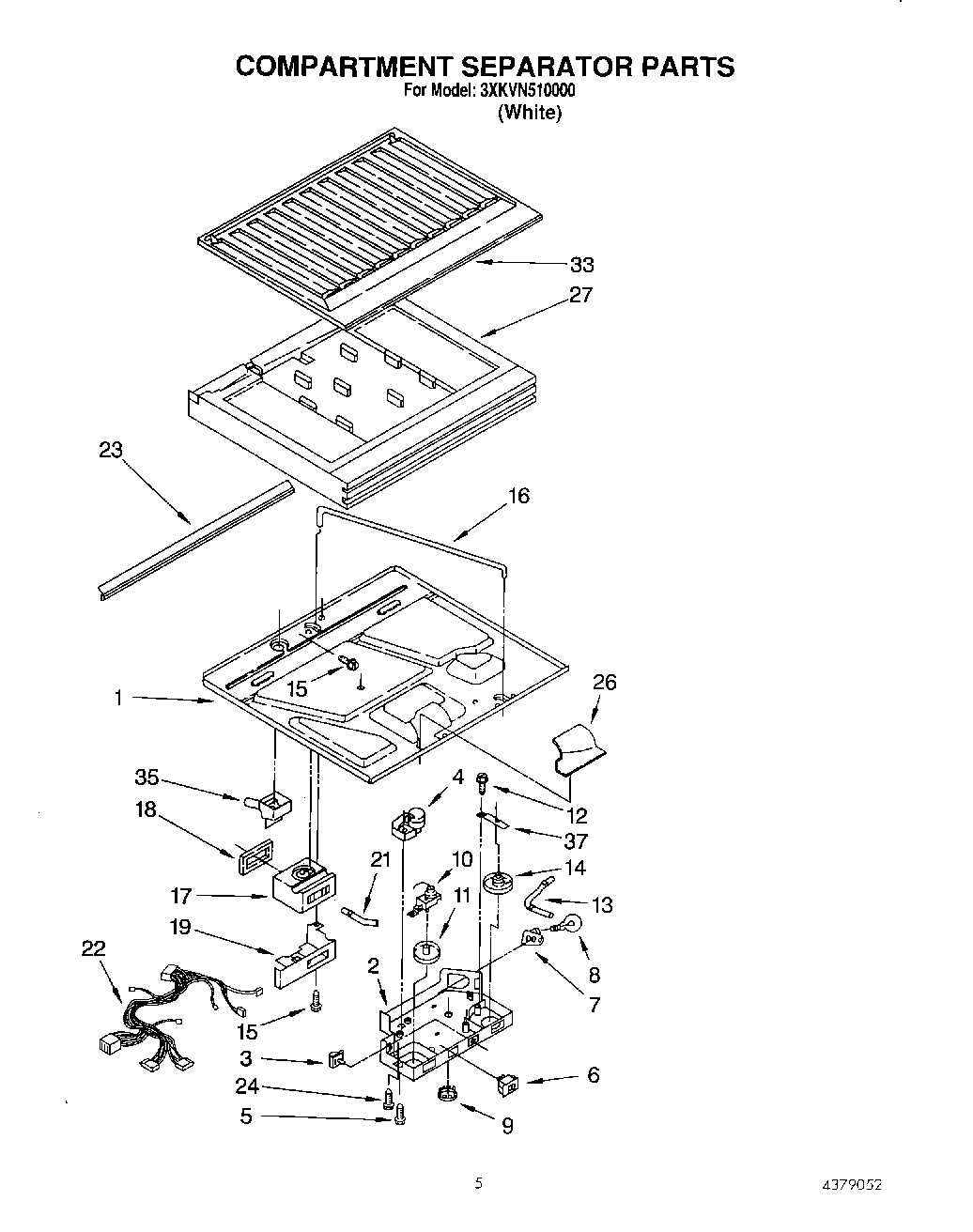

03 - COMPARTMENT SEPARATOR

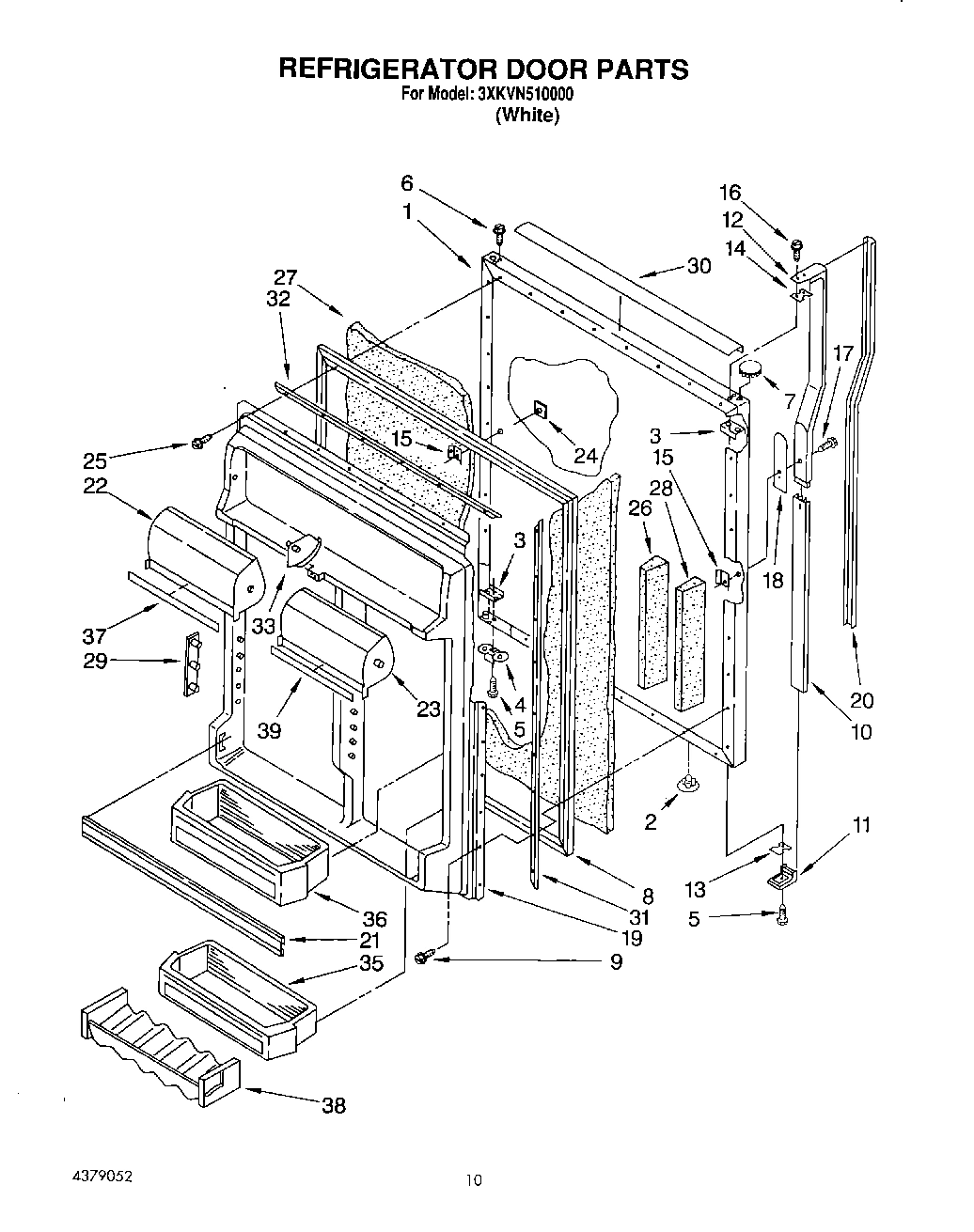

06 - REFRIGERATOR DOOR

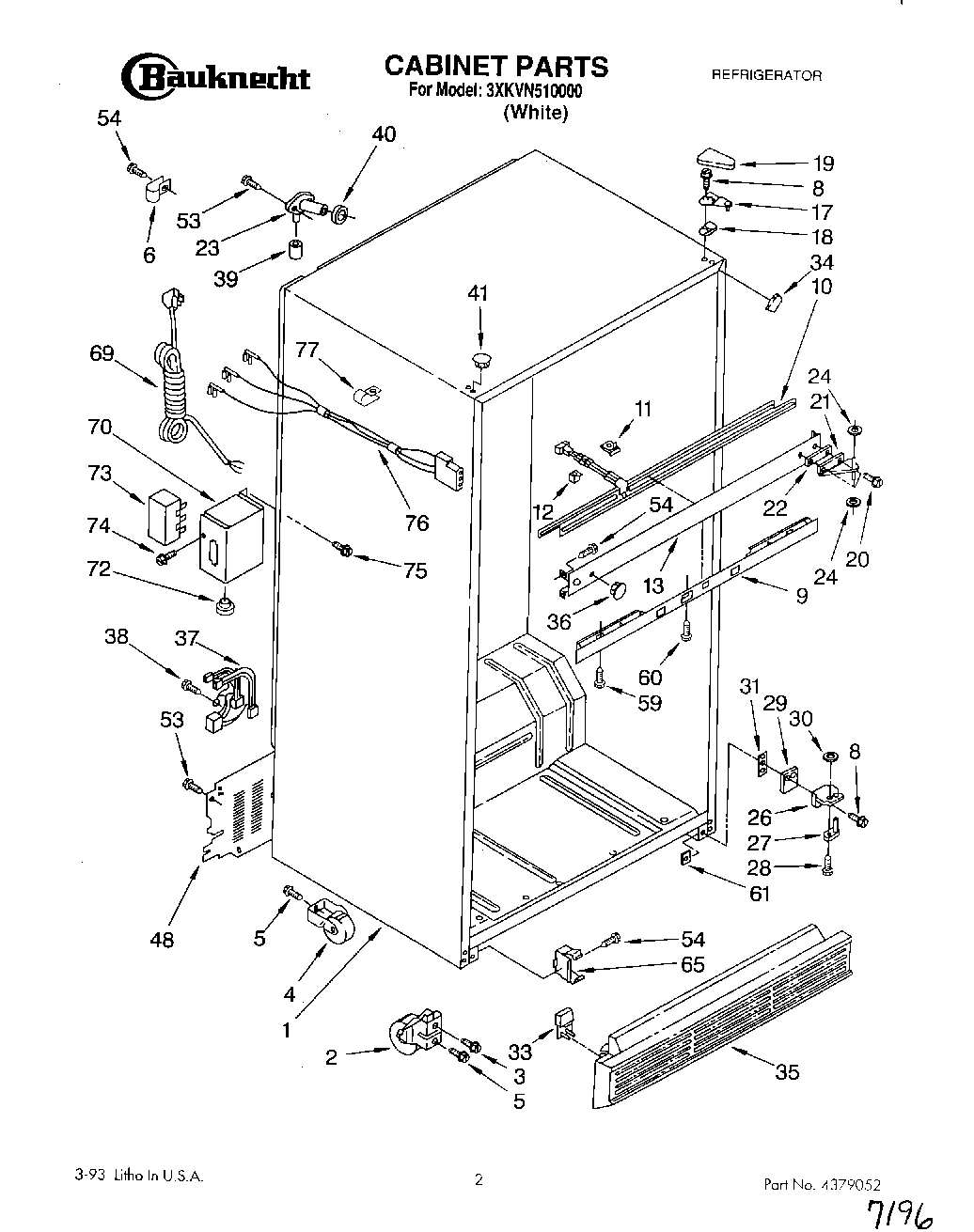

01 - CABINET

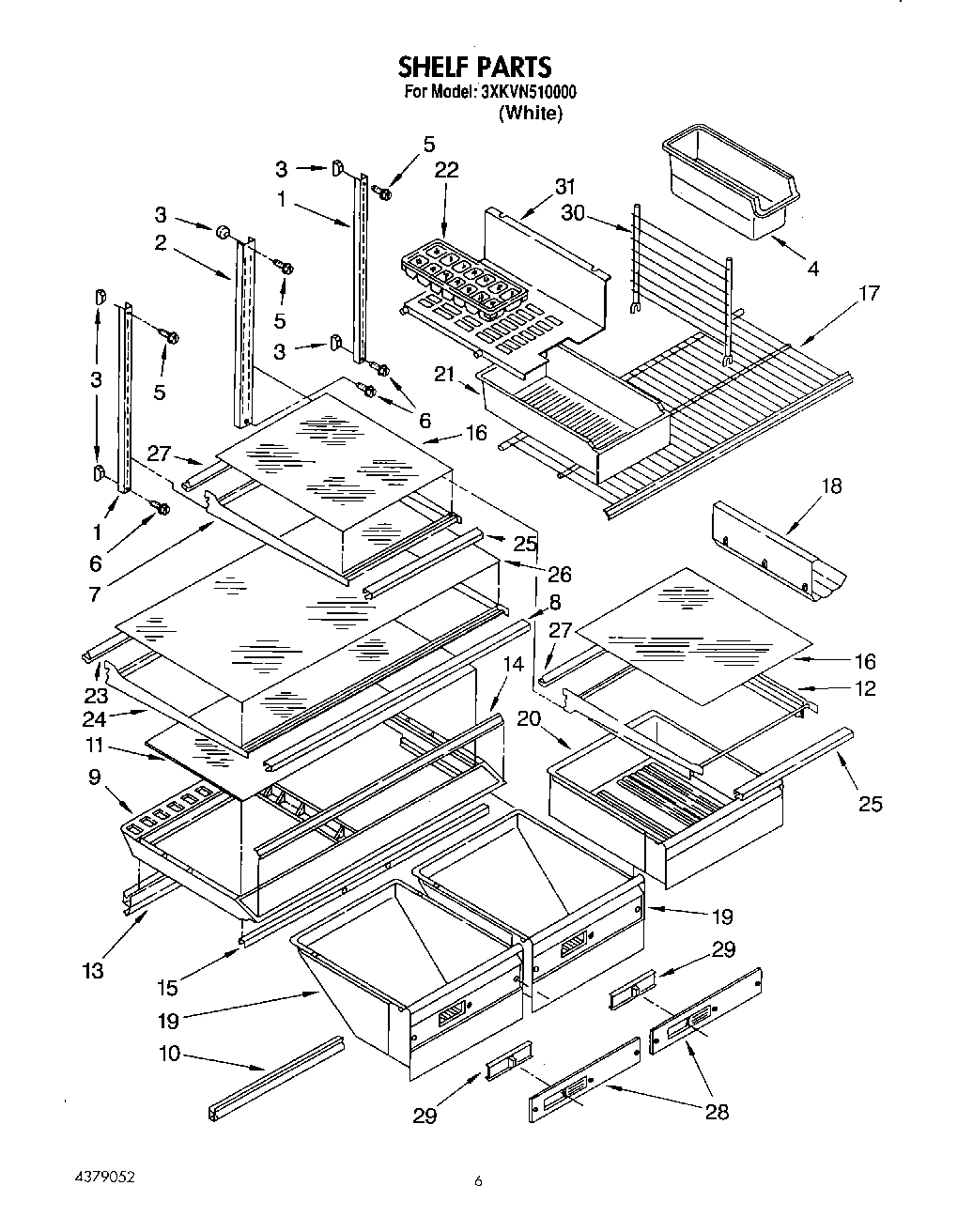

04 - SHELF, LIT/OPTIONAL

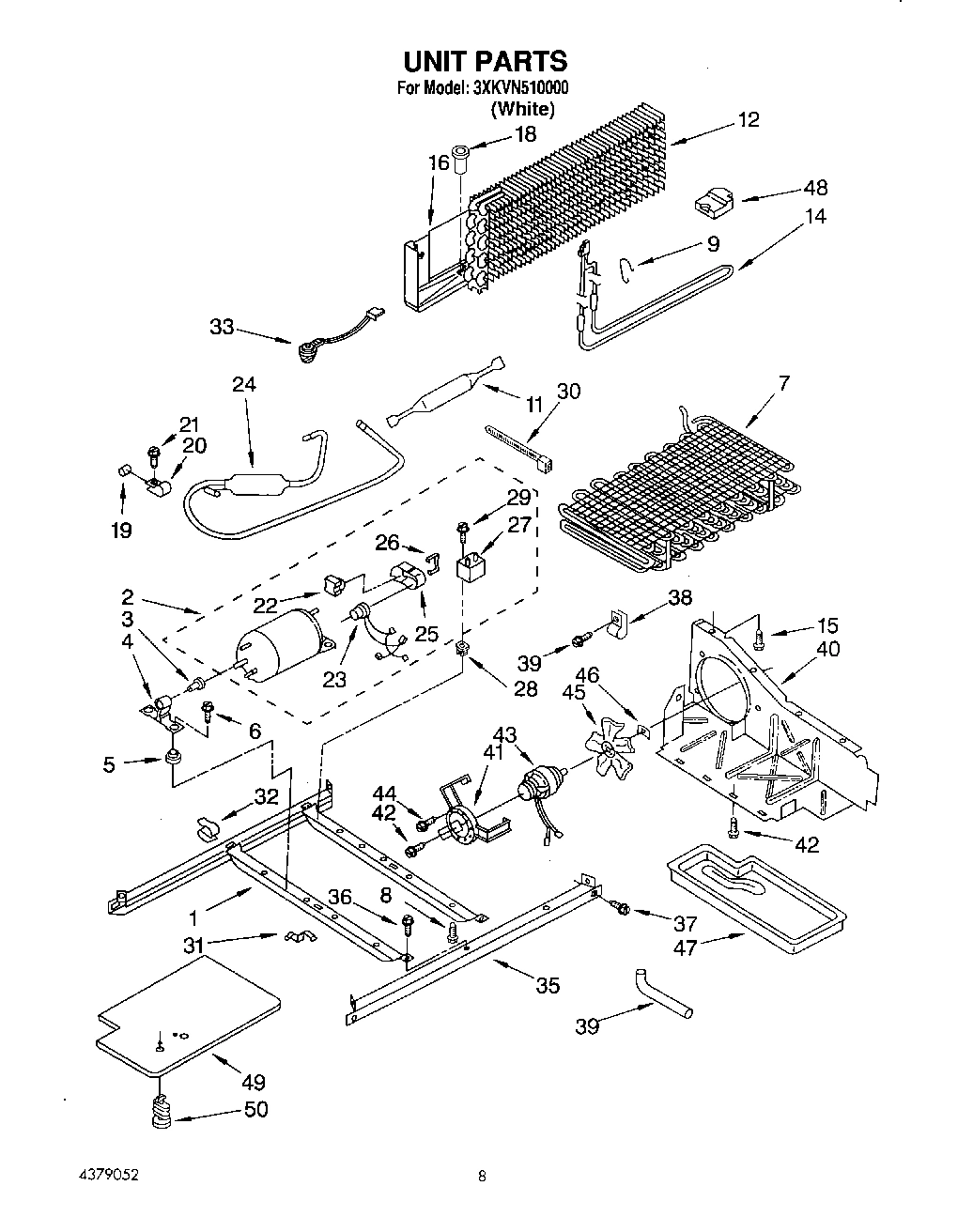

05 - UNIT
Common parts from model Whirlpool 3XKVN510000 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2165200 WPL LIT2165200 Contact Us For Availability
WPL LIT2165201 WPL LIT2165201 Contact Us For Availability
WPL LIT4379052 WPL LIT4379052 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 2156092 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI13268A2 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Compressor KIt Includes Items (22, 23, 25, 26 WPL 2154613 Contact Us For Availability
3
Plate, Tap (2) WPL 1123568 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 2157748 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw (4) WPL 488454 Contact Us For Availability
5
Screw (3) WPL 489345 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Switch, Toggle WPL 938213 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Shelf, Cantilever WPL 1126187 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
8
Gasket, Shelf WPL 1126191 Contact Us For Availability
9
Control, Front Cover WPL 2165027 Contact Us For Availability
9
Crisper Cover WPL 2165382 Contact Us For Availability
9
Support, Heater WPL 2149120 Contact Us For Availability
10
Retainer, Insert WPL 1125879 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
10
Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability
11
Knob, Thermostat WPL 1125831 Contact Us For Availability
11
Handle End Cap WPL 1107236 Contact Us For Availability
11
Clip, Mullion (3) WPL 2149060 Contact Us For Availability
11
Glass, Cover WPL 1125844 Contact Us For Availability
12
Handle Assembly WPL 2161508 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability
12
Evaporator Assembly WPL 2153977 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability
14
Knob, Air Control WPL 1125832 Contact Us For Availability
14
Shim WPL 2151813 Contact Us For Availability
14
Trim, Cover WPL 1123002 Contact Us For Availability
14
Heater, Defrost WPL 2158986 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Glass, Shelf WPL 1126194 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Shelf, Freezer WPL 1125849 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Wine & Egg Rack WPL 1125913 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Interior Door Panel WPL 1116583 Contact Us For Availability
19
Pan, Crisper WPL 1125851 Contact Us For Availability
20
Insert, Handle (White) WPL 2161511 Contact Us For Availability
20
Pan, Meat WPL 1125854 Contact Us For Availability
20
Tube Clamp (2) WPL 2159720 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Light, Bar WPL 1105476 Contact Us For Availability
21
Trim, Door Shelf WPL 1125857 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Compartment Door, Utility WPL 1126234 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Relay (Production) WPL 2154612 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Compartment Door, Butter WPL 1126233 Contact Us For Availability
23
Retainer, Shelf WPL 1126241 Contact Us For Availability
23
Overload (Service) WPL 2156479 Contact Us For Availability
23
Overload (Production) WPL 2158566 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1126186 Contact Us For Availability
24
Muffler & Tube Assembly WPL 2159588 Contact Us For Availability
25
Gasket, Shelf WPL 1126192 Contact Us For Availability
25
Terminal Cover WPL 1105221 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Door Dike, Center WPL 1118008 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Glass, Full Shelf WPL 1126193 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Retainer, Shelf WPL 1118119 Contact Us For Availability
27
Running, Capacitor (Production) WPL 2154615 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
28
Front, Pan WPL 1125852 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Pin Plate (8) WPL 1116986 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Slide, Front WPL 1125853 Contact Us For Availability
30
Trim, Door WPL 1126013 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Shelf Bin (2) WPL 1125862 Contact Us For Availability
35
Grille (White) WPL 1125664 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
Shelf Bin (2) WPL 1125863 Contact Us For Availability
36
Hole Plug (4) (White) WPL 1129062 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Trim, Compartment WPL 1121186 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
38
Clamp WPL 1108033 Contact Us For Availability
39
Trim, Comp. Door Door WPL 2148588 Contact Us For Availability
39
Drain Extension WPL 2154118 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
× ![]()
