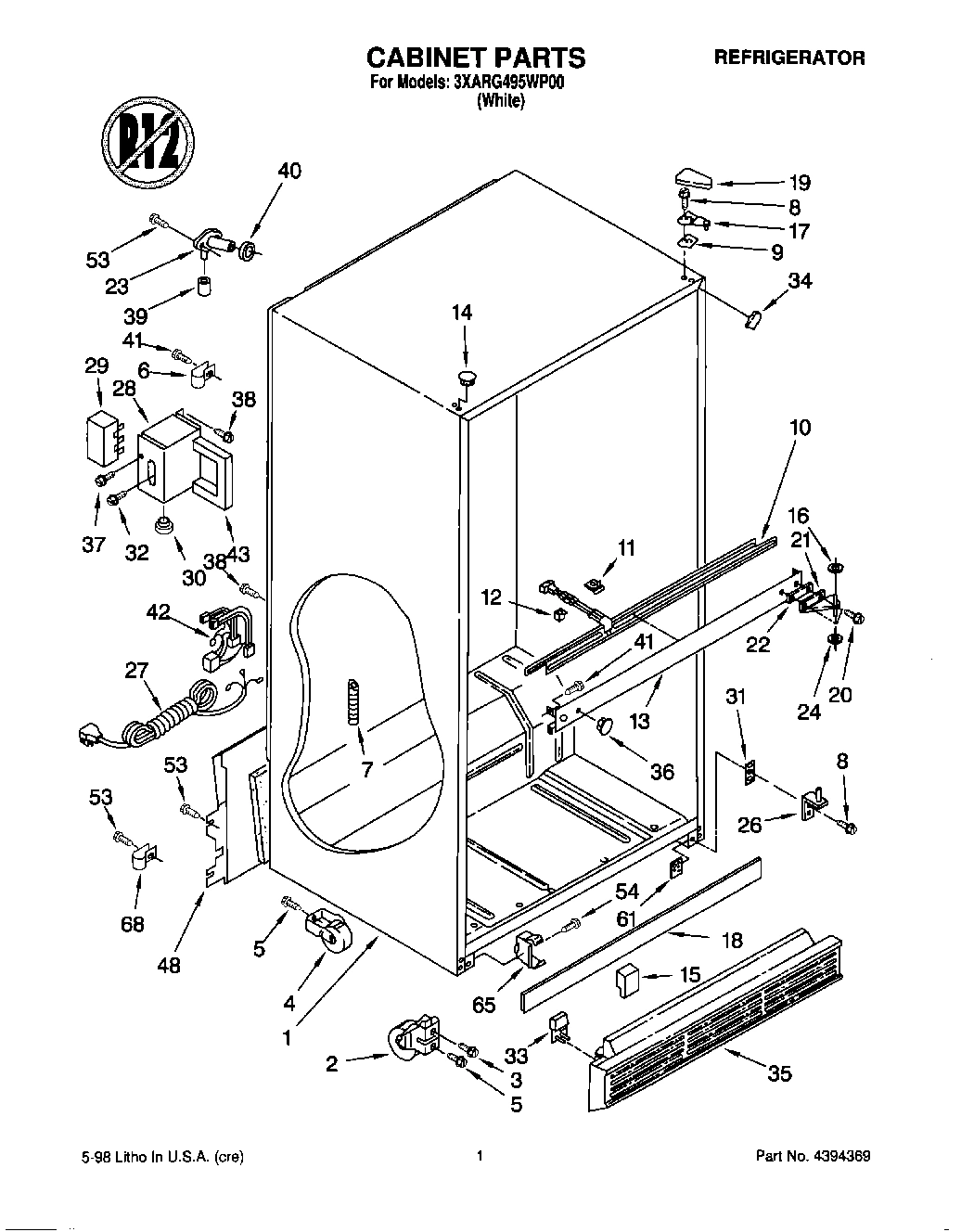

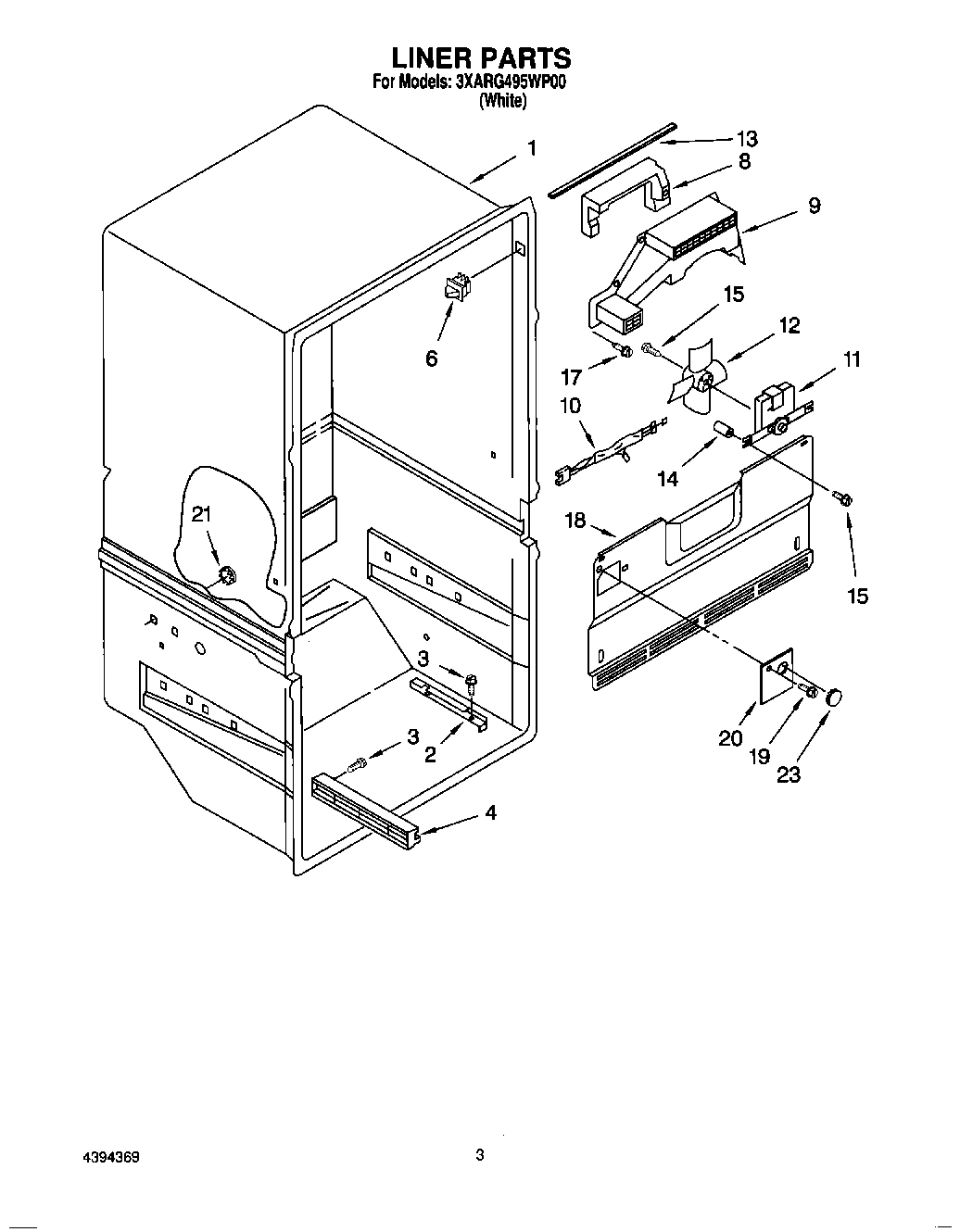

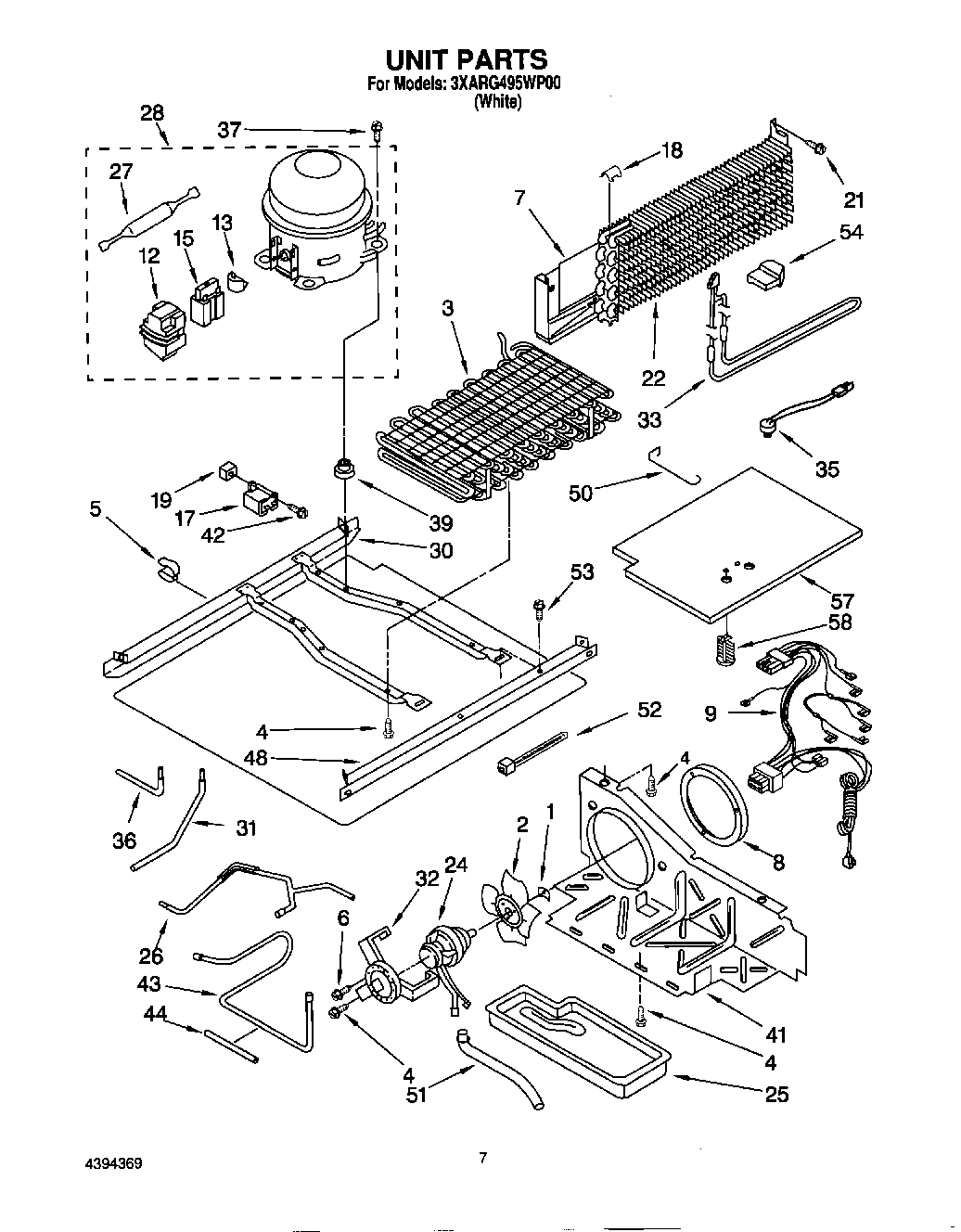

Model Whirlpool 3XARG495WP00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2165697 WPL LIT2165697 Contact Us For Availability

WPL LIT2165700 WPL LIT2165700 Contact Us For Availability

WPL LIT2176895 WPL LIT2176895 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

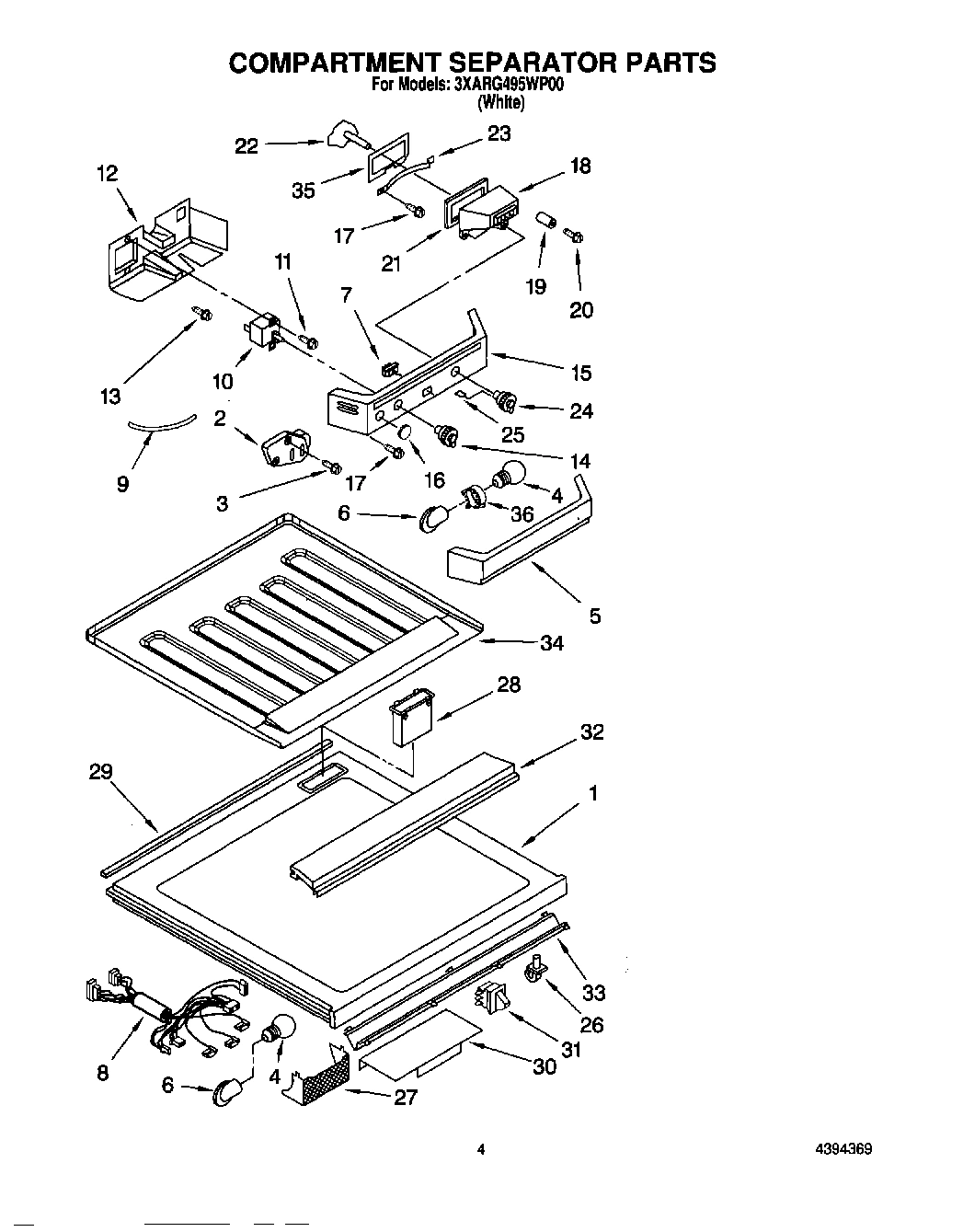

Compartment Separator Assembly (Includes Cent WPL 2165717 Contact Us For Availability

1

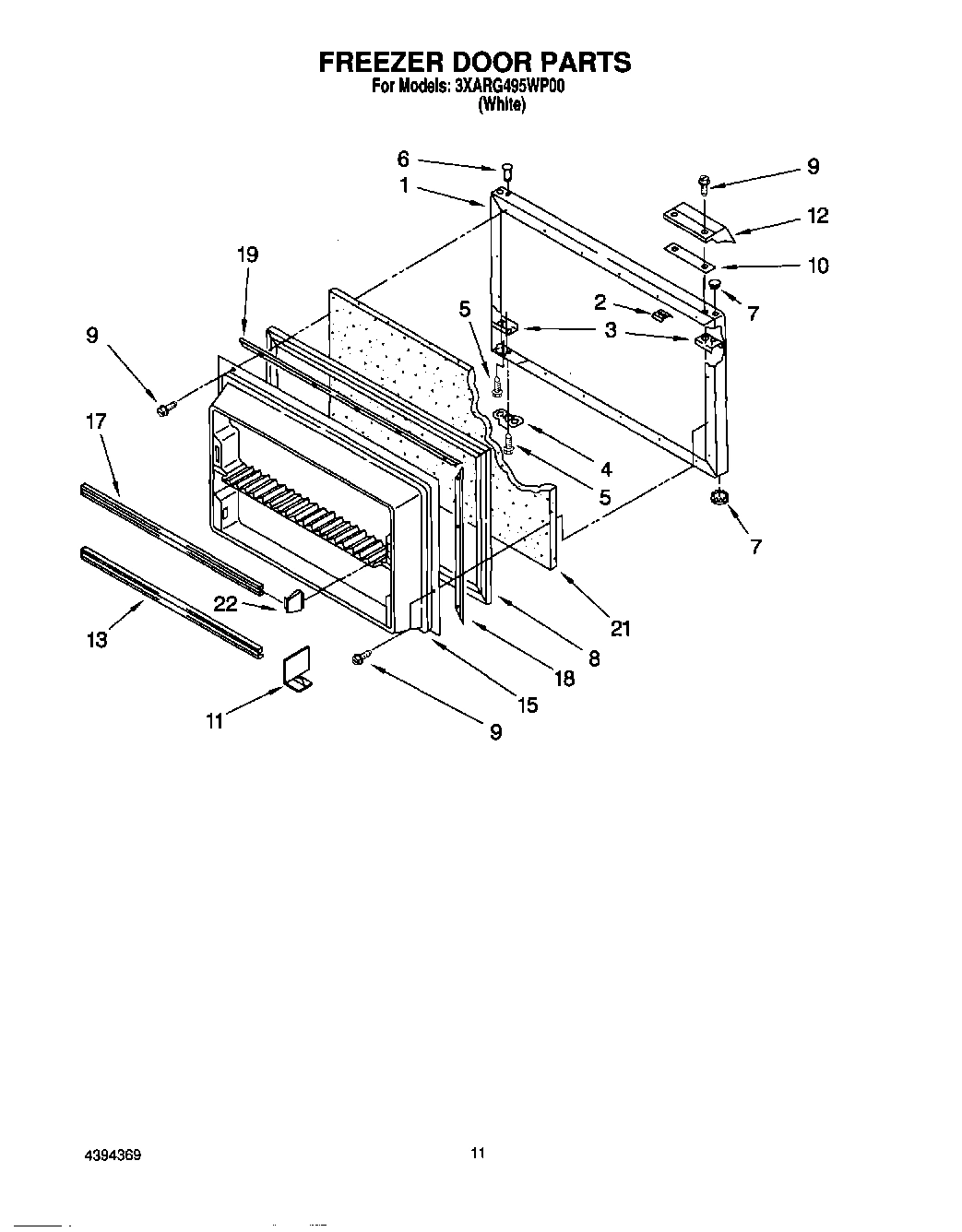

Freezer Door Panel (Also Order Item 21) WPL 2174870 Contact Us For Availability

1

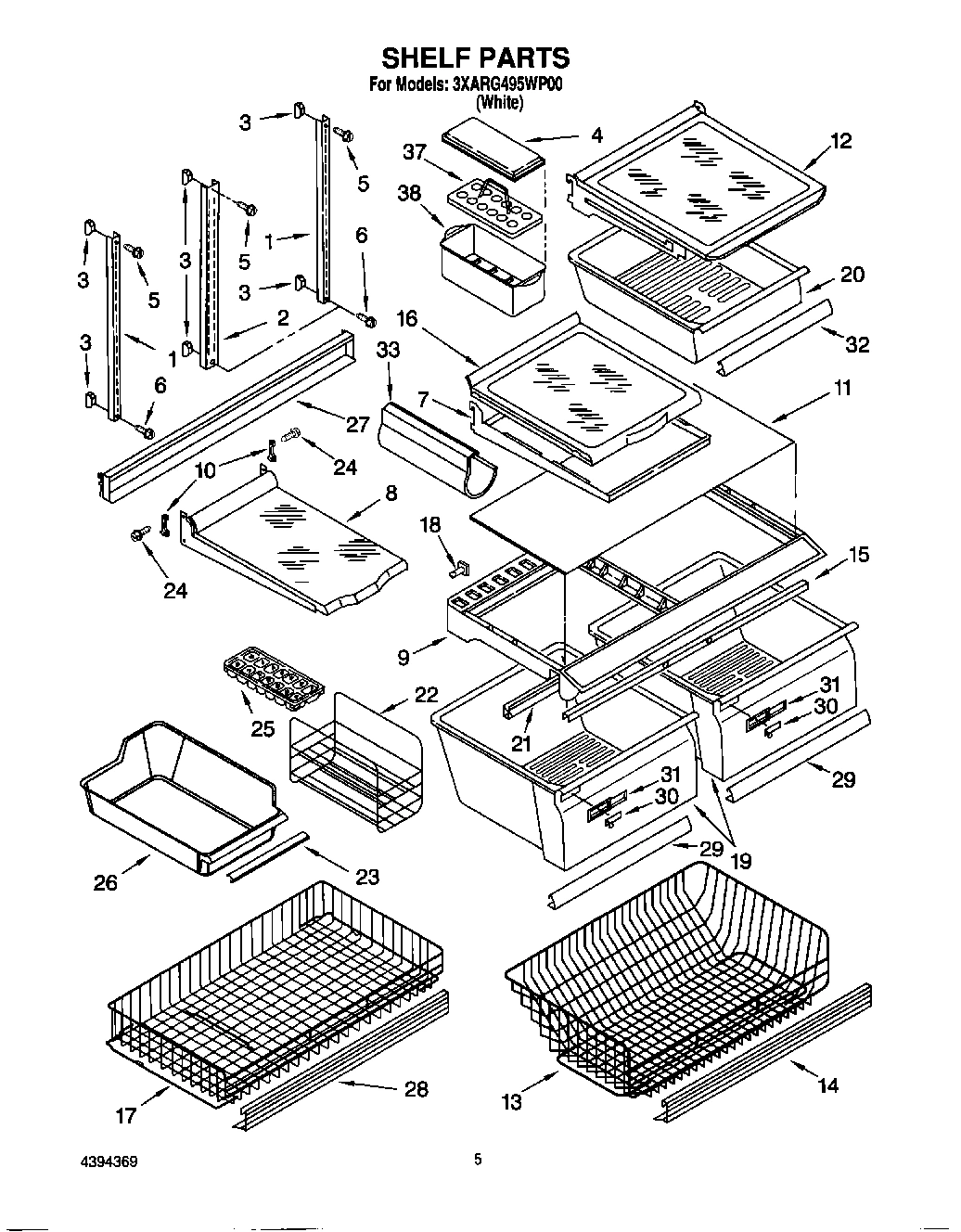

Shelf, Ladder (2) WPL 1127413 Contact Us For Availability

1

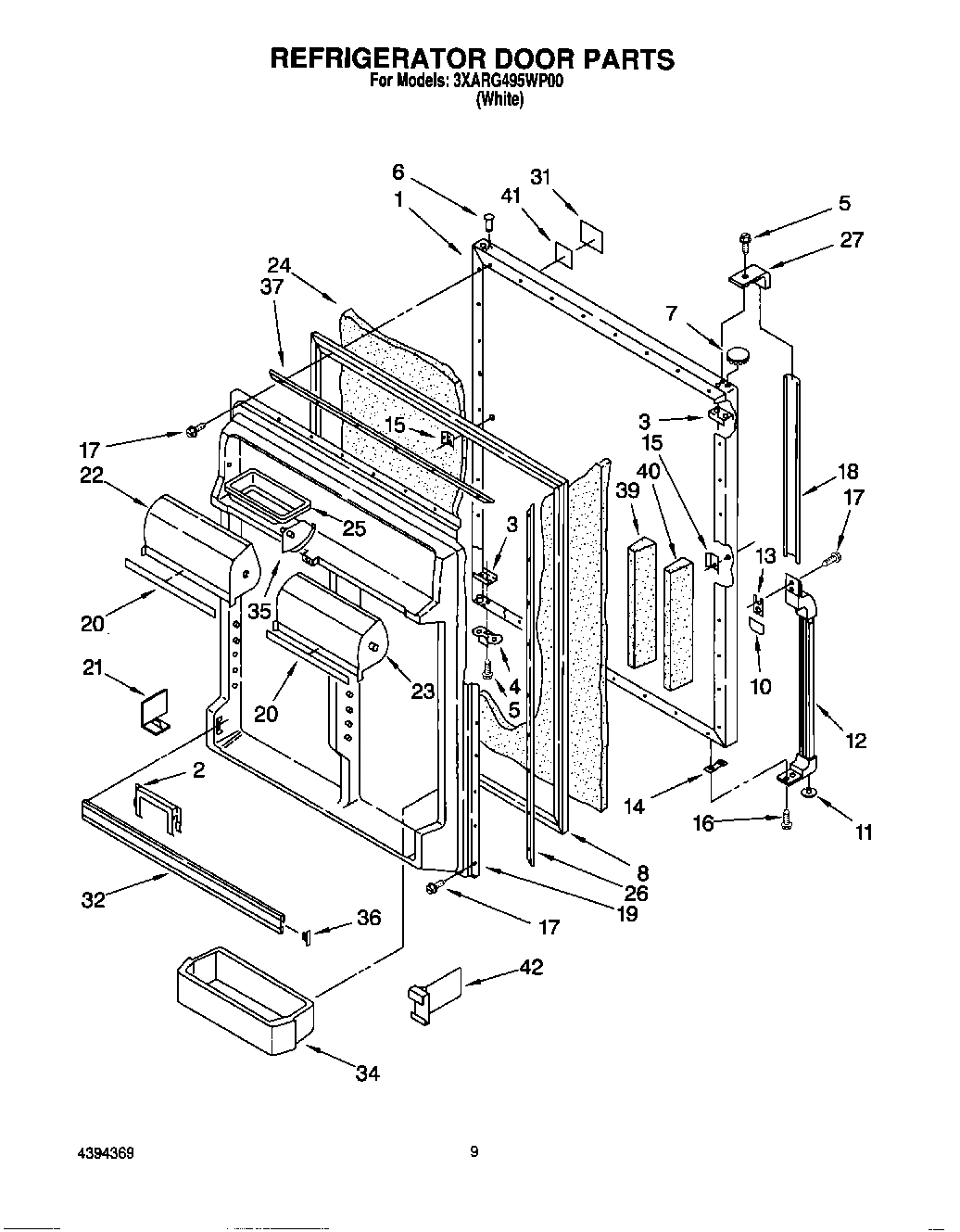

Refrigerator Door Panel (Also Order Item 24) WPL 2174866 Contact Us For Availability

2

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $88.96

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Screw Anchor WPL 2157332 Contact Us For Availability

2

Shelf, Ladder Center WPL 1127414 Contact Us For Availability

2

Retainer, Bottle WPL 2173643 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

Screw WPL 489386 Contact Us For Availability

3

Condenser Assembly WPL 2164513 Contact Us For Availability

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Cover WPL 2169935 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Light Lens WPL 983910 Contact Us For Availability

5

Screw, WPL 489345 Contact Us For Availability

5

Clip, Wire WPL 2155658 Contact Us For Availability

6

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

6

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $3.70

7

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

Frame Assembly, Cantilever (3) WPL 2174036 Contact Us For Availability

7

Drain Pan & Heat Shield Assy. WPL 2152771 Contact Us For Availability

8

Wiring Assembly, Control Box WPL 2152787 Contact Us For Availability

8

Door Gasket WPL 2160436 Contact Us For Availability

8

Shelf, Slide WPL 2174224 Contact Us For Availability

8

Door Gasket, Magnetic WPL 2160435 Contact Us For Availability

8

Ring, Fan Mounting WPL 549215 Contact Us For Availability

9

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

9

Crisper Cover WPL 2174134 Contact Us For Availability

9

Wire Assembly WPL 2165708 Contact Us For Availability

WP4317800 Whirlpool Refrigerator Thermostat In Stock WPL WP4317800 $113.21

Shim WPL 2183024 Contact Us For Availability

Hook, Shelf WPL 2169608 Contact Us For Availability

Shim WPL 2179398 Contact Us For Availability

11

Glass, Crisper Cover WPL 2174143 Contact Us For Availability

11

Hole Plug WPL 2174433 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

Bracket, Thermostat WPL 2152896 Contact Us For Availability

Handle WPL 2179593 Contact Us For Availability

Shelf, Meat Pan WPL 2174043 Contact Us For Availability

Handle, Center WPL 2183121 Contact Us For Availability

WP2169412 Whirlpool Overload Relay Backorder WPL WP2169412 $52.85

Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability

Trim, Door Shelf WPL 2171395 Contact Us For Availability

Freezer Basket, (Lower) WPL 2152799 Contact Us For Availability

Shim, Handle WPL 2183124 Contact Us For Availability

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $8.20

Control Knob WPL 2148656 Contact Us For Availability

Trim, Basket (Lower) WPL 2179512 Contact Us For Availability

Shim, Bottom WPL 2151813 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

Control Panel WPL 2165690 Contact Us For Availability

Interior Door Panel WPL 2152814 Contact Us For Availability

Screw Anchor WPL 941242 Contact Us For Availability

Relay (See Overload) WPL ARI12806A7 Contact Us For Availability

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Hole Plug WPL 2148655 Contact Us For Availability

Glass, Shelf WPL 2174035 Contact Us For Availability

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $50.45

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

Trim, Door WPL 2171394 Contact Us For Availability

Freezer Basket, (Upper) WPL 2179448 Contact Us For Availability

9791833 Whirlpool Refrigerator Clip Backorder WPL 9791833 $4.37

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

Air Diffuser Assembly WPL 2160470 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability

Extension WPL 2179599 Contact Us For Availability

836667 Whirlpool Refrigerator Spacer Backorder WPL 836667 $4.59

Pan, Crisper (Includes Items 29, 30 & 31) WPL 2175423 Contact Us For Availability

Interior Door Panel WPL 2174741 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

20

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

20

Pan, Meat (Includes Item 32) WPL 2175426 Contact Us For Availability

20

Trim, Door Compartment WPL 2164839 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Gasket WPL 2160428 Contact Us For Availability

Divider-Door WPL 1123293 Contact Us For Availability

Crisper Gasket, Front WPL 2179392 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

Damper, Air WPL 984658 Contact Us For Availability

Rack, Ice Tray WPL 2152823 Contact Us For Availability

Compartment Door WPL 2163945 Contact Us For Availability

Evaporator WPL 2152776 Contact Us For Availability

23

Retainer, Air Damper WPL 836493 Contact Us For Availability

23

Trim, Ice Bucket WPL 2176360 Contact Us For Availability

23

Compartment Door WPL 2163942 Contact Us For Availability

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $138.63

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Knob, Air Diffuser (Includes Item 25) WPL 2148657 Contact Us For Availability

Screw WPL 489419 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Knob, Retainer WPL 837444 Contact Us For Availability

Butter, Tray WPL 1125936 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

2254352A Whirlpool Refrigerator Ice Container In Stock WPL 2254352A $15.66

Stud WPL 2155555 Contact Us For Availability

Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability

Tube, Discharge WPL 2162475 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Light Lens WPL 983359 Contact Us For Availability

Slide, Track WPL 2169793 Contact Us For Availability

End Cap, Extension WPL 2179596 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10183407 Whirlpool Refrigerator Compressor Backorder WPL W10183407 $345.09

Insert, Air Return WPL 987019 Contact Us For Availability

Trim, Basket (Upper) WPL 2179513 Contact Us For Availability

29

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

29

Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

30

Lens-Light WPL 2149068 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

Nameplate WPL 2165705 Contact Us For Availability

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Separator Top-Front WPL 1121213 Contact Us For Availability

Trim, Door Shelf WPL 2177228 Contact Us For Availability

Fan, Motor Bracket WPL 548695 Contact Us For Availability

33

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

33

Air Deflector WPL 2160531 Contact Us For Availability

33

Heater, Defrost WPL 2165681 Contact Us For Availability

34

Separator, Top-Rear WPL 2152789 Contact Us For Availability

34

Bin, Door Shelf WPL 2179604 Contact Us For Availability

35

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

35

Gasket, Damper WPL 2160454 Contact Us For Availability

36

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $35.59

36

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $27.52

36

Plug, Trim (2) WPL 2159300 Contact Us For Availability

37

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

37

Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Door Reversal Instructions WPL 2180410 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Reinforcement-Mid WPL 2174751 Contact Us For Availability

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Reinforcement, Side WPL 1122709 Contact Us For Availability

41

Tape Strip WPL 991259 Contact Us For Availability

41

Air Baffle WPL 2162457 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

42

Divider, Bin WPL 2171284 Contact Us For Availability

43

Tube, Suction WPL 2162472 Contact Us For Availability

44

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

Extension, Drain Tube WPL 2152822 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support WPL 1115128 Contact Us For Availability

57

Cover-Unit Btm. WPL 2160505 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38
