Model Whirlpool 3XARG493WP02 REFRIGERATOR – Common Parts & Diagrams
06 - FREEZER DOOR, LIT/OPTIONAL
02 - LINER

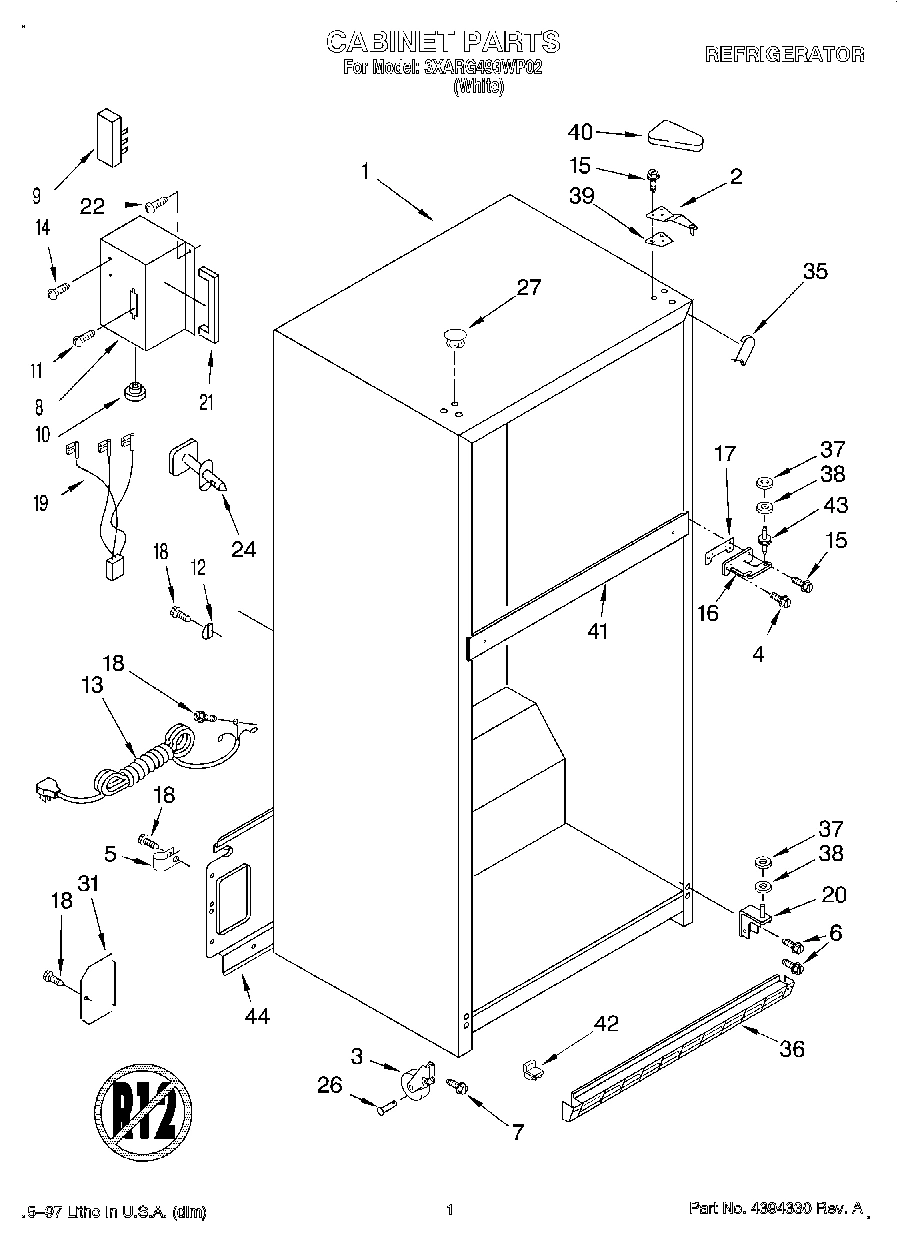

01 - CABINET

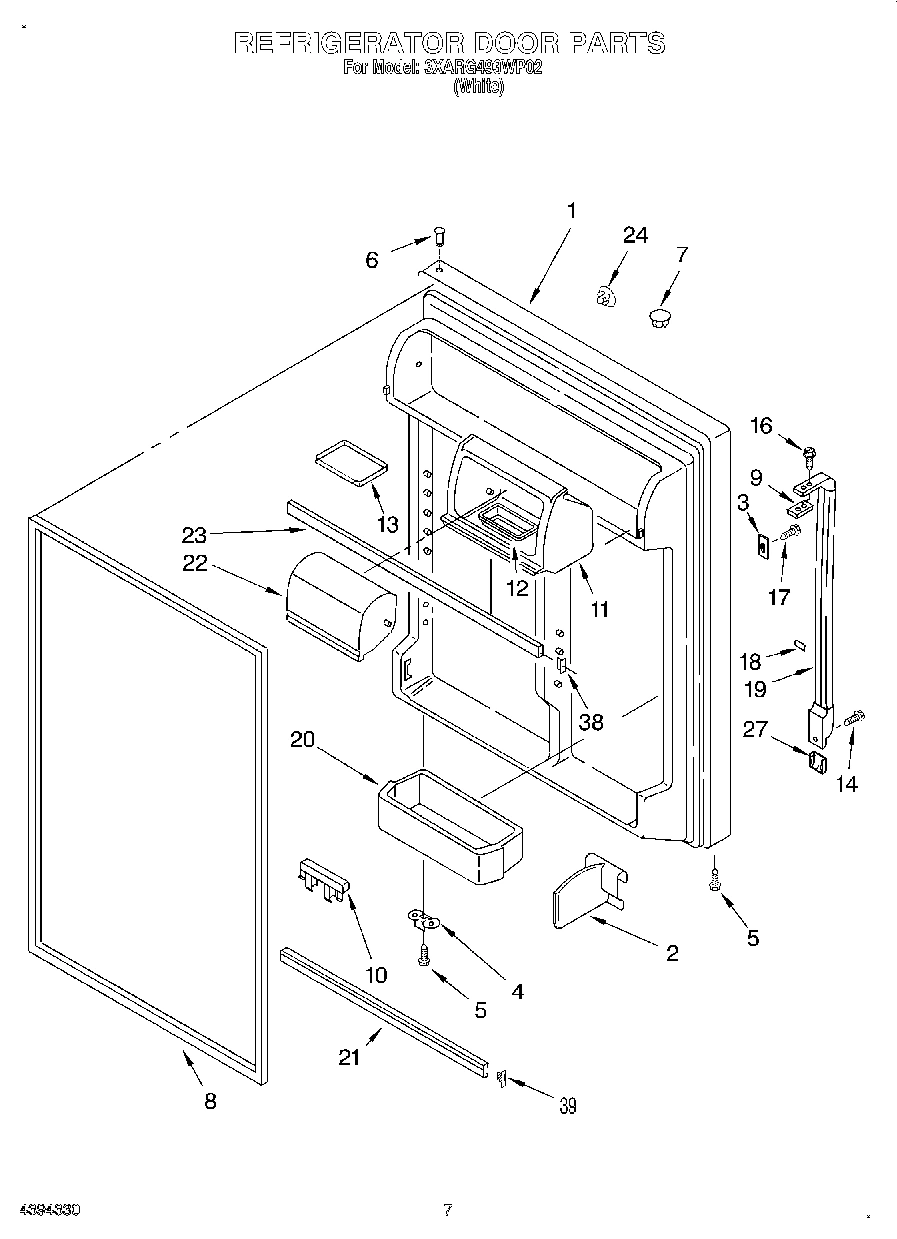

04 - REFRIGERATOR DOOR

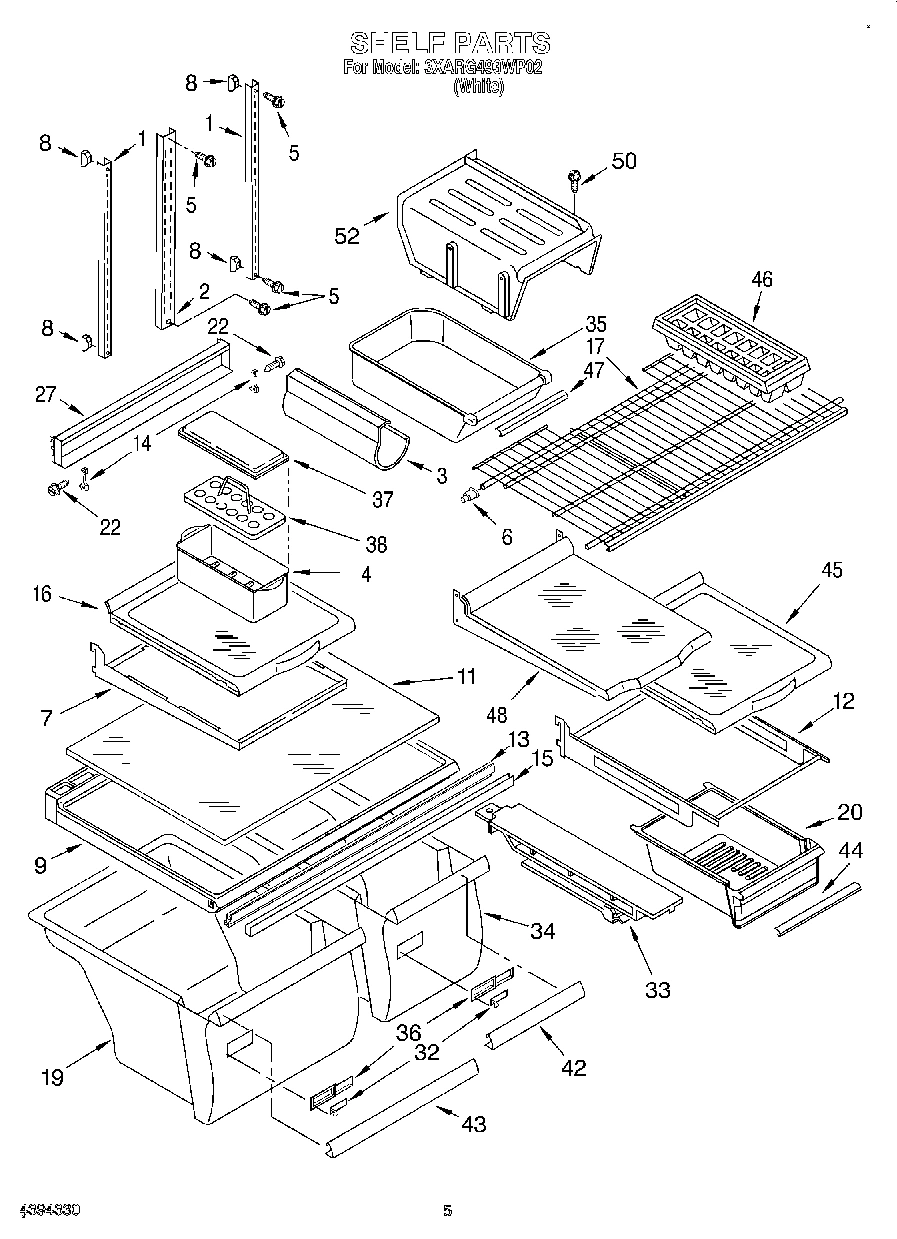

03 - SHELF

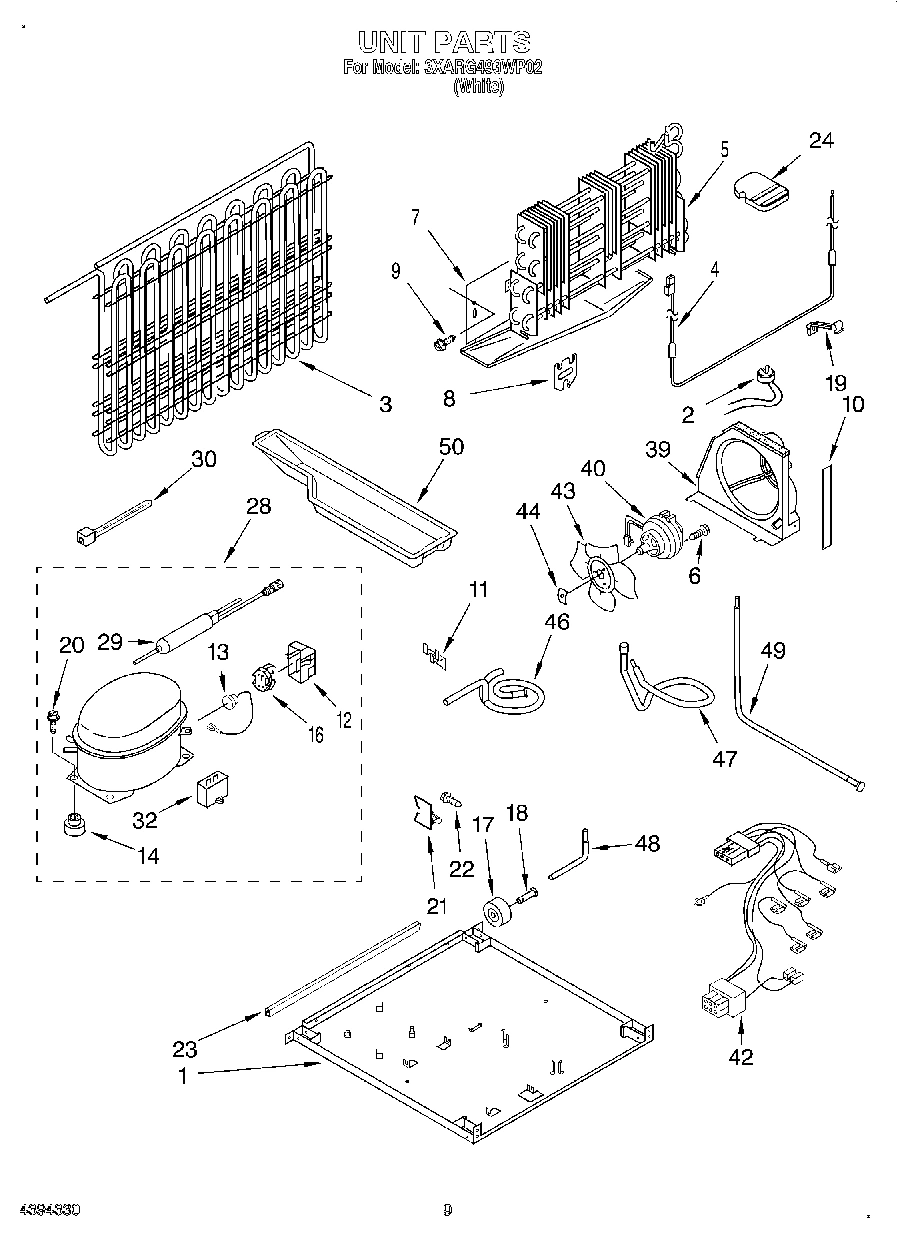

05 - UNIT
Common parts from model Whirlpool 3XARG493WP02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Door Assy, Refrigerator (Includes Item No.8) WPL 2183894 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Plate, Unit Mounting WPL 2189104 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Divider, Door Bin WPL 2171284 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
3
Shim, Handle WPL 2183124 Contact Us For Availability
3
Condenser WPL 2183849 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Screw WPL 2174650 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Terminal Block WPL 1129346 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
10
Bushing WPL 1129449 Contact Us For Availability
10
Tall Bottle Retainer WPL 2173643 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
11
Clip, Capacitor WPL 2166683 Contact Us For Availability
12
Tray, Butter WPL 2165792 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Service Cord WPL 1129332 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
13
Overload WPL 2169411 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2174640 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Wire Assembly, Terminal Box WPL 2166651 Contact Us For Availability
19
Handle WPL 2183808 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
20
Bin, Door Shelf (4) WPL 2179605 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket WPL 2167227 Contact Us For Availability
21
Trim, Door Shelf WPL 2193216 Contact Us For Availability
21
Clip, Wire WPL 489435 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Protector WPL 2183183 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI12801A6 Contact Us For Availability
24
Evaporator Support WPL 2176302 Contact Us For Availability
27
Cover, End Cap WPL 2174006 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176240 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
35
Ice Bucket WPL 2193265 Contact Us For Availability
36
Grille WPL 2189157 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
40
Cover-Hinge WPL 2172613 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI12802A4 Contact Us For Availability
42
Corner Filler, Grille WPL 2166156 Contact Us For Availability
42
Trim, Crisper Pan WPL 2190551 Contact Us For Availability
42
Wire Assy. Unit WPL 2195489 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
43
Trim, Crisper Pan WPL 2190552 Contact Us For Availability
44
Trim, Meat Pan WPL 2190555 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2174644 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174469 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
50
Evaporator Tray WPL 2163795 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172569 Contact Us For Availability
× ![]()
