Model Whirlpool 3XARG475WP02 REFRIGERATOR – Common Parts & Diagrams

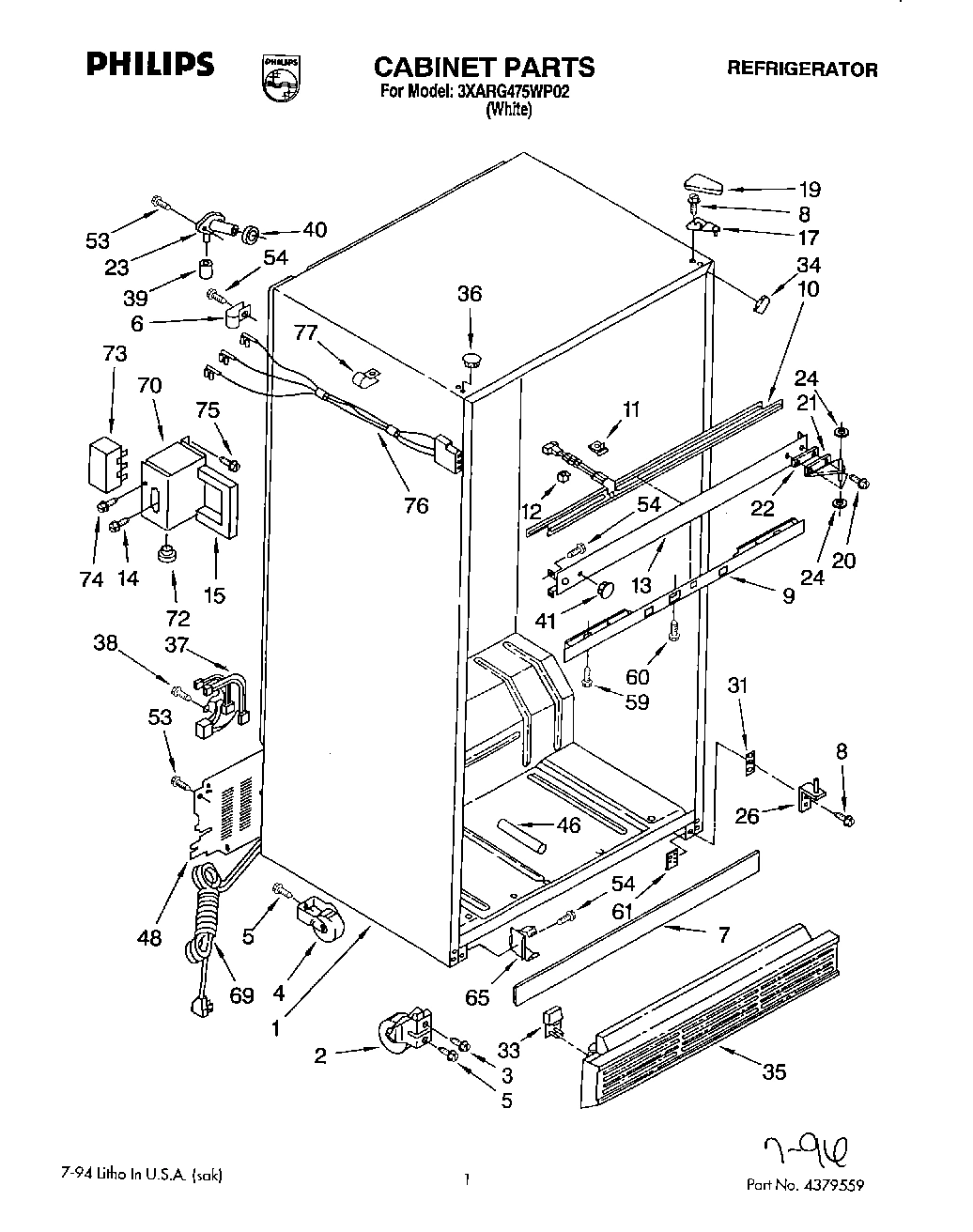

01 - CABINET

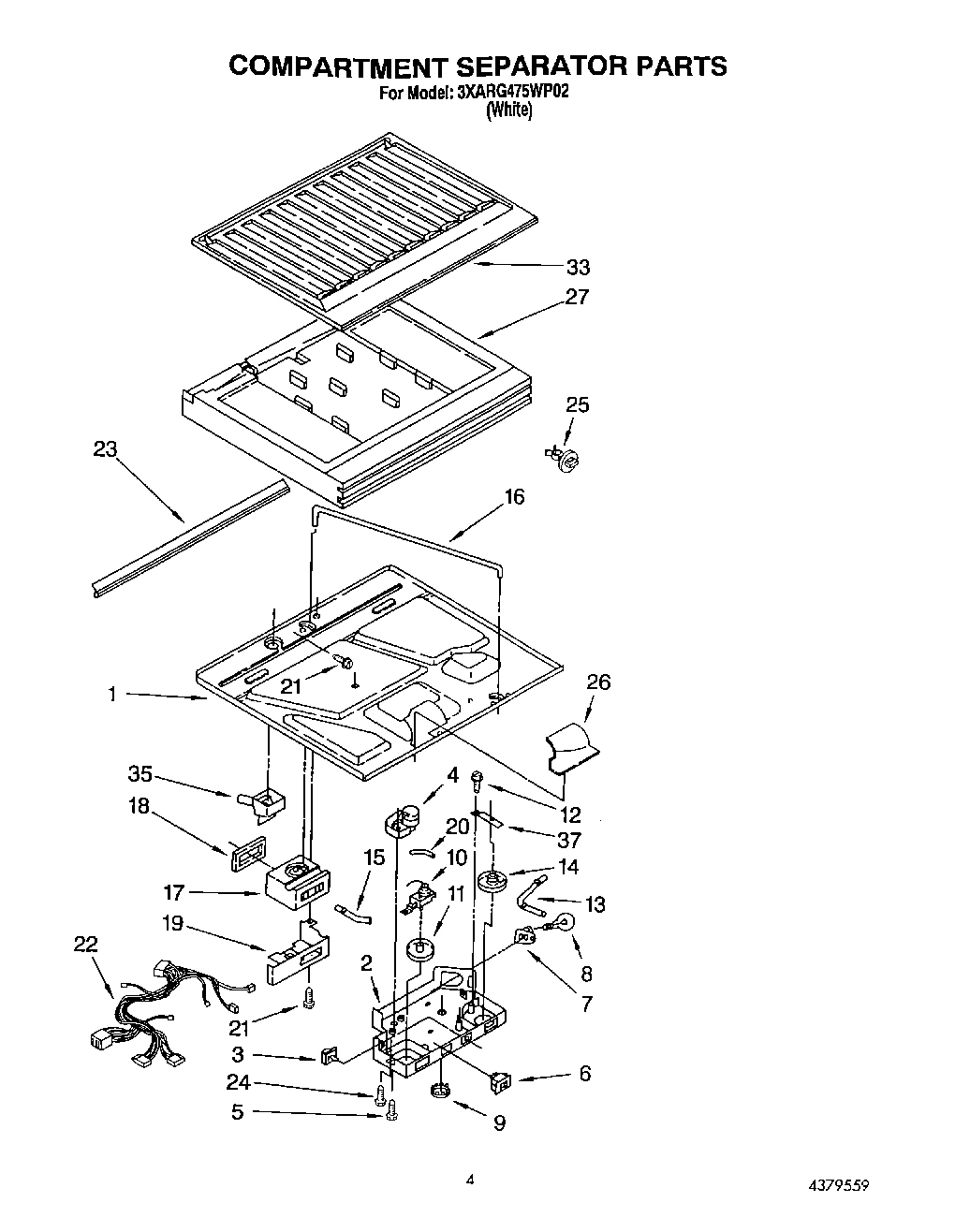

03 - COMPARTMENT SEPARATOR

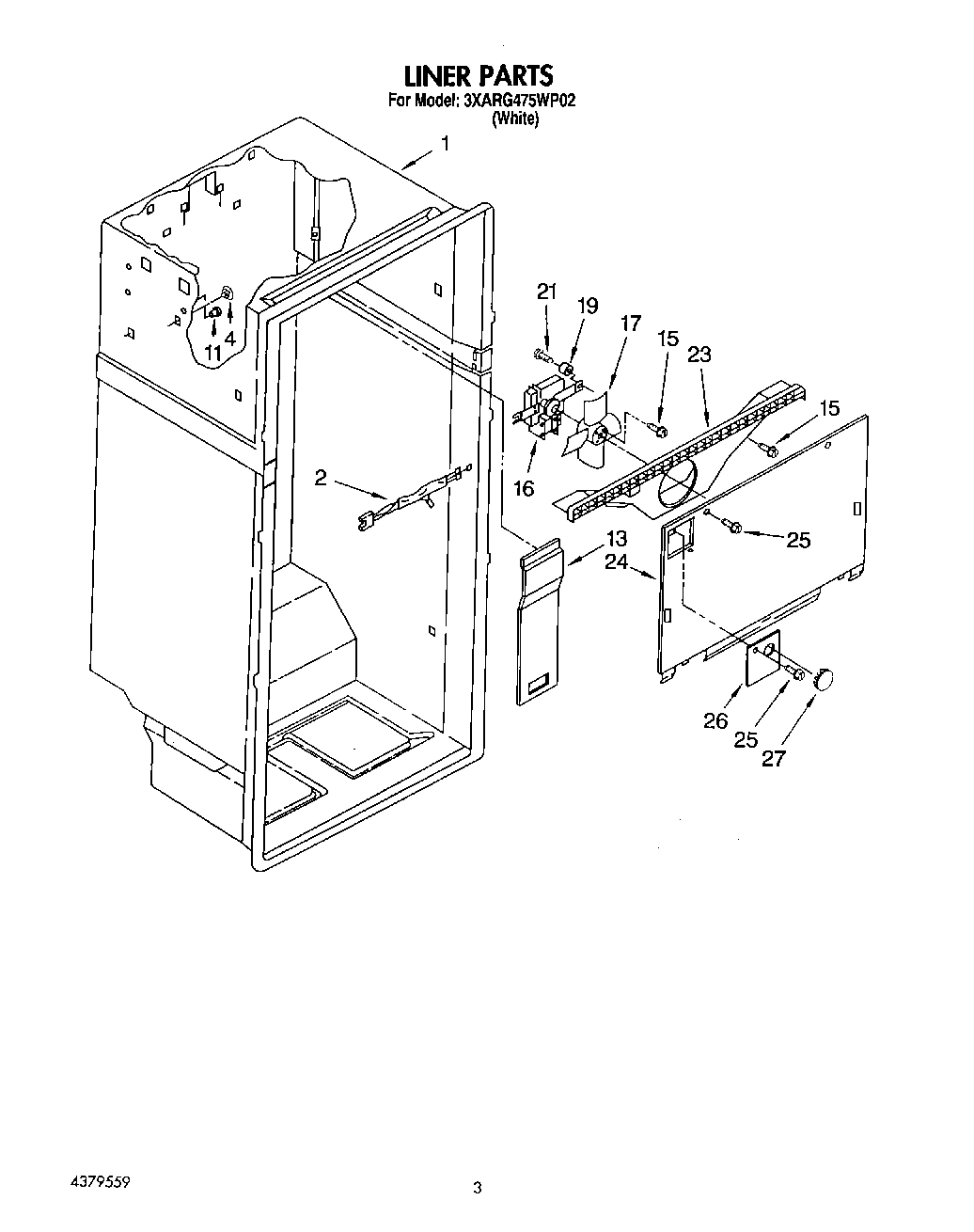

02 - LINER

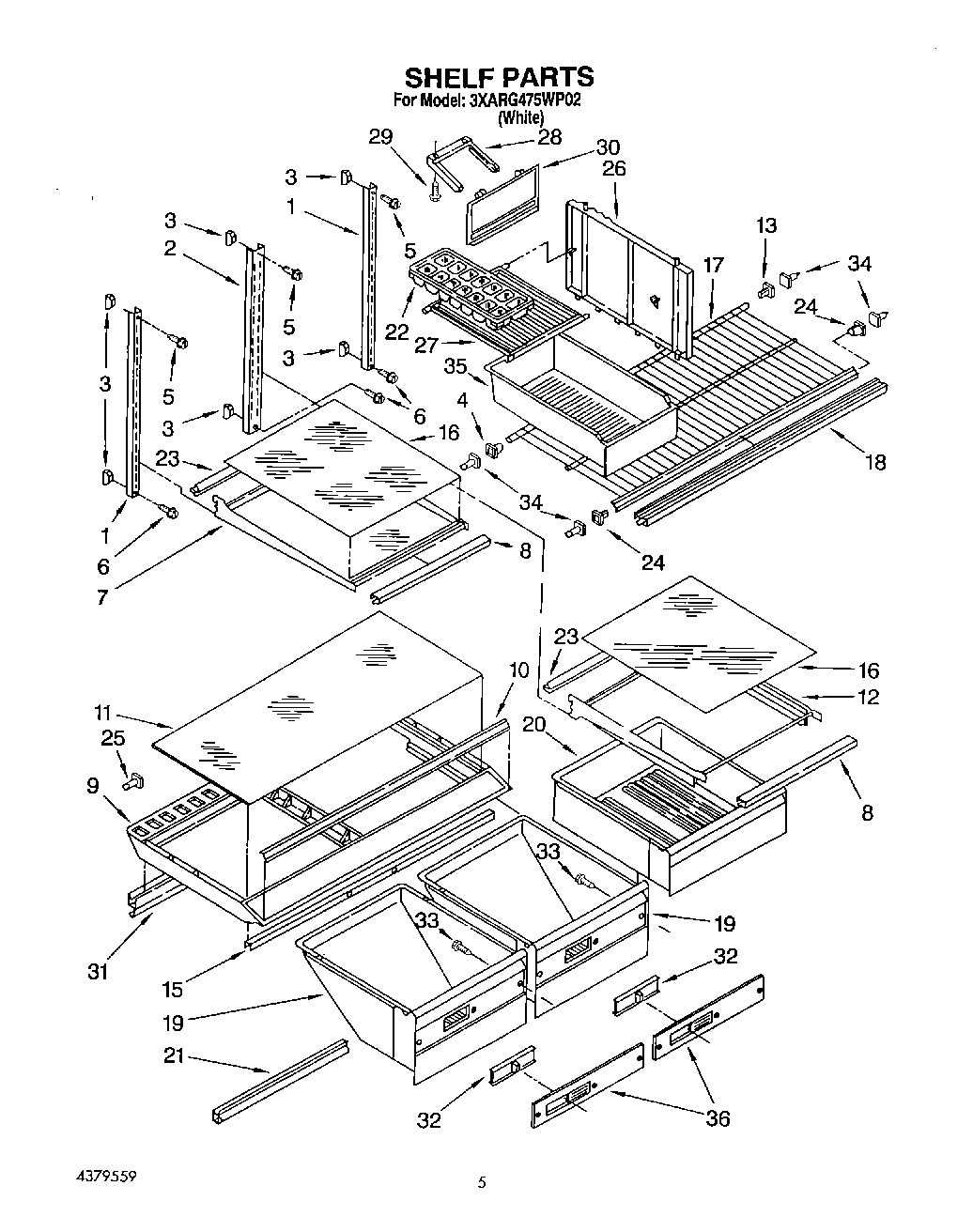

04 - SHELF, LIT/OPTIONAL

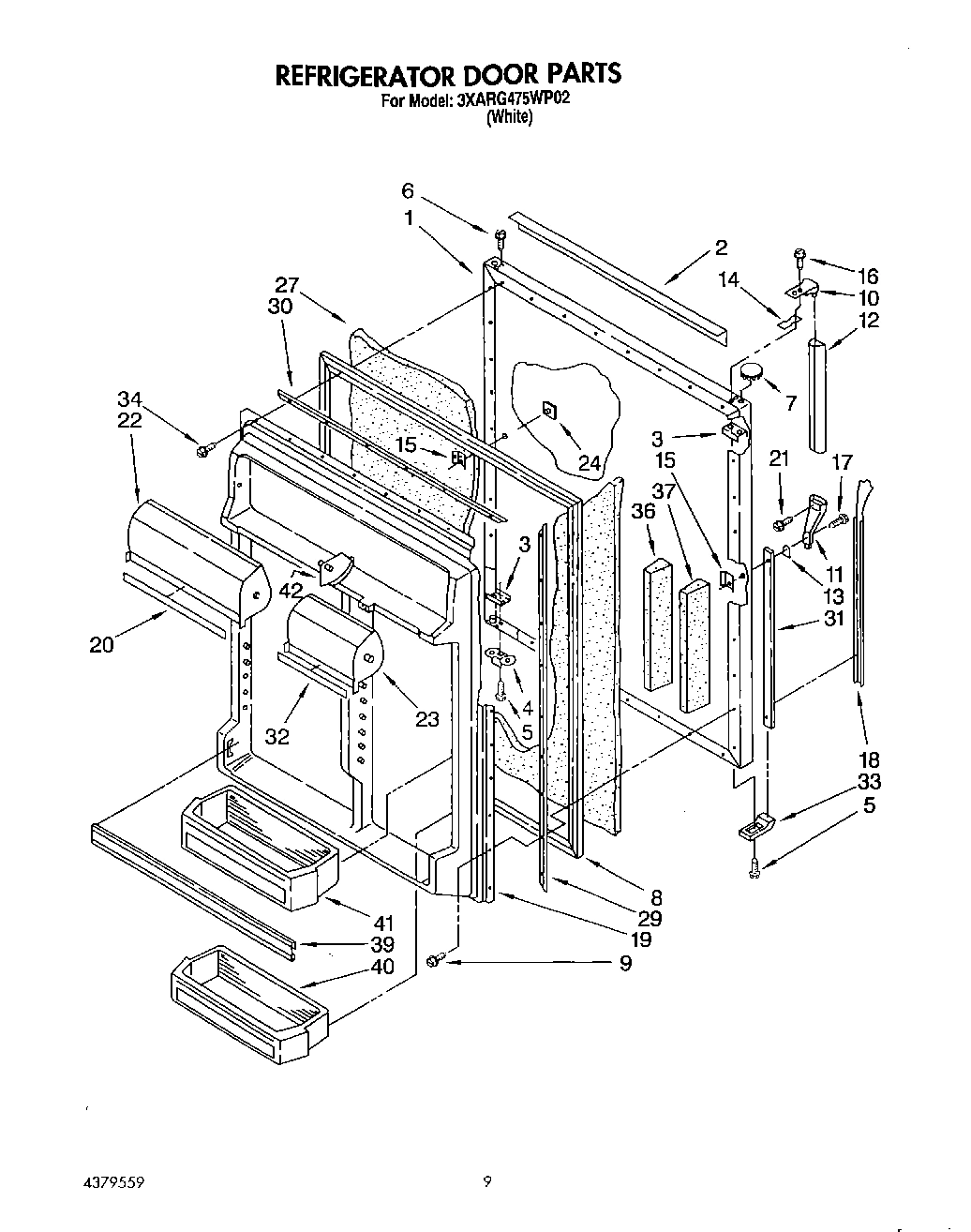

06 - REFRIGERATOR DOOR

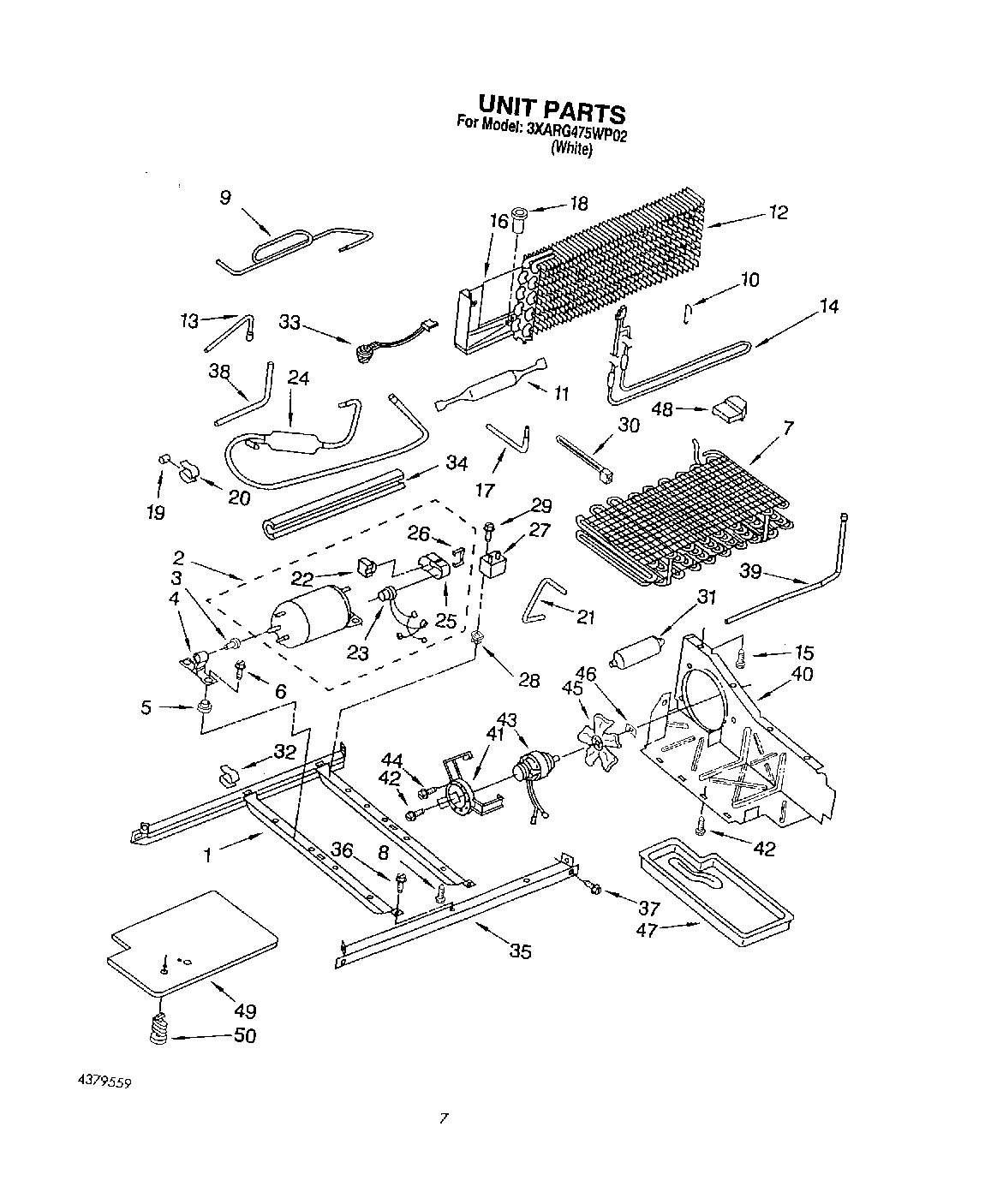

05 - UNIT

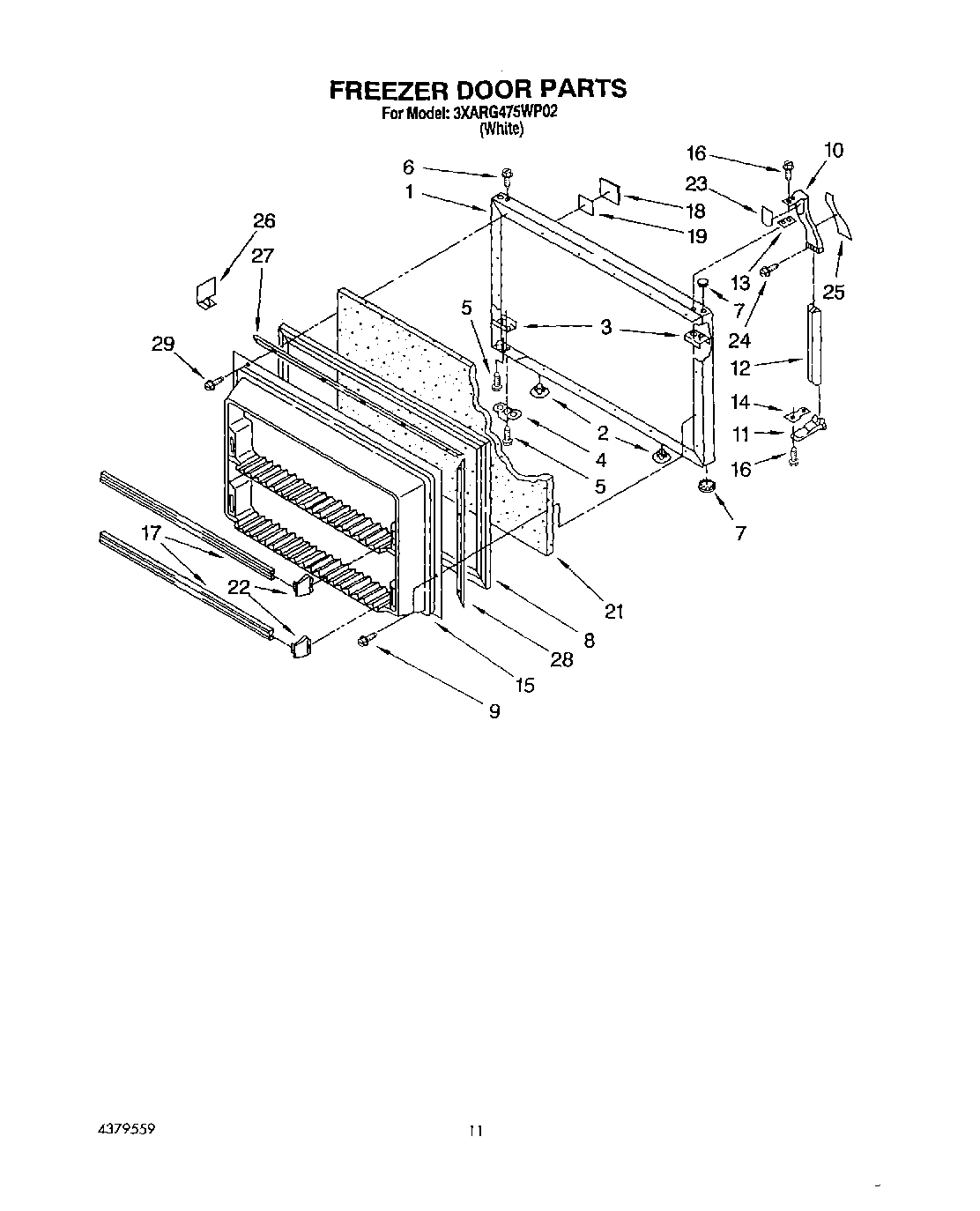

07 - FREEZER DOOR
Common parts from model Whirlpool 3XARG475WP02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2158658 WPL LIT2158658 Contact Us For Availability
WPL LIT2166612 WPL LIT2166612 Contact Us For Availability
WPL LIT2166638 WPL LIT2166638 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12716A6 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) WPL 2157708 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Trim, Door WPL 1118064 Contact Us For Availability
2
Compressor Kit Includes Items (22, 23, 25, 26 WPL 2154613 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1116693 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Trim, Shelf WPL 2148575 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
9
Crisper Cover WPL 2148570 Contact Us For Availability
9
Tube, Discharge WPL 2158994 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172715 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
11
Handle End, WPL 1109189 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Grommet (4) WPL 1110779 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124926 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Handle, Center WPL 2150150 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Handle, Center WPL 2162586 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Tube, Process WPL 2154090 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Heater, Defrost WPL 2158986 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
16
Shelf, Glass (4) WPL 1124924 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Tube, Process WPL 2154040 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2166739 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Trim, Shelf Front WPL 2148584 Contact Us For Availability
18
Insert, Handle WPL 2150155 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Nameplate WPL 2166630 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162720 Contact Us For Availability
19
Interior Door Panel WPL 2157384 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
20
Pan, Meat WPL 2162719 Contact Us For Availability
20
Trim, Door Compartment WPL 1121186 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper, Gasket Front (2) WPL 1116713 Contact Us For Availability
21
Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Compartment Door WPL 2148747 Contact Us For Availability
22
Relay WPL 2154612 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Reflector, Shelf WPL 1115165 Contact Us For Availability
23
Compartment Door WPL 2148745 Contact Us For Availability
23
Overload (Service) WPL 2156479 Contact Us For Availability
23
Overload (Production) WPL 2158566 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Shelf Stud WPL 946356 Contact Us For Availability
24
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
24
Tube and Muffler Assembly WPL 2159588 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
25
Terminal Cover WPL 1105221 Contact Us For Availability
25
Insert, Handle WPL 1108828 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider WPL 1118054 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Shelf, Ice Compartment WPL 1106624 Contact Us For Availability
27
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
27
Running Capacitor WPL 2154615 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
28
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
29
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
30
Door, Ice Compartment WPL 2148741 Contact Us For Availability
31
Crisper, Gasket Rear WPL 1116714 Contact Us For Availability
31
Retainer, Insert WPL 1118080 Contact Us For Availability
31
Reservoir WPL 2169343 Contact Us For Availability
32
Slide, Crisper WPL 2148524 Contact Us For Availability
32
Trim, Compartment Door WPL 2148588 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
33
Screw WPL 489162 Contact Us For Availability
33
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
34
Support, Stud WPL 946355 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
Crisper, Pan Front WPL 2148573 Contact Us For Availability
36
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Door Dike, Middle WPL 2157385 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Door Dike, Side WPL 1118007 Contact Us For Availability
38
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
39
Trim, Door Shelf WPL 2148591 Contact Us For Availability
39
Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability
40
Shelf Bin (2) WPL 2148592 Contact Us For Availability
40
Air, Baffle WPL 2169432 Contact Us For Availability
41
Shelf Bin, Deep (2) WPL 2148593 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
45
Fan Blade WPL 2169191 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
