Model Whirlpool 3XACM09XD0 AIR CONDITIONER – Common Parts & Diagrams
04 - CONTROL MODULE
01 - UNIT, LITERATURE

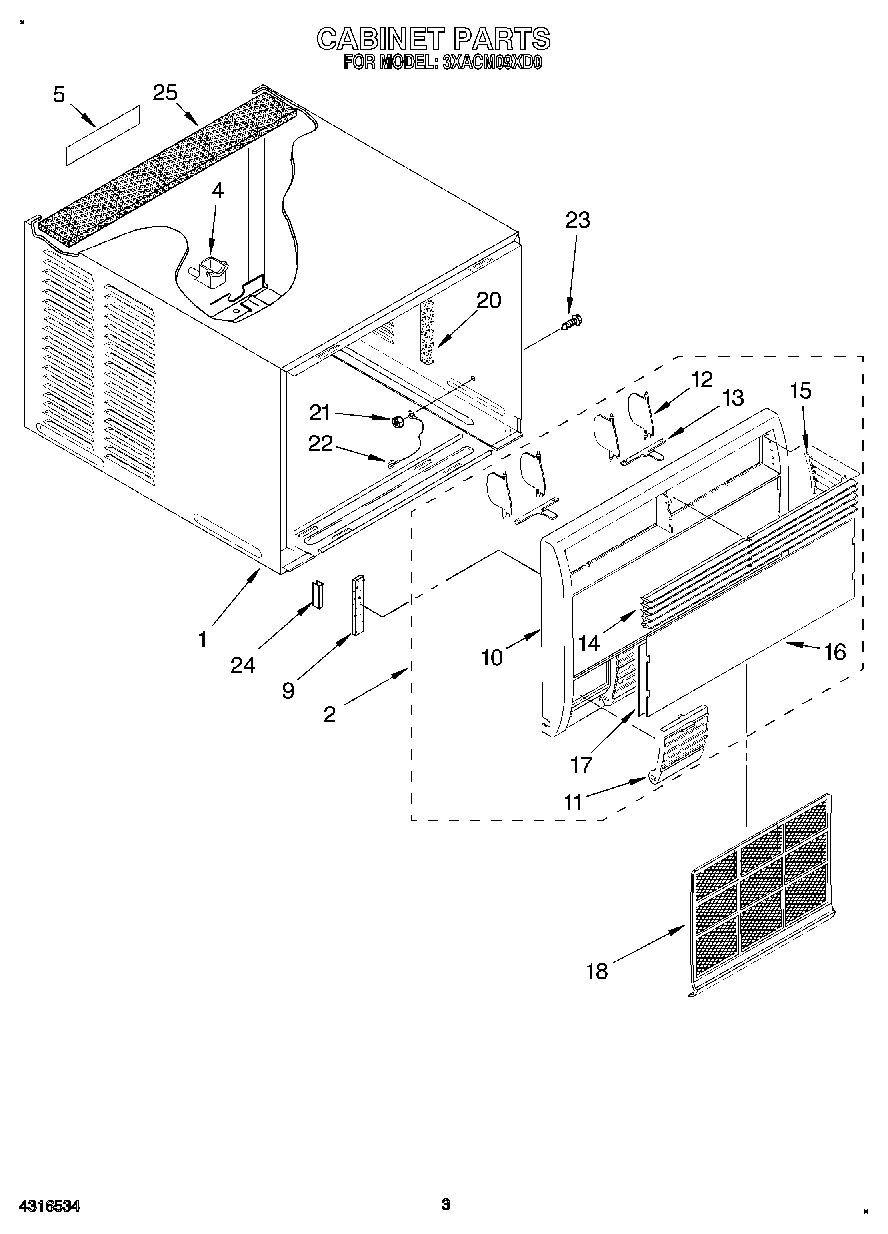

02 - CABINET

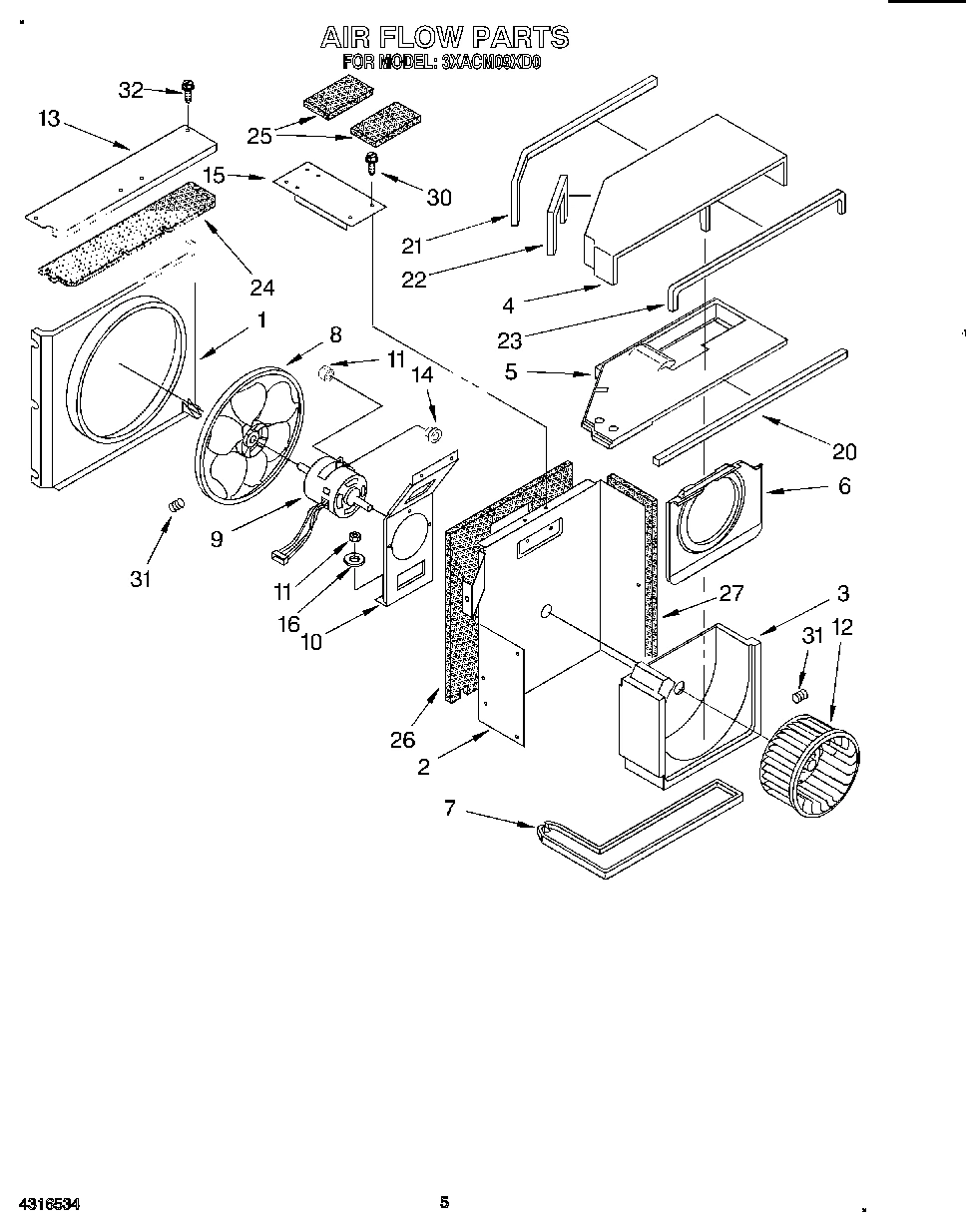

03 - AIR FLOW

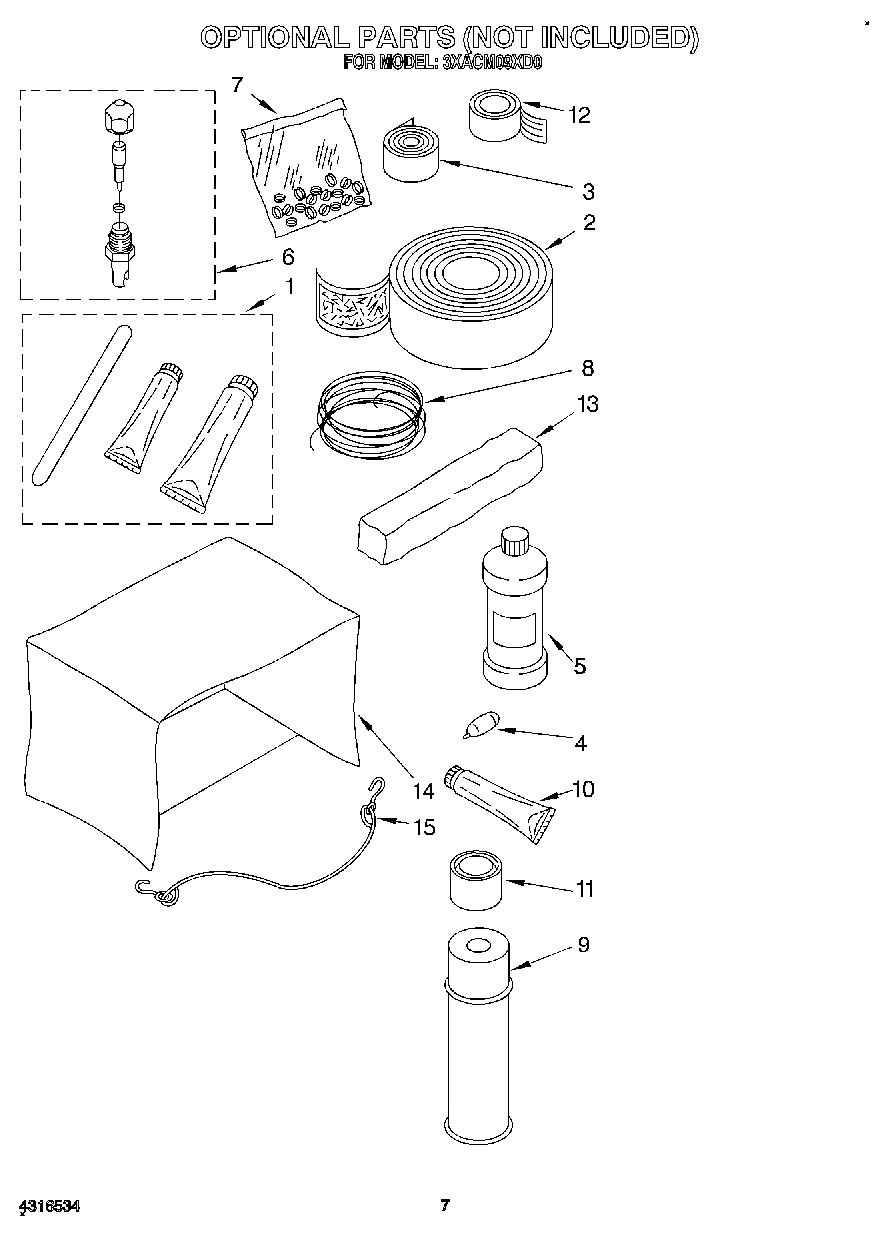

05 - OPTIONAL
Common parts from model Whirlpool 3XACM09XD0 AIR CONDITIONER
1
Condenser WPL 1180018 Contact Us For Availability
1
Cabinet WPL 1180466 Contact Us For Availability
1
Shroud, Condenser WPL 1180015 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Evaporator WPL 1180086 Contact Us For Availability
2
Front (Complete) WPL 1180051 Contact Us For Availability
2
Wall, Dividing WPL 1180007 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Tube, Discharge WPL 1180093 Contact Us For Availability
3
Scroll, Air Housing WPL 1180334 Contact Us For Availability
4
Tube, Process WPL 1180684 Contact Us For Availability
4
Cup, Drip WPL 1180061 Contact Us For Availability
4
Hood, Air Housing WPL 1180336 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
5
Tube, Wet Loop WPL 1180459 Contact Us For Availability
5
Label, Cabinet WPL 1180604 Contact Us For Availability
5
Cover, Evaporator Top WPL 1180487 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Orifice, Air Housing WPL 1180335 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Base WPL 1180369 Contact Us For Availability
7
Pan, Drain WPL 1180333 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
8
Tube, Restrictor WPL 1180553 Contact Us For Availability
8
Blade, Fan WPL 1180017 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
9
Tube, Suction (Includes No. 35) WPL 1180551 Contact Us For Availability
9
Seal, Front WPL 1163767 Contact Us For Availability
9
Motor, Fan WPL 1180834 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
10
Strainer WPL 1180357 Contact Us For Availability
10
Frame, Front WPL 1180052 Contact Us For Availability
10
Bracket, Motor Mount WPL 1180011 Contact Us For Availability
11
Dampener 3/8 WPL 1163850 Contact Us For Availability
11
Door, Control WPL 1180060 Contact Us For Availability
11
Nut, Hex 5MM WPL 1180008 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
12
Tube, Evaporator Inlet (Row 1) WPL 1180029 Contact Us For Availability
12
Tube, Evaporator Inlet (Row 2) WPL 1180562 Contact Us For Availability
12
Louver, Vertical (4) WPL 1180055 Contact Us For Availability
12
Wheel, Blower WPL 1180014 Contact Us For Availability
13
Insulation, Restrictor Tube WPL 1162650 Contact Us For Availability
13
Link, Vertical Louver WPL 1180056 Contact Us For Availability
13
Cover, Condenser Top WPL 1180134 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Seal, Tube WPL 1180841 Contact Us For Availability
14
Louver, Horizontal (5) WPL 1180058 Contact Us For Availability
14
Grommet, Fan Motor WPL 1180535 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
15
Dampener-5/16 WPL 1162344 Contact Us For Availability
15
Link, Horizontal WPL 1180059 Contact Us For Availability
15
Support, Unit WPL 1180043 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
16
Harness, Wiring (Compressor) WPL 1158044 Contact Us For Availability
16
Cover, Clear WPL 1180077 Contact Us For Availability
16
Washer, Bonded WPL 1180415 Contact Us For Availability
17
Harness, Appliance Cable (Not Serviceable) WPL ARI140360A Contact Us For Availability
17
Seal WPL 1180908 Contact Us For Availability
17
Paper, Decorative WPL 1180341 Contact Us For Availability
18
Control, Temp. WPL 1157605 Contact Us For Availability
18
Filter WPL 1180053 Contact Us For Availability
19
Wire, Ground WPL 1180635 Contact Us For Availability
20
Seal, Cabinet (Left Side) WPL 1180110 Contact Us For Availability
20
Seal, Cabinet (Bottom) WPL 1180899 Contact Us For Availability
21
Door, Exhaust WPL 1180041 Contact Us For Availability
21
Gasket, Nut WPL 950037 Contact Us For Availability
22
Linkage, Exhaust Door WPL 1180042 Contact Us For Availability
22
Protector, Overload WPL 1180079 Contact Us For Availability
22
Wire, Ground WPL 1180417 Contact Us For Availability
23
Clip WPL 1157140 Contact Us For Availability
23
Spring, Overload WPL 950032 Contact Us For Availability
24
Sleeve, Insulating WPL 1180974 Contact Us For Availability
24
Guard, Edge WPL 1180634 Contact Us For Availability
24
Seal, Condenser Top Cover WPL 1180070 Contact Us For Availability
25
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
25
Seal, Cabinet WPL 1180929 Contact Us For Availability
26
Nut, 8MM WPL 1180339 Contact Us For Availability
26
Insulation (Back, Dividing Wall) WPL 1180905 Contact Us For Availability
27
Insulation (Side, Dividing Wall) WPL 1180928 Contact Us For Availability
28
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
28
Compressor WPL 1180078 Contact Us For Availability
29
Panel, Control WPL 1180453 Contact Us For Availability
30
Knob WPL 1180739 Contact Us For Availability
30
Bend, Return (12) WPL 708532 Contact Us For Availability
30
Screw 3/8 WPL 1161561 Contact Us For Availability
31
Switch, Rocker WPL 1180980 Contact Us For Availability
31
Set Screw 6M WPL ARI140357A Contact Us For Availability
32
Escutcheon WPL 1180623 Contact Us For Availability
32
Bend, Return (1) WPL 1156529 Contact Us For Availability
33
Control Box (Complete) WPL 1180463 Contact Us For Availability
33
Screwdriver (For Tamper Proof Screw) WPL 4387015 Contact Us For Availability
33
Bend, Return (5) WPL 855199 Contact Us For Availability
35
Bend, Return 3-Way WPL 1158906 Contact Us For Availability
40
Anticipator WPL 1164141 Contact Us For Availability
41
Clip, Anticipator WPL 475577 Contact Us For Availability
49
Screw No.8 WPL 1180668 Contact Us For Availability
50
Drain Plug WPL 1163502 Contact Us For Availability
51
Gasket, Drain Plug WPL 1164093 Contact Us For Availability
52
Protector, Cord WPL 1180387 Contact Us For Availability
52
Owners Manual/ Installation Instructions WPL 1180428 Contact Us For Availability
52
Wiring Diagram WPL 1180682 Contact Us For Availability
× ![]()
