Model Whirlpool 3VET21DKBW00 REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR

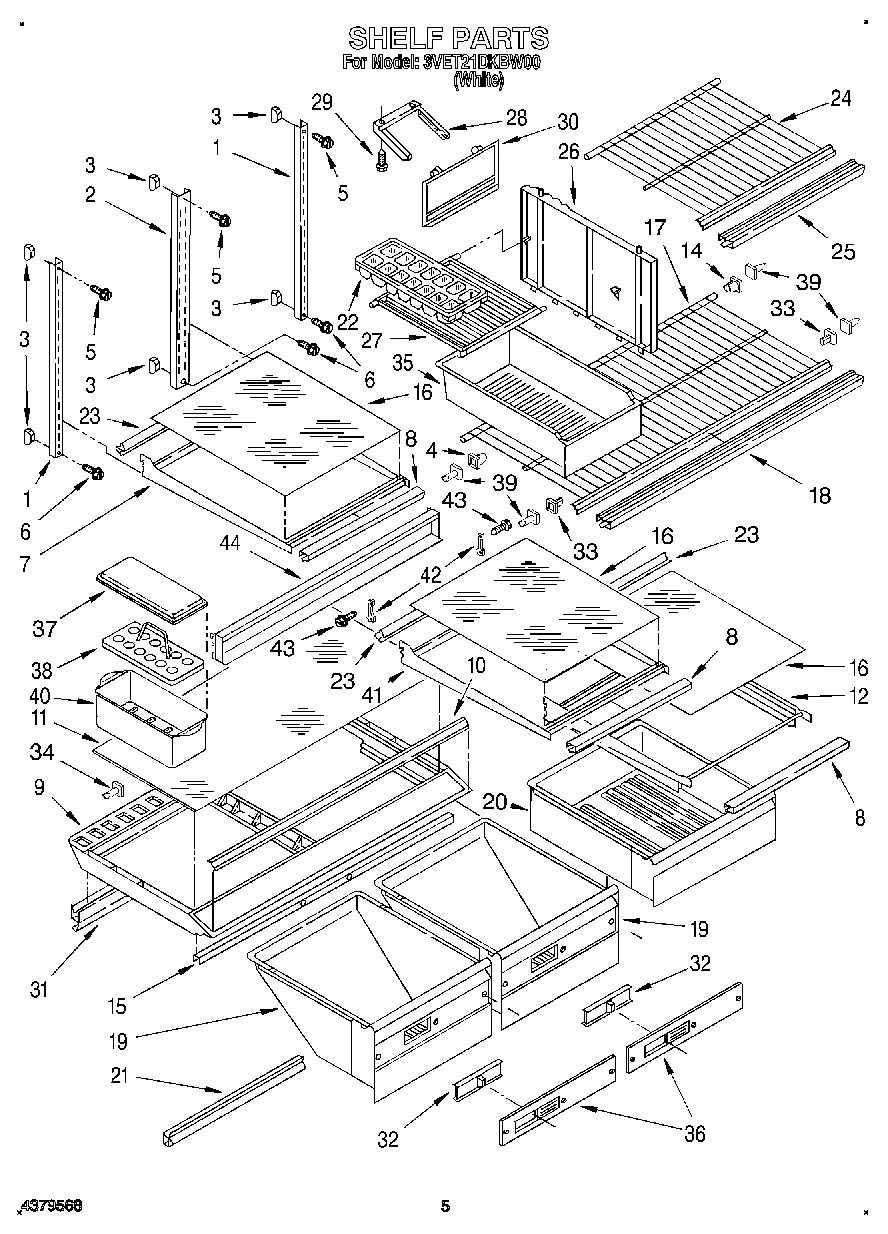

04 - SHELF, LIT/OPTIONAL

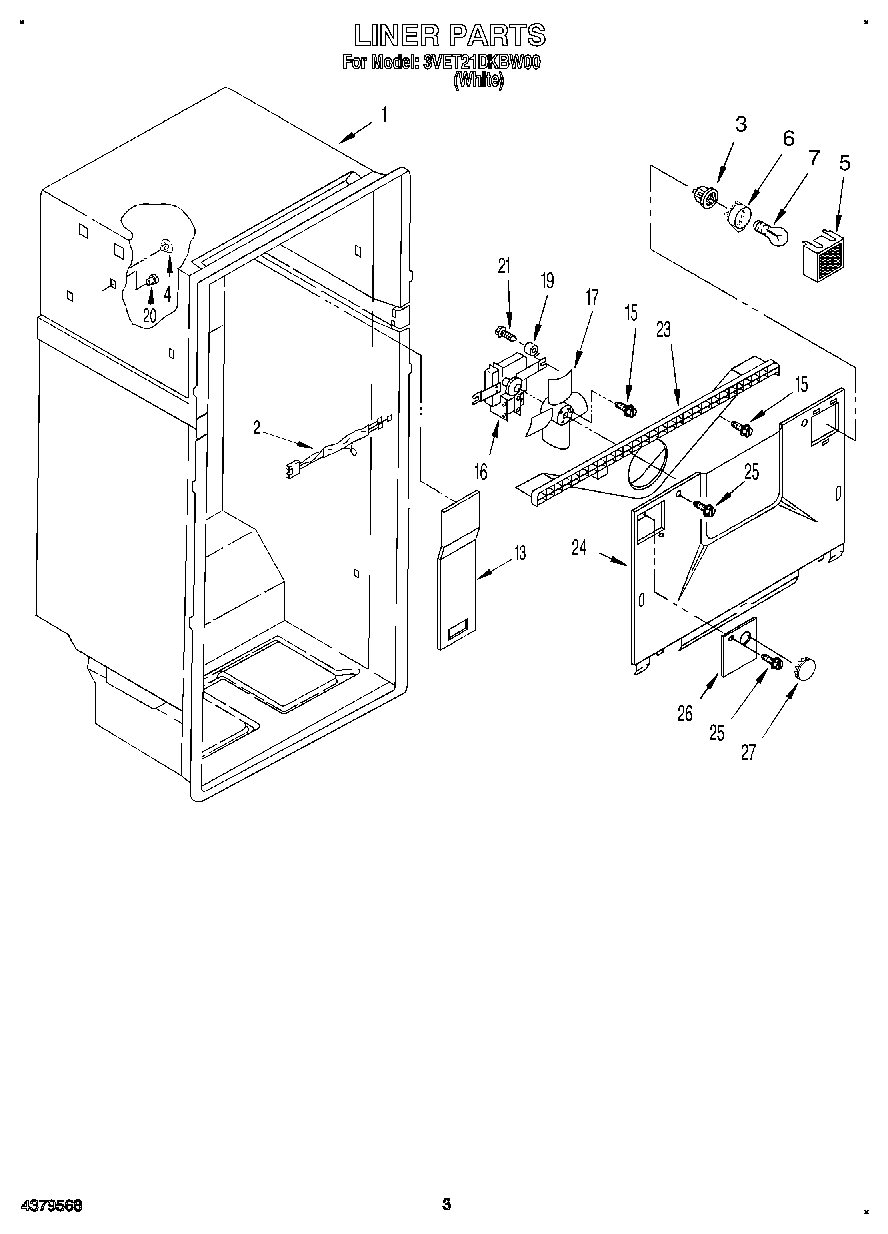

02 - LINER

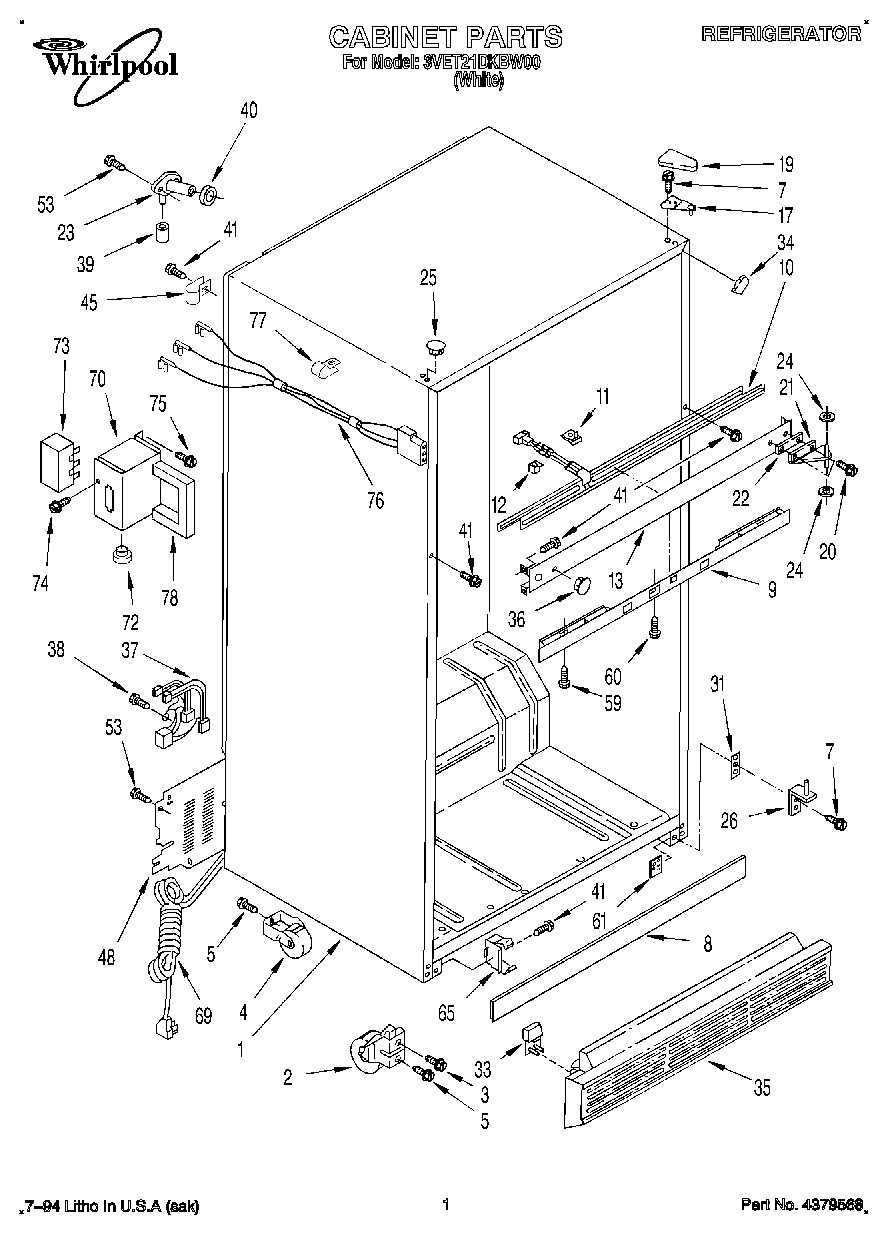

01 - CABINET

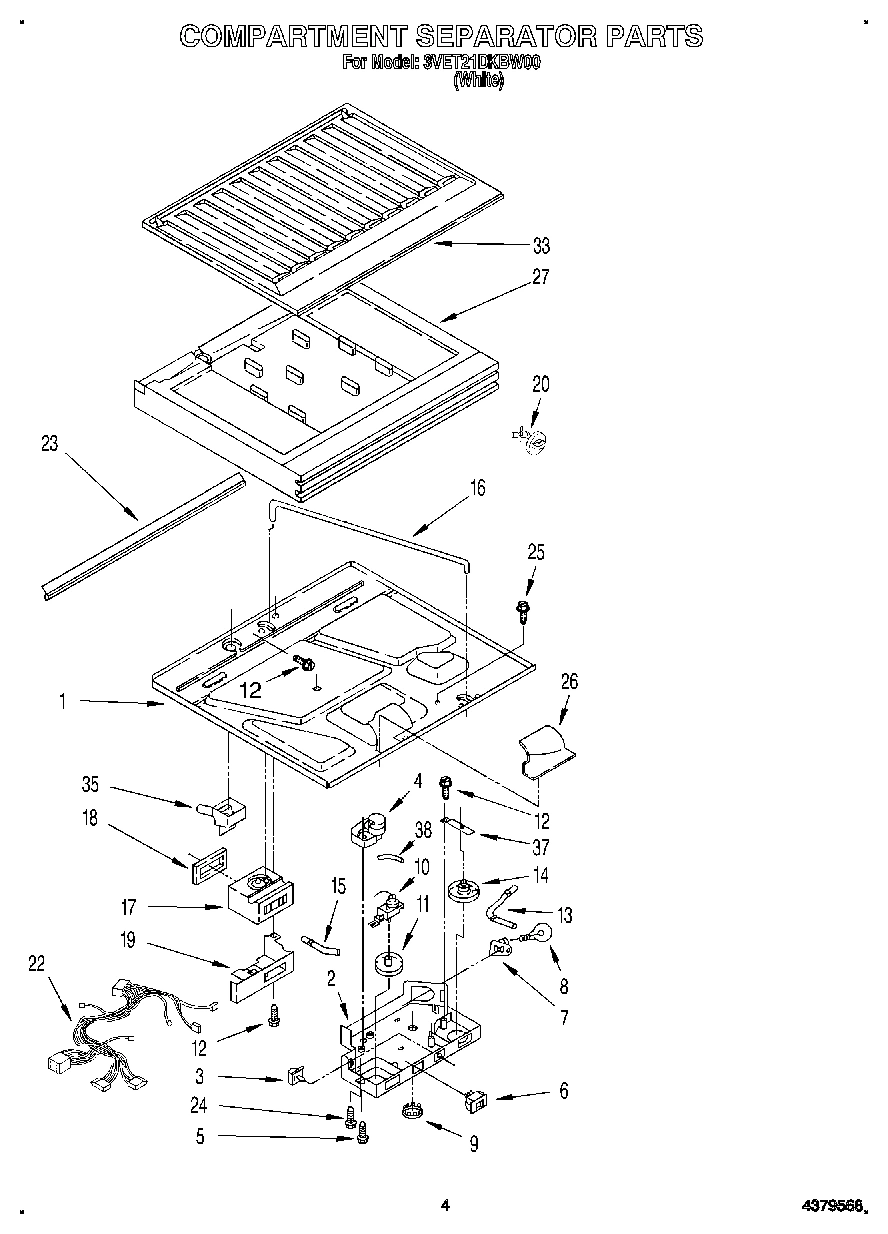

03 - COMPARTMENT SEPARATOR

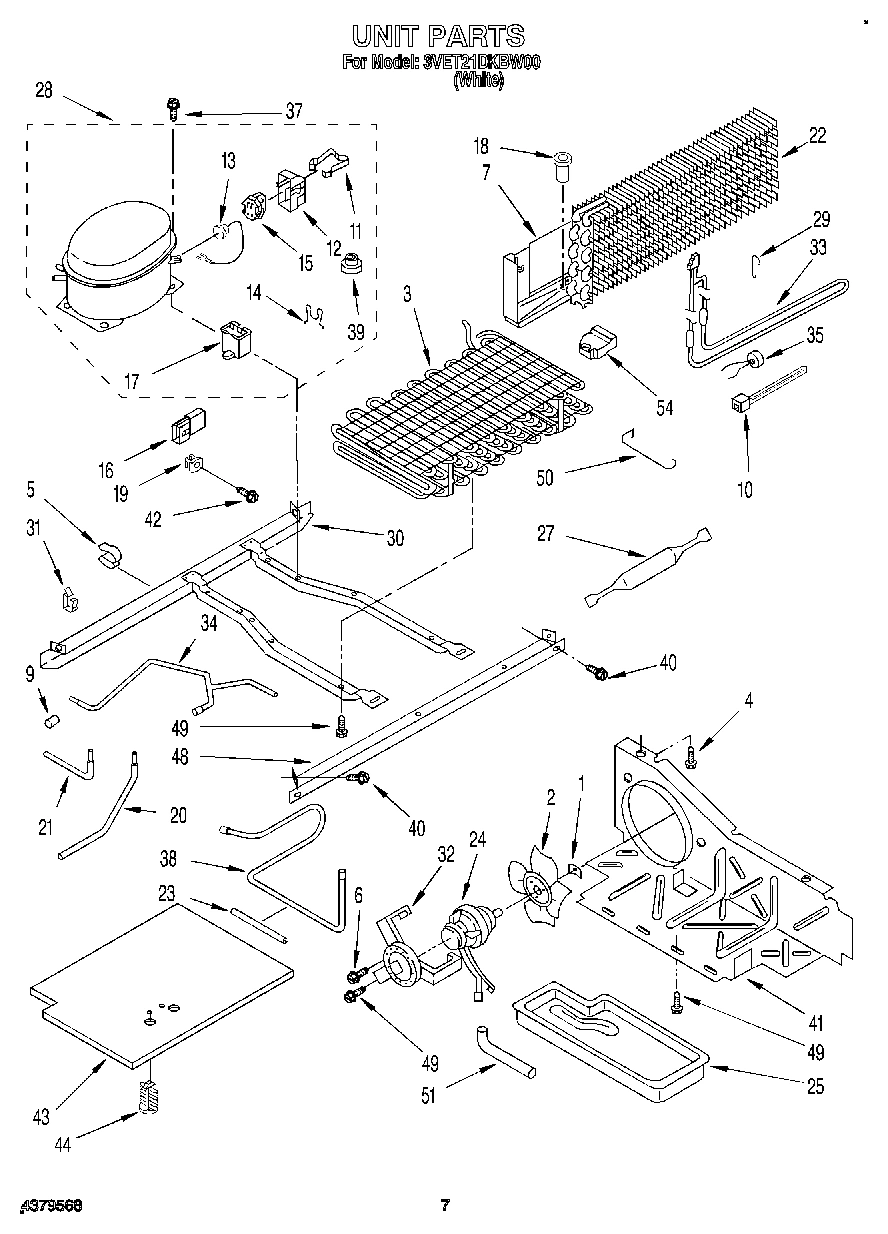

05 - UNIT
Common parts from model Whirlpool 3VET21DKBW00 REFRIGERATOR
WPL LIT2158650 WPL LIT2158650 Contact Us For Availability
WPL LIT2170207 WPL LIT2170207 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12627A6 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12626A7 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172816 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Condenser Assy. WPL 2164513 Contact Us For Availability
5
Screw, WPL 489345 Contact Us For Availability
5
Light Lens WPL 981365 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
6
Shroud, Light WPL 2167012 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1120435 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Trim, Shelf WPL 2162941 Contact Us For Availability
8
Deck Rail Cover WPL 2172708 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162846 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162981 Contact Us For Availability
11
Clip, Mullion (6) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Spring, Relay Case WPL 2154721 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1122729 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Case, Relay WPL 2154722 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 2157410 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Overload WPL 2158785 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Spring, Overload WPL 943320 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
15
Relay WPL 2154720 Contact Us For Availability
16
Shelf, Glass (4) WPL 2162980 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Running Capacitor WPL 2154717 Contact Us For Availability
18
Trim, Shelf Front WPL 2162934 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Pan, Crisper WPL 2162856 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Pan, Meat WPL 2162930 Contact Us For Availability
20
Grommet (4) WPL 1110779 Contact Us For Availability
20
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
20
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Reflector, Shelf WPL 2162943 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
24
Evaporator Cover WPL 2157429 Contact Us For Availability
25
Trim, Shelf WPL 2162935 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Shelf, Ice Compartment WPL 1106624 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1122553 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2154723 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
32
Slide, Humidity Control WPL 2162849 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Shelf Stud WPL 946356 Contact Us For Availability
33
Corner Filler, Grille WPL 1125665 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Heater, Defrost WPL 2158987 Contact Us For Availability
34
Filler, Wrap Corner (2) WPL 1118058 Contact Us For Availability
34
Tube, Discharge Assembly WPL 2154087 Contact Us For Availability
35
Grille WPL 1125663 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Crisper, Pan Front WPL 2162851 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Cover WPL 2164374 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2165296 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
Tube, Suction WPL 2154038 Contact Us For Availability
39
Support, Stud WPL 946355 Contact Us For Availability
39
Grommet WPL 2162067 Contact Us For Availability
40
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
41
Shelf, Cantilever WPL 2169605 Contact Us For Availability
41
Air Baffle WPL 2169417 Contact Us For Availability
42
Hook, Shelf WPL 2169608 Contact Us For Availability
43
Screw WPL 489419 Contact Us For Availability
43
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
44
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
44
Torx Key WPL 1117510 Contact Us For Availability
44
Track WPL 2169793 Contact Us For Availability
44
Door Reversal Instructions WPL 2172761 Contact Us For Availability
44
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
44
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
44
WPL 542639 WPL 542639 Contact Us For Availability
44
WPL 799833 WPL 799833 Contact Us For Availability
44
WPL 978883 WPL 978883 Contact Us For Availability
48
Cover, Unit WPL 2160521 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
78
Gasket WPL 2167227 Contact Us For Availability
× ![]()
