Model Whirlpool 3VET21DKAW00 REFRIGERATOR – Common Parts & Diagrams

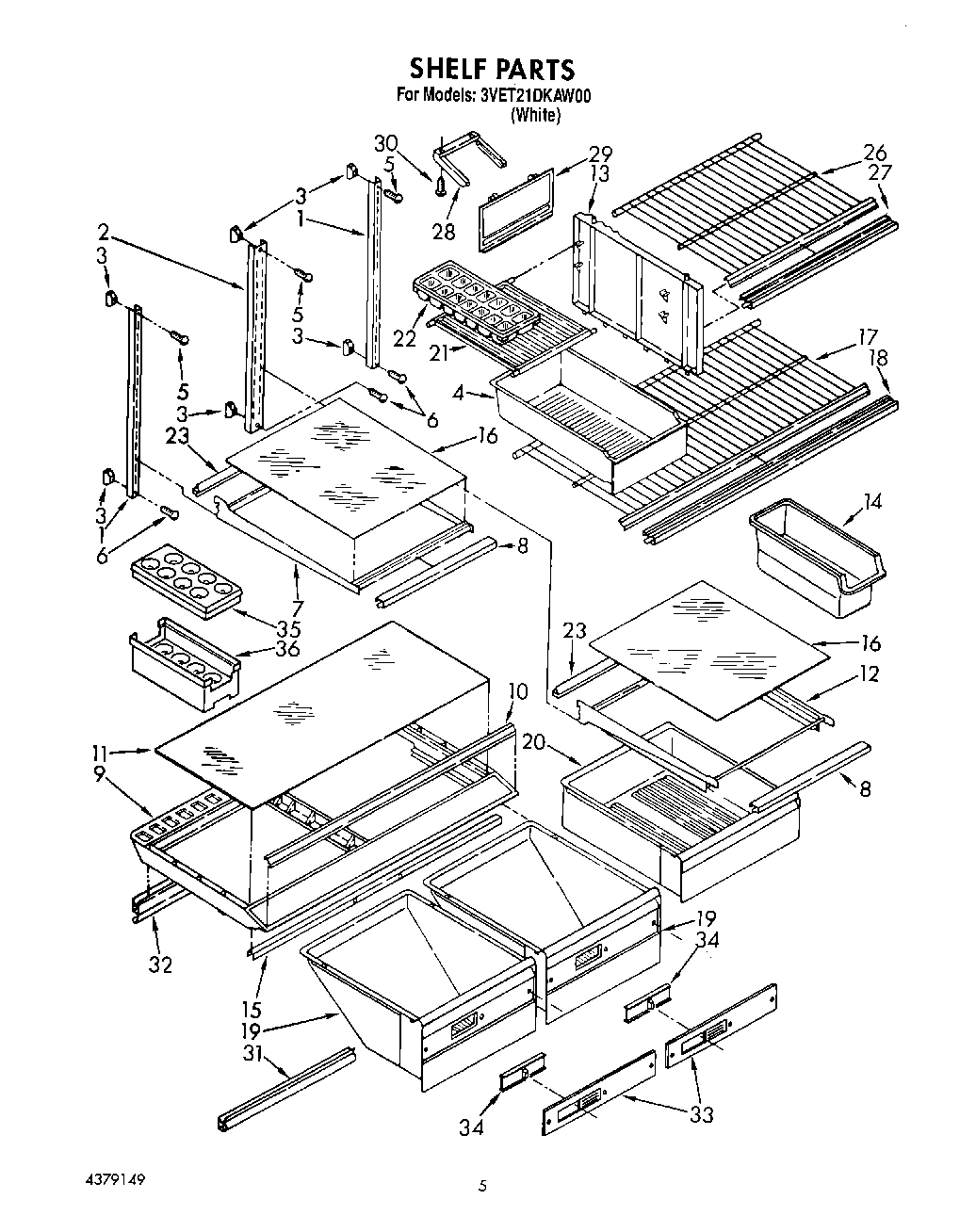

04 - SHELF

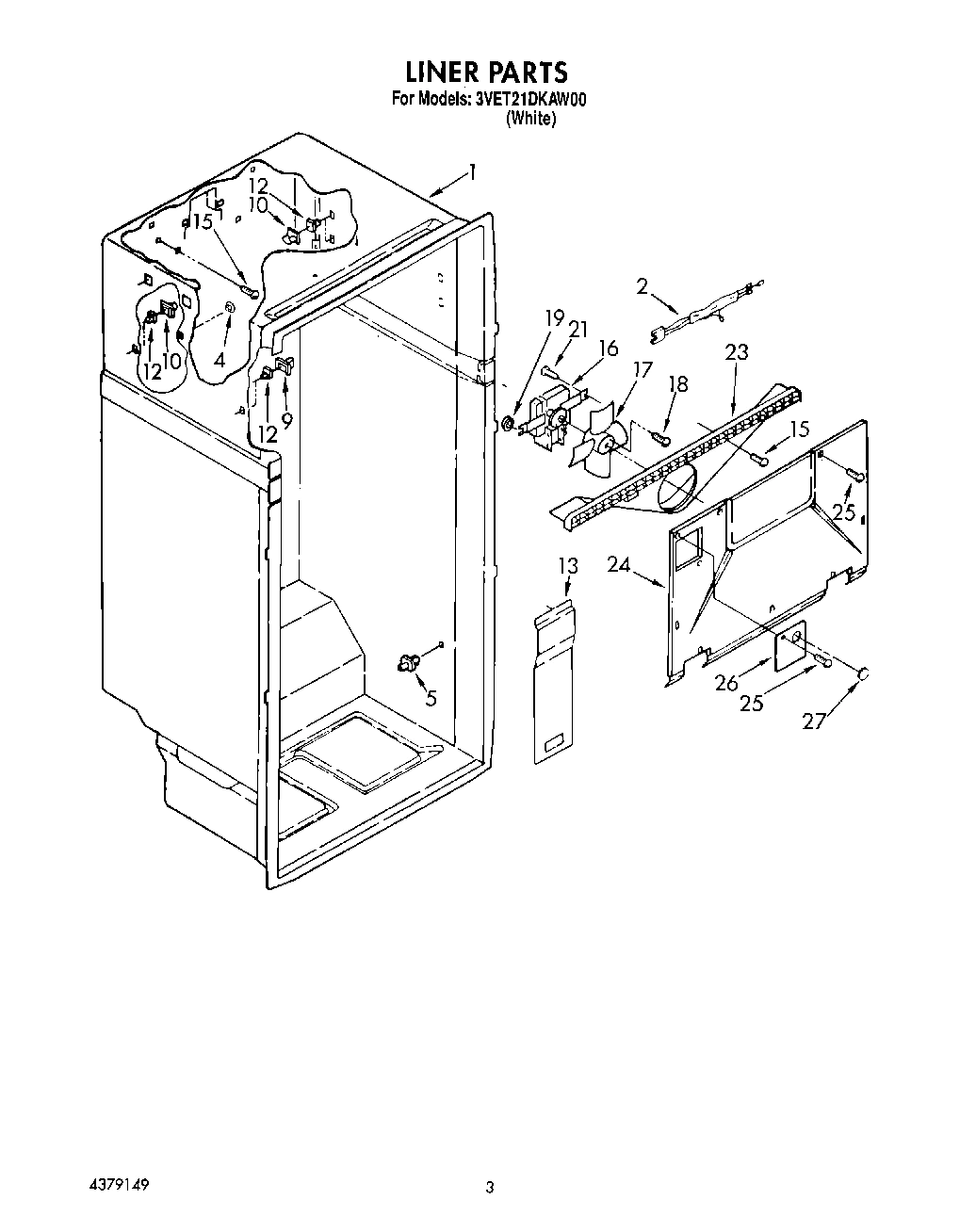

02 - LINER
07 - FREEZER DOOR, LIT/OPTIONAL
05 - UNIT
06 - REFRIGERATOR DOOR
01 - CABINET
03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool 3VET21DKAW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (White (Also Order I WPL 1122549 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12624A9 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1122715 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Spring, Relay Case WPL 2154721 Contact Us For Availability
11
Clip, Center Rail WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Handle, Center (White) WPL 2162586 Contact Us For Availability
12
Case, Relay WPL 2154722 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Spacer WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
15
Relay WPL 2154720 Contact Us For Availability
15
Enclosure, Terminal Box WPL 2158579 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Wire, Unit WPL 2159678 Contact Us For Availability
16
Terminal Block WPL 1129346 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2148555 Contact Us For Availability
17
Running Capacitor WPL 2154717 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
18
Nameplate WPL 2148544 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Handle Insert WPL 2150153 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 1126757 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
End Cap, Bottom WPL 1105804 Contact Us For Availability
21
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Trim, Door WPL 2148551 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Compartment Door (R.S.) WPL 2165249 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Compartment Door (L.S.) WPL 2165248 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Insert, Handle (White) WPL 1108828 Contact Us For Availability
25
Shim, Top WPL 935074 Contact Us For Availability
25
Bushing WPL 1129449 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
WPL 876029 WPL 876029 Contact Us For Availability
28
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Divider, Shelf WPL 1123293 Contact Us For Availability
28
PAINT xEnamel, Golden Harvest (13 Oz. Spray C WPL 261891 Contact Us For Availability
28
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
28
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
28
WPL 799833 WPL 799833 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Compressor (Includes Items 11 12, 13, 14, 15, WPL 2154723 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Pin Plate (8) WPL 1116986 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
30
Trim, Compartment Door WPL 1122750 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Screw WPL 489022 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2158987 Contact Us For Availability
33
Retainer, Insert WPL 935871 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Door Dike Middle WPL 1122711 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
35
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Bin Door Narrow (2) WPL 2148549 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2165296 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Bin Door Deep (2) WPL 2148550 Contact Us For Availability
38
Screw WPL 489346 Contact Us For Availability
39
Grommet WPL 2162067 Contact Us For Availability
39
Bin Divider (2) WPL 2152335 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
43
Wiring, Terminal Block WPL 2165297 Contact Us For Availability
44
Service Cord WPL 1129332 Contact Us For Availability
45
Gasket WPL 2167227 Contact Us For Availability
46
Tube, Drain Extension WPL 2154119 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160521 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
54
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
