Model Whirlpool 3VET19ZKAW00 REFRIGERATOR – Common Parts & Diagrams

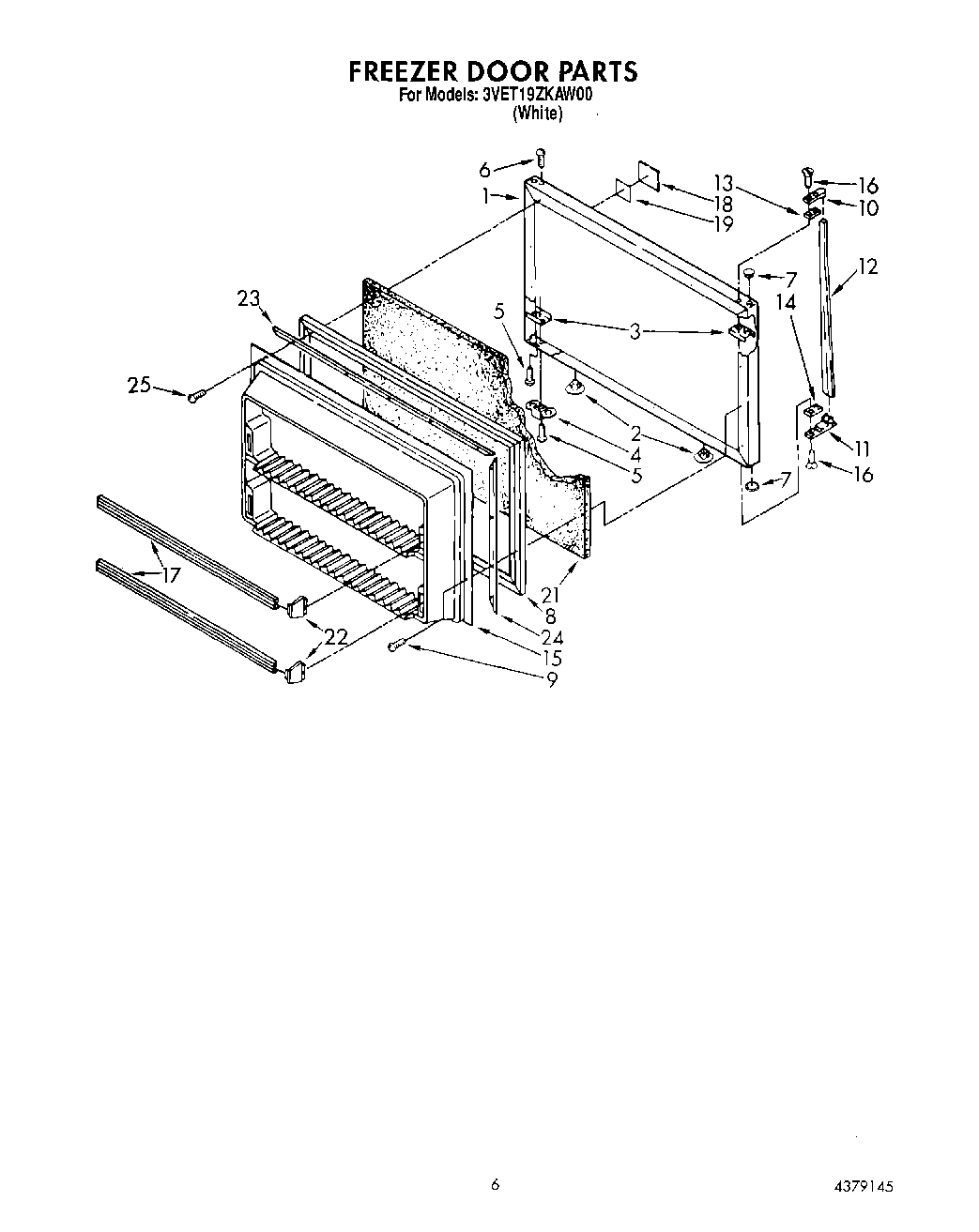

05 - FREEZER DOOR

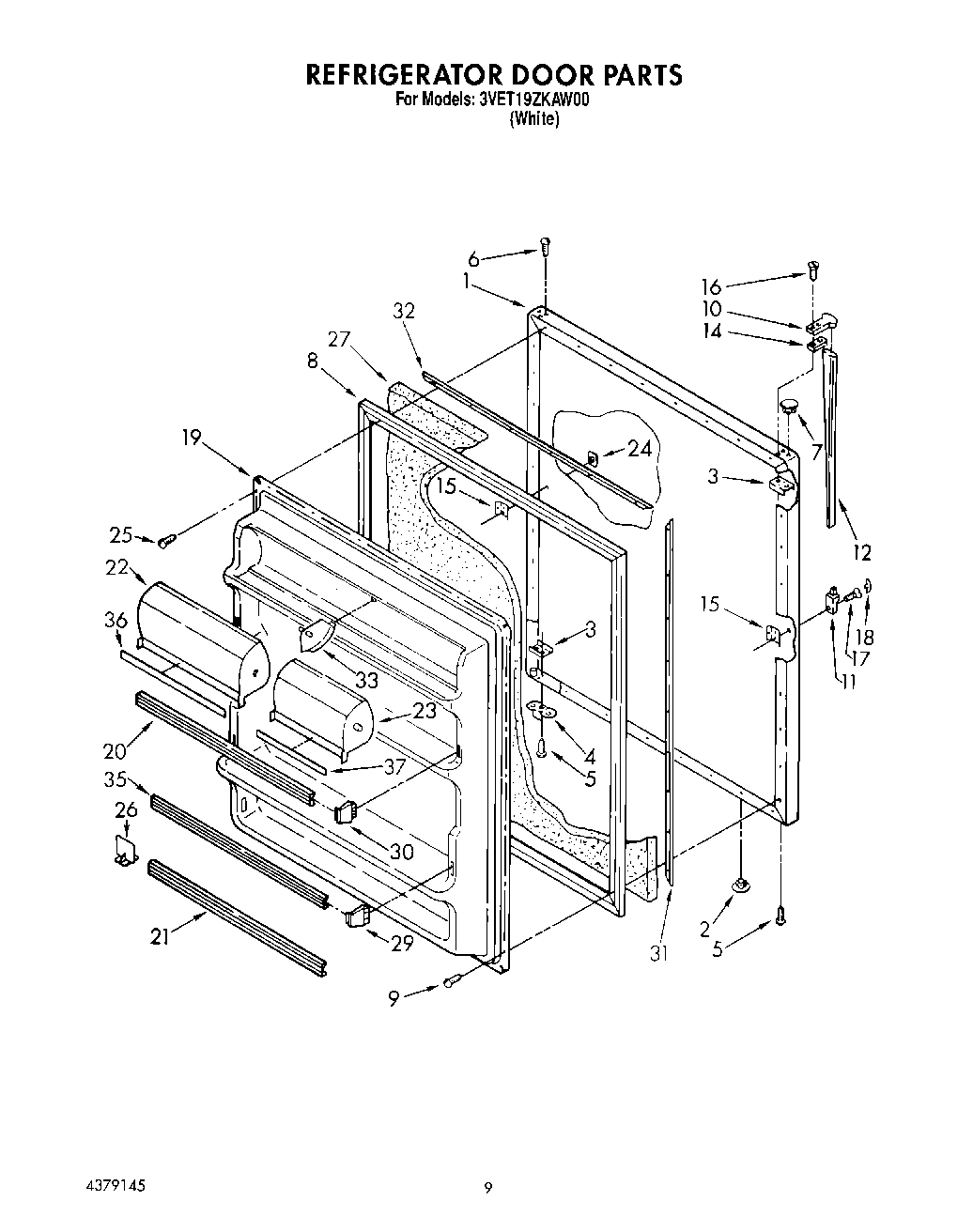

07 - REFRIGERATOR DOOR, LIT/OPTIONAL
06 - UNIT
04 - SHELF
02 - LINER
03 - COMPARTMENT SEPARATOR
01 - CABINET
Common parts from model Whirlpool 3VET19ZKAW00 REFRIGERATOR
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12600A8 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12599A2 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Compressor Kit Includes Items (22, 23, 25, 26 WPL 2154613 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 2163920 Contact Us For Availability
8
Trim, Shelf WPL 2148575 Contact Us For Availability
9
Crisper Cover WPL 2157828 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Trim, Crisper Cover WPL 1123002 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Clip, Mullion (3) WPL 2149060 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Retainer, Glass WPL 1118119 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Heater, Defrost WPL 2158986 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2160873 Contact Us For Availability
16
Motor, Fan WPL 2154635 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Trim, Shelf Front WPL 2148584 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
19
Pan, Crisper WPL 2165231 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Pan, Meat WPL 2165230 Contact Us For Availability
21
Trim, Full Shelf WPL 2148578 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
22
Relay WPL 2154612 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Overload (Service) WPL 2156479 Contact Us For Availability
23
Overload (Production) WPL 2158566 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
25
Terminal Cover WPL 1105221 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Running Capacitor WPL 2154615 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
35
Trim, Door Shelf WPL 2157811 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
36
Trim, Compartment Door WPL 2157839 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108`` WPL 479502 Contact Us For Availability
37
Torx Key WPL 1117510 Contact Us For Availability
37
Trim, Compartment Door WPL 2157836 Contact Us For Availability
37
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
37
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
37
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Hole Plug (White) WPL 1129062 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
46
Fitting, Drain WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. Terminal Block WPL 2165297 Contact Us For Availability
78
Gasket WPL 2167227 Contact Us For Availability
× ![]()
