Model Maytag 3RMED4905TW1 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS
02 - CABINET PARTS

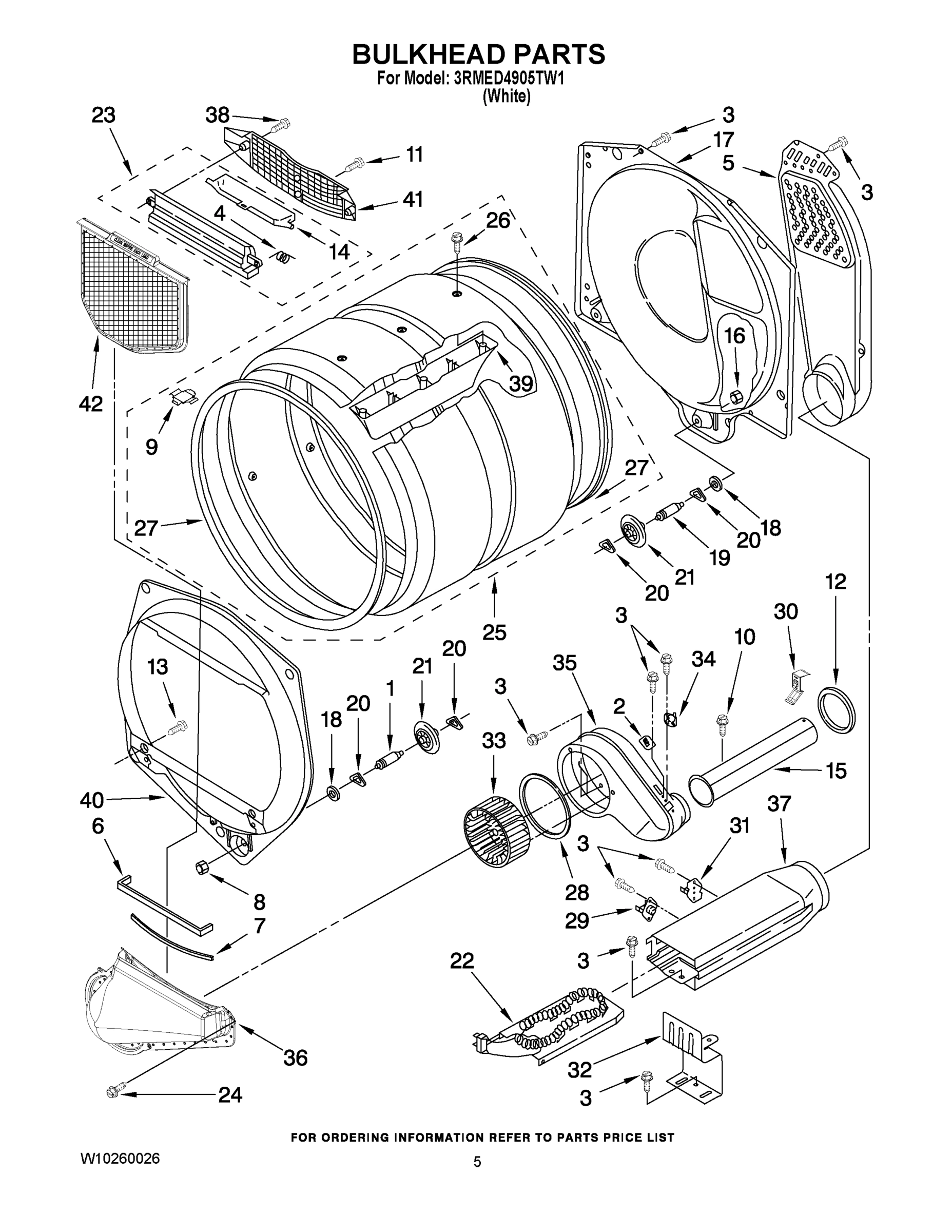

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 3RMED4905TW1 ELECTRIC DRYER
1
MAY W10127856 MAY W10127856 Contact Us For Availability
1
Instructions, Installation MAY W10131549 Contact Us For Availability
1
MAY W10134184 MAY W10134184 Contact Us For Availability
1
MAY 693152 MAY 693152 Contact Us For Availability
1
MAY 8575324 MAY 8575324 Contact Us For Availability
2
MAY W10121161 MAY W10121161 Contact Us For Availability
2
MAY W10130935 MAY W10130935 Contact Us For Availability
2
Thermal-Limiter (89 C) MAY 8572767 Contact Us For Availability
3
MAY W10116281 MAY W10116281 Contact Us For Availability
3
MAY W10080280 MAY W10080280 Contact Us For Availability
3
MAY W10080300 MAY W10080300 Contact Us For Availability
4
Connector 6-Circuit MAY 3347243 Contact Us For Availability
4
MAY 3394331 MAY 3394331 Contact Us For Availability
4
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
5
MAY W10238463 MAY W10238463 Contact Us For Availability
5
MAY 8318457 MAY 8318457 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
6
Screw, 8-18 x 3/8 MAY W10080810 Contact Us For Availability
6
MAY W10080800 MAY W10080800 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10096918 MAY W10096918 Contact Us For Availability
7
Cabinet MAY 8310656 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
Cap, End (R.H.) MAY W10128463 Contact Us For Availability
8
MAY 279810 MAY 279810 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, 3/8 X 16 (R.H.) MAY W10080210 Contact Us For Availability
9
MAY 8559504 MAY 8559504 Contact Us For Availability
9
Clamp, Motor (2) MAY W10121316 Contact Us For Availability
9
MAY 8066086 MAY 8066086 Contact Us For Availability
10
MAY W10080820 MAY W10080820 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
11
Spring, Clip MAY 8536939 Contact Us For Availability
11
MAY W10080670 MAY W10080670 Contact Us For Availability
11
MAY W10080360 MAY W10080360 Contact Us For Availability
12
MAY 357572 MAY 357572 Contact Us For Availability
12
Plug, Multivent MAY 697750 Contact Us For Availability
12
MAY 696302 MAY 696302 Contact Us For Availability
13
Switch, (End Of Cycle) MAY W10168168 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
Screw, 10-16 x 3/4 MAY W10080640 Contact Us For Availability
14
MAY 3391018 MAY 3391018 Contact Us For Availability
14
Screw Ground MAY 8533971 Contact Us For Availability
14
MAY W10181925 MAY W10181925 Contact Us For Availability
15
MAY W10043430 MAY W10043430 Contact Us For Availability
15
MAY W10118188 MAY W10118188 Contact Us For Availability
15
MAY W10121166 MAY W10121166 Contact Us For Availability
16
Connector-Timer MAY 3397269 Contact Us For Availability
16
MAY 340025 MAY 340025 Contact Us For Availability
16
NUT, 3/8-16 (L.H.) MAY 3387459 Contact Us For Availability
17
MAY W10134274 MAY W10134274 Contact Us For Availability
17
MAY 8563747 MAY 8563747 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
Switch-Rotary MAY W10168170 Contact Us For Availability
18
MAY W10080960 MAY W10080960 Contact Us For Availability
19
MAY W10134255 MAY W10134255 Contact Us For Availability
19
Nut, Inner Door (4) MAY 3389249 Contact Us For Availability
19
MAY 8575325 MAY 8575325 Contact Us For Availability
20
MAY W10043460 MAY W10043460 Contact Us For Availability
20
Ring, Tri MAY W10121334 Contact Us For Availability
20
TRI-RING MAY 690997 Contact Us For Availability
21
Knob, Push-To-Start MAY W10043480 Contact Us For Availability
21
Hinge & Pin Assembly (2) MAY 3389247 Contact Us For Availability
21
MAY 8536973 MAY 8536973 Contact Us For Availability
22
Strap, Console MAY 8318255 Contact Us For Availability
22
MAY W10080700 MAY W10080700 Contact Us For Availability
22
MAY 8318459 MAY 8318459 Contact Us For Availability
23
Terminal MAY 94614 Contact Us For Availability
23
Lever, Snap Switch MAY W10083220 Contact Us For Availability
23
OUTLET HOUSING ASSEMBLY MAY W10181928 Contact Us For Availability
24
TOP MAY 8559781 Contact Us For Availability
24
MAY 3394081 MAY 3394081 Contact Us For Availability
24
SCREW, 8-18 X 1/16 MAY 489463 Contact Us For Availability
25
Mini-Buzzer MAY W10135122 Contact Us For Availability
25
MAY 49026 MAY 49026 Contact Us For Availability
25
Complete Drum Assembly MAY 8528998 Contact Us For Availability
26
Cap, End (L.H.) MAY W10128464 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
SCREW, 8-16X 1/2 MAY W10219342 Contact Us For Availability
27
MAY 3936144 MAY 3936144 Contact Us For Availability
27
Motor Assembly (50 Hz.) MAY 3404470 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY W10134277 MAY W10134277 Contact Us For Availability
28
MAY 8563750 MAY 8563750 Contact Us For Availability
28
MAY 697770 MAY 697770 Contact Us For Availability
29
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
29
MAY 3402548 MAY 3402548 Contact Us For Availability
29
THERMOSTAT 250° F / 170F NC MAY W10168175 Contact Us For Availability
30
MAY W10129041 MAY W10129041 Contact Us For Availability
30
MAY 3387610 MAY 3387610 Contact Us For Availability
30
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
31
MAY W10123194 MAY W10123194 Contact Us For Availability
31
SCREW, 10-24 X 3/8 MAY 3400097 Contact Us For Availability
31
Thermal Cut-Off MAY W10141623 Contact Us For Availability
32
MAY W10135126 MAY W10135126 Contact Us For Availability
32
MAY 3387118 MAY 3387118 Contact Us For Availability
32
Bracket, Heater MAY 8066099 Contact Us For Availability
33
CLIP, HARNESS MAY 3394427 Contact Us For Availability
33
MAY 8563749 MAY 8563749 Contact Us For Availability
33
MAY W10168564 MAY W10168564 Contact Us For Availability
34
MAY 8283170 MAY 8283170 Contact Us For Availability
34
MAY W10116360 MAY W10116360 Contact Us For Availability
34
MAY W10168174 MAY W10168174 Contact Us For Availability
35
MAY W10080540 MAY W10080540 Contact Us For Availability
35
MAY W10151271 MAY W10151271 Contact Us For Availability
36
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
36
Lint Duct Assembly MAY 8066168 Contact Us For Availability
37
Seal, Foam MAY 8318396 Contact Us For Availability
37
HEATER BOX, MAY 3392537 Contact Us For Availability
38
MAY 3390902 MAY 3390902 Contact Us For Availability
38
MAY W10080590 MAY W10080590 Contact Us For Availability
39
MAY W10118754 MAY W10118754 Contact Us For Availability
39
Baffle, Drum MAY 697693 Contact Us For Availability
40
Clip (2) MAY 297092 Contact Us For Availability
40
MAY 697557 MAY 697557 Contact Us For Availability
41
Door Switch Assembly MAY W10237959 Contact Us For Availability
41
MAY W10181926 MAY W10181926 Contact Us For Availability
42
MAY 3397659 MAY 3397659 Contact Us For Availability
42
MAY W10049370 MAY W10049370 Contact Us For Availability
43
Terminal, Brass & Tinned (3) Includes Illus. MAY 279318 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
45
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
46
Retainer MAY 3388229 Contact Us For Availability
47
MAY 3392563 MAY 3392563 Contact Us For Availability
48
MAY 3392538 MAY 3392538 Contact Us For Availability
49
Door, Front MAY 3387872 Contact Us For Availability
50
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
51
MAY W10193554 MAY W10193554 Contact Us For Availability
52
Strike, Door MAY W10080240 Contact Us For Availability
53
Clip, Strain Relief MAY 8316644 Contact Us For Availability
54
MAY 3390735 MAY 3390735 Contact Us For Availability
55
Toe, Panel (Includes Illus. 1) MAY 697215 Contact Us For Availability
56
PLUG-HINGE SCREW (2) MAY W10191265 Contact Us For Availability
57
MAY 279818 MAY 279818 Contact Us For Availability
NI
Dry Rack MAY 3406910 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
Kit, Dryer Repair MAY 4392067 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (4 WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
