Model Whirlpool 3QACM12XD3 AIR CONDITIONER – Common Parts & Diagrams

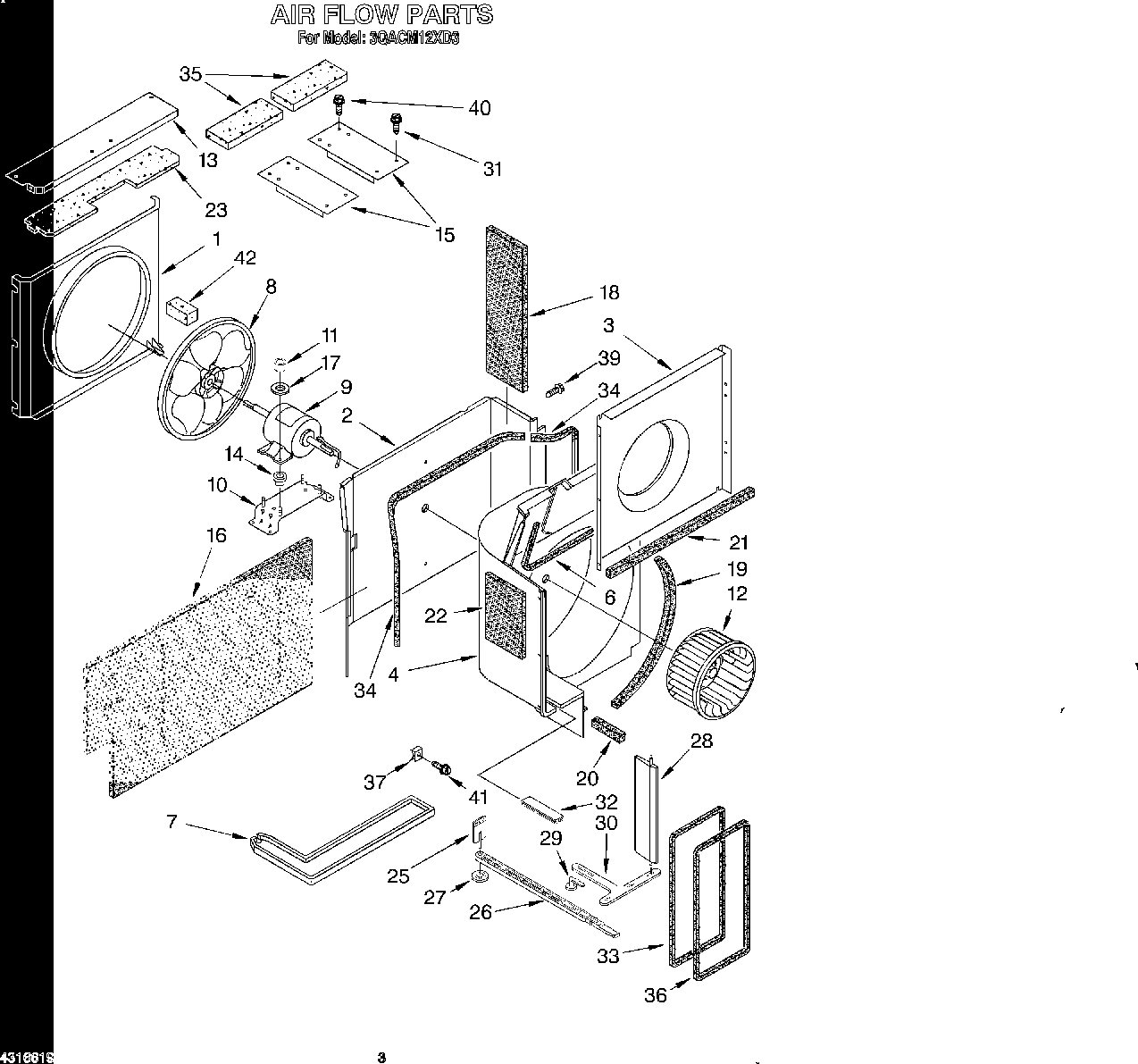

02 - AIRFLOW

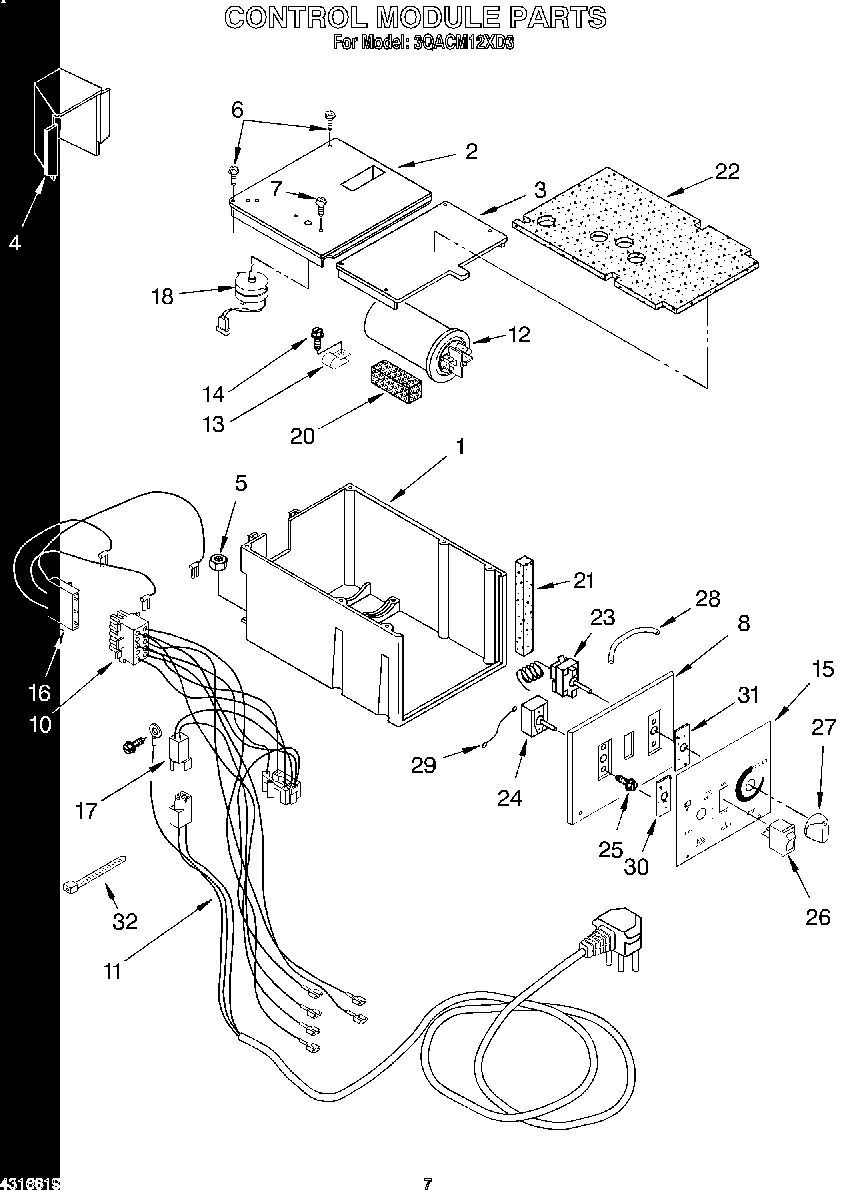

04 - CONTROL MODULE
05 - OPTIONAL
01 - UNIT, LITERATURE
03 - CABINET
Common parts from model Whirlpool 3QACM12XD3 AIR CONDITIONER
Wiring Diagram WPL LIT1180475 Contact Us For Availability
Owners Manual/Installation Instructions WPL LIT1181127 Contact Us For Availability
1
Housing, Controls (Not Serviceable) WPL ARI140149A Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Condenser WPL 1180221 Contact Us For Availability
1
Cabinet WPL 1180467 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Lid, Capacitor WPL 1180175 Contact Us For Availability
2
Evaporator WPL 1180217 Contact Us For Availability
2
Front (Complete) WPL 1180190 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Lid, Controls WPL 1180456 Contact Us For Availability
3
Tube, Discharge WPL 1180171 Contact Us For Availability
4
Shield, Rain WPL 1180332 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Tube, Process WPL 1180287 Contact Us For Availability
4
Cup, Drip WPL 1180061 Contact Us For Availability
5
Nut, Hex 5MM WPL 1180008 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Tube, Wet Loop WPL 1180691 Contact Us For Availability
5
Label, Cabinet WPL 1180604 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screw (Tamper- Resistant) WPL 1180780 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Base WPL 1180143 Contact Us For Availability
7
Bracket, Front Mounting WPL 1180100 Contact Us For Availability
8
Blade, Fan WPL 1156979 Contact Us For Availability
8
Plate, Control WPL 1180439 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Tube, Restrictor (2 Required) WPL 1180753 Contact Us For Availability
8
Screw No.8-15 x 1/2 WPL 489092 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Tube, Suction/Evaporator WPL 1180750 Contact Us For Availability
10
Harness, Wiring 10 Pin (Not Serviceable) WPL ARI140150A Contact Us For Availability
10
Strainer WPL 1180617 Contact Us For Availability
10
Frame, Front WPL 1180191 Contact Us For Availability
11
Cable, Appliance WPL 1181175 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Insulation, Restrictor Tube WPL 1162650 Contact Us For Availability
11
Door, Control WPL 1180196 Contact Us For Availability
12
Capacitor WPL 1180889 Contact Us For Availability
12
Tube, Inlet (Row 1) WPL 1180669 Contact Us For Availability
12
Tube, Inlet (Row 3) WPL 1180733 Contact Us For Availability
12
Paper, Decorative (Front) WPL 1180353 Contact Us For Availability
12
Paper, Decorative (Control Door) WPL 1180354 Contact Us For Availability
13
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
13
Relief, Strain WPL 1180504 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Seal, Suction Tube WPL 1181066 Contact Us For Availability
14
Louver, Horizontal (15 Required) WPL 1180195 Contact Us For Availability
15
Escutcheon WPL 1180436 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Seal, Inlet Tube WPL 1181064 Contact Us For Availability
15
Link, Horizontal Louver (Top) WPL 1180423 Contact Us For Availability
16
Harness, Wiring (Compressor) WPL 1181084 Contact Us For Availability
16
Cover, Hair Pin WPL 1180159 Contact Us For Availability
16
Link, Horizontal Louver (Bottom) WPL 1180197 Contact Us For Availability
17
Harness, Appliance Cable (Not Serviceable) WPL ARI140151A Contact Us For Availability
17
Tube, Suction/Compressor WPL 1180372 Contact Us For Availability
17
Cover, Clear (Control Door) WPL 1180366 Contact Us For Availability
18
Insulation (Side, Dividing Wall) WPL 1181008 Contact Us For Availability
18
Motor, Air Swing (Not included in Complete As WPL 1180355 Contact Us For Availability
18
Dampener WPL 1163850 Contact Us For Availability
18
Cover, Clear WPL 1180199 Contact Us For Availability
19
Seal (Housing/Orifice) WPL ARI140148A Contact Us For Availability
19
Seal, Return Bend WPL 1181046 Contact Us For Availability
20
Seal WPL 1180636 Contact Us For Availability
20
Sealer, Foam WPL 1180340 Contact Us For Availability
20
Filter WPL 1180192 Contact Us For Availability
21
Gasket, Nut WPL 950037 Contact Us For Availability
22
Seal, Air Housing (Side) WPL 1180927 Contact Us For Availability
22
Seal, Control Box WPL 1180418 Contact Us For Availability
22
Overload WPL 1156409 Contact Us For Availability
23
Seal, Condenser Top Cover WPL 1181258 Contact Us For Availability
23
Control, Temp. WPL 1157605 Contact Us For Availability
23
Spring, Overload WPL 950032 Contact Us For Availability
24
Switch, Rotary WPL 1157650 Contact Us For Availability
25
Door, Exhaust WPL 1180465 Contact Us For Availability
25
Screw, 6-32 x .175 WPL 488734 Contact Us For Availability
26
Linkage, Exhaust Door WPL 1180177 Contact Us For Availability
26
Nut, 8MM WPL 1180339 Contact Us For Availability
26
Foam, Condenser (Right Side) WPL 1181259 Contact Us For Availability
27
Retainer, Linkage WPL 1180411 Contact Us For Availability
27
Knob (2) WPL 1180739 Contact Us For Availability
27
Insulation, Cab. WPL 1181048 Contact Us For Availability
28
Louver, Verticle (3 Required) WPL 1180178 Contact Us For Availability
28
Sleeve, Insulator WPL 1180974 Contact Us For Availability
28
Compressor WPL 1180219 Contact Us For Availability
28
Seal, Insulation WPL 1180704 Contact Us For Availability
29
Crank, Verticle Louver WPL 1180180 Contact Us For Availability
29
Wire, Ground (Thermostat) WPL 1181162 Contact Us For Availability
29
Blanket, Comp. WPL 1181220 Contact Us For Availability
29
Seal, Front (Right Side) WPL 1180985 Contact Us For Availability
29
Seal, Front (Bottom) WPL 1180986 Contact Us For Availability
29
Seal, Front (Left Side) WPL 1180987 Contact Us For Availability
30
Link, Verticle Louver WPL 1180181 Contact Us For Availability
30
Seal, Control WPL 1181085 Contact Us For Availability
30
Bend, Return (5 Required) WPL 855199 Contact Us For Availability
31
Screw 3/8 WPL 1161561 Contact Us For Availability
31
Seal, Control WPL 1181086 Contact Us For Availability
32
Cover, Slot WPL 1180400 Contact Us For Availability
32
Control Box (Complete) WPL 1181165 Contact Us For Availability
32
Bend, Return (1) WPL 1156529 Contact Us For Availability
32
Wire, Ground WPL 1180417 Contact Us For Availability
33
Bend, Return (1) WPL 854625 Contact Us For Availability
34
Seal, Unit (2) WPL 1181047 Contact Us For Availability
34
Cover, Return Bend (Condenser) WPL 1181347 Contact Us For Availability
34
Guard, Edge WPL 1180634 Contact Us For Availability
35
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
36
Foam, Air Housing WPL 1181059 Contact Us For Availability
36
Bend, Return (19 Required) WPL 708532 Contact Us For Availability
37
Clip, Mounting WPL 1157140 Contact Us For Availability
37
Bend, Return (2 Required) WPL 1156329 Contact Us For Availability
38
Bend, Return (3 Required) WPL 708531 Contact Us For Availability
39
Screw, Ground WPL 1181070 Contact Us For Availability
39
Bend, Return 3-Way WPL 953167 Contact Us For Availability
40
Screw No.8 x 1 WPL 1180816 Contact Us For Availability
40
Anticipator WPL 996773 Contact Us For Availability
41
Clip, Anticipator WPL 475577 Contact Us For Availability
42
Seal, Spacer WPL 1180637 Contact Us For Availability
42
Bend, Return (1) WPL 1156533 Contact Us For Availability
43
Bend, Return (1) WPL 1158407 Contact Us For Availability
44
Tube, Outlet WPL 1180622 Contact Us For Availability
45
Deflector, Water (Foam) WPL 1180926 Contact Us For Availability
46
Seal, Hairpin (Cover) WPL 1180984 Contact Us For Availability
49
Screw No.8 x 3/8 WPL 1180668 Contact Us For Availability
50
Drain Plug WPL 1163502 Contact Us For Availability
51
Gasket, Drain Plug WPL 1164093 Contact Us For Availability
52
Protector, Cord WPL 1180387 Contact Us For Availability
× ![]()
