Model Whirlpool 3QACM09DD3 AIR CONDITIONER – Common Parts & Diagrams

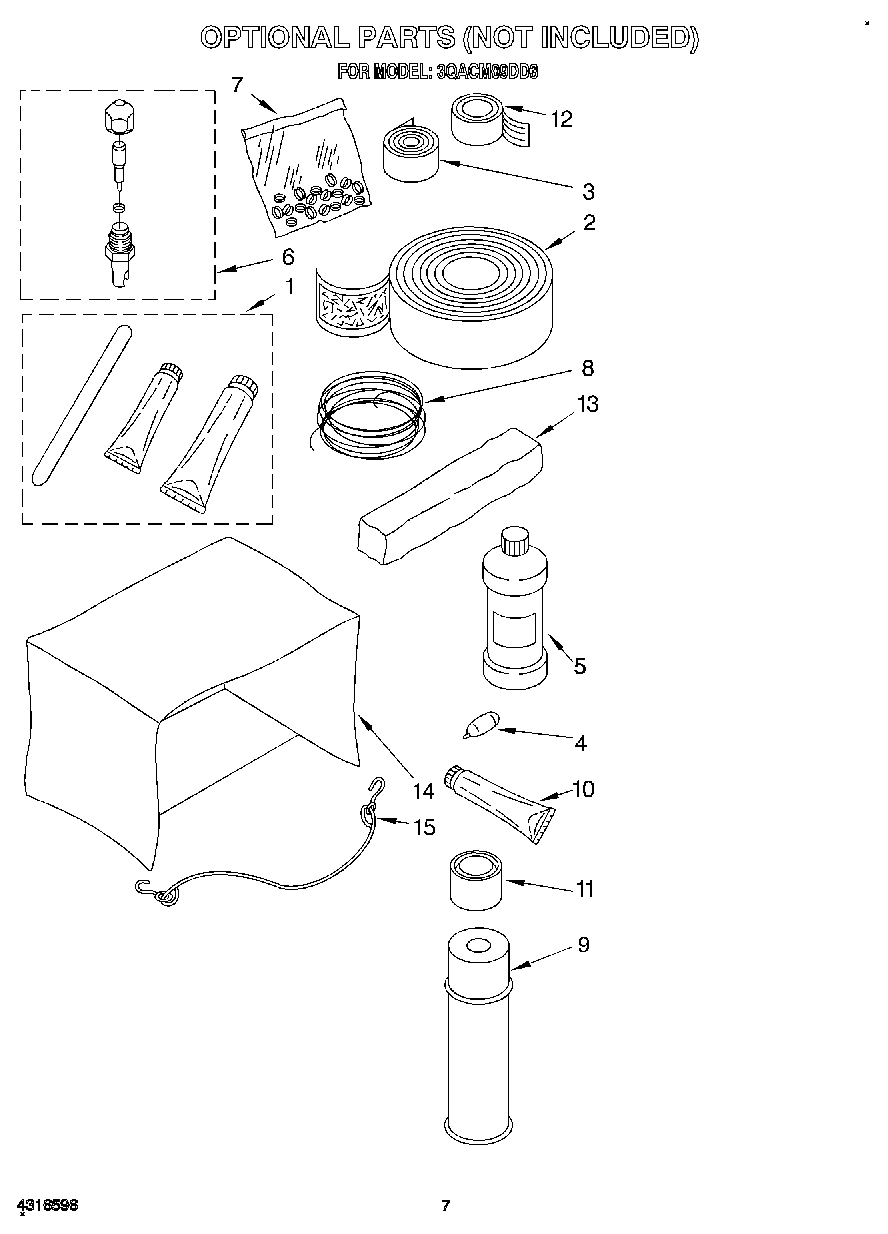

05 - OPTIONAL

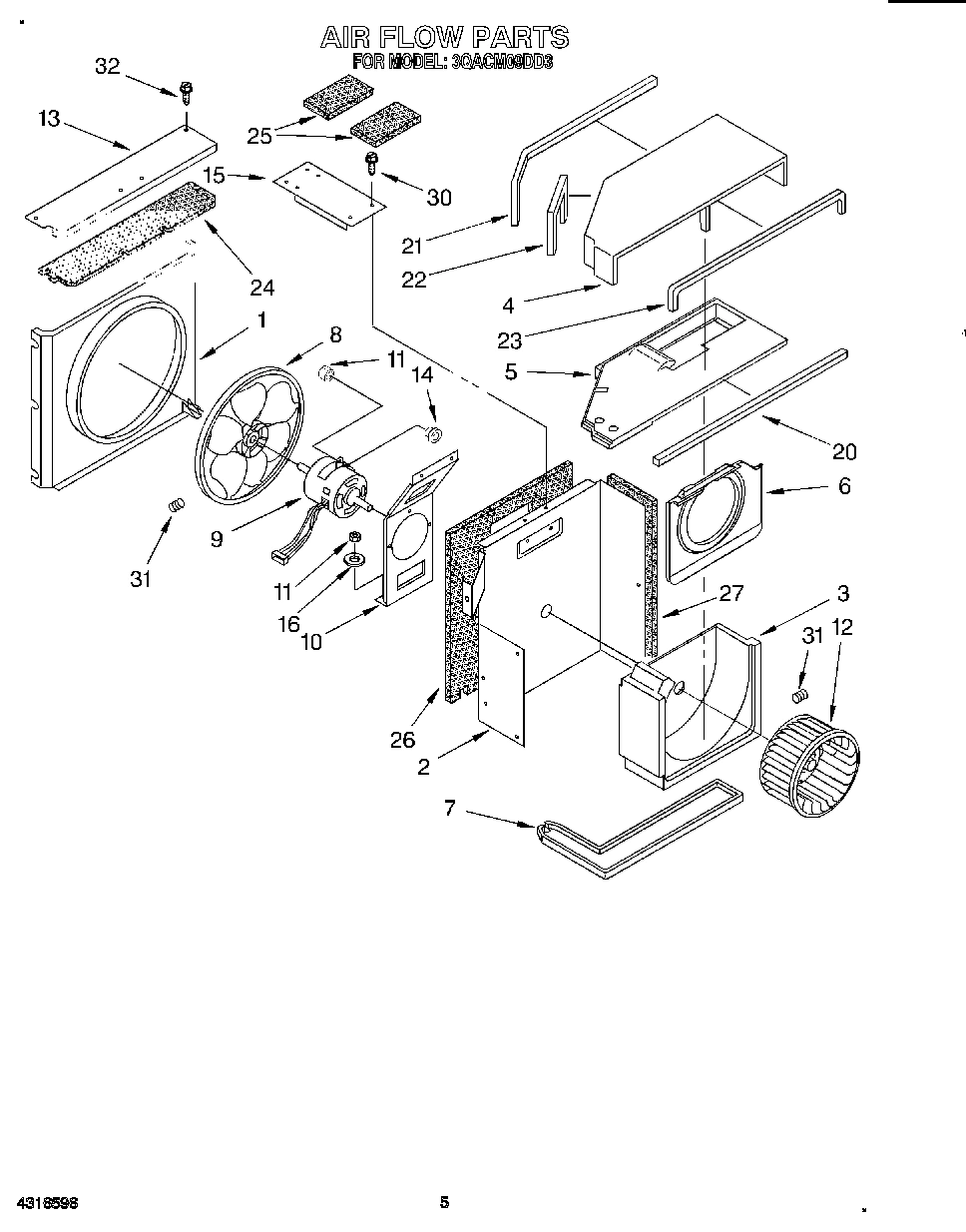

03 - AIR FLOW

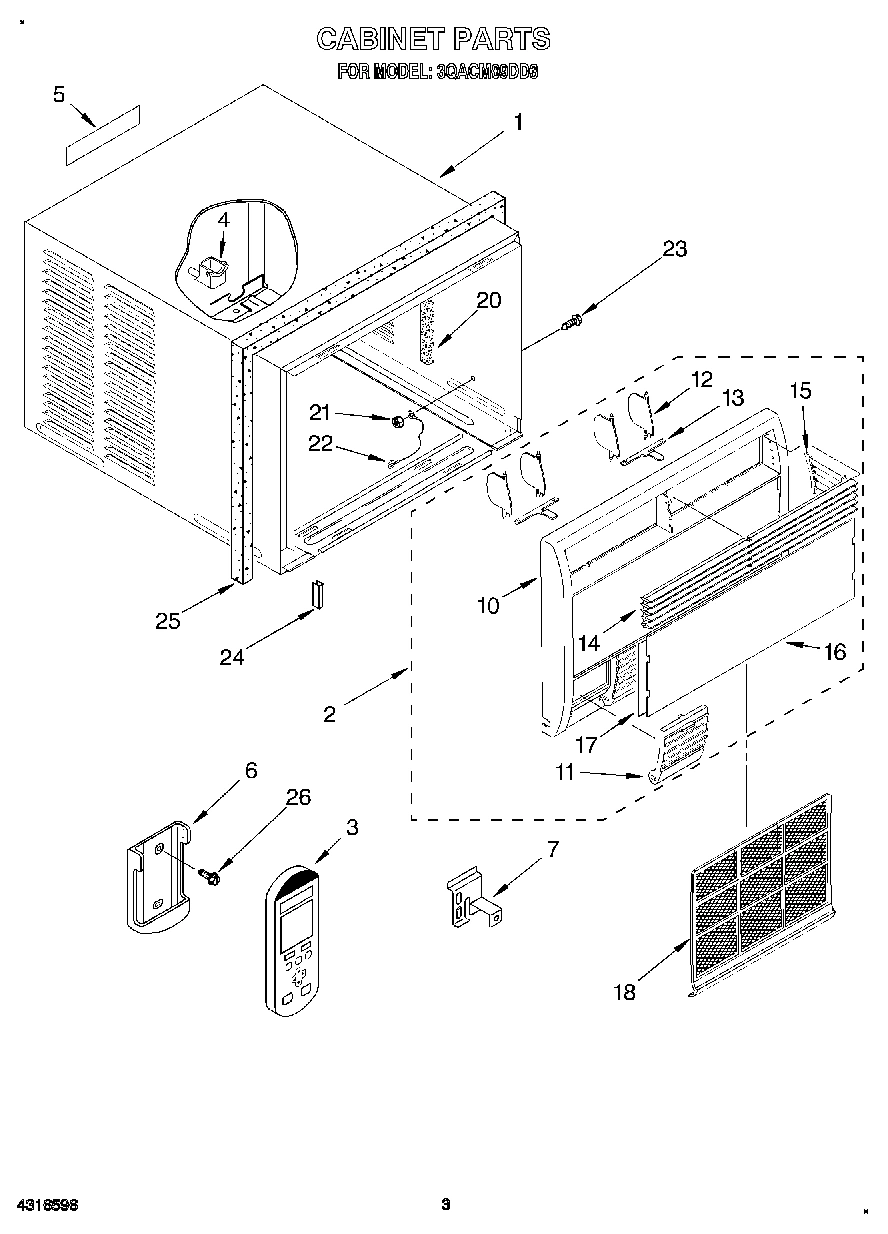

02 - CABINET

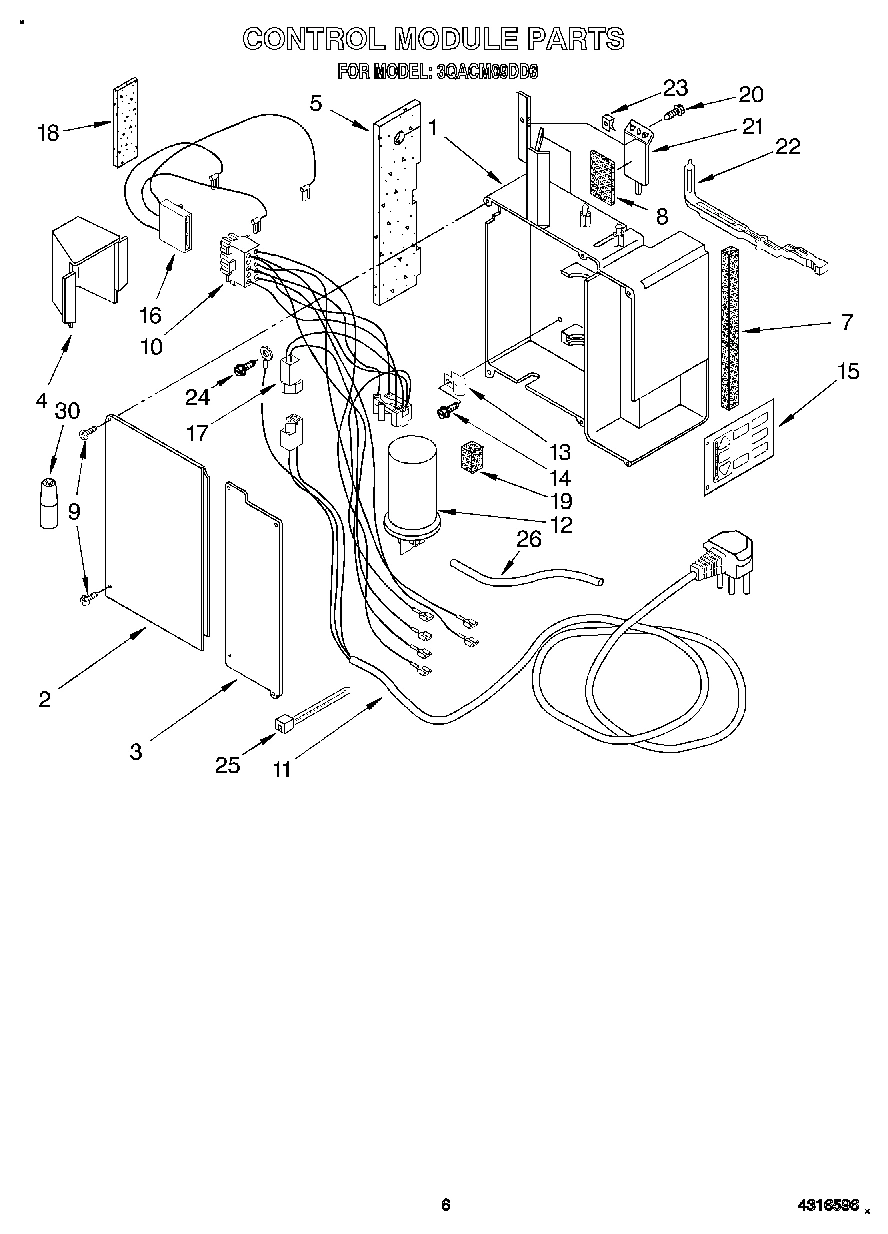

04 - CONTROL MODULE
01 - UNIT, LITERATURE
Common parts from model Whirlpool 3QACM09DD3 AIR CONDITIONER
Owners Manual (Deluxe Remote) WPL LIT1180435 Contact Us For Availability
Wiring Diagram WPL LIT1180471 Contact Us For Availability
Owners Manual WPL LIT1181124 Contact Us For Availability
1
Shroud, Condenser WPL 1180015 Contact Us For Availability
1
Cabinet WPL 1180466 Contact Us For Availability
1
Housing, Controls (Not Serviceable) WPL ARI140141A Contact Us For Availability
1
Condenser WPL 1180018 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 1180007 Contact Us For Availability
2
Front (Complete) WPL 1180051 Contact Us For Availability
2
Lid, Capacitor WPL 1180037 Contact Us For Availability
2
Evaporator WPL 1180086 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Scroll, Air Housing WPL 1180334 Contact Us For Availability
3
Remote, Deluxe WPL 1181138 Contact Us For Availability
3
Lid, Controls WPL 1180448 Contact Us For Availability
3
Tube, Discharge (To Compressor) WPL 1181231 Contact Us For Availability
4
Hood, Air Housing WPL 1180336 Contact Us For Availability
4
Cup, Drip WPL 1180061 Contact Us For Availability
4
Shield, Rain WPL 1180332 Contact Us For Availability
4
Tube, Process WPL 1180684 Contact Us For Availability
5
Cover, Evaporator Top WPL 1180487 Contact Us For Availability
5
Label, Cabinet WPL 1180604 Contact Us For Availability
5
Tube, Wet Loop WPL 1181069 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Orifice, Air Housing WPL 1180335 Contact Us For Availability
6
Holder, Remote WPL 1181032 Contact Us For Availability
6
Tube, Suction (Connecting) WPL 1181419 Contact Us For Availability
7
Pan, Drain WPL 1180333 Contact Us For Availability
7
Bracket, Front Mounting WPL 1180100 Contact Us For Availability
7
Seal WPL 1180957 Contact Us For Availability
7
Base WPL 1180369 Contact Us For Availability
8
Blade, Fan WPL 1181209 Contact Us For Availability
8
Seal, Door WPL 1180898 Contact Us For Availability
8
Tube, Restrictor (2 Required) WPL 1181229 Contact Us For Availability
9
Motor, Fan WPL 1180834 Contact Us For Availability
9
Screw (Tamper- Resistant) WPL 1180780 Contact Us For Availability
9
Tube, Suction (To Evaporator) (Includes No. 3 WPL 1181236 Contact Us For Availability
10
Bracket, Motor Mount WPL 1180011 Contact Us For Availability
10
Frame, Front WPL 1180052 Contact Us For Availability
10
Harness, Wiring 10 Pin (Not Serviceable) WPL ARI140142A Contact Us For Availability
10
Strainer WPL 1180357 Contact Us For Availability
11
Nut, Hex 5MM WPL 1180008 Contact Us For Availability
11
Door, Control WPL 1180060 Contact Us For Availability
11
Cable, Appliance WPL 1181175 Contact Us For Availability
11
Tube, Suction (To Compressor) WPL 1181234 Contact Us For Availability
12
Wheel, Blower WPL 1181206 Contact Us For Availability
12
Louver, Vertical (4) WPL 1180055 Contact Us For Availability
12
Capacitor WPL 1162592 Contact Us For Availability
12
Tube, Inlet (Evaporator) (Row 1) WPL 1181227 Contact Us For Availability
12
Tube, Inlet (Evaporator) (Row 2) WPL 1181228 Contact Us For Availability
13
Cover, Condenser Top WPL 1180134 Contact Us For Availability
13
Link, Vertical Louver WPL 1180056 Contact Us For Availability
13
Relief, Strain WPL 1180504 Contact Us For Availability
13
Insulation, Restrictor Tube WPL 1162650 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Grommet, Fan Motor WPL 1180535 Contact Us For Availability
14
Louver, Horizontal (5) WPL 1180058 Contact Us For Availability
14
Seal, Tube WPL 1180841 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit WPL 1181483 Contact Us For Availability
15
Link, Horizontal WPL 1180059 Contact Us For Availability
15
Overlay (English) WPL 1181136 Contact Us For Availability
16
Washer, Bonded WPL 1180415 Contact Us For Availability
16
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
16
Cover, Clear WPL 1180077 Contact Us For Availability
16
Harness, Wiring (Compressor) WPL 1158044 Contact Us For Availability
17
Paper, Decorative WPL 1180341 Contact Us For Availability
17
Harness, Appliance Cable (Not Serviceable) WPL ARI140143A Contact Us For Availability
17
Seal WPL 1180908 Contact Us For Availability
18
Filter WPL 1180053 Contact Us For Availability
18
Insulation, Condenser (R.S.) WPL 1181248 Contact Us For Availability
19
Spacer WPL 1180340 Contact Us For Availability
19
Tube, Discharge (To Condenser) WPL 1181241 Contact Us For Availability
20
Seal, Cabinet (Left Side) WPL 1180110 Contact Us For Availability
21
Door, Exhaust WPL 1180041 Contact Us For Availability
21
Gasket, Nut WPL 950037 Contact Us For Availability
22
Wire, Ground WPL 1180417 Contact Us For Availability
22
Linkage, Exhaust Door WPL 1180042 Contact Us For Availability
22
Protector, Overload WPL 1180079 Contact Us For Availability
23
Clip WPL 1157140 Contact Us For Availability
23
Spring, Overload WPL 950032 Contact Us For Availability
24
Seal, Condenser Top Cover WPL 1181247 Contact Us For Availability
24
Guard, Edge WPL 1180634 Contact Us For Availability
25
Seal, Insulation WPL 1180704 Contact Us For Availability
26
Insulation (Back, Dividing Wall) WPL 1180905 Contact Us For Availability
26
Screw WPL 1157141 Contact Us For Availability
26
Sleeve, Insulating WPL 1181142 Contact Us For Availability
26
Nut, 8MM WPL 1180339 Contact Us For Availability
27
Insulation (Side, Dividing Wall) WPL 1180928 Contact Us For Availability
27
Grommet, Compressor Mounting WPL 1181257 Contact Us For Availability
28
Compressor WPL 1180078 Contact Us For Availability
29
Blanket, Compressor WPL 1181219 Contact Us For Availability
30
Screw No.8 x 1 WPL 1180816 Contact Us For Availability
30
Control Box (Complete) WPL 1180960 Contact Us For Availability
30
Socket (For Tamper -Proof Screw) WPL 4387015 Contact Us For Availability
30
Bend, Return (12) WPL 708532 Contact Us For Availability
31
Set Screw 6M WPL ARI140140A Contact Us For Availability
32
Bend, Return (1) WPL 1156529 Contact Us For Availability
33
Bend, Return (5) WPL 855199 Contact Us For Availability
35
Bend, Return 3-Way WPL 1158906 Contact Us For Availability
40
Anticipator WPL 1164141 Contact Us For Availability
41
Clip, Anticipator WPL 475577 Contact Us For Availability
42
Screw, Ground WPL 1181070 Contact Us For Availability
43
Screw WPL 1161561 Contact Us For Availability
45
Deflector, Water WPL 1180926 Contact Us For Availability
49
Screw WPL 1180668 Contact Us For Availability
50
Drain Plug WPL 1163502 Contact Us For Availability
51
Gasket, Drain Plug WPL 1164093 Contact Us For Availability
52
Protector, Cord WPL 1180387 Contact Us For Availability
× ![]()
