Model Whirlpool 3KUIS185V0 ICE MACHINE – Common Parts & Diagrams
03 - EVAPORATOR, ICE CUTTER GRID AND WATER
05 - UNIT
06 - ESCUTCHEON AND CONTROL

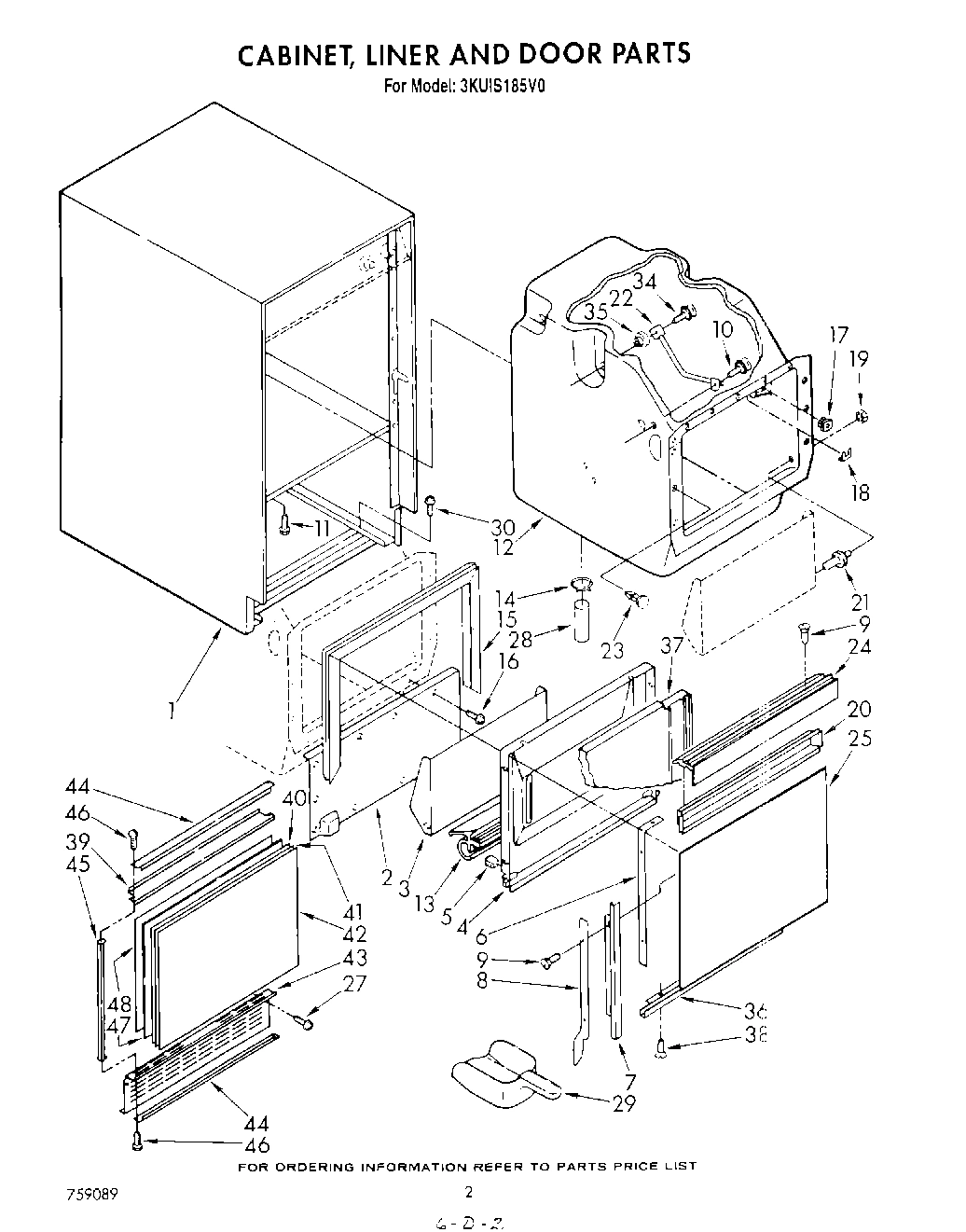

02 - UNIT
04 - PUMP
Common parts from model Whirlpool 3KUIS185V0 ICE MACHINE
WPL 206925 WPL 206925 Contact Us For Availability
WPL 758840 WPL 758840 Contact Us For Availability
WPL LIT758801 WPL LIT758801 Contact Us For Availability
WPL LIT759087 WPL LIT759087 Contact Us For Availability
WPL LIT759088 WPL LIT759088 Contact Us For Availability
WPL LIT759089 WPL LIT759089 Contact Us For Availability
1
Shroud WPL 757955 Contact Us For Availability
1
Shell WPL 758908 Contact Us For Availability
1
Plug, Pump WPL 569434 Contact Us For Availability
2
Transformer WPL 758309 Contact Us For Availability
2
Front, Shell WPL 758652 Contact Us For Availability
2
Cover, Plug WPL 756124 Contact Us For Availability
3
Escutcheon, Panel WPL 756664 Contact Us For Availability
3
Door, Inner Bin WPL 756330 Contact Us For Availability
3
Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability
4
Motor, Fan WPL 593821 Contact Us For Availability
4
Switch, Service WPL 593139 Contact Us For Availability
4
Liner, Door WPL 758655 Contact Us For Availability
4
Housing, Motor WPL 583155 Contact Us For Availability
5
Bracket WPL 560817 Contact Us For Availability
5
Bracket, Control WPL 756341 Contact Us For Availability
5
Plug, Hinge WPL 593192 Contact Us For Availability
5
Blade, Fan WPL 587096 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (5) WPL 681305 Contact Us For Availability
6
Strip, Tapping (2) WPL 593104 Contact Us For Availability
6
Motor, Pump WPL 756951 Contact Us For Availability
7
Compressor WPL 598814 Contact Us For Availability
7
Trim, Door (2) WPL 758748 Contact Us For Availability
7
Washer WPL 593060 Contact Us For Availability
8
Screw (4) WPL 680233 Contact Us For Availability
8
Rail, R.S. WPL 593184 Contact Us For Availability
8
Rail, L.S. WPL 593185 Contact Us For Availability
8
Bracket, Pump WPL 756122 Contact Us For Availability
9
Washer (4) WPL 595230 Contact Us For Availability
9
Escutcheon WPL 758569 Contact Us For Availability
9
Screw, 8-32 x 1/2 (6) WPL 681459 Contact Us For Availability
9
Grommet (2) WPL 596016 Contact Us For Availability
10
Sleeve (4) WPL 585564 Contact Us For Availability
10
Decal, Escutcheon WPL 758726 Contact Us For Availability
10
Thumbscrew WPL 680930 Contact Us For Availability
10
Sleeve WPL 593229 Contact Us For Availability
11
Thermostat, Evaporator WPL 598235 Contact Us For Availability
11
Grommet (4) WPL 596355 Contact Us For Availability
11
Screw, Ground WPL 681036 Contact Us For Availability
12
Spacer, (2) Water Valve WPL 758737 Contact Us For Availability
12
Thermostat, Bin Control WPL 759141 Contact Us For Availability
12
Liner (Includes Illus. 17, 18, 19, 20 & 21) WPL 756350 Contact Us For Availability
12
Pump, Water (Complete Assembly) WPL 757413 Contact Us For Availability
13
Shelf, Water Pan WPL 585853 Contact Us For Availability
13
Gasket, Bottom WPL 758169 Contact Us For Availability
13
Pump, Assembly WPL 583518 Contact Us For Availability
14
Nut, Acorn (3) WPL 681770 Contact Us For Availability
14
Washer, WPL 681245 Contact Us For Availability
14
Clamp, Coil Retainer WPL 564234 Contact Us For Availability
14
Clamp (2) WPL 596023 Contact Us For Availability
14
Impeller (Includes Retaining Ring 15) WPL 569513 Contact Us For Availability
15
Hose, Overflow WPL 593369 Contact Us For Availability
15
Coil, Solenoid WPL 593639 Contact Us For Availability
15
Gasket WPL 756663 Contact Us For Availability
15
Ring, Retaining WPL 681301 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
16
Valve, Body WPL 598086 Contact Us For Availability
17
Screw, 1/4 x 20 x 1 3/4 WPL 681688 Contact Us For Availability
17
Grommet WPL 596807 Contact Us For Availability
18
Insulator (38) WPL 598277 Contact Us For Availability
18
Overload WPL 598196 Contact Us For Availability
18
Washer WPL 758492 Contact Us For Availability
19
Cord, Grid WPL 587639 Contact Us For Availability
19
Harness, Grid WPL 757464 Contact Us For Availability
19
Nut, 1/4 Hex WPL 681542 Contact Us For Availability
20
Clamp WPL 587662 Contact Us For Availability
20
Relay WPL 598195 Contact Us For Availability
20
Knob (2) WPL 758711 Contact Us For Availability
20
Pocket, Handle WPL 758752 Contact Us For Availability
21
Nut, Hex 10-32 WPL 681676 Contact Us For Availability
21
Case WPL 549945 Contact Us For Availability
21
Latch WPL 593179 Contact Us For Availability
21
Stud (2) WPL 758220 Contact Us For Availability
22
Spring, Relay Case WPL 531318 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 595142 Contact Us For Availability
22
Well, Bin Thermostat WPL 593183 Contact Us For Availability
23
Clip, Panel (12) WPL 596812 Contact Us For Availability
24
Condenser WPL 756299 Contact Us For Availability
24
Nameplate WPL 1107298 Contact Us For Availability
24
Handle, Recessed WPL 758622 Contact Us For Availability
25
Shield Clamp WPL 758489 Contact Us For Availability
25
Panel, Exterior (Toast & Platinum) WPL 758740 Contact Us For Availability
25
Panel, Exterior (Almond & Harvest Gold) WPL 758745 Contact Us For Availability
25
Panel, Exterior (White & Black) WPL 758746 Contact Us For Availability
26
Harness, Coil WPL 587971 Contact Us For Availability
26
Harness Clamp WPL 758488 Contact Us For Availability
27
Deflector, Front WPL 758811 Contact Us For Availability
27
Bracket Clamp WPL 758490 Contact Us For Availability
27
Screw, 8-32 x 3/8 WPL 489016 Contact Us For Availability
28
Frame, Grid (Not A Service Item) WPL 758458 Contact Us For Availability
28
Light Bulb WPL 745362 Contact Us For Availability
28
Connector, Hose WPL 593577 Contact Us For Availability
29
Pin (17) WPL 587111 Contact Us For Availability
30
Pin (4) WPL 587112 Contact Us For Availability
30
Screw, 10-32 x 3/8 WPL 680811 Contact Us For Availability
30
Base, Unit WPL 758810 Contact Us For Availability
31
Plug, Fan Motor WPL 585219 Contact Us For Availability
32
Washer, Conical (Included With Fan Motor) WPL 681650 Contact Us For Availability
33
Clip (19) WPL 564072 Contact Us For Availability
33
Screw, 8-36 x 1/2 (Included With Fan Motor) WPL 681656 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 681419 Contact Us For Availability
34
Lock Washer WPL 595837 Contact Us For Availability
35
Screw, 10 - 32 x 3/8 WPL 681187 Contact Us For Availability
35
Well Nut (3) WPL 596715 Contact Us For Availability
36
Accumulator WPL 756298 Contact Us For Availability
36
Trim, Door (Lower) WPL 758400 Contact Us For Availability
37
Insulation, Door WPL 758608 Contact Us For Availability
38
Adapter (Supplied In Literature Package) WPL 533238 Contact Us For Availability
38
Screw WPL 681196 Contact Us For Availability
39
Wire, Grid Cutter (9) WPL 587503 Contact Us For Availability
39
Support, Front Panel WPL 758718 Contact Us For Availability
40
Wire, Grid Cutter (10) WPL 587504 Contact Us For Availability
40
White & Black Panel WPL 758720 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
41
Toast & Platinum Panel WPL 758721 Contact Us For Availability
42
Thumbscrew, 10-32 x 3/4 WPL 681534 Contact Us For Availability
42
Almond & Harvest Gold Panel WPL 758722 Contact Us For Availability
43
Pan WPL 756659 Contact Us For Availability
43
Grille, Front Panel WPL 758769 Contact Us For Availability
44
Trim Front, Panel (Top & Bottom) WPL 758717 Contact Us For Availability
45
Stopper, Water Pan WPL 593572 Contact Us For Availability
45
Trim Front, Panel (Side) WPL 758714 Contact Us For Availability
47
Filler, Panel WPL 758770 Contact Us For Availability
48
Ice Deflector Kit WPL 702354 Contact Us For Availability
48
Grid Assembly Complete (Standard Cube) WPL 758469 Contact Us For Availability
48
Grid Assembly Complete (Cubelets 3/4 x 3/4) WPL 758470 Contact Us For Availability
48
Panel, Inner WPL 758771 Contact Us For Availability
48
Leg Kit WPL 876649 Contact Us For Availability
× ![]()
