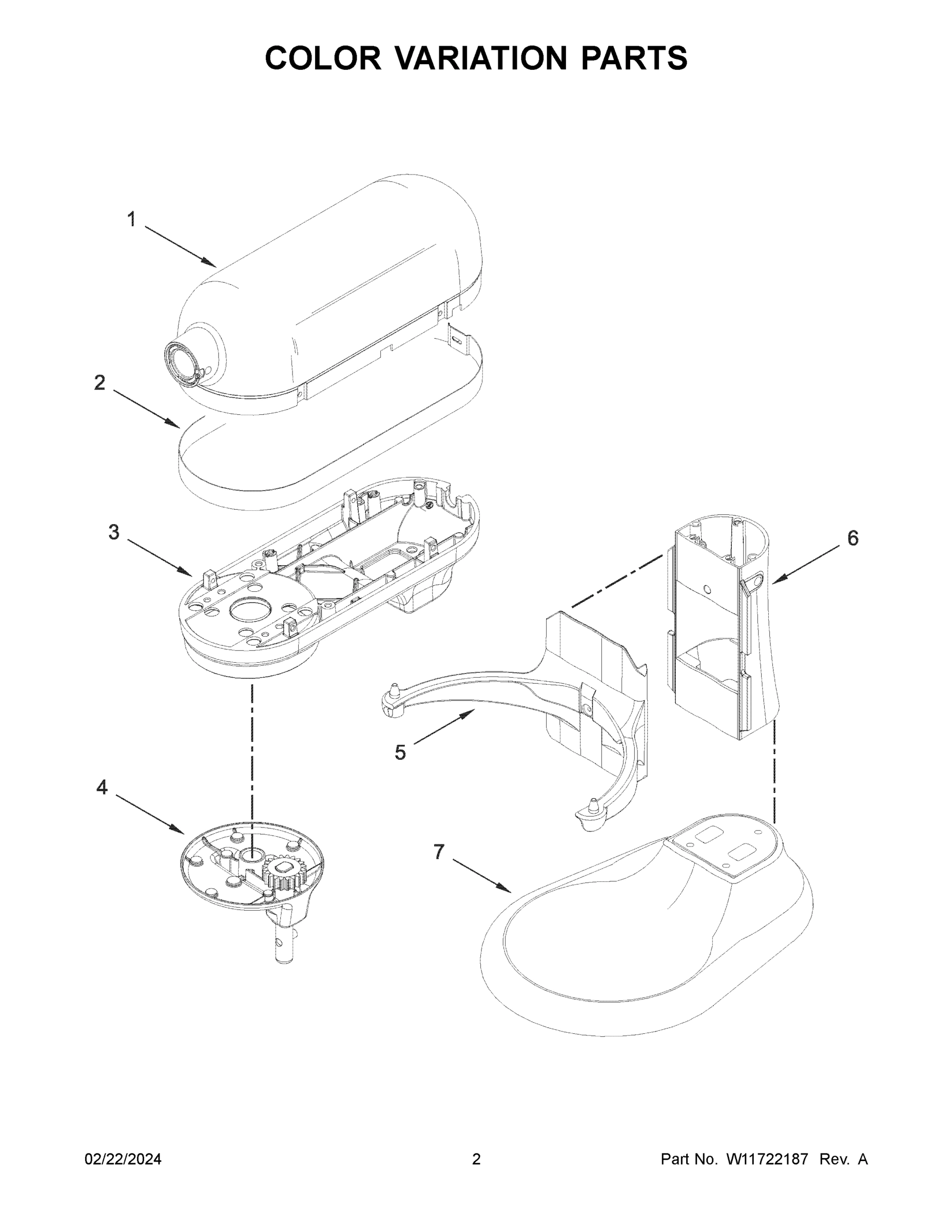

Model Whirlpool 3KSM60SPXTWH0 SMALL APPLIANCE, STAND MIXER – Common Parts & Diagrams

1
MOTOR HOUSING (EMPIRE RED)
MOTOR HOUSING (EMPIRE RED) WPL 9705300 Contact Us For Availability
View on Model
1
MOTOR HOUSING (REFER TO COLOR VARIATION PARTS
MOTOR HOUSING (REFER TO COLOR VARIATION PARTS WPL ARI04492D1CA31AFBFFD415C296C74FF36B Contact Us For Availability
View on Model
1
USE AND CARE GUIDE
USE AND CARE GUIDE WPL W11674259 Contact Us For Availability
View on Model
1A
MOTOR HOUSING (WHITE)
MOTOR HOUSING (WHITE) WPL 9703311 Contact Us For Availability
View on Model
2
CAP, ATTACHMENT HUB
CAP, ATTACHMENT HUB WPL W11618094 Contact Us For Availability
View on Model
3
TRIM BAND (REFER TO COLOR VARIATION PARTS PAG
TRIM BAND (REFER TO COLOR VARIATION PARTS PAG WPL ARIAF8C99319F4C5388B29C3E418839765F Contact Us For Availability
View on Model
3
BOWL, 6 QUART (BRUSHED)
BOWL, 6 QUART (BRUSHED) WPL W11512548 Contact Us For Availability
View on Model
5
THUMB SCREW (SATIN CHROME)
THUMB SCREW (SATIN CHROME) WPL W11521862 Contact Us For Availability
View on Model
5A
BOWL SUPPORT AND PINS (WHITE)
BOWL SUPPORT AND PINS (WHITE) WPL 9703674 Contact Us For Availability
View on Model
6
COLUMN AND PINS (EMPIRE RED)
COLUMN AND PINS (EMPIRE RED) WPL 9705324 Contact Us For Availability
View on Model
6
LOWER GEARCASE (REFER TO COLOR VARIATION PART
LOWER GEARCASE (REFER TO COLOR VARIATION PART WPL ARI8B12F47A83C5A0C26A834B1BD94F178F Contact Us For Availability
View on Model
6A
COLUMN AND PINS (WHITE)
COLUMN AND PINS (WHITE) WPL 9703673 Contact Us For Availability
View on Model
7
BASE & FOOT ASSEMBLY (EMPIRE RED)
BASE & FOOT ASSEMBLY (EMPIRE RED) WPL 9705348 Contact Us For Availability
View on Model
7
GEAR, RING AND PLATE ASSEMBLY
GEAR, RING AND PLATE ASSEMBLY WPL W11454895 Contact Us For Availability
View on Model
7
BOWL SUPPORT AND PINS (REFER TO COLOR VARIATI
BOWL SUPPORT AND PINS (REFER TO COLOR VARIATI WPL ARI076B01BEA270342FDB92AA0E5FF08C8B Contact Us For Availability
View on Model
7A
BASE & FOOT ASSEMBLY (WHITE)
BASE & FOOT ASSEMBLY (WHITE) WPL 9703690 Contact Us For Availability
View on Model
8
BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIAT
BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIAT WPL ARIE3AF1D82A6A4B7D31EBF980CFE7ECCF0 Contact Us For Availability
View on Model
10
MOTOR, 127 VOLT ASSEMBLY
MOTOR, 127 VOLT ASSEMBLY WPL W11480078 Contact Us For Availability
View on Model
11
ROD, BOWL LIFT
ROD, BOWL LIFT WPL W11376364 Contact Us For Availability
View on Model
12
CONTROL ASSEMBLY (127V)
CONTROL ASSEMBLY (127V) WPL W11512560 Contact Us For Availability
View on Model
13
WASHER
WASHER WPL 9703439 Contact Us For Availability
View on Model
14
NUT
NUT WPL 8533907 Contact Us For Availability
View on Model
14
CORD, POWER (BLACK (TAIWAN))
CORD, POWER (BLACK (TAIWAN)) WPL W11459239 Contact Us For Availability
View on Model
15
PLANETARY ASSEMBLY (REFER TO COLOR VARIATION
PLANETARY ASSEMBLY (REFER TO COLOR VARIATION WPL ARI2C54D97F5D296EF7DCEE4AED6DC7F137 Contact Us For Availability
View on Model
15
COLUMN AND PINS (REFER TO COLOR VARIATION PAR
COLUMN AND PINS (REFER TO COLOR VARIATION PAR WPL ARI7F9307B0DB26E620901A15CA7C80E553 Contact Us For Availability
View on Model
16
BEATER, FLAT (SILENT SILVER)
BEATER, FLAT (SILENT SILVER) WPL W11571991 Contact Us For Availability
View on Model
17
PLATE, LOWER HOUSING
PLATE, LOWER HOUSING WPL W11560130 Contact Us For Availability
View on Model
17
HOOK, DOUGH (SILENT SILVER)
HOOK, DOUGH (SILENT SILVER) WPL W11571994 Contact Us For Availability
View on Model
18
SCREW
SCREW WPL W10419037 Contact Us For Availability
View on Model
20
CAM, ADJUSTING
CAM, ADJUSTING WPL 9703426 Contact Us For Availability
View on Model
22
HANDLE, BOWL LIFT
HANDLE, BOWL LIFT WPL W11376371 Contact Us For Availability
View on Model
23
CAP, HANDLE
CAP, HANDLE WPL W11421150 Contact Us For Availability
View on Model
24
SHIELD, POURING (WIDE)
SHIELD, POURING (WIDE) WPL W11385624 Contact Us For Availability
View on Model
