Model Whirlpool 3HKGN500002 REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
WPL  LIT2165200
WPL LIT2165200 WPL LIT2165200 Contact Us For Availability
View on Model
WPL  LIT2165202
WPL LIT2165202 WPL LIT2165202 Contact Us For Availability
View on Model
1

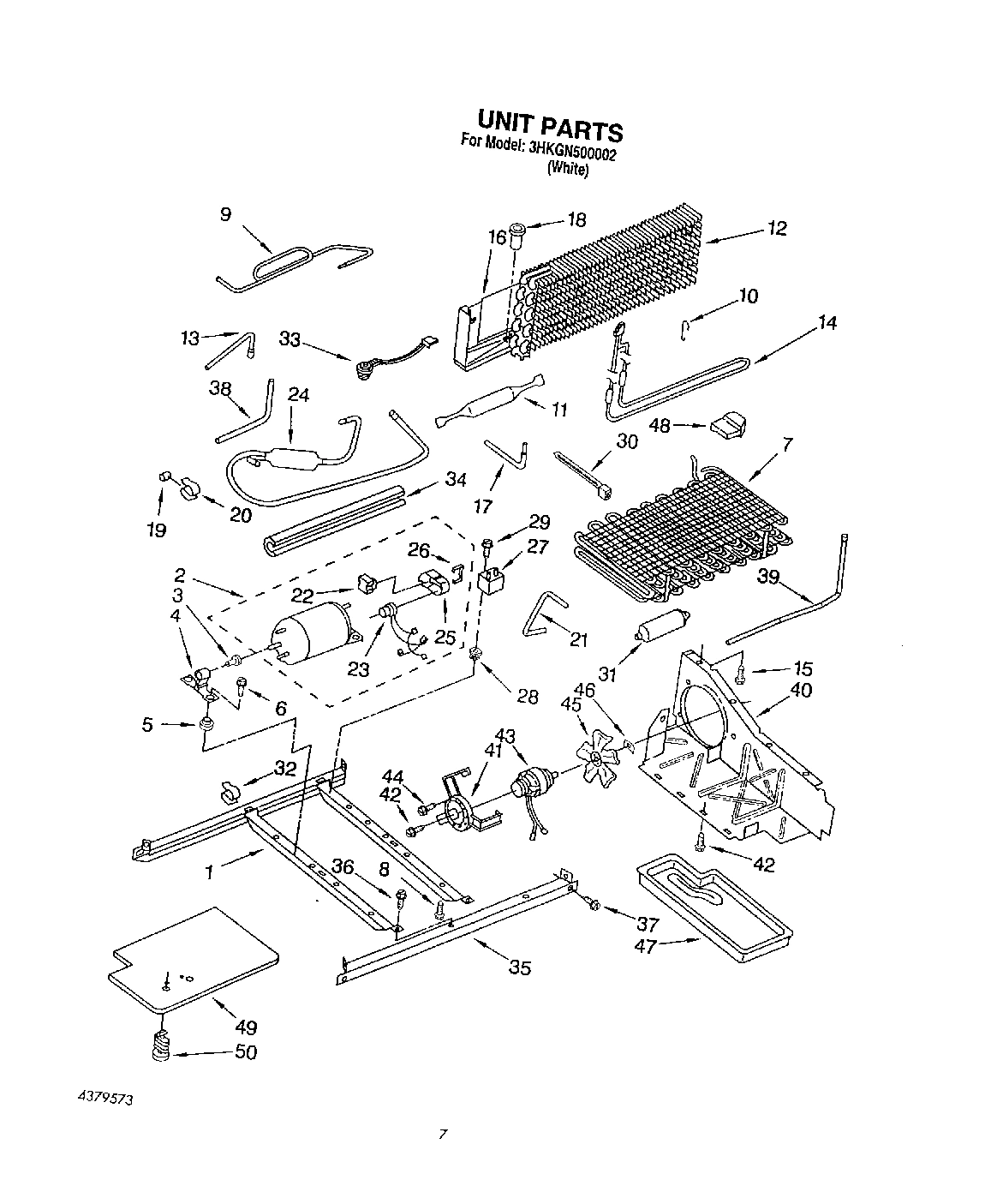

Unit, Frame
Unit, Frame WPL 2159747 Contact Us For Availability
View on Model
1

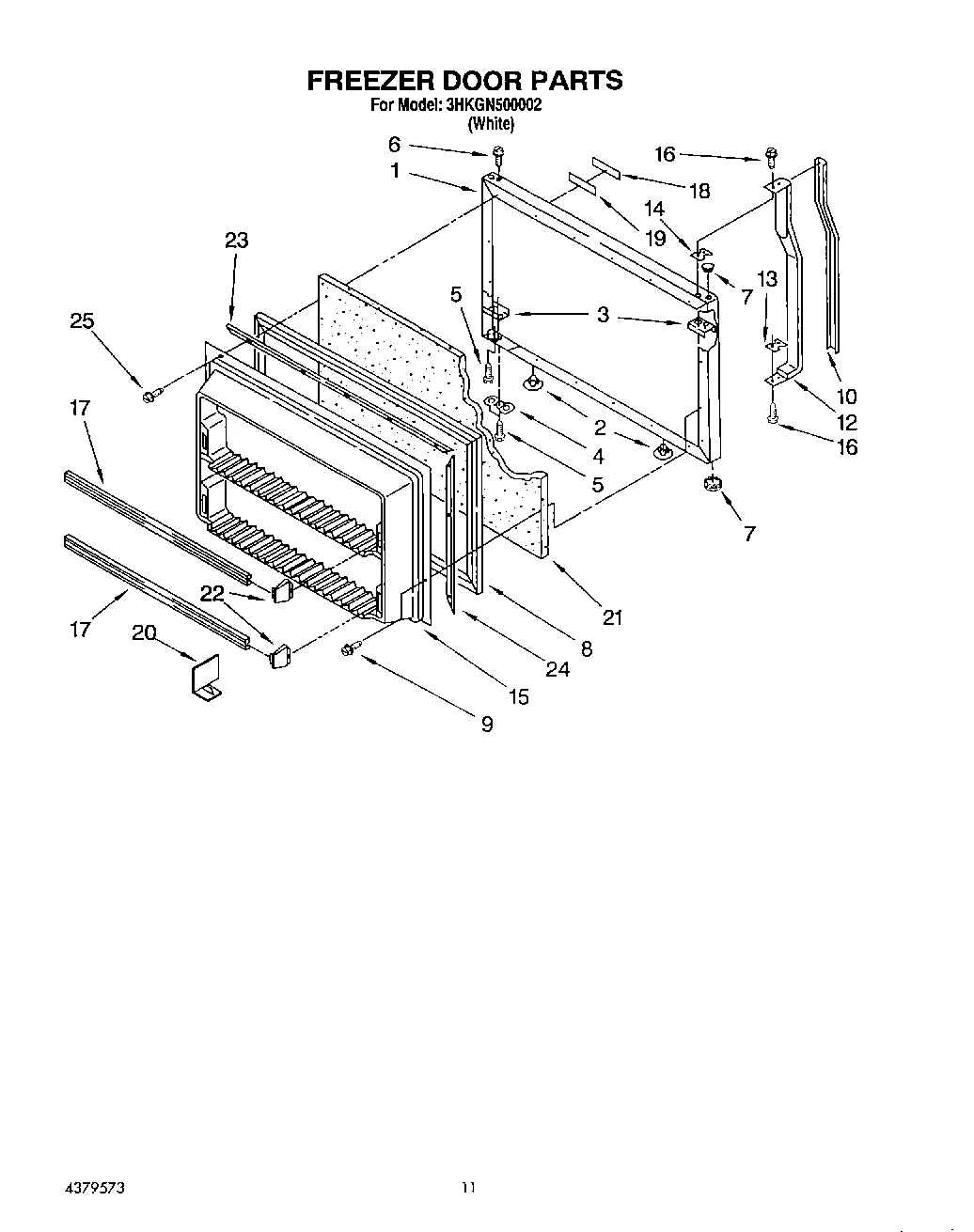

Panel, Freezer Door (Also Order Item 21) (Whi
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
View on Model
1
Shelf, Ladder (2)
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
View on Model
1

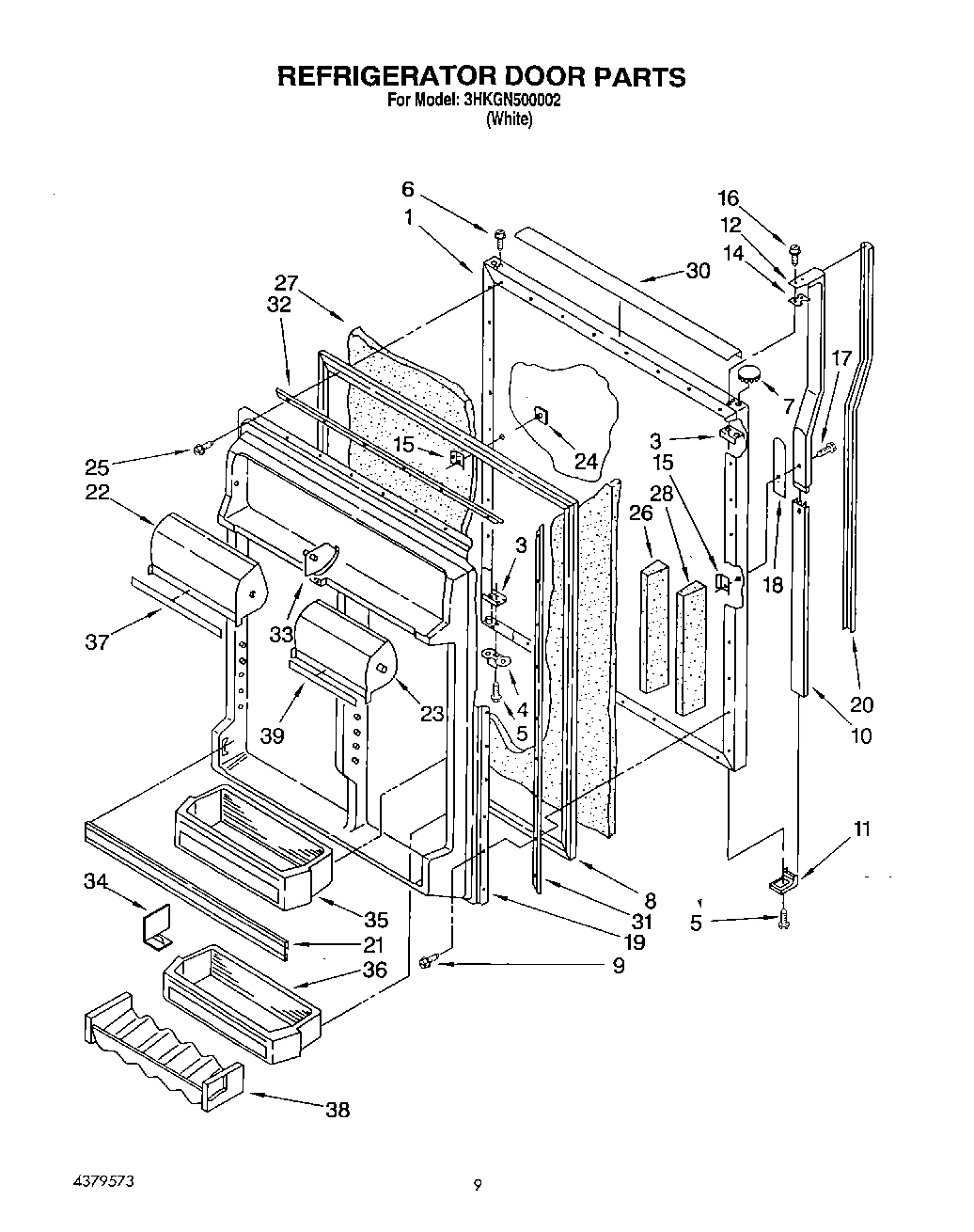

Panel, Refrigerator Door (Also Order Item 27)
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
View on Model
1

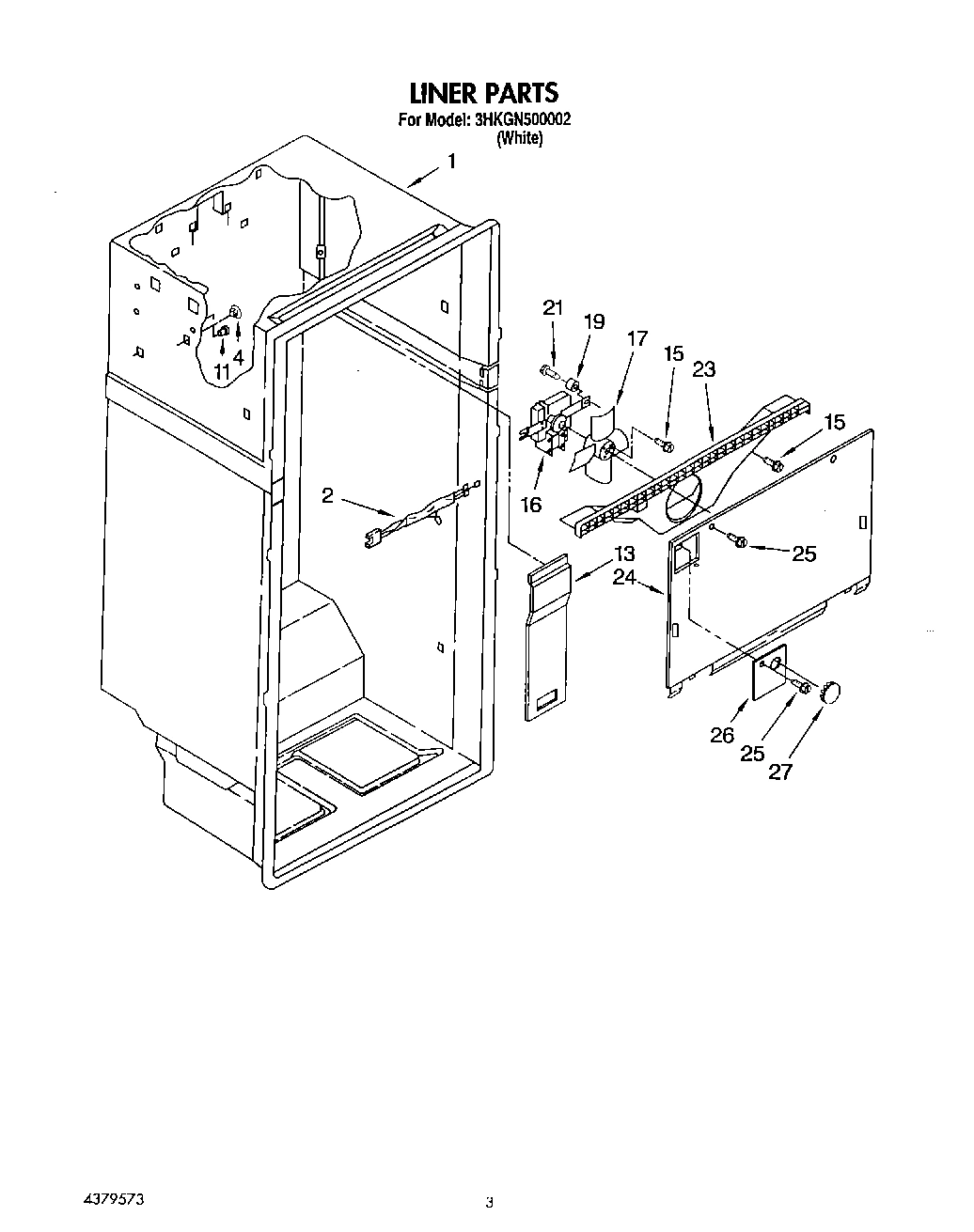

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI12171A5 Contact Us For Availability
View on Model
2
Wiring, Fan Motor
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
View on Model
2
Compressor Kit Includes Items (22, 23, 25, 26
Compressor Kit Includes Items (22, 23, 25, 26 WPL 2154613 Contact Us For Availability
View on Model
2
Hole Plug (2)
Hole Plug (2) WPL 534927 Contact Us For Availability
View on Model
2
Shelf, Ladder Center
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
View on Model
3
Grommet, Compressor Bracket
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
View on Model
4
Bracket, Mounting
Bracket, Mounting WPL 1105220 Contact Us For Availability
View on Model
4
Bracket, Door Stop
Bracket, Door Stop WPL 944035 Contact Us For Availability
View on Model
4
Bracket, Door Stop
Bracket, Door Stop WPL 944036 Contact Us For Availability
View on Model
5
Grommet, Compressor
Grommet, Compressor WPL 1105200 Contact Us For Availability
View on Model
5
Screw,
Screw, WPL 489345 Contact Us For Availability
View on Model
6
Screw
Screw WPL 489334 Contact Us For Availability
View on Model
7
Condenser Assembly
Condenser Assembly WPL 2154008 Contact Us For Availability
View on Model
7
Shelf, Cantilever (4)
Shelf, Cantilever (4) WPL 1126187 Contact Us For Availability
View on Model
8
Door Gasket Magnetic
Door Gasket Magnetic WPL 1116735 Contact Us For Availability
View on Model
8
Door Gasket, Magnetic
Door Gasket, Magnetic WPL 1116734 Contact Us For Availability
View on Model
9
Tube, Discharge
Tube, Discharge WPL 2158994 Contact Us For Availability
View on Model
9
Crisper Cover
Crisper Cover WPL 2165382 Contact Us For Availability
View on Model
10
Support, Heater
Support, Heater WPL 2149120 Contact Us For Availability
View on Model
10
Insert, Handle (White)
Insert, Handle (White) WPL 2161540 Contact Us For Availability
View on Model
10
Gasket, Cover (Front) (2)
Gasket, Cover (Front) (2) WPL 1116713 Contact Us For Availability
View on Model
10
Retainer, Insert
Retainer, Insert WPL 1125879 Contact Us For Availability
View on Model
11
Knob, Thermostat
Knob, Thermostat WPL 2168905 Contact Us For Availability
View on Model
11
Glass, Cover
Glass, Cover WPL 1125844 Contact Us For Availability
View on Model
11
Handle End Cap
Handle End Cap WPL 1107236 Contact Us For Availability
View on Model
11
Grommet (4)
Grommet (4) WPL 1110779 Contact Us For Availability
View on Model
12
Evaporator
Evaporator WPL 2153977 Contact Us For Availability
View on Model
12
Handle Assembly
Handle Assembly WPL 2161517 Contact Us For Availability
View on Model
12
Pan Shelf, Cantilever
Pan Shelf, Cantilever WPL 1126189 Contact Us For Availability
View on Model
12
Handle Assembly
Handle Assembly WPL 2161508 Contact Us For Availability
View on Model
13
Light, Bar
Light, Bar WPL 1105475 Contact Us For Availability
View on Model
13
Tube, Process
Tube, Process WPL 2154090 Contact Us For Availability
View on Model
13
Gasket, Cover (Rear) (2)
Gasket, Cover (Rear) (2) WPL 1116714 Contact Us For Availability
View on Model
13
Cover, Air Duct
Cover, Air Duct WPL 2153966 Contact Us For Availability
View on Model
14
Knob, Air Control
Knob, Air Control WPL 2168904 Contact Us For Availability
View on Model
14
Heater, Defrost
Heater, Defrost WPL 2158986 Contact Us For Availability
View on Model
14
Shim
Shim WPL 2151813 Contact Us For Availability
View on Model
14
Spacer, Handle
Spacer, Handle WPL 1107628 Contact Us For Availability
View on Model
14
Trim, Cover
Trim, Cover WPL 2172715 Contact Us For Availability
View on Model
15
Light, Bar
Light, Bar WPL 1105476 Contact Us For Availability
View on Model
15
Interior Door Panel
Interior Door Panel WPL 1116610 Contact Us For Availability
View on Model
16
Rod, Connecting
Rod, Connecting WPL 1116565 Contact Us For Availability
View on Model
16
Drain Pan & Heat Shield
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
View on Model
16
Glass, Shelf (5)
Glass, Shelf (5) WPL 1126194 Contact Us For Availability
View on Model
16
Motor, Fan
Motor, Fan WPL 2169115 Contact Us For Availability
View on Model
17
Air Diffuser Assembly
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
View on Model
17
Tube, Process
Tube, Process WPL 2154040 Contact Us For Availability
View on Model
17
Trim, Door Shelf (2)
Trim, Door Shelf (2) WPL 1125866 Contact Us For Availability
View on Model
17
Shelf, Freezer
Shelf, Freezer WPL 1125849 Contact Us For Availability
View on Model
18
Gasket, Air Diffuser
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
View on Model
18
Drain Fitting
Drain Fitting WPL 2172811 Contact Us For Availability
View on Model
18
Nameplate
Nameplate WPL 2165028 Contact Us For Availability
View on Model
18
Spacer, Handle
Spacer, Handle WPL 1107650 Contact Us For Availability
View on Model
19
Cover, Air Diffuser
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
View on Model
19
Tape Strip
Tape Strip WPL 991259 Contact Us For Availability
View on Model
19
Pan, Crisper
Pan, Crisper WPL 2162720 Contact Us For Availability
View on Model
19
Interior Door Panel
Interior Door Panel WPL 2157384 Contact Us For Availability
View on Model
19
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
20
Pan, Meat
Pan, Meat WPL 2162719 Contact Us For Availability
View on Model
20
Insert, Handle (White)
Insert, Handle (White) WPL 2161511 Contact Us For Availability
View on Model
21
Tube, Muffler & Reservoir
Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability
View on Model
21
Trim, Door Shelf
Trim, Door Shelf WPL 1125857 Contact Us For Availability
View on Model
21
Screw
Screw WPL 489168 Contact Us For Availability
View on Model
22
Wiring Assembly, Control Box
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
View on Model
22
Relay
Relay WPL 2154612 Contact Us For Availability
View on Model
22
Compartment Door, Utility
Compartment Door, Utility WPL 1126234 Contact Us For Availability
View on Model
23
Gasket, Bottom Separator
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
View on Model
23
Overload (Service)
Overload (Service) WPL 2156479 Contact Us For Availability
View on Model
23
Overload (Production)
Overload (Production) WPL 2158566 Contact Us For Availability
View on Model
23
Compartment Door, Butter
Compartment Door, Butter WPL 1126233 Contact Us For Availability
View on Model
23
Scroll, Fan
Scroll, Fan WPL 1116598 Contact Us For Availability
View on Model
24
Tube and Muffler Assembly
Tube and Muffler Assembly WPL 2159588 Contact Us For Availability
View on Model
24
Retainer, Gasket Side (2)
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
View on Model
24
Evaporator Cover
Evaporator Cover WPL 2151668 Contact Us For Availability
View on Model
25
Clip, Thermostat Tube Retention
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
View on Model
25
Terminal Cover
Terminal Cover WPL 1105221 Contact Us For Availability
View on Model
25
Gasket, Shelf
Gasket, Shelf WPL 1126192 Contact Us For Availability
View on Model
26
Insulation, Filler
Insulation, Filler WPL 1108196 Contact Us For Availability
View on Model
26
Strap, Cover
Strap, Cover WPL 1105222 Contact Us For Availability
View on Model
26
Door Dike, Center
Door Dike, Center WPL 2157385 Contact Us For Availability
View on Model
27
Insulation, Compartment Separator
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
View on Model
27
Running Capacitor
Running Capacitor WPL 2154615 Contact Us For Availability
View on Model
27
Retainer, Shelf
Retainer, Shelf WPL 1118119 Contact Us For Availability
View on Model
27
Hole Plug
Hole Plug WPL 1103725 Contact Us For Availability
View on Model
28
Wire Assembly
Wire Assembly WPL 2154921 Contact Us For Availability
View on Model
28
Screw Grommet
Screw Grommet WPL 509812 Contact Us For Availability
View on Model
28
Front, Pan
Front, Pan WPL 2148573 Contact Us For Availability
View on Model
28
Door Dike, Side (2)
Door Dike, Side (2) WPL 1118007 Contact Us For Availability
View on Model
29
Slide, Front
Slide, Front WPL 2148524 Contact Us For Availability
View on Model
30
Divider
Divider WPL 1125542 Contact Us For Availability
View on Model
30
Trim, Door
Trim, Door WPL 1126013 Contact Us For Availability
View on Model
31
Reservoir
Reservoir WPL 2169343 Contact Us For Availability
View on Model
31
Shelf, Ice Tray
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
View on Model
31
Retainer, Gasket Side (2)
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
View on Model
32
Clip, Wire
Clip, Wire WPL 548745 Contact Us For Availability
View on Model
32
Retainer, Gasket Top & Bottom
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
View on Model
33
Separator, Compartment (Top)
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
View on Model
33
Support, Stud
Support, Stud WPL 946355 Contact Us For Availability
View on Model
34
Divider, Door Shelf
Divider, Door Shelf WPL 1123293 Contact Us For Availability
View on Model
34
Shelf Stud
Shelf Stud WPL 946356 Contact Us For Availability
View on Model
35
Cup, Drain
Cup, Drain WPL 937065 Contact Us For Availability
View on Model
35
Unit, Rail
Unit, Rail WPL 1116622 Contact Us For Availability
View on Model
35
Shelf Bin, Deep (2)
Shelf Bin, Deep (2) WPL 1125862 Contact Us For Availability
View on Model
36
Shelf Bin (2)
Shelf Bin (2) WPL 1125863 Contact Us For Availability
View on Model
37
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
37
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
37
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
37
Bracket, Control Knob
Bracket, Control Knob WPL 1105457 Contact Us For Availability
View on Model
37
Screw
Screw WPL 489162 Contact Us For Availability
View on Model
37
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
37
KIT, EVAPORATOR REPAIR (A
KIT, EVAPORATOR REPAIR (A WPL 799833 Contact Us For Availability
View on Model
37
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
37
Trim, Compartment
Trim, Compartment WPL 1121186 Contact Us For Availability
View on Model
38
Tube, Condenser To Heat Loop
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
View on Model
38
Wine & Egg Rack
Wine & Egg Rack WPL 1125913 Contact Us For Availability
View on Model
39
Tube, Reservoir & Heat Exchanger
Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability
View on Model
39
Trim, Comp. Door Door
Trim, Comp. Door Door WPL 2148588 Contact Us For Availability
View on Model
40
Air, Baffle
Air, Baffle WPL 2169432 Contact Us For Availability
View on Model
41
Fan, Mounting Bracket
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
View on Model
45
Fan Blade
Fan Blade WPL 2169191 Contact Us For Availability
View on Model
47
Tray, Evaporator
Tray, Evaporator WPL 1116604 Contact Us For Availability
View on Model
48
Wedge, Air Baffle
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
View on Model
49
Cover, Unit Bottom
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
View on Model
50
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
50
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
