Model Whirlpool 3ET22RKXZW00 REFRIGERATOR – Common Parts & Diagrams

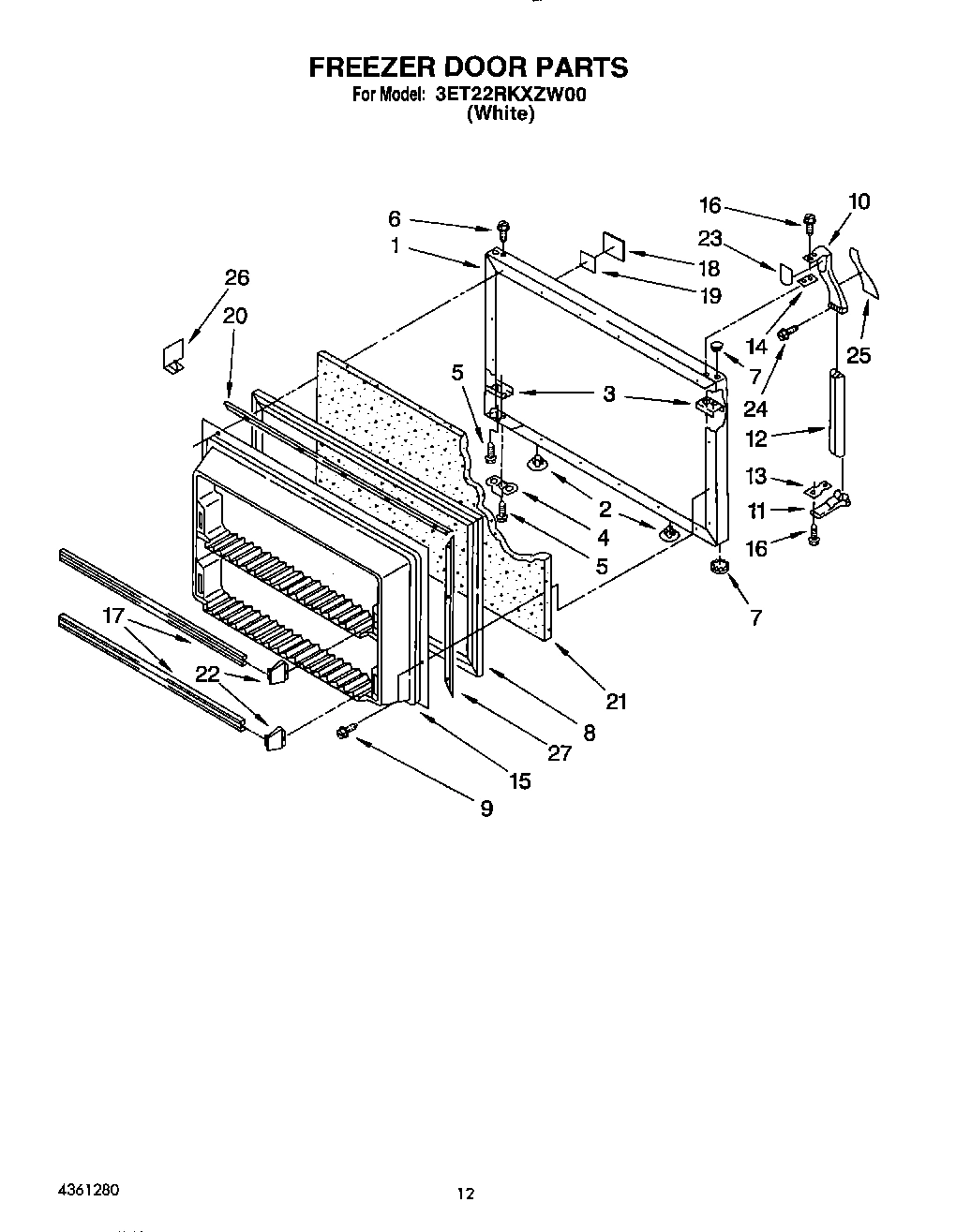

08 - FREEZER DOOR

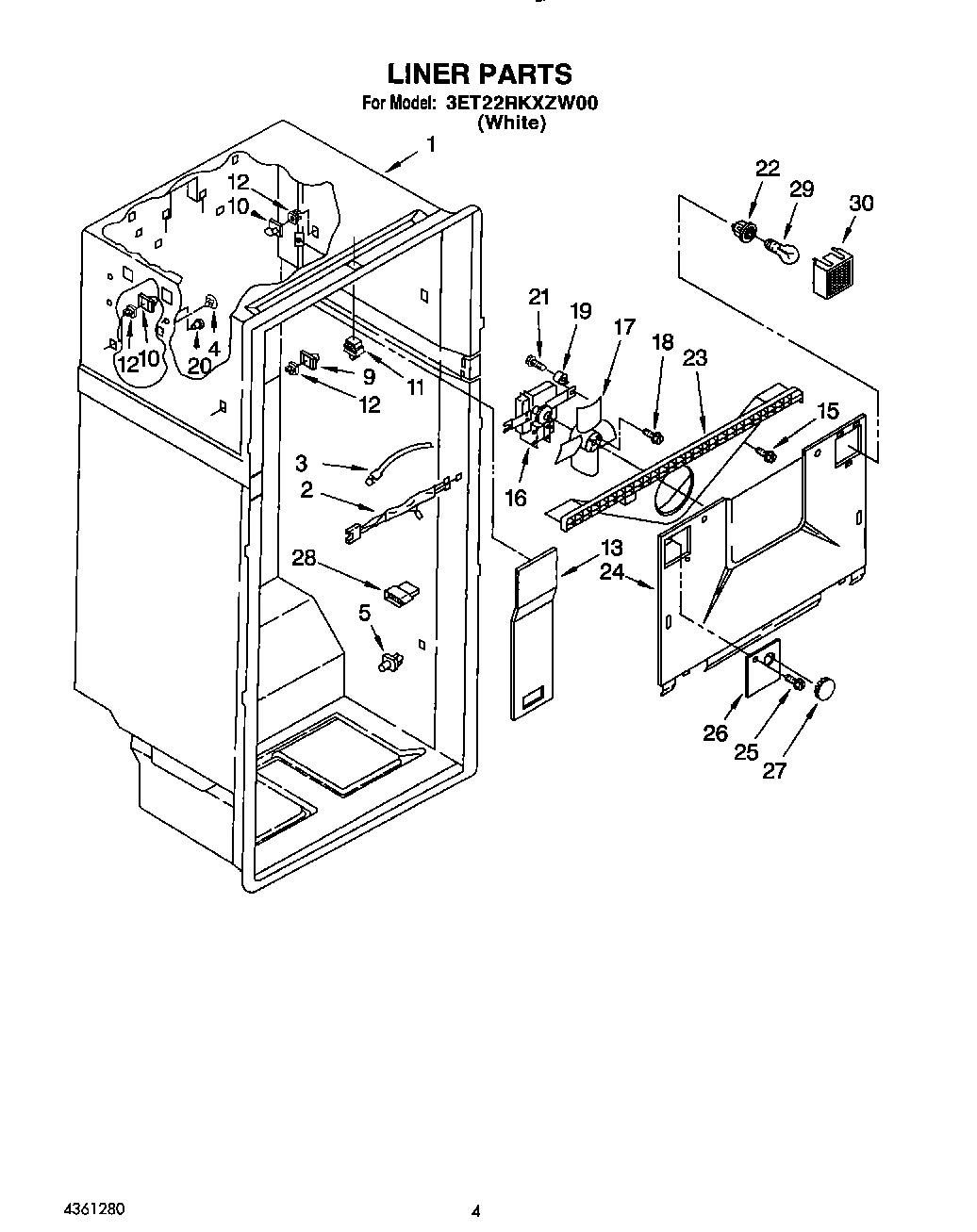

03 - LINER

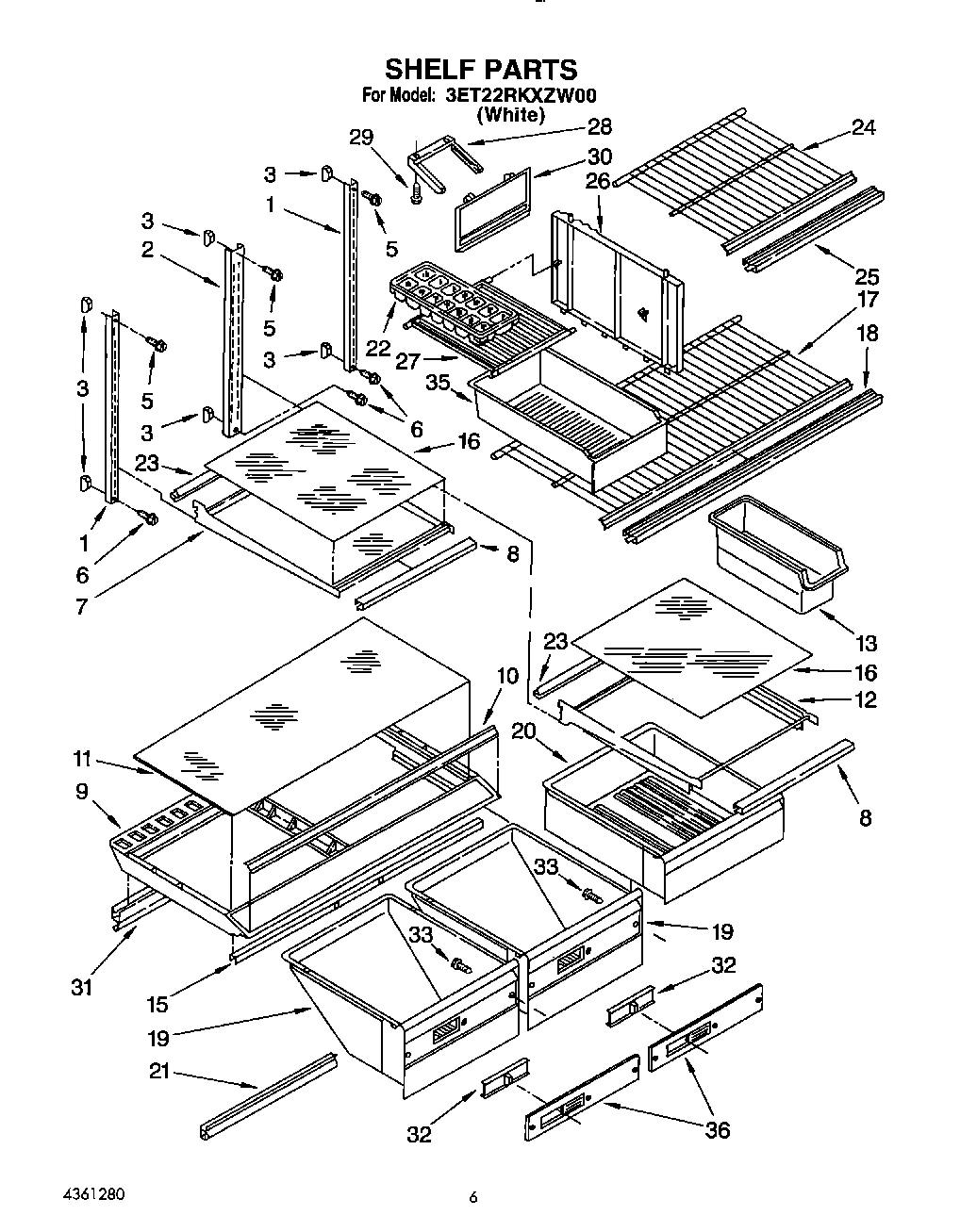

05 - SHELF, LIT/OPTIONAL

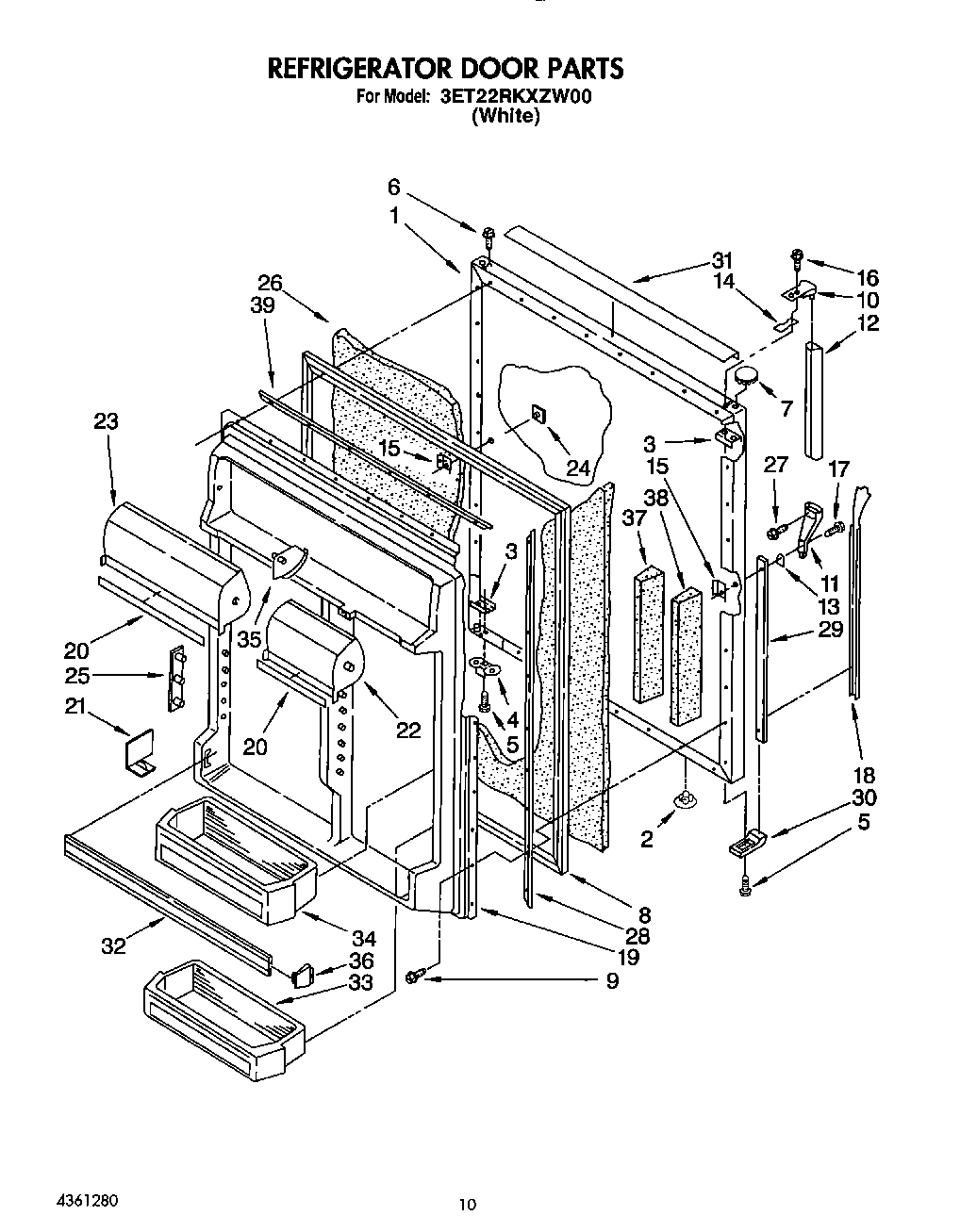

07 - REFRIGERATOR DOOR

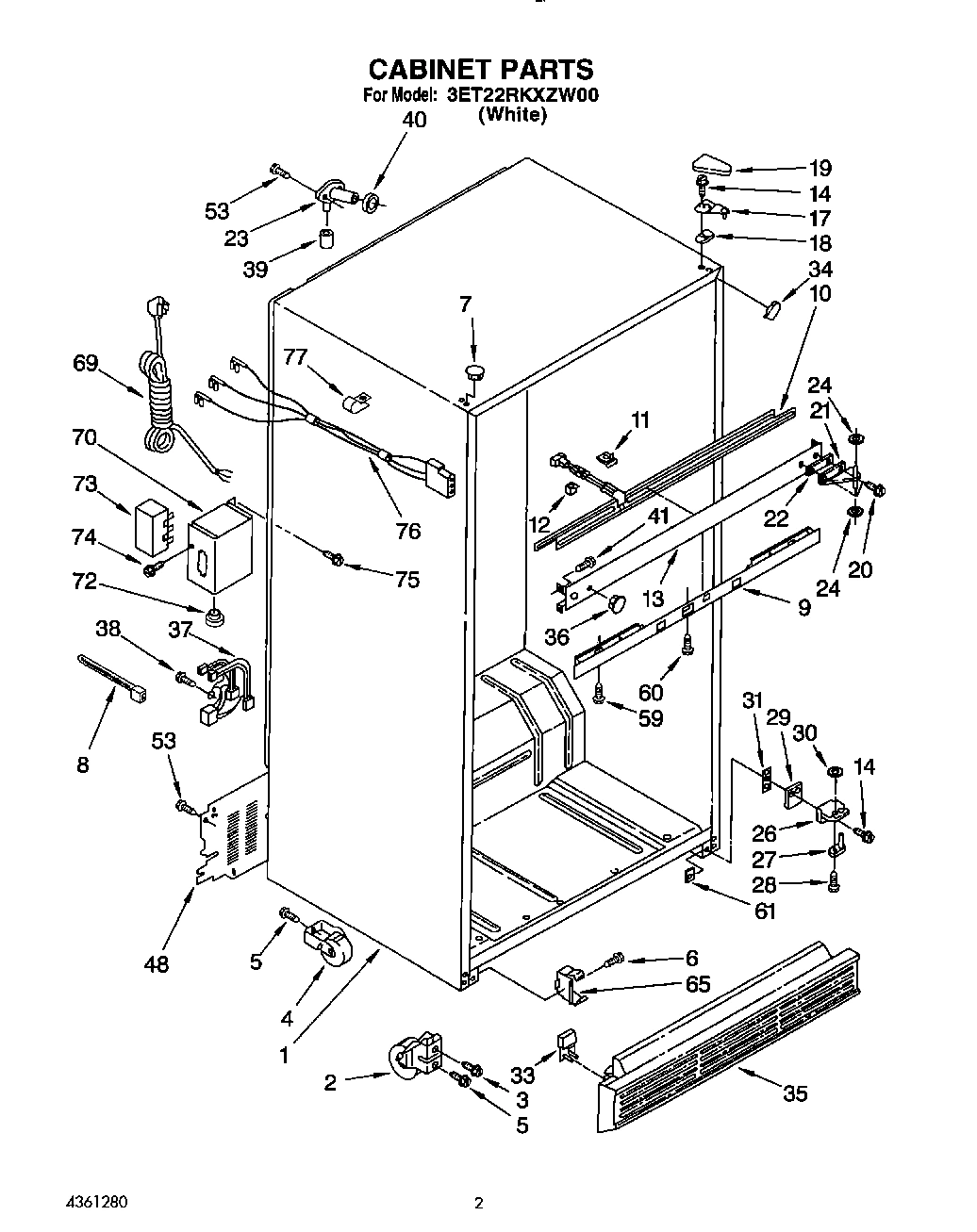

02 - CABINET

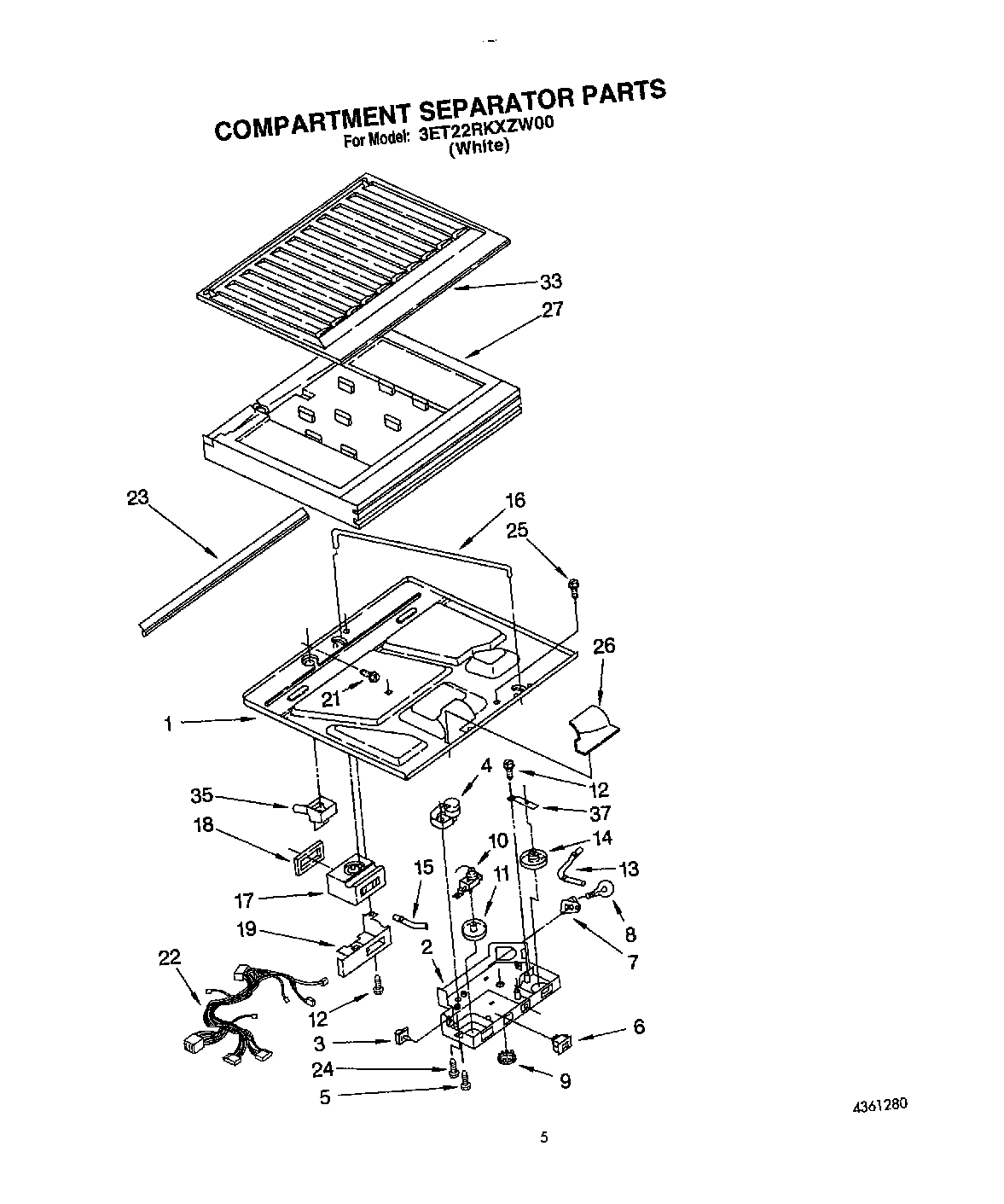

04 - COMPARTMENT SEPARATOR

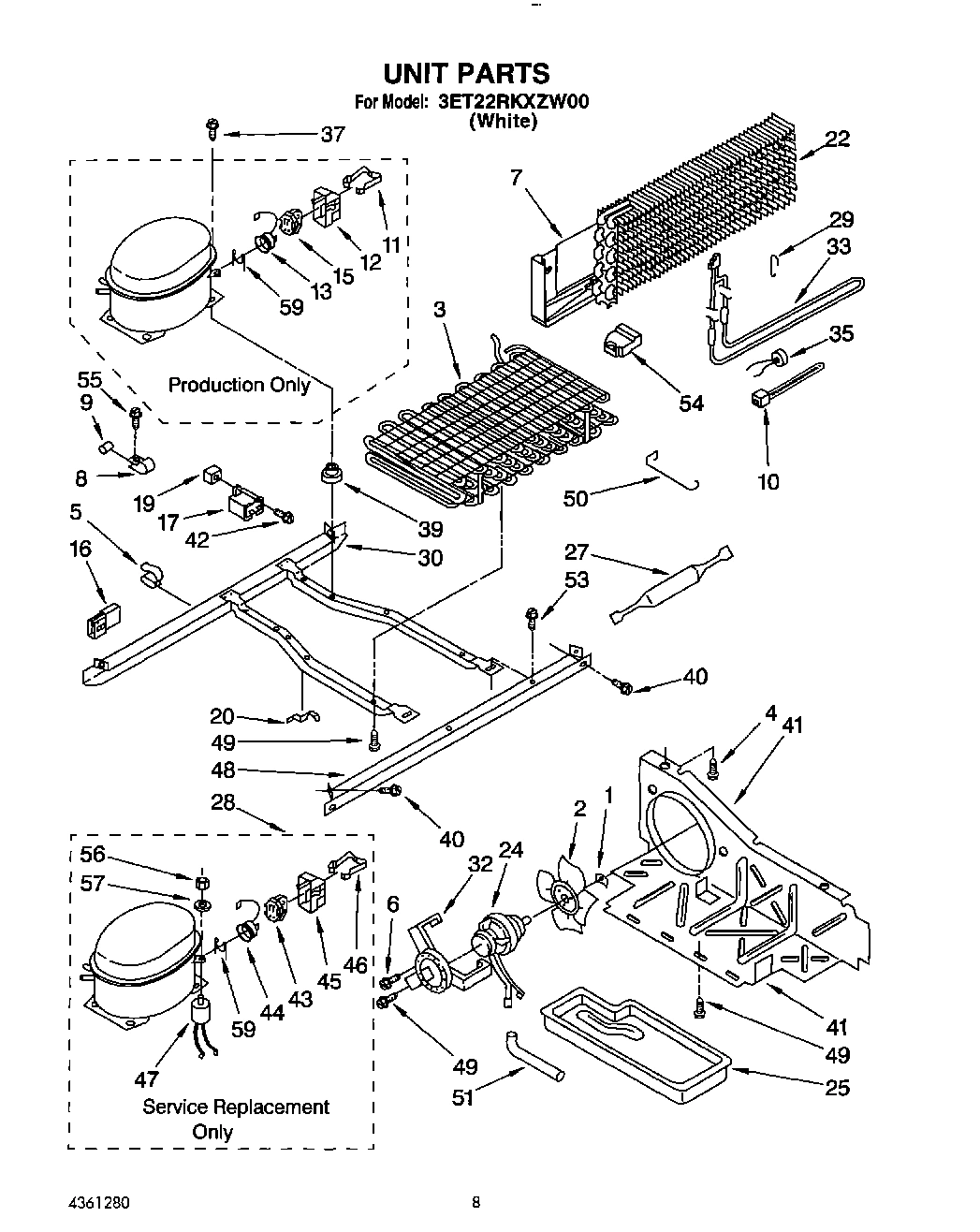

06 - UNIT
Common parts from model Whirlpool 3ET22RKXZW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 26) WPL 1122549 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI12164A4 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1105452 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1110739 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Trim, Shelf WPL 2148526 Contact Us For Availability
8
Tube Clamp (2) WPL 510716 Contact Us For Availability
9
Control, Front Cover WPL 2148533 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Trim, Crisper Cover WPL 1119480 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 2158635 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124553 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
12
Handle, Center WPL 2150150 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Overload WPL 2158785 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Glass, Shelf WPL 1124554 Contact Us For Availability
16
Rod, Connecting WPL 1105460 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157256 Contact Us For Availability
18
Trim, Shelf Front WPL 2148535 Contact Us For Availability
18
Insert, Handle WPL 2150153 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Pan, Crisper WPL 2148522 Contact Us For Availability
19
Interior Door Panel WPL 2156245 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Pan, Meat WPL 2148530 Contact Us For Availability
20
Trim, Door Compartment WPL 1122750 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability
21
Divider, Door Shelf WPL 2152335 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Compartment Door, Right Side WPL 2148807 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Reflector, Shelf WPL 1106768 Contact Us For Availability
23
Compartment Door, Left Side WPL 2148809 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability
25
Trim, Shelf WPL 2148537 Contact Us For Availability
25
Pin Plate (8) WPL 1116986 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Divider WPL 1127416 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Retainer, Gasket WPL 1122553 Contact Us For Availability
27
Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability
27
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Compressor (Includes Items 43 44, 45, 46, 47, WPL 4318058 Contact Us For Availability
29
Retainer, Insert WPL 935871 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Door, Ice Compartment WPL 2148741 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
31
Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability
31
Trim, Door WPL 1106148 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Slide, Crisper WPL 2148524 Contact Us For Availability
32
Trim, Door Shelf WPL 2148616 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Screw WPL 489268 Contact Us For Availability
33
Bin, Door Shelf (2) WPL 2148549 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
Heater, Defrost WPL 2162030 Contact Us For Availability
34
Bin, Door Shelf (Deep) (2) WPL 2148550 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
Crisper Pan, Front WPL 2148816 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
37
Door Dike, Center WPL 1122711 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2158626 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Door Dike, Side (2) WPL 1122709 Contact Us For Availability
39
Retainer, Gasket WPL 1122552 Contact Us For Availability
41
Air Baffle WPL 2155566 Contact Us For Availability
43
Relay WPL 2154720 Contact Us For Availability
44
Overload WPL 2154719 Contact Us For Availability
45
Cover WPL 2154722 Contact Us For Availability
46
Strap WPL 2154721 Contact Us For Availability
47
Capacitor WPL 2154717 Contact Us For Availability
48
Cover, Unit WPL 2158638 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S. Baffle (2)) WPL 1118806 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
59
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
Overload Spring WPL 943320 Contact Us For Availability
59
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy., Terminal Block WPL 2158697 Contact Us For Availability
× ![]()
