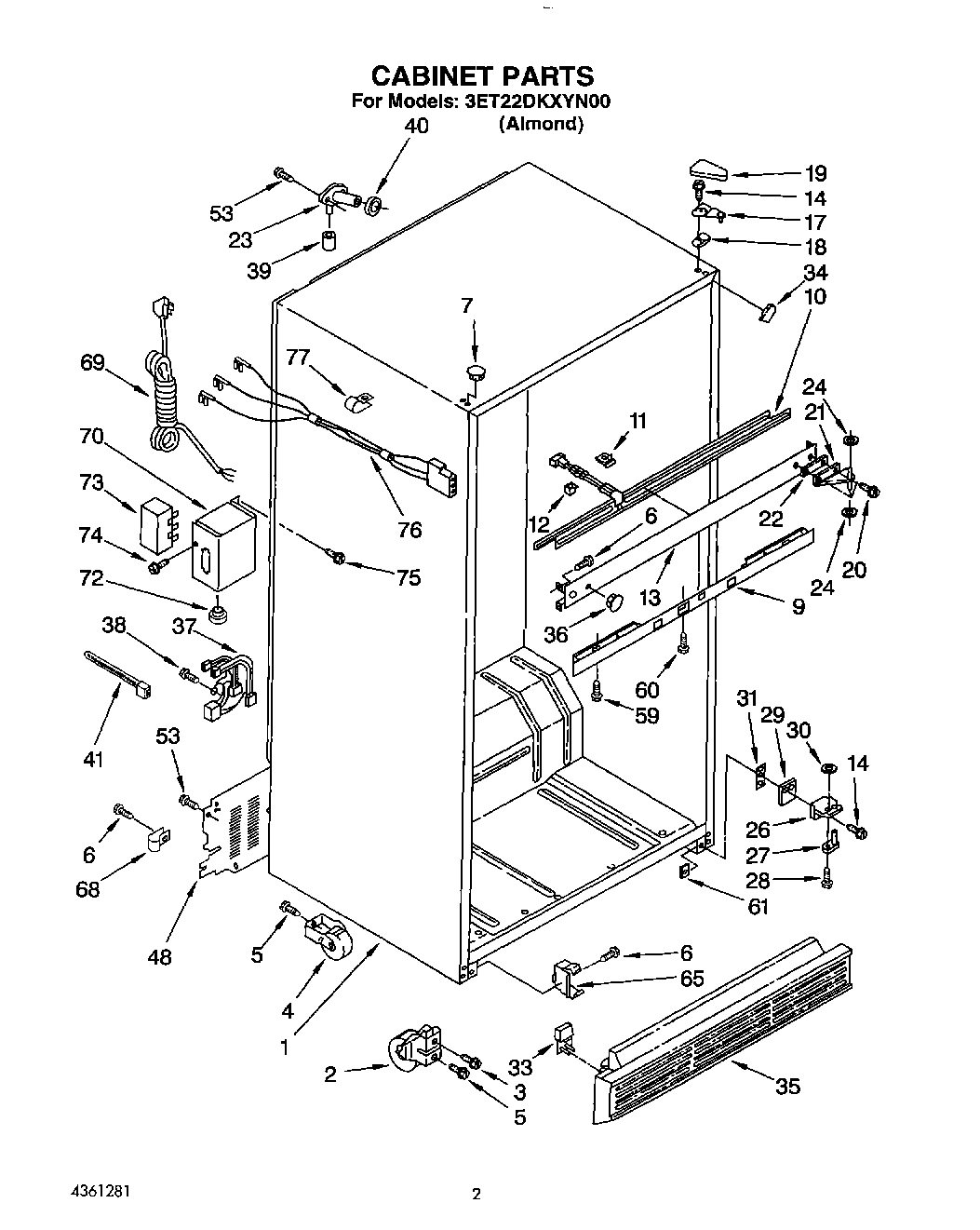

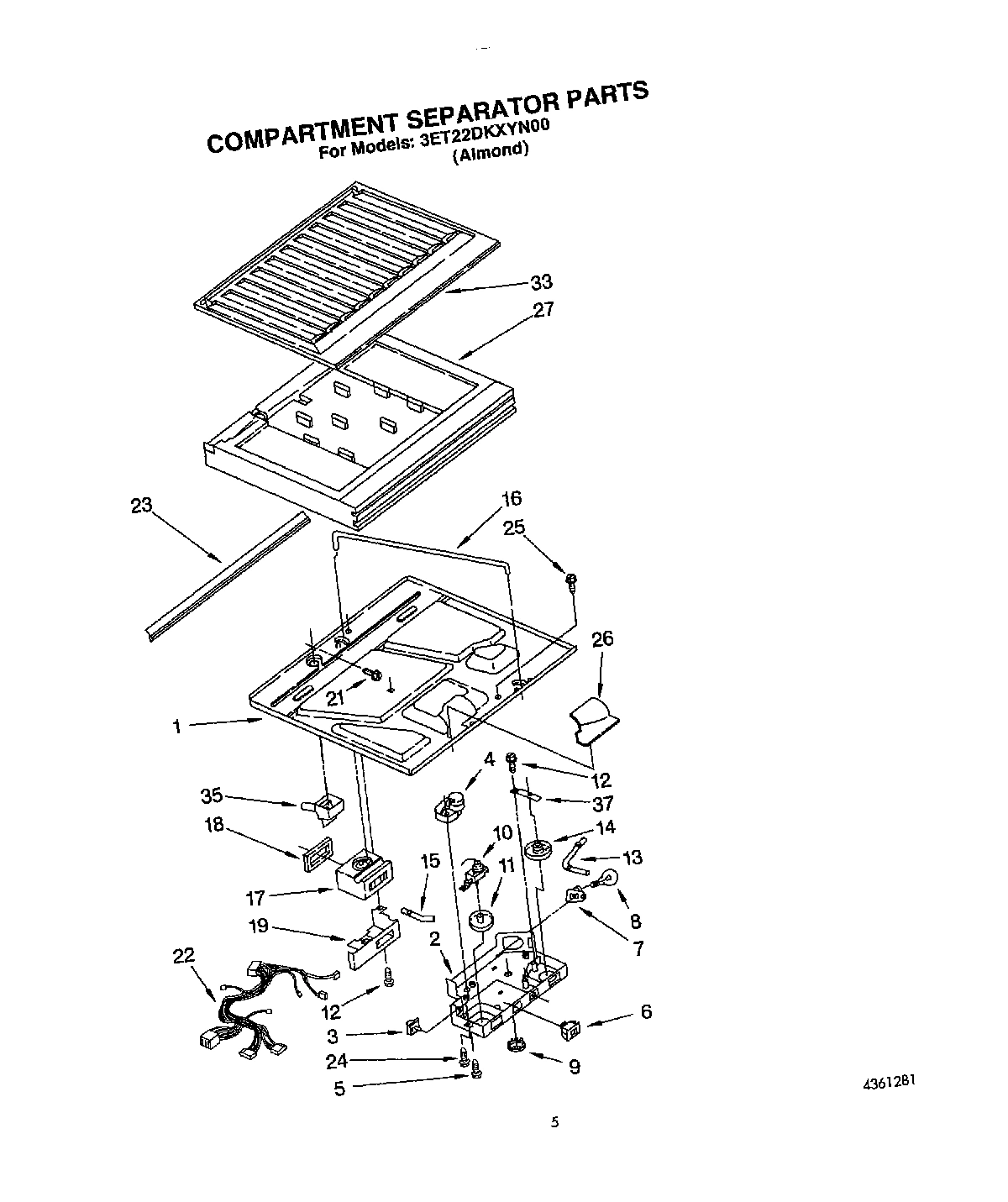

Model Whirlpool 3ET22DKXYN00 REFRIGERATOR – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2158649 WPL LIT2158649 Contact Us For Availability

WPL LIT2158650 WPL LIT2158650 Contact Us For Availability

WPL LIT4361281 WPL LIT4361281 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI140105A Contact Us For Availability

1

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 26) WPL 1122658 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) WPL 989197 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

Condenser Assembly WPL 2154010 Contact Us For Availability

3

Strap, Mtg. WPL 1123230 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Shelf Stud (2) WPL 1106612 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $2.51

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability

7

Shelf, Cantilever (2) WPL 1110739 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $112.07

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $93.54

8

Tube Clamp WPL 510716 Contact Us For Availability

8

Trim, Shelf WPL 1110741 Contact Us For Availability

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $130.74

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

NLA:SCREW Backorder WPL WPW10141645 $3.70

9

Hole Plug WPL 940014 Contact Us For Availability

9

Dampener WPL 2149670 Contact Us For Availability

9

Stud (3) WPL 946356 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud In Stock WPL 819091 $13.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Handle End, Top WPL 944163 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Trim, Crisper Cover WPL 1105649 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

Handle End, Side WPL 1109189 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

Glass, Crisper Cover WPL 1124553 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Handle, Center WPL 1110382 Contact Us For Availability

Support, Stud (6) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability

Handle, Center WPL 1120781 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Shim, Handle WPL 943187 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Cover, Air Duct WPL 2157410 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Knob, Air Control WPL 1114314 Contact Us For Availability

14

Screw WPL 489226 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $53.36

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Light, Bar WPL 1105476 Contact Us For Availability

Interior Door Panel WPL 1122575 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw In Stock WPL WP488920 $2.51

Rod, Connecting WPL 1105460 Contact Us For Availability

Housing Plug WPL 1118850 Contact Us For Availability

Motor, Fan WPL 2154635 Contact Us For Availability

Glass, Shelf WPL 1124554 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $28.95

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Air Diffuser Assembly WPL 2157256 Contact Us For Availability

Trim, Door Shelf (2) WPL 1124227 Contact Us For Availability

Shelf, Freezer WPL 1106615 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

Nameplate WPL 1111555 Contact Us For Availability

Trim, Shelf Front WPL 1106618 Contact Us For Availability

Insert, Handle WPL 1120830 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 2148786 Contact Us For Availability

Interior Door Panel WPL 2156245 Contact Us For Availability

Clip, Unit Cover (2) WPL 548744 Contact Us For Availability

Grommet, (6) WPL 1110779 Contact Us For Availability

Pan, Meat WPL 2148787 Contact Us For Availability

Trim, Door Compartment WPL 1124223 Contact Us For Availability

21

Divider, Door Shelf WPL 1114380 Contact Us For Availability

21

Screw WPL 489168 Contact Us For Availability

21

Crisper Gasket, Front (2) WPL 1116512 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability

Evaporator WPL 2153978 Contact Us For Availability

Compartment Door, Right Side WPL 2148792 Contact Us For Availability

Gasket, Bottom Separator WPL 2159685 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Reflector, Shelf WPL 1110743 Contact Us For Availability

Compartment Door, Left Side WPL 2148794 Contact Us For Availability

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $138.63

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Evaporator Cover WPL 2157427 Contact Us For Availability

Shelf, Freezer (Top) WPL 1106822 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Insert, Handle WPL 1114390 Contact Us For Availability

Tray, Evaporator WPL 2154114 Contact Us For Availability

Trim, Shelf WPL 2148451 Contact Us For Availability

Pin Plate (8) WPL 1116986 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover In Stock WPL WP2217784 $16.78

Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Divider WPL 1127416 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Retainer, Gasket WPL 1122553 Contact Us For Availability

Insulation, Compartment Separator WPL 1105464 Contact Us For Availability

Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4318058 Contact Us For Availability

Slide, Ice Compartment WPL 1106817 Contact Us For Availability

Retainer, Gasket WPL 1122551 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

Support, Heater WPL 2149120 Contact Us For Availability

Retainer, Insert WPL 935871 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

Washer, 7/32 WPL 489200 Contact Us For Availability

Light Lens WPL 981365 Contact Us For Availability

Door, Ice Compartment WPL 2148731 Contact Us For Availability

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

31

Crisper Gasket, Rear (2) WPL 1105653 Contact Us For Availability

31

Trim, Door WPL 1106148 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

32

Slide, Crisper WPL 1116718 Contact Us For Availability

32

Trim, Door Shelf WPL 1124254 Contact Us For Availability

33

Separator, Compartment (Top) WPL 2151663 Contact Us For Availability

33

Heater, Defrost WPL 2162030 Contact Us For Availability

33

Bin, Door Shelf (2) WPL 1124208 Contact Us For Availability

34

Bin, Door Shelf (Deep) (2) WPL 1124209 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $25.46

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $13.77

Cup, Drain WPL 937065 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Crisper Pan, Front WPL 2148815 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

37

Door Dike, Center WPL 1122711 Contact Us For Availability

38

Door Dike, Side (2) WPL 1122709 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Divider, Bin WPL 2152336 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

40

Retainer, Gasket WPL 1122552 Contact Us For Availability

41

Air Baffle WPL 2155566 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

43

Relay WPL 2154720 Contact Us For Availability

44

Overload WPL 2158785 Contact Us For Availability

45

Cover WPL 2154722 Contact Us For Availability

46

Strap WPL 2154721 Contact Us For Availability

47

Overload Spring WPL 943320 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

51

Tube, Drain WPL 2154119 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability

54

Support, Evap. (L.S.) WPL 1118806 Contact Us For Availability

56

Capacitor WPL 2154717 Contact Us For Availability

57

Nut WPL 489142 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

77

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38
