Model Whirlpool 3ET19DKXDN01 REFRIGERATOR – Common Parts & Diagrams

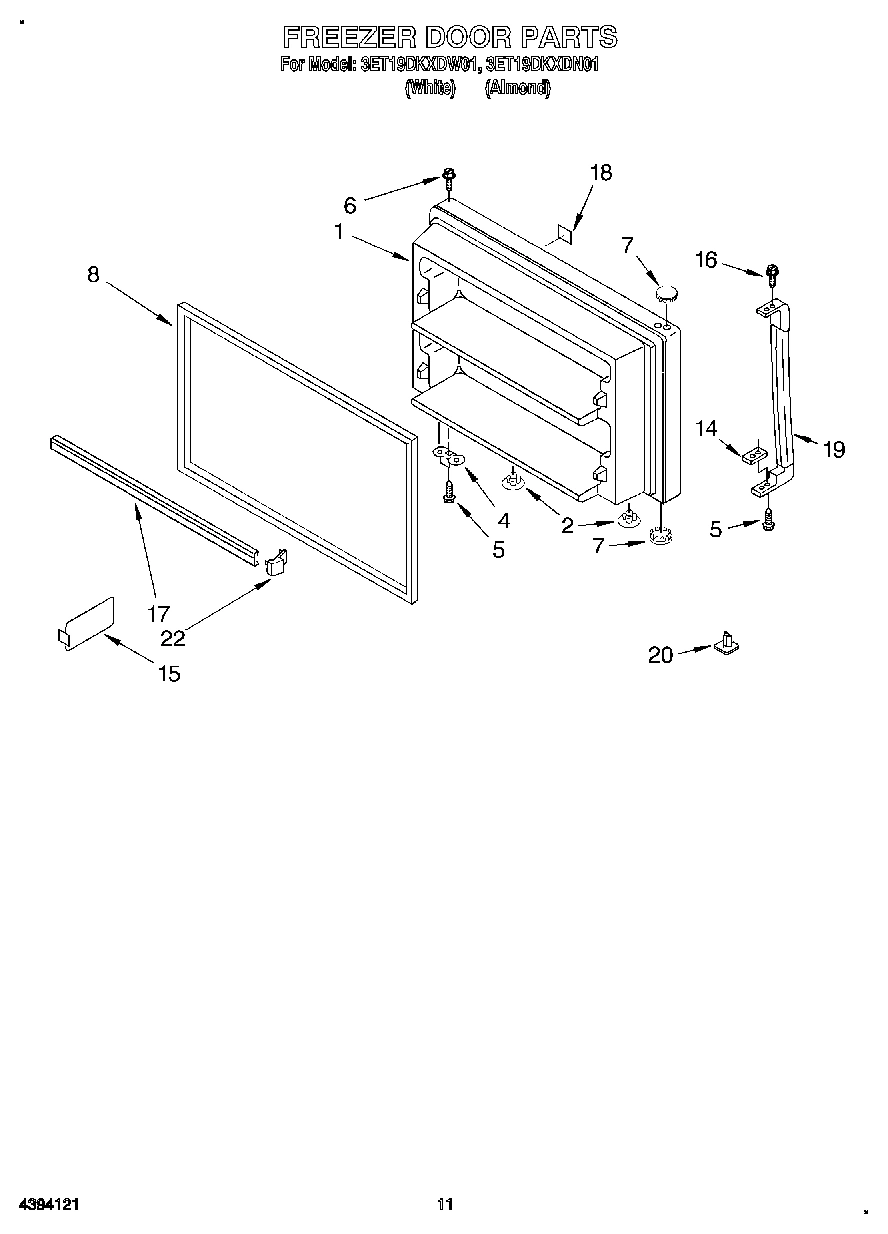

06 - FREEZER DOOR, LIT/OPTIONAL

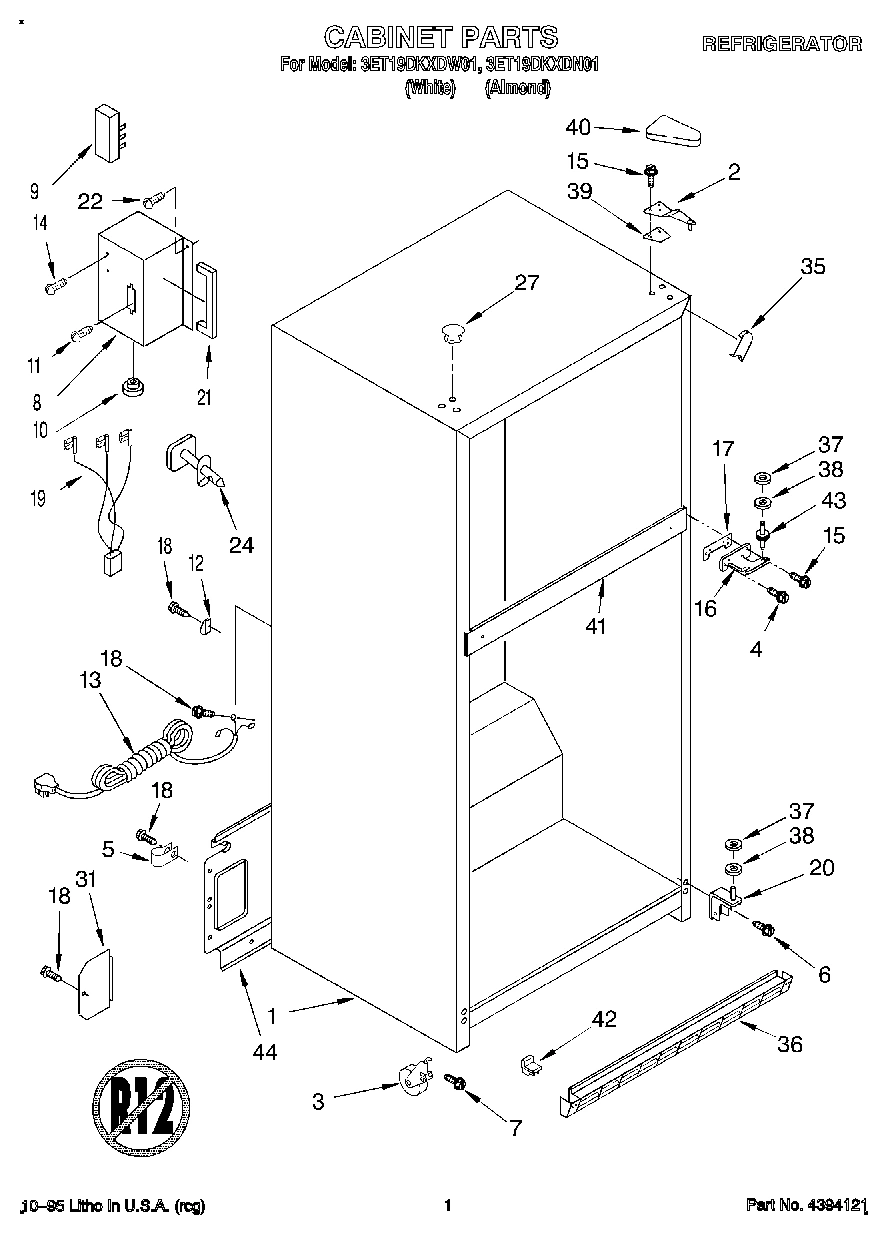

01 - CABINET
03 - SHELF
04 - REFRIGERATOR DOOR
02 - LINER
05 - UNIT
Common parts from model Whirlpool 3ET19DKXDN01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (White) WPL 2171245 Contact Us For Availability
1
Refrigerator Door (Includes Item 8) (Almond) WPL 2171246 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12066A1 Contact Us For Availability
1
Plate, Unit Mounting WPL 2182437 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Divider, Door Bin WPL 2171284 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Shim, Handle WPL 2183124 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Heater, Defrost WPL 2166657 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Frame Assembly, Shelf WPL 2174446 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
9
Shim, Handle WPL 2151813 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
10
Tall Bottle Retainer WPL 2173643 Contact Us For Availability
10
Fan Motor WPL 2166609 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Housing Compartment WPL 2156062 Contact Us For Availability
11
Clip, Capacitor WPL 2166683 Contact Us For Availability
12
Frame Assembly, Meat Shelf WPL 2179716 Contact Us For Availability
12
Control Box WPL 2179869 Contact Us For Availability
13
Tray, Door WPL 2159302 Contact Us For Availability
13
Gasket, Crisper Cover WPL 2172683 Contact Us For Availability
13
Overload WPL 2169411 Contact Us For Availability
14
Hook, Shelf WPL 2169608 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf Assembly, Spillguard WPL 2184417 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Shim, Handle WPL 2179398 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Handle (White) WPL 2174003 Contact Us For Availability
19
Handle (Almond) WPL 2174004 Contact Us For Availability
20
Bin, Door Shelf (4) WPL 2179605 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Clip, Wire WPL 489435 Contact Us For Availability
22
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
Screw WPL 489419 Contact Us For Availability
22
Knob, Theromstat WPL 2182422 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Shelf, Freezer (Top) WPL 2166111 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2190590 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2184459 Contact Us For Availability
26
Air Diffuser, Top (Includes Item 37) WPL 2179877 Contact Us For Availability
27
Track Assembly, Shelf WPL 2176240 Contact Us For Availability
27
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
27
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Wire Assembly, Freezer Comp. WPL 2179824 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
34
Knob, Damper WPL 2182479 Contact Us For Availability
35
Ice Bucket WPL 2174616 Contact Us For Availability
35
Light Bar, R.S. WPL 2174627 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
37
Foil, Control Box WPL 2179735 Contact Us For Availability
38
Endcap, Door Trim WPL 2177340 Contact Us For Availability
39
Plug-Trim WPL 2159300 Contact Us For Availability
39
Baffle, Air WPL 2179849 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Trim, Crisper Pan WPL 2176352 Contact Us For Availability
42
Wire Assy. Unit WPL 2179885 Contact Us For Availability
43
Trim, Crisper Pan WPL 2176353 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
44
Trim, Meat Pan WPL 2176356 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2184419 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
46
Tube, Discharge WPL 2179856 Contact Us For Availability
47
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
47
Tube, Suction WPL 2179854 Contact Us For Availability
48
Shelf Assembly, Spillguard WPL 2174469 Contact Us For Availability
49
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
49
Pullout, Freezer Floor (Includes Item 56) WPL 2179774 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
50
Evaporator Tray WPL 2163795 Contact Us For Availability
50
Start Kit WPL 482278 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer Floor WPL 2179772 Contact Us For Availability
57
Light Bar, L.S. WPL 2174628 Contact Us For Availability
58
Sleeve, Air Tower WPL 2179712 Contact Us For Availability
× ![]()
