Model Whirlpool 3ET18ZKXAW00 REFRIGERATOR – Common Parts & Diagrams

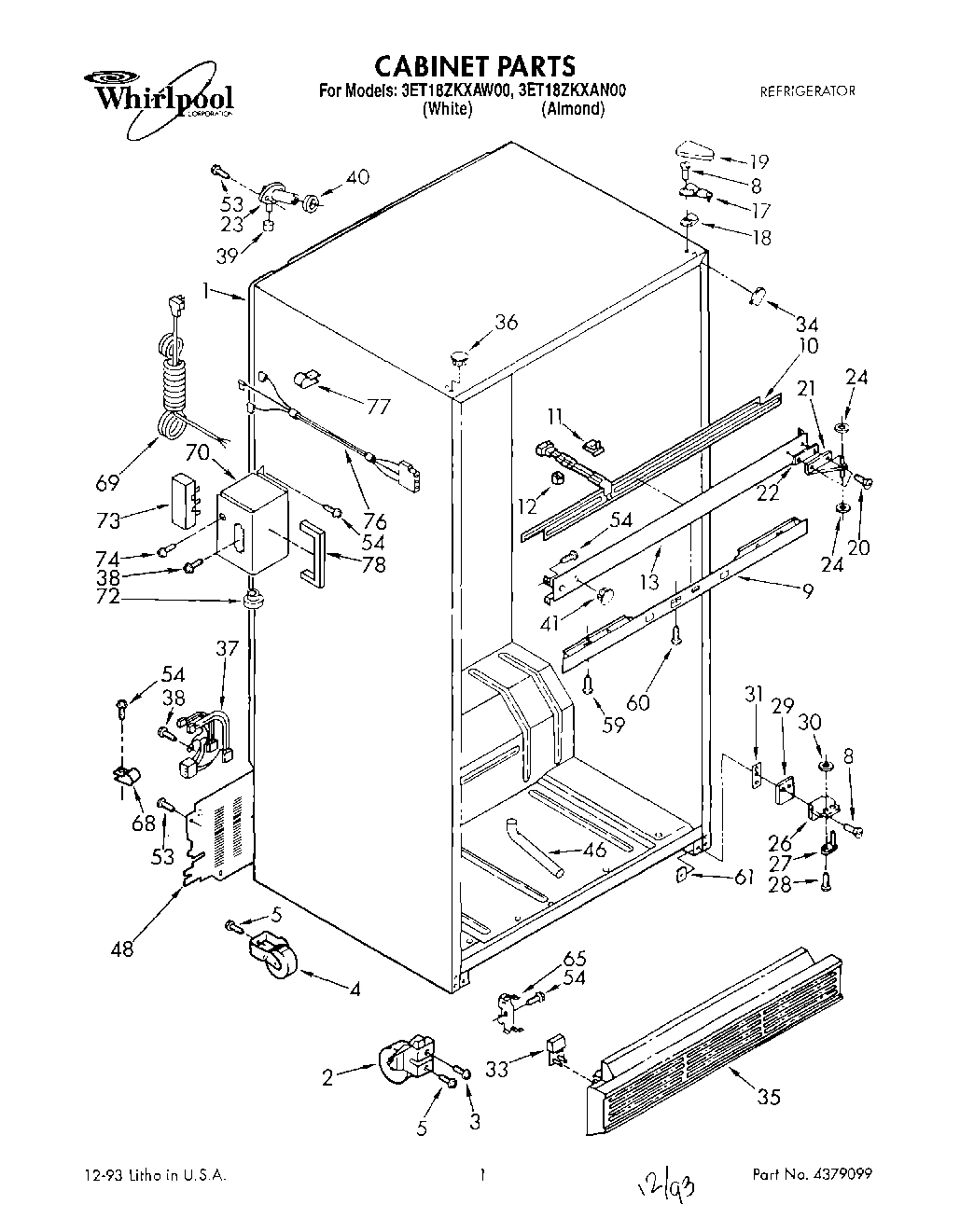

01 - CABINET

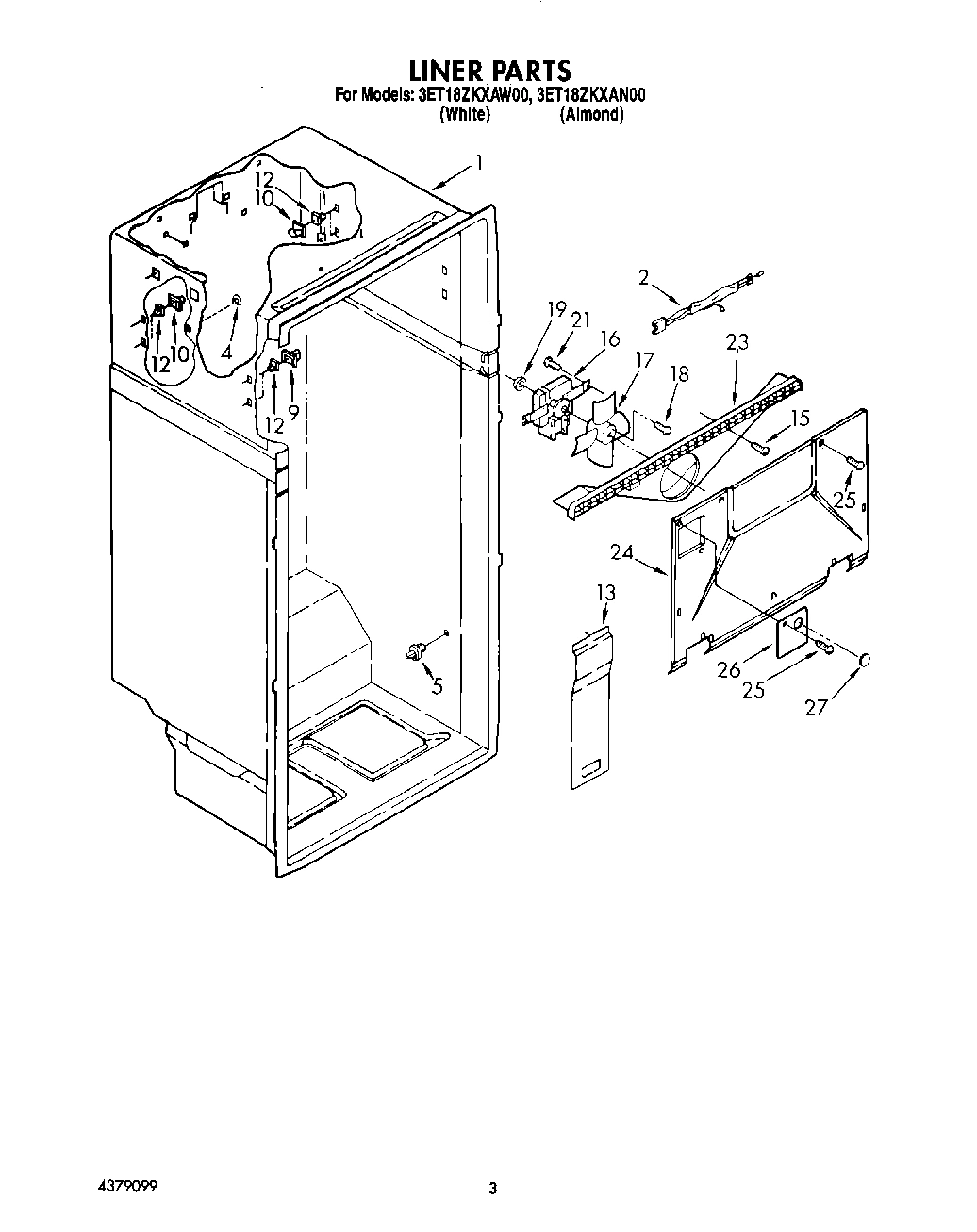

02 - LINER

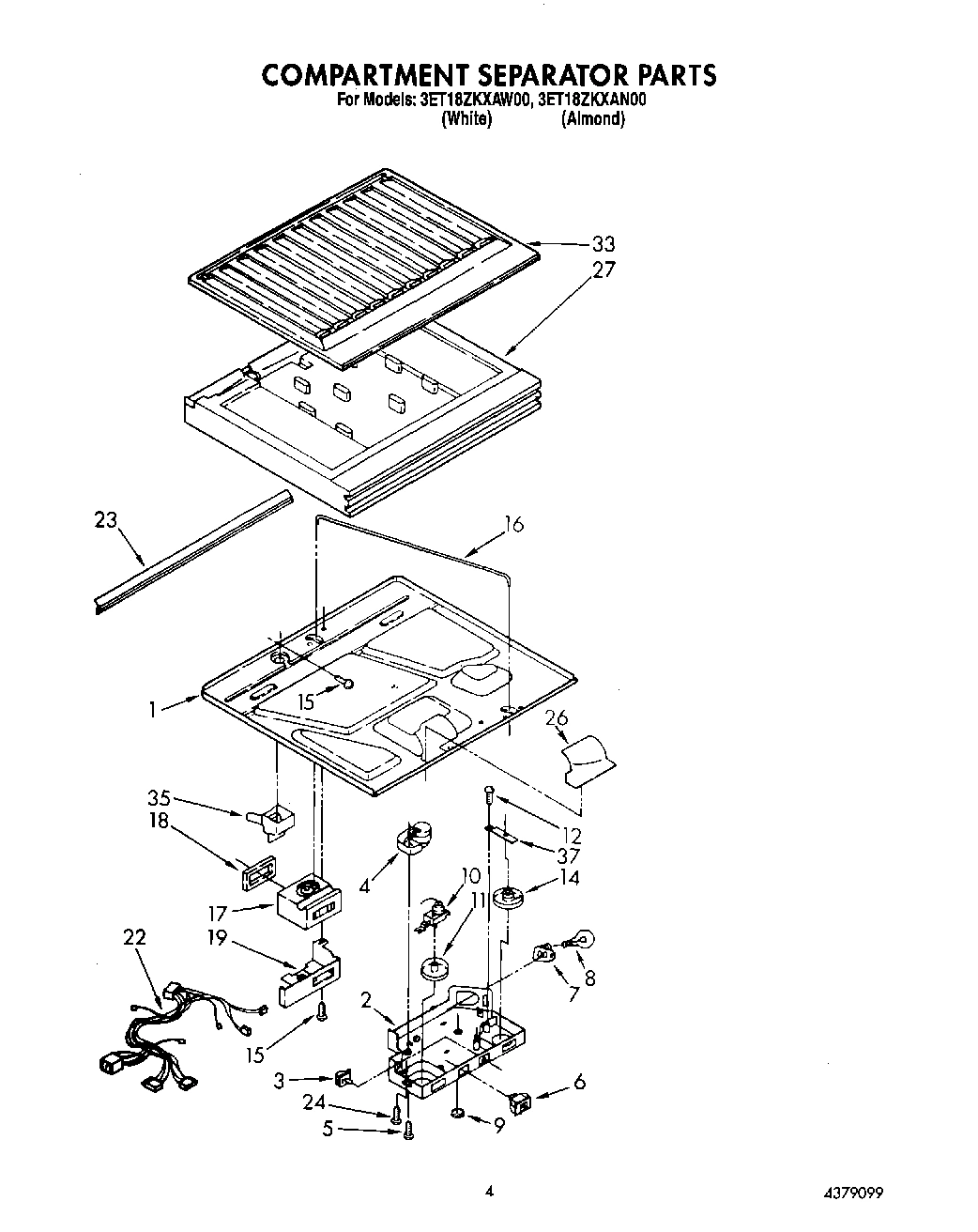

03 - COMPARTMENT SEPARATOR

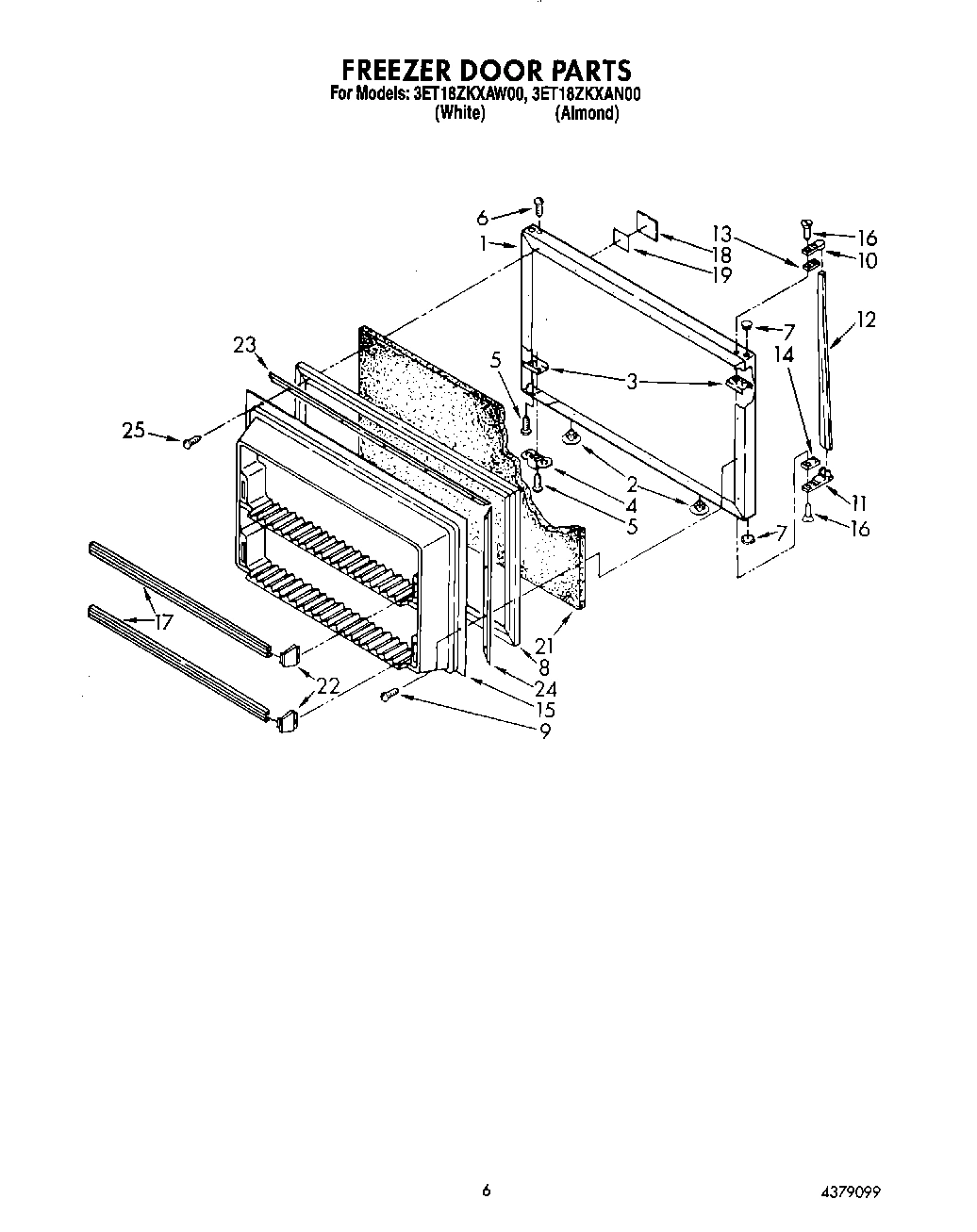

05 - FREEZER DOOR

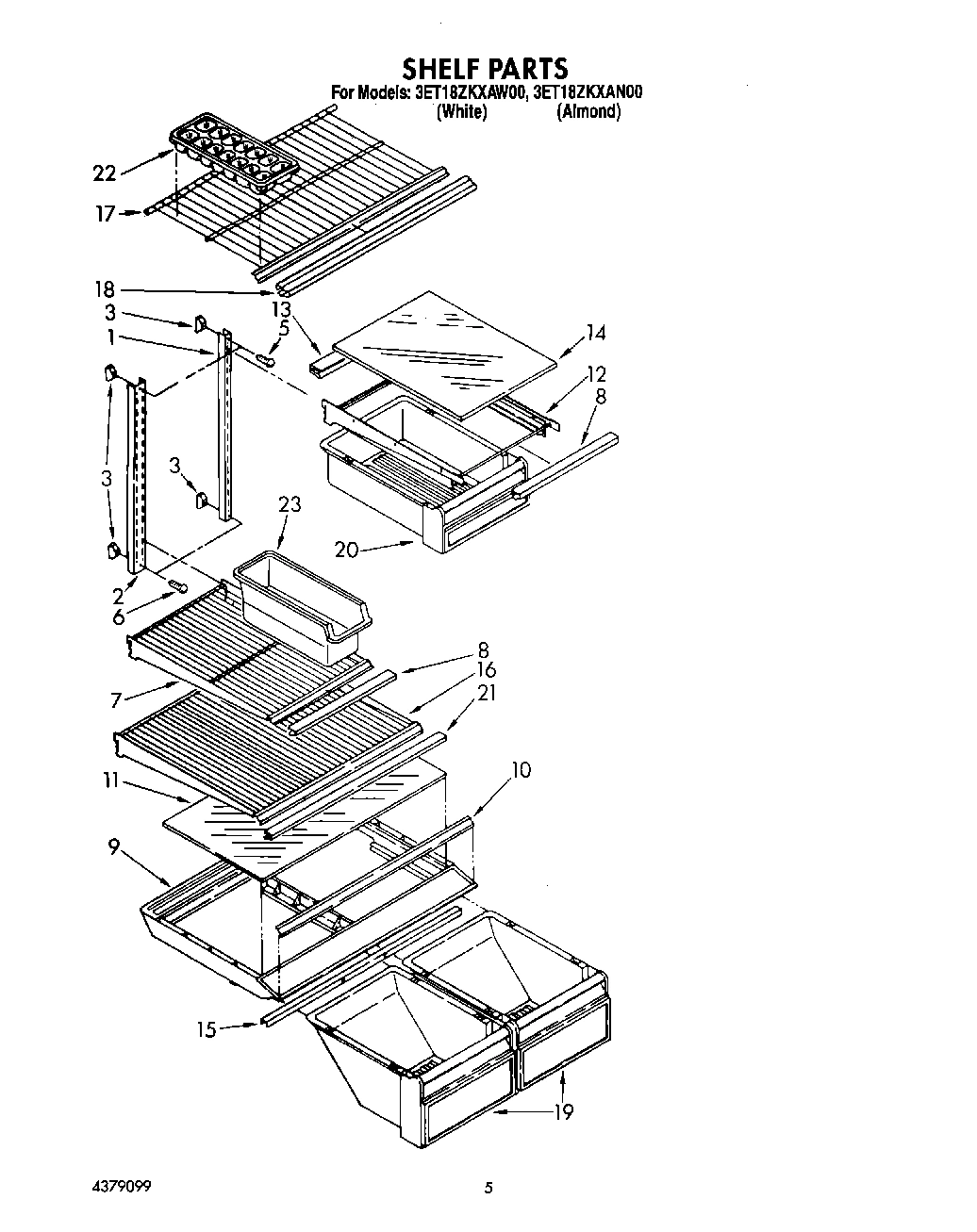

04 - SHELF

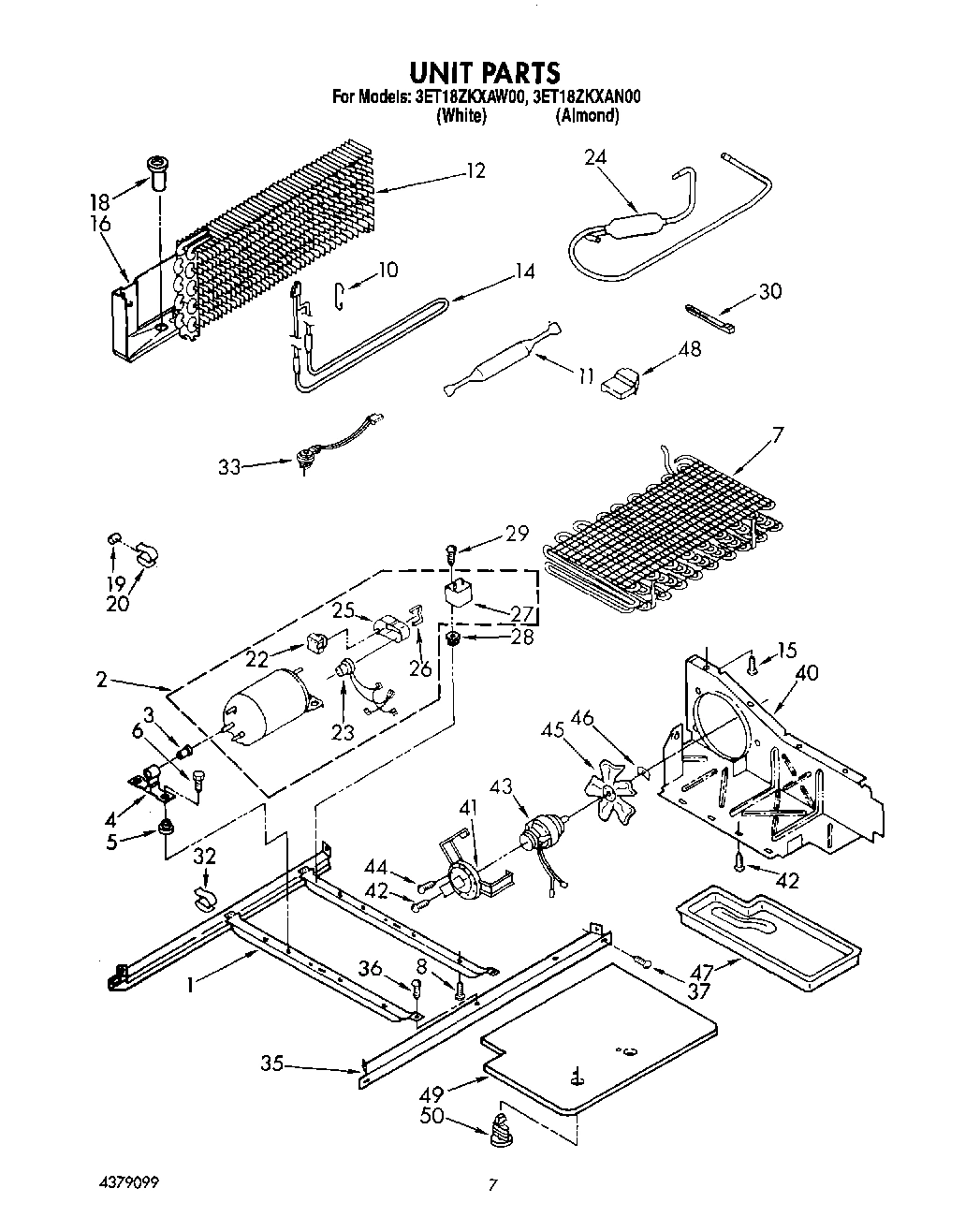

06 - UNIT

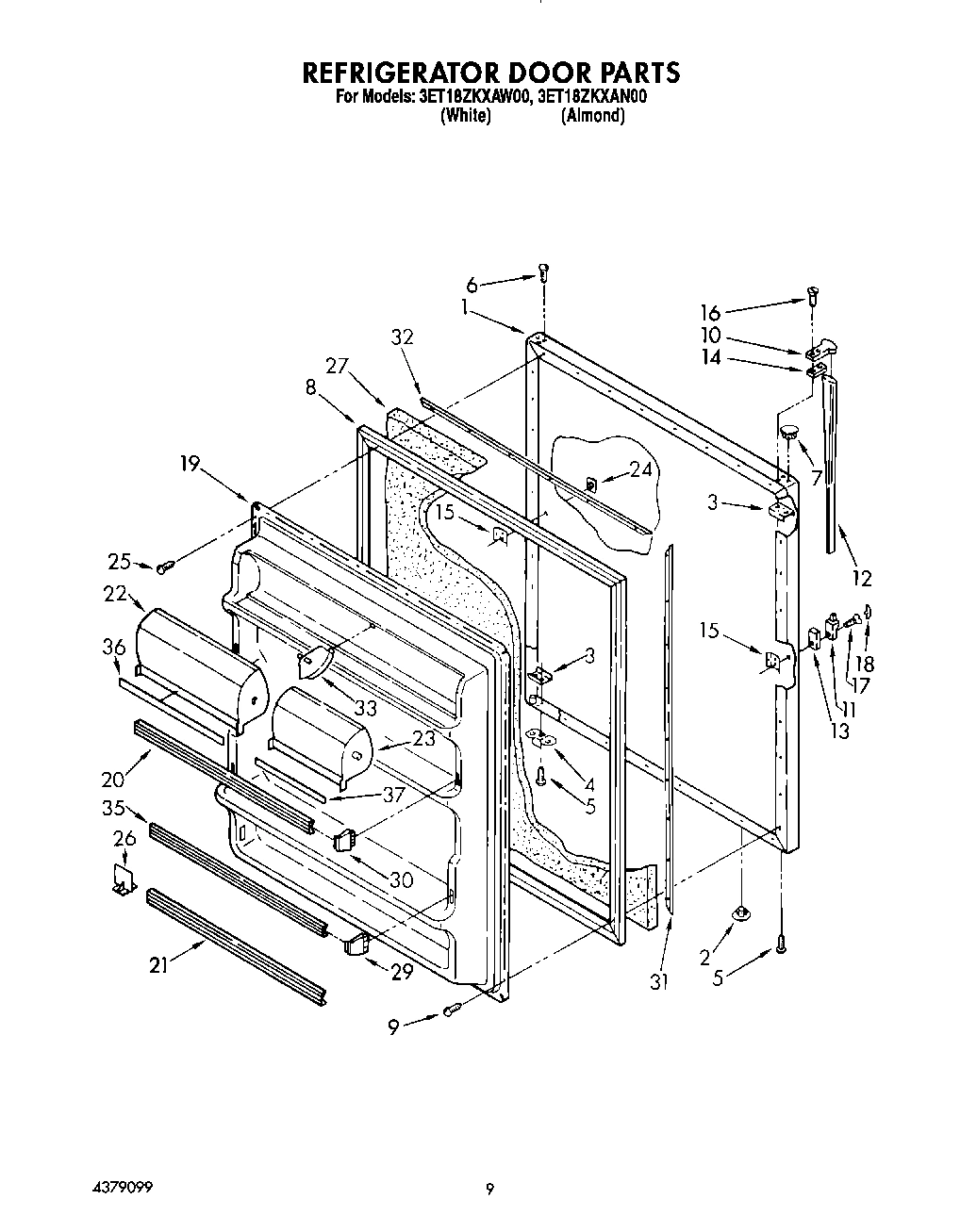

07 - REFRIGERATOR DOOR, LIT/OPTIONAL
Common parts from model Whirlpool 3ET18ZKXAW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2158656 WPL LIT2158656 Contact Us For Availability
WPL LIT2165191 WPL LIT2165191 Contact Us For Availability
WPL LIT4379099 WPL LIT4379099 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Compressor Kit Includes Items (22, 23, 25, 26 WPL 2154613 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
6
Screw (4) WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 2163920 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
8
Trim, Shelf WPL 2148575 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
9
Crisper Cover WPL 2157828 Contact Us For Availability
10
Trim, Crisper Cover WPL 1123002 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Glass, Crisper Cover WPL 1116715 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Shim, Handle End (Side) WPL 992872 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Retainer, Glass WPL 1118119 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
14
Glass, Meat Cover WPL 1116699 Contact Us For Availability
14
Heater, Defrost WPL 2158986 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Motor, Fan WPL 2154635 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2160873 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate (Almond) WPL 2165147 Contact Us For Availability
18
Nameplate (White) WPL 2165148 Contact Us For Availability
18
Trim, Shelf Front WPL 2148584 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Pan, Crisper WPL 2165231 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
20
Trim, Door Shelf WPL 2157810 Contact Us For Availability
20
Pan, Meat WPL 2165230 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Full Shelf WPL 2148578 Contact Us For Availability
21
Trim, Door Shelf WPL 2157812 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Relay WPL 2154612 Contact Us For Availability
22
Compartment Door, Utility WPL 2160252 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Overload (Service (Relay Not Included)) WPL 2156479 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2158566 Contact Us For Availability
23
Compartment, Butter Door WPL 2160253 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Muffler WPL 2159588 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Terminal Cover WPL 1105221 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Divider, Door Shelf WPL 2160050 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Running Capacitor WPL 2154615 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Trim, Door Shelf WPL 2157811 Contact Us For Availability
36
Trim, Compartment Door WPL 2157839 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
WPL 479502 WPL 479502 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Trim, Compartment Door WPL 2157836 Contact Us For Availability
37
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
37
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
37
WPL 350941 WPL 350941 Contact Us For Availability
37
WPL 542639 WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
50
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
50
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
