Model Whirlpool 3ET18RKXYN00 REFRIGERATOR – Common Parts &amp; Diagrams

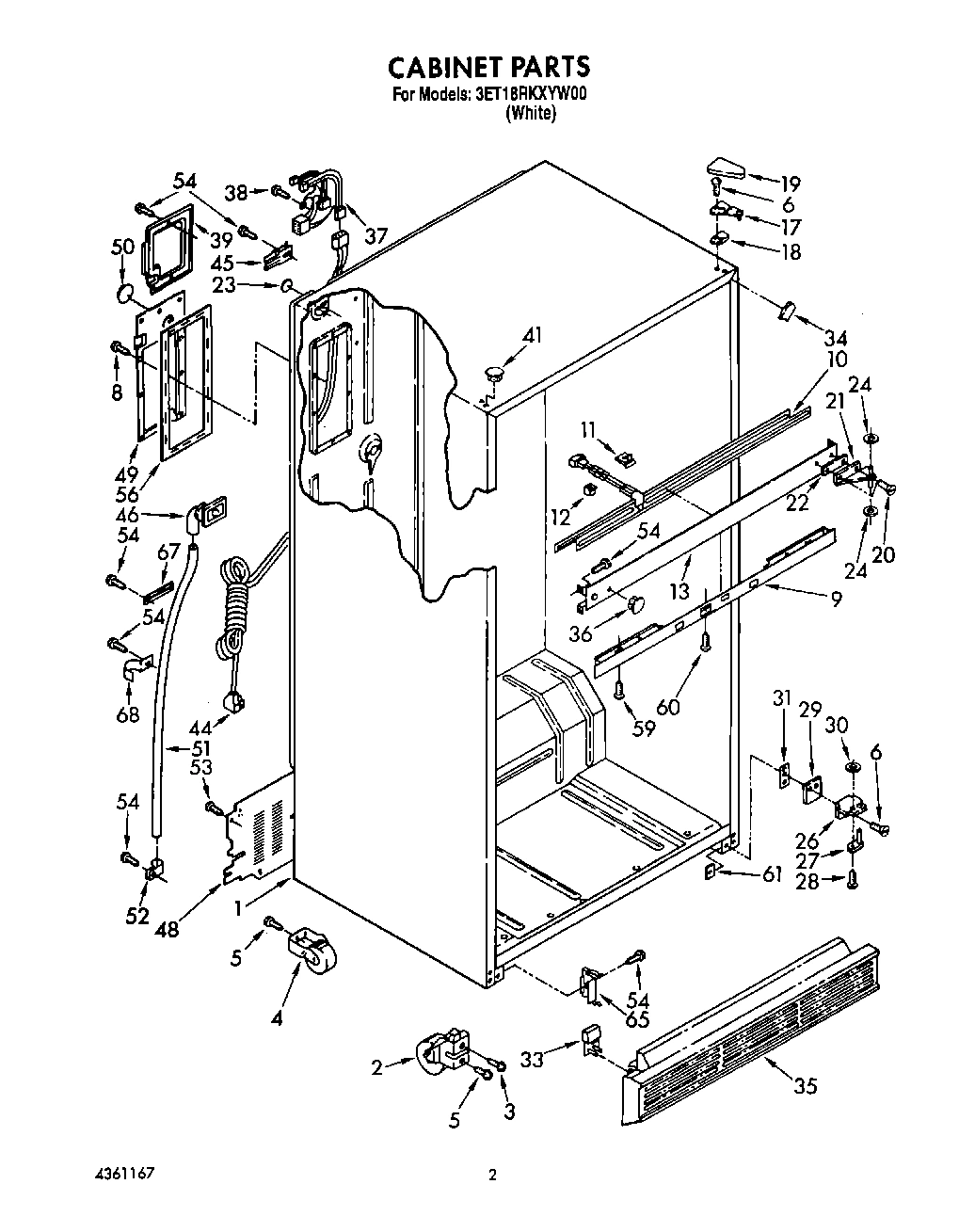

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154715 WPL LIT2154715 Contact Us For Availability

WPL LIT2156547 WPL LIT2156547 Contact Us For Availability

WPL LIT4361167 WPL LIT4361167 Contact Us For Availability

1

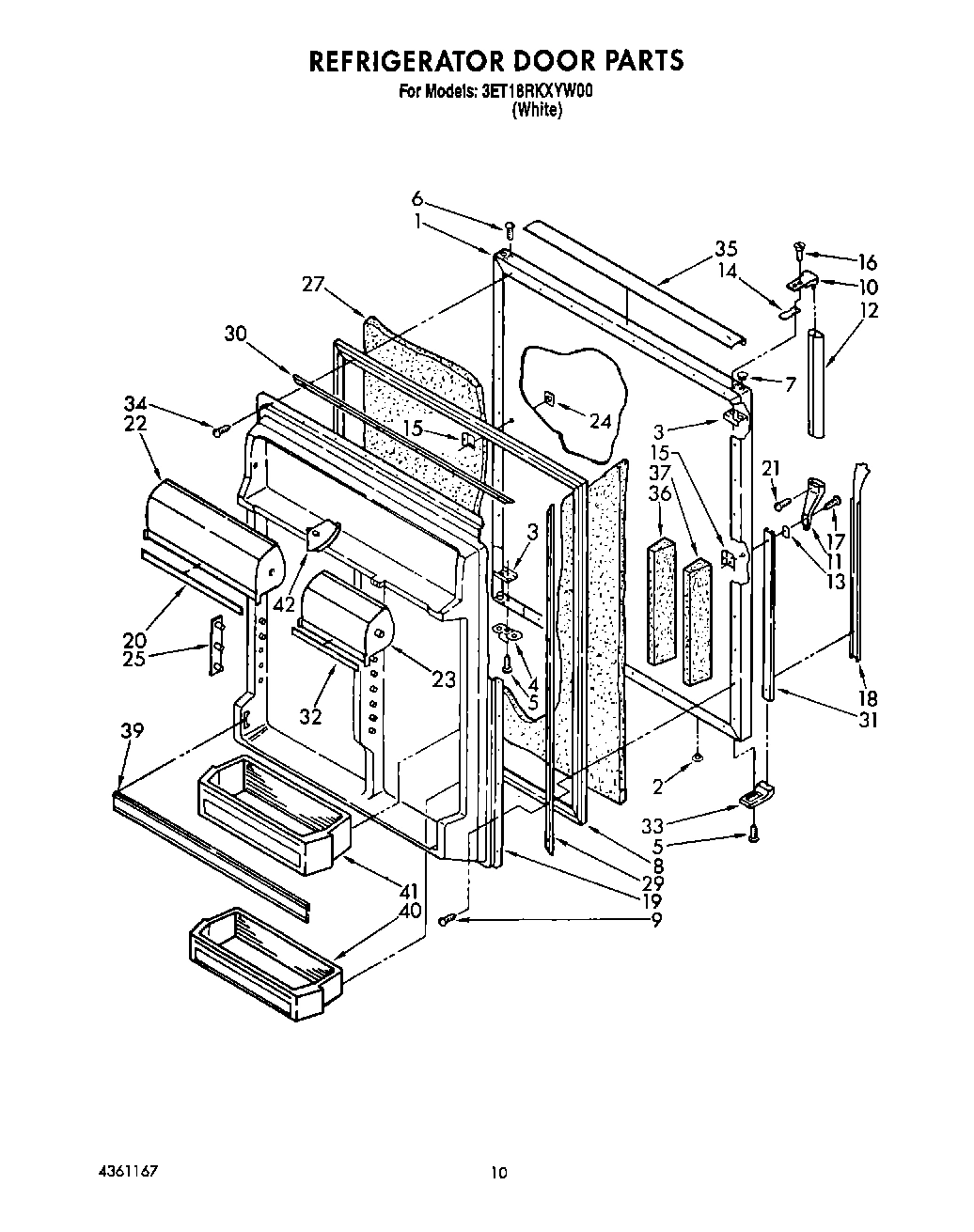

Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability

1

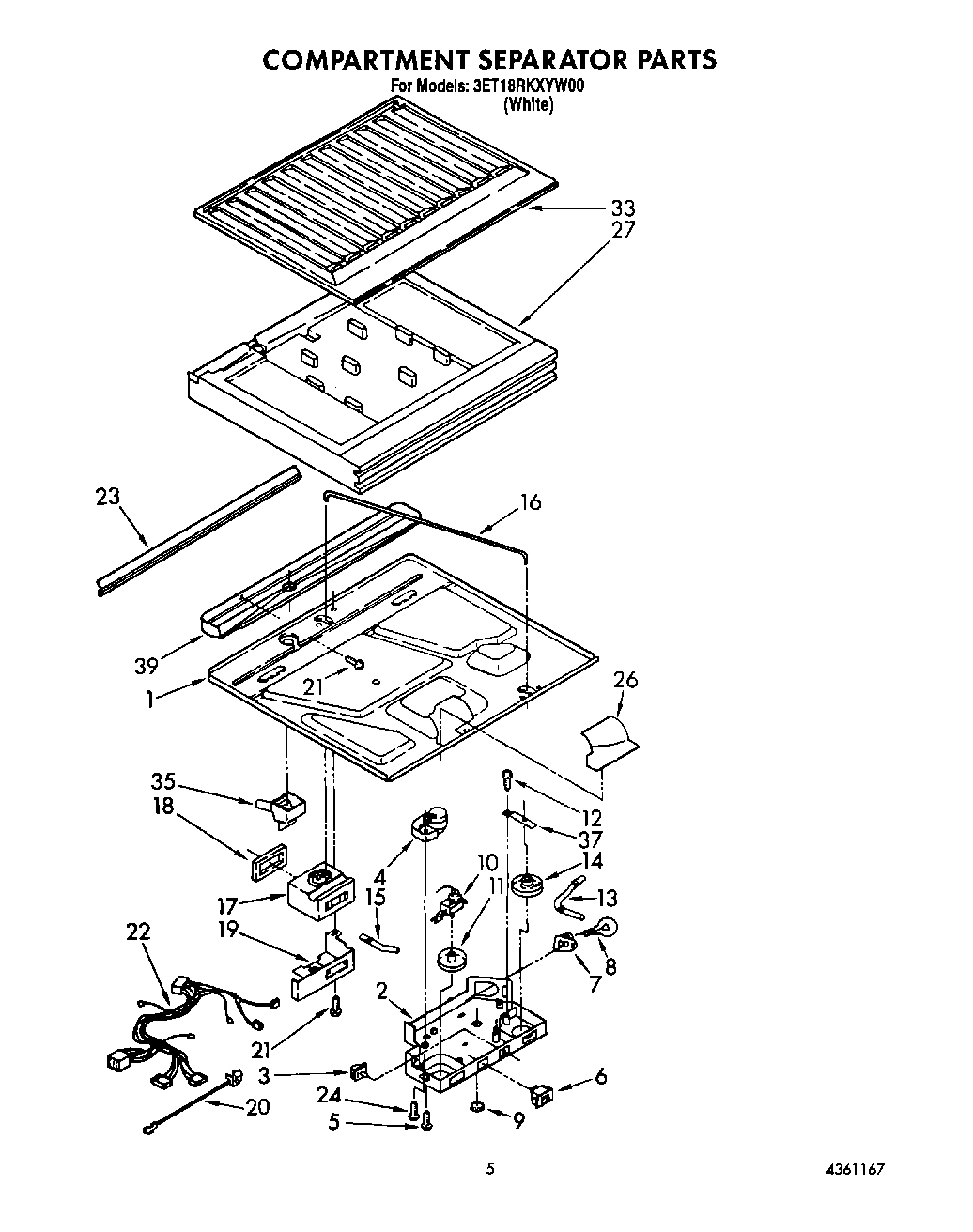

Bottom, Compartment Separator WPL 1116561 Contact Us For Availability

1

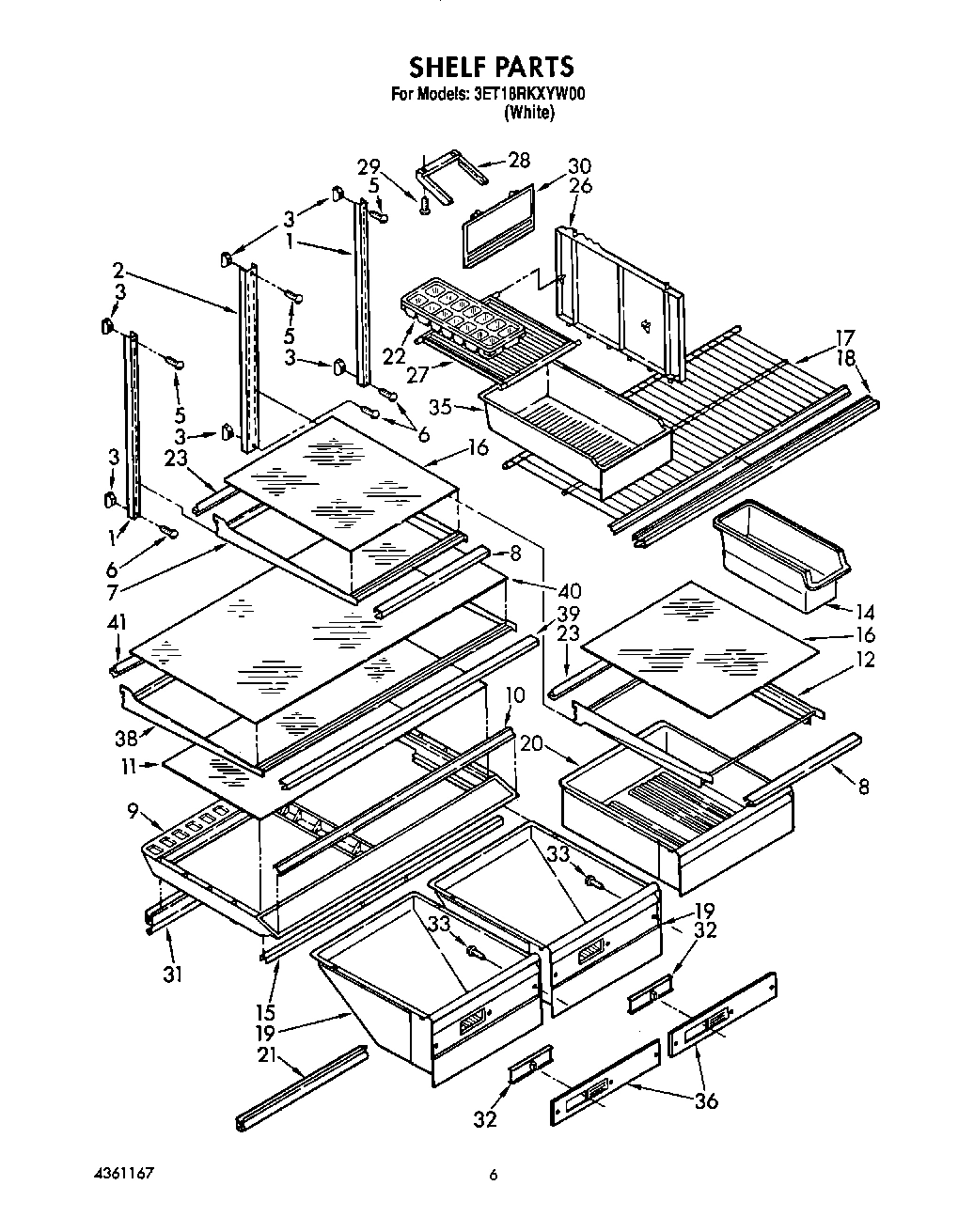

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

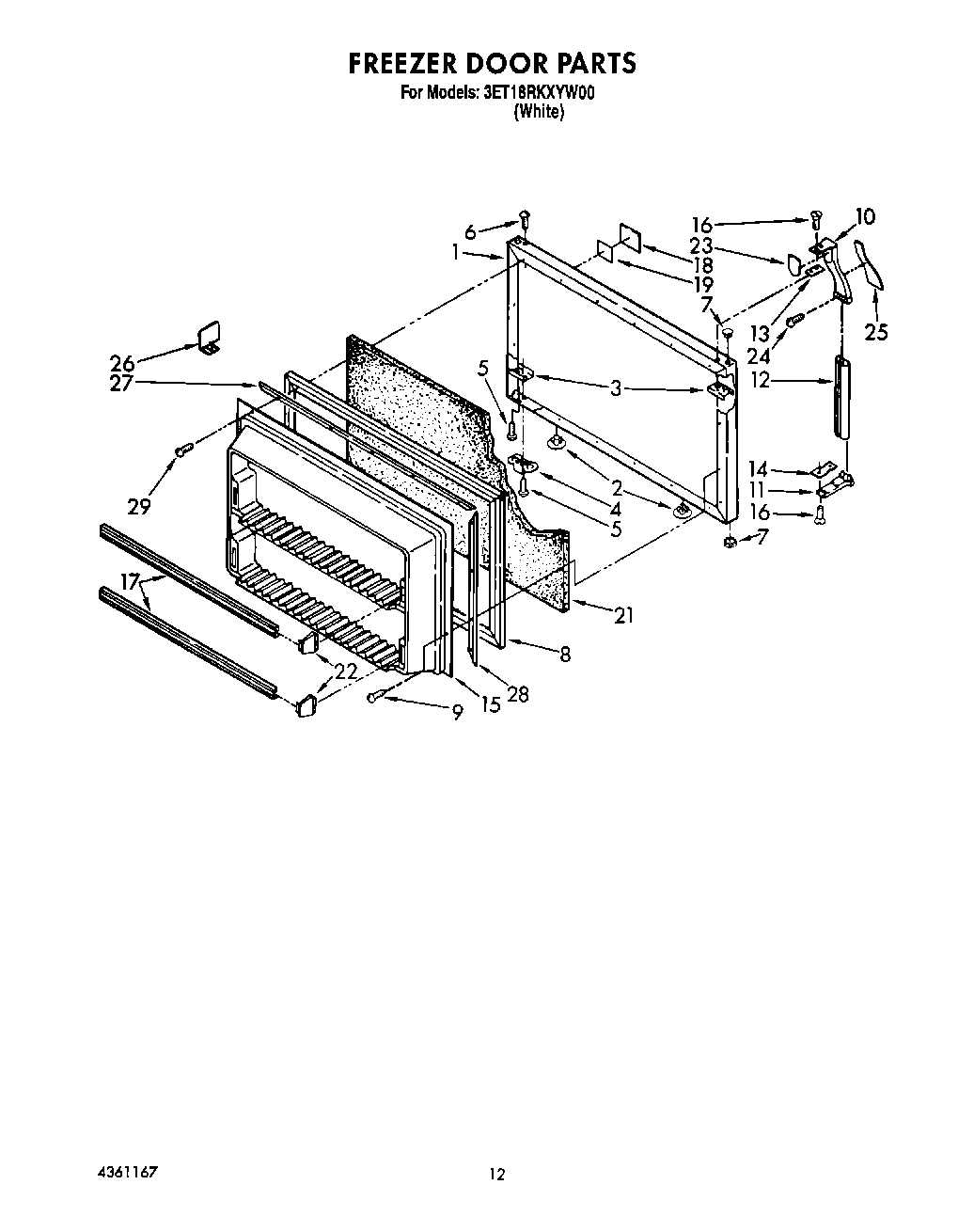

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1116586 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1116589 Contact Us For Availability

1

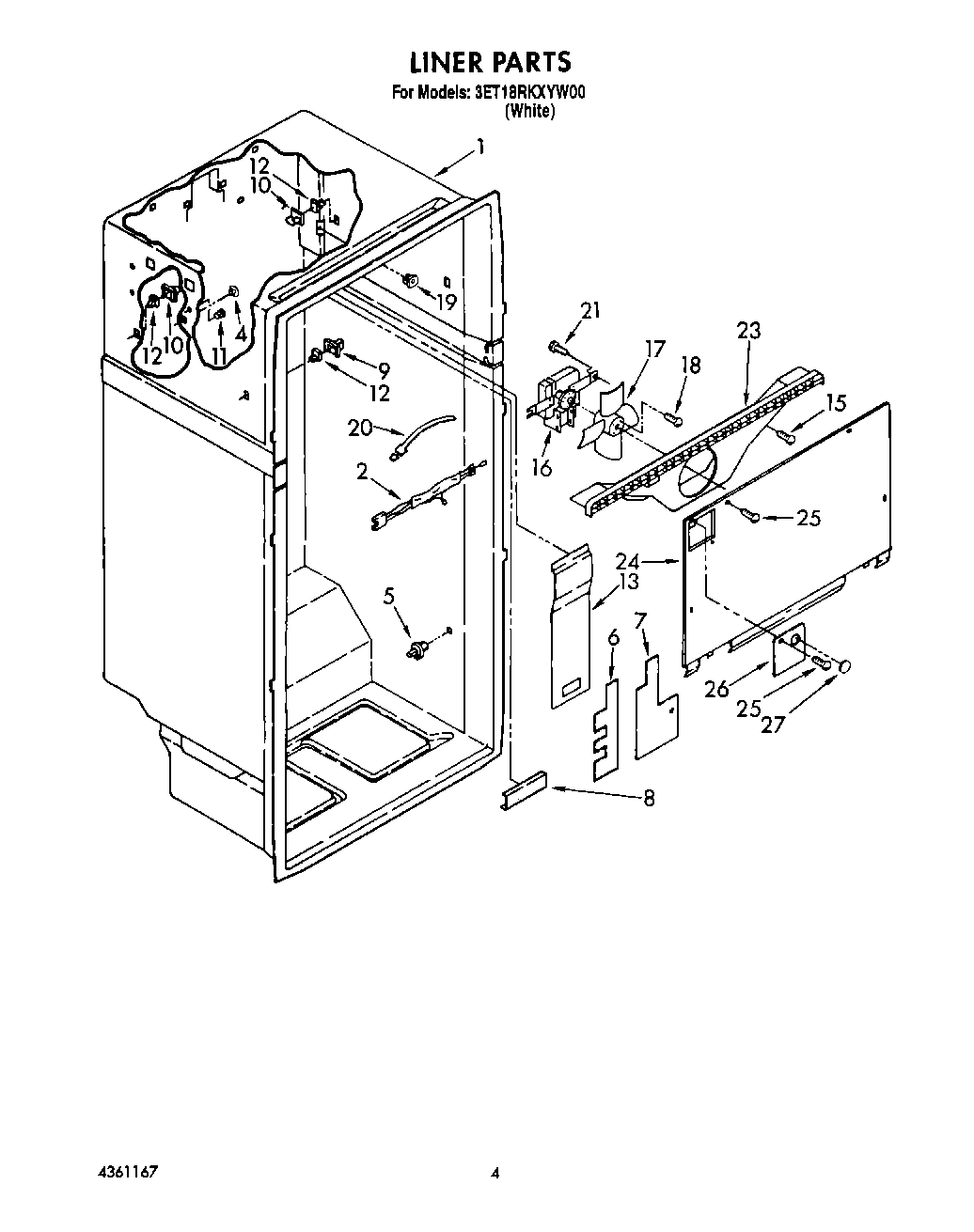

Liner (Not A Serviceable Part) WPL ARI11988A6 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Box, Control WPL 1126029 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

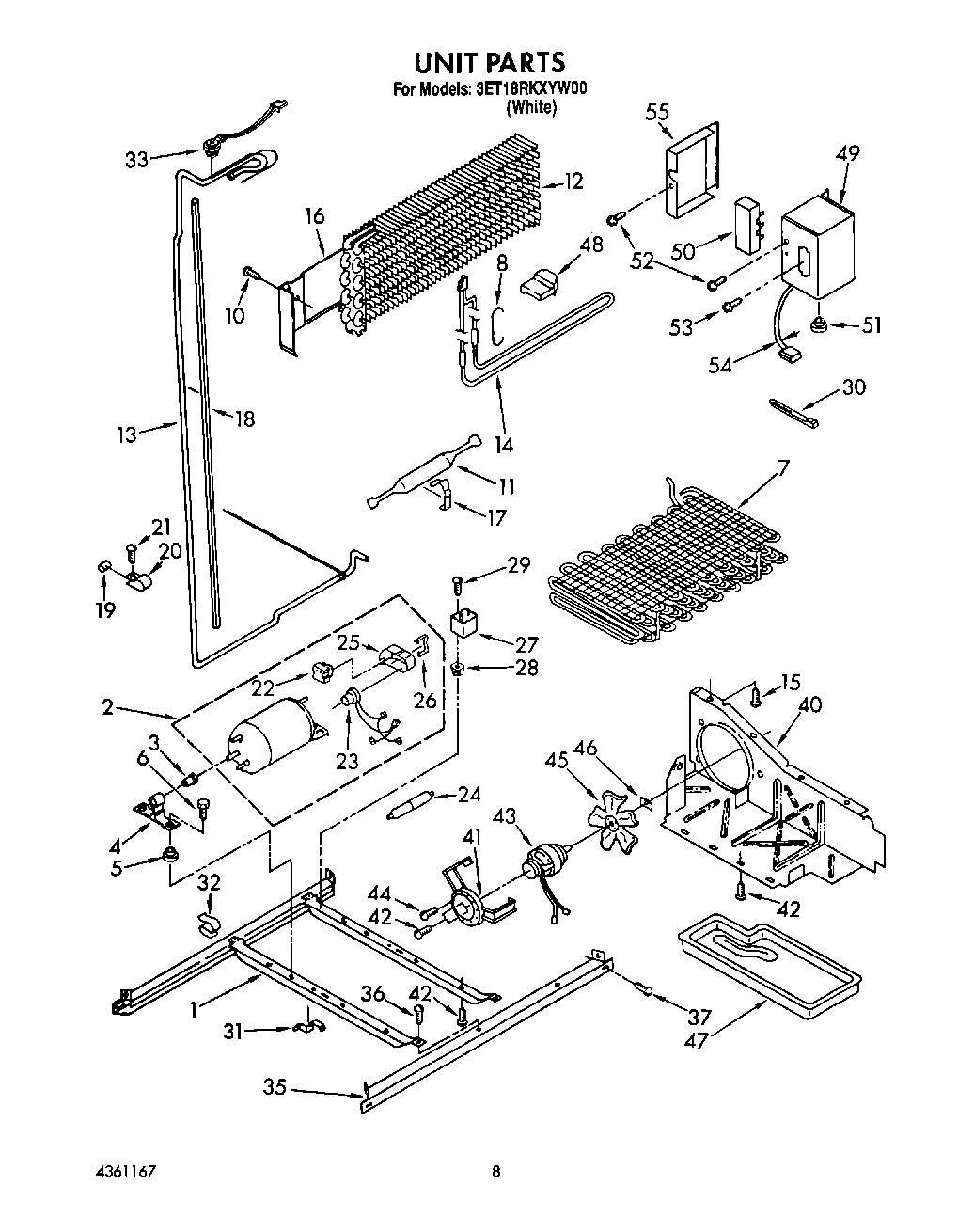

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP2166867 Whirlpool Refrigerator Defrost Time Backorder WPL WP2166867 $84.73

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

4

Bracket, Door Stop WPL 944036 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Grommet, Compressor (4) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Screw (4) WPL 489334 Contact Us For Availability

6

Electrical, Shield WPL 1123211 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Condenser Assembly WPL 1116624 Contact Us For Availability

7

Shelf, Cantilever WPL 1116693 Contact Us For Availability

7

Electrical Shield WPL 2151583 Contact Us For Availability

8

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $2.56

8

Support, Heater WPL 2149120 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125889 Contact Us For Availability

8

Trim, Shelf WPL 2148575 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1125888 Contact Us For Availability

8

Electrical, Shield WPL 1106892 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Crisper Cover WPL 2148570 Contact Us For Availability

9

Stud, Front (2) WPL 946356 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Handle End, Top WPL 944163 Contact Us For Availability

Trim, Crisper Cover WPL 1123002 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Handle End, Side WPL 1109189 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Knob, Thermostat WPL 1114315 Contact Us For Availability

Glass, Crisper Cover WPL 1124926 Contact Us For Availability

Grommet, (6) WPL 1110779 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Evaporator Assembly WPL 1118034 Contact Us For Availability

Handle, Center WPL 2150150 Contact Us For Availability

Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability

Handle, Center WPL 2150149 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Heat, Exchanger WPL 1116630 Contact Us For Availability

Shim, Handle End (Side) WPL 935075 Contact Us For Availability

Light, Bar WPL 1105475 Contact Us For Availability

Cover, Air Duct WPL 2157431 Contact Us For Availability

WP982704 Whirlpool Refrigerator Container Backorder WPL WP982704 $13.05

Spacer, Handle Door WPL 943188 Contact Us For Availability

Heater, Defrost WPL 2154636 Contact Us For Availability

Knob, Air Control WPL 1114314 Contact Us For Availability

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Light, Bar WPL 1105476 Contact Us For Availability

Interior Door Panel WPL 1116610 Contact Us For Availability

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Heat Shield WPL 1116636 Contact Us For Availability

Rod, Connecting WPL 1116565 Contact Us For Availability

Shelf, Glass WPL 1124924 Contact Us For Availability

Motor, Fan WPL 2154635 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Clamp, Dryer WPL 1127590 Contact Us For Availability

Air Diffuser Assembly WPL 2157416 Contact Us For Availability

Shelf, Freezer WPL 1116722 Contact Us For Availability

Trim, Door Shelf (2) WPL 2148595 Contact Us For Availability

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Insert, Handle WPL 2150155 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Trim, Shelf Front WPL 2148584 Contact Us For Availability

Nameplate WPL 2148544 Contact Us For Availability

Dampener (2) WPL 2149670 Contact Us For Availability

Interior Door Panel WPL 1114792 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Pan, Crisper WPL 2148572 Contact Us For Availability

Strip, Tape WPL 991259 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Tube Clamp (2) WPL 510716 Contact Us For Availability

Trim, Door Compartment WPL 1121186 Contact Us For Availability

Ground Wire WPL 1114482 Contact Us For Availability

Pan, Meat WPL 2148580 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability

Crisper, Gasket Front (2) WPL 1116713 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Relay For Service & Production Compressor WPL 2154612 Contact Us For Availability

Compartment Door WPL 2148747 Contact Us For Availability

Wiring Assembly, Control Box WPL 2158593 Contact Us For Availability

Overload For Service & Production Compressor WPL 2156479 Contact Us For Availability

Compartment Door WPL 2148745 Contact Us For Availability

Gasket, Bottom Separator WPL 1116566 Contact Us For Availability

Reflector, Shelf WPL 1115165 Contact Us For Availability

Shim, EndCap (Top) WPL 935074 Contact Us For Availability

Scroll, Fan WPL 1116598 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

Muffler WPL 1121121 Contact Us For Availability

Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability

Evaporator Cover WPL 2151668 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Terminal Cover WPL 1105221 Contact Us For Availability

Pin Plate (8) WPL 1116986 Contact Us For Availability

Insert, Handle WPL 1108828 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Strap, Cover WPL 1105222 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

Divider WPL 1118054 Contact Us For Availability

Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Running Capacitor WPL 2154615 Contact Us For Availability

Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability

Insulation, Compartment Separator WPL 1116569 Contact Us For Availability

Shelf, Ice Compartment (2) WPL 1106624 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

Slide, Ice Compartment WPL 1106817 Contact Us For Availability

Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability

29

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

29

Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability

30

Strap WPL 851095 Contact Us For Availability

30

Door, Ice Compartment WPL 2148741 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

31

Retainer, Insert WPL 1118080 Contact Us For Availability

31

Crisper, Gasket Rear (2) WPL 1116714 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

32

Trim, Compartment Door WPL 2148588 Contact Us For Availability

32

Slide, Crisper WPL 2148524 Contact Us For Availability

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

Endcap, Insert Retainer WPL 1105804 Contact Us For Availability

Separator, Compartment (Top) WPL 1116570 Contact Us For Availability

Screw (6) WPL 489268 Contact Us For Availability

W11625904 Whirlpool Refrigerator Ice Pan In Stock WPL W11625904 $24.25

Unit, Rail WPL 1116622 Contact Us For Availability

Trim, Door WPL 1118064 Contact Us For Availability

Cup, Drain WPL 937065 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Door Dike, Middle WPL 1118008 Contact Us For Availability

36

Crisper, Pan Front WPL 2148573 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Door Dike, Side (2) WPL 1118007 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

Shelf, Full Cantilever WPL 1116688 Contact Us For Availability

39

Trim, Door Shelf WPL 2148591 Contact Us For Availability

39

Drain Pan WPL 1116602 Contact Us For Availability

39

Trim, Shelf WPL 2148578 Contact Us For Availability

40

Air, Baffle WPL 1114768 Contact Us For Availability

40

Shelf Bin (2) WPL 2148592 Contact Us For Availability

40

Glass, Shelf WPL 1124925 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Fan, Mounting Bracket WPL 1115132 Contact Us For Availability

Shelf Bin (2) Deep WPL 2148593 Contact Us For Availability

Reflector, Shelf WPL 2148577 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

42

WP1118001 Whirlpool Hinge Pin Backorder WPL WP1118001 $3.70

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $132.02

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

45

Fan Blade WPL 1115135 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

47

Tray, Evaporator WPL 1116604 Contact Us For Availability

48

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

49

Enclosure, Terminal Block WPL 1129418 Contact Us For Availability

50

Terminal Block WPL 1129346 Contact Us For Availability

51

Bushing WPL 1129449 Contact Us For Availability

52

Screw WPL 489346 Contact Us For Availability

53

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

54

Wiring, Terminal Block WPL 2156513 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cover, Terminal WPL 1129419 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70
