Model Whirlpool 3ET18DKXBW00 REFRIGERATOR – Common Parts & Diagrams
05 - UNIT
07 - FREEZER DOOR

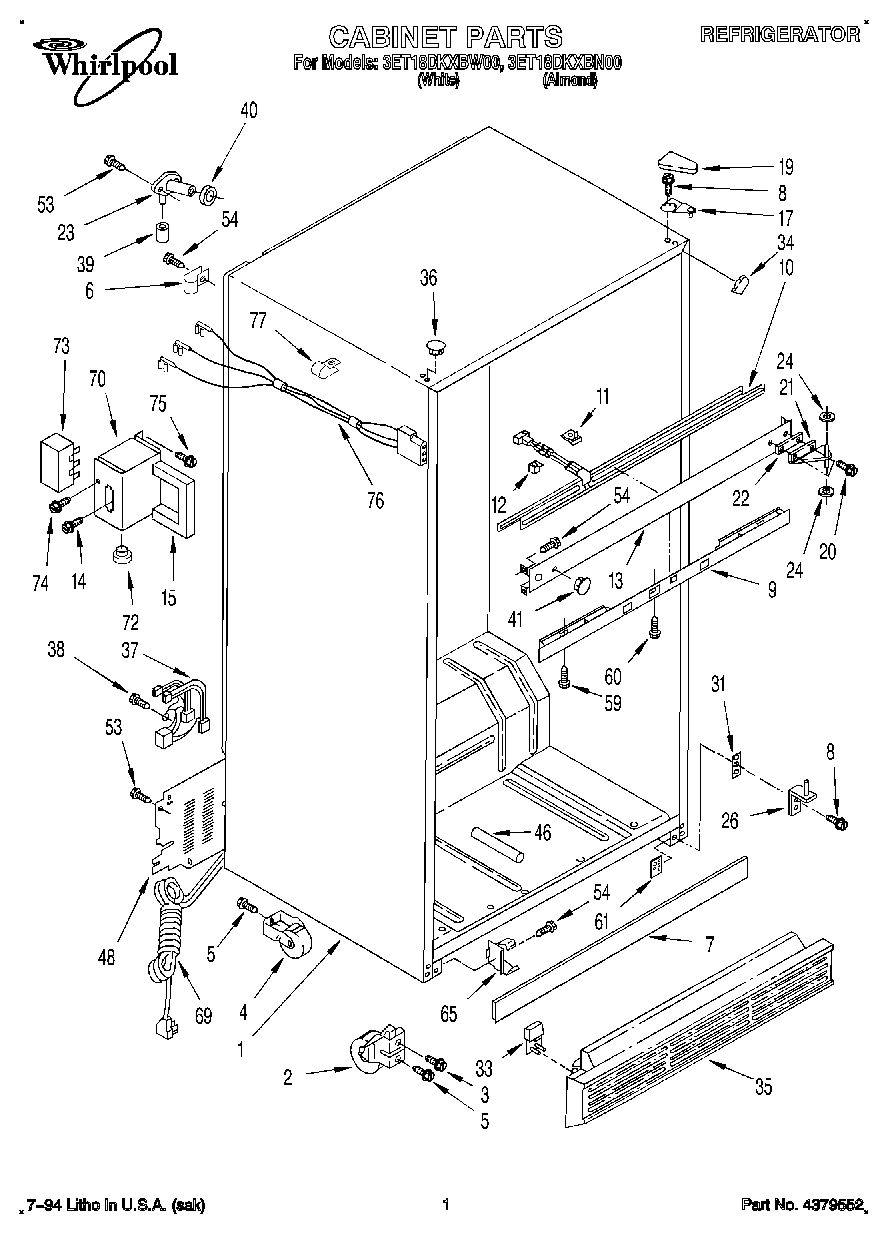

01 - CABINET

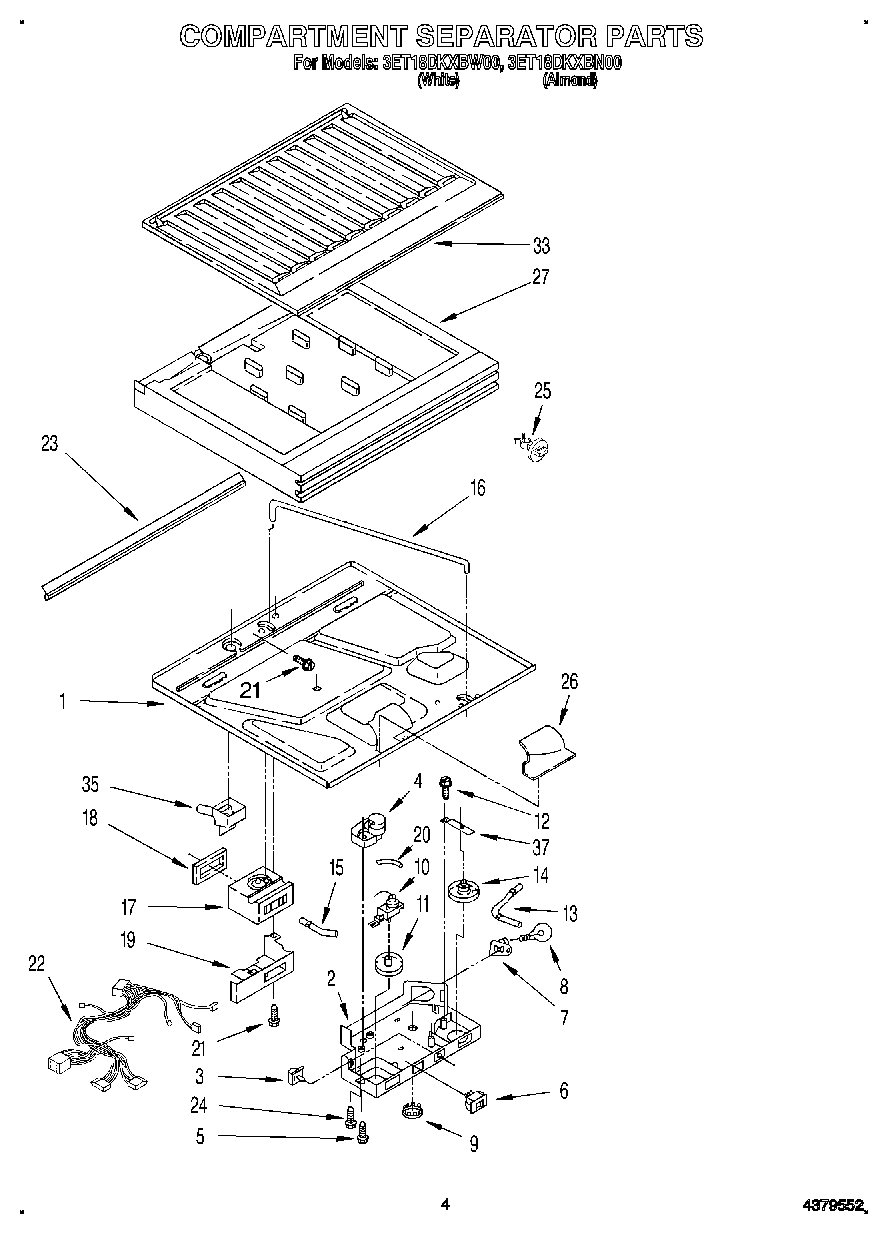

03 - COMPARTMENT SEPARATOR

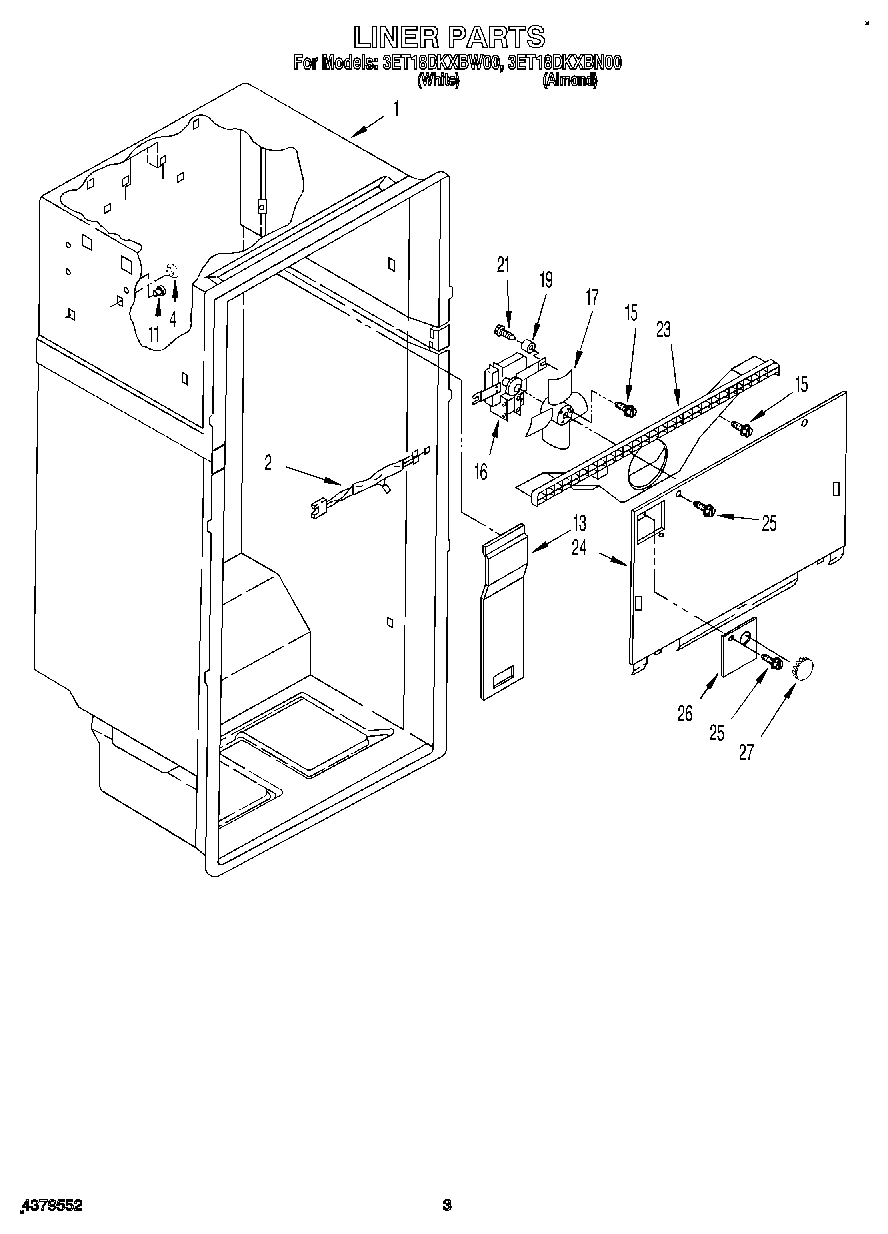

02 - LINER

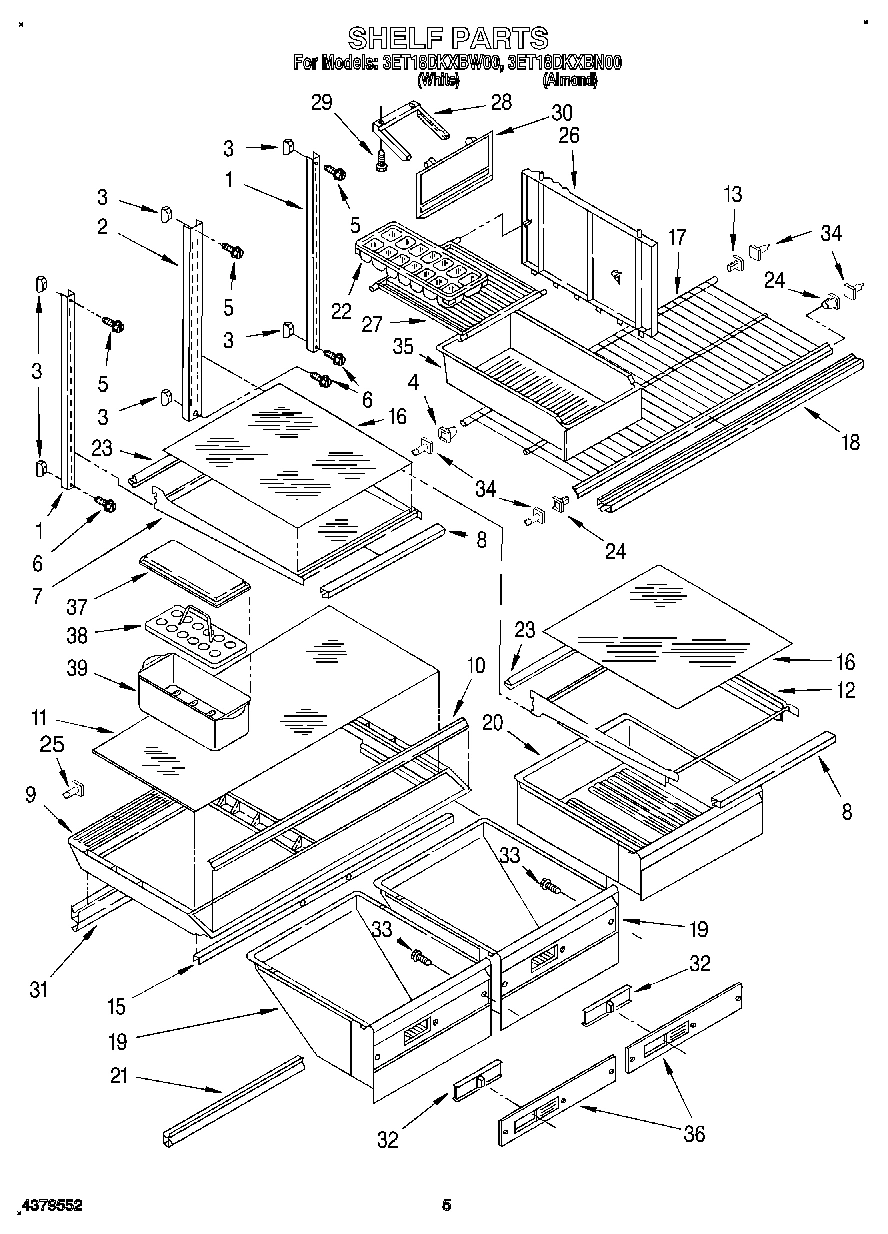

04 - SHELF, LIT/OPTIONAL

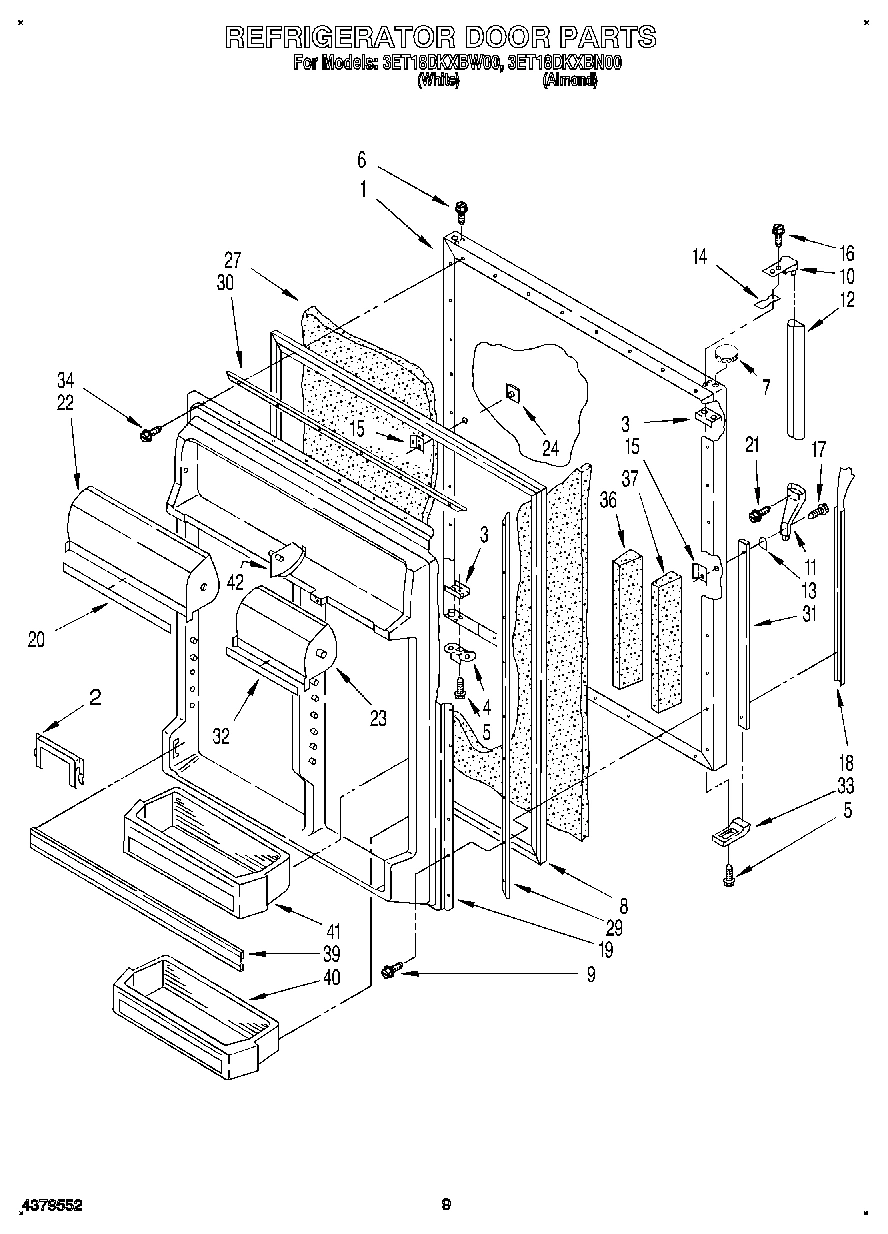

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool 3ET18DKXBW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2158656 WPL LIT2158656 Contact Us For Availability
WPL LIT2170277 WPL LIT2170277 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2157708 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2157711 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI11921A1 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172814 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI11922A3 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Retainer, Bottle WPL 2163566 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Shelf, Cantilever WPL 1116693 Contact Us For Availability
8
Door Gasket Magnetic (Almond Model) WPL 1116735 Contact Us For Availability
8
Door Gasket Magnetic (White Model) WPL 1125888 Contact Us For Availability
8
Trim, Shelf WPL 2162940 Contact Us For Availability
8
Door Gasket, Magnetic (Almond Model) WPL 1116734 Contact Us For Availability
8
Door Gasket, Magnetic (White Model) WPL 1125889 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
9
Crisper Cover WPL 2162906 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 2158623 Contact Us For Availability
10
Trim, Crisper Cover WPL 2162847 Contact Us For Availability
11
Handle End, WPL 1109189 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Grommet (4) WPL 1110779 Contact Us For Availability
11
Glass, Crisper Cover WPL 2162979 Contact Us For Availability
12
Handle, Center (White Model) WPL 2162586 Contact Us For Availability
12
Handle, Center (Almond Model) WPL 2162693 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Handle, Center (White) WPL 2150150 Contact Us For Availability
12
Handle Center (Almond) WPL 943068 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
13
Cover, Air Duct WPL 2153966 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
15
Gasket WPL 2167227 Contact Us For Availability
15
Light, Bar WPL 1105476 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Motor, Fan WPL 2169115 Contact Us For Availability
16
Shelf, Glass (5) WPL 2162978 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2162840 Contact Us For Availability
17
Air Diffuser Assembly WPL 2160771 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
18
Nameplate (White Model) WPL 2148544 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2162668 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Trim, Shelf Front WPL 2162933 Contact Us For Availability
18
Insert, Handle (White Model) WPL 2150155 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2150156 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2162855 Contact Us For Availability
19
Interior Door Panel WPL 2157384 Contact Us For Availability
20
Pan, Meat WPL 2162929 Contact Us For Availability
20
Trim, Compartment Door (L.S.) WPL 2157839 Contact Us For Availability
21
Screw, 6-20 x 3/8 WPL 489022 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Crisper, Gasket Front (2) WPL 1116713 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2158621 Contact Us For Availability
22
Compartment Door WPL 2148747 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Reflector, Shelf WPL 2162942 Contact Us For Availability
23
Compartment Door WPL 2148745 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Shelf Stud WPL 946356 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Shelf Stud (2) WPL 1106612 Contact Us For Availability
25
Insert, Handle (White Model) WPL 1108828 Contact Us For Availability
25
Insert, Handle (Almond Model) WPL 1108830 Contact Us For Availability
25
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
26
Divider, Door Shelf (2) WPL 1123293 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider WPL 1118054 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Shelf, Ice Compartment WPL 1106624 Contact Us For Availability
28
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
28
Slide, Ice Compartment WPL 1106817 Contact Us For Availability
29
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
30
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
30
Door, Ice Compartment WPL 2162944 Contact Us For Availability
31
Spacer WPL 2172745 Contact Us For Availability
31
Crisper, Gasket Rear (2) WPL 1116714 Contact Us For Availability
31
Retainer, Insert WPL 1118080 Contact Us For Availability
32
Slide, Crisper WPL 2162849 Contact Us For Availability
32
Trim, Compartment Door (R.S.) WPL 2157836 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
33
Screw WPL 489162 Contact Us For Availability
33
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Support, Stud WPL 946355 Contact Us For Availability
35
Grille (White) WPL 1125664 Contact Us For Availability
35
Grille (Almond) WPL 1125669 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
36
Front, Crisper Pan WPL 2162850 Contact Us For Availability
36
Door Dike, Middle WPL 2157385 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2165296 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cover, Egg Bin WPL 2164374 Contact Us For Availability
37
Door Dike, Side WPL 1118007 Contact Us For Availability
39
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
39
WPL 799344 WPL 799344 Contact Us For Availability
39
Door Reversal Instructions WPL 2172761 Contact Us For Availability
39
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
39
WPL 799833 WPL 799833 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
39
Trim, Door Shelf WPL 2162832 Contact Us For Availability
40
Shelf Bin (2) WPL 2162887 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
41
Shelf Bin, Deep (2) WPL 2162886 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
48
Cover, Unit WPL 2160519 Contact Us For Availability
51
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
51
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
69
Service Cord WPL 1129332 Contact Us For Availability
70
Enclosure, Term. WPL 2158579 Contact Us For Availability
72
Bushing WPL 1129449 Contact Us For Availability
73
Terminal Block WPL 1129346 Contact Us For Availability
74
Screw WPL 489346 Contact Us For Availability
76
Wiring Assy. WPL 2165297 Contact Us For Availability
× ![]()
