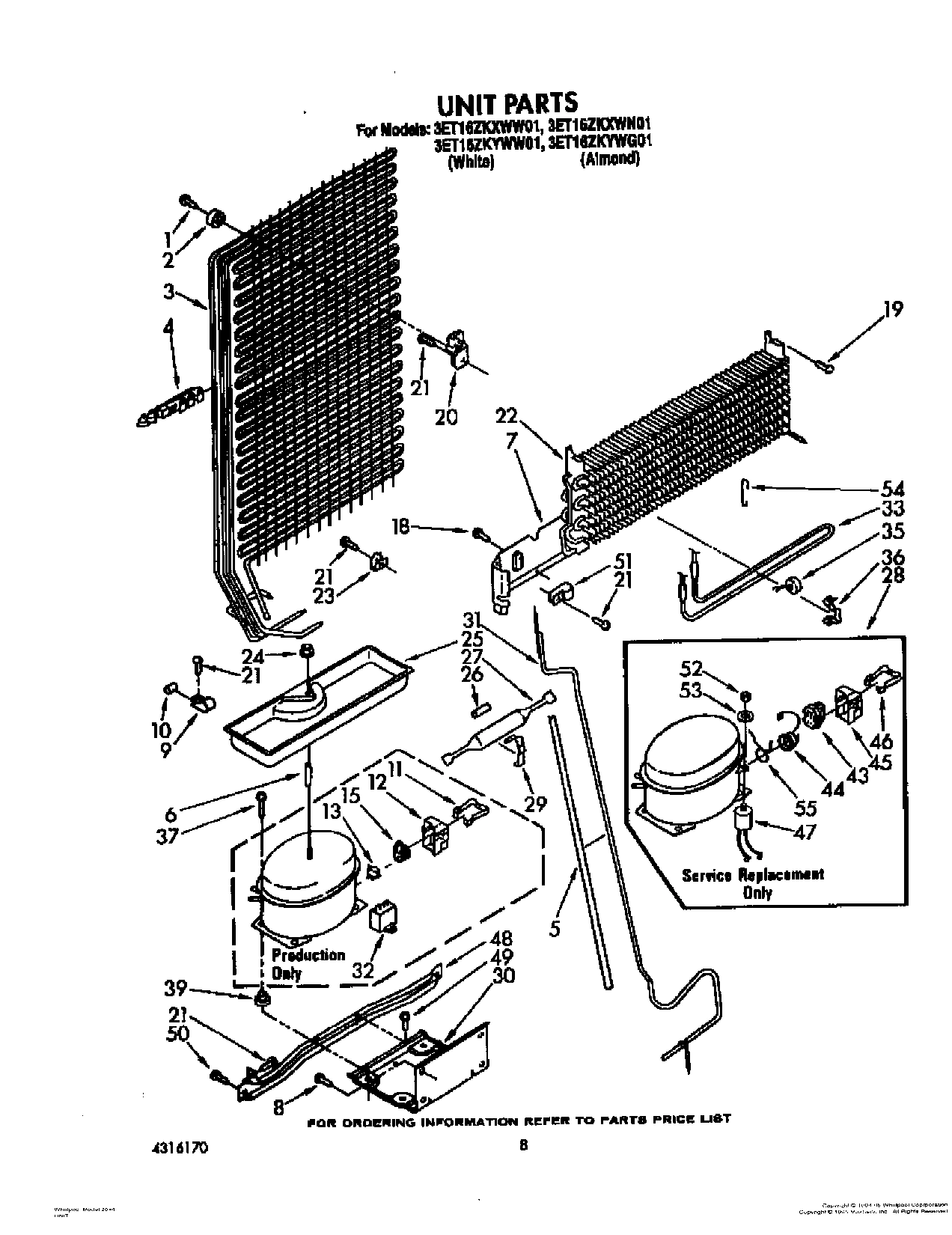

Model Whirlpool 3ET16ZKXWW01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

Torx Key WPL 1117510 Contact Us For Availability

xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability

xLeveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL LIT1124782 WPL LIT1124782 Contact Us For Availability

WPL LIT1124990 WPL LIT1124990 Contact Us For Availability

WPL LIT1129732 WPL LIT1129732 Contact Us For Availability

WPL LIT2156418 WPL LIT2156418 Contact Us For Availability

WPL LIT4316170 WPL LIT4316170 Contact Us For Availability

1

Transformer WPL 1129622 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI11904A8 Contact Us For Availability

1

Shelf, Pullout (3) WPL 943785 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI11903A8 Contact Us For Availability

1

Bottom, Compartment Separator WPL 1111794 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1103940 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1103942 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Bracket, Transformer WPL 1129616 Contact Us For Availability

2

Trim, Shelf (Front) WPL 935749 Contact Us For Availability

2

Roller, Front (2) WPL 2152013 Contact Us For Availability

2

Box, Control WPL 2150476 Contact Us For Availability

2

Hole Plug (2) (White) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

3

Screw WPL 489364 Contact Us For Availability

3

Cover, Crisper WPL 2150103 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

4

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

4

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

4

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

4

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

4

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

4

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

4

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

4

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

4

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

4

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

4

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

4

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

4

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

4

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

4

Clamp WPL 1129613 Contact Us For Availability

4

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

4

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

4

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

4

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

4

Enamel, Almond (1 Qt. Uncut) WPL 978883 Contact Us For Availability

4

Glass, Crisper Cover WPL 2150104 Contact Us For Availability

4

Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability

4

Timer, Defrost (8 Hour) WPL 2154653 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Roller, Rear (2) WPL 2152014 Contact Us For Availability

5

Cover, Meat Pan WPL 1108739 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Shelf, Freezer WPL 943783 Contact Us For Availability

6

Clip, Center Rail WPL 1129018 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Top, Electric Shield WPL 1129067 Contact Us For Availability

7

Trim, Shelf (Front) WPL 942840 Contact Us For Availability

7

Heater, Mullion WPL 1129724 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

WP2188456A Whirlpool Refrigerator Door Gasket Backorder WPL WP2188456A $100.80

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

8

Pan, Crisper (2) WPL 2150106 Contact Us For Availability

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

Stud (2) WPL 946356 Contact Us For Availability

9

Pan, Meat WPL 2150107 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

WP2191882 Whirlpool Refrigerator Handle End C Backorder WPL WP2191882 $31.71

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

WP2191883 Whirlpool Refrigerator Handle Endca Backorder WPL WP2191883 $30.73

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Clip, Strap WPL 1123230 Contact Us For Availability

Screw, 8-32 x 1/2 (2) WPL 488844 Contact Us For Availability

Knob, Thermostat WPL 2148148 Contact Us For Availability

WP2162555 Whirlpool Refrigerator White Door H In Stock WPL WP2162555 $123.32

support stud (8) WPL 946355 Contact Us For Availability

Trim, Crisper Cover WPL 946434 Contact Us For Availability

Spacer (2) WPL 2149077 Contact Us For Availability

Drain Pan WPL 1108170 Contact Us For Availability

Handle, Center (Almond) WPL 2148038 Contact Us For Availability

Shim, Handle WPL 943187 Contact Us For Availability

Shim, Handle End (Side) WPL 992872 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Support, Crisper Cover WPL 1103731 Contact Us For Availability

Center Rail (White) WPL 1111510 Contact Us For Availability

Center Rail (Almond) WPL 1111512 Contact Us For Availability

Spacer, Handle Door WPL 943188 Contact Us For Availability

Post, Cripser Cover WPL 836410 Contact Us For Availability

Center, Rail Shim (2) WPL 2151428 Contact Us For Availability

Knob, Air Control WPL 2148149 Contact Us For Availability

15

Glass, Meat Pan Cover WPL 2150105 Contact Us For Availability

15

Screw WPL 489319 Contact Us For Availability

15

Panel, Interior Door (Freezer) WPL 1120633 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

Rod, Connecting WPL 1111271 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

Hinge, Top WPL 1129045 Contact Us For Availability

Air Diffuser Assembly WPL 1118774 Contact Us For Availability

Trim, Door Shelf (2) WPL 1124988 Contact Us For Availability

18

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

18

Shim, Hinge Top WPL 1100511 Contact Us For Availability

18

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

19

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

19

Grommet (2) WPL 531933 Contact Us For Availability

19

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

20

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

20

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

Screw (2) WPL 489168 Contact Us For Availability

21

Hinge, Center WPL 1129047 Contact Us For Availability

21

Wiring Assembly WPL 937078 Contact Us For Availability

22

Shim, Hinge Center WPL 836194 Contact Us For Availability

22

Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability

22

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

4386951 Whirlpool Refrigerator Clip In Stock WPL 4386951 $3.51

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

Scroll, Fan WPL 1122814 Contact Us For Availability

Gasket, Bottom Separator WPL 1123916 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1120614 Contact Us For Availability

24

285002 Whirlpool Nut Backorder WPL 285002 $7.58

24

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

24

Evaporator Cover WPL 2151569 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Evaporator Tray WPL 1101002 Contact Us For Availability

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Restrictor Sleeve WPL 510446 Contact Us For Availability

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Insulation, Compartment Separator WPL 1123390 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability

28

Pad (2) WPL 946367 Contact Us For Availability

29

Clamp, Dryer WPL 1127590 Contact Us For Availability

29

Shim, Bottom WPL 943708 Contact Us For Availability

30

Unit Mounting Plate WPL 1118781 Contact Us For Availability

30

Washer, 7/64 WPL 489201 Contact Us For Availability

31

Exchanger, Heat WPL 1127874 Contact Us For Availability

31

Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability

31

Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

32

Cover, Deck Rail (White) WPL 1109359 Contact Us For Availability

32

Cover, Deck Rail (Almond) WPL 1109363 Contact Us For Availability

Heater, Defrost WPL 1127659 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Separator, Compartment (Top) WPL 1119324 Contact Us For Availability

34

Filler, Wrap Corner (2) (White) WPL 1110684 Contact Us For Availability

34

Filler, Wrap Corner (2) (Almond) WPL 1110685 Contact Us For Availability

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

Cup, Drain WPL 939191 Contact Us For Availability

Hole Plug (White) WPL 1119707 Contact Us For Availability

Hole Plug (Almond) WPL 1119709 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

36

Clamp WPL 836472 Contact Us For Availability

36

Hole Plug (2) (Almond) WPL 2151653 Contact Us For Availability

37

Hole Seal WPL 1129056 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

Cover, Wiring WPL 942845 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Overload WPL 483037 Contact Us For Availability

45

Cover, Terminal WPL 1105015 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

46

Fitting, Drain WPL 942813 Contact Us For Availability

47

Capacitor WPL 482996 Contact Us For Availability

47

Seal, Gasket WPL 1106507 Contact Us For Availability

48

Unit Mounting Rail WPL 1118782 Contact Us For Availability

49

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

49

Cover, Plug WPL 1106511 Contact Us For Availability

50

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

51

Clamp WPL 489151 Contact Us For Availability

52

Nut WPL 489142 Contact Us For Availability

52

Clamp (2) WPL 519405 Contact Us For Availability

53

Washer WPL 489143 Contact Us For Availability

54

Support, Heater WPL 1108172 Contact Us For Availability

54

Tap Plate (2) WPL 2147312 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

57

Hole WPL 1120224 Contact Us For Availability

58

WPL 1106510 WPL 1106510 Contact Us For Availability
