Model Whirlpool 3EAD19XMWR1 REFRIGERATOR – Common Parts & Diagrams
07 - ICE MAKER
02 - CABINET

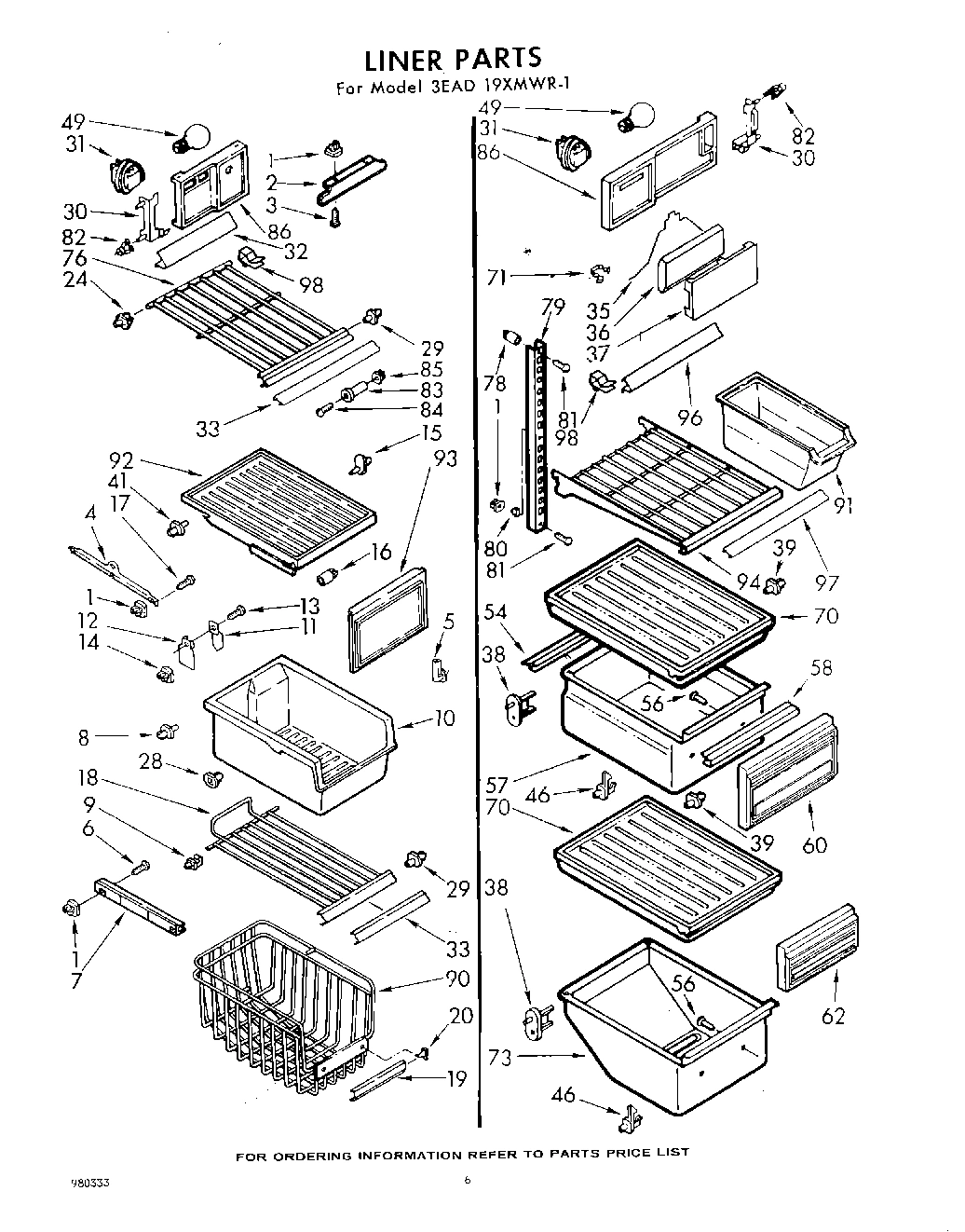

04 - LINER

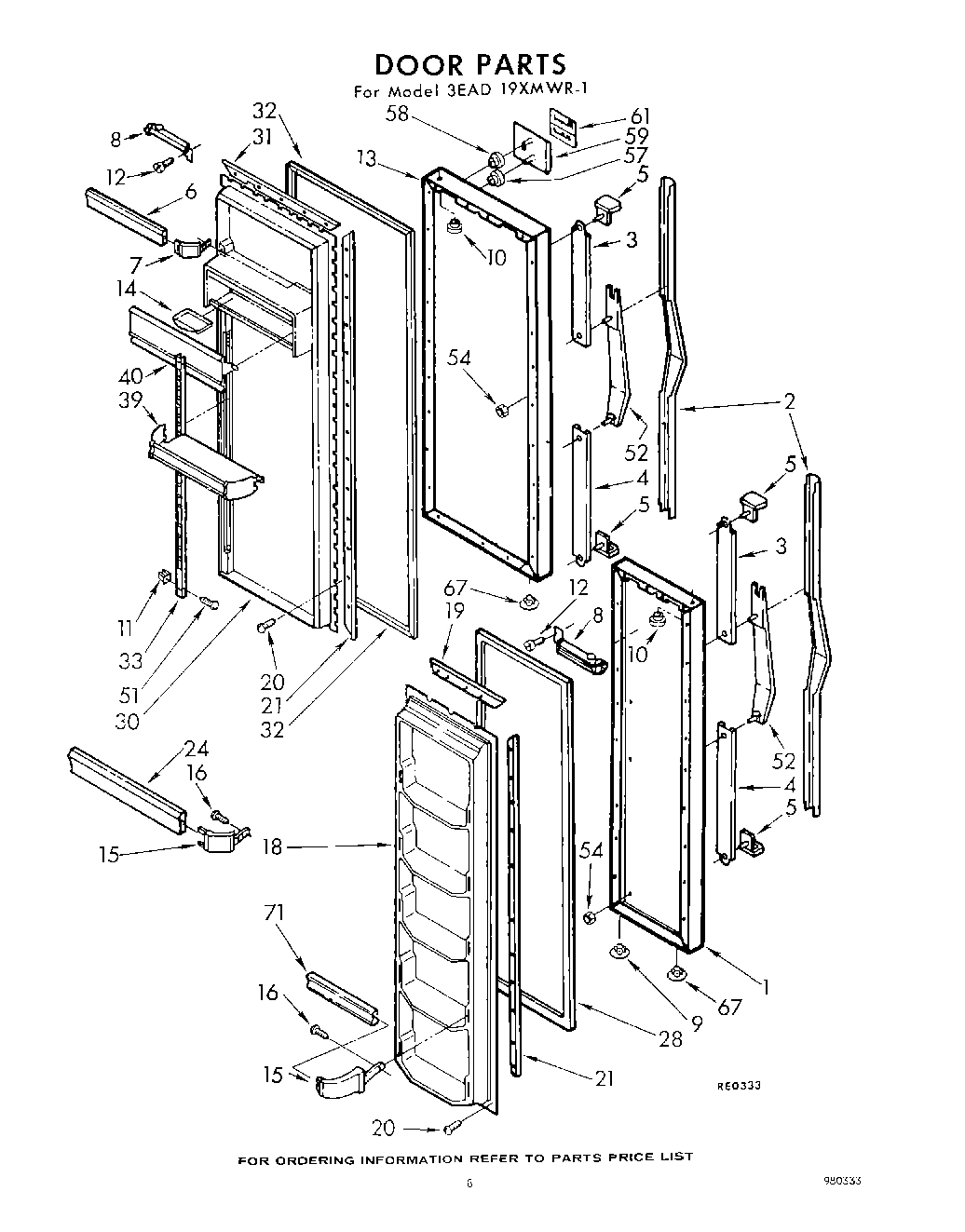

05 - DOOR, LIT/OPTIONAL

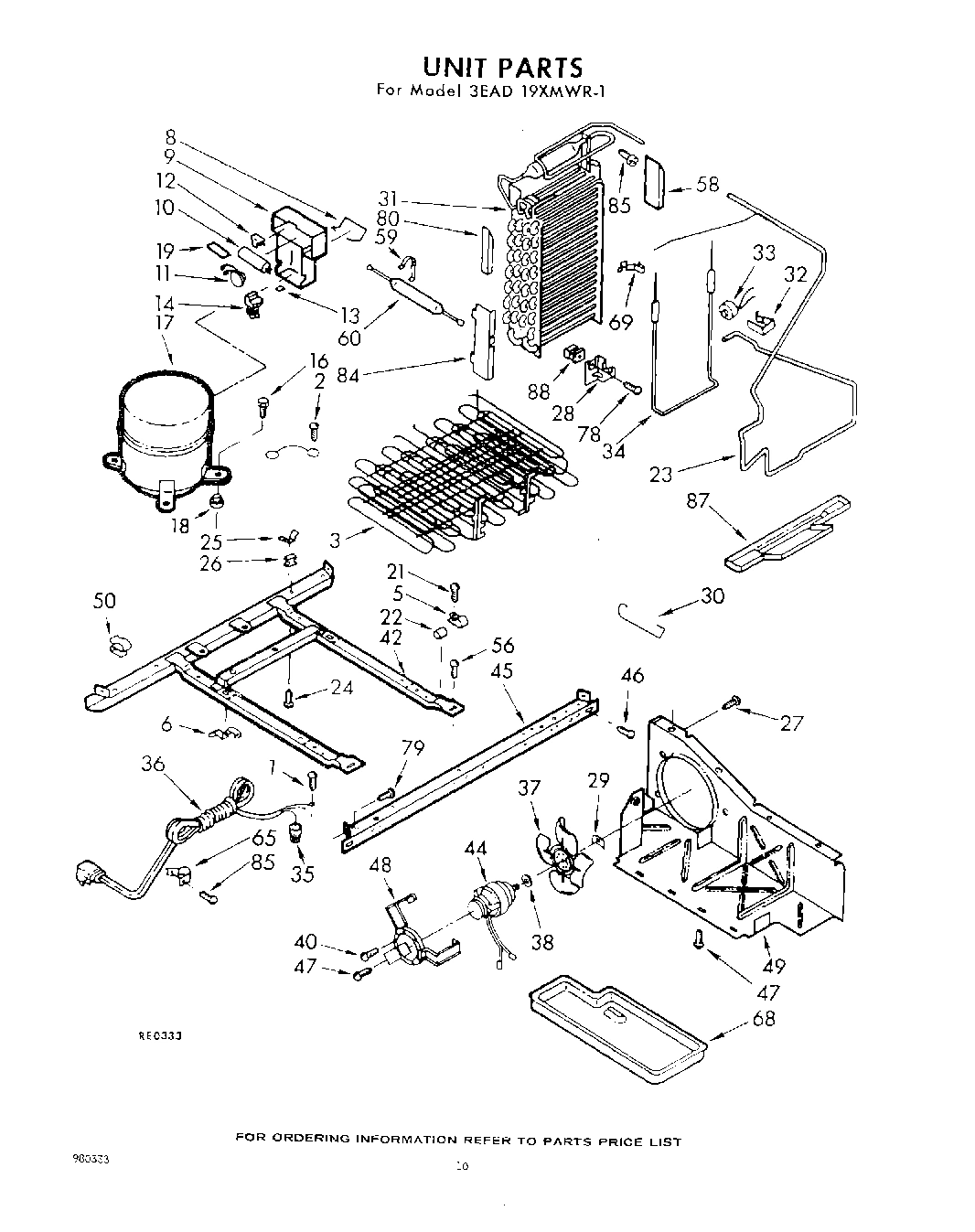

06 - UNIT

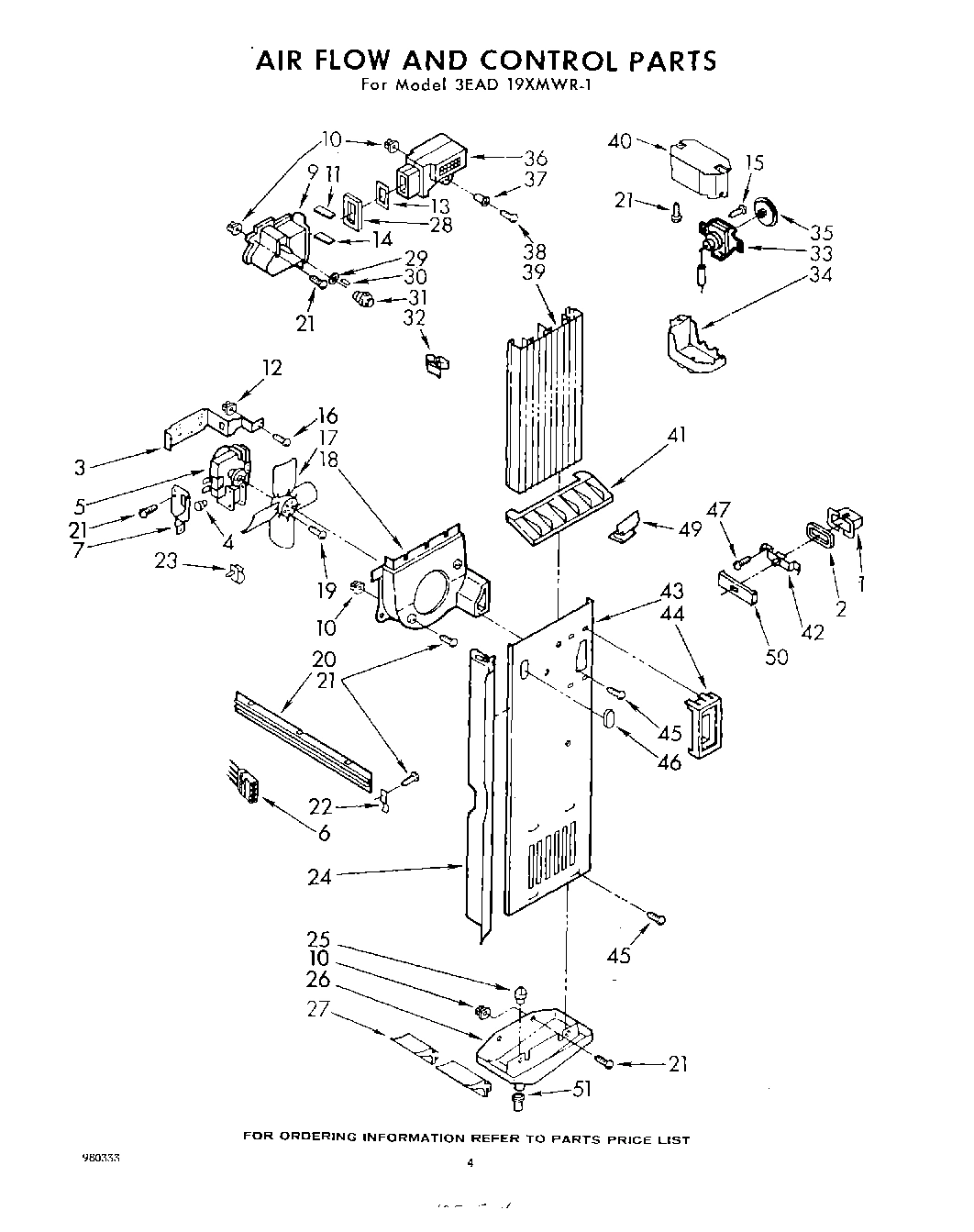

03 - AIRFLOW AND CONTROL
Common parts from model Whirlpool 3EAD19XMWR1 REFRIGERATOR
1
Cabinet (Not A Serviceable Part) WPL ARI11744A9 Contact Us For Availability
1
DOOR, FREEZER (WHITE) WPL 849319 Contact Us For Availability
1
DOOR, FREEZER (COPPERTONE) WPL 849320 Contact Us For Availability
1
DOOR, FREEZER (AVOCADO) WPL 849321 Contact Us For Availability
1
DOOR, FREEZER (HARVEST GOLD) WPL 849322 Contact Us For Availability
1
DOOR, FREEZER (COFFEE) WPL 991295 Contact Us For Availability
1
DOOR, FREEZER (NEW AVOCADO) WPL 991296 Contact Us For Availability
1
DOOR, FREEZER (GOLDEN HARVEST) WPL 991297 Contact Us For Availability
1
DOOR, FREEZER (ALMOND) WPL 991298 Contact Us For Availability
1
Container, Switch WPL 845051 Contact Us For Availability
2
Baffle, Liner Top WPL 836216 Contact Us For Availability
2
Insert, Handle (White, Coffee, & Almond) WPL 845888 Contact Us For Availability
2
INSERT, HANDLE (AVOCADO & NEW AVOCADO) WPL 845889 Contact Us For Availability
2
INSERT, HANDLE (HARVEST GOLD & GOLDEN HARVEST WPL 845890 Contact Us For Availability
2
Gasket, Container WPL 845052 Contact Us For Availability
3
RETAINER, TOP WPL 845885 Contact Us For Availability
3
Condenser & Precooler WPL 481846 Contact Us For Availability
3
Bracket (Single) WPL 548264 Contact Us For Availability
4
Guard, Timer WPL 548708 Contact Us For Availability
4
SLIDE WPL 982321 Contact Us For Availability
4
RETAINER, BOTTOM WPL 845887 Contact Us For Availability
4
Grommet (3) WPL 548268 Contact Us For Availability
5
STUD, HOOK (2) WPL 848620 Contact Us For Availability
5
CAP, END HANDLE (2) WPL 845894 Contact Us For Availability
5
Clamp (2) WPL 510716 Contact Us For Availability
5
FAN MOTOR WPL 851845 Contact Us For Availability
6
DEFROST, TIMER (8 HR.) WPL 851684 Contact Us For Availability
6
TRIM, SHELF WPL 849806 Contact Us For Availability
6
Clip (2) WPL 548744 Contact Us For Availability
6
WIRING, WRAPPER (DEFROST TIMER) WPL 481782 Contact Us For Availability
7
Plate, Tap (2) WPL 836162 Contact Us For Availability
7
Track, Shelf (R.S.) WPL 837554 Contact Us For Availability
7
Track, Shelf (L.S.) WPL 837557 Contact Us For Availability
7
Bracket (Double) WPL 548263 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 488424 Contact Us For Availability
8
Stud, Shelf (2) WPL 521516 Contact Us For Availability
8
Door, Closer WPL 840847 Contact Us For Availability
8
Spring WPL 531318 Contact Us For Availability
9
Plate, Timer WPL 548705 Contact Us For Availability
9
STUD, SHELF WPL 210518 Contact Us For Availability
9
PLUG, HOLE WPL 849391 Contact Us For Availability
9
CASE, RELAY WPL 549946 Contact Us For Availability
9
Air Scoop WPL 841269 Contact Us For Availability
10
Grommet WPL 842339 Contact Us For Availability
10
PAN, ICE CUBE ((WHITE, AVOCADO, & NEW AVOCADO WPL 982796 Contact Us For Availability
10
PAN, ICE CUBE ((COPPERTONE, COFFEE, ALMOND, H WPL 982797 Contact Us For Availability
10
Cap, Hinge WPL 509929 Contact Us For Availability
10
CAPACITOR WPL 547718 Contact Us For Availability
11
Extension Fitting WPL 841646 Contact Us For Availability
11
Clip, Support (2) WPL 538533 Contact Us For Availability
11
Clip, Expansion (6) WPL 537095 Contact Us For Availability
11
OVERLOAD WPL 851705 Contact Us For Availability
11
GASKET, SHUT-OFF (TOP) WPL 984594 Contact Us For Availability
12
GROMMET, SPECIAL (2) WPL 538532 Contact Us For Availability
12
Grommet (2) WPL 538449 Contact Us For Availability
12
CLIP, CAPACITOR WPL 513720 Contact Us For Availability
13
HEATER, STILE WPL 851683 Contact Us For Availability
13
DOOR, REFRIGERATOR (WHITE) WPL 849323 Contact Us For Availability
13
DOOR, REFRIGERATOR (COPPERTONE) WPL 849324 Contact Us For Availability
13
DOOR, REFRIGERATOR (AVOCADO) WPL 849325 Contact Us For Availability
13
DOOR, REFRIGERATOR (HARVEST GOLD) WPL 849326 Contact Us For Availability
13
DOOR, REFRIGERATOR (COFFEE) WPL 991291 Contact Us For Availability
13
DOOR, REFRIGERATOR (NEW AVOCADO) WPL 991292 Contact Us For Availability
13
DOOR, REFRIGERATOR (GOLDEN HARVEST) WPL 991293 Contact Us For Availability
13
DOOR, REFRIGERATOR (ALMOND) WPL 991294 Contact Us For Availability
13
Bumper WPL 547272 Contact Us For Availability
13
Gasket, Air Diffuser WPL 842394 Contact Us For Availability
14
Grommet WPL 502037 Contact Us For Availability
14
RELAY WPL 547711 Contact Us For Availability
14
GASKET, SHUT-OFF (BOTTOM) WPL 984595 Contact Us For Availability
15
STUD, SHELF (2) WPL 536410 Contact Us For Availability
15
CAP, END WPL 849223 Contact Us For Availability
15
Screw, 8-32 x 3/8 (2) WPL 488474 Contact Us For Availability
16
Clip, Heater (2) WPL 510291 Contact Us For Availability
16
Grommet WPL 533881 Contact Us For Availability
16
Screw, 1/4-28 x 1`` (4) WPL 488400 Contact Us For Availability
17
Screw, 8 x 1/2 WPL 487979 Contact Us For Availability
17
COMPRESSOR (PRODUCTION NO. 994030) WPL 994031 Contact Us For Availability
17
FAN BLADE WPL 548145 Contact Us For Availability
18
SHELF, ICE CUBE PAN WPL 837203 Contact Us For Availability
18
PANEL, INTERIOR WPL 848622 Contact Us For Availability
18
Grommet (4) WPL 547283 Contact Us For Availability
18
SCROLL, FAN WPL 836141 Contact Us For Availability
19
Support, Grille (2) WPL 844614 Contact Us For Availability
19
TRIM, BASKET WPL 983788 Contact Us For Availability
19
Retainer, Gasket Top & Bottom (2) WPL 836122 Contact Us For Availability
19
PAD, RUBBER WPL 513992 Contact Us For Availability
20
Spacer, Holding Switch WPL 625834 Contact Us For Availability
20
CAP, BASKET TRIM (R.S.) WPL 537868 Contact Us For Availability
20
CAP, BASKET TRIM (L.S.) WPL 537869 Contact Us For Availability
20
Cover, Heat Exchanger WPL 836514 Contact Us For Availability
21
Retainer, Side Gasket (2) WPL 836120 Contact Us For Availability
22
CENTER RAIL & BRACKET (WHITE) WPL 985979 Contact Us For Availability
22
CENTER RAIL & BRACKET (COPPERTONE) WPL 985980 Contact Us For Availability
22
CENTER RAIL & BRACKET (AVOCADO) WPL 985981 Contact Us For Availability
22
CENTER RAIL & BRACKET (HARVEST GOLD) WPL 985982 Contact Us For Availability
22
CENTER RAIL & BRACKET (COFFEE) WPL 989924 Contact Us For Availability
22
CENTER RAIL & BRACKET (GOLDEN HARVEST) WPL 989925 Contact Us For Availability
22
CENTER RAIL & BRACKET (NEW AVOCADO) WPL 989926 Contact Us For Availability
22
CENTER RAIL & BRACKET (ALMOND) WPL 989927 Contact Us For Availability
22
Dampener (2) WPL 510769 Contact Us For Availability
22
Clamp, Tube WPL 836077 Contact Us For Availability
23
Box, Junction WPL 549947 Contact Us For Availability
23
HEAT EXCHANGER WPL 851048 Contact Us For Availability
23
Fastener, Wire WPL 851039 Contact Us For Availability
24
Stud, Saddle (R.S.) (2) WPL 523263 Contact Us For Availability
24
Stud, Saddle (L.S.) (2) WPL 523264 Contact Us For Availability
24
TRIM, SHELF WPL 983805 Contact Us For Availability
24
GASKET, EVAPORATOR COVER (2) WPL 841606 Contact Us For Availability
25
Clamp (4) WPL 548738 Contact Us For Availability
25
Cap, Drain WPL 842259 Contact Us For Availability
26
Screw, 8-32 x 1 WPL 488372 Contact Us For Availability
26
Grommet (4) WPL 548737 Contact Us For Availability
26
Drain Pan WPL 842404 Contact Us For Availability
27
Screw, 4-40 x 3/4 WPL 488362 Contact Us For Availability
27
SCREW, 8-32 x 1/2 (5) WPL 488845 Contact Us For Availability
27
Gasket, Drain Pan WPL 845564 Contact Us For Availability
28
Stud, Retainer (2) WPL 512900 Contact Us For Availability
28
SUPPORT WPL 842436 Contact Us For Availability
28
Gasket, Air Scoop WPL 844871 Contact Us For Availability
29
Screw, 4-24 x 3/4 WPL 488360 Contact Us For Availability
29
HINGE, TOP WPL 842035 Contact Us For Availability
29
Stud, Shelf (6) WPL 529758 Contact Us For Availability
29
Retainer, Damper WPL 516847 Contact Us For Availability
30
Thermostat WPL 625844 Contact Us For Availability
30
THERMOSTAT (ALTERNATE) WPL 627180 Contact Us For Availability
30
SHIM, HINGE (TOP) (.030) WPL 836151 Contact Us For Availability
30
SUPPORT, LIGHT LENS (R.S.) (2) WPL 842355 Contact Us For Availability
30
Support, Light Lens (L.S.) (2) WPL 842356 Contact Us For Availability
30
PANEL, INTERIOR WPL 983803 Contact Us For Availability
30
Guard, Fan WPL 850156 Contact Us For Availability
30
Knob, Retainer WPL 837444 Contact Us For Availability
31
Switch, S.P.S.T. WPL 625947 Contact Us For Availability
31
SWITCH, S.P.S.T. (ALTERNATE) WPL 627228 Contact Us For Availability
31
SHIM, HINGE (BOTTOM) (.030) (REPAIR) WPL 836196 Contact Us For Availability
31
Retainer, Gasket Top & Bottom (2) WPL 836121 Contact Us For Availability
31
Evaporator WPL 851439 Contact Us For Availability
31
CONTROL KNOB ASSEMBLY (INCLUDES ILLUS. 30) WPL 837445 Contact Us For Availability
32
Wire Assembly (Water Valve) WPL 548734 Contact Us For Availability
32
REFLECTOR, SHELF WPL 844851 Contact Us For Availability
32
Clamp WPL 513584 Contact Us For Availability
33
Support WPL 625827 Contact Us For Availability
33
TRIM, SHELF FRONT WPL 839576 Contact Us For Availability
33
Ladder, Door Shelf (2) WPL 983804 Contact Us For Availability
33
THERMOSTAT & BARRIER WPL 851800 Contact Us For Availability
34
Screw, Shoulder WPL 627199 Contact Us For Availability
34
HINGE, R.H. WPL 836686 Contact Us For Availability
34
HINGE, L.H. WPL 836687 Contact Us For Availability
34
HEATER WPL 851690 Contact Us For Availability
34
COVER, THERMOSTAT WPL 844905 Contact Us For Availability
35
Grommet (2) WPL 510723 Contact Us For Availability
35
Nut, Wire WPL 227991 Contact Us For Availability
35
Bumper, Grille (2) WPL 546131 Contact Us For Availability
35
RETAINER, FILTER WPL 842441 Contact Us For Availability
35
KNOB, THERMOSTAT WPL 844888 Contact Us For Availability
36
Grille, Exterior (White) WPL 841670 Contact Us For Availability
36
GRILLE, EXTERIOR (COPPERTONE) WPL 841672 Contact Us For Availability
36
GRILLE, EXTERIOR (AVOCADO) WPL 841674 Contact Us For Availability
36
GRILLE, EXTERIOR (HARVEST GOLD) WPL 841676 Contact Us For Availability
36
Grille, Exterior (Coffee) WPL 989941 Contact Us For Availability
36
Grille, Exterior (New Avocado) WPL 989943 Contact Us For Availability
36
Grille, Exterior (Golden Harvest) WPL 989945 Contact Us For Availability
36
Grille, Exterior (Almond) WPL 989947 Contact Us For Availability
36
FILTER WPL 842440 Contact Us For Availability
36
CORD, SERVICE WPL 989436 Contact Us For Availability
36
AIR DIFFUSER WPL 842360 Contact Us For Availability
37
Arm, Shut-Off WPL 627484 Contact Us For Availability
37
COVER, FILTER WPL 848645 Contact Us For Availability
37
Blade, Fan WPL 989524 Contact Us For Availability
38
Lever, Arm WPL 625830 Contact Us For Availability
38
Shelf Stud (2) WPL 845985 Contact Us For Availability
38
WASHER WPL 531107 Contact Us For Availability
38
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
39
Spring, Shut-Off Arm WPL 625832 Contact Us For Availability
39
STUD, SHELF (4) WPL 837412 Contact Us For Availability
39
SHELF, CANT WPL 849141 Contact Us For Availability
39
Duct, Air WPL 842399 Contact Us For Availability
40
WPL 848648 WPL 848648 Contact Us For Availability
40
Screw, 8-36 x 3/8 (3) WPL 488868 Contact Us For Availability
40
BOX, THERMOSTAT WPL 844889 Contact Us For Availability
41
Ejector WPL 627375 Contact Us For Availability
41
Stud Shelf WPL 521878 Contact Us For Availability
41
CAP, EVAPORATOR COVER WPL 836144 Contact Us For Availability
42
Frame WPL 548654 Contact Us For Availability
42
BRACKET & SWITCH WPL 851860 Contact Us For Availability
43
Heater, Mold WPL 626069 Contact Us For Availability
43
Cover, Evaporator WPL 984466 Contact Us For Availability
44
Stripper, Ice WPL 625840 Contact Us For Availability
44
Gasket, Divider WPL 842435 Contact Us For Availability
44
MOTOR, FAN WPL 851679 Contact Us For Availability
44
MOTOR, FAN (ALTERNATE) WPL 851680 Contact Us For Availability
44
Grille WPL 835740 Contact Us For Availability
45
Rail, Front WPL 548662 Contact Us For Availability
45
Screw 8-15 x 1/2 WPL 486214 Contact Us For Availability
46
BREAKER TRIM, TOP WPL 843334 Contact Us For Availability
46
STUD, SHELF (2) WPL 836464 Contact Us For Availability
46
GROMMET WPL 835649 Contact Us For Availability
47
Union, 1/4`` x 3/16`` WPL 512503 Contact Us For Availability
47
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
47
CLIP, WPL 845807 Contact Us For Availability
48
Valve, Shutoff (1/4`` x 1/4``) WPL 541157 Contact Us For Availability
48
WPL 836174 WPL 836174 Contact Us For Availability
48
Bracket WPL 548695 Contact Us For Availability
49
Filter Kit WPL 978488 Contact Us For Availability
49
WPL 836108 WPL 836108 Contact Us For Availability
49
Baffle, Air WPL 850764 Contact Us For Availability
49
BAFFLE, AIR WPL 842522 Contact Us For Availability
50
WPL 836447 WPL 836447 Contact Us For Availability
50
Clip, Wire (2) WPL 548745 Contact Us For Availability
50
ESCUTCHEON, SWITCH WPL 849288 Contact Us For Availability
51
Mold & Heater Assembly (Includes Illus. 43) WPL 626068 Contact Us For Availability
51
WPL 519890 WPL 519890 Contact Us For Availability
51
Fitting, Drain Pan WPL 841770 Contact Us For Availability
52
Bearing & Inlet WPL 625707 Contact Us For Availability
52
WPL 845884 WPL 845884 Contact Us For Availability
53
WIRE ASSEMBLY, LINER WPL 481658 Contact Us For Availability
53
WPL 843335 WPL 843335 Contact Us For Availability
54
GASKET, CRISPER (REAR) WPL 840096 Contact Us For Availability
54
WPL 509324 WPL 509324 Contact Us For Availability
55
WIRE, HARNESS (ICE MAKER) WPL 627357 Contact Us For Availability
55
WPL 836090 WPL 836090 Contact Us For Availability
56
WPL 836213 WPL 836213 Contact Us For Availability
56
Screw (Repair) WPL 488132 Contact Us For Availability
56
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
57
Screw, Ground WPL 488542 Contact Us For Availability
57
WPL 836446 WPL 836446 Contact Us For Availability
57
Pan, Crisper WPL 841316 Contact Us For Availability
57
WPL 659676 WPL 659676 Contact Us For Availability
58
WPL ARI11745A4 WPL ARI11745A4 Contact Us For Availability
58
GASKET, CRISPER (FRONT) WPL 839014 Contact Us For Availability
58
WPL 659677 WPL 659677 Contact Us For Availability
58
Baffle, Air Evaporator WPL 652985 Contact Us For Availability
59
WPL 842178 WPL 842178 Contact Us For Availability
59
WPL 848307 WPL 848307 Contact Us For Availability
59
Clamp WPL 548508 Contact Us For Availability
60
``O`` RING SEAL WPL 488794 Contact Us For Availability
60
WPL 987220 WPL 987220 Contact Us For Availability
60
COVER, PAN ((COPPERTONE, COFFEE, ALMOND, HARV WPL 849043 Contact Us For Availability
60
COVER, PAN ((WHITE, AVOCADO & NEW AVOCADO)) WPL 849044 Contact Us For Availability
61
Clip WPL 652604 Contact Us For Availability
61
WPL 981087 WPL 981087 Contact Us For Availability
62
SCREW (USE W/626073 MOTOR) WPL 488361 Contact Us For Availability
62
COVER, PAN ((COPPERTONE, COFFEE, ALMOND, HARV WPL 849045 Contact Us For Availability
62
WPL 849046 WPL 849046 Contact Us For Availability
66
TUBE, INLET WPL 836175 Contact Us For Availability
67
Fitting, W WPL 653113 Contact Us For Availability
67
WPL 534927 WPL 534927 Contact Us For Availability
68
Tray, Evaporating WPL 842041 Contact Us For Availability
69
Clamp (4) WPL 549419 Contact Us For Availability
70
WPL 488622 WPL 488622 Contact Us For Availability
70
WPL 836463 WPL 836463 Contact Us For Availability
71
WPL 479502 WPL 479502 Contact Us For Availability
71
WPL 799344 WPL 799344 Contact Us For Availability
71
WPL 836472 WPL 836472 Contact Us For Availability
71
WPL 533998 WPL 533998 Contact Us For Availability
71
WPL 206925 WPL 206925 Contact Us For Availability
71
WPL 261886 WPL 261886 Contact Us For Availability
71
WPL 261887 WPL 261887 Contact Us For Availability
71
WPL 261888 WPL 261888 Contact Us For Availability
71
WPL 261889 WPL 261889 Contact Us For Availability
71
WPL 261890 WPL 261890 Contact Us For Availability
71
WPL 261891 WPL 261891 Contact Us For Availability
71
WPL 511881 WPL 511881 Contact Us For Availability
71
WPL 542639 WPL 542639 Contact Us For Availability
71
WPL 72019 WPL 72019 Contact Us For Availability
71
WPL 72021 WPL 72021 Contact Us For Availability
71
WPL 72024 WPL 72024 Contact Us For Availability
71
WPL 72025 WPL 72025 Contact Us For Availability
71
WPL 72094 WPL 72094 Contact Us For Availability
71
WPL 72095 WPL 72095 Contact Us For Availability
71
WPL 72108 WPL 72108 Contact Us For Availability
71
WPL 798954 WPL 798954 Contact Us For Availability
71
WPL 798955 WPL 798955 Contact Us For Availability
71
WPL 799340 WPL 799340 Contact Us For Availability
71
WPL 799342 WPL 799342 Contact Us For Availability
71
WPL 799351 WPL 799351 Contact Us For Availability
71
WPL 799735 WPL 799735 Contact Us For Availability
71
WPL 799832 WPL 799832 Contact Us For Availability
71
WPL 799833 WPL 799833 Contact Us For Availability
71
WPL 833503 WPL 833503 Contact Us For Availability
71
WPL 833504 WPL 833504 Contact Us For Availability
71
WPL 848682 WPL 848682 Contact Us For Availability
71
WPL 978883 WPL 978883 Contact Us For Availability
71
WPL 980333 WPL 980333 Contact Us For Availability
71
WPL 985098 WPL 985098 Contact Us For Availability
71
WPL 985104 WPL 985104 Contact Us For Availability
71
WPL 985105 WPL 985105 Contact Us For Availability
71
WPL 985106 WPL 985106 Contact Us For Availability
71
WPL 985107 WPL 985107 Contact Us For Availability
73
WPL 840037 WPL 840037 Contact Us For Availability
76
WPL 843793 WPL 843793 Contact Us For Availability
78
WPL 512923 WPL 512923 Contact Us For Availability
79
WPL 653335 WPL 653335 Contact Us For Availability
80
Baffle, Air WPL 849335 Contact Us For Availability
81
WPL 488357 WPL 488357 Contact Us For Availability
82
WPL 843945 WPL 843945 Contact Us For Availability
83
WPL 658944 WPL 658944 Contact Us For Availability
84
WPL 487559 WPL 487559 Contact Us For Availability
84
Shield, Heat (2) WPL 549435 Contact Us For Availability
86
WPL 842392 WPL 842392 Contact Us For Availability
86
WPL 844922 WPL 844922 Contact Us For Availability
87
PAN, DRIP WPL 549187 Contact Us For Availability
88
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
88
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
89
WPL 547603 WPL 547603 Contact Us For Availability
90
WPL 837247 WPL 837247 Contact Us For Availability
91
WPL 488590 WPL 488590 Contact Us For Availability
92
WPL 848618 WPL 848618 Contact Us For Availability
93
WPL 848617 WPL 848617 Contact Us For Availability
93
WPL 849104 WPL 849104 Contact Us For Availability
94
WPL 488949 WPL 488949 Contact Us For Availability
94
WPL 843778 WPL 843778 Contact Us For Availability
95
WPL 836392 WPL 836392 Contact Us For Availability
96
WPL 843922 WPL 843922 Contact Us For Availability
97
WPL 839577 WPL 839577 Contact Us For Availability
98
WPL 843960 WPL 843960 Contact Us For Availability
99
WPL 841648 WPL 841648 Contact Us For Availability
101
WPL 850457 WPL 850457 Contact Us For Availability
103
WPL 836079 WPL 836079 Contact Us For Availability
104
WPL 836080 WPL 836080 Contact Us For Availability
105
WPL 488280 WPL 488280 Contact Us For Availability
110
WPL 836372 WPL 836372 Contact Us For Availability
112
WPL 488849 WPL 488849 Contact Us For Availability
115
WPL 842014 WPL 842014 Contact Us For Availability
115
WPL 985877 WPL 985877 Contact Us For Availability
115
WPL 985878 WPL 985878 Contact Us For Availability
115
WPL 989895 WPL 989895 Contact Us For Availability
115
WPL 989896 WPL 989896 Contact Us For Availability
115
WPL 989897 WPL 989897 Contact Us For Availability
× ![]()
