Model LG 39LY340H – Common Parts & Diagrams

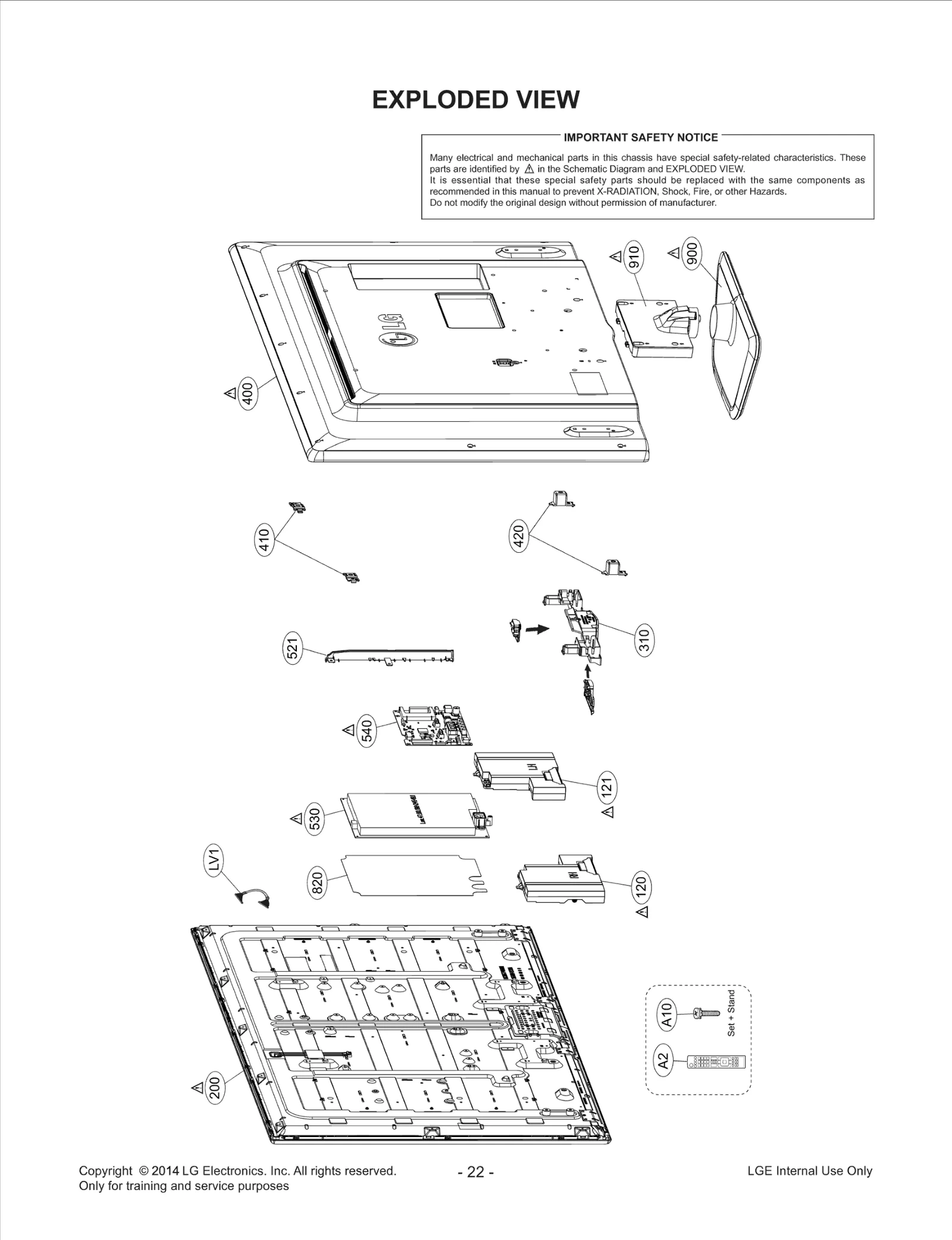

Diagram 0
Diagram 1
Common parts from model LG 39LY340H
121
Speaker Assembly LGE EAB62972201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62807801 Contact Us For Availability
310
Cover Assembly LGE ACQ86682143 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ87438807 Contact Us For Availability
420
Supporter,VESA LGE MJH63103002 Contact Us For Availability
521
Bracket LGE MAZ63925512 Contact Us For Availability
530
Power Supply Assembly LGE EAY63071901 Contact Us For Availability
540
PCB Assembly LGE EBR79408001 Contact Us For Availability
820
Insulator LGE MEV64570901 Contact Us For Availability
910
Bracket LGE MAZ64131804 Contact Us For Availability
C240
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C248
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C427
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C433
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C1605
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C5618
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C5625
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
JK705
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
L403
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD62572203 Contact Us For Availability
N/A3
Label LGE 3850VK0001U Contact Us For Availability
× ![]()
