Model LG 39LP645H – Common Parts & Diagrams
Diagram 0

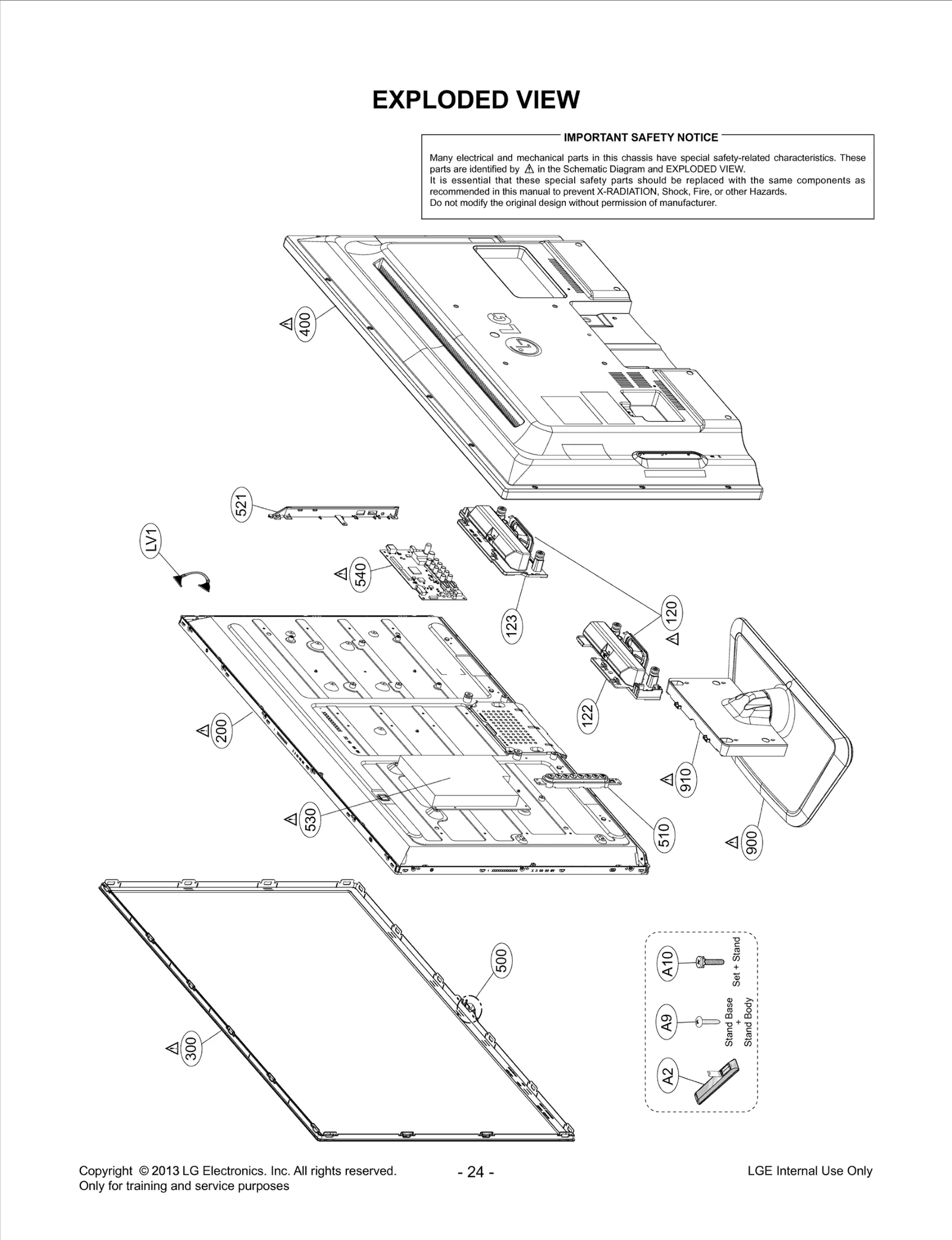

Diagram 1
Common parts from model LG 39LP645H
123
Bracket LGE MAZ63673602 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ62352601 Contact Us For Availability
200T
Time Control LGE EAT62154801 Contact Us For Availability
300
Cabinet Assembly LGE ABJ74007705 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ86474706 Contact Us For Availability
500
PCB Assembly LGE EBR77164701 Contact Us For Availability
540
Chassis Assembly LGE EBT62587102 Contact Us For Availability
910
Bracket LGE MAZ63764102 Contact Us For Availability
A2
Remocon kit,Package Assembly LGE AGF76692613 Contact Us For Availability
A9
Screw,Tapping LGE FAB30021301 Contact Us For Availability
AM
Manual Assembly LGE AFN75916203 Contact Us For Availability
AR104
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C2
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C112
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C201
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C217
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C237
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C249
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C275
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C415
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C420
Capacitor,Ceramic,Chip LGE EAE31360401 Contact Us For Availability
C448
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C454
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C467
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C472
Capacitor,Ceramic,Chip LGE EAE60365101 Contact Us For Availability
C506
Capacitor,Ceramic,Chip LGE EAE58111501 Contact Us For Availability
C507
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C524
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C530
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C534
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C537
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1711
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1714
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C1720
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1721
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C1800
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C1802
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C1809
Capacitor,Ceramic,Ch LGE 0CK224DK56A Contact Us For Availability
C1811
Capacitor,Ceramic,Chip LGE EAE59211001 Contact Us For Availability
C1816
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C1820
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C1821
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C2109
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C2161
Filter,LCR LGE EAM62070601 Contact Us For Availability
C3017
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C3019
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C3034
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C5001
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C5003
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C5011
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C5019
Capacitor,Ceramic,Chip LGE EAE60672901 Contact Us For Availability
C5025
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C5032
Capacitor,Ceramic,Chip LGE 0CZZB00043A Contact Us For Availability
CA1
Harness,Single LGE EAD61646231 Contact Us For Availability
CA2
Harness,Multi LGE EAD62334707 Contact Us For Availability
D1704
DIODE,RECTIFIERS LGE 0DRSE00038A Contact Us For Availability
D1706
Varistor LGE EAF61530201 Contact Us For Availability
D5000
DIODE,SWITCHING LGE 0DSON00108A Contact Us For Availability
D5002
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D5005
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
IC101
Display SOC,Digital TV LGE EAN62354101 Contact Us For Availability
IC102
IC,NAND Flash Memory LGE EAN60708701 Contact Us For Availability
IC103
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC400
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC401
IC,DC,DC Converter LGE EAN62574801 Contact Us For Availability
IC402
IC,LDO Voltage Regulator LGE EAN62673301 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC404
IC,DC,DC Converter LGE EAN62206401 Contact Us For Availability
IC407
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC501
IC,Audio Amplifier LGE EAN62332901 Contact Us For Availability
IC1001
IC,Multiplexer LGE EAN61151201 Contact Us For Availability
IC1002
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC1201
IC,DDR3 SDRAM LGE EAN61829203 Contact Us For Availability
IC1202
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC1209
IC,Video Processors LGE EAN62096701 Contact Us For Availability
IC1802
IC,Audio Amplifier LGE EAN60702401 Contact Us For Availability
IC3000
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC5000
IC,Charge Pump LGE EAN61132201 Contact Us For Availability
IC5001
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC5003
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC5004
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
JK802
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK1702
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1703
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1706
Jack,Modular LGE EAG61453603 Contact Us For Availability
JK3000
Jack,Modular LGE 6612E00008C Contact Us For Availability
L223
Filter,Bead LGE EAM32500903 Contact Us For Availability
L401
Inductor,Wire Wound,Chip LGE EAP62326501 Contact Us For Availability
L408
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L411
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L413
Filter,Bead LGE EAM62091201 Contact Us For Availability
L503
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L1803
Inductor,Wire Wound,Chip LGE EAP61606601 Contact Us For Availability
P400
Connector,Wafer LGE EAG61091501 Contact Us For Availability
P501
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P600
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P900
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P1100
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P1700
Connector,DSUB LGE 6630G00001E Contact Us For Availability
Q1700
FET LGE EBK60752501 Contact Us For Availability
Q3005
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q5012
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R102
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R116
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R127
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ6202C678 Contact Us For Availability
R215
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R244
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R287
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R404
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R406
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R407
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R418
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R434
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R437
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R442
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R443
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ4301C478 Contact Us For Availability
R466
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R511
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R603
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R823
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R832
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R902
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1024
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1225
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R1226
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1236
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R1703
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1730
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1732
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R1845
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R3005
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R3037
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R3038
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R3039
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R3052
Resistor,Chip LGE 0RJ2200E472 Contact Us For Availability
R4002
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R4023
Resistor,Chip LGE 0RJ2401C678 Contact Us For Availability
R4025
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R5027
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R5034
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R5035
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R5130
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R5141
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
TU3001
Tuner,RF Modulator LGE EBL61179904 Contact Us For Availability
X5000
Crystal LGE EAW30067102 Contact Us For Availability
× ![]()
