Model LG 38WN75C-B – Common Parts & Diagrams

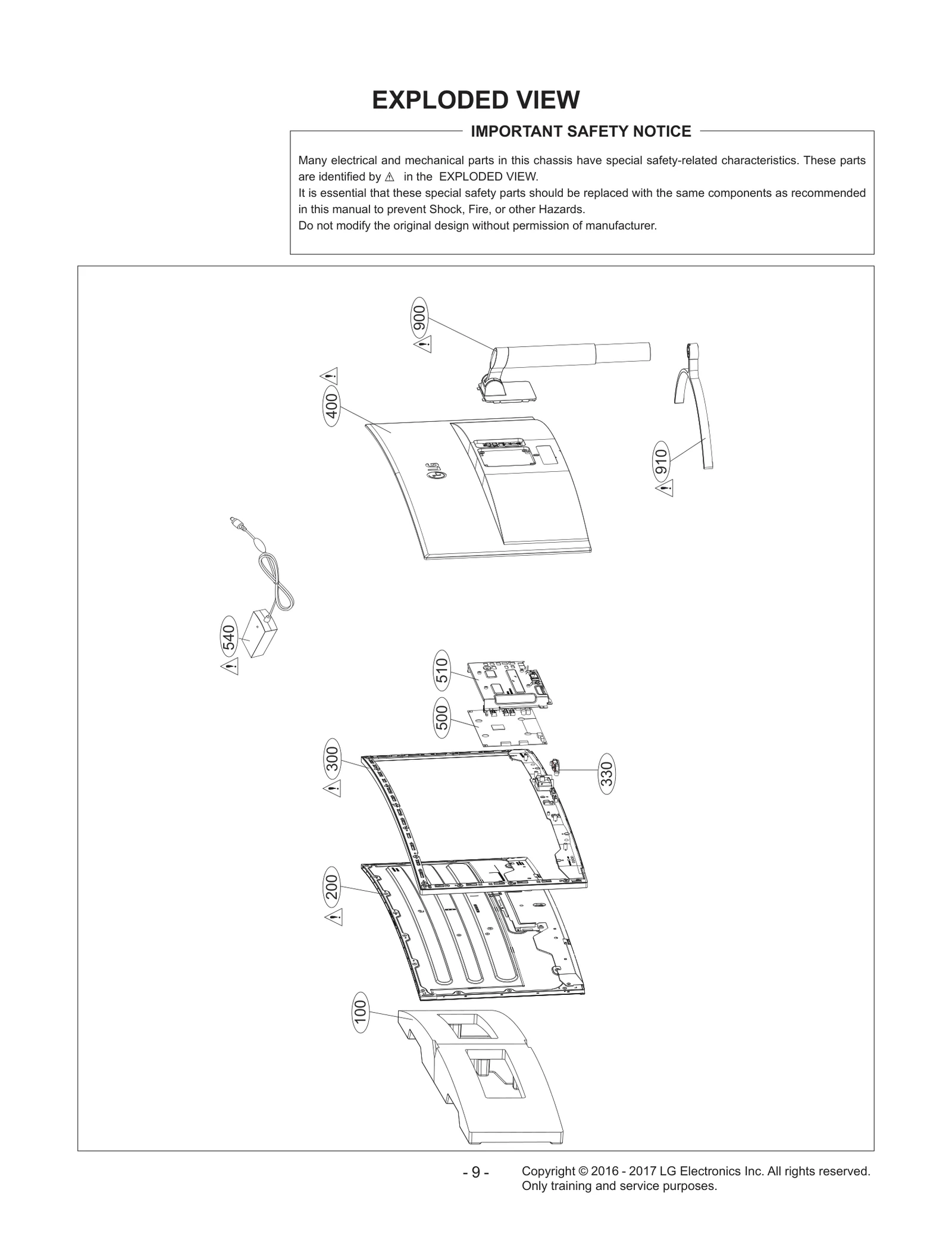

Diagram 0
Diagram 1
Common parts from model LG 38WN75C-B
100
Packing LGE MFZ65925602 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ64208901 Contact Us For Availability
200T
Time Control LGE EAT63734201 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75327608 Contact Us For Availability
300
Cabinet Assembly LGE ABJ75327605 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ88877723 Contact Us For Availability
500
BPR Total Assembly LGE EBU66081401 Contact Us For Availability
510
Frame Assembly LGE ADV77768801 Contact Us For Availability
900
Base Assembly LGE AAN76430909 Contact Us For Availability
910
Base Assembly LGE AAN76608803 Contact Us For Availability
A1
Manual Assembly LGE AFN30005821 Contact Us For Availability
A4
Card LGE MBM65364038 Contact Us For Availability
A7
Card LGE 3840TWL061C Contact Us For Availability
A8
Cable,Assembly LGE EAD63954401 Contact Us For Availability
A9
Card LGE 3840TRL039A Contact Us For Availability
C356
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C408
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C546
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C547
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C549
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C608
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C625
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C651
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
LV1
Cable,FFC LGE EAD63825230 Contact Us For Availability
P200
Connector,Wafer LGE 6630V90141C Contact Us For Availability
P200
Connector,Wafer LGE EAG62172205 Contact Us For Availability
Q505
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R113
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R405
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R427
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R428
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R430
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R431
Resistor,Chip LGE 0RJ6201C478 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R449
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R451
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R546
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ2203C478 Contact Us For Availability
R616
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R623
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R635
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R638
Resistor,Chip LGE 0RJ2700C478 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R646
Resistor,Chip LGE 0RJ7502C478 Contact Us For Availability
R647
Resistor,Chip LGE 0RJ1402C478 Contact Us For Availability
R650
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
X200
CRYSTAL LGE 6202TST001A Contact Us For Availability
× ![]()
