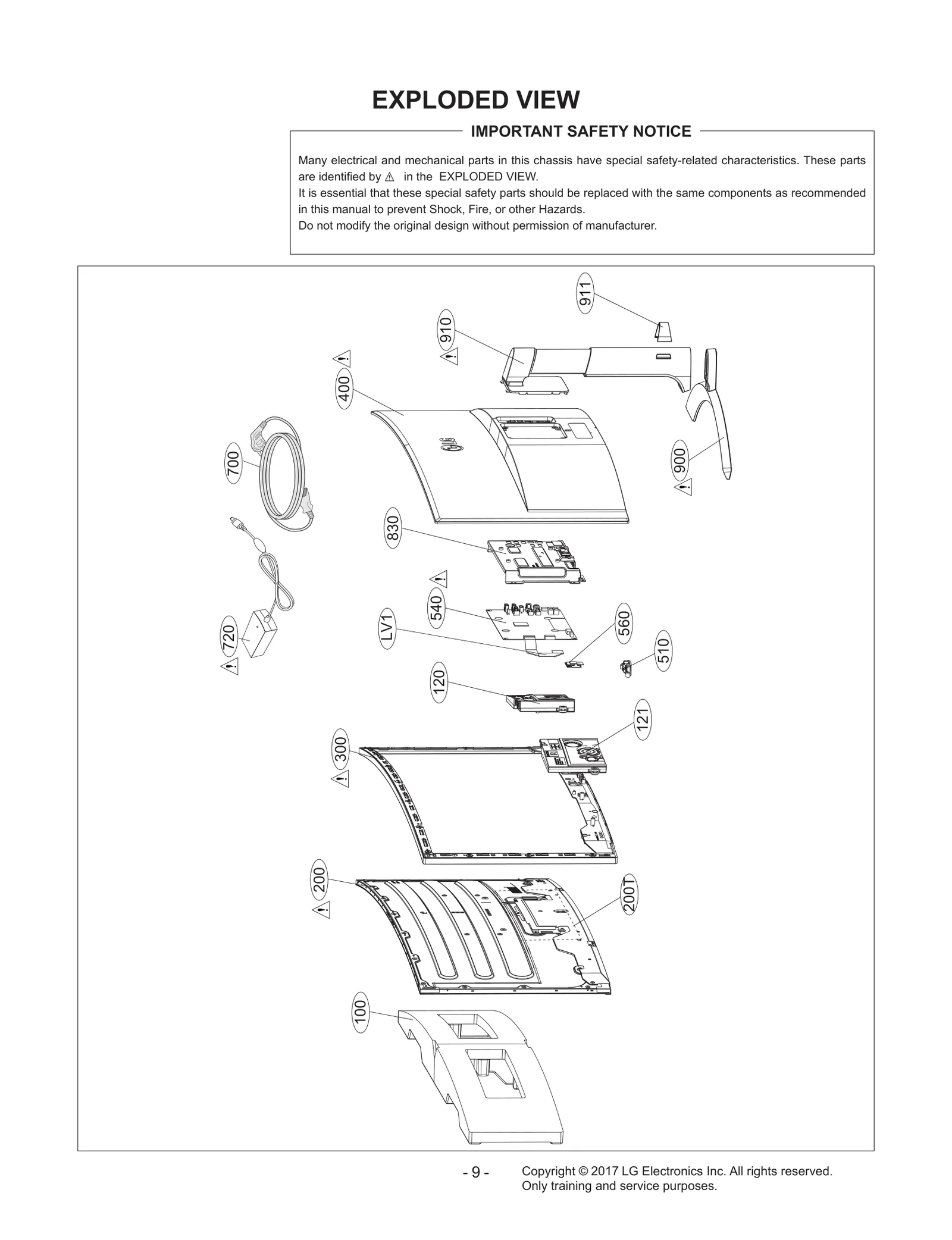

Model LG 38UC99-W – Common Parts & Diagrams

100
Packing
Packing LGE MFZ65273202 Contact Us For Availability
View on Model
200T
Time Control
Time Control LGE EAT63734201 Contact Us For Availability
View on Model
300
Cabinet Assembly
Cabinet Assembly LGE ABJ75327601 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ88877701 Contact Us For Availability
View on Model
510
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT64322301 Contact Us For Availability
View on Model
540
Main Board,BPR Total Assembly
Main Board,BPR Total Assembly LGE EBU63718601 Contact Us For Availability
View on Model
560
DMS Chassis Assembly
DMS Chassis Assembly LGE EBT64322501 Contact Us For Availability
View on Model
720
Adapters
Adapters LGE EAY64449302 Contact Us For Availability
View on Model
830
Frame Assembly
Frame Assembly LGE ADV75948701 Contact Us For Availability
View on Model
910
Base Assembly
Base Assembly LGE AAN75549503 Contact Us For Availability
View on Model
A1
Manual Assembly
Manual Assembly LGE AFN77554011 Contact Us For Availability
View on Model
A4
Cable,Assembly
Cable,Assembly LGE EAD00926140 Contact Us For Availability
View on Model
A5
Cable,Assembly
Cable,Assembly LGE EAD63127604 Contact Us For Availability
View on Model
A6
Cable,Assembly
Cable,Assembly LGE EAD63809903 Contact Us For Availability
View on Model
LV1
Cable,FFC
Cable,FFC LGE EAD63825208 Contact Us For Availability
View on Model
MT1
Tape,Double Faced
Tape,Double Faced LGE RAB34873121 Contact Us For Availability
View on Model
S2
Harness,Multi
Harness,Multi LGE EAD63727411 Contact Us For Availability
View on Model
S3
Harness,Single
Harness,Single LGE EAD63806101 Contact Us For Availability
View on Model
