Model Whirlpool 38JA-2CW ELECTRIC RANGE – Common Parts & Diagrams

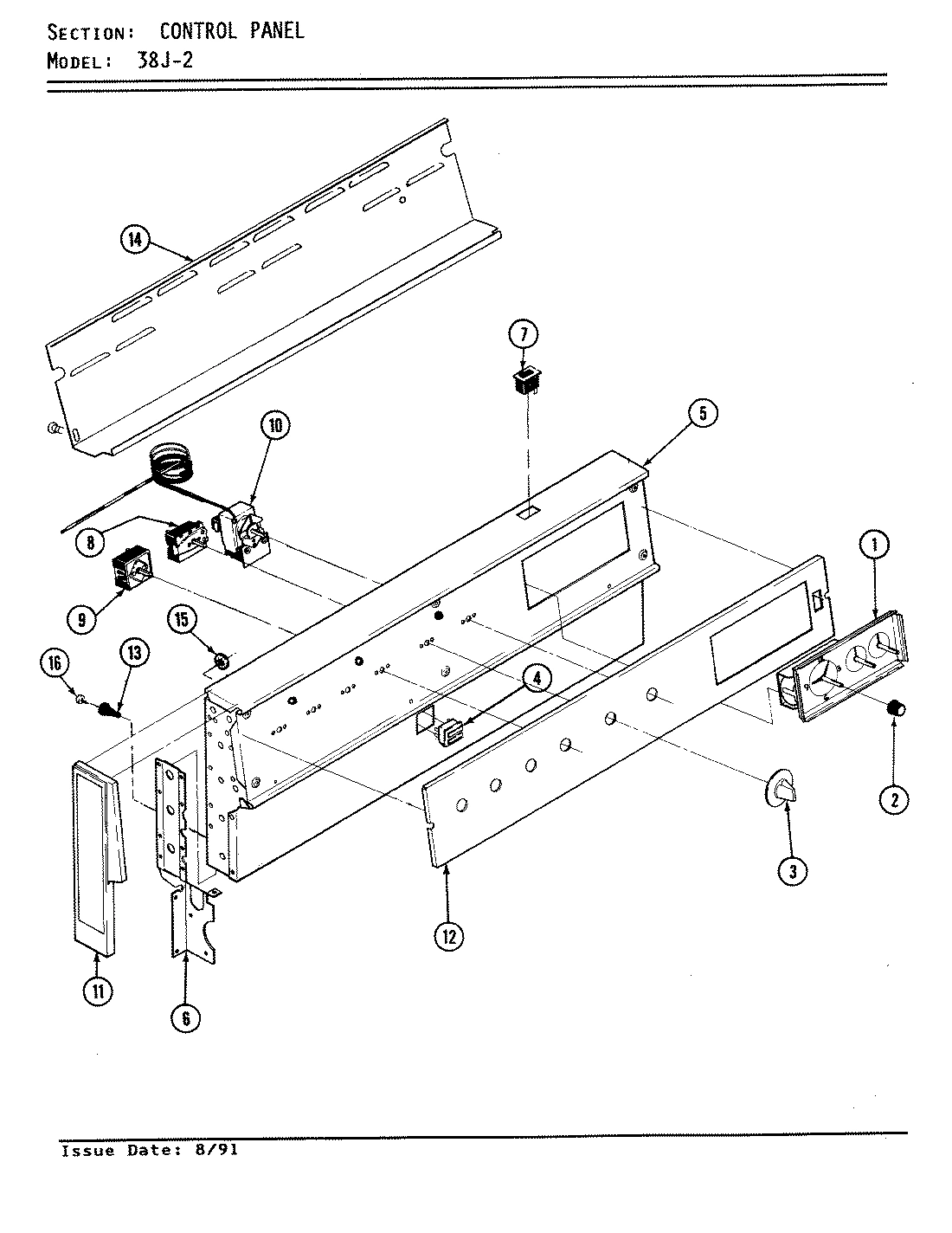

02 - BACKGUARD

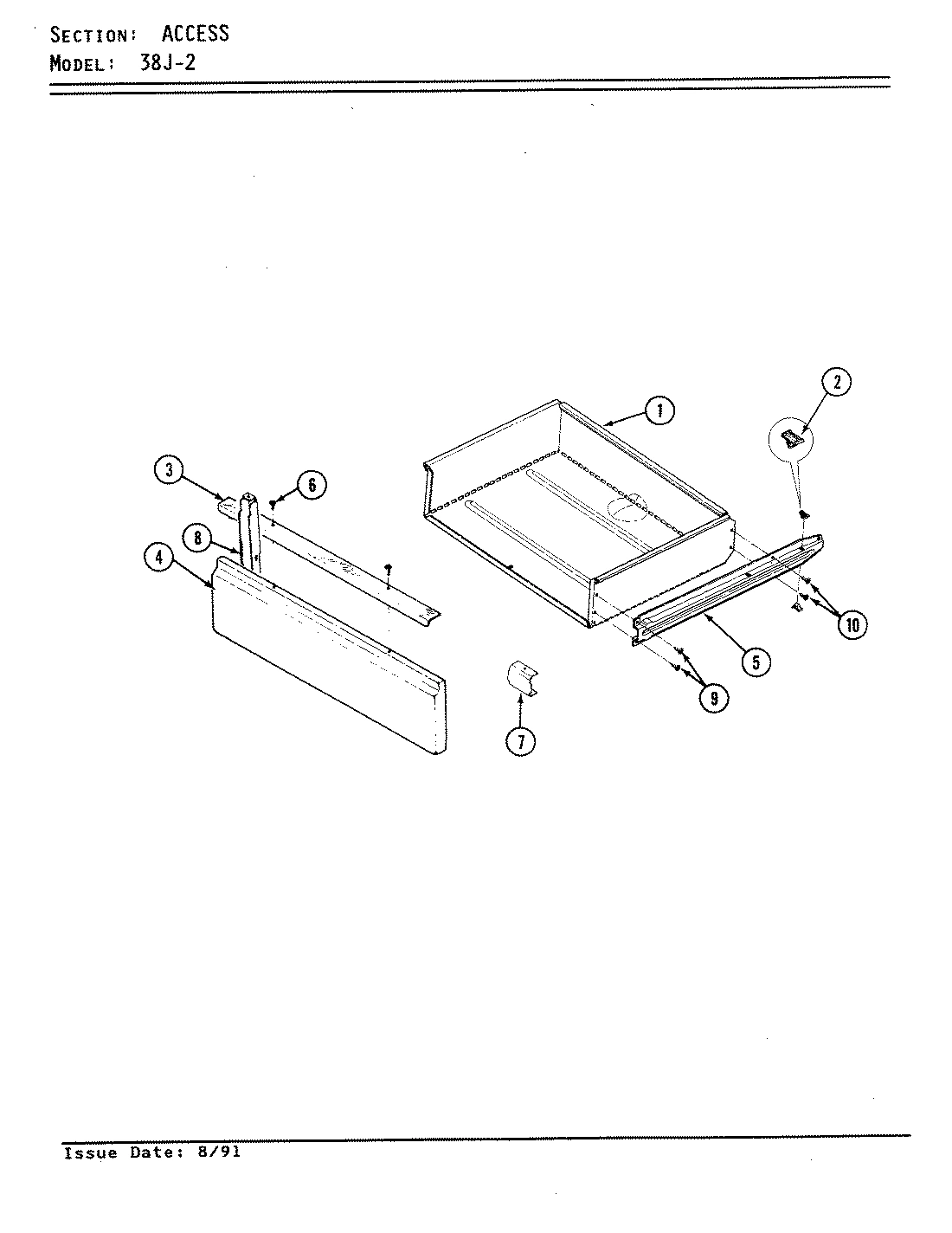

01 - ACCESS DRAWER

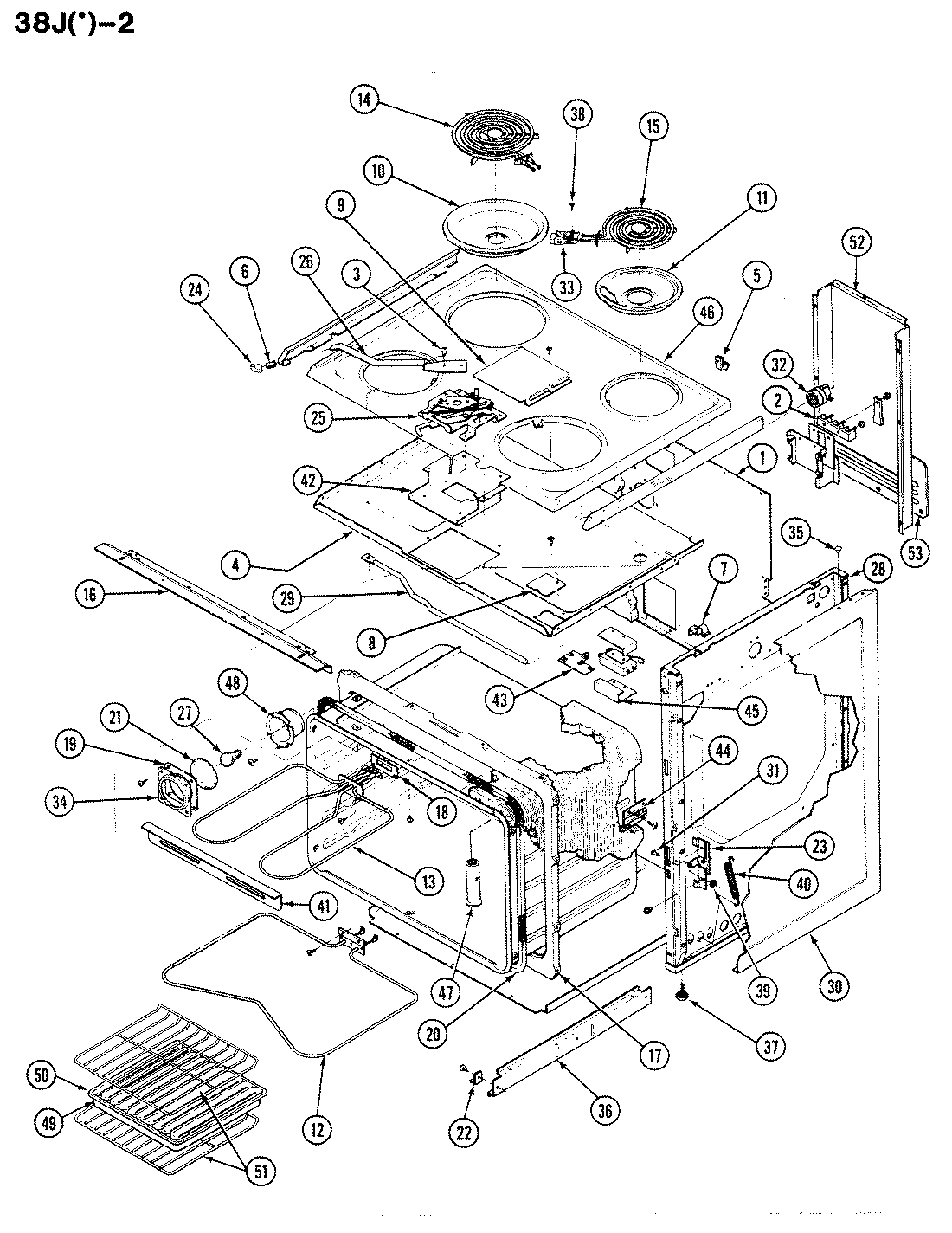

03 - BODY

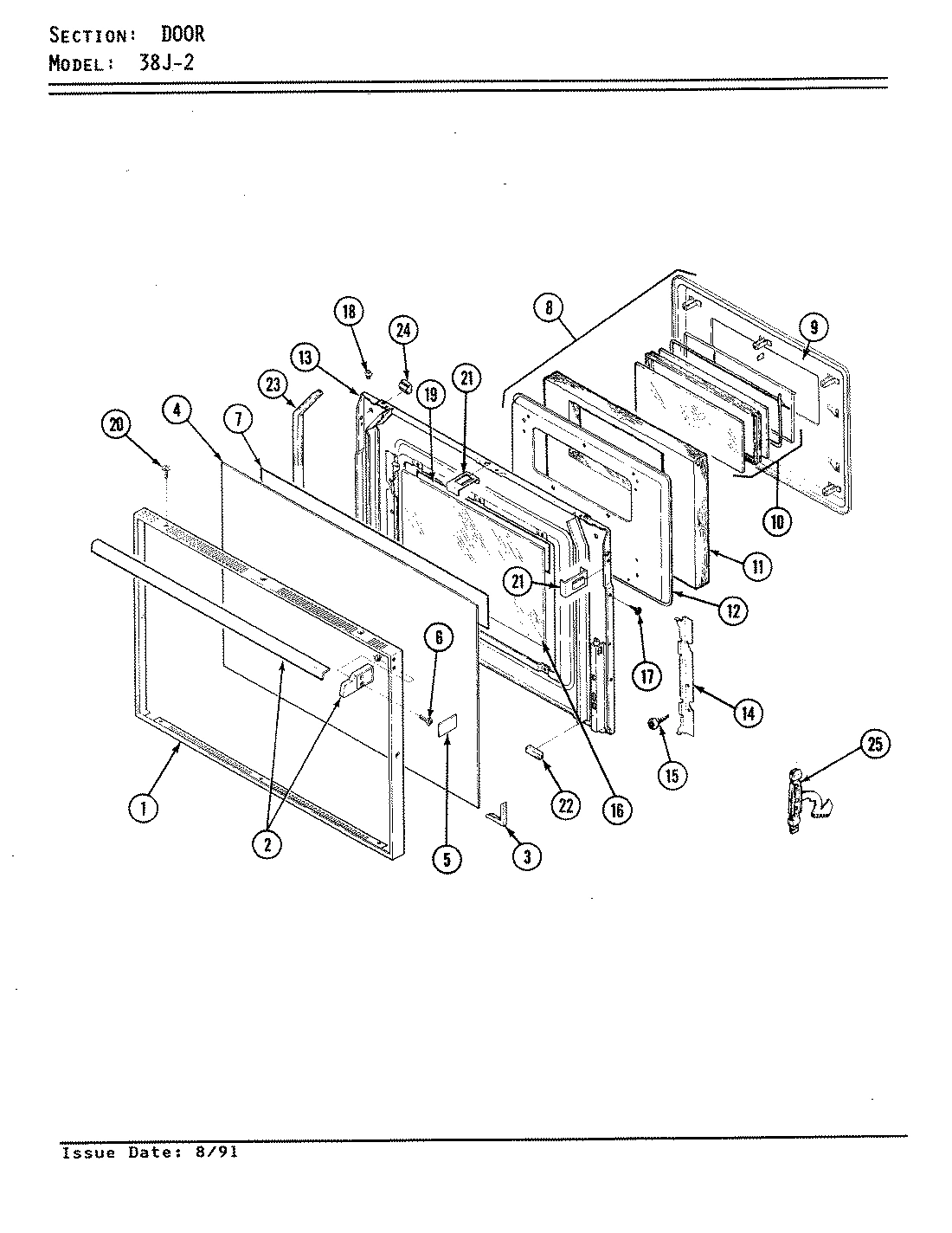

04 - DOOR
Common parts from model Whirlpool 38JA-2CW ELECTRIC RANGE
1
CLIP WPL 7112P00760 Contact Us For Availability
1
CLOCK WPL 7601P13160 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
1
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
1
BACK, MAIN WPL 4002F14980 Contact Us For Availability
1
BACK, MAIN WPL 4002F16080 Contact Us For Availability
1
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P12660 Contact Us For Availability
2
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
2
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
2
SCREW WPL 7101P06860 Contact Us For Availability
2
NUT WPL 7103P06460 Contact Us For Availability
2
BLOCK, FUSE ASSY. WPL 7401A03260 Contact Us For Availability
2
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
2
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
3
KNOB WPL 7735P02760 Contact Us For Availability
3
KNOB WPL 7737P02160 Contact Us For Availability
3
KNOB WPL 7739P02560 Contact Us For Availability
3
KNOB, THERM WPL 7739P02760 Contact Us For Availability
3
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
3
BOLT WPL 7116P00360 Contact Us For Availability
3
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
4
MALE PIN TERMINAL WPL 7405P01660 Contact Us For Availability
4
TERMINAL, INDICATOR LIGHT WPL 7405P08660 Contact Us For Availability
4
LIGHT, SIGNAL WPL 7407P06760 Contact Us For Availability
4
LAMP, SIGNAL LOCK WPL 7407P07360 Contact Us For Availability
4
PANEL, SERVICE DRAWER ALMOND WPL 2416F00674 Contact Us For Availability
4
BRACKET WPL 3801F02451 Contact Us For Availability
4
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
4
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
4
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
4
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
4
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
4
BRACE, INNER SIDE WPL 3802F07651 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F15823 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F19880 Contact Us For Availability
4
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
4
SPACER, MAIN TOP WPL 8003P01160 Contact Us For Availability
4
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
5
PANEL, BKGD ALMOND WPL 2601W18084 Contact Us For Availability
5
BACKGUARD ASSY (ALMOND) WPL 2601W34384 Contact Us For Availability
5
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
5
RUNNER, OUTER WPL 3406F02751 Contact Us For Availability
5
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
5
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
6
SUPPORT, BKGD END LF WPL 3807F34851 Contact Us For Availability
6
SUPPORT, BKGD END RT WPL 3807F34951 Contact Us For Availability
6
SCREW WPL 7101P07460 Contact Us For Availability
6
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
6
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
6
SCREW WPL 7101P12360 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
7
BRACKET WPL 3801F03151 Contact Us For Availability
7
CLIP, RECEPTACLE WPL 7112P05960 Contact Us For Availability
7
CLIP, TOP RETAINER WPL 7112P07360 Contact Us For Availability
7
SCREW WPL 7118P01360 Contact Us For Availability
7
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P08160 Contact Us For Availability
8
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
8
COVER, SWITCH WPL 4005F13951 Contact Us For Availability
8
PAD, ASSY. WPL 2410A04115 Contact Us For Availability
8
PAD, ASSY. WPL 2410A04119 Contact Us For Availability
9
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
9
SWITCH, INF. 250V WPL 7403P18360 Contact Us For Availability
9
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
9
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
9
SCREW, LEVELING WPL 7101P25560 Contact Us For Availability
9
COVER, CATCH ASSY. WPL 4005F13780 Contact Us For Availability
9
PAD, DOOR WPL 2410W04115 Contact Us For Availability
9
PAD, DOOR WPL 2410W04119 Contact Us For Availability
10
SCREW W/WASHER WPL 7101P27960 Contact Us For Availability
10
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
10
THERMOSTAT WPL 7404P05260 Contact Us For Availability
10
THERMOSTAT WPL 7404P07160 Contact Us For Availability
10
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
10
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
11
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
11
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
11
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
11
INSULATION DOOR PAD WPL 4804F00660 Contact Us For Availability
12
SCREW WPL 7101P00860 Contact Us For Availability
12
TRIM, BACKGUARD WPL 7703P23960 Contact Us For Availability
12
INSERT BKGD TRIM WPL 7703P24360 Contact Us For Availability
12
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
12
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
12
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
12
PAD, INNER WPL 2410F01651 Contact Us For Availability
13
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
13
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
13
ELEMENT,BROIL WPL 7406P00360 Contact Us For Availability
13
ELEMENT, BROIL WPL 7406P07660 Contact Us For Availability
13
LINING WPL 2402W17319 Contact Us For Availability
14
COVER, SHIELD BKGD WIRE WPL 4005F28380 Contact Us For Availability
14
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
14
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
15
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
15
SCREW WPL 7101P06160 Contact Us For Availability
15
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
16
SCREW WPL 7101P16260 Contact Us For Availability
16
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
16
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
16
GLASS, INNER WPL 7902P09760 Contact Us For Availability
17
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
17
RIVET WPL 7107P01760 Contact Us For Availability
18
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
18
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
18
NUT, SNAP WPL 7103P11460 Contact Us For Availability
19
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
19
LABEL (CLEANING INST.) WPL 8114P27460 Contact Us For Availability
19
TAPE, FOIL 16 3/16`` WPL 8270P08160 Contact Us For Availability
20
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
20
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
21
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
21
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
22
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
22
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
23
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
23
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
23
SEAL WPL 7208P00260 Contact Us For Availability
24
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
24
LABEL FUSE WPL 8114P10660 Contact Us For Availability
24
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
25
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
25
INSULATION TOP WPL 4804F00160 Contact Us For Availability
25
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
25
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P01860 Contact Us For Availability
27
BULB, OVEN WPL 7407P02660 Contact Us For Availability
28
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
28
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
29
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
29
LINK, DOOR LOCK WPL 7807P01260 Contact Us For Availability
30
PANEL, SIDE (ALM) WPL 2618F05274 Contact Us For Availability
31
PIN, HINGE WPL 7113P00260 Contact Us For Availability
32
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
33
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
34
RETAINER, LAMP GUARD WPL 3804F01245 Contact Us For Availability
36
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
36
R WPL 3406F02551 Contact Us For Availability
37
WPL 7101P02560 WPL 7101P02560 Contact Us For Availability
38
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
38
WPL 7101P04260 WPL 7101P04260 Contact Us For Availability
39
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
40
WPL 7803P05560 WPL 7803P05560 Contact Us For Availability
40
WPL 8019P00260 WPL 8019P00260 Contact Us For Availability
41
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
42
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
42
WPL 3807F40845 WPL 3807F40845 Contact Us For Availability
43
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
43
WPL 3807F42245 WPL 3807F42245 Contact Us For Availability
44
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
45
WPL 7403P04560 WPL 7403P04560 Contact Us For Availability
45
WPL 7403P21860 WPL 7403P21860 Contact Us For Availability
46
WPL 2002W02884 WPL 2002W02884 Contact Us For Availability
47
WPL 8026A00760 WPL 8026A00760 Contact Us For Availability
48
WPL 4001F02019 WPL 4001F02019 Contact Us For Availability
48
WPL 4001F02023 WPL 4001F02023 Contact Us For Availability
49
WPL 3401F00423 WPL 3401F00423 Contact Us For Availability
49
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
50
WPL 3413F00223 WPL 3413F00223 Contact Us For Availability
50
WPL Y3413F01619 WPL Y3413F01619 Contact Us For Availability
51
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
52
WPL 4001F05151 WPL 4001F05151 Contact Us For Availability
53
WPL 4005F30251 WPL 4005F30251 Contact Us For Availability
× ![]()
