Model Whirlpool 38HA-36TXW-ON ELECTRIC RANGE – Common Parts & Diagrams

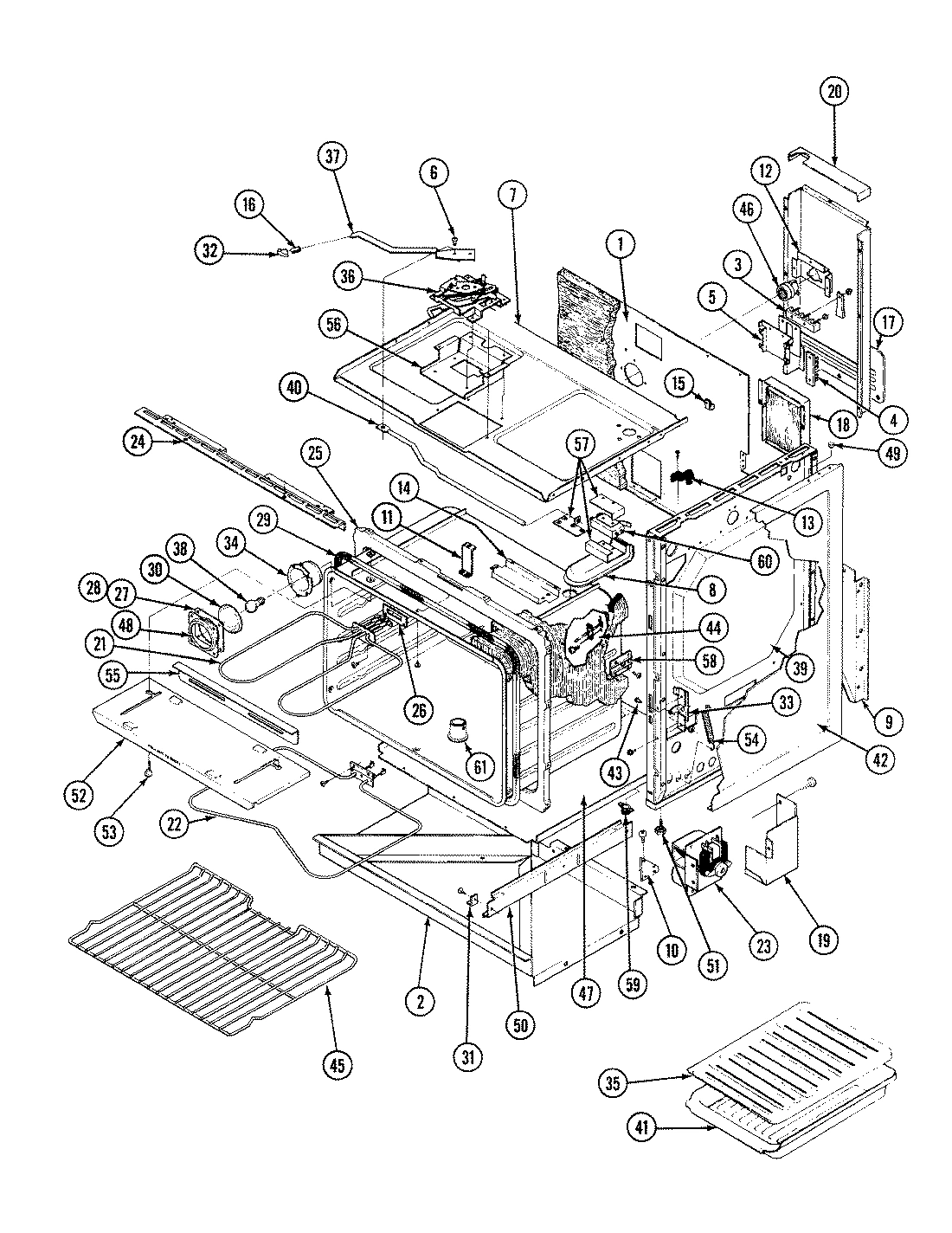

01 - BODY

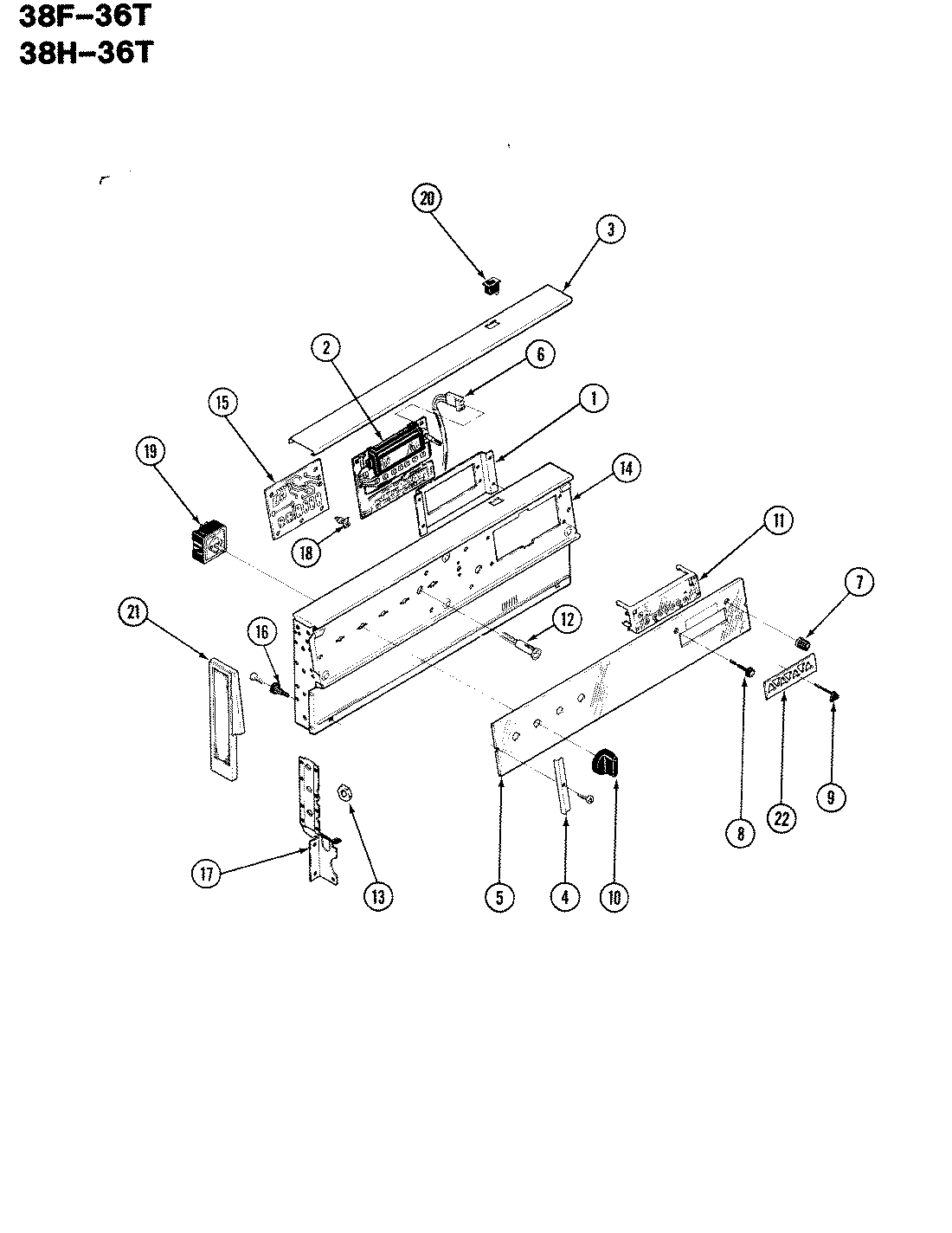

02 - CONTROL PANEL

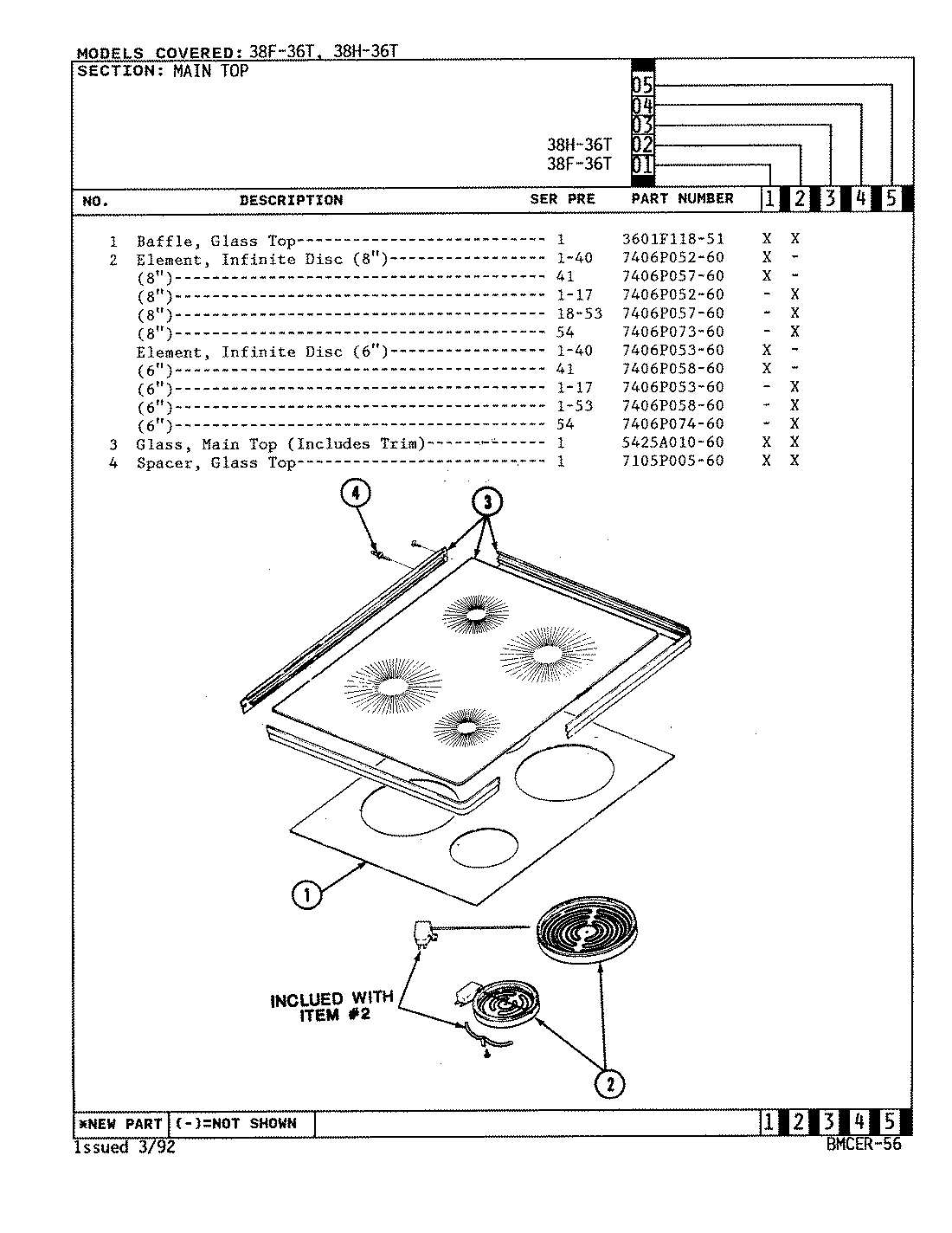

04 - MAIN TOP

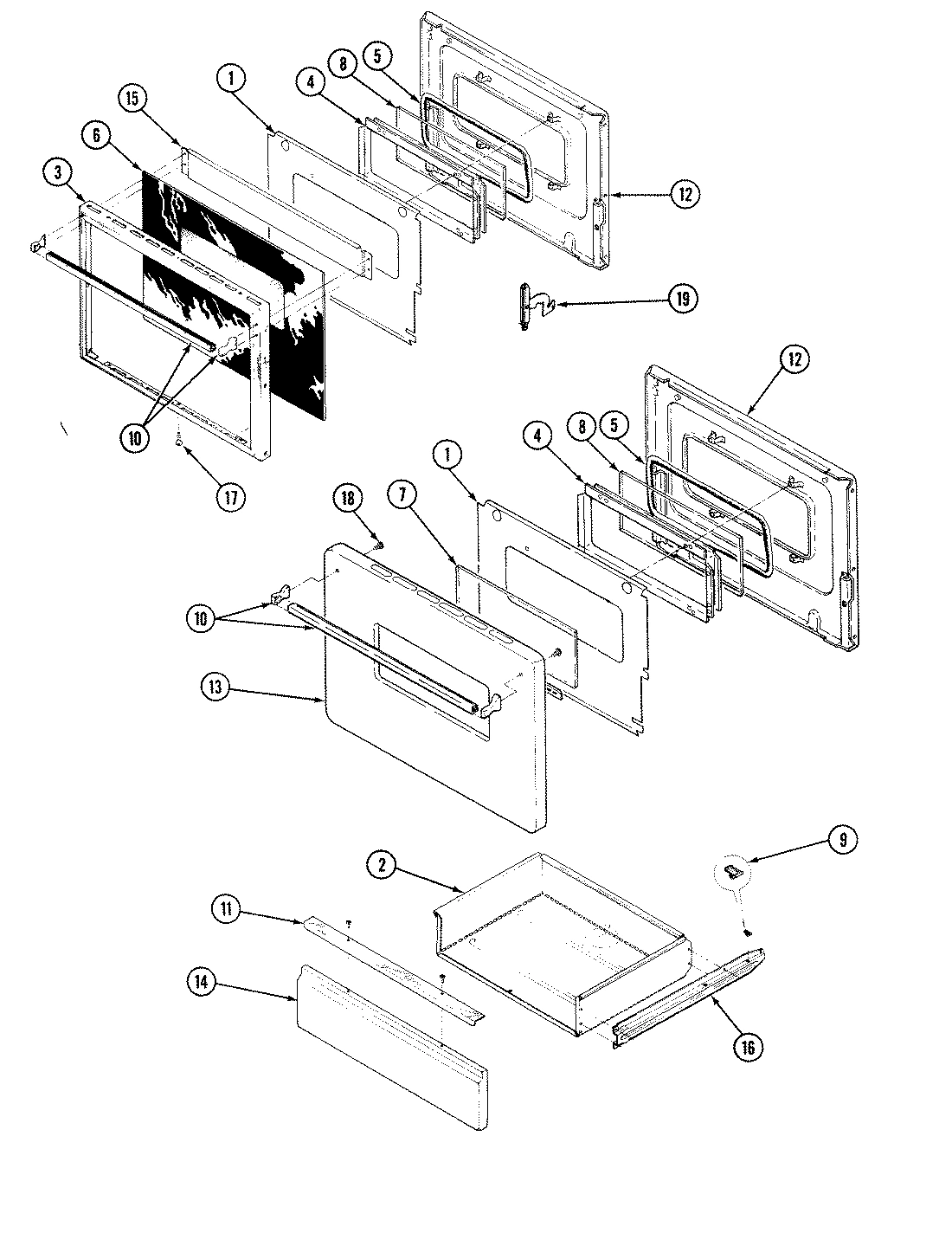

03 - DOOR/DRAWER (WITH W)
Common parts from model Whirlpool 38HA-36TXW-ON ELECTRIC RANGE
1
BACK, MAIN WPL 4002F10380 Contact Us For Availability
1
BRACKET, CLOCK MTG WPL 3801F11845 Contact Us For Availability
1
BAFFLE, GLASS TOP WPL 3601F11851 Contact Us For Availability
1
PAD, DOOR WPL 2410W04115 Contact Us For Availability
1
PAD, DOOR WPL 2410W04119 Contact Us For Availability
2
BAFFLE ASSY., AIR DUCT WPL 3601W12080 Contact Us For Availability
2
CLOCK WPL 7601P10060 Contact Us For Availability
2
CLOCK WPL 7601P15460 Contact Us For Availability
2
CLOCK WPL 7601P16260 Contact Us For Availability
2
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
2
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
2
ELEMENT, GIANT CERM WPL 7406P05260 Contact Us For Availability
2
ELEMENT, STD. CERAM WPL 7406P05360 Contact Us For Availability
2
ELEMENT, GIANT WPL 7406P05760 Contact Us For Availability
2
ELEMENT, STD WPL 7406P05860 Contact Us For Availability
2
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
2
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
2
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
3
BLOCK, DISCONNECT (PIN) WPL 7401P01760 Contact Us For Availability
3
COVER, UPPER FLUE BOX WPL 4005F19123 Contact Us For Availability
3
COVER, BKGD WIRE WPL 4005F28480 Contact Us For Availability
3
COVER, UPPER FLUE BOX WPL 4005F29551 Contact Us For Availability
3
GASKET, COVER WPL 4005F29651 Contact Us For Availability
3
COVER, BKGD WIRE WPL 4005F33880 Contact Us For Availability
3
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
3
KIT, MAIN TOP WPL 5425A01060 Contact Us For Availability
3
INSULATION, DOOR PAD WPL 7002P11760 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
SPACER, MAIN TOP WPL 7105P00560 Contact Us For Availability
4
PAD, INNER WPL 2410F01651 Contact Us For Availability
5
SUPPORT, TERMINAL BLOCK WPL 3807F15780 Contact Us For Availability
5
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
5
NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability
5
SCREW WPL 7101P06160 Contact Us For Availability
5
GLASS, BACKGUARD WPL 7910P07660 Contact Us For Availability
5
GLASS, BKGD WPL 7910P11460 Contact Us For Availability
6
BOLT WPL 7116P00360 Contact Us For Availability
6
HARNESS, RELAY WPL 5170P00660 Contact Us For Availability
6
HARNESS, OVEN SENSOR WPL 5170P08760 Contact Us For Availability
6
HARNESS, OVEN SENSOR WPL 5170P10060 Contact Us For Availability
6
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
7
BOTTOM, BURNER BOX WPL 4011F13380 Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
7
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
7
NUT, SNAP WPL 7103P11460 Contact Us For Availability
8
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
BUTTON, CLOCK SET WPL 7711P45260 Contact Us For Availability
8
RIVET WPL 7107P01760 Contact Us For Availability
9
BRACE WPL 3802F00380 Contact Us For Availability
9
BRACE, BACK-LEFT WPL 3802F00880 Contact Us For Availability
9
BRACE, BACK-RIGHT WPL 3802F01080 Contact Us For Availability
9
BRACE, MAIN TOP WPL 3802F04680 Contact Us For Availability
9
BUTTON, SET WPL 7711P33560 Contact Us For Availability
9
BUTTON, CONTROL SET WPL 7711P44960 Contact Us For Availability
9
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
10
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
10
KNOB WPL 7737P02160 Contact Us For Availability
10
LINING WPL 2402W17315 Contact Us For Availability
10
LINING WPL 2402W17319 Contact Us For Availability
11
BRACKET WPL 3801F09351 Contact Us For Availability
11
LENS, CLOCK WPL 7730P00260 Contact Us For Availability
11
LENS, CLOCK WPL 7730P00560 Contact Us For Availability
11
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
12
BRACKET WPL 3801F02451 Contact Us For Availability
12
LIGHT, SIGNAL WPL 7407P02960 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
13
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
13
NUT, PUSH-ON END CAP WPL 7103P05360 Contact Us For Availability
14
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
14
PROBE, OVEN SENSOR WPL 7430P00560 Contact Us For Availability
14
BACKGUARD WPL 2601W28084 Contact Us For Availability
14
PANEL BKGD WPL 2601W32684 Contact Us For Availability
14
PLATE, SWITCH MTG. WPL 3605F15280 Contact Us For Availability
14
PLATE SWITCH MTG WPL 3605F17180 Contact Us For Availability
14
SLEEVE, WIRE PROTECT WPL 7214P00560 Contact Us For Availability
14
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
14
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
15
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
15
SEAL, COVER WPL 7212P03260 Contact Us For Availability
15
RELAY, BOARD ASSY. WPL 7428P00560 Contact Us For Availability
15
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
16
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
16
SCREW WPL 7101P04760 Contact Us For Availability
16
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
16
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
17
SHIELD WPL 4005F01380 Contact Us For Availability
17
GROMMET, NYLON WPL 8008P01360 Contact Us For Availability
17
SUPPORT WPL 3807F01080 Contact Us For Availability
17
SUPPORT WPL 3807F01280 Contact Us For Availability
17
SUPPORT, LAMP WPL 3807F21580 Contact Us For Availability
17
SUPPORT BKGD LAMP WPL 3807F39180 Contact Us For Availability
17
SCREW WPL 7101P07460 Contact Us For Availability
18
COVER, BACK BURNER BOX WPL 4005F25780 Contact Us For Availability
18
COVER, FLUE BOX WPL 4005F28251 Contact Us For Availability
18
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
18
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
19
COVER, FAN ASSY WPL 4005F17980 Contact Us For Availability
19
COVER, SENSOR PROBE WPL 4005F20080 Contact Us For Availability
19
SCREW, INF SWITCH WPL 7101P10260 Contact Us For Availability
19
SWITCH, INF. CONTROL WPL 7403P17060 Contact Us For Availability
19
SWITCH, INFINITE (1400W) WPL 7403P26860 Contact Us For Availability
19
SWITCH, INFINITE (2600W) WPL 7403P26960 Contact Us For Availability
20
COVER, WIRE HOUSING WPL 4005F18280 Contact Us For Availability
20
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
20
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
21
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
21
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
21
SCREW WPL 7101P00860 Contact Us For Availability
21
TRIM, GLASS RET WPL 7720P08860 Contact Us For Availability
21
TRIM, BKGD END (LT) WPL 7726P03160 Contact Us For Availability
21
TRIM, BKGD END (RT) WPL 7726P03260 Contact Us For Availability
21
TRIM, RETAINER GLASS WPL 7742P00960 Contact Us For Availability
21
SCREW WPL 7101P12360 Contact Us For Availability
22
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
22
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
22
TRIM, BEZEL WPL 7720P09160 Contact Us For Availability
22
TR WPL 7740P01060 Contact Us For Availability
22
WPL 7740P01660 WPL 7740P01660 Contact Us For Availability
22
INSERT, HANDLE (CHROME) WPL 7728P06860 Contact Us For Availability
23
FAN ASSEMBLY WPL 7427P00560 Contact Us For Availability
24
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
25
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
26
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
27
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
27
PANEL, STORAGE DOOR WPL 5715A00374K Contact Us For Availability
28
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
28
HANDLE, DOOR ALMD WPL 7701P03260 Contact Us For Availability
28
HANDLE DOOR ALM WPL 2411F00174 Contact Us For Availability
29
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
29
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
30
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
30
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
31
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
31
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
31
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
32
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
32
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
32
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
33
SCREW WPL 7101P10460 Contact Us For Availability
33
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
33
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
33
HOUSING, MAIN WIRE WPL 4001F04880 Contact Us For Availability
33
SCREW WPL 7101P11260 Contact Us For Availability
33
GLASS, INNER WPL 7902P09760 Contact Us For Availability
34
HOUSING, OVEN LIGHT WPL 4001F02011 Contact Us For Availability
35
INSERT WPL 3413F00211 Contact Us For Availability
35
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
36
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
37
SCREW WPL 7101P01860 Contact Us For Availability
37
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
38
BULB, OVEN WPL 7407P02660 Contact Us For Availability
39
LINING ASSY, INNER SIDE WPL 4009W03380 Contact Us For Availability
40
LIN WPL 7807P00460 Contact Us For Availability
41
WPL 3401F00411 WPL 3401F00411 Contact Us For Availability
41
WPL Y3401F02019 WPL Y3401F02019 Contact Us For Availability
42
WPL 7101P12460 WPL 7101P12460 Contact Us For Availability
42
WPL 2618F05274 WPL 2618F05274 Contact Us For Availability
42
WPL 2618F07374 WPL 2618F07374 Contact Us For Availability
43
WPL 7112P01960 WPL 7112P01960 Contact Us For Availability
43
WPL 7113P00260 WPL 7113P00260 Contact Us For Availability
45
WPL 7801P03060 WPL 7801P03060 Contact Us For Availability
46
WPL 7408P00260 WPL 7408P00260 Contact Us For Availability
47
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
47
WPL 3804F10280 WPL 3804F10280 Contact Us For Availability
× ![]()
