Model Whirlpool 38FA-5EXW ELECTRIC RANGE – Common Parts & Diagrams

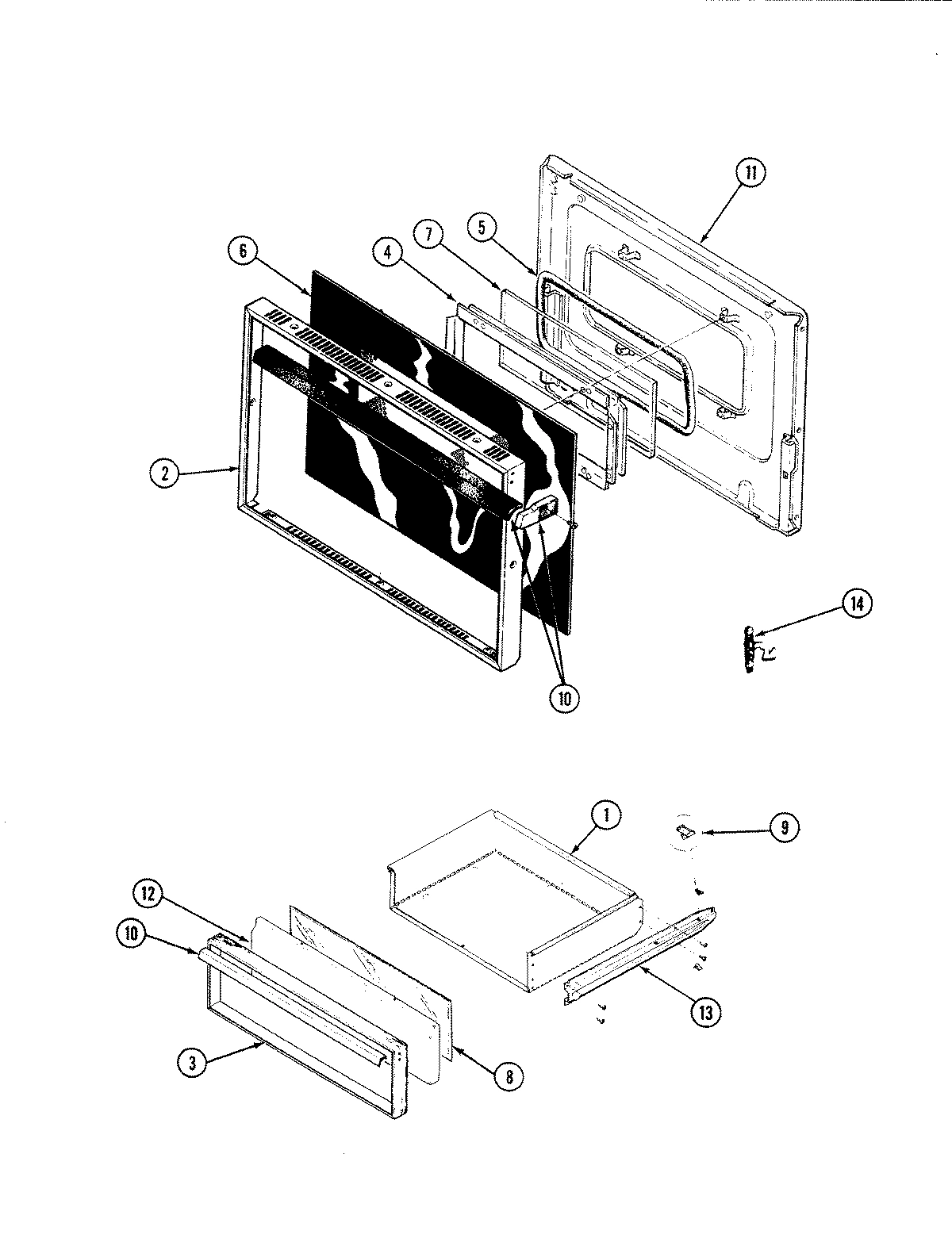

03 - DOOR
02 - CONTROL PANEL
01 - BODY
Common parts from model Whirlpool 38FA-5EXW ELECTRIC RANGE
1
DRAWER, SERVICE WPL 3405F00880 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BRACKET WPL 0284291 Contact Us For Availability
1
BRACKET WPL 0284298 Contact Us For Availability
1
BACK, MAIN WPL 0903114 Contact Us For Availability
1
BAFFLE WPL 3601F058 Contact Us For Availability
1
BACK, MAIN WPL 4002F06920 Contact Us For Availability
2
FRAME, OVEN DOOR WPL 7706P22260 Contact Us For Availability
2
BALLAST WPL 1023200 Contact Us For Availability
2
BRACKET, CLOCK MTG WPL 3801F09545 Contact Us For Availability
3
COVER, BKGD WIRE WPL 4005F16620 Contact Us For Availability
3
+ CLOCK WPL 7601P04760 Contact Us For Availability
4
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
4
COVER BKGD LAMP WPL 7724E010 Contact Us For Availability
4
BLOCK WPL 1867271 Contact Us For Availability
5
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
5
EXTRUSION, TRIM WPL 1259588 Contact Us For Availability
5
BOLT, DOOR LOCK WPL 7116E002 Contact Us For Availability
6
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
6
EXTRUSION, GLASS SPT WPL 7706P16660 Contact Us For Availability
6
BOX, BURNER WPL 4011F07823 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
GLASS, BKGD WPL 7902P13760 Contact Us For Availability
7
BOX, VENT WPL 4006W02545 Contact Us For Availability
7
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
8
GLASS, WINDOW OUTER WPL 7902P10160 Contact Us For Availability
8
GLASS, WINDOW WPL 7902P10360 Contact Us For Availability
8
KNOB, CLOCK (BUTTON-BLK) WPL 7711P17160 Contact Us For Availability
8
BRACE, BACK-LEFT WPL 0277264 Contact Us For Availability
8
BRACE, BACK-RIGHT WPL 0277265 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
9
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
9
KNOB, CLOCK (BLK) WPL 7711P17260 Contact Us For Availability
9
BRACE WPL 0277238 Contact Us For Availability
9
BRACE WPL 0277257 Contact Us For Availability
9
BAFFLE, AIR DUCT WPL 3601F12020 Contact Us For Availability
10
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
10
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
10
KNOB, SWITCH WPL 7711E018 Contact Us For Availability
10
BRACKET WPL 3801F093 Contact Us For Availability
10
BRACKET, MAIN TOP RE WPL 3801F11720 Contact Us For Availability
11
LINING WPL 2402W12815 Contact Us For Availability
11
PAD WPL 2410A02912 Contact Us For Availability
11
PAD, INNER WPL 2410F01651 Contact Us For Availability
11
LIGHT, SIGNAL WPL 7407P02260 Contact Us For Availability
11
CLAMP WPL 1140201 Contact Us For Availability
11
CATALYST WPL 1566294 Contact Us For Availability
11
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
12
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
12
GRIP NUT WPL 1555247 Contact Us For Availability
12
CLIP, DOOR LOCK WPL 7112E003 Contact Us For Availability
13
SEAL WPL 1726252 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02080 Contact Us For Availability
13
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
13
SCREW, SPECIAL WPL 7101P01360 Contact Us For Availability
13
SCREW, SVC DOOR WPL 7101P22560 Contact Us For Availability
13
SEAL WPL 7208P00260 Contact Us For Availability
13
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
13
SPRING WPL 7803P00260 Contact Us For Availability
13
PANEL ASY BKGD LOWER WPL 2620W02500 Contact Us For Availability
13
PANEL, BKGD LOWER WPL 2620W04000 Contact Us For Availability
13
COVER, WIRE HOUSING WPL 4005F16420 Contact Us For Availability
13
COVER, FAN ASSY WPL 4005F17920 Contact Us For Availability
14
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
14
PLATE WPL 0719268 Contact Us For Availability
14
PLATE WPL 0719269 Contact Us For Availability
14
DRAWER ASSY. WPL 0384227 Contact Us For Availability
15
PLATE, CLOCK MNTG WPL 3605F09820 Contact Us For Availability
16
RECEPTACLE, LAMP WPL 1448213 Contact Us For Availability
17
SLEEVE WPL 1762216 Contact Us For Availability
17
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
17
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
18
SUPPORT WPL 0862417 Contact Us For Availability
18
SUPPORT WPL 0862418 Contact Us For Availability
18
SWITCH, AUTO WPL 7403P06260 Contact Us For Availability
18
ELEMENT (6``- AUTO SWITCH) WPL 7406P01960 Contact Us For Availability
18
ELEMENT (8``- AUTO SWITCH) WPL 7406P02260 Contact Us For Availability
19
SWITCH WPL 1832379 Contact Us For Availability
19
FAN ASSEMBLY WPL 7427P00560 Contact Us For Availability
20
FRAME, SVC DOOR WPL 7706P18160 Contact Us For Availability
20
FRAME, SERV DOOR WPL 7706E001 Contact Us For Availability
21
SWITCH, SELECTOR WPL 7403P02360 Contact Us For Availability
21
FRAME, BURNER BOX WPL 4012J015 Contact Us For Availability
22
THERMOSTAT ELE WPL 7404E003 Contact Us For Availability
22
FRAME, OVEN FRONT WPL 2201C025 Contact Us For Availability
23
TRIM WPL 1916960 Contact Us For Availability
23
TRIM WPL 1916961 Contact Us For Availability
23
TRIM, BKGD BOTTOM WPL 7716P00860 Contact Us For Availability
23
TRIM, BKG BOTTOM WPL 7716P01060 Contact Us For Availability
23
GASKET, BROIL ELEMENT WPL 1313274 Contact Us For Availability
24
GASKET, LAMPGUARD WPL 1313259 Contact Us For Availability
24
SEAL, SILICONE (NOT GOOD PART WPL 7212P00860 Contact Us For Availability
25
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
26
GASKET, OVEN WPL 1313279 Contact Us For Availability
27
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
28
+ GLASS, MAIN TOP AL WPL 5425P00760 Contact Us For Availability
29
GLIDE, SERVICE DRAWER (FRONT) WPL 8016E005 Contact Us For Availability
30
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
31
HANDLE, OVEN DR WPL 7701P02660 Contact Us For Availability
32
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
32
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
33
HOUSING, LAMP WPL 0537253 Contact Us For Availability
33
INSERT WPL Y0507229 Contact Us For Availability
34
CATCH WPL 8002E002 Contact Us For Availability
34
CATCH WPL 8002P01460 Contact Us For Availability
35
LEVER, DOOR LOCK WPL 8009E001 Contact Us For Availability
35
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
37
LINING ASSY, INNER SIDE WPL 4009W03380 Contact Us For Availability
37
INNER SIDE LINING ASSY WPL 4009W05480 Contact Us For Availability
38
LINK, DOOR LOCK WPL 8021E001 Contact Us For Availability
39
+ PANEL, STORAGE AL WPL 5715A00374 Contact Us For Availability
40
PANEL, SIDE (BLACK) WPL 2618F07370 Contact Us For Availability
40
PANEL, SIDE (ALM) WPL Y0801240A Contact Us For Availability
41
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
41
RACK, OVEN WPL 1636254 Contact Us For Availability
41
PLATE WPL 3605F14880 Contact Us For Availability
41
WPL 3605F15380 WPL 3605F15380 Contact Us For Availability
42
WPL W10124350 WPL W10124350 Contact Us For Availability
42
WPL 1657202 WPL 1657202 Contact Us For Availability
42
WPL 3605F14651 WPL 3605F14651 Contact Us For Availability
43
WPL 0749227 WPL 0749227 Contact Us For Availability
44
WPL Y7201P02160 WPL Y7201P02160 Contact Us For Availability
44
WPL Y7201P02260 WPL Y7201P02260 Contact Us For Availability
45
WPL 8003P01060 WPL 8003P01060 Contact Us For Availability
45
WPL 8010P04860 WPL 8010P04860 Contact Us For Availability
46
WPL 3406F02551 WPL 3406F02551 Contact Us For Availability
46
WPL 3406F02751 WPL 3406F02751 Contact Us For Availability
47
WPL 0787407 WPL 0787407 Contact Us For Availability
47
WPL 1986204 WPL 1986204 Contact Us For Availability
47
WPL 7101E083 WPL 7101E083 Contact Us For Availability
47
WPL 7101P12360 WPL 7101P12360 Contact Us For Availability
48
WPL 0787391 WPL 0787391 Contact Us For Availability
49
WPL 0787392 WPL 0787392 Contact Us For Availability
50
WPL 1013214 WPL 1013214 Contact Us For Availability
51
WPL 7105P00560 WPL 7105P00560 Contact Us For Availability
53
WPL Y0862419 WPL Y0862419 Contact Us For Availability
54
WPL 3807F195 WPL 3807F195 Contact Us For Availability
55
WPL 3807F193 WPL 3807F193 Contact Us For Availability
56
WPL 7403E062 WPL 7403E062 Contact Us For Availability
57
WPL 7403P09860 WPL 7403P09860 Contact Us For Availability
58
WPL 7403P06960 WPL 7403P06960 Contact Us For Availability
58
WPL 7403P07360 WPL 7403P07360 Contact Us For Availability
58
WPL 7403P09760 WPL 7403P09760 Contact Us For Availability
58
WPL 7403P17460 WPL 7403P17460 Contact Us For Availability
59
WPL 7403E045 WPL 7403E045 Contact Us For Availability
60
WPL 3608F00100 WPL 3608F00100 Contact Us For Availability
60
WPL 3608F00200 WPL 3608F00200 Contact Us For Availability
61
WPL 8026A00960 WPL 8026A00960 Contact Us For Availability
61
WPL 8026E005 WPL 8026E005 Contact Us For Availability
61
WPL 8026P01160 WPL 8026P01160 Contact Us For Availability
62
WPL 3601W16651 WPL 3601W16651 Contact Us For Availability
63
WPL 3601F11851 WPL 3601F11851 Contact Us For Availability
× ![]()
