Model Whirlpool 38FA-3CW ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

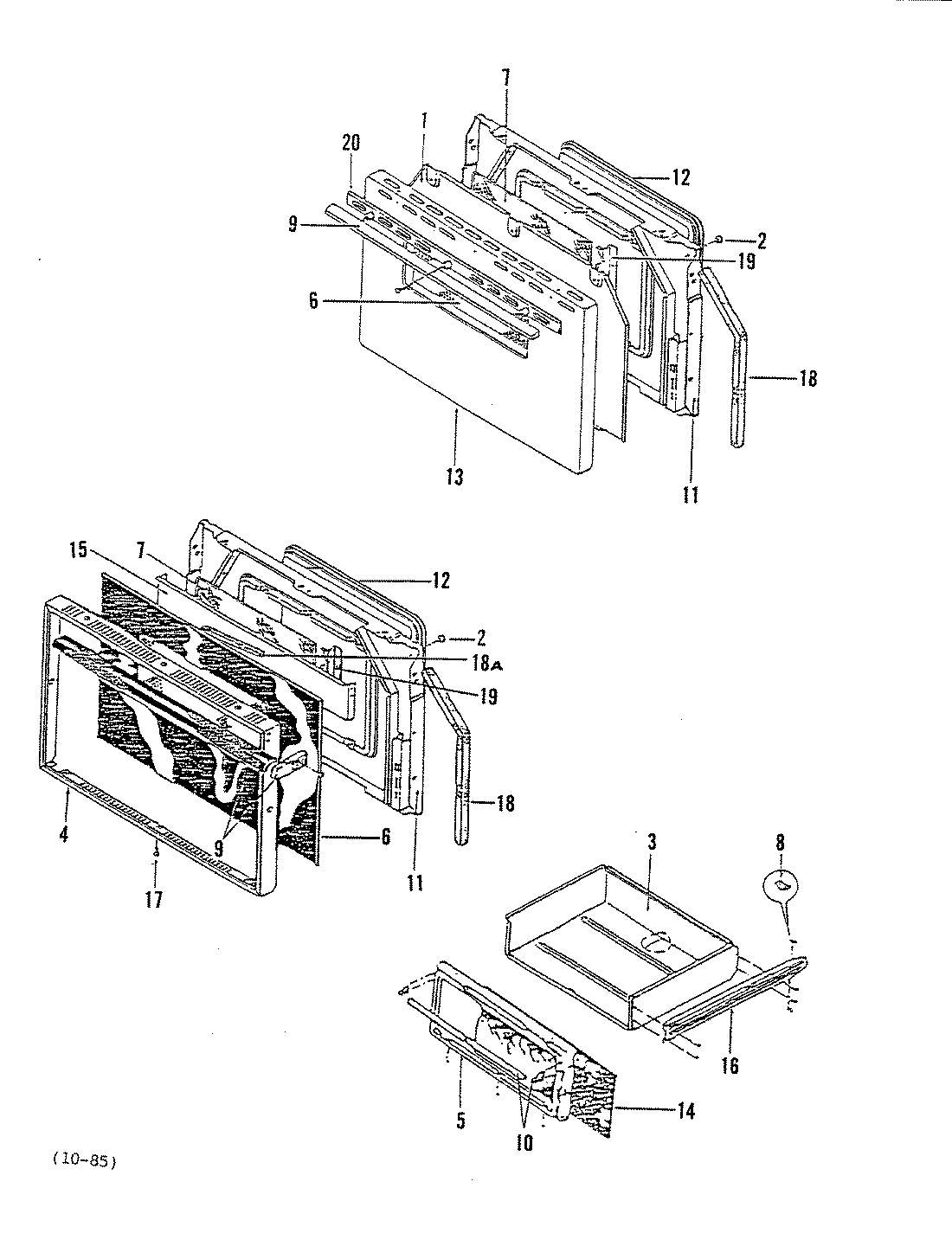

03 - DOOR
02 - CONTROL PANEL
Common parts from model Whirlpool 38FA-3CW ELECTRIC RANGE
1
BACK, MAIN WPL 0903114 Contact Us For Availability
1
BACK, MAIN WPL 4002F06920 Contact Us For Availability
1
BRACKET WPL 0284324 Contact Us For Availability
1
BAFFLE WPL 3601F093 Contact Us For Availability
1
BRACE, DRAWER WPL 3802F04451 Contact Us For Availability
1
+ KIT, TRIM DECOR WPL 1430287 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895523 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895524 Contact Us For Availability
1
+ CLOCK, EXPORT WPL 1895525 Contact Us For Availability
1
+ CLOCK WPL 7601P04460 Contact Us For Availability
1
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
2
BAFFLE WPL 3601F058 Contact Us For Availability
2
BUMPER WPL 1784200 Contact Us For Availability
2
KNOB, CLOCK WPL 7711P00760 Contact Us For Availability
2
KNOB, THERMOSTAT WPL 7711P13860 Contact Us For Availability
3
DRAWER ASSY. WPL 0384227 Contact Us For Availability
3
KNOB, SWITCH WPL 7711E018 Contact Us For Availability
3
KNOB, SWITCH WPL 7711P13960 Contact Us For Availability
4
BLOCK WPL 1867271 Contact Us For Availability
4
BOLT, DOOR LOCK WPL 7116E002 Contact Us For Availability
4
GRIP NUT WPL 1555247 Contact Us For Availability
4
LIGHT, INDICATOR WPL 7407E019 Contact Us For Availability
5
BOX, BURNER WPL 4011F07823 Contact Us For Availability
5
FRONT, BURNER BOX BOTTOM WPL 4012F01780 Contact Us For Availability
5
GASKET WPL 1313269 Contact Us For Availability
5
SHIELD WPL 0787389 Contact Us For Availability
5
SPACER WPL 1783233 Contact Us For Availability
5
PANEL, BKGD-A WPL 2601W13384 Contact Us For Availability
5
PANEL, BACKGUARD WPL 2601W18584 Contact Us For Availability
5
PANEL, BACK ALM WPL 2601W19084 Contact Us For Availability
6
BRACE WPL 0277257 Contact Us For Availability
6
+ BRACKET WPL 0284307 Contact Us For Availability
6
CATALYST WPL 1566294 Contact Us For Availability
6
BRACKET WPL 3801F093 Contact Us For Availability
6
BRACE, MAIN TOP WPL 3802F04620 Contact Us For Availability
6
BOX, VENT WPL 4006W02545 Contact Us For Availability
6
BOX ASSY, VENT WPL 4006W05645 Contact Us For Availability
6
BUMPER, MAIN TOP WPL 8010E012 Contact Us For Availability
6
GLASS WPL 1327122 Contact Us For Availability
6
SUPPORT WPL 0862417 Contact Us For Availability
6
SUPPORT WPL 0862418 Contact Us For Availability
7
CLAMP WPL 1140201 Contact Us For Availability
7
GLASS, INNER WPL 7902P09760 Contact Us For Availability
7
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
8
CLIP, DOOR LOCK WPL 7112E003 Contact Us For Availability
8
GLIDE WPL 1329101 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00460 Contact Us For Availability
8
GLIDE, FRONT WPL 8016P00560 Contact Us For Availability
8
GLIDE, DRAWER WPL 8016P00960 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P08160 Contact Us For Availability
9
COVER, WIRE HOUSING WPL 4005F16420 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P04060 Contact Us For Availability
9
HANDLE, DOOR ALMD WPL 7701P03260 Contact Us For Availability
9
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P08460 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P08560 Contact Us For Availability
9
SWITCH, INF. CONTROL WPL 7403P08660 Contact Us For Availability
10
HANDLE, DRAWER ALMOND WPL 7701P01474 Contact Us For Availability
10
THERMOSTAT WPL 7404P03160 Contact Us For Availability
11
LINING ASSY, OV DR WPL 2402W12512 Contact Us For Availability
11
LINING WPL 2402W12815 Contact Us For Availability
11
LINING, OVN DOOR WPL 2422H082 Contact Us For Availability
11
TRIM, BKGD-MC WPL 7703P11760 Contact Us For Availability
12
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
12
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
12
PAD, INNER OV DR WPL 2410F01251 Contact Us For Availability
12
PAD, INNER OVEN DOOR WPL 2410F01551 Contact Us For Availability
12
PAD ASSY, OVEN DOOR WPL 2410W02112 Contact Us For Availability
12
PAD ASSY, OV. DR. WPL 2410W02912 Contact Us For Availability
12
PAD, OVEN DOOR WPL 2430H019 Contact Us For Availability
12
TRIM WPL 1916211 Contact Us For Availability
12
TRIM WPL 1916212 Contact Us For Availability
13
PANEL ASSY, OV DR A WPL 2401W04474 Contact Us For Availability
13
TRIM WPL 1916226 Contact Us For Availability
14
FRAME, BURNER BOX WPL 4012J015 Contact Us For Availability
14
+ PANEL, SERVICE DWR WPL 0684316A Contact Us For Availability
14
TRIM, BKGD TOP-MC WPL 7715P00460 Contact Us For Availability
14
TRIM, BKGD TOP WPL 7715P01660 Contact Us For Availability
15
FRAME, OVEN FRONT WPL 2201C025 Contact Us For Availability
16
GASKET, LAMPGUARD WPL 1313259 Contact Us For Availability
16
GASKET, BROIL ELEMENT WPL 1313274 Contact Us For Availability
16
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
16
RUNNER WPL Y0766215 Contact Us For Availability
17
GASKET, LAMPGUARD RETAINER WPL 1313260 Contact Us For Availability
18
GASKET, OVEN WPL 1313279 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
18
SCREW, DOOR HANDLE WPL 1986344 Contact Us For Availability
18
STOP, DOOR WPL Y0112241 Contact Us For Availability
19
GLASS, LIGHTGUARD WPL 1327784 Contact Us For Availability
19
SUPPORT WPL 0862426 Contact Us For Availability
19
SUPPORT, GLASS WPL 3804J038 Contact Us For Availability
20
GLIDE, SERVICE DRAWER (FRONT) WPL 8016E005 Contact Us For Availability
20
TRIM, HANDLE WPL 7720P06360 Contact Us For Availability
21
HANDLE, DOOR LOCK WPL 7701E003 Contact Us For Availability
21
+ WINDOW, OV DR ASSY WPL 5700A08160 Contact Us For Availability
21
+ WINDOW, PKG WPL 5700A08460 Contact Us For Availability
21
WINDOW PAK ASSY. WPL 5700A09160 Contact Us For Availability
22
SUPPORT, MAIN TOP WPL 7105P00260 Contact Us For Availability
23
HINGE, OVEN DOOR (LT) WPL 3418F02934 Contact Us For Availability
23
HINGE, OVEN DOOR (RT) WPL 3418F03034 Contact Us For Availability
24
HOUSING, LAMP WPL 0537253 Contact Us For Availability
24
INSERT WPL Y0507229 Contact Us For Availability
25
CATCH WPL 8002E002 Contact Us For Availability
25
CATCH WPL 8002P01460 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009E001 Contact Us For Availability
26
LEVER, DOOR LOCK WPL 8009P00660 Contact Us For Availability
27
BULB, OVEN WPL 7407P02660 Contact Us For Availability
28
LINING ASSY, INNER SIDE WPL 4009W02980 Contact Us For Availability
28
LINING, INNER SIDE WPL 4009W05380 Contact Us For Availability
29
LINK, DOOR LOCK WPL 8021E001 Contact Us For Availability
30
PANEL, SIDE (ALM) WPL 2618F07374 Contact Us For Availability
30
PANEL, SIDE (ALM) WPL Y0801240A Contact Us For Availability
31
PIN, OVEN DOOR HINGE WPL 1584204 Contact Us For Availability
31
RACK, OVEN WPL 1636254 Contact Us For Availability
31
PLATE, CONDUIT WPL 3605F14880 Contact Us For Availability
31
PLATE, CONDUIT WPL 3605F15380 Contact Us For Availability
32
RECEPTACLE, OVEN LIGHT WPL 1657202 Contact Us For Availability
32
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
33
RETAINER, LAMPGUARD WPL 0749227 Contact Us For Availability
34
BUMPER, MAIN TOP WPL 8003P01060 Contact Us For Availability
34
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
35
RUNNER,OUTER WPL 3406F02551 Contact Us For Availability
35
RUN WPL 3406F02751 Contact Us For Availability
36
WPL 0787391 WPL 0787391 Contact Us For Availability
36
WPL 0787392 WPL 0787392 Contact Us For Availability
36
WPL 0787407 WPL 0787407 Contact Us For Availability
36
WPL 1986204 WPL 1986204 Contact Us For Availability
36
WPL 1986339 WPL 1986339 Contact Us For Availability
36
WPL 7402P03060 WPL 7402P03060 Contact Us For Availability
36
WPL 7402P03660 WPL 7402P03660 Contact Us For Availability
37
WPL 1013214 WPL 1013214 Contact Us For Availability
39
WPL Y0862419 WPL Y0862419 Contact Us For Availability
40
WPL 3807F195 WPL 3807F195 Contact Us For Availability
41
WPL 3807F193 WPL 3807F193 Contact Us For Availability
42
WPL 8004P01160 WPL 8004P01160 Contact Us For Availability
42
WPL 8004P01260 WPL 8004P01260 Contact Us For Availability
43
WPL 8004P00960 WPL 8004P00960 Contact Us For Availability
43
WPL 8004P01060 WPL 8004P01060 Contact Us For Availability
44
WPL 7403E062 WPL 7403E062 Contact Us For Availability
45
WPL 7403E045 WPL 7403E045 Contact Us For Availability
46
WPL 2002W02604 WPL 2002W02604 Contact Us For Availability
46
WPL 2002W03204 WPL 2002W03204 Contact Us For Availability
47
WPL 1916306 WPL 1916306 Contact Us For Availability
47
WPL 7746P02560 WPL 7746P02560 Contact Us For Availability
48
WPL 1916307 WPL 1916307 Contact Us For Availability
48
WPL 7746P02660 WPL 7746P02660 Contact Us For Availability
49
WPL 8026A00960 WPL 8026A00960 Contact Us For Availability
49
WPL 8026E005 WPL 8026E005 Contact Us For Availability
49
WPL 8026P01160 WPL 8026P01160 Contact Us For Availability
× ![]()
