Model Whirlpool 3888VVA ELECTRIC RANGE – Common Parts & Diagrams

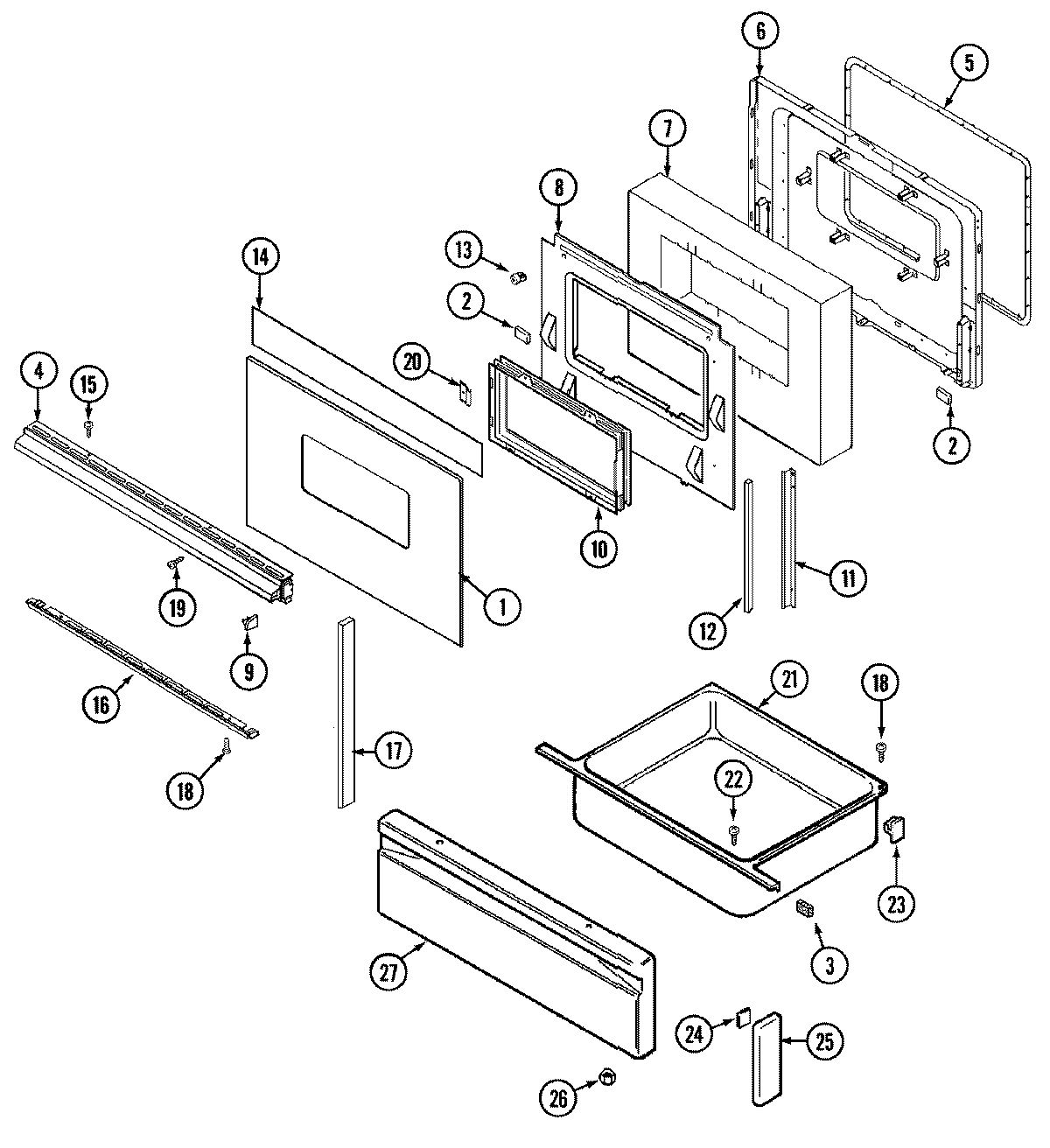

03 - DOOR/DRAWER

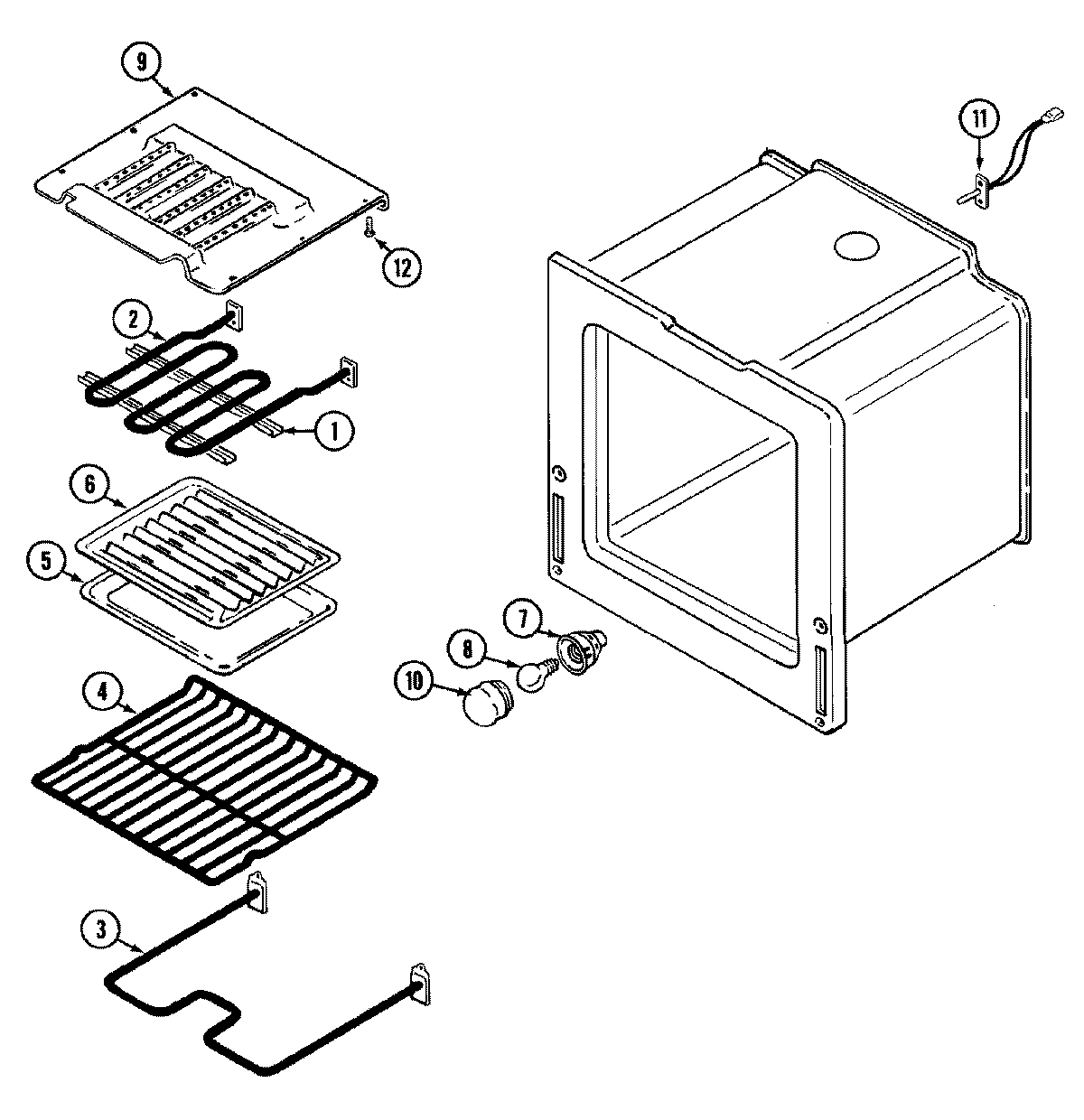

05 - OVEN

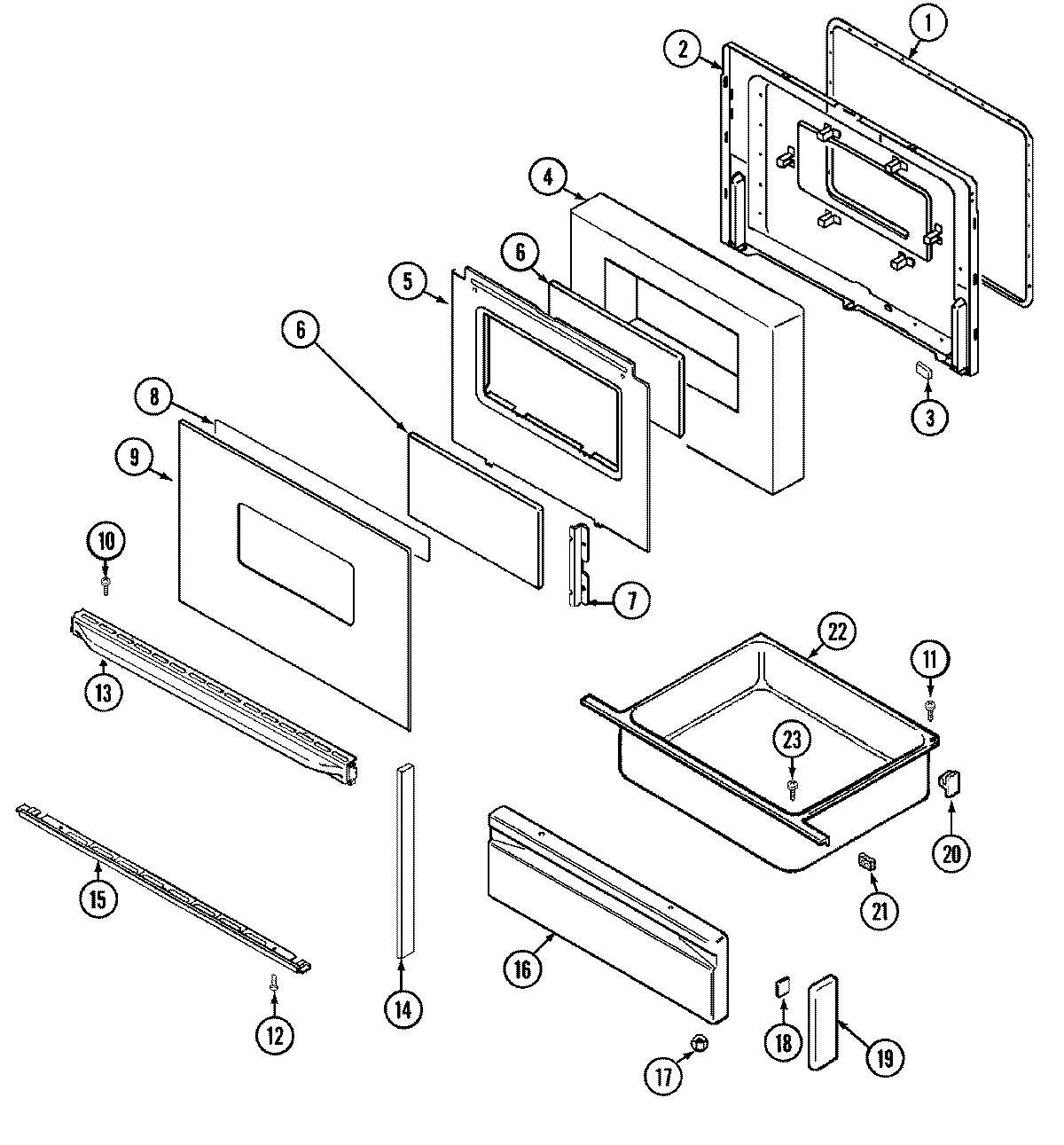

04 - DOOR/DRAWER (SER. PRE. 21)

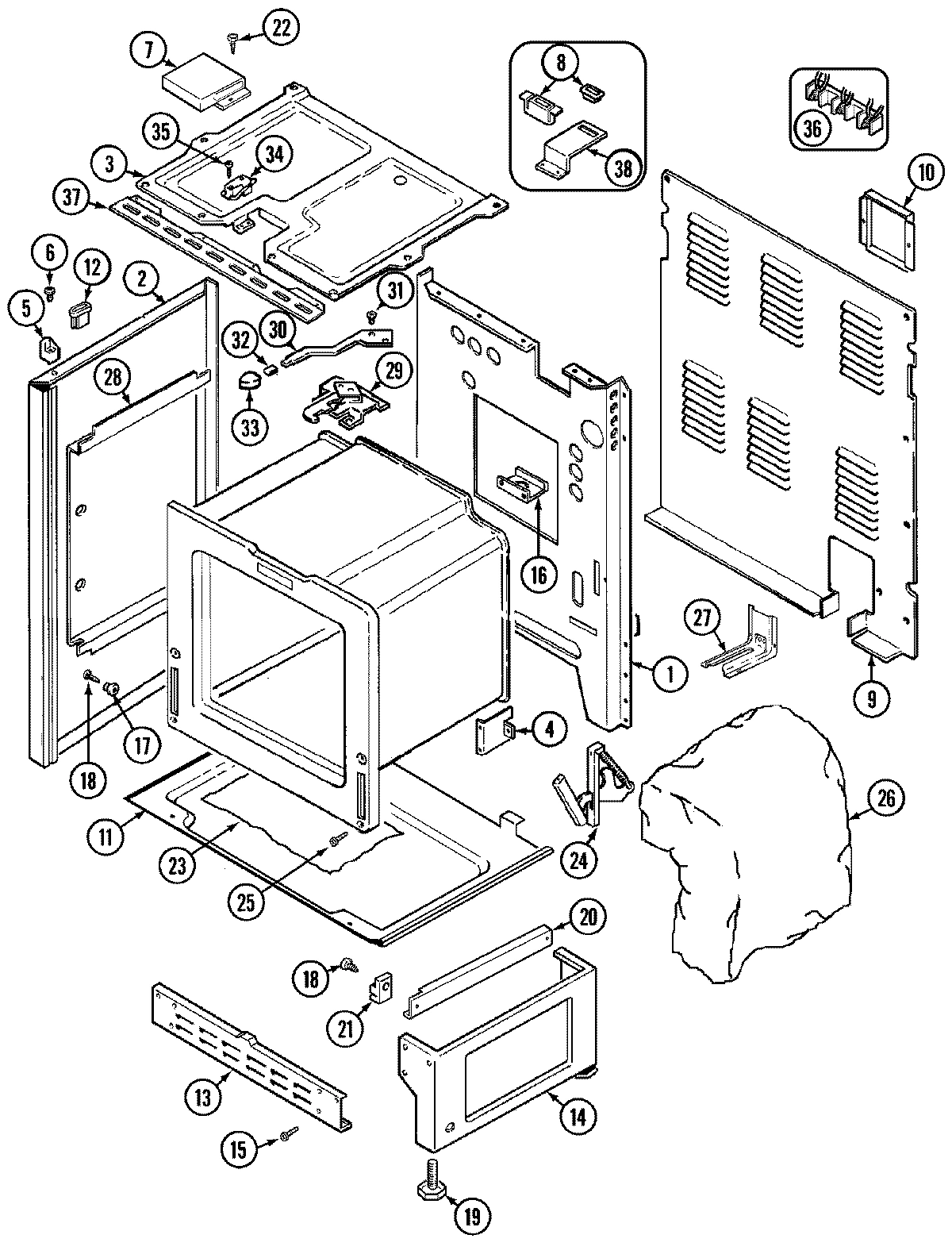

01 - BODY

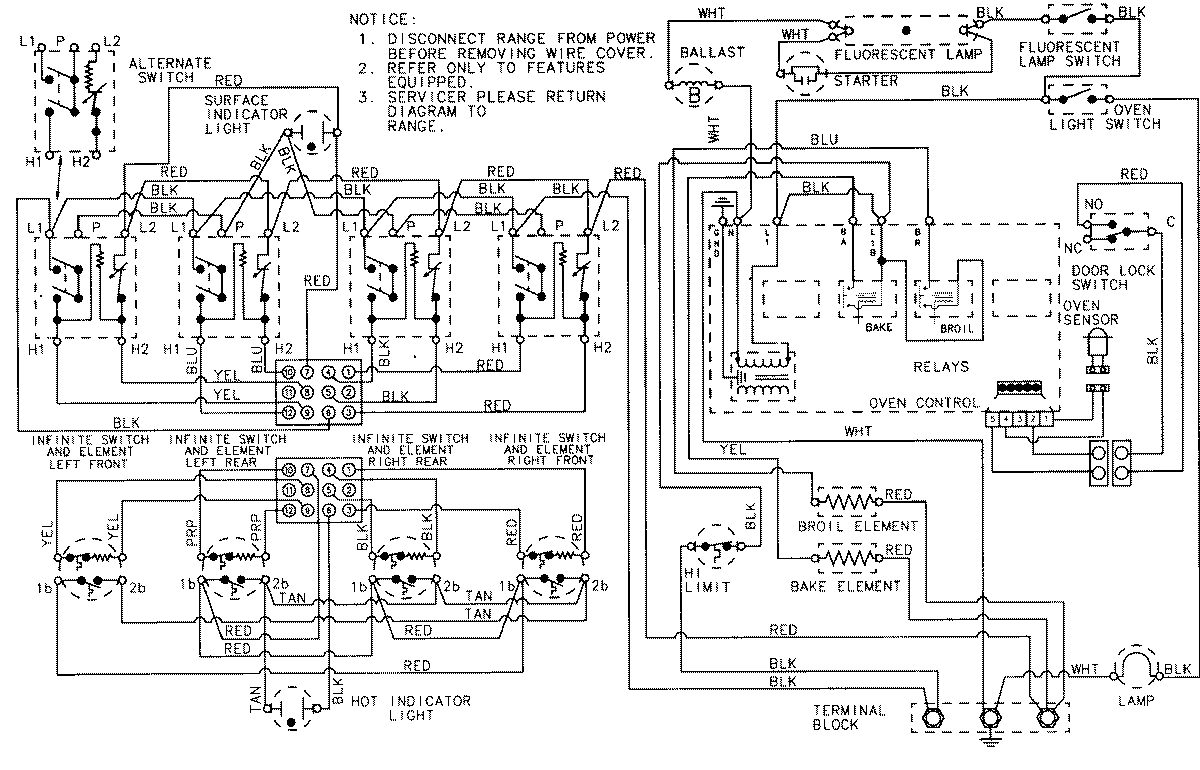

07 - WIRING INFORMATION

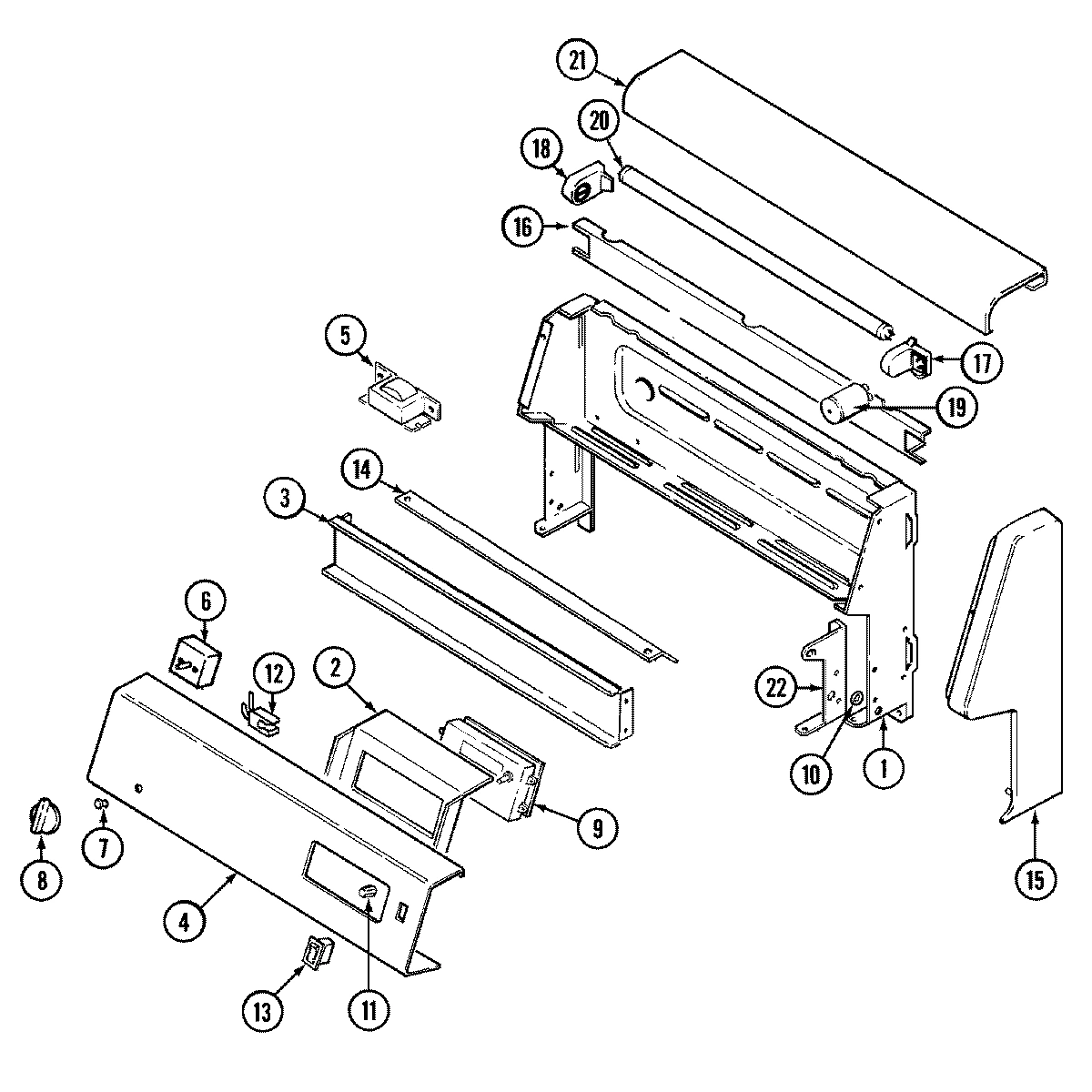

02 - CONTROL PANEL

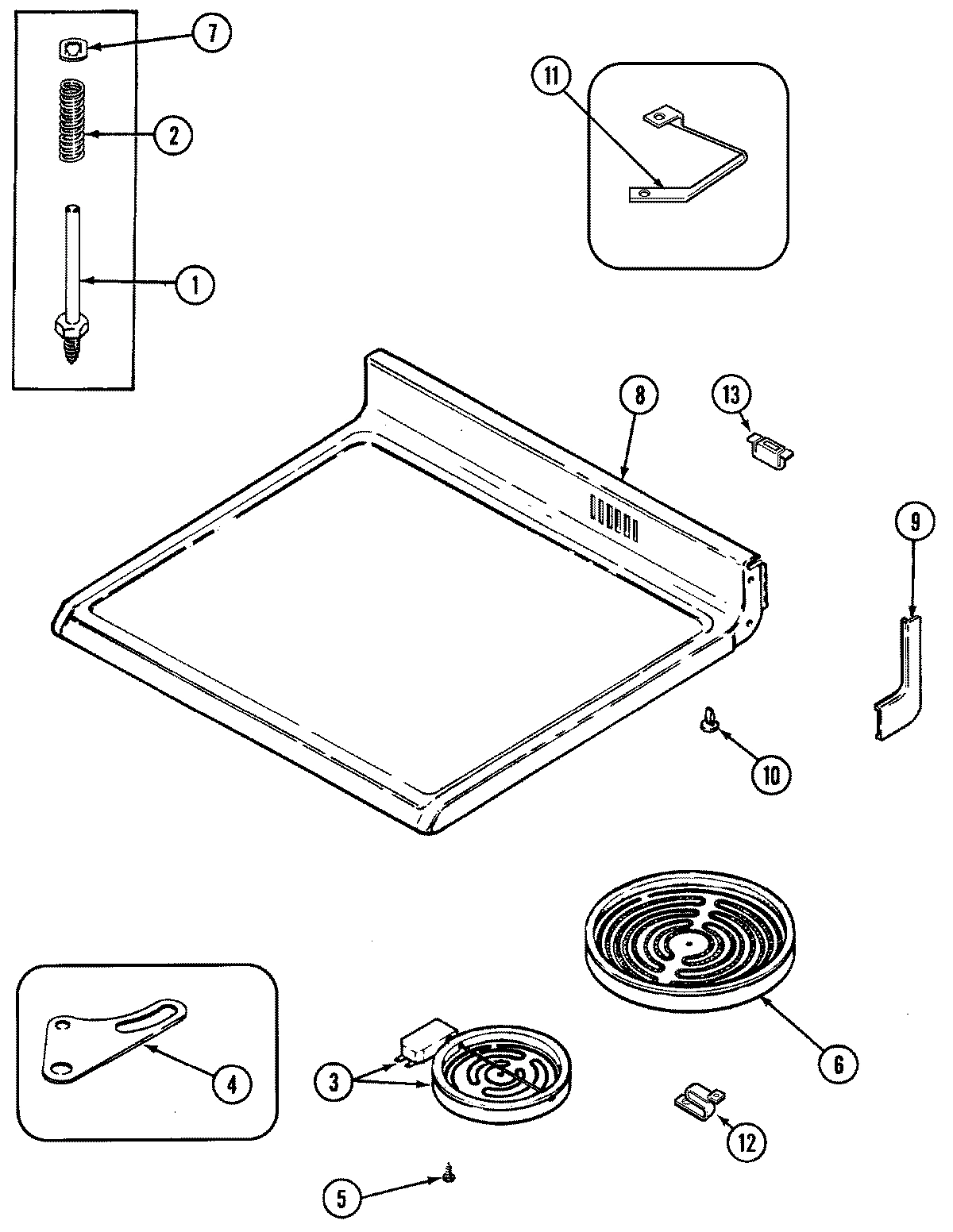

06 - TOP ASSEMBLY
Common parts from model Whirlpool 3888VVA ELECTRIC RANGE
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
PIN, ELEMENT WPL 7113P01360 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
2
BRACKET, CLOCK WPL 3801F33745 Contact Us For Availability
2
SPRING, ELEMENT SUPPORT WPL 7803P06660 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P06460 Contact Us For Availability
3
BOX, BURNER WPL 4011F23819 Contact Us For Availability
3
BOX, BURNER WPL 74001707 Contact Us For Availability
3
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
3
LIMITER KIT (6``) WPL 12500041 Contact Us For Availability
3
ELEMENT W/RECEPTACLE (6``) WPL 7406P07460 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
4
PANEL, CONTROL (BLK) WPL 7703P57160 Contact Us For Availability
4
CLIP, ELEMENT WPL 3819F01345 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
BALLAST WPL 7412P00760 Contact Us For Availability
5
SCREW WPL 7101P07660 Contact Us For Availability
6
LINING, DOOR WPL 2402W20219 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SCREW WPL 7118P01360 Contact Us For Availability
6
SCREW WPL 7101P30960 Contact Us For Availability
6
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
6
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
6
LIMITER KIT (8``) WPL 12500040 Contact Us For Availability
6
LIMITER (8``) WPL 74002652 Contact Us For Availability
6
ELEMENT W/RECEPTACLE (8``) WPL 7406P07360 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
7
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
7
CLIP, RETAINER WPL 7112P09160 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
LIGHT, INDICATOR (HOT SURFACE) WPL 7407P09760 Contact Us For Availability
8
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
8
MAIN TOP (BLK GLASS/ALM FRAME) WPL 5706M10884 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23745 Contact Us For Availability
9
GLASS, DOOR (ALM) WPL 7902P35860 Contact Us For Availability
9
COVER, WIRE WPL 4005F45551 Contact Us For Availability
9
CLOCK (BLK) WPL 74002221 Contact Us For Availability
9
CLOCK (BLK) WPL 7601P22960 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SCREW (ALM) WPL 7101P30760 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
NUT, SPEED WPL 7103P12960 Contact Us For Availability
10
GLIDE WPL 8016P01660 Contact Us For Availability
10
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
10
TAPE, DOUBLE SIDED WPL 8270P09560 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
11
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
11
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
11
SPRING, CERAMIC ELEMENT WPL 74001437 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
13
HANDLE, DOOR (ALM) WPL 7701P11660 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
14
END CAP, OVEN DOOR (ALM) WPL 7744P08560 Contact Us For Availability
14
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
14
PEDESTAL, SIDE WPL 4020W00780 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
15
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
15
TRIM, BOTTOM (ALM) WPL 7744P10460 Contact Us For Availability
15
SCREW WPL 7101P29060 Contact Us For Availability
15
END CAP, PANEL (RT-BLK) WPL 74002794 Contact Us For Availability
15
END CAP, PANEL (LT-BLK) WPL 74002795 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P04760 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P04860 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
HOLDER, LAMP (WHT) WPL 3807F40671 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
RECEPTACLE, LIGHT (RT) WPL 7408P02960 Contact Us For Availability
18
SCREW WPL 7101P30060 Contact Us For Availability
18
RECEPTACLE, SNAP-IN (LT) WPL 7408P03060 Contact Us For Availability
19
SCREW WPL 7101P29160 Contact Us For Availability
19
END CAP (ALM) WPL 7744P11360 Contact Us For Availability
19
END CAP, DRAWER (ALM) WPL 74002741 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
STARTER WPL 7415P00160 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
20
LIGHT, CONTROL PANEL WPL 7407P00460 Contact Us For Availability
21
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
21
COVER, LIGHT (BLK) WPL 7724P05460 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
22
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
22
SUPPORT, MAIN TOP (RT) WPL 3807F45351 Contact Us For Availability
22
SUPPORT, MAIN TOP (LT) WPL 3807F45451 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
23
HARNESS, LOOSE WIRE WPL 5125A38160 Contact Us For Availability
23
HARNESS, CONTROL PANEL WPL 5170D19960 Contact Us For Availability
23
HARNESS, SENSOR/LOCK WPL 5170P20560 Contact Us For Availability
23
HARNESS, PANEL TO TOP WPL 5175D06360 Contact Us For Availability
24
TAPE, DOUBLE-SIDED WPL 8270P09460 Contact Us For Availability
24
HINGE WPL 7106P05660 Contact Us For Availability
24
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
24
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
25
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
26
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
26
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
28
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
29
PLATE, LATCH SWITCH WPL 3605F19751 Contact Us For Availability
29
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
29
PLATE, LATCH SWITCH WPL 74001744 Contact Us For Availability
29
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
30
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
30
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
30
LEVER, DOOR LATCH WPL 8009P02460 Contact Us For Availability
31
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
31
WASHER WPL 7109P01560 Contact Us For Availability
32
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
33
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
34
SWITCH, DOOR LATCH WPL 7403P22860 Contact Us For Availability
35
SCREW WPL 7101P10360 Contact Us For Availability
36
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
37
BRACKET, MAIN TO WPL 3801F30580 Contact Us For Availability
38
WPL 3801F31245 WPL 3801F31245 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001430 Contact Us For Availability
× ![]()
