Model Maytag 3862VVV ELECTRIC RANGE – Common Parts & Diagrams

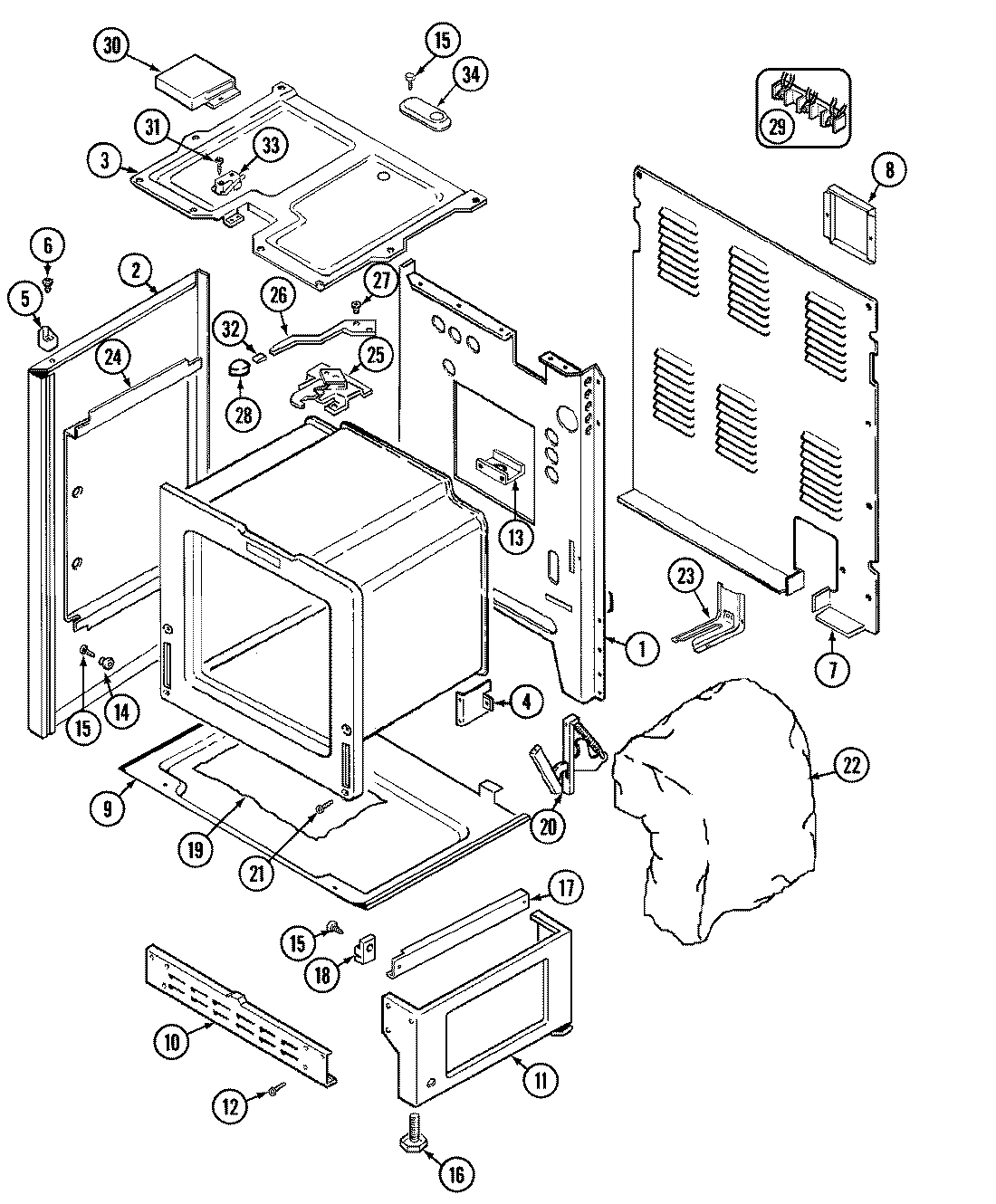

01 - BODY

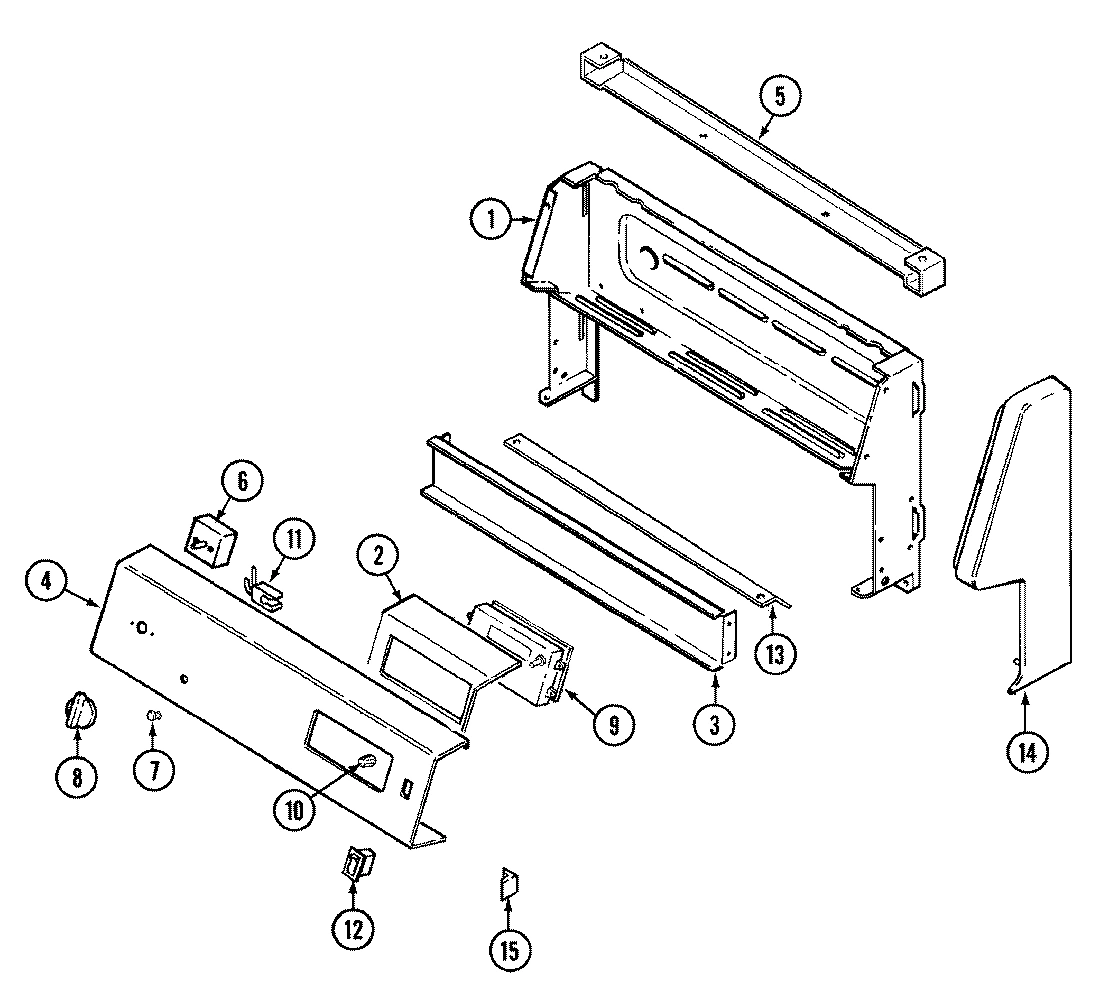

02 - CONTROL PANEL

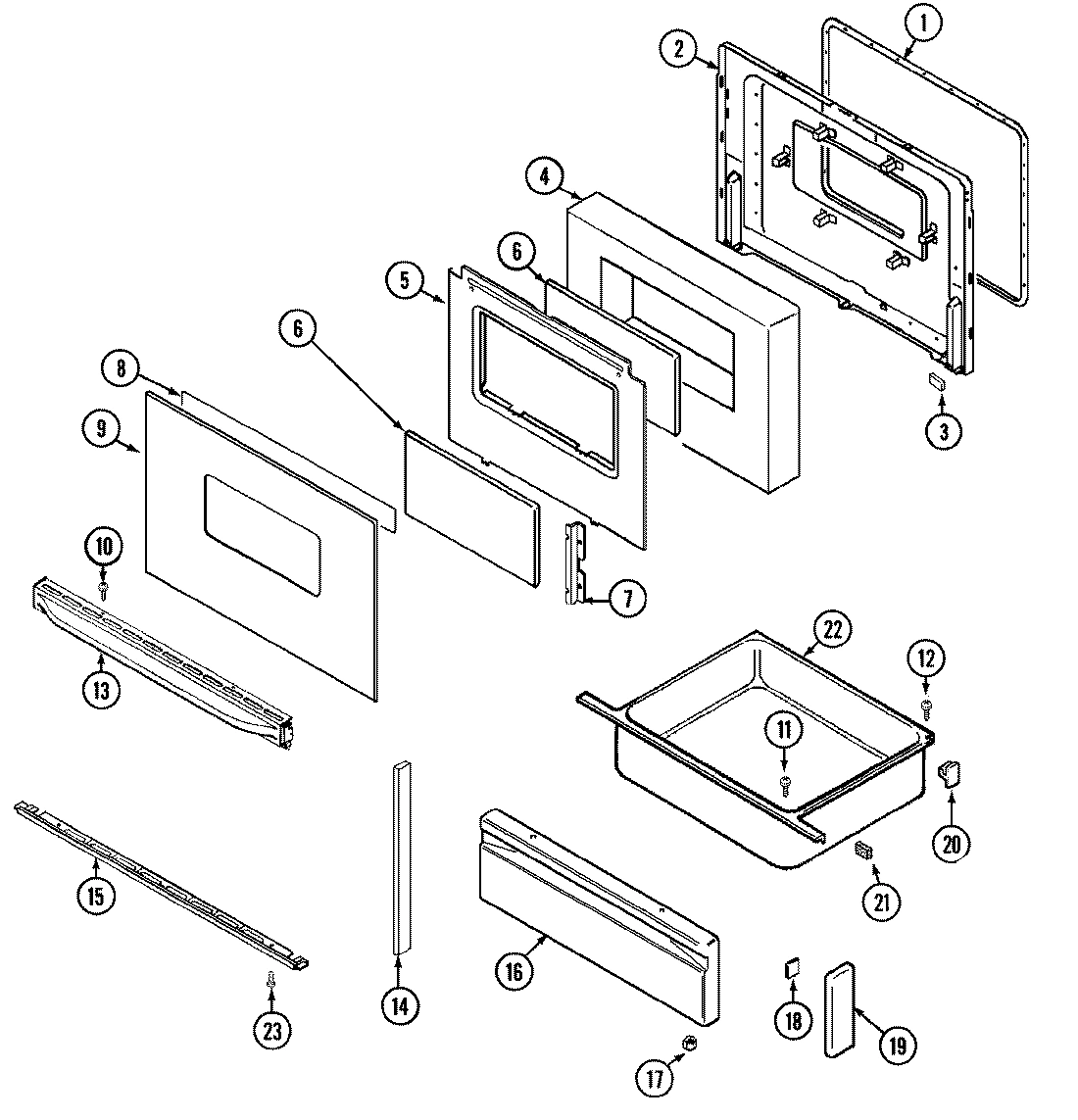

03 - DOOR/DRAWER (SER. PRE. 21)
04 - OVEN

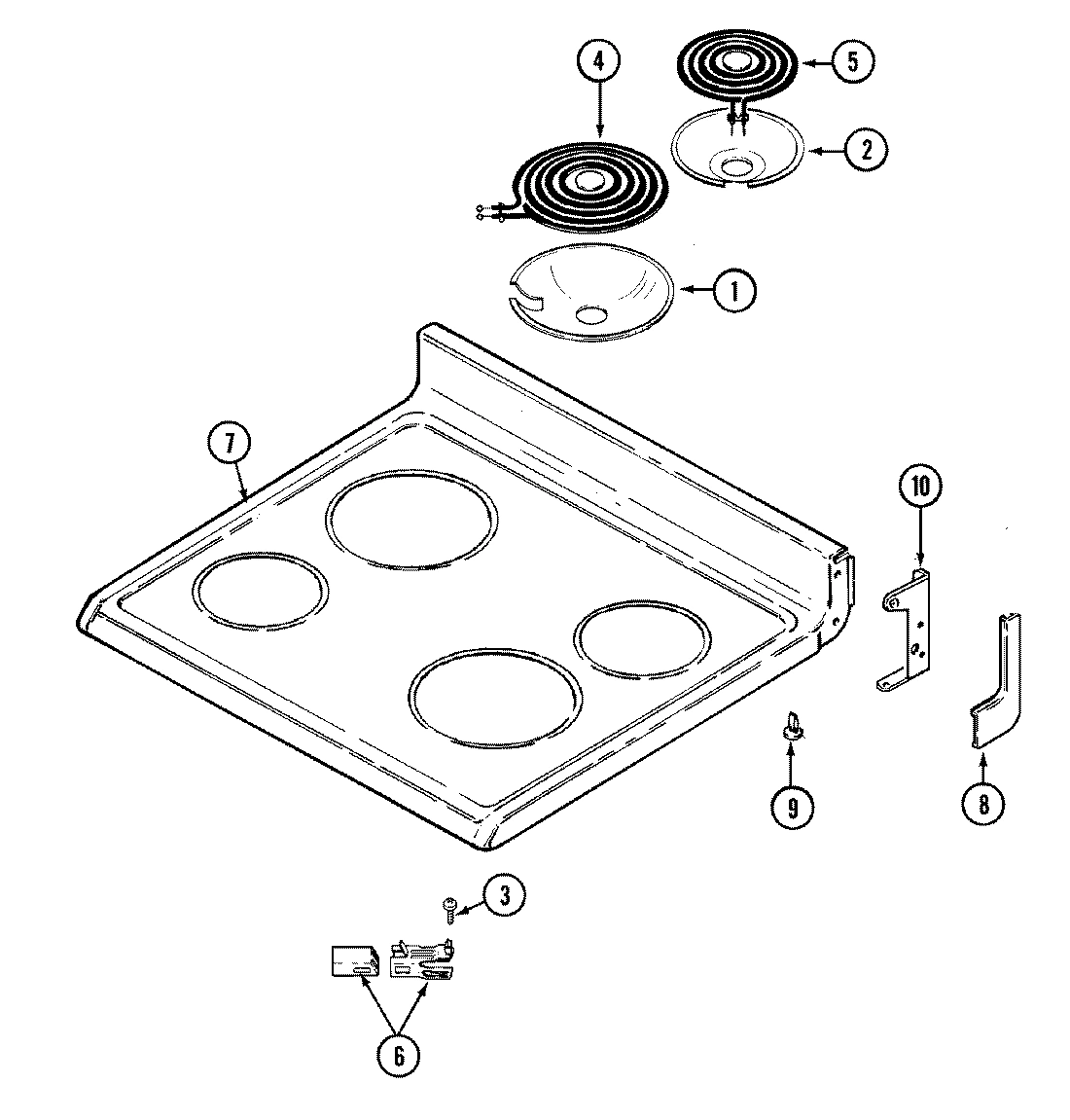

05 - TOP ASSEMBLY

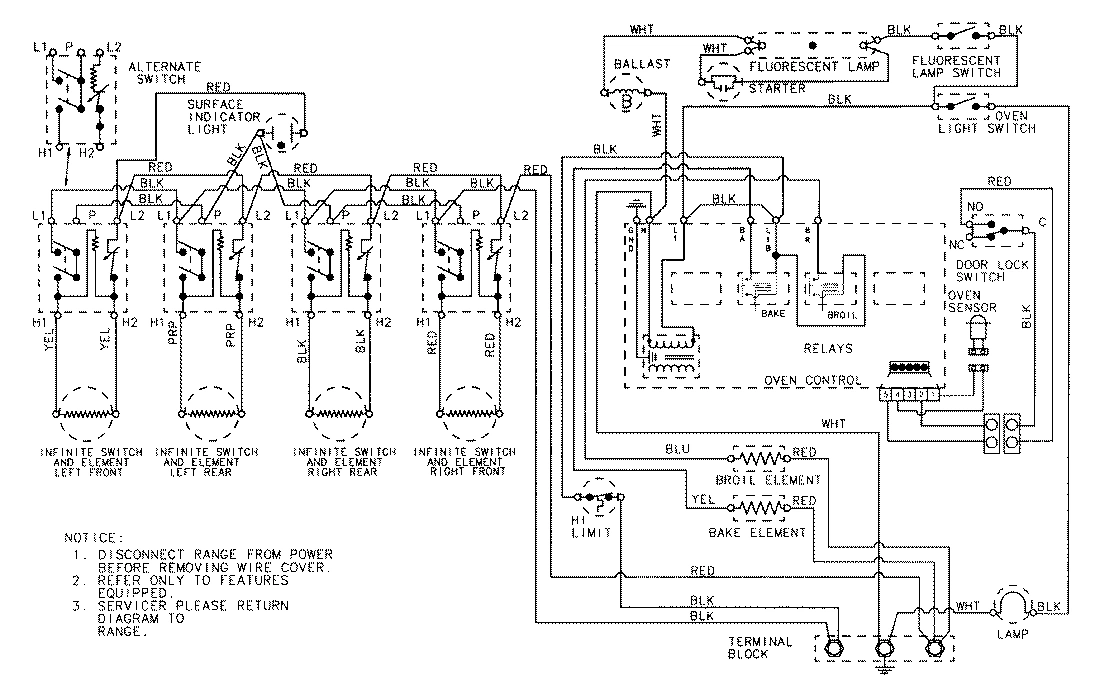

06 - WIRING INFORMATION
Common parts from model Maytag 3862VVV ELECTRIC RANGE
1
MAY 7725P047-60 MAY 7725P047-60 Contact Us For Availability
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY 74001518 MAY 74001518 Contact Us For Availability
2
MAY 3801F336-45 MAY 3801F336-45 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 74003244 MAY 74003244 Contact Us For Availability
2
MAY 7406P065-60 MAY 7406P065-60 Contact Us For Availability
2
MAY 74001519 MAY 74001519 Contact Us For Availability
2
MAY 7725P048-60 MAY 7725P048-60 Contact Us For Availability
3
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
3
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 7406P064-60 MAY 7406P064-60 Contact Us For Availability
4
MAY 7703P688-60 MAY 7703P688-60 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
MAY 74001775 MAY 74001775 Contact Us For Availability
4
MAY 7406P080-60 MAY 7406P080-60 Contact Us For Availability
4
MAY 7406P088-60 MAY 7406P088-60 Contact Us For Availability
5
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 74001777 MAY 74001777 Contact Us For Availability
5
MAY 7406P087-60 MAY 7406P087-60 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY 4005F348-51 MAY 4005F348-51 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY 74003125 MAY 74003125 Contact Us For Availability
7
MAY 2002W099-81 MAY 2002W099-81 Contact Us For Availability
8
MAY 4005F376-51 MAY 4005F376-51 Contact Us For Availability
8
MAY 7731P081-60 MAY 7731P081-60 Contact Us For Availability
8
MAY 8270P078-60 MAY 8270P078-60 Contact Us For Availability
8
MAY 7746P032-60 MAY 7746P032-60 Contact Us For Availability
8
MAY 7746P033-60 MAY 7746P033-60 Contact Us For Availability
9
MAY 3804F109-51 MAY 3804F109-51 Contact Us For Availability
9
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
9
MAY 74002220 MAY 74002220 Contact Us For Availability
9
MAY 7601P234-60 MAY 7601P234-60 Contact Us For Availability
9
MAY 74003395 MAY 74003395 Contact Us For Availability
9
MAY 7902P328-60 MAY 7902P328-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
10
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE NOT REQUIRED MAY W10124350 Contact Us For Availability
10
MAY 7711P493-60 MAY 7711P493-60 Contact Us For Availability
10
MAY 7101P308-60 MAY 7101P308-60 Contact Us For Availability
10
MAY 3418D097-60 MAY 3418D097-60 Contact Us For Availability
10
MAY 3418D098-60 MAY 3418D098-60 Contact Us For Availability
11
MAY 4020W013-80 MAY 4020W013-80 Contact Us For Availability
11
MAY 74003016 MAY 74003016 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
11
MAY 74001170 MAY 74001170 Contact Us For Availability
12
MAY 7403P200-60 MAY 7403P200-60 Contact Us For Availability
12
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
12
MAY 74001280 MAY 74001280 Contact Us For Availability
13
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
13
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
13
MAY 74003396 MAY 74003396 Contact Us For Availability
13
MAY 7701P145-60 MAY 7701P145-60 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 74002338 MAY 74002338 Contact Us For Availability
14
MAY 74002339 MAY 74002339 Contact Us For Availability
14
MAY 7726P075-60 MAY 7726P075-60 Contact Us For Availability
14
MAY 7726P076-60 MAY 7726P076-60 Contact Us For Availability
14
MAY 74002342 MAY 74002342 Contact Us For Availability
14
MAY 74003398 MAY 74003398 Contact Us For Availability
14
MAY 7744P065-60 MAY 7744P065-60 Contact Us For Availability
14
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
15
MAY 74001449 MAY 74001449 Contact Us For Availability
15
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
15
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
15
MAY 74003397 MAY 74003397 Contact Us For Availability
15
MAY 7744P103-60 MAY 7744P103-60 Contact Us For Availability
16
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
16
MAY 2416F039-62 MAY 2416F039-62 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
17
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
17
MAY 5170D199-60 MAY 5170D199-60 Contact Us For Availability
17
MAY 5170P205-60 MAY 5170P205-60 Contact Us For Availability
17
MAY 5175D049-60 MAY 5175D049-60 Contact Us For Availability
17
MAY 5195D082-60 MAY 5195D082-60 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
18
MAY 16007454 MAY 16007454 Contact Us For Availability
18
MAY 8113P068-60 MAY 8113P068-60 Contact Us For Availability
18
TAPE MAY 8270P098-60 Contact Us For Availability
19
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
19
MAY 16000329 MAY 16000329 Contact Us For Availability
19
MAY 74002740 MAY 74002740 Contact Us For Availability
19
MAY 7744P069-60 MAY 7744P069-60 Contact Us For Availability
20
MAY 74003566 MAY 74003566 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
21
SCREW, HINGE MAY 7101P017-60 Contact Us For Availability
22
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
22
MAY 4804F038-60 MAY 4804F038-60 Contact Us For Availability
22
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
22
MAY 74003618 MAY 74003618 Contact Us For Availability
23
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
23
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
24
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
25
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
25
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
26
MAY 74001725 MAY 74001725 Contact Us For Availability
26
MAY 74002973 MAY 74002973 Contact Us For Availability
26
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
27
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
27
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
28
MAY 7701P133-60 MAY 7701P133-60 Contact Us For Availability
30
MAY 4005F398-80 MAY 4005F398-80 Contact Us For Availability
31
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
32
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
33
MAY 74001708 MAY 74001708 Contact Us For Availability
33
MAY 74001823 MAY 74001823 Contact Us For Availability
33
MAY 7403P228-60 MAY 7403P228-60 Contact Us For Availability
34
COVER, VENT MAY 4005F432-45 Contact Us For Availability
NI
MAY 15001304 MAY 15001304 Contact Us For Availability
× ![]()
