Model LG 37LV555H – Common Parts & Diagrams

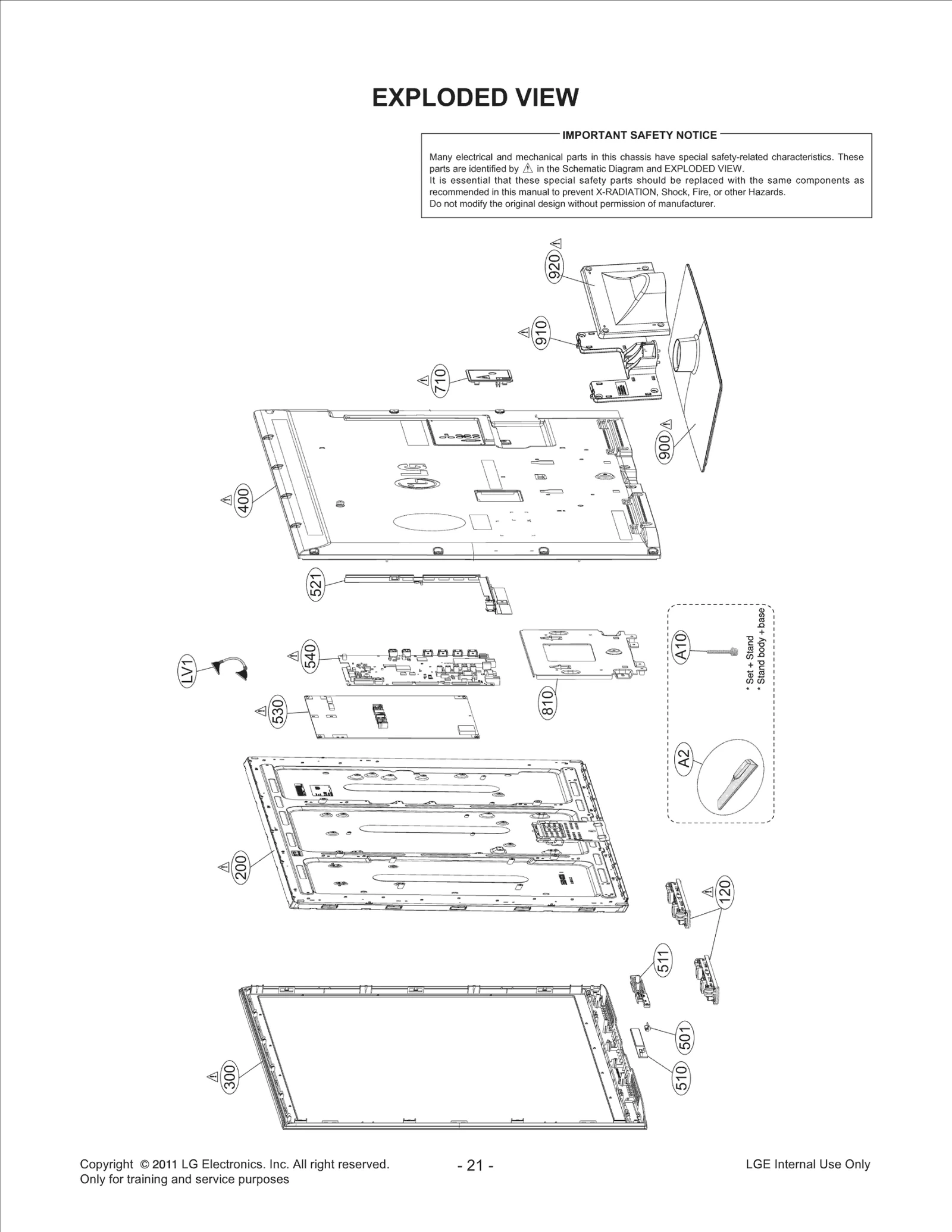

Diagram 0
Diagram 1
Common parts from model LG 37LV555H
200
LCD,Module-TFT LGE EAJ61751801 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73290509 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ83858613 Contact Us For Availability
501
Indicator LGE MES62378302 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR72671003 Contact Us For Availability
511
Bracket LGE MAZ62849602 Contact Us For Availability
521
Plate,Metal LGE MGJ63061103 Contact Us For Availability
530
Power Supply Assembly LGE EAY62169401 Contact Us For Availability
540
PCB Assembly LGE EBR74408401 Contact Us For Availability
700
Power Cord,Attach LGE EAD60817905 Contact Us For Availability
810
Supporter LGE MJH62276402 Contact Us For Availability
900
Base Assembly LGE AAN73211210 Contact Us For Availability
910
Bracket Assembly LGE ABA74049002 Contact Us For Availability
920
Bracket LGE MAZ63223702 Contact Us For Availability
A1
Manual,Owners LGE MFL62883102 Contact Us For Availability
A2
Remote Controller LGE MKJ40653832 Contact Us For Availability
A13
Plate LGE 49509K0178G Contact Us For Availability
A14
Plate LGE 49509K0179E Contact Us For Availability
AR613
Resistor,Array LGE EBC37094001 Contact Us For Availability
AR1520
RESISTOR,METAL GLAZE LGE 0RJ0512C687 Contact Us For Availability
C103
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C314
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C321
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C327
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C328
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C341
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C410
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C418
Capacitor,Ceramic,Chip LGE EAE58111001 Contact Us For Availability
C422
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C426
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C482
Capacitor,Ceramic,Ch LGE 0CK272BKF6A Contact Us For Availability
C485
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C514
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C525
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C672
Capacitor,Ceramic,Chip LGE 0CK226DC67A Contact Us For Availability
C678
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C679
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C814
Filter,LCR LGE EAM62070601 Contact Us For Availability
C909
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1010
Capacitor,Ceramic,Chip LGE EAE60685701 Contact Us For Availability
C1030
Capacitor,Ceramic,Chip LGE EAE60685801 Contact Us For Availability
C1033
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C1034
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C1067
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C1148
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C1235
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1300
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C1344
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C1402
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C1404
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C1413
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C1505
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C1526
Capacitor,Ceramic,Chip LGE EAE37992001 Contact Us For Availability
C1542
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C1639
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C1739
Capacitor,AL,Chip LGE 0CE476VF6DC Contact Us For Availability
C1802
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C1805
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
CA1
Harness,Single LGE EAD57675126 Contact Us For Availability
CA2
Harness,Single LGE EAD61646225 Contact Us For Availability
CA10
Harness,Single LGE EAD61052407 Contact Us For Availability
CA12
Harness,Single LGE 6631T20029J Contact Us For Availability
D401
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D501
Diode,Schottky LGE 0DSKE00058A Contact Us For Availability
D1400
Diode,TVS LGE EAH42720601 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60345909 Contact Us For Availability
IC101
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC102
IC,Receiver LGE EAN58270401 Contact Us For Availability
IC300
IC,Audio Amplifier LGE EAN62169301 Contact Us For Availability
IC301
IC,Audio Amplifier LGE EAN60969603 Contact Us For Availability
IC400
IC,DC,DC Converter LGE EAN60660502 Contact Us For Availability
IC401
IC,LDO Voltage Regulator LGE EAN54428101 Contact Us For Availability
IC403
IC,DC,DC Converter LGE EAN62206101 Contact Us For Availability
IC504
IC,CMOS LGE EAN61000301 Contact Us For Availability
IC505
IC,FRAM LGE 0IMMRRA001B Contact Us For Availability
IC600
IC,Voltage Regulator LGE EAN60918601 Contact Us For Availability
IC605
IC,DDR2 SDRAM LGE EAN61129702 Contact Us For Availability
IC800
IC,Video Processors LGE EAN62096701 Contact Us For Availability
IC900
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC902
IC,NAND Flash Memory LGE EAN61009301 Contact Us For Availability
IC903
IC,Reset LGE EAN60670101 Contact Us For Availability
IC1300
IC,Protocol Controller LGE EAN61150101 Contact Us For Availability
IC1301
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC1404
IC,Analog Switch LGE EAN60921001 Contact Us For Availability
IC1501
IC,Video Decode LGE 0IPRP00630E Contact Us For Availability
IC1502
IC,Multiplexer LGE EAN61488101 Contact Us For Availability
IC1602
IC,LDO Voltage Regulator LGE EAN61387601 Contact Us For Availability
IC1603
IC,DC,DC Converter LGE EAN60911601 Contact Us For Availability
IC1605
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC1606
IC,DC,DC Converter LGE EAN60991601 Contact Us For Availability
IC1700
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC1701
IC,Inverter LGE 0IPH741400C Contact Us For Availability
JK200
Connector,HDMI LGE EAG62611201 Contact Us For Availability
JK500
Jack,Modular LGE 6612E00043A Contact Us For Availability
JK1401
Connector,USB LGE EAG62571101 Contact Us For Availability
JK1402
Connector,DSUB LGE 6630G00001E Contact Us For Availability
JK1406
Jack,Modular LGE EAG35781004 Contact Us For Availability
JK1701
Jack,Phone LGE EAG61030002 Contact Us For Availability
JK1703
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK1801
Jack,Modular LGE 6612E00008C Contact Us For Availability
L314
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L404
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L1601
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LV1
Cable,FFC LGE EAD61668639 Contact Us For Availability
M6
Gasket LGE MDS62110205 Contact Us For Availability
M9
Gasket LGE MDS62110209 Contact Us For Availability
P300
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P701
Connector,Wafer LGE 6630V93270J Contact Us For Availability
P703
Connector,Wafer LGE 6630V90141D Contact Us For Availability
P1700
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
Q407
FET LGE EBK60752501 Contact Us For Availability
Q408
TR,Bipolar LGE EBK61012501 Contact Us For Availability
Q506
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q514
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1806
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R119
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R129
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R132
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R144
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R409
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R422
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R429
RESISTOR CHIP 75K 1/10W 5 D.R/ LGE 0RH7502D622 Contact Us For Availability
R432
Resistor,Chip LGE 0RJ5602D477 Contact Us For Availability
R433
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R438
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R439
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R441
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R443
Resistor,Chip LGE 0RJ1100D677 Contact Us For Availability
R445
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R454
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R457
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R458
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R614
Resistor,Chip LGE 0RH2400C422 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R933
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R946
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R961
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R963
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R996
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R1007
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R1014
Resistor,Chip LGE 0RJ3901C478 Contact Us For Availability
R1015
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R1069
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R1071
Wire Pad LGE EBC40167001 Contact Us For Availability
R1101
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R1114
Resistor,Chip LGE 0RJ1500C678 Contact Us For Availability
R1124
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R1125
Resistor,Chip LGE 0RJ4990C478 Contact Us For Availability
R1150
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R1153
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1319
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1324
Resistor,Chip LGE 0RJ1691D477 Contact Us For Availability
R1333
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R1375
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1433
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R1462
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R1502
Resistor,Chip LGE EBC60973201 Contact Us For Availability
R1506
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R1508
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1606
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R1624
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R1626
Resistor,Chip LGE 0RJ9103C478 Contact Us For Availability
R1627
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R1733
Resistor,Chip LGE 0RJ0342D477 Contact Us For Availability
R1743
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R1768
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R1774
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R1800
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1871
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1888
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R5011
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R5050
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R5098
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R5111
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R5128
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R5138
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R5139
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R9116
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R9118
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
TU100
Tuner,Analog/Digital LGE EBL60860105 Contact Us For Availability
TU1800
Tuner,RF Modulator LGE EBL61020101 Contact Us For Availability
X100
Crystal LGE 6212AB2015C Contact Us For Availability
X500
Crystal LGE EAW30067102 Contact Us For Availability
X1001
Crystal LGE EAW58812611 Contact Us For Availability
X1500
RESONATOR,CRYSTAL LGE 6202TST001H Contact Us For Availability
ZD500
Diode,TVS LGE EAH33945901 Contact Us For Availability
× ![]()
Login and Registration Form
